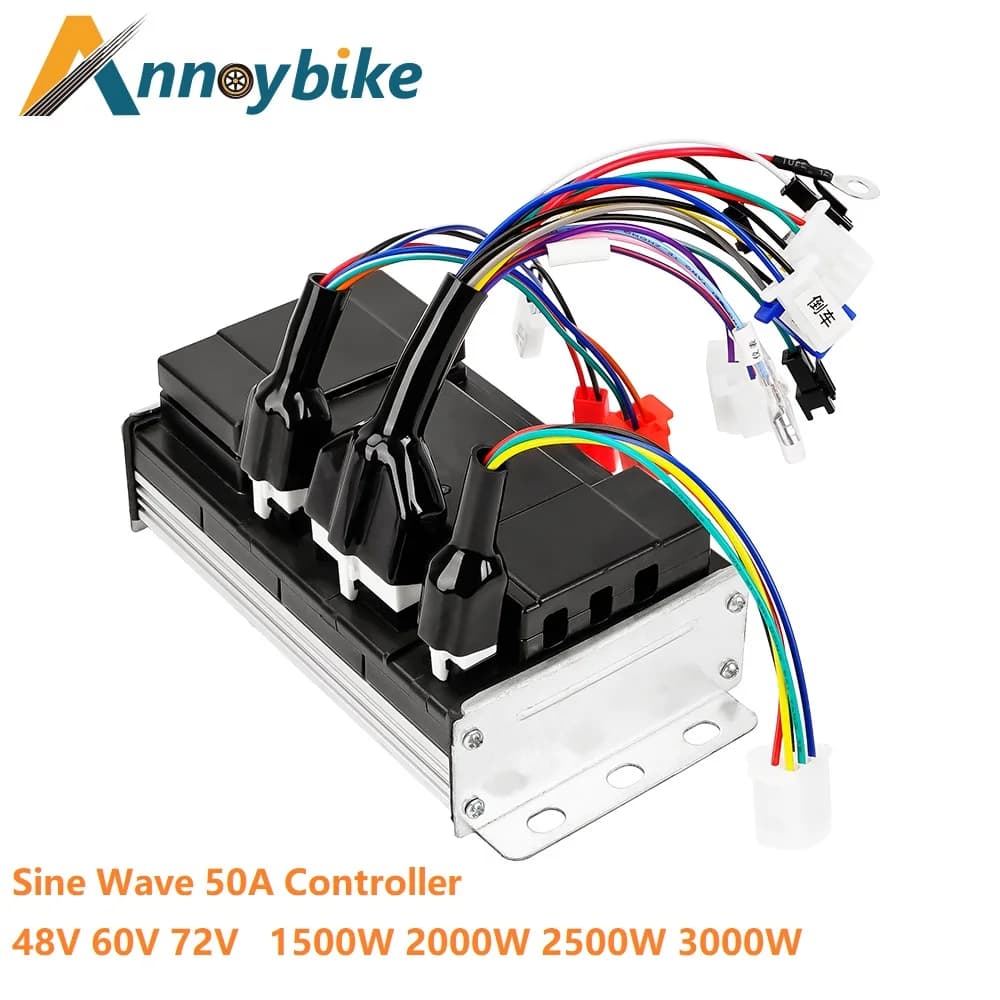

Sine Wave Controller 48V 60V 2500W 72V 3000W Electric Bicycle Brushless DC Controller 50A high power Scooter Motor Controller

Controller ：Sine wave

Voltage: 36v-84v universal, after connecting the learning line, identify the voltage according to the battery condition.

Power: 1000W-3000W

Current Limit: Rated current 45A, maximum output 50A.

Since the process is die-casting and injection molding, the product itself will have small flaws, but we guarantee that the product and internal components are 100% brand new items.

How to connect ？

1. connect the battery

2. connect the controller throttle line（color to color），connect electric lock

（if your throttle not have key lock，controller key lock can be shorted）

3. connect the hall line(if motor without hall line, don't need connect)

4.docking the two intelligent recognition lines, the wheel will forward or reverse.

(11.if wheel forward ,Separate the intelligent recognition line.

2.1 if wheel reverse, Separate the intelligent recognition line. Docking the intelligent recognition line again，

if wheel forward ,Separate the self-learning line.)

5.other functions can be connected as needed.
