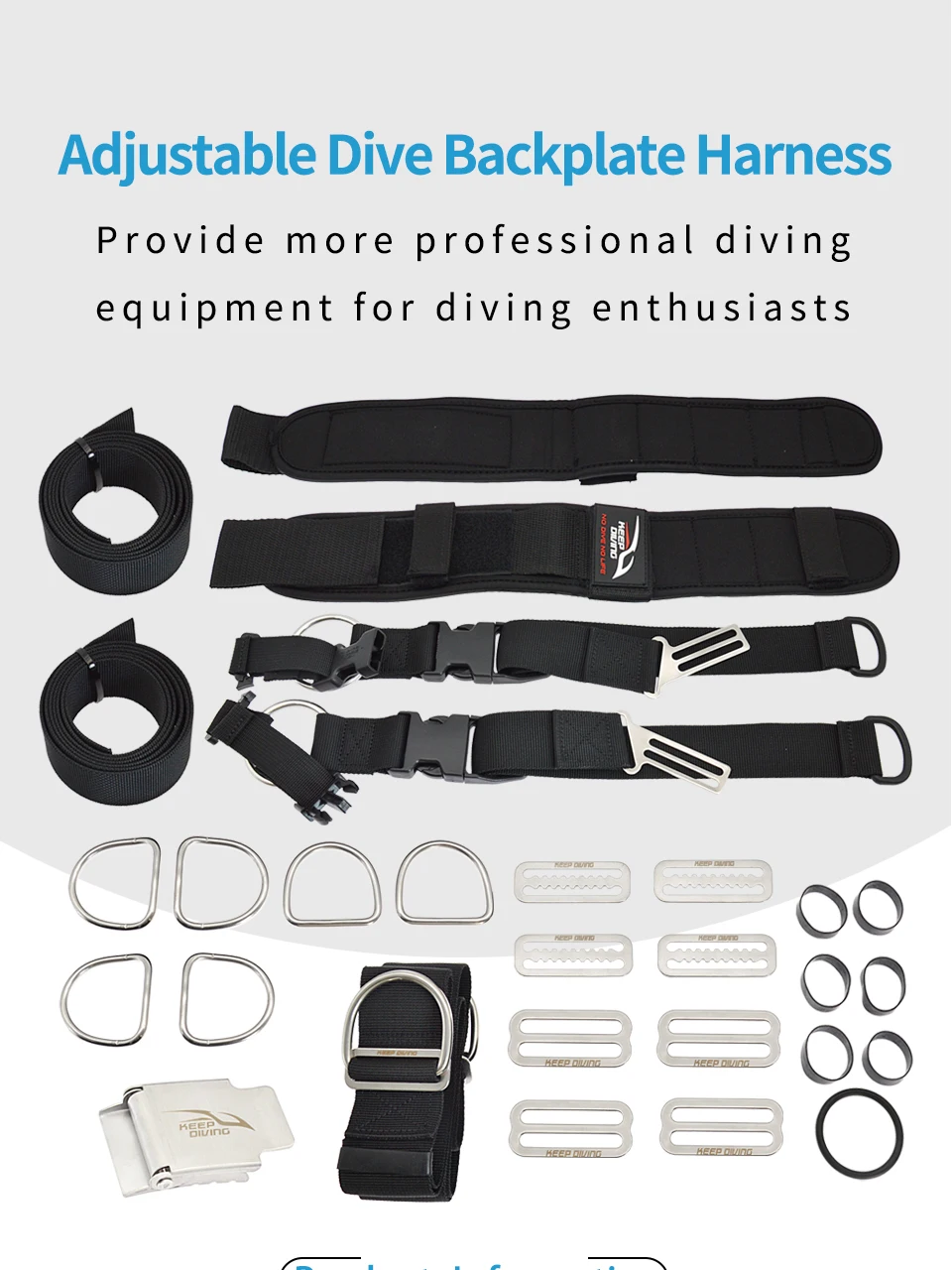

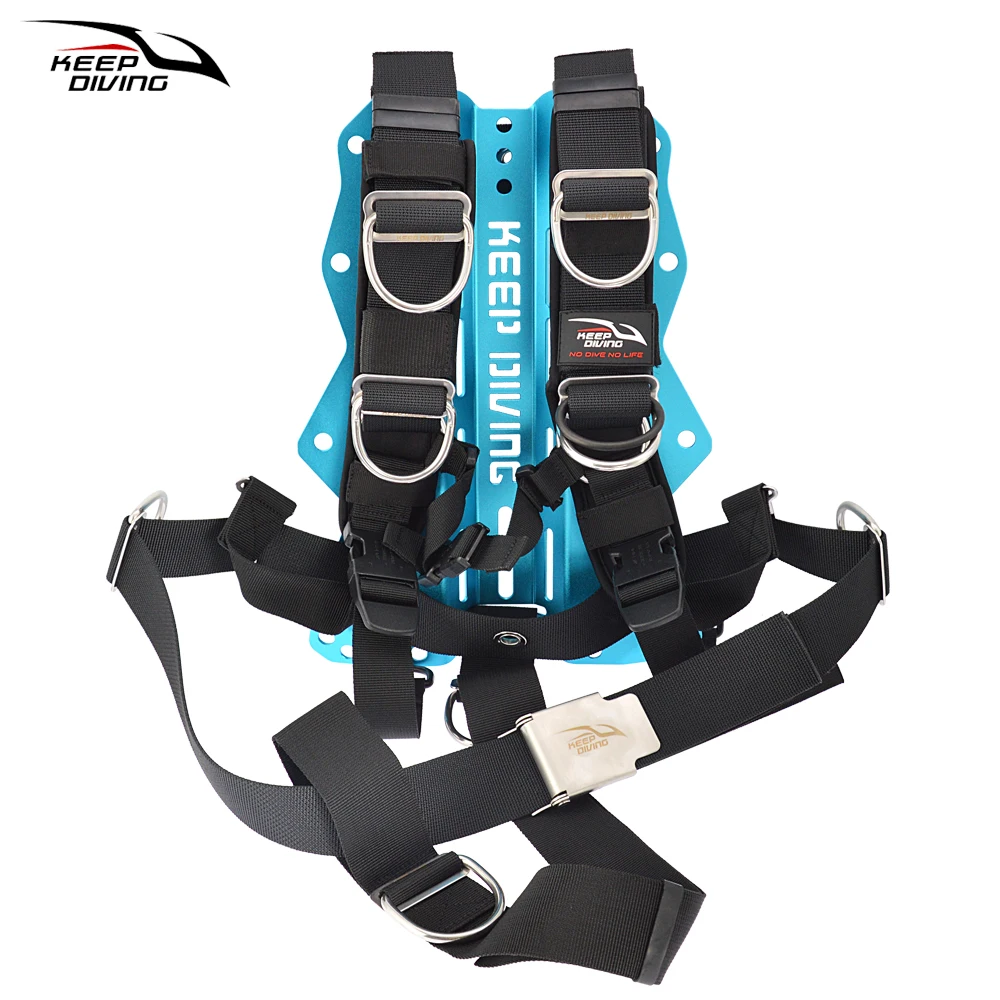

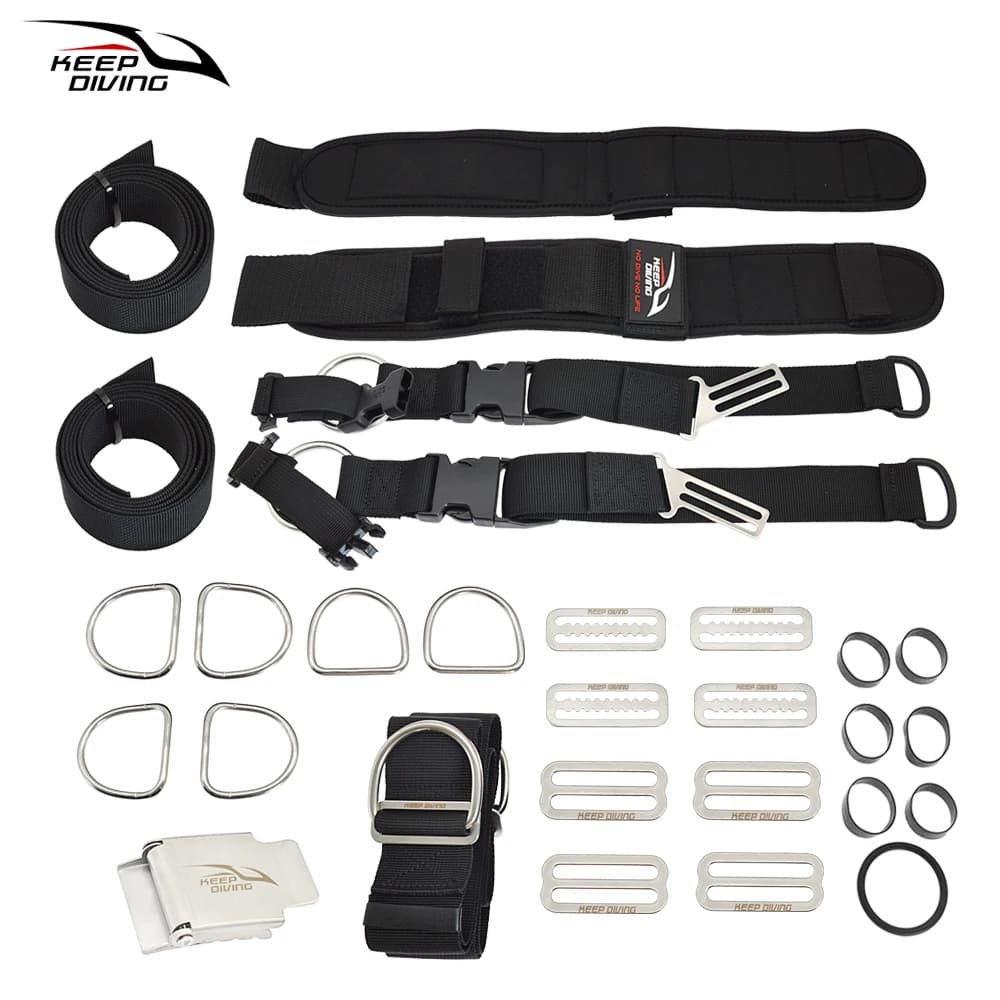

Scuba Diving Adjustable Backplate Harness Set BCD Ultralight Backplane Accessories Crotch Strap Weight Belt Dive Accessories

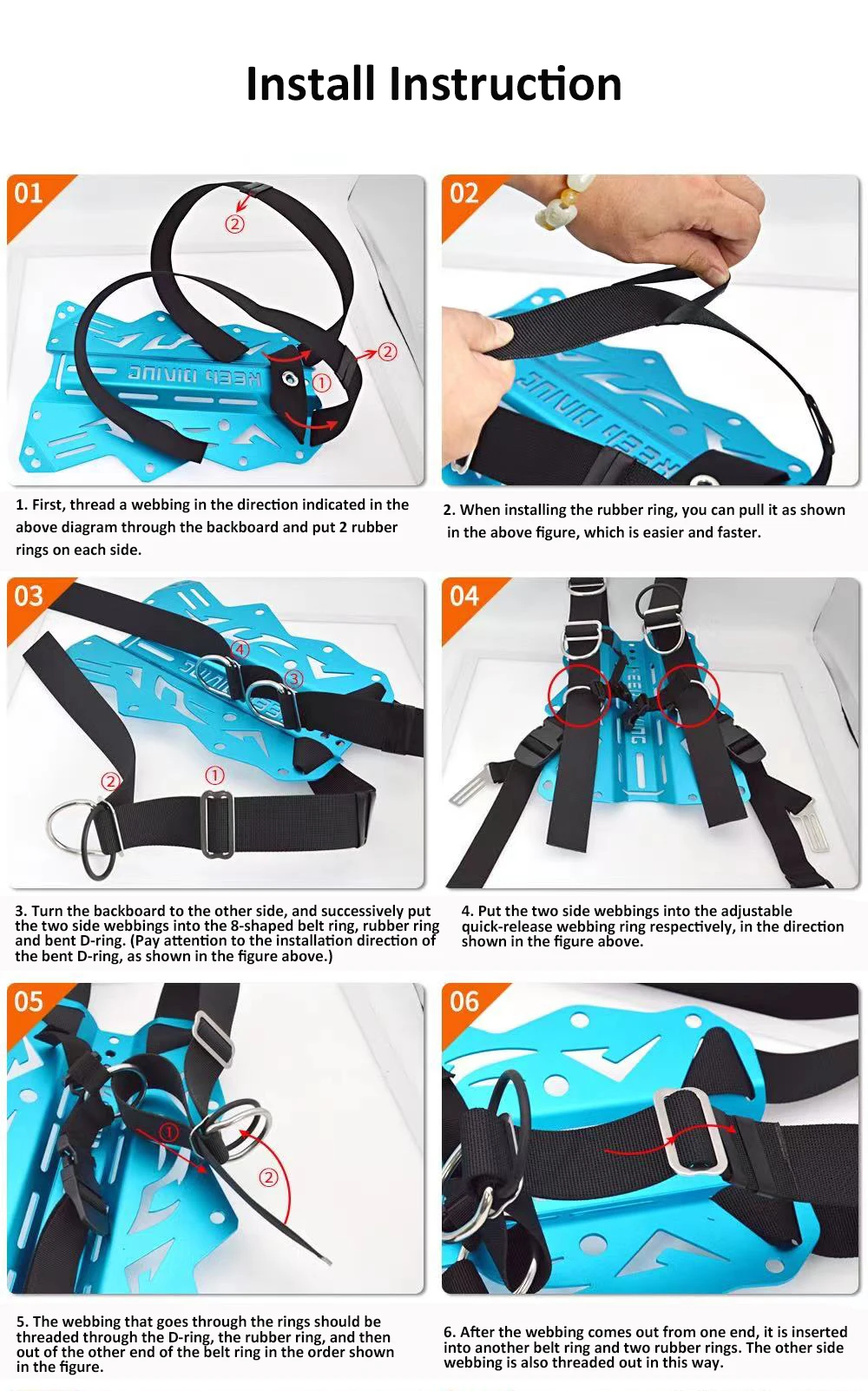

1. First, thread a webbing in the direction indicated in the above diagram through the backboard and put 2 rubber rings on each side.

2. When installing the rubber ring, you can pull it as shown in the above figure, which is easier and faster.

3. Turn the backboard to the other side, and successively put the two side webbings into the 8-shaped belt ring, rubber ring and bent D-ring. (Pay attention to the installation direction of the bent D-ring, as shown in the figure above.)

4. Put the two side webbings into the adjustable quick-release webbing ring respectively, in the direction shown in the figure above.


5.The webbing that goes through the rings should be threaded through the D-ring, the rubber ring, and then out of the other end of the belt ring in the order shown in the figure.

6.After the webbing comes out from one end, it is inserted into another belt ring and two rubber rings. The other side webbing is also threaded out in this way.

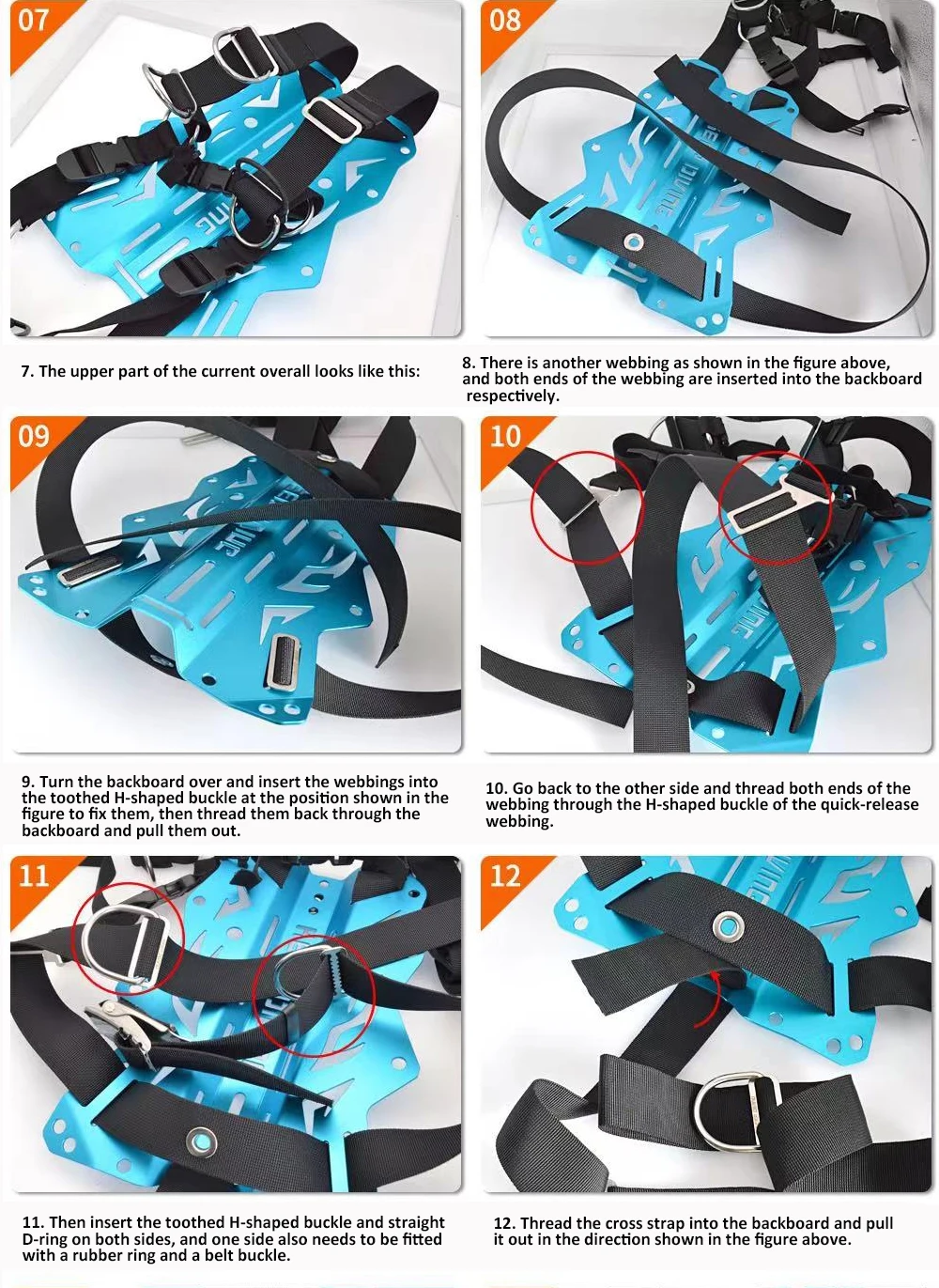

7. The upper part of the current overall looks like this:

8. There is another webbing as shown in the figure above, and both ends of the webbing are inserted into the backboard respectively.

9. Turn the backboard over and insert the webbings into the toothed H-shaped buckle at the position shown in the figure to fix them, then thread them back through the backboard and pull them out.

10. Go back to the other side and thread both ends of the webbing through the H-shaped buckle of the quick-release webbing.

11. Then insert the toothed H-shaped buckle and straight D-ring on both sides, and one side also needs to be fitted with a rubber ring and a belt buckle.

12. Thread the cross strap into the backboard and pull it out in the direction shown in the figure above.

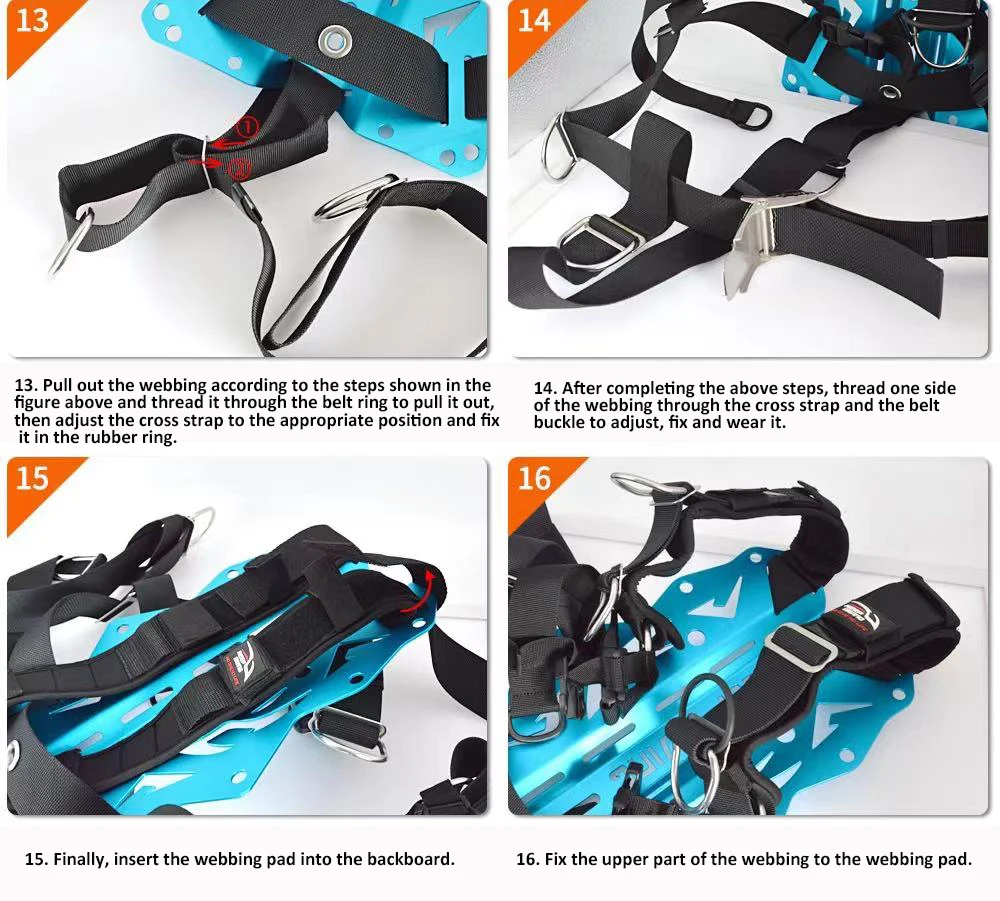

13. Pull out the webbing according to the steps shown in the figure above and thread it through the belt ring to pull it out, then adjust the cross strap to the appropriate position and fix it in the rubber ring.

14. After completing the above steps, thread one side of the webbing through the cross strap and the belt buckle to adjust, fix and wear it.

15. Finally, insert the webbing pad into the backboard.

16. Fix the upper part of the webbing to the webbing pad.
