Electric Wheelbarrow Kit 24V/36V/48V 250W/350W/400W/500W Brushless Controller Brake Thumb Throttle Reverse for Wheelbarrow

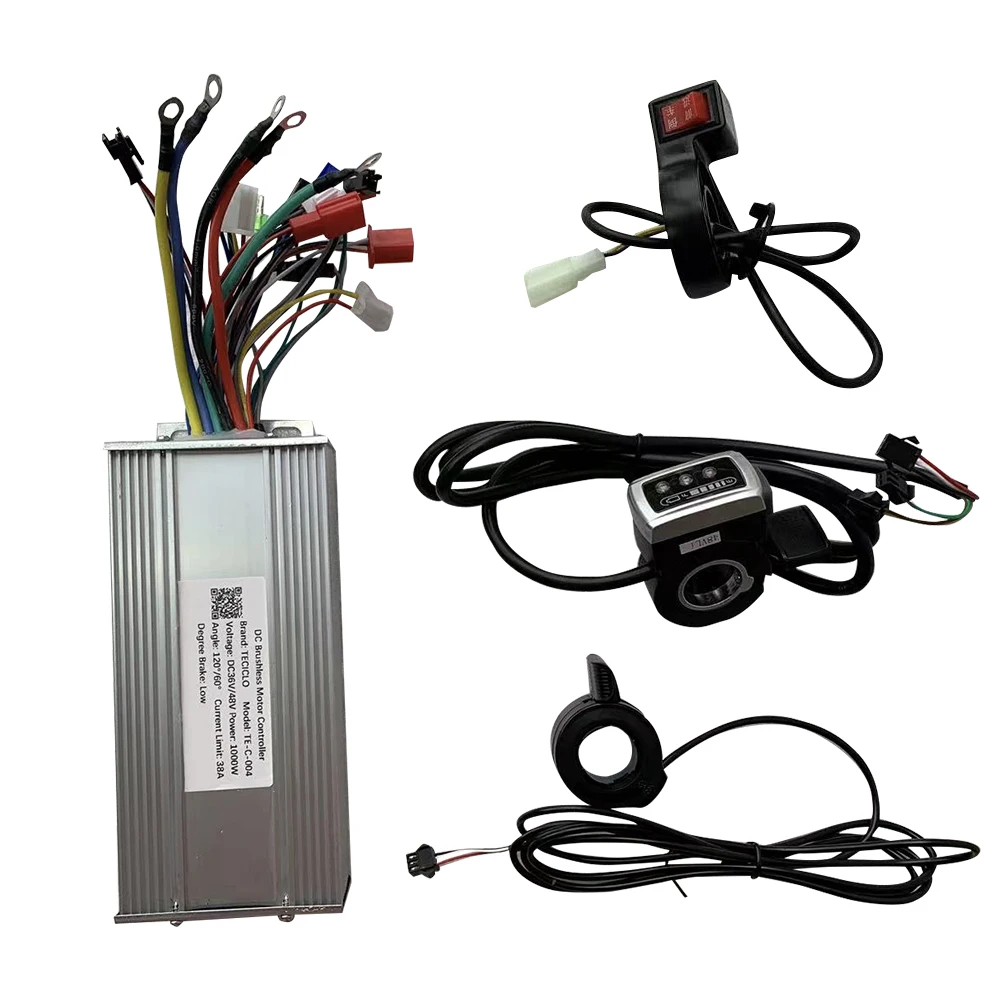

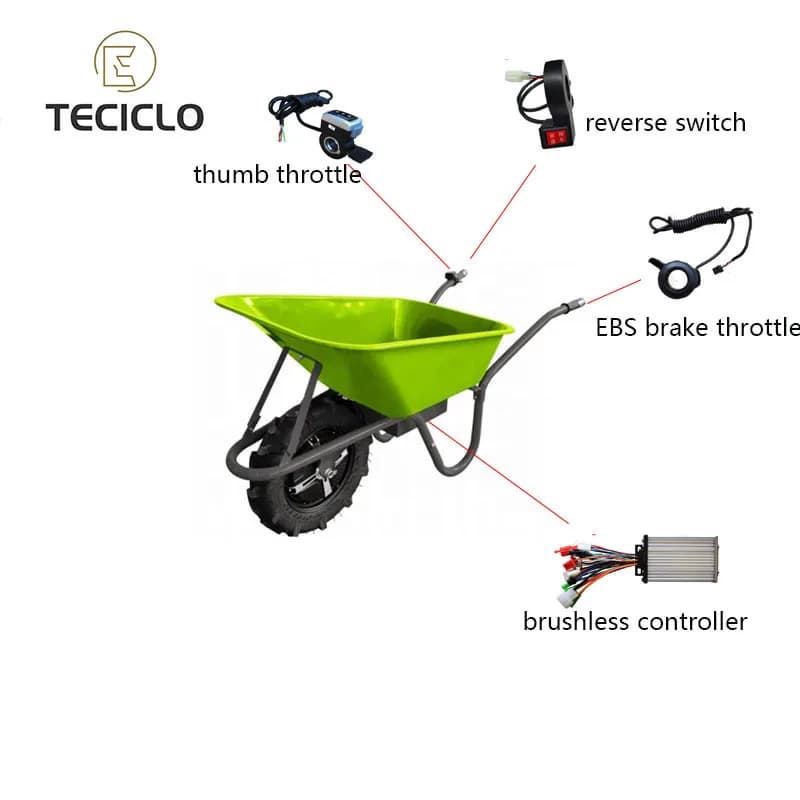

Package included

brushless controller *1
thumb throttle *1
EBS brake throttle*1
Reverse switch *1

You can design your garden wheelbarrow with those accessories， it's not a complete wheelbarrow, it's just wheelbarrow parts, besides, you also need to buy hub motor wheel, battery , frame to make the whole system work.

Picture with Parameter

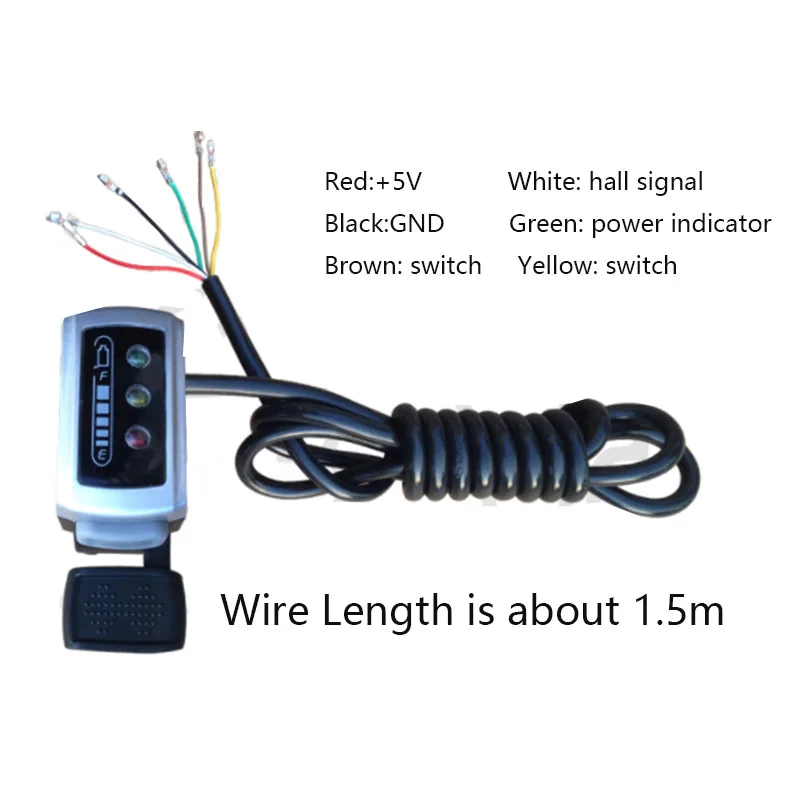

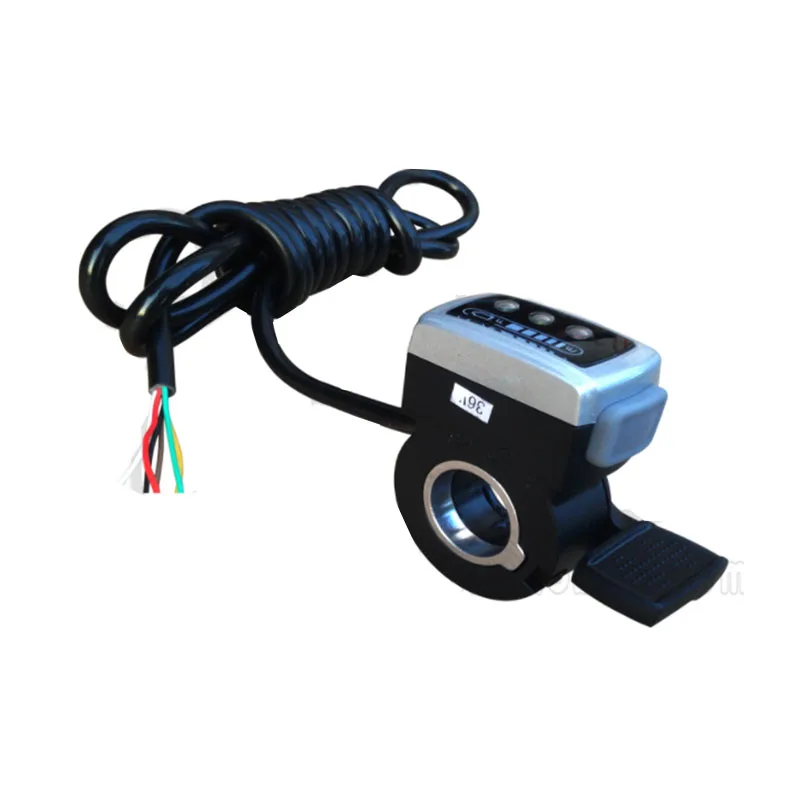

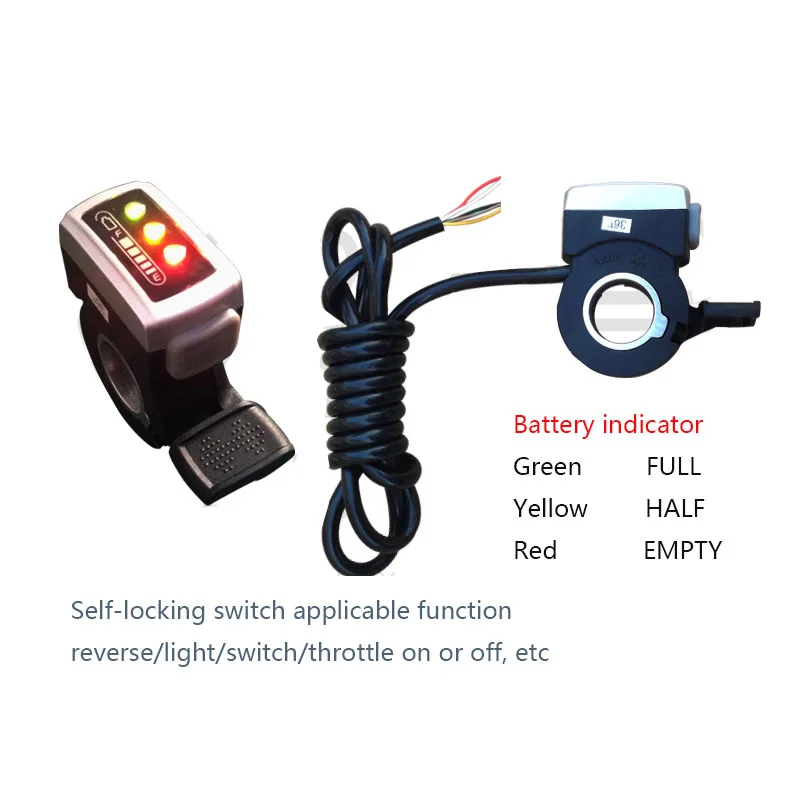

Thumb Throttle

• Voltage: 24V 36V 48V
• Type: thumb throttle with on-off switch and battery indicator
• Working Voltage: 5V
• Output Voltage:0.8-4.2V
• Size:L 69mm W 69mm H 30mm
• Wiring: Six Core wiring
• Wiring Lengh:1.5M
• Materials: PC/ABS
• Waterproof:IPX5

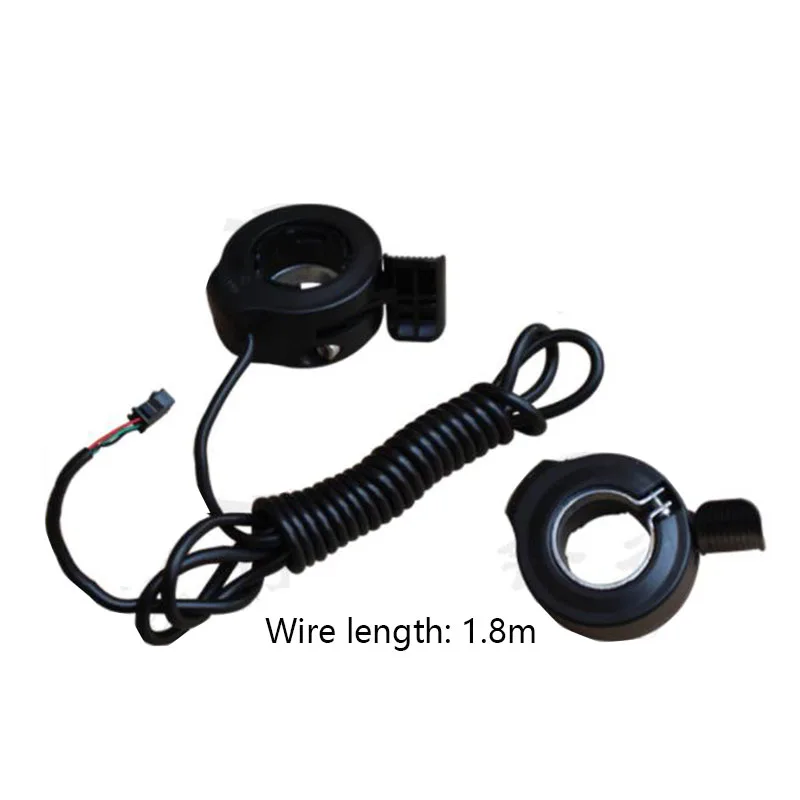

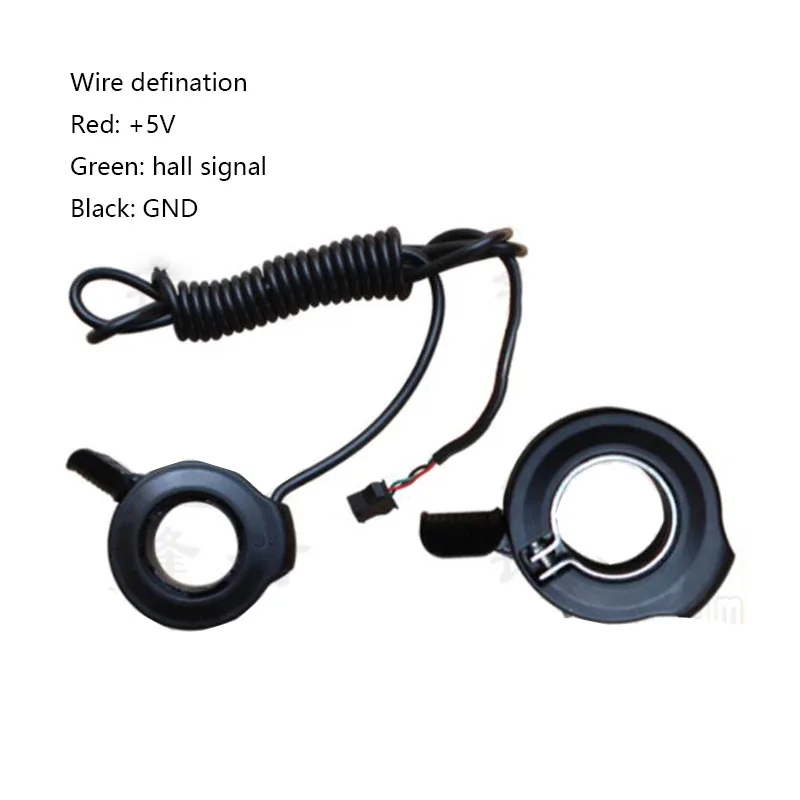

EBS brake handle

• Size: Mounting hole diameter 22mm
• Color: Black
• Size: L60mm W30mm H47.6mm
• Cable：1.8M
• Materials: ABS+ PC
• Working Voltage: 5V
• Output Voltage:0.8-4.2V
• Waterproof: IPX4
• Used for: electric brake

the electronic brake is progressive so that you can regulate the brake intensity

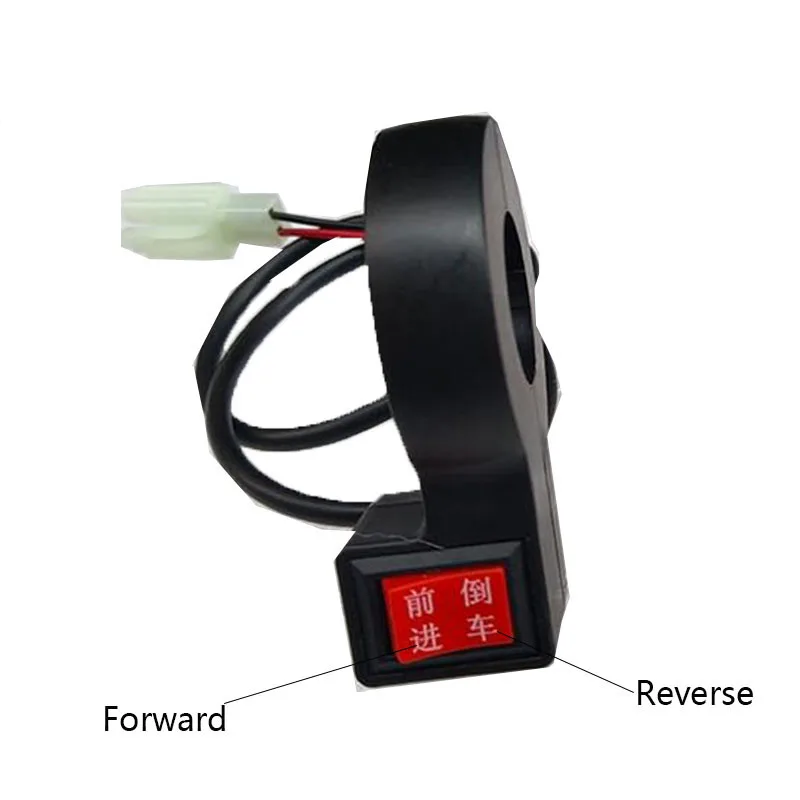

Reverse Switch

• Material: ABS plastic
• Weight:200g
• Fits for 22.5mm Handlebars
• Equipped with 45cm cable
• Waterproof: IPX5

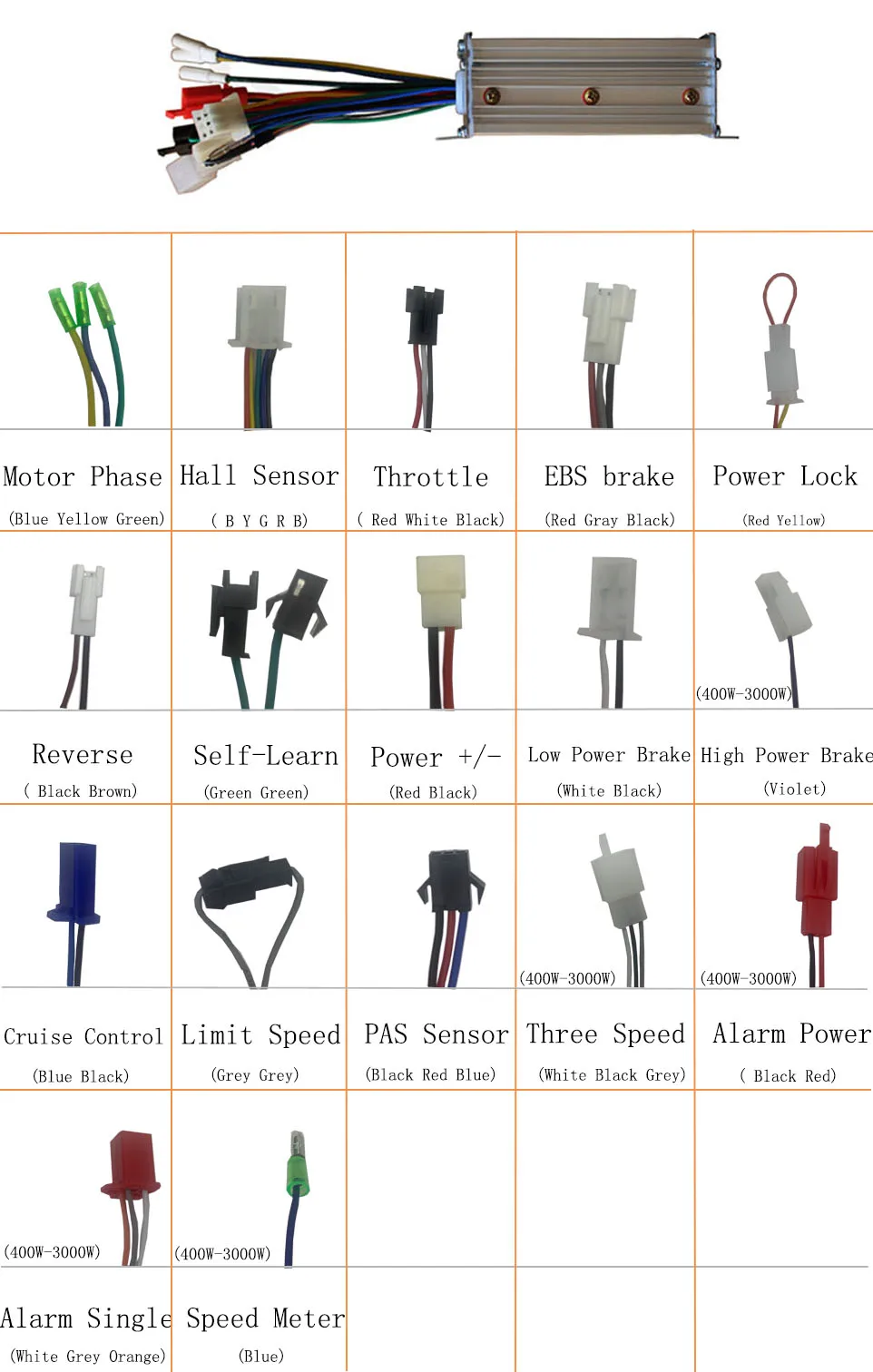

Controller Wire

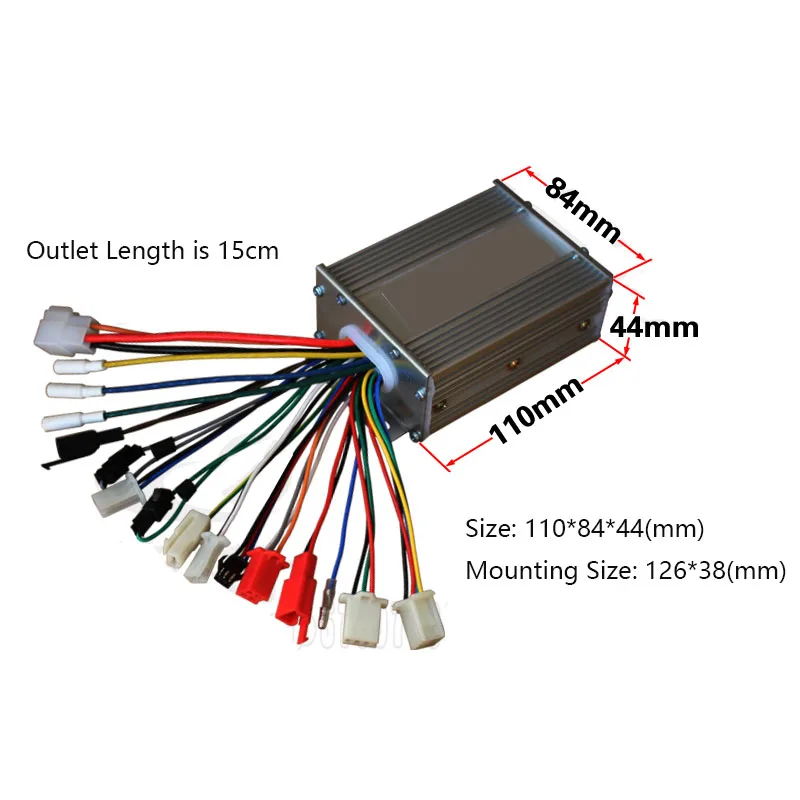

250W/350W Controller

Rated voltage: 24V 36V 48V

Rated power: 250W 350W

Max current:10-23A default 15A

Battery undervoltage： 20V/31V/42V

Matched motor phase angle: 60°/120°

400W/450W Controller

Rated voltage: 24V 36V 48V

Rated power: 400W 450W 500W

Max current:17-26A default 22A

Battery undervoltage： 20V/31V/42V

Matched motor phase angle: 60°/120°

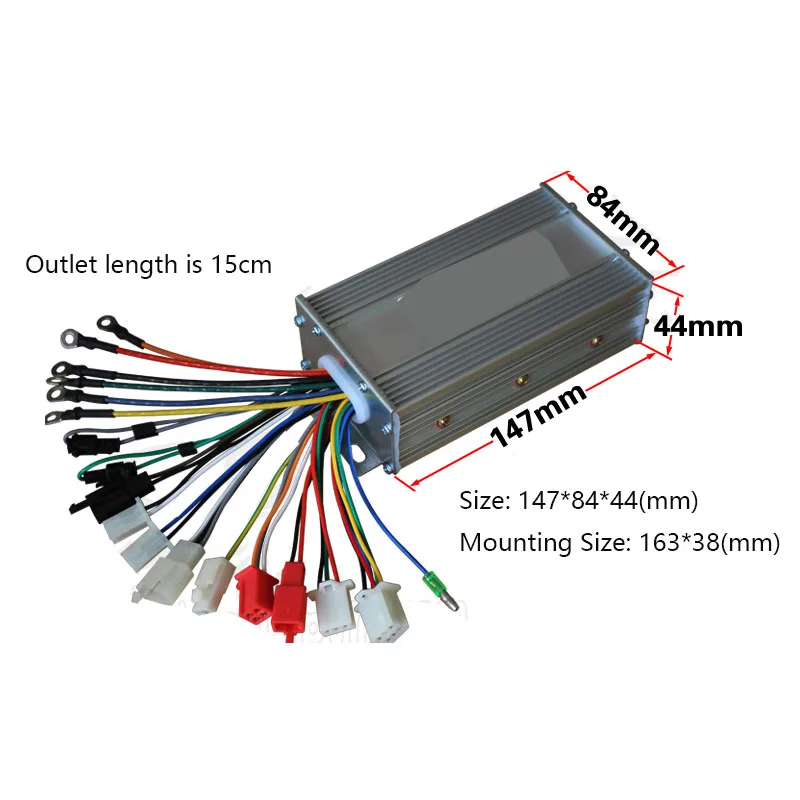

500W 600W Controller

Rated voltage: 24V 36V 48V

Rated power: 500W 600W

Max current:22-35A default 28A

Battery undervoltage： 20V/31V/42V

Matched motor phase angle: 60°/120°

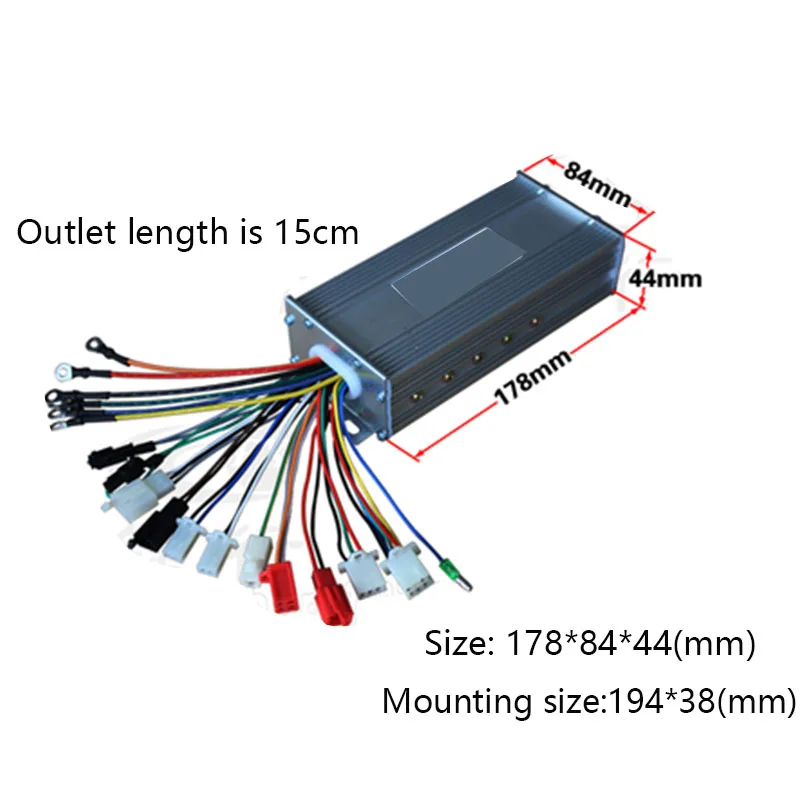

800W/1000W Controller

Rated voltage: 36V 48V

Rated power: 800W/1000W

Max current:38A

Battery undervoltage： 31V/42V

Matched motor phase angle: 60°/120°

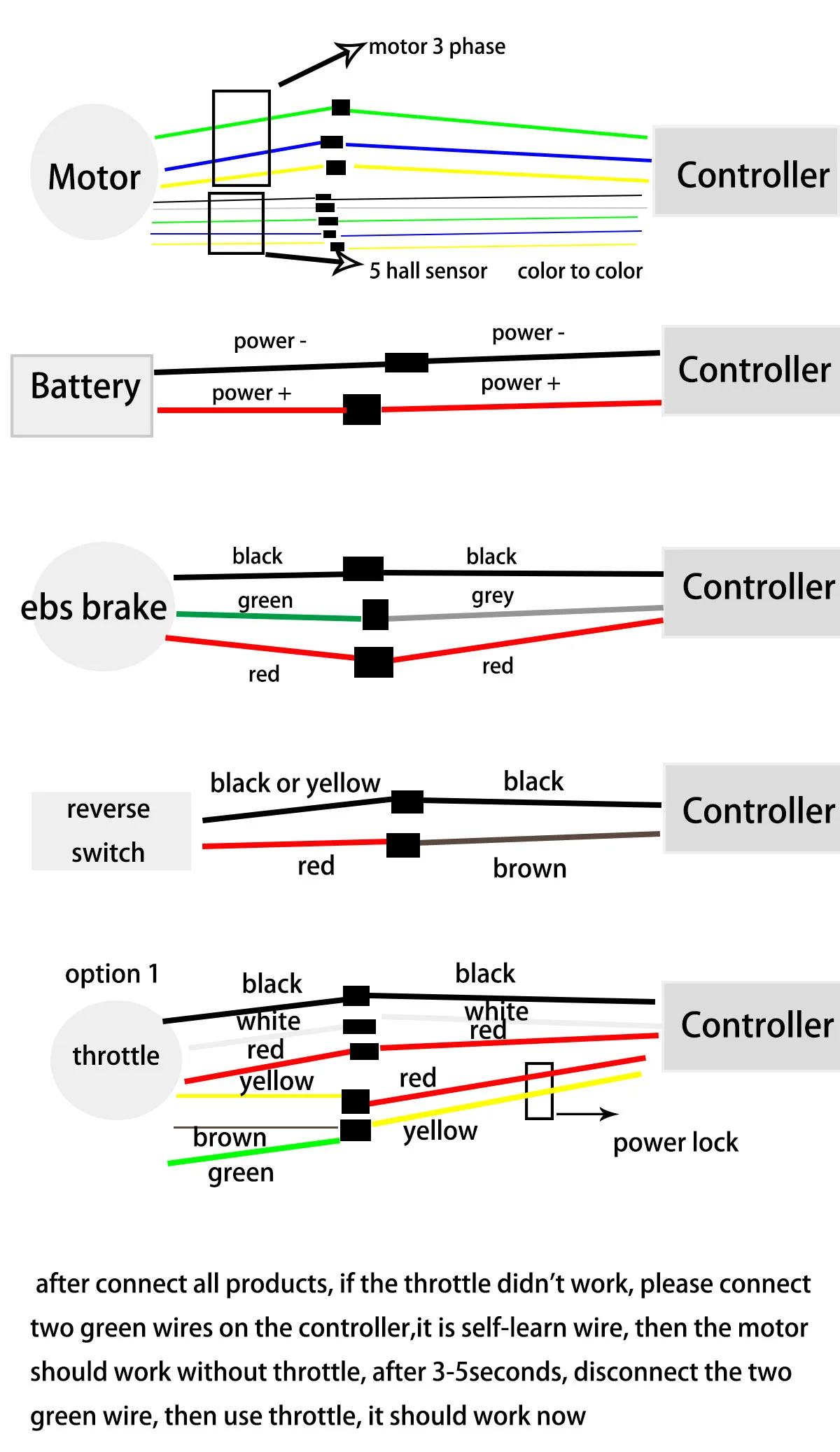

Wire Connection Guide

this is a guide for you when you connect all parts, motor and battery are not including in this selling kit
