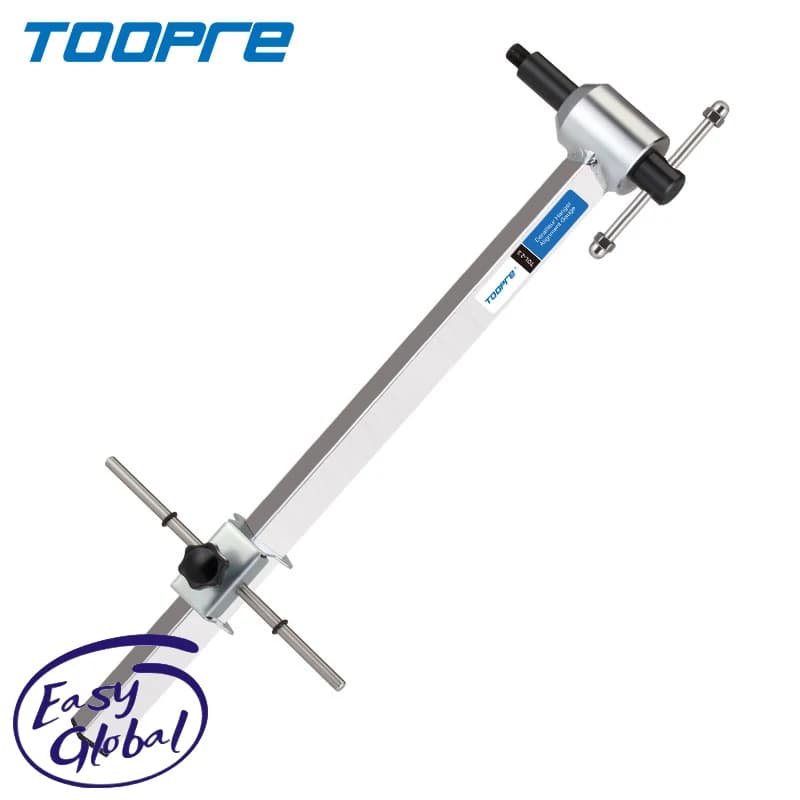

TOOPRE Bike Frame Tail Hook Straightener Lifting Lug Pull Tool Derailleur Hanger Straightener MTB Stainless Steel Tail Aligner

We offer discount for large quantity. Welcome to contact with us!

Brand: TOOPRE

Product name: Tail hook correction tool

Material: 304 stainless steel

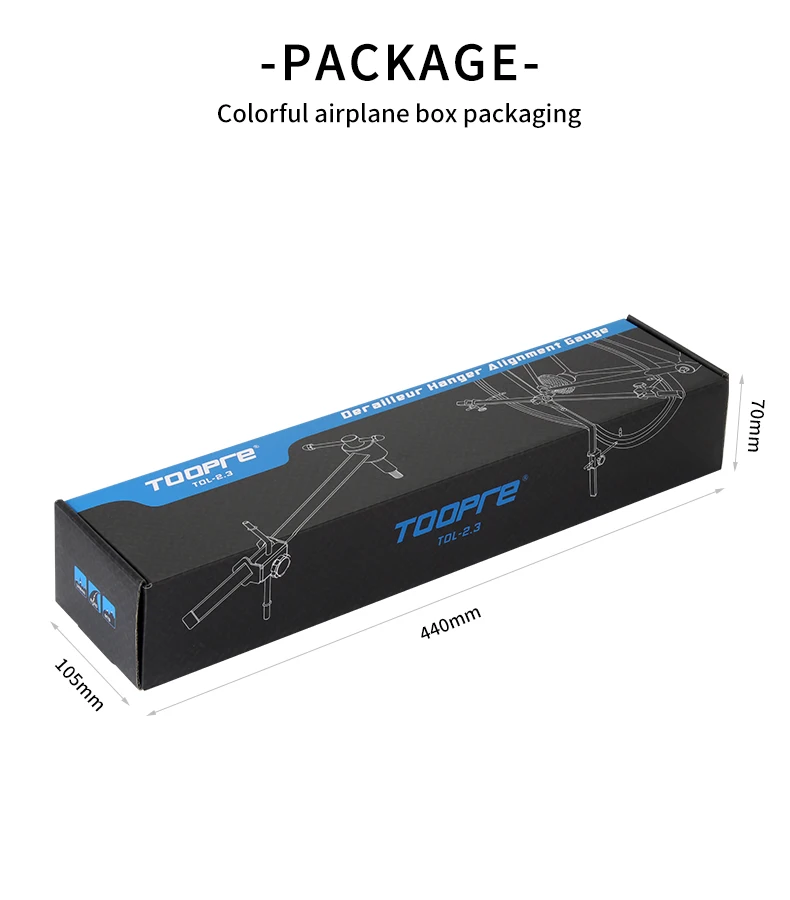

Packaging size: 430X100X70mm

Weight: approximately 1044g/box

Function: Used to calibrate the rear variable lifting eye to solve many transmission speed problems, especially in locating the rear variable speed system.

(One built-in English instruction manual)

Features: 304 stainless steel body, electroplated heat treatment, high strength, corrosion resistance, 360 ° rotation correction, CNC milling thread, tight fit, easy adjustment of measuring rod.

The 304 stainless steel diamond correction rod is made of 304 stainless steel material, electroplated and heat treated, with high hardness and corrosion resistance.

Lock the rotating rod, with precise threads and a tight fit. Rotate the positioning knob clockwise to screw the bolt in and lock it with the lifting lug.

Press the sliding bracket to lock and adjust the distance between the measuring rod and the wheel hub. Measure the deviation between the tail hook and the wheel rim.

360 ° rotation correction, with the rotating rod as the axis and 360 ° rotation, measure the distance between the wheel rim and the tail hook to correct the tail hook.

Position the O-ring by moving the measuring rod to contact the wheel, and then move the O-ring to align with the sliding bracket to locate it.
