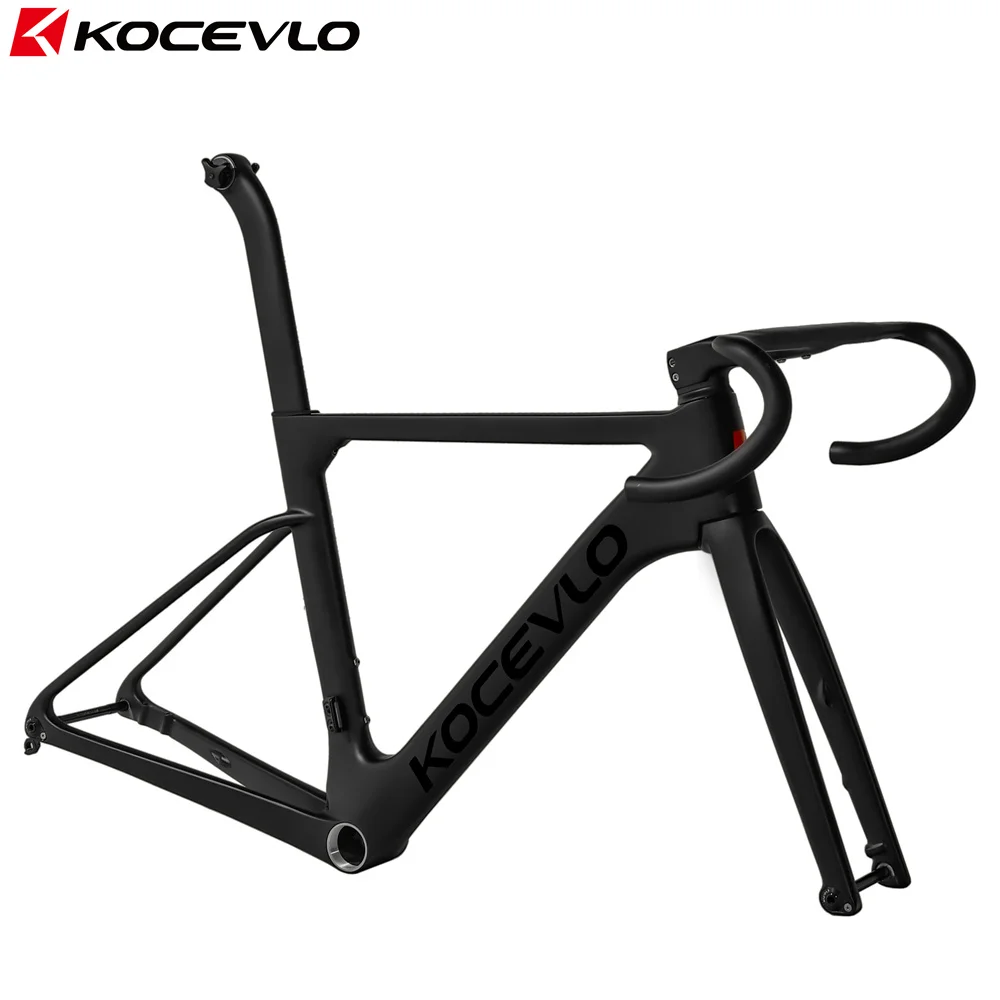

KOCEVLO Carbon Road Frame Disc Brake Max 700*32C Road Bicycle Frameset Full Internal Cable 44-56cm Carbon Bike Frames

If the matching handle size is not suitable,

you can buy a separate handlebar

Please click here to purchase the handle separately

KOCEVLO Carbon Road Disc Frame Road Bicycle Frameset

Product Description:

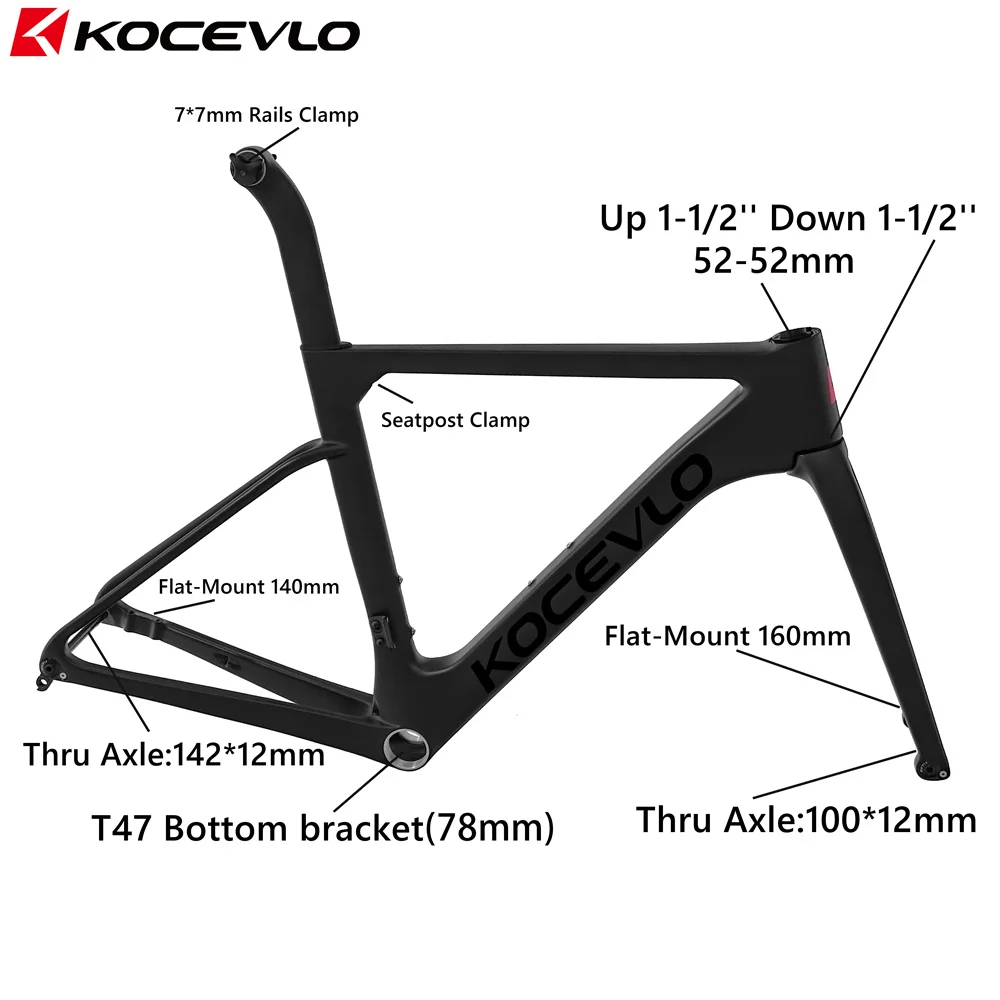

1.Brand Name:KOCEVLO

2.Frame Type:RD01 Carbon Road Frame

3.Frame Material:T1100 Toray Carbon Fiber

4.Bike Type:Carbon Road Bike

5.Carbon Weave:UD

6.Finish:Matte

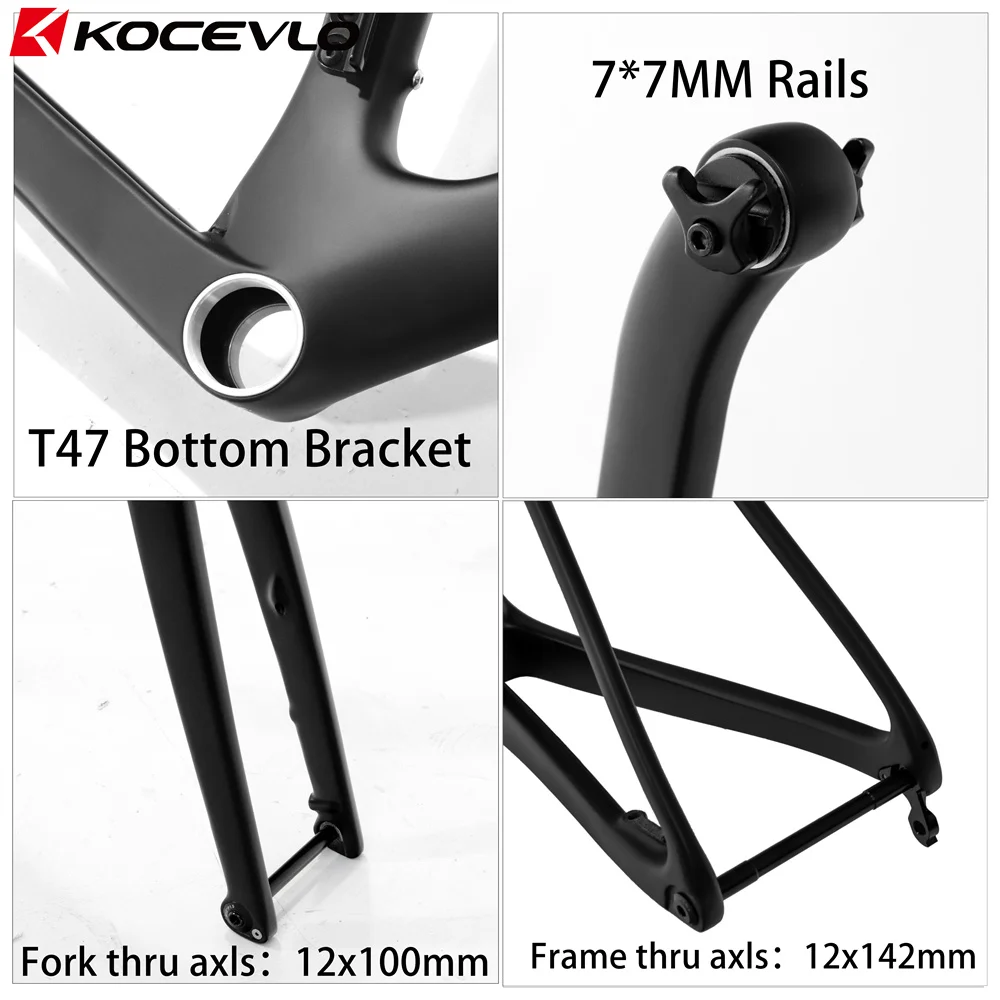

7.Bottom Bracket:T47 (46*78mm)

8.Headsets:Up 1-1/2'' Down 1-1/2''

9.Brake Type:Disc Brake

10.Disc Rotor Size:140/160mm

11.Fork Thru Axle:100*12mm

12.Frame Thru Axle:142*12mm

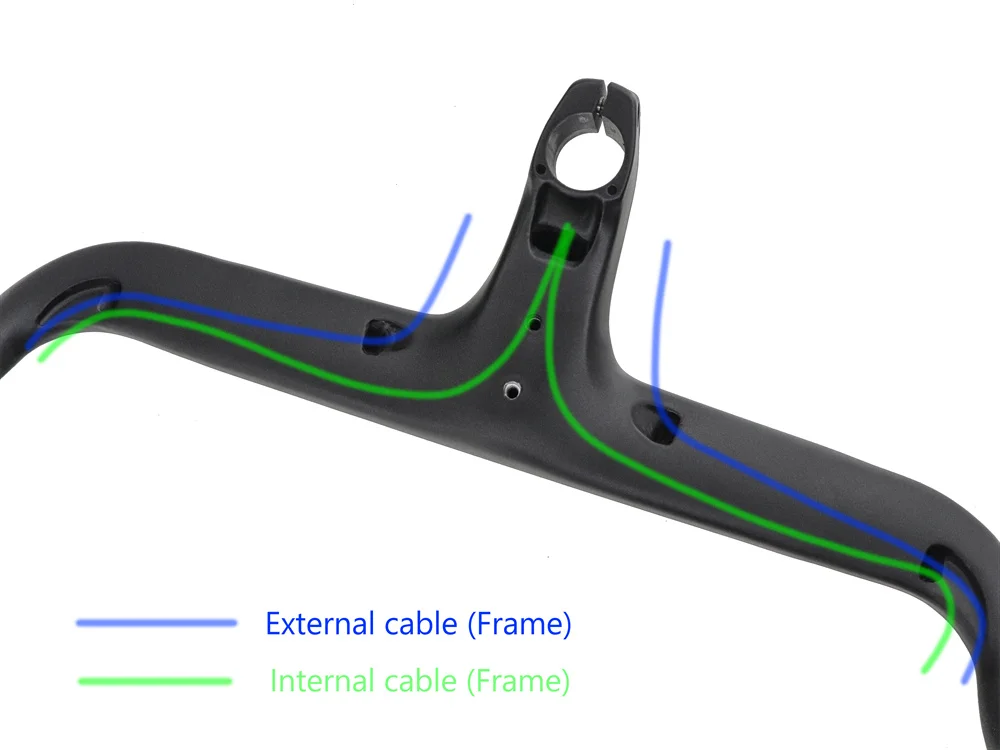

13.Cable Routing:Full Internal Cable Routing

14.Front Derailleur:Stationary Type

15.Suitable Derailleur:Mechanical Dechaincal

16.Weight:Frame 1170g (Size:47cm),Fork 470g ,Seatpost 235g, These weights include metal fittings

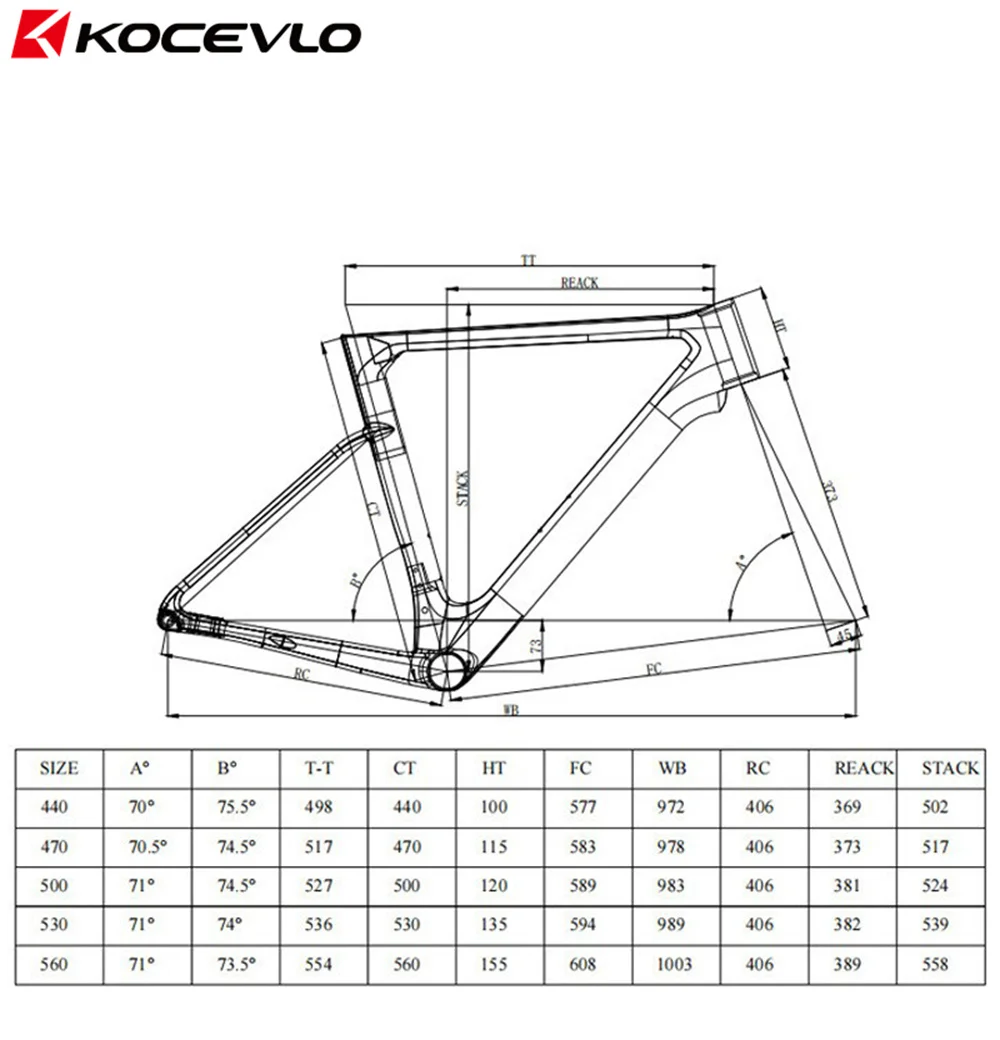

17.Frame Size:44/47/50/53/56cm

18.Handlebar Wiath:380/400/420mm

19.Stem Length:80/90/100/110mm

20.Max Tire Size:700*32C

23.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,Thru Axle Rod,Aluminum Parts

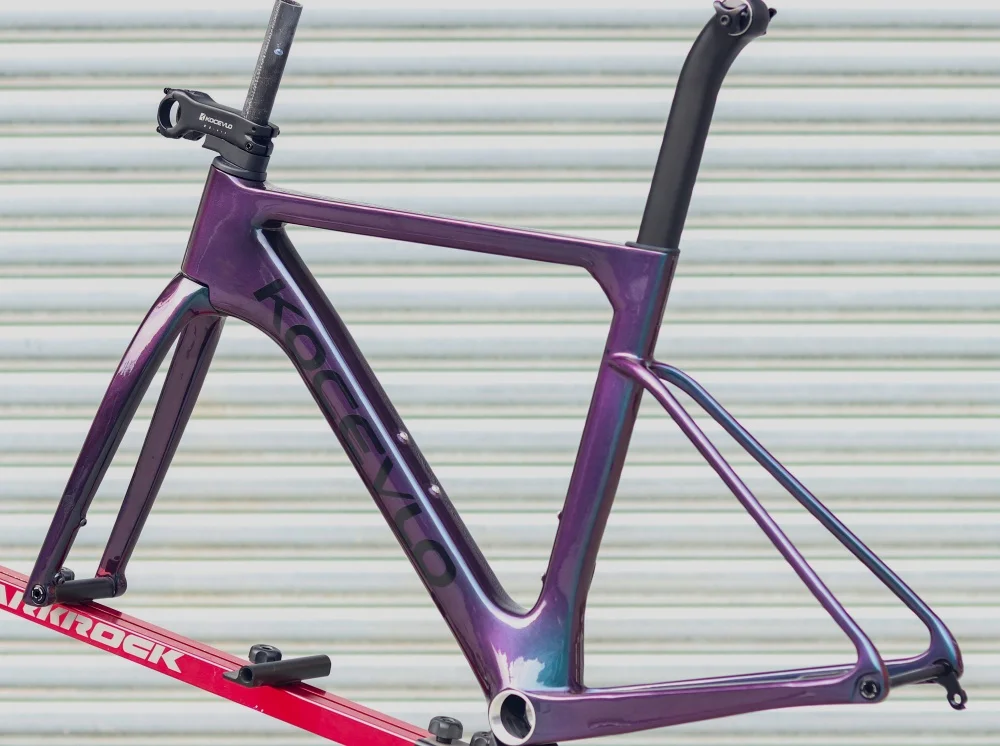

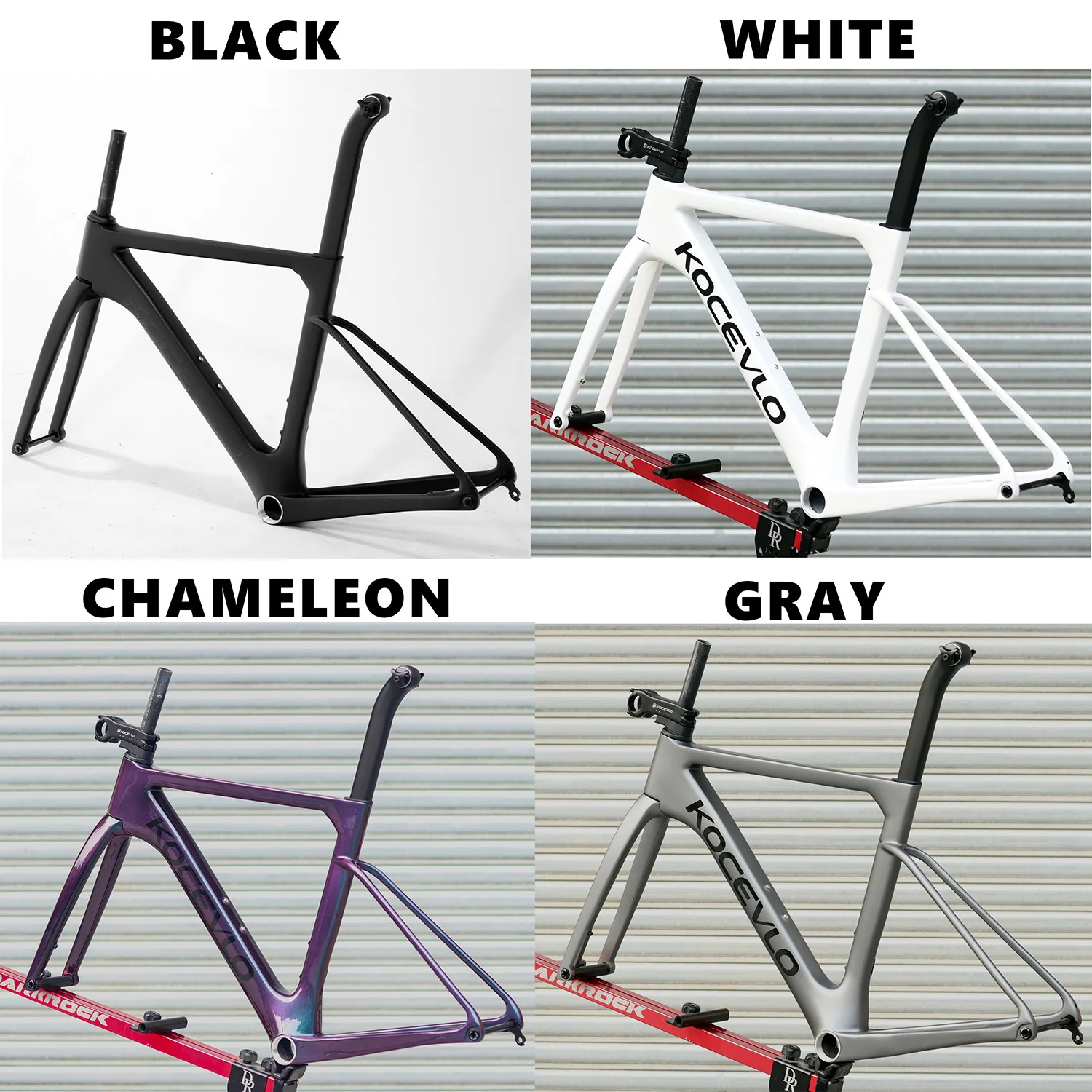

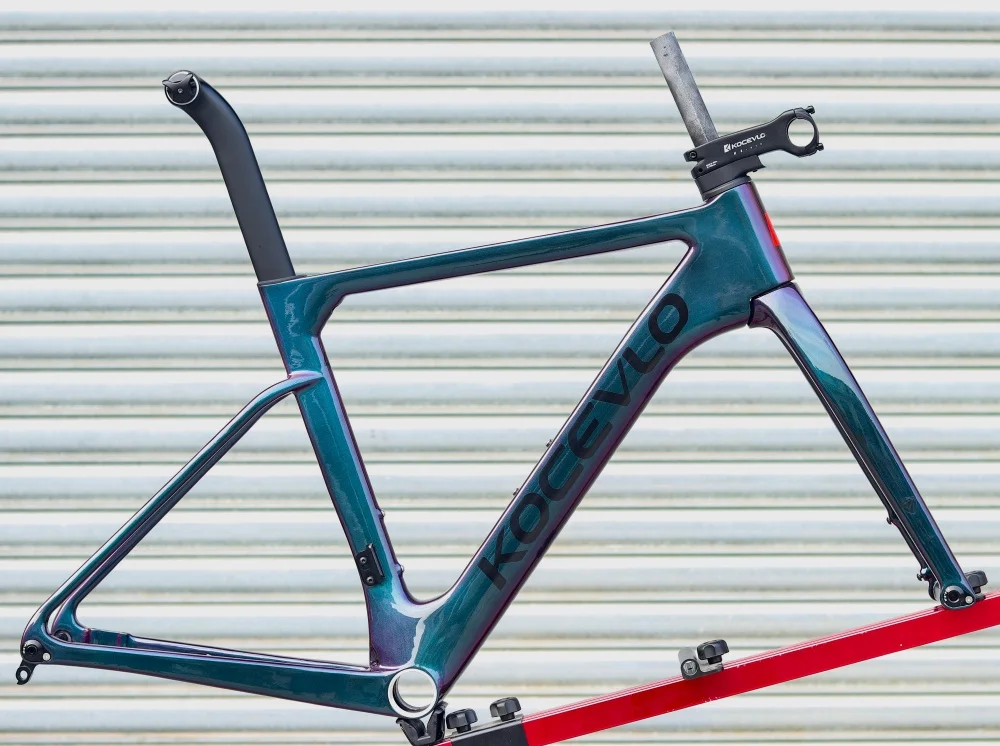

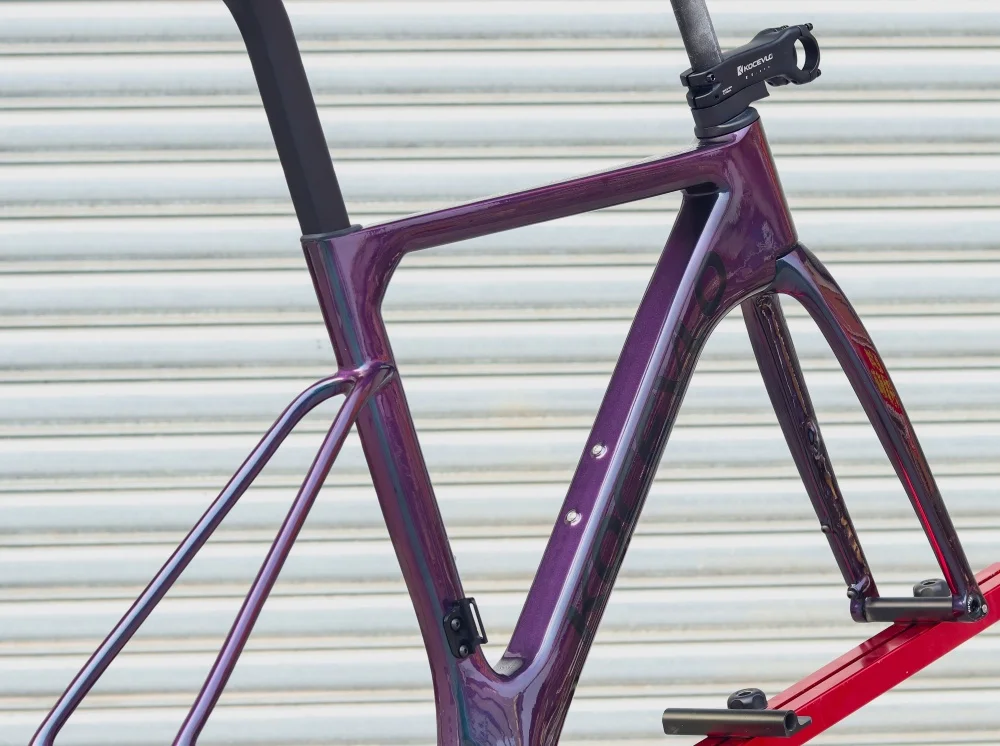

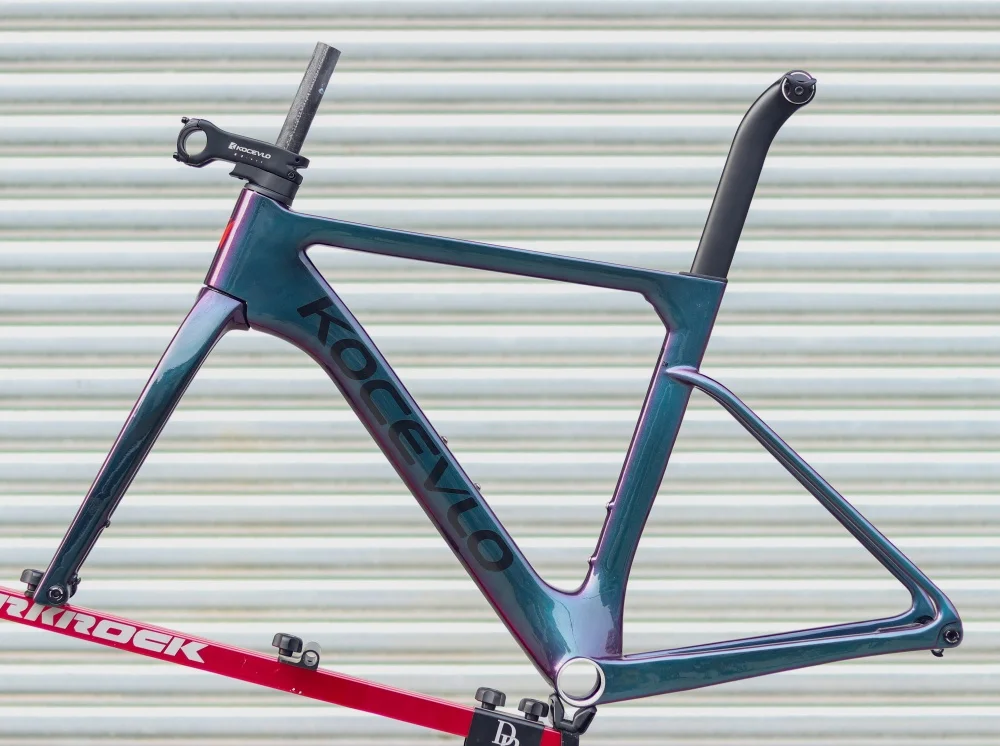

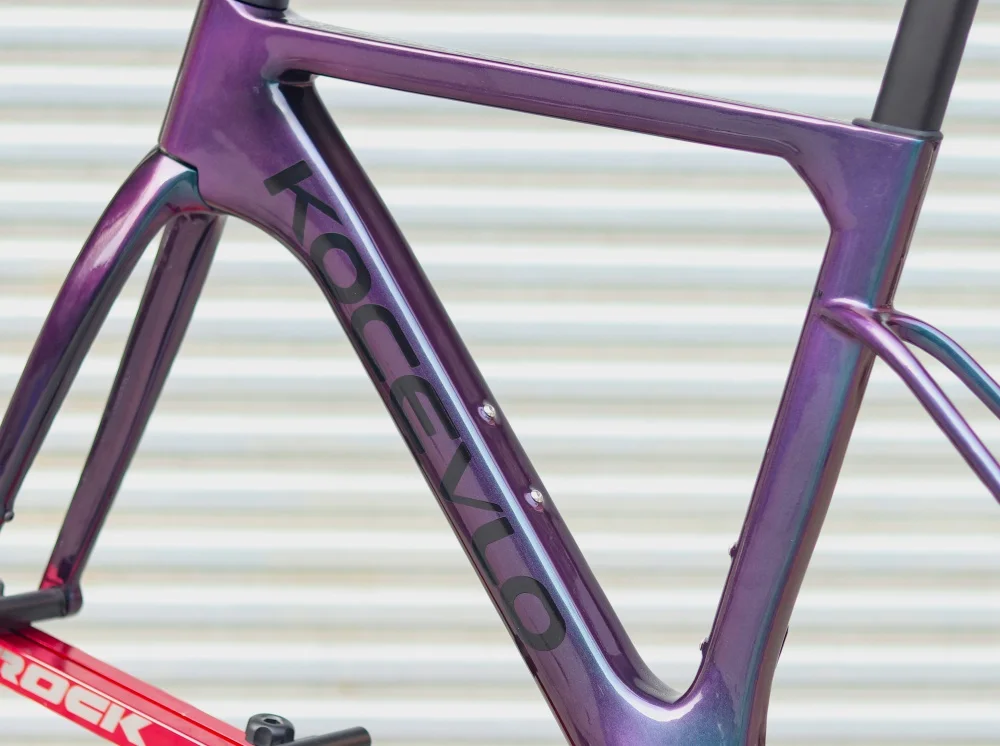

BLUE-PURPLE-Chameleon:

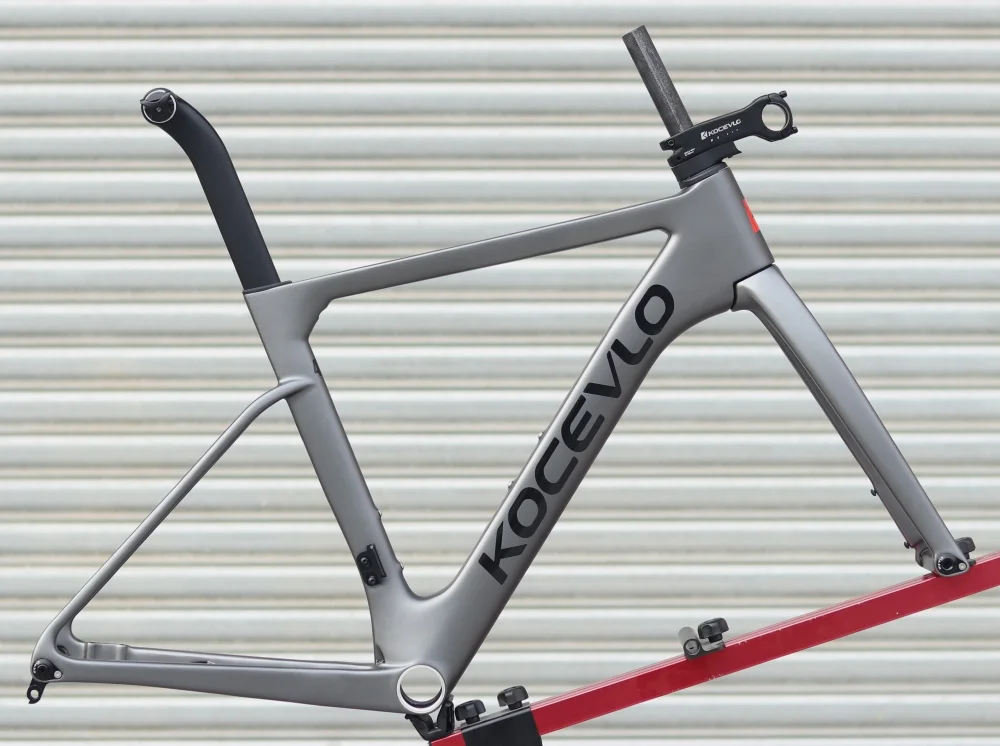

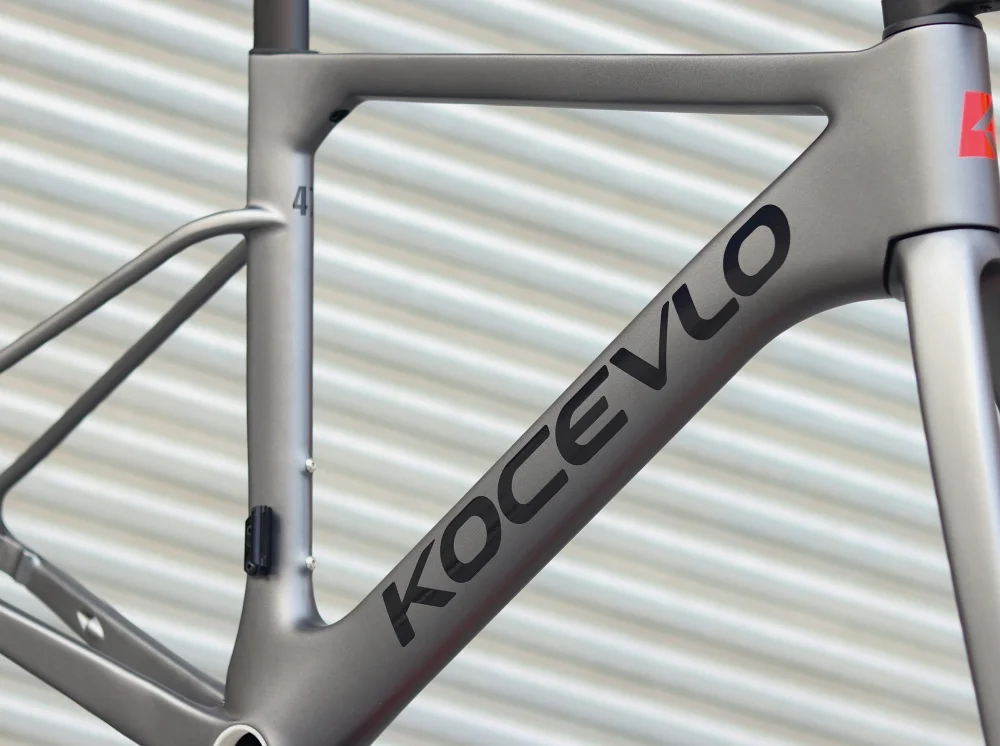

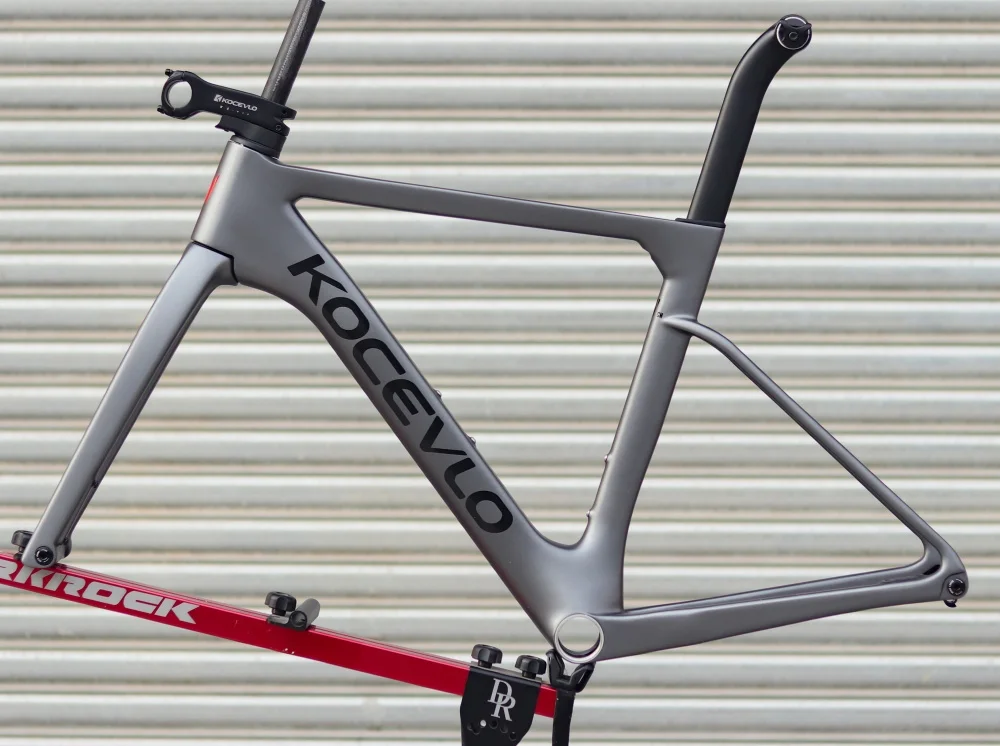

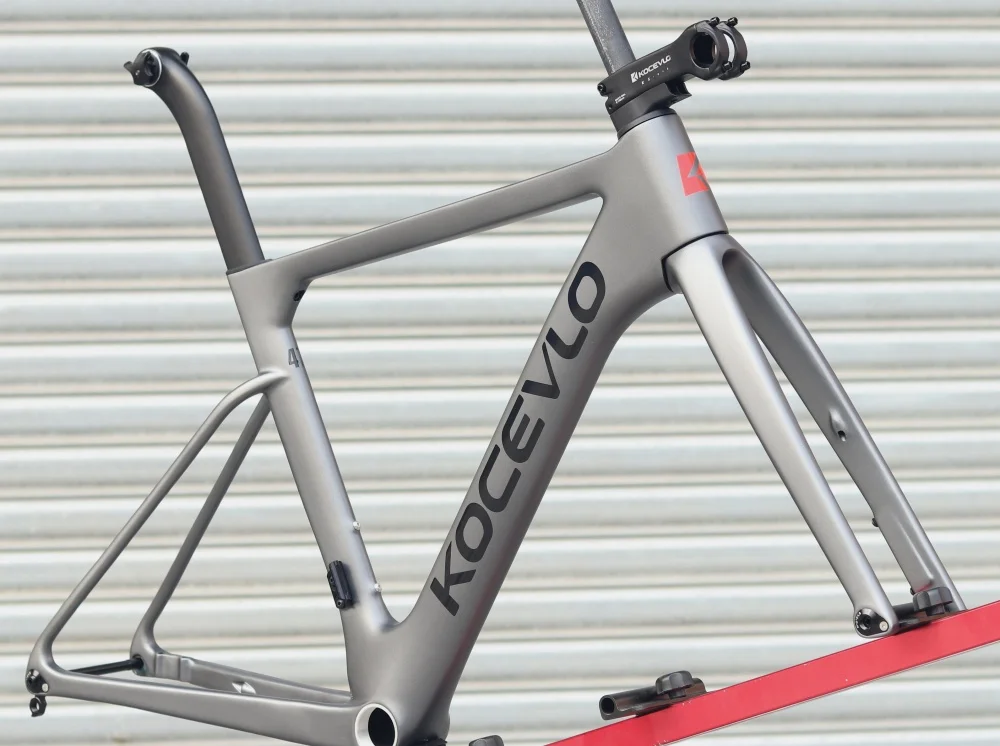

GRAY:

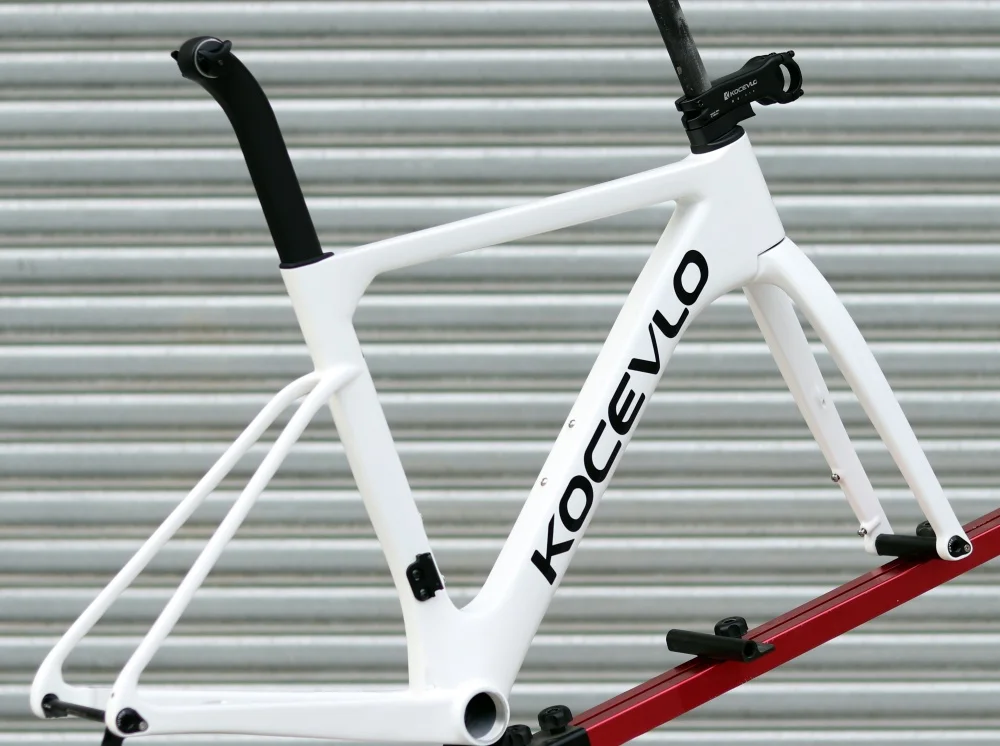

WHITE

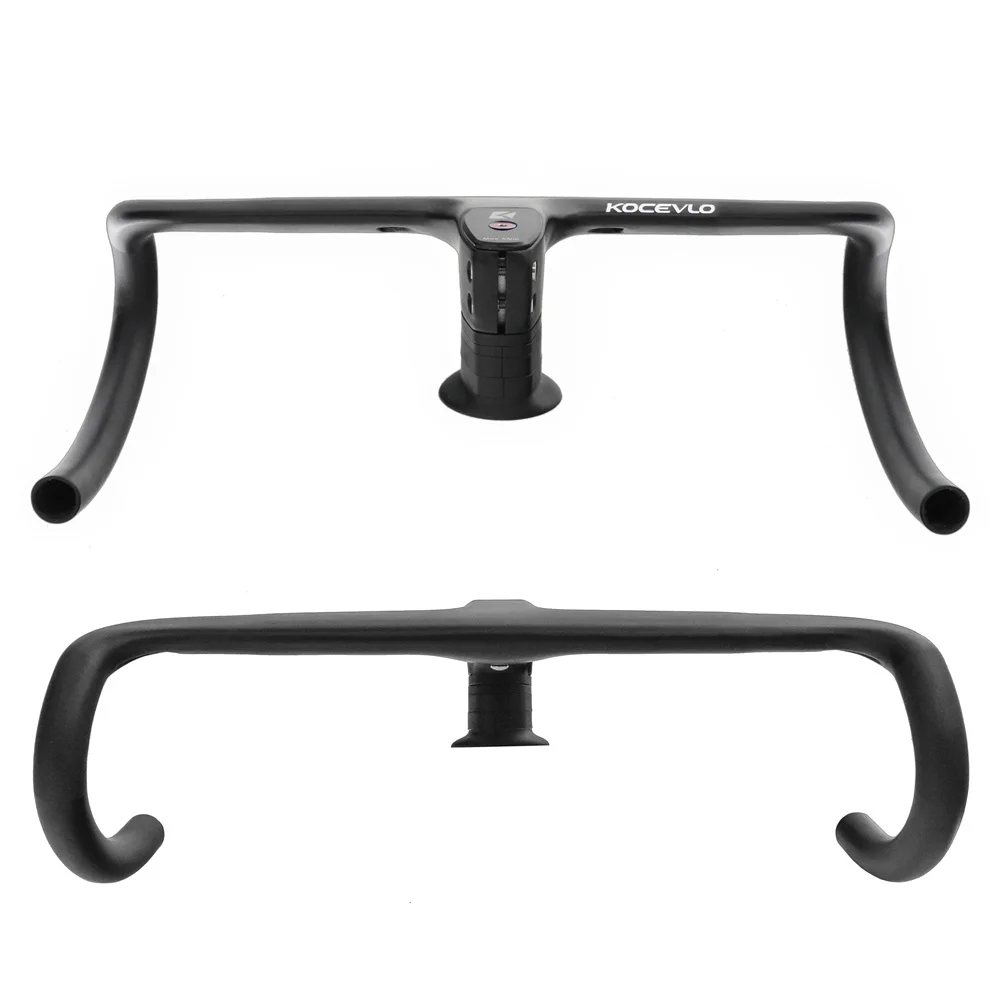

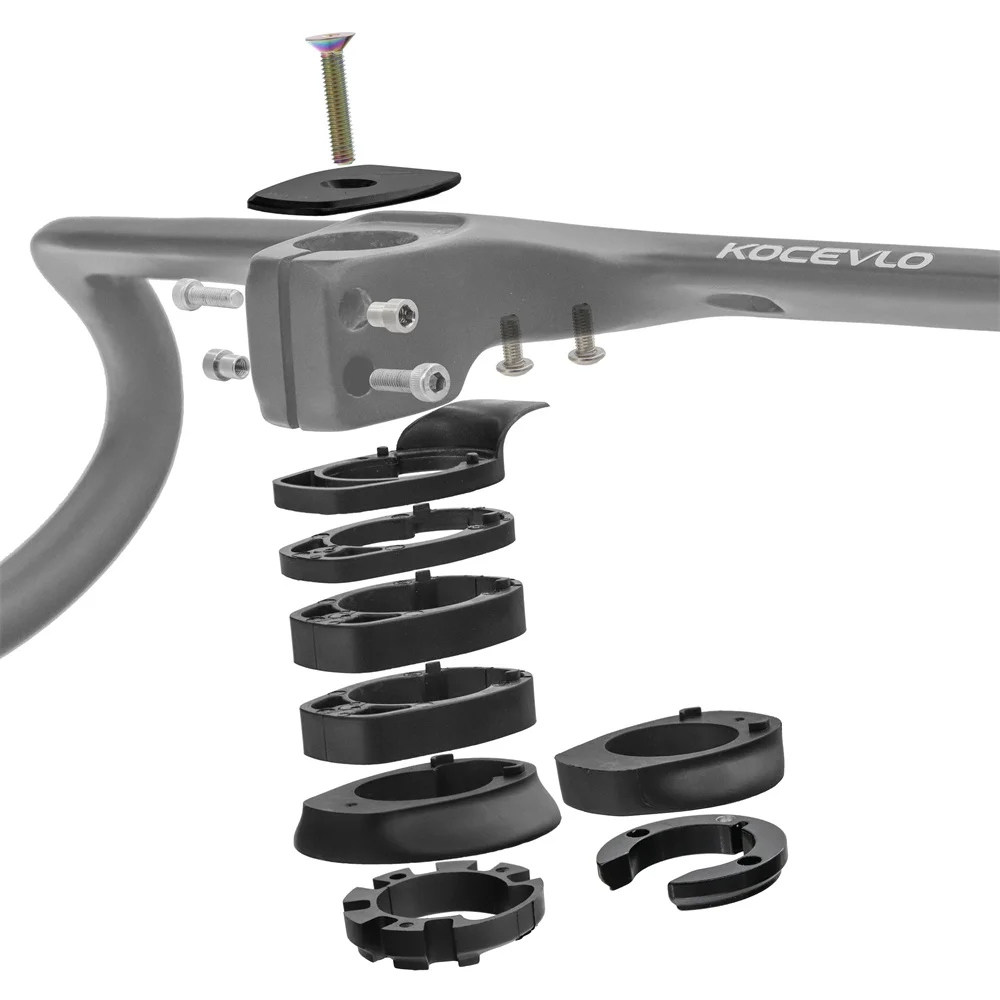

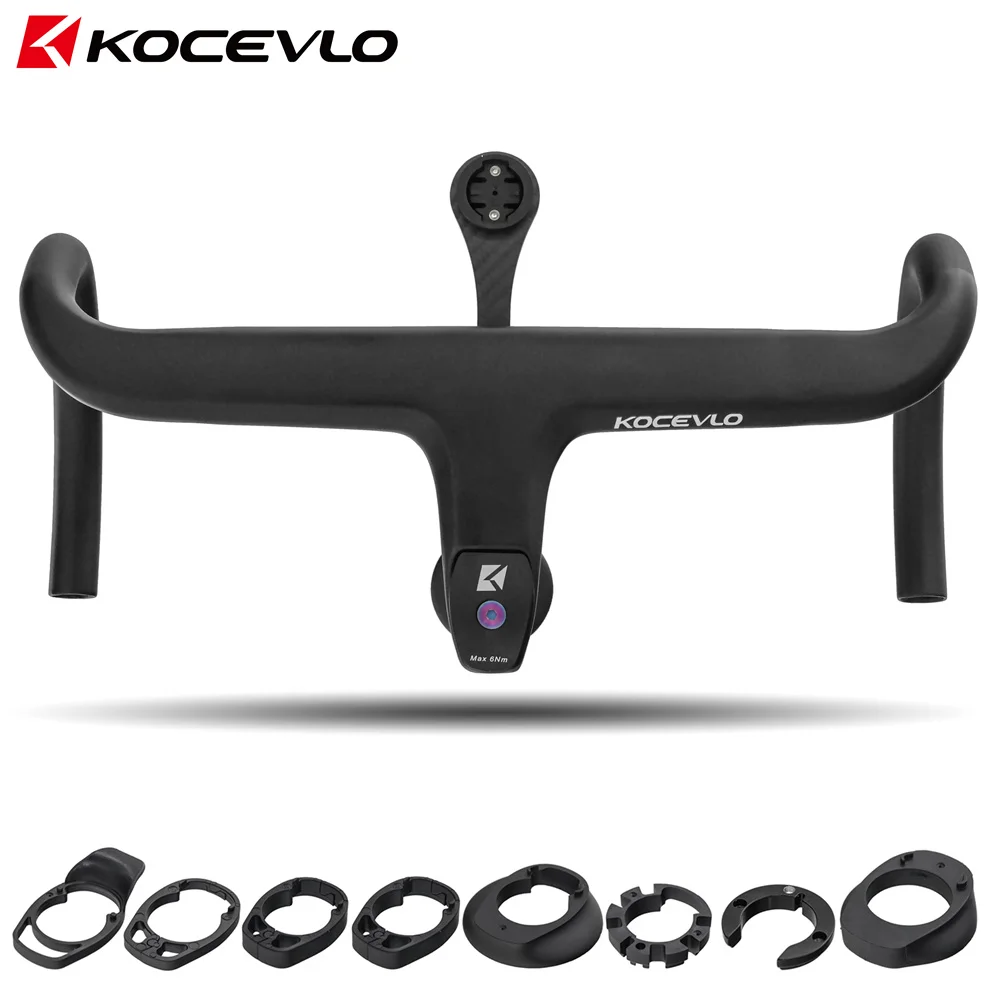

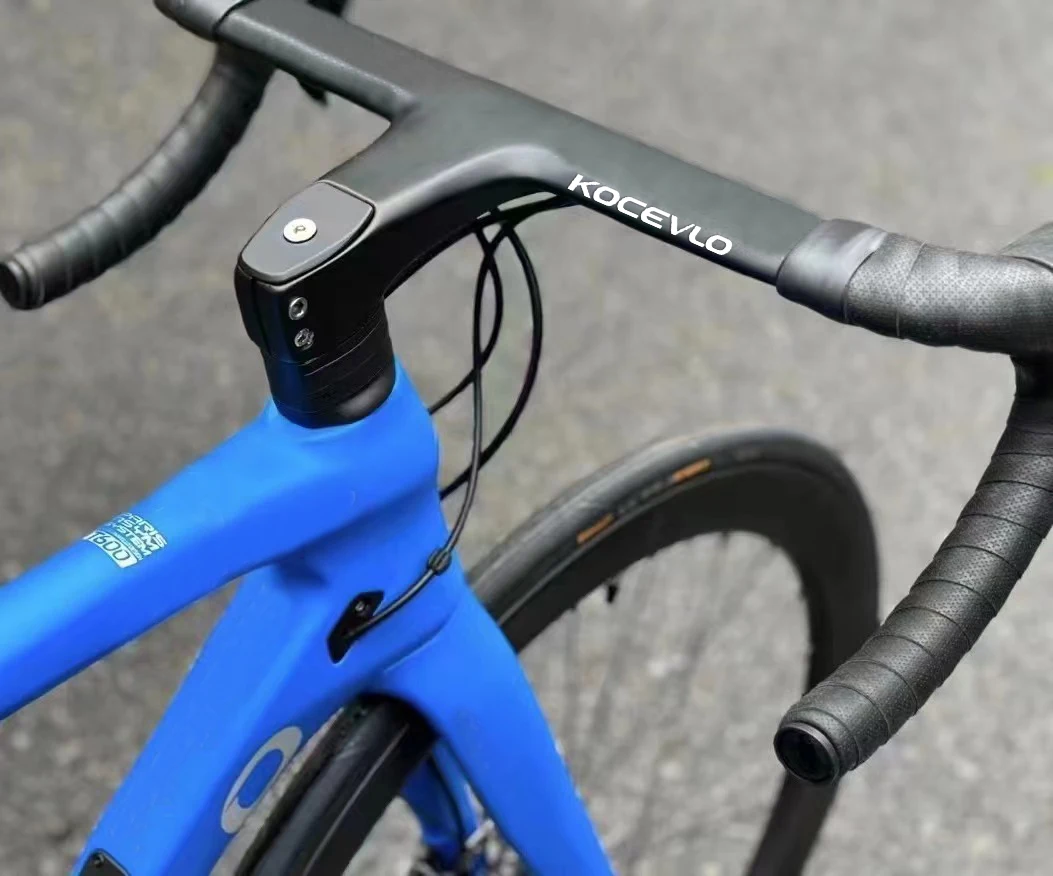

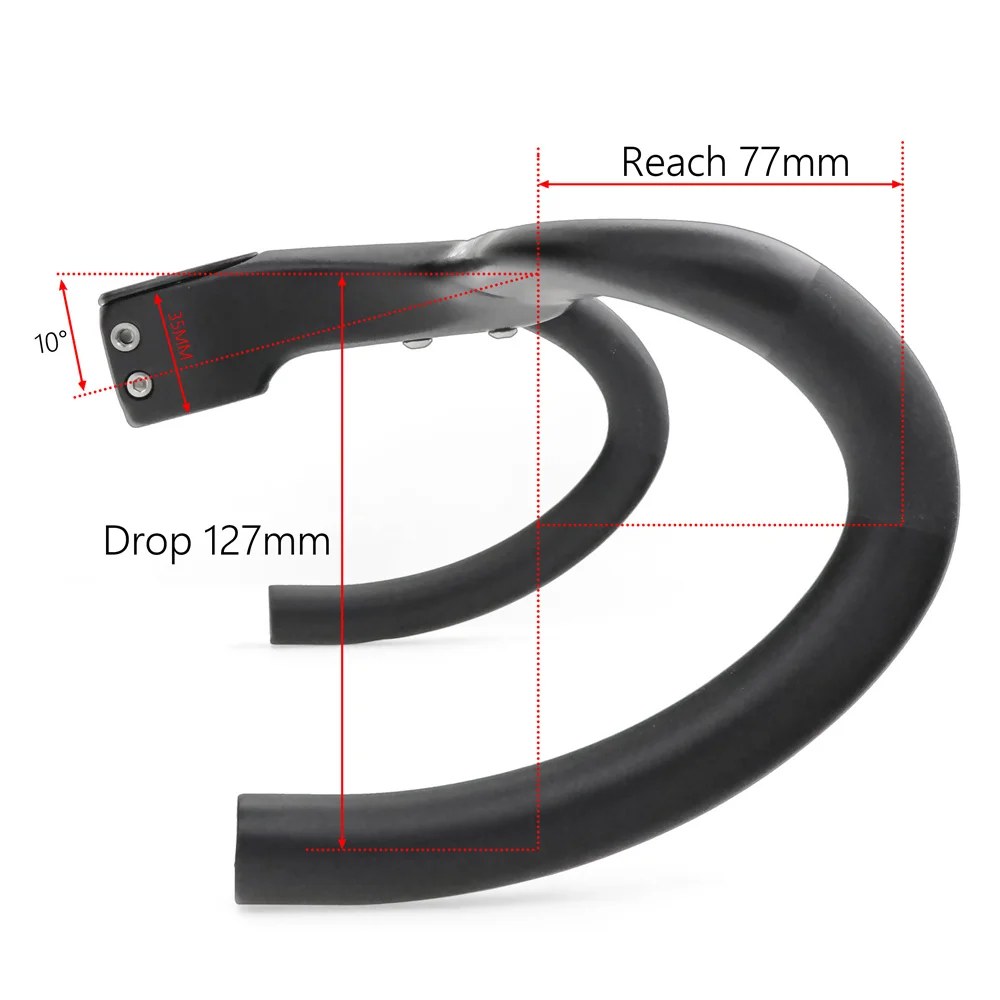

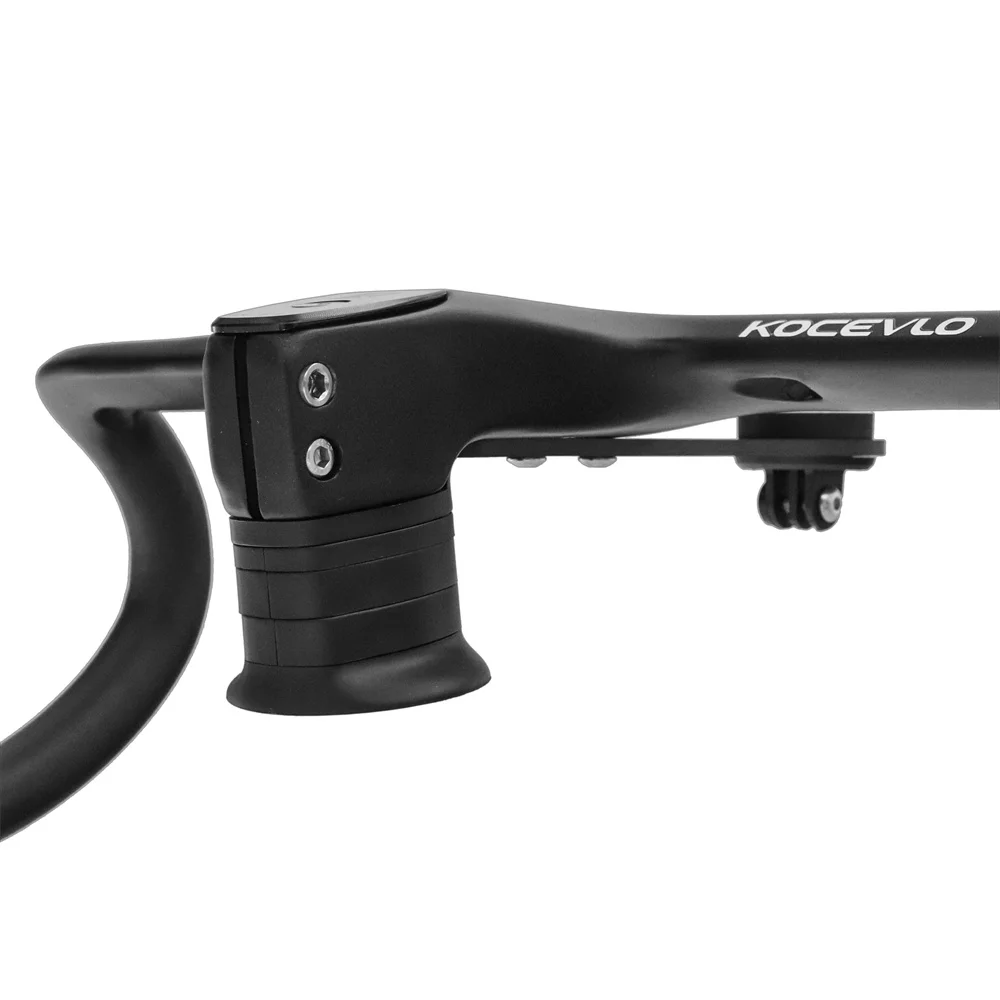

KOCEVLO Road Bike Carbon Fiber Integrated Bicycle Handlebar:

Brand:KOCEVLO

Model:Road handlebar

handlebar Material: Full Carbon Fiber

Gasket material: plastic

Top cover material: aluminum alloy

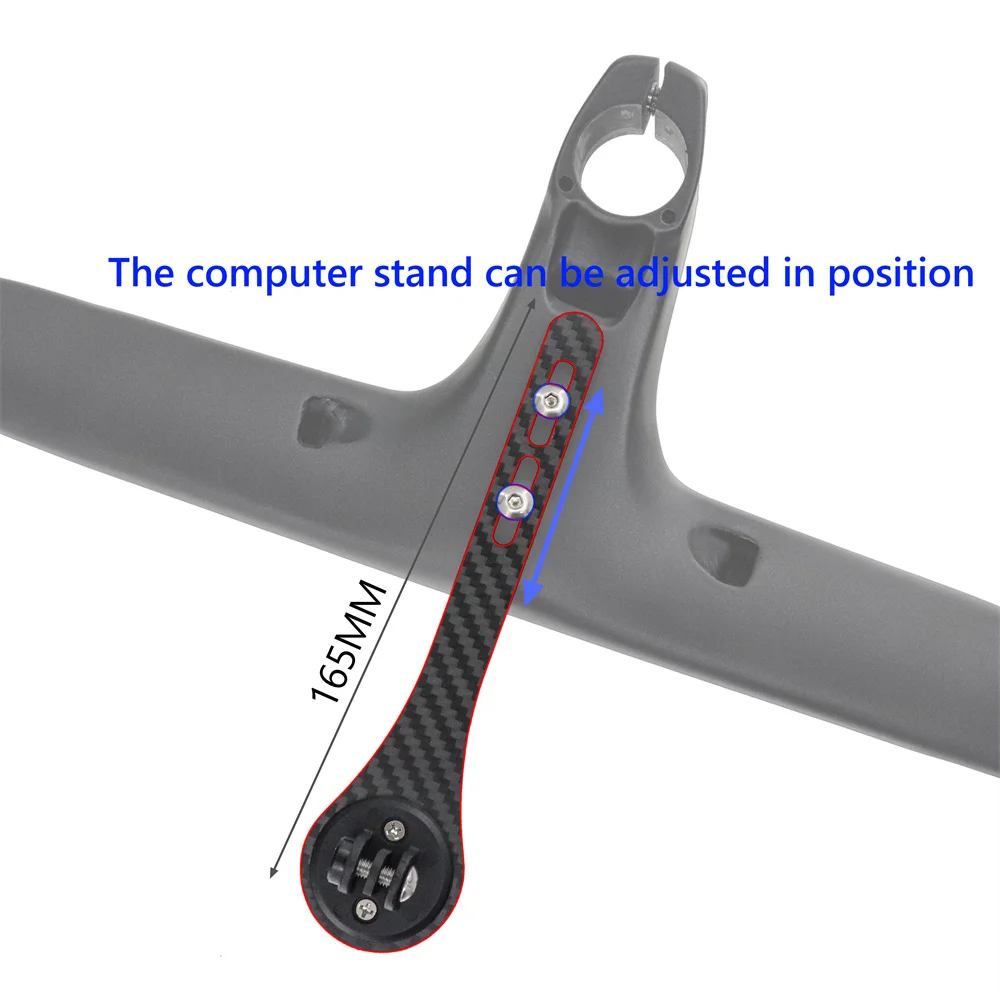

computer mount material: carbon fiber

Handlebar Width (Drop C-C):380/400/420MM

Stem Length:80/90/100/110mm

Stem Outsweep:-10°

Reach:77MM

Drop:127mm

Weight:520g±20g

Max Torque Clamping to Bar:6N.m
