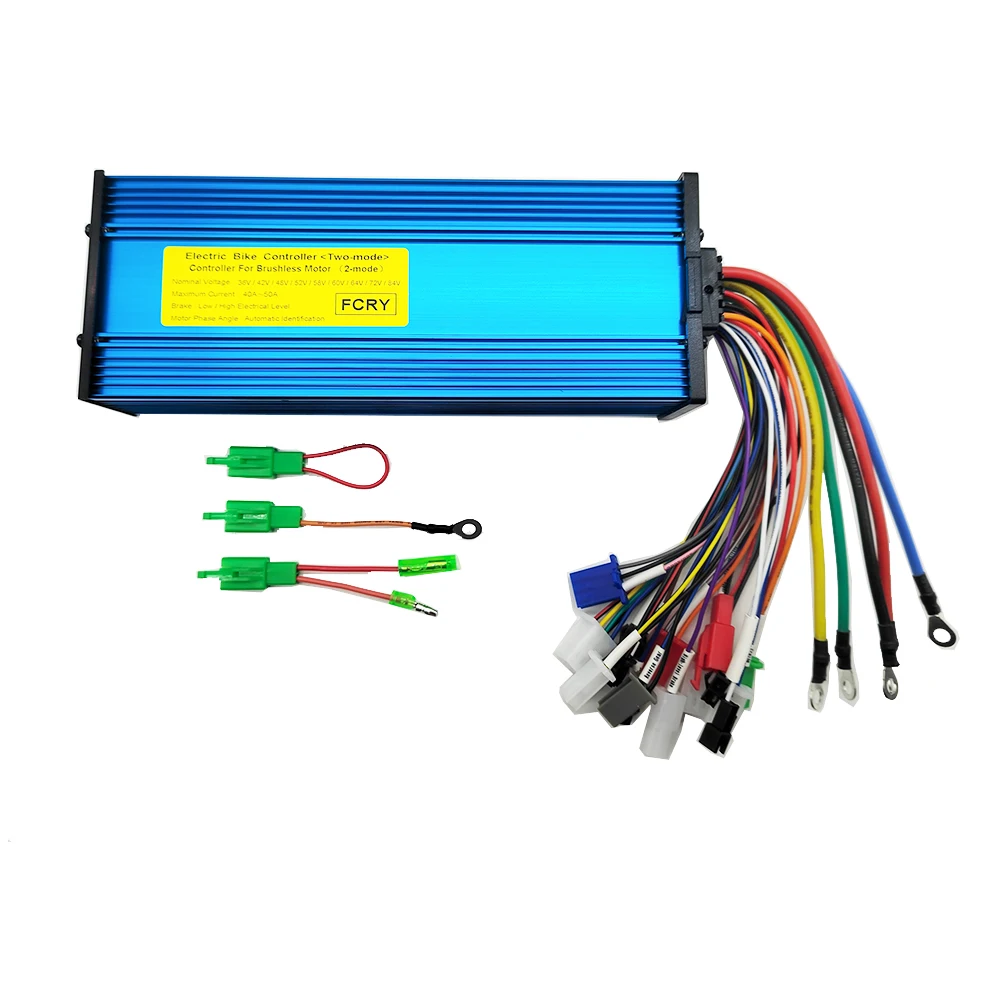

36V/48V/52V/60V/72V/84V 40A-50A 1500W-2000W-2500W Universal Brushless Controller

if motor not have hall wires,not connect hall wires also can work

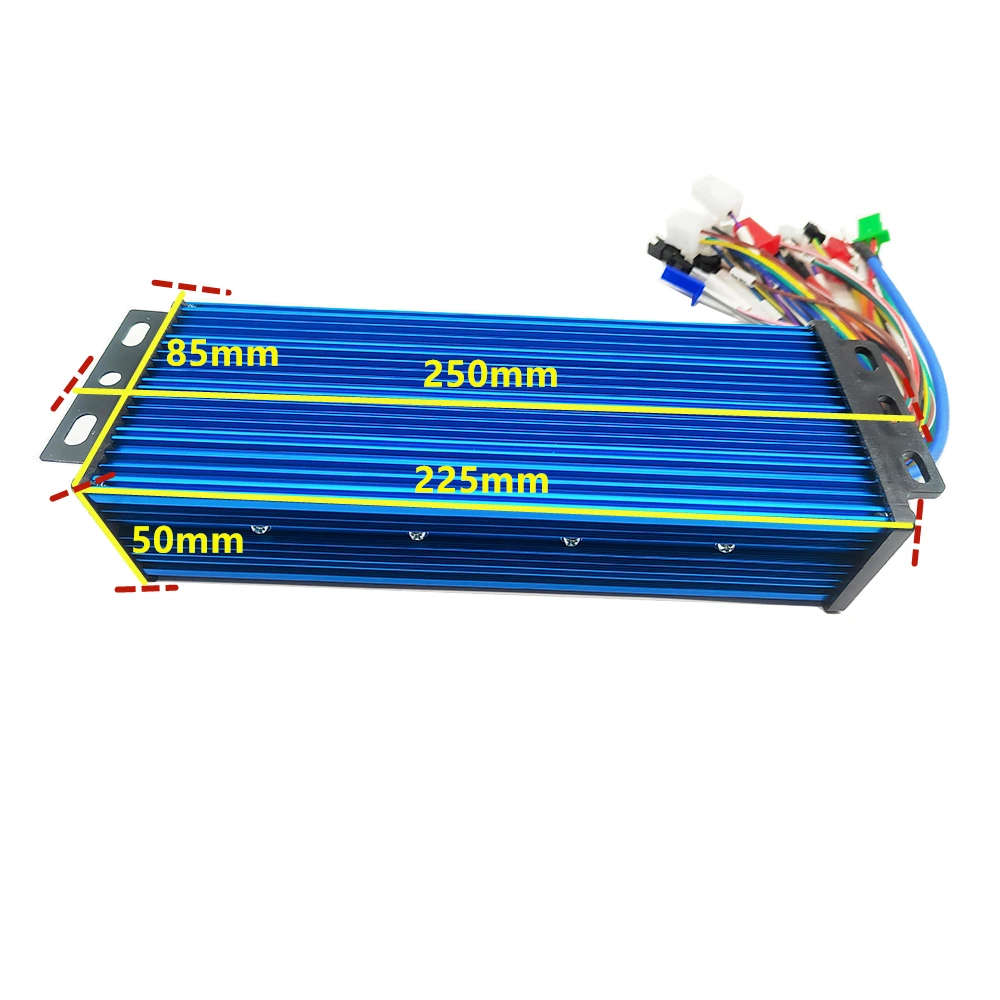

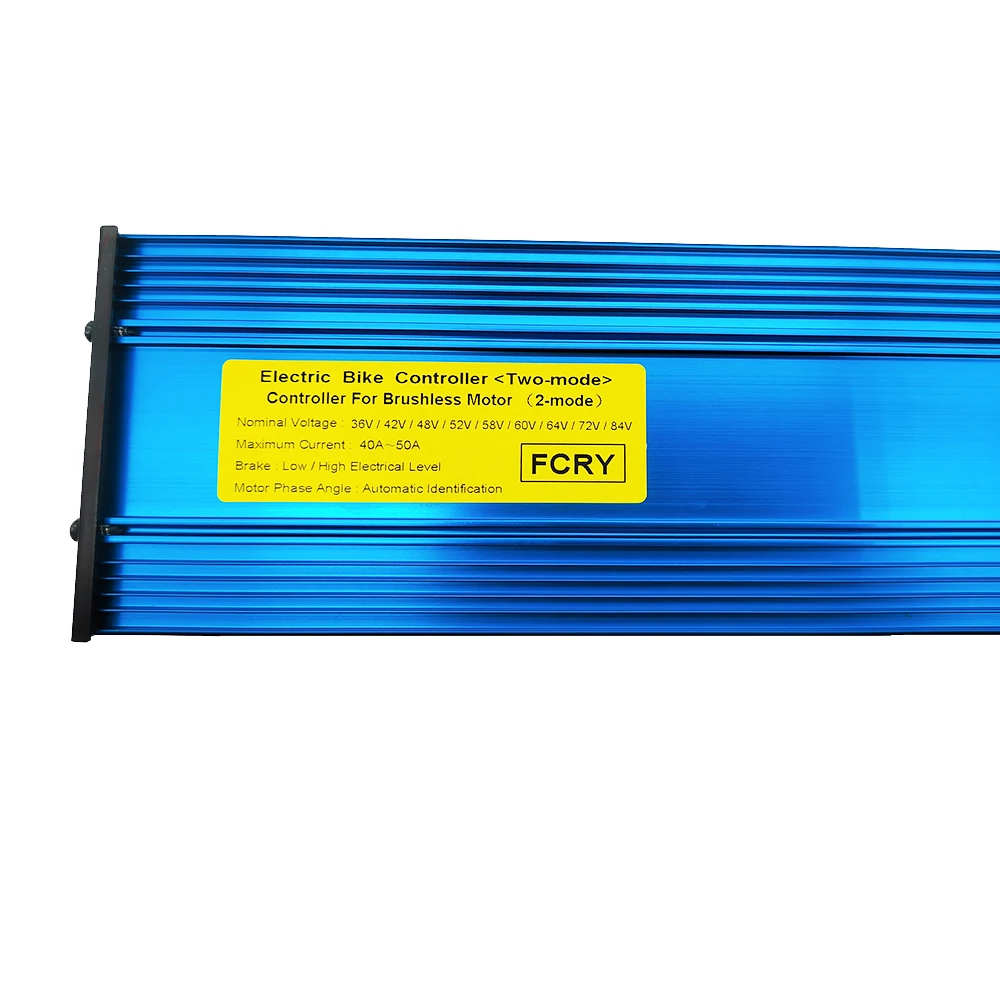

Name: Intelligent dual-mode brushless controller

Power: 1500W-2000W-2500W

Voltage: 36V-84V

Current limit: 40A-50A

Undervoltage: automatic identification

MOS tube: 18mos

Phase: automatic identification (60 ° / 120 ° all can fit)

Brakes: low brake / high brake

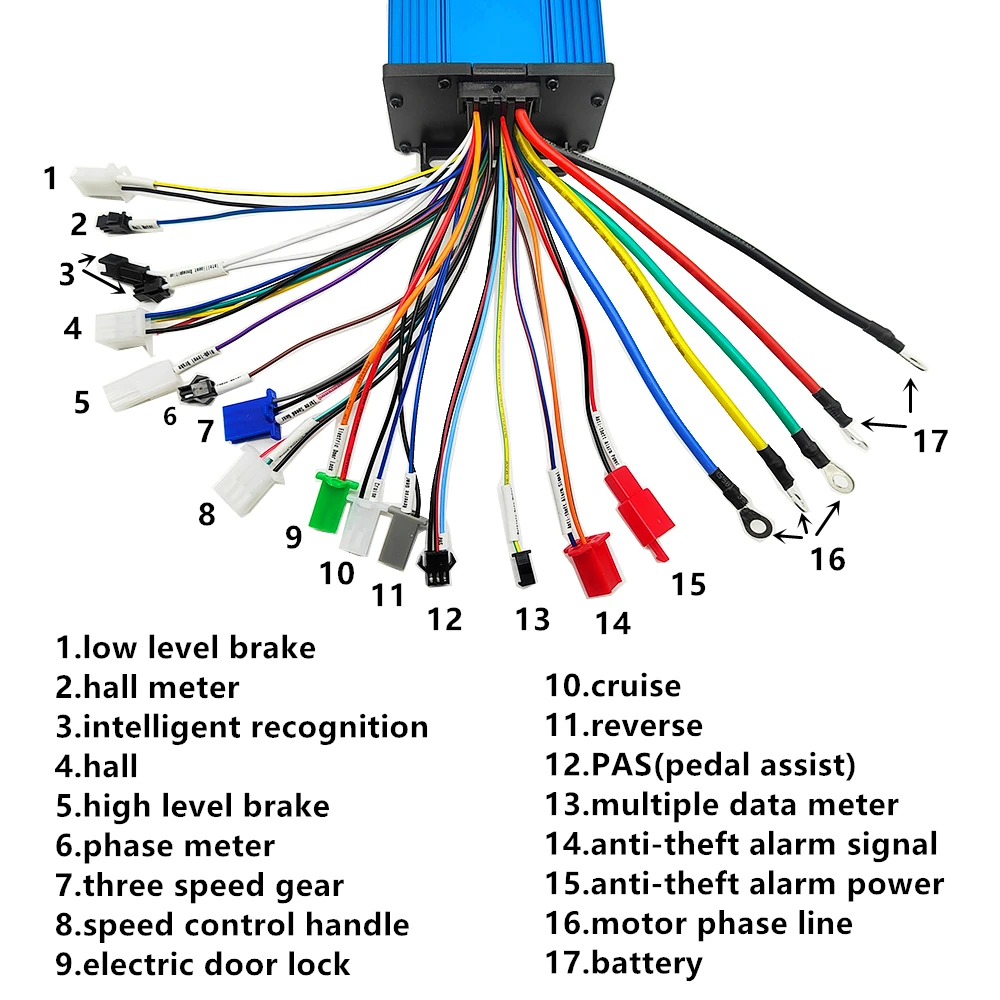

1.hall

2.cruise

3.hall meter

4.intelligent recognition（self-learning）

5.high level brake

6.phase meter

7.PAS(pedal assist)

8.reverse

9.multiple data meter

10.low level brake

11.speed control handle （throttle）

12.electric door lock

13.three speed

14.anti-theft alarm signal

15.anti-theft alarm power

16.motor phase line

17.battery

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)

3. connect the battery line(red:battery+ , black:battery-)

4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)

This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

5. connect the controller throttle to throttle and need color to color connect,

connect controller electric door lock to throttle electric door lock

（if throttle not have electric door lock,let controller electric door lock short,

so controller electric door must connect ）

NOTE:when use throttle control speed,two intelligent recognition line must separate.

6.other functions can be connected as needed.
