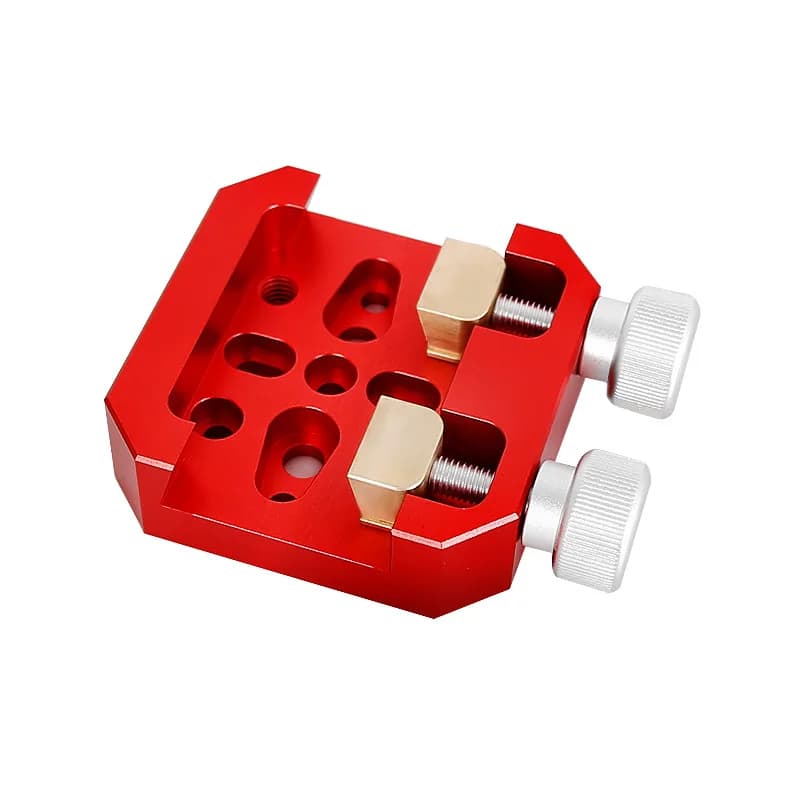

Premium Large 88mm Enhanced Vixen Dovetail Clamp Double Fixed Brass Screws Telescope Accessories

With the dovetail clamp, you can attach your telescope to mount - especially suited for heavy telescopes

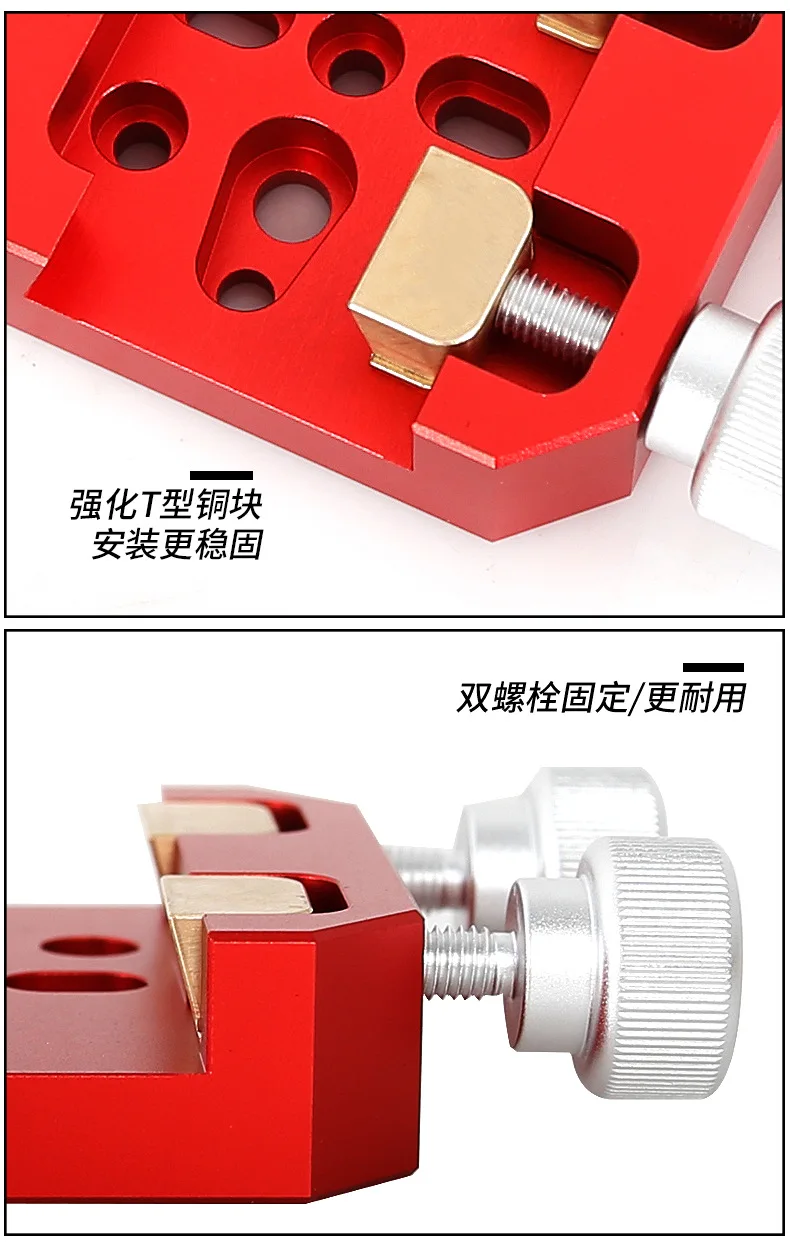

Areal clamping with two brass screws and locking screws - protects the accessories and provides a very stable connection

10 bores allow connecting to almost all surfaces

Loading weight: 20kg

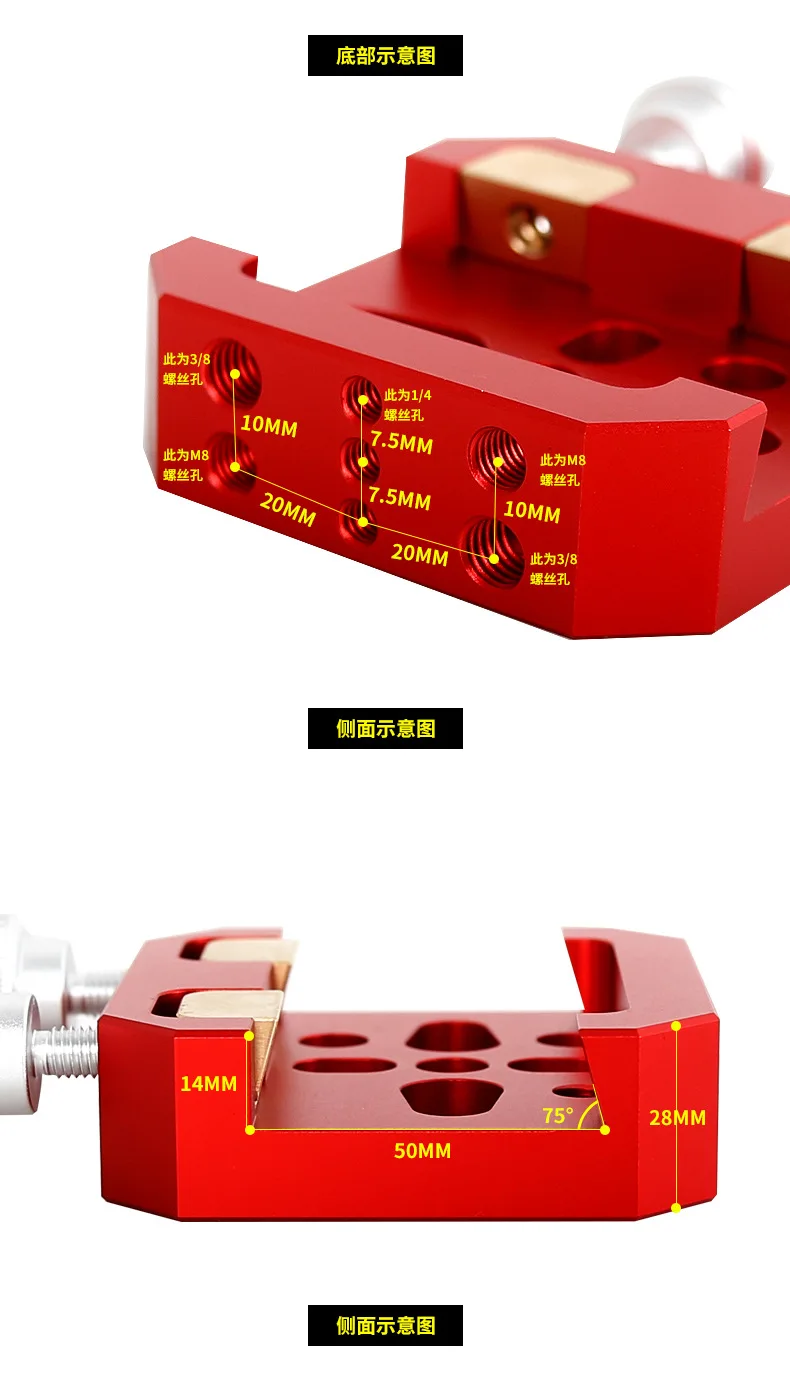

Length: 88mm

Height: 28mm

dovetail upside: 45mm

dovetail downside: 50mm

dovetail depth: 14mm

Material: light aviation aluminum alloy

Interface for Telescope Tube: Suitable for 3/4 and 1/4 inch screws and screw holes. M6 and M7, M8 series are available.

The pitch of the M8 is: 35 mm

M6, a quarter of the pitch is: a group of 38 mm, a group of 60 mm

There is also a is 3/8 of a screw hole

Color: Red

Net Weight: 431g

Package Includes

1 x Dovetail Clamp w/Brass Screw and 2 Locking Screws
