Electric Wheelbarrow Hub Motor Kit 24V 36V 48V 350W 500W All Terrain Off Road Rough Tyre Wheel 14.5"

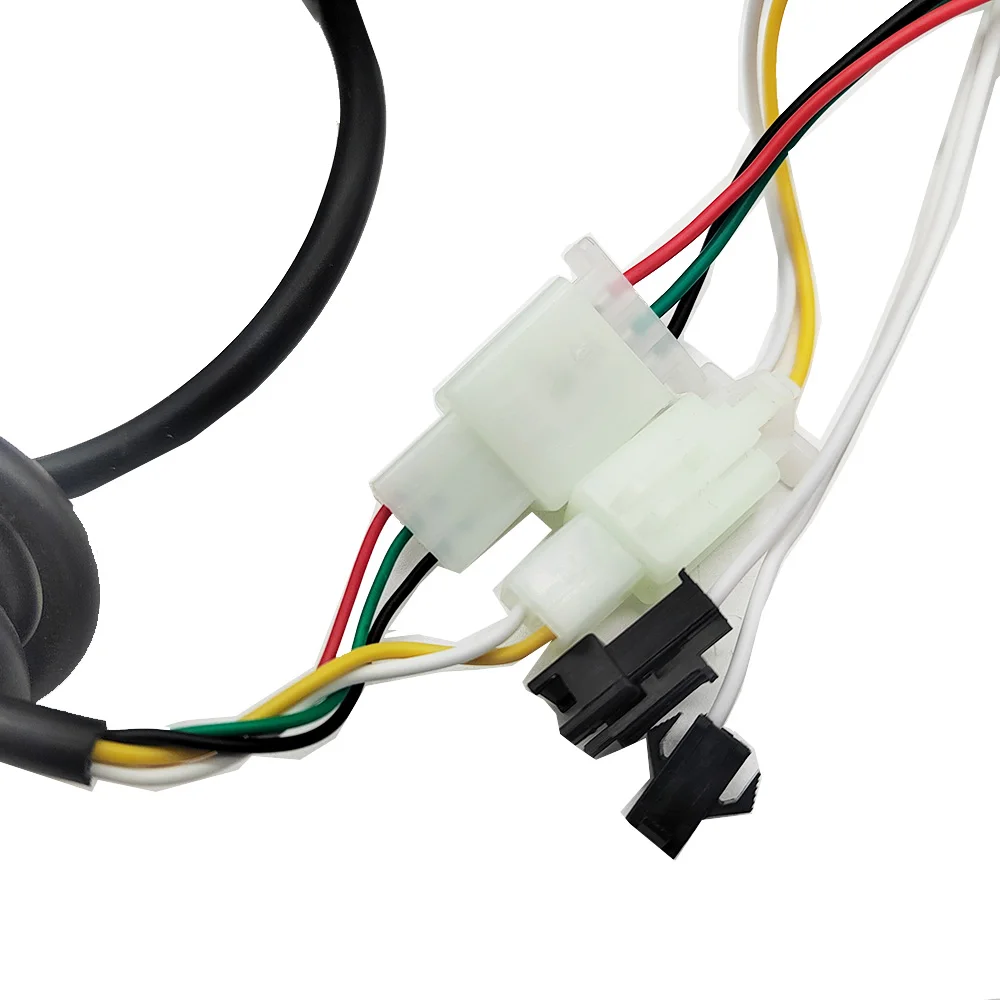

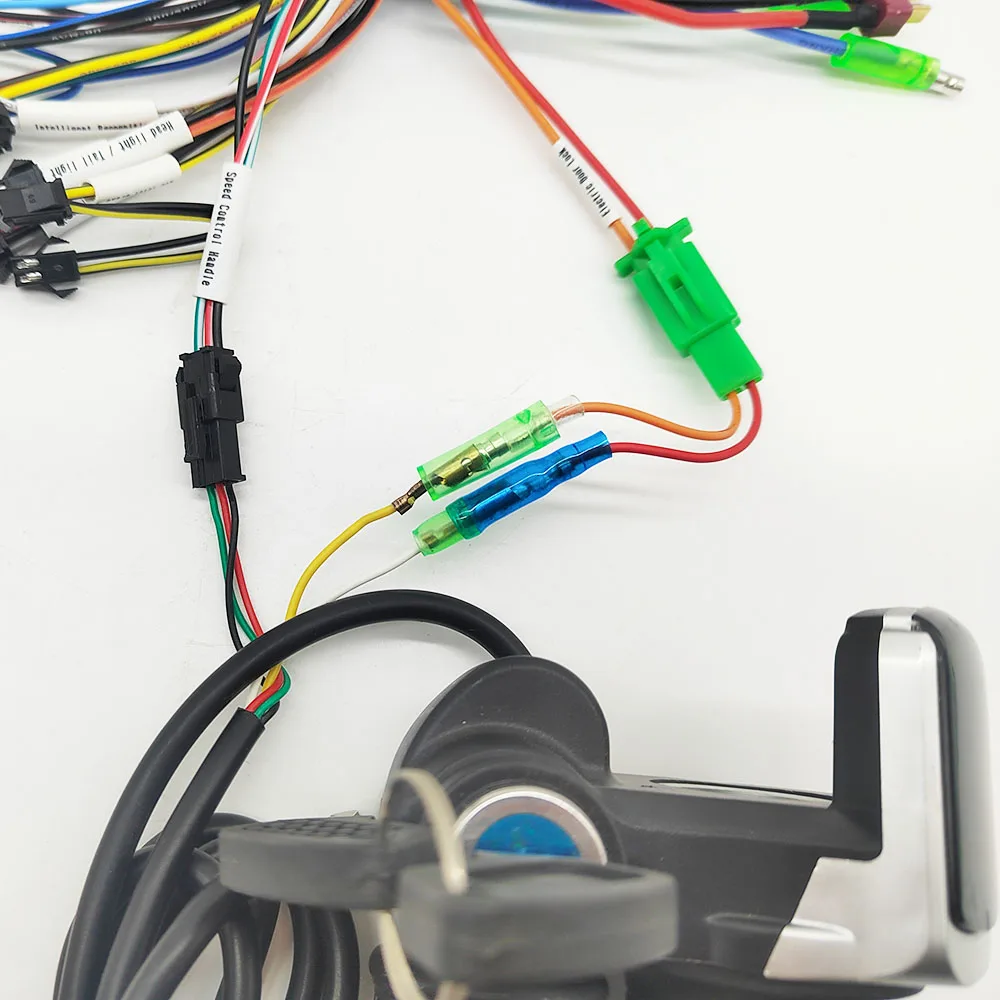

Note：The throttle interface and the controller throttle interface are not made by the same factory. The line sequence of this wiring port is not a perfect match. The buyer needs to adjust the line sequence by himself, so that the same color line sequence can be connected to each other.

14.5" Electric Wheelbarrow Gear Motor 24V 36V 48V 350W 500W All Terrain Electric Wheelbarrow kit Fat Off road Rough Tyre

Note:

All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly.

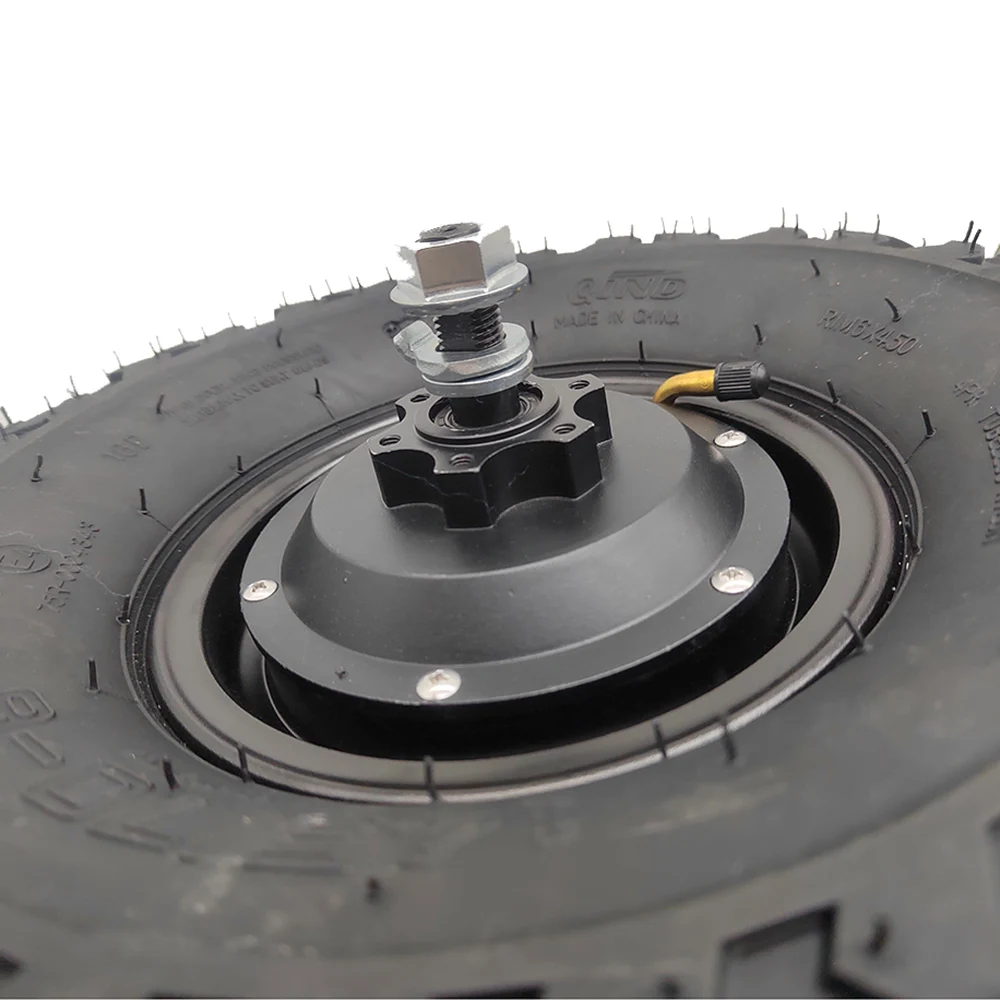

This high torque geared hub motor is specially for wheelbarrow or scooter running on dirty road like grass, sand, soil, water covered road with high perfermence and good climbing capacity.

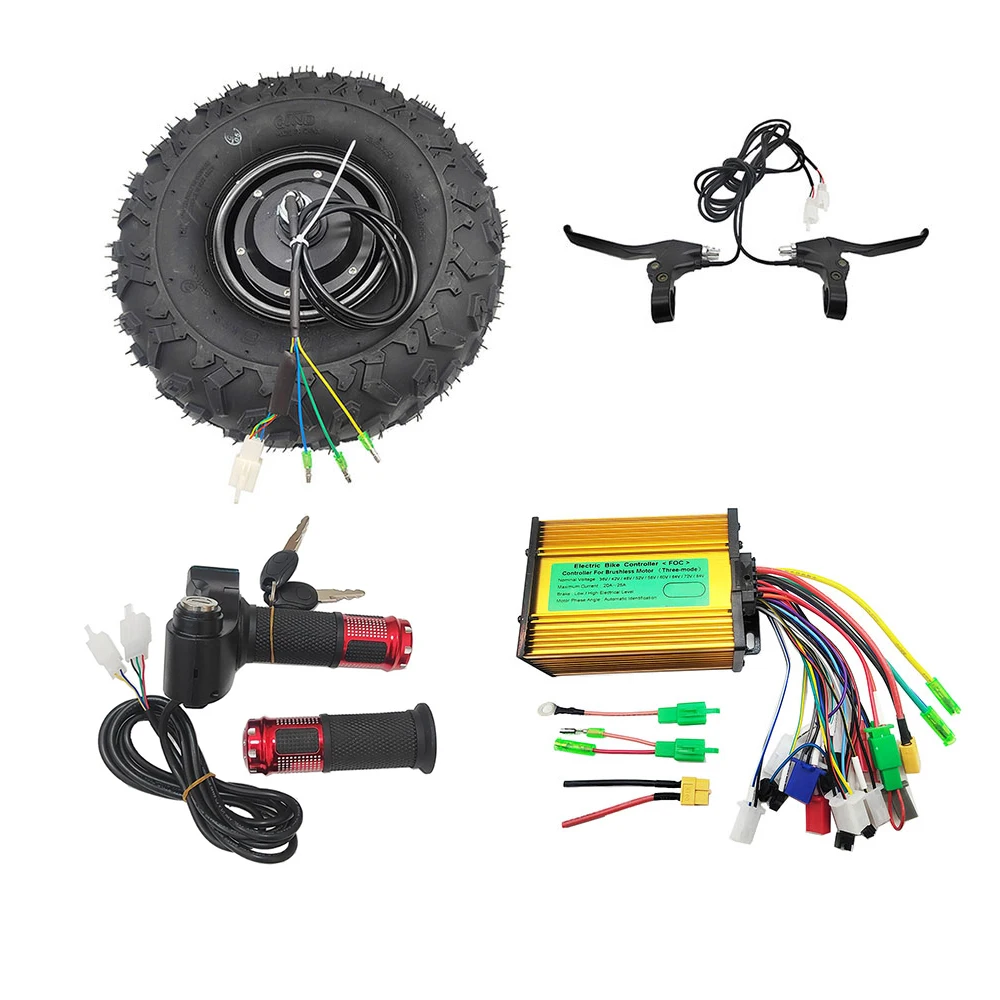

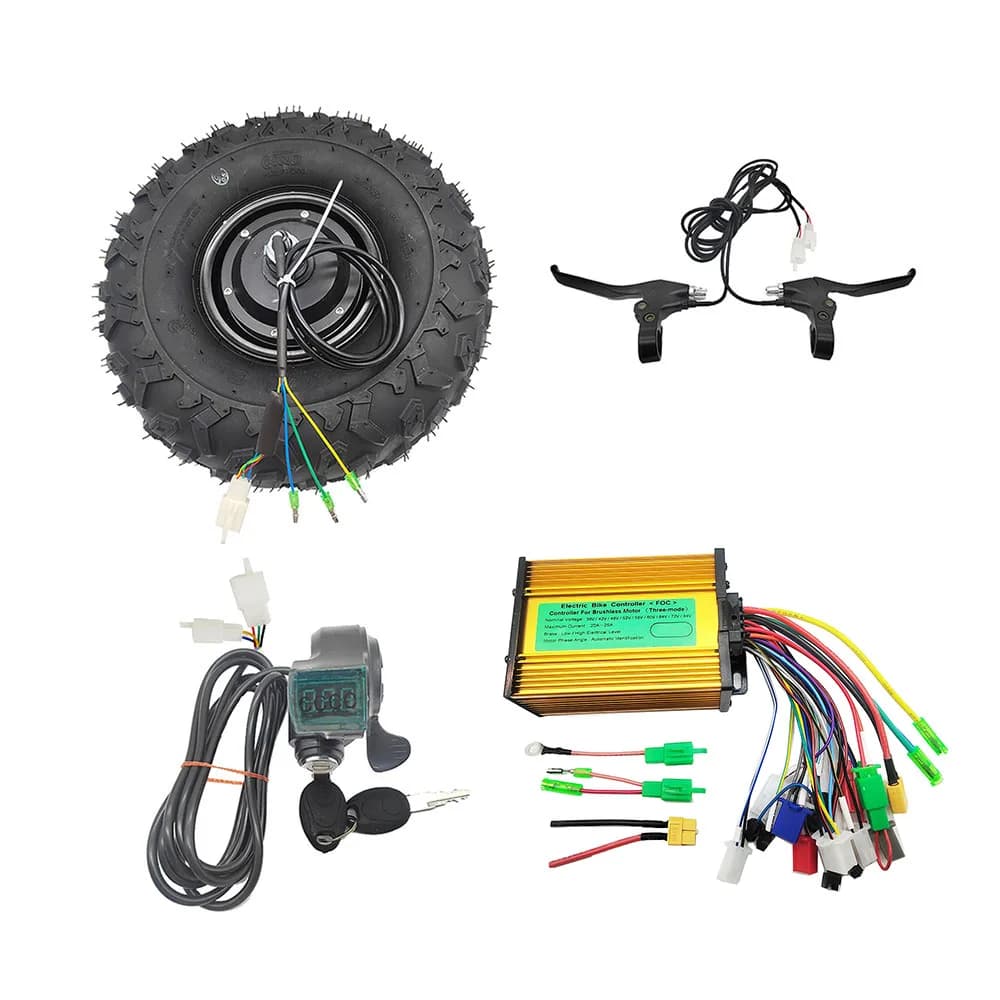

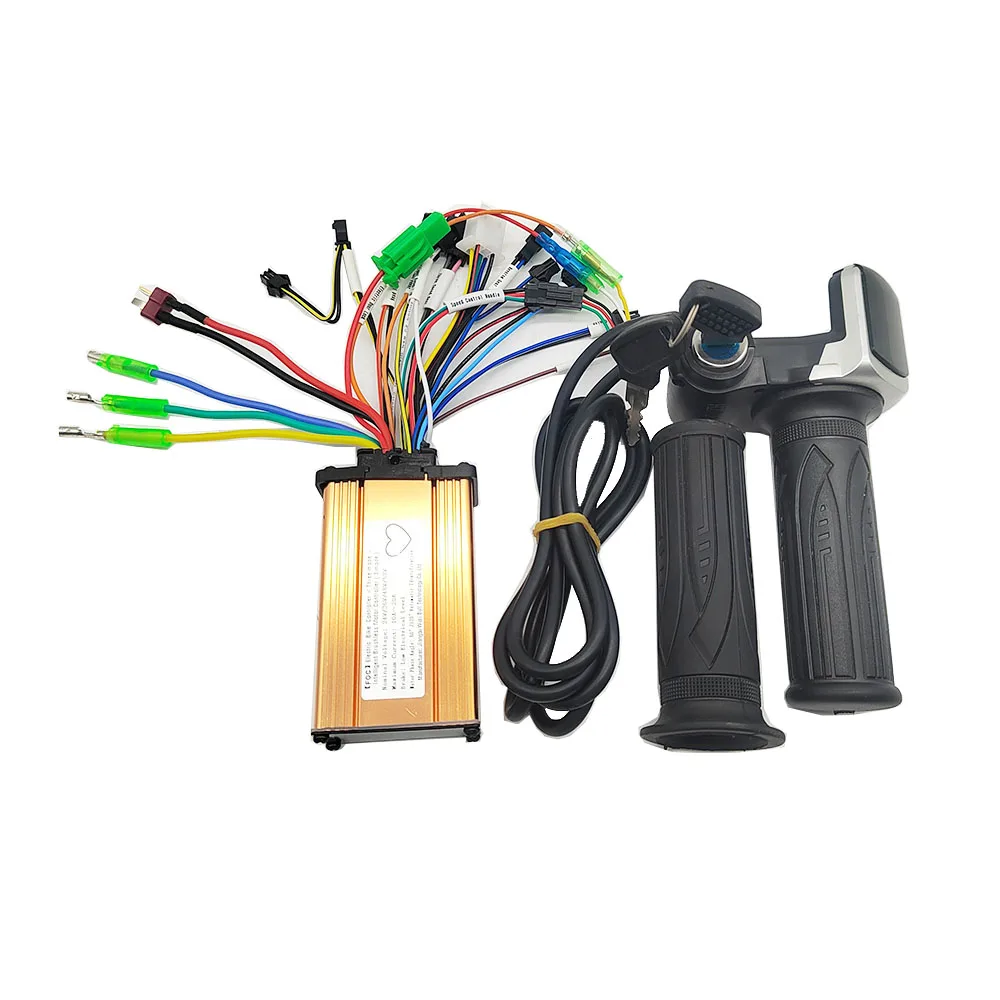

Packing List:

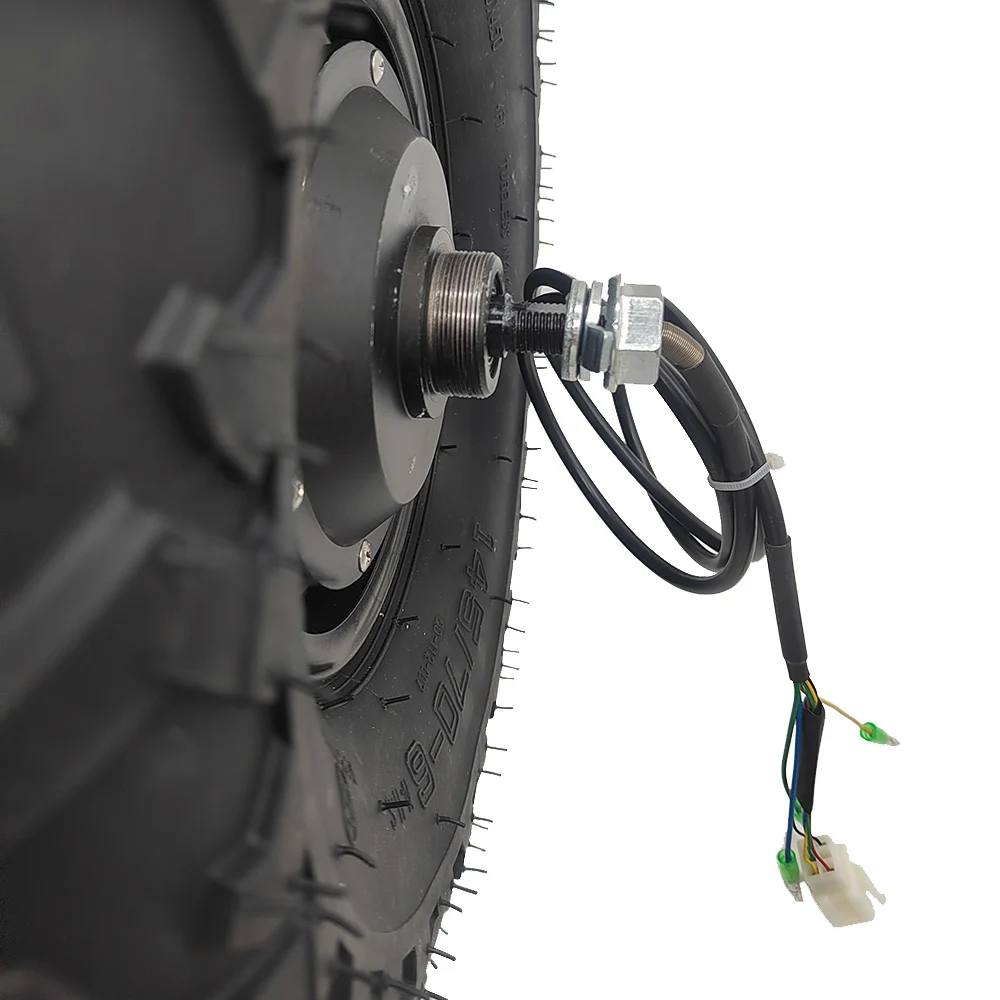

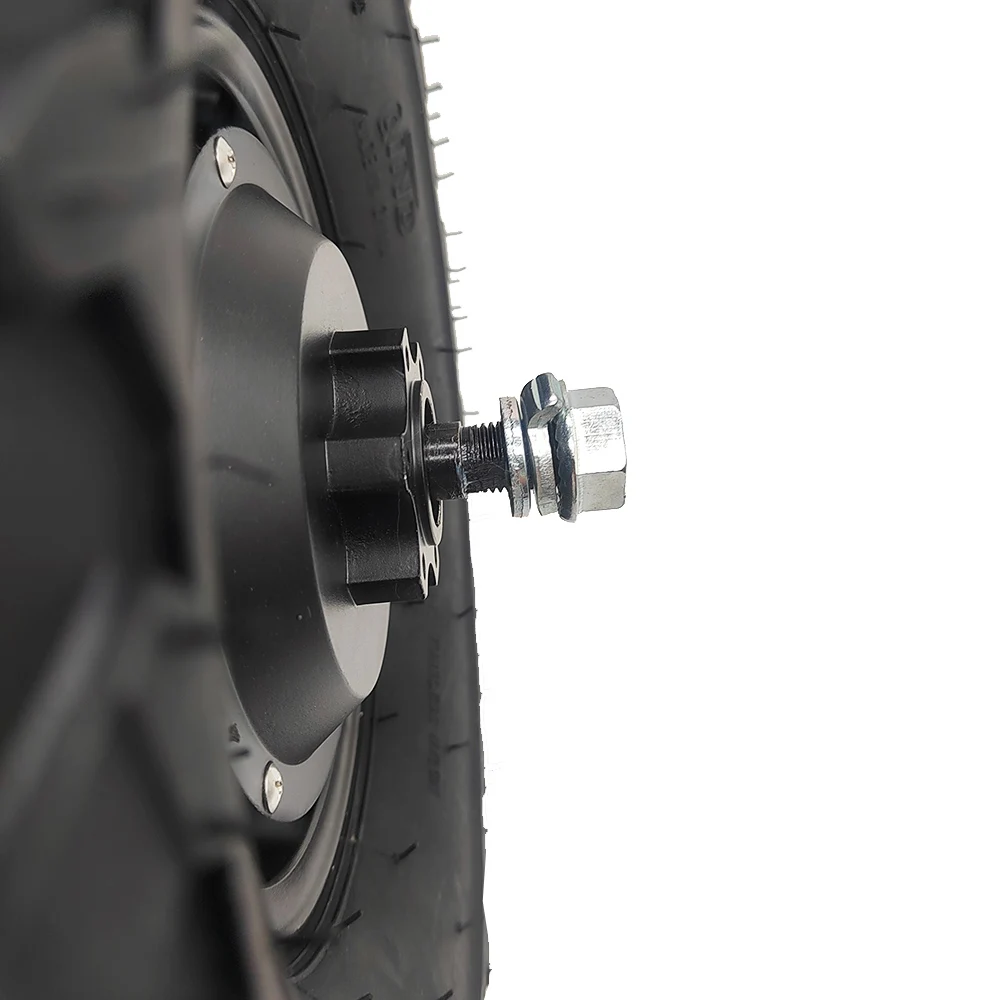

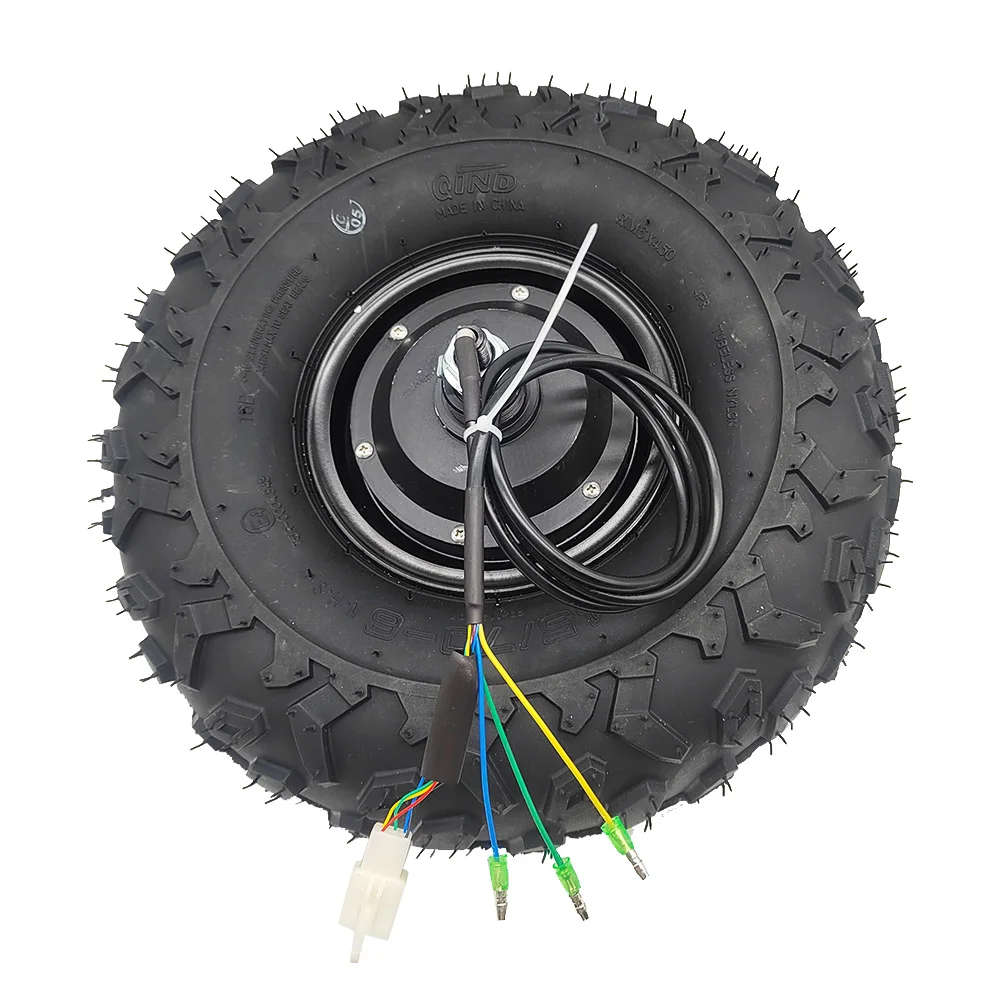

1.1pcs gear hub motor wheel with tyre

2.1 pair of brake

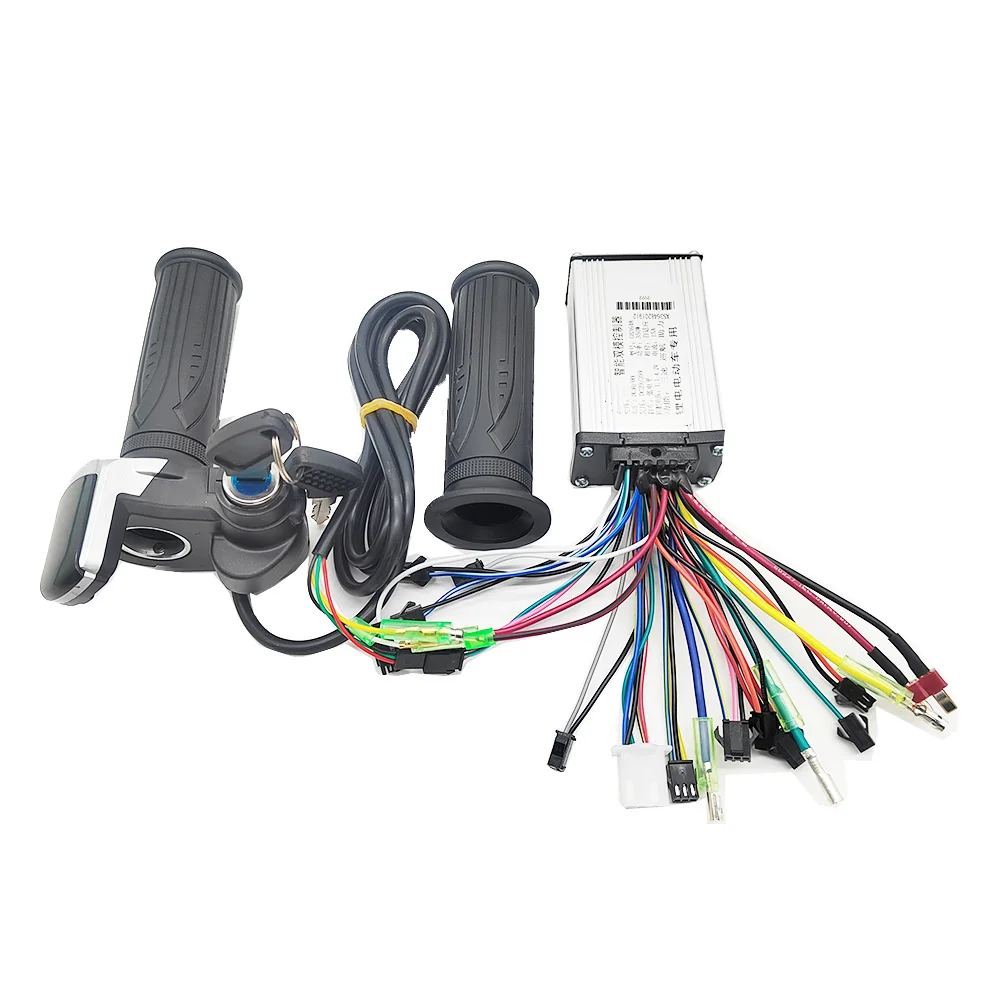

3.1 pcs brushless controller(24V/36V/48V 350W,36V/48V 500W)

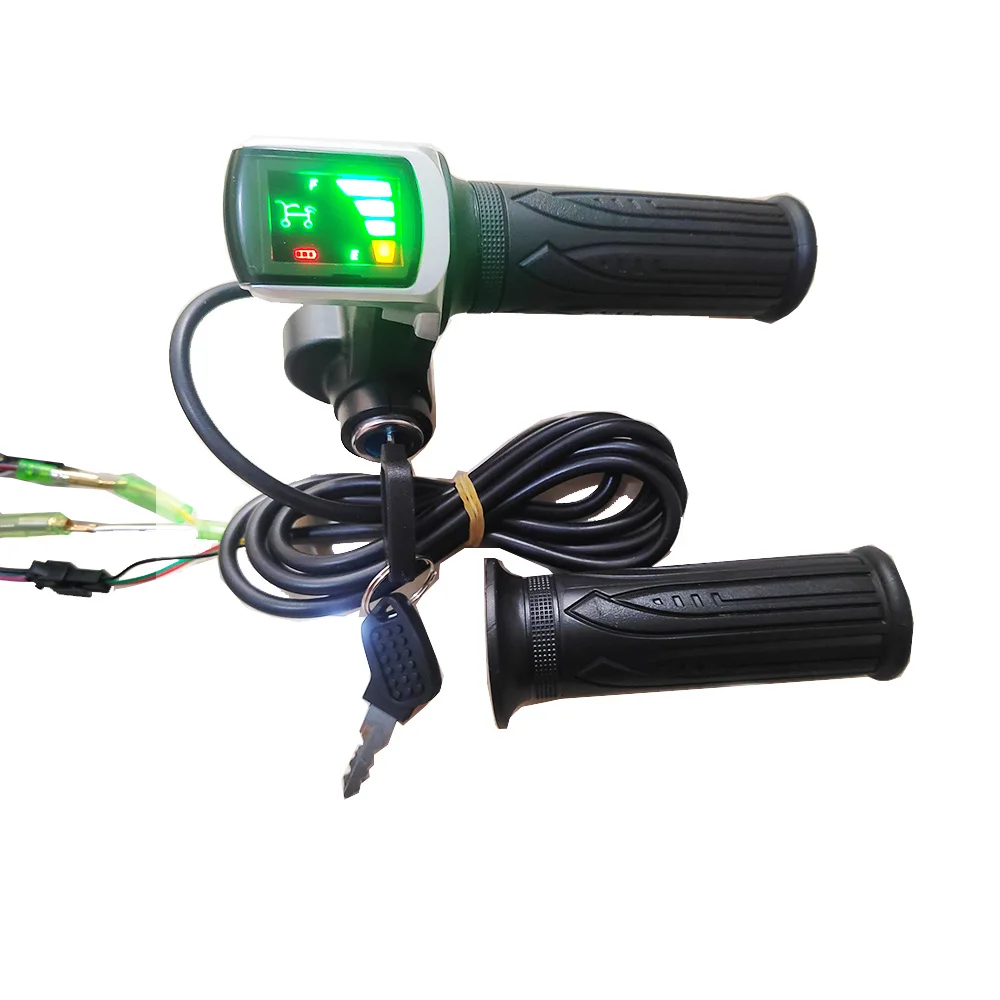

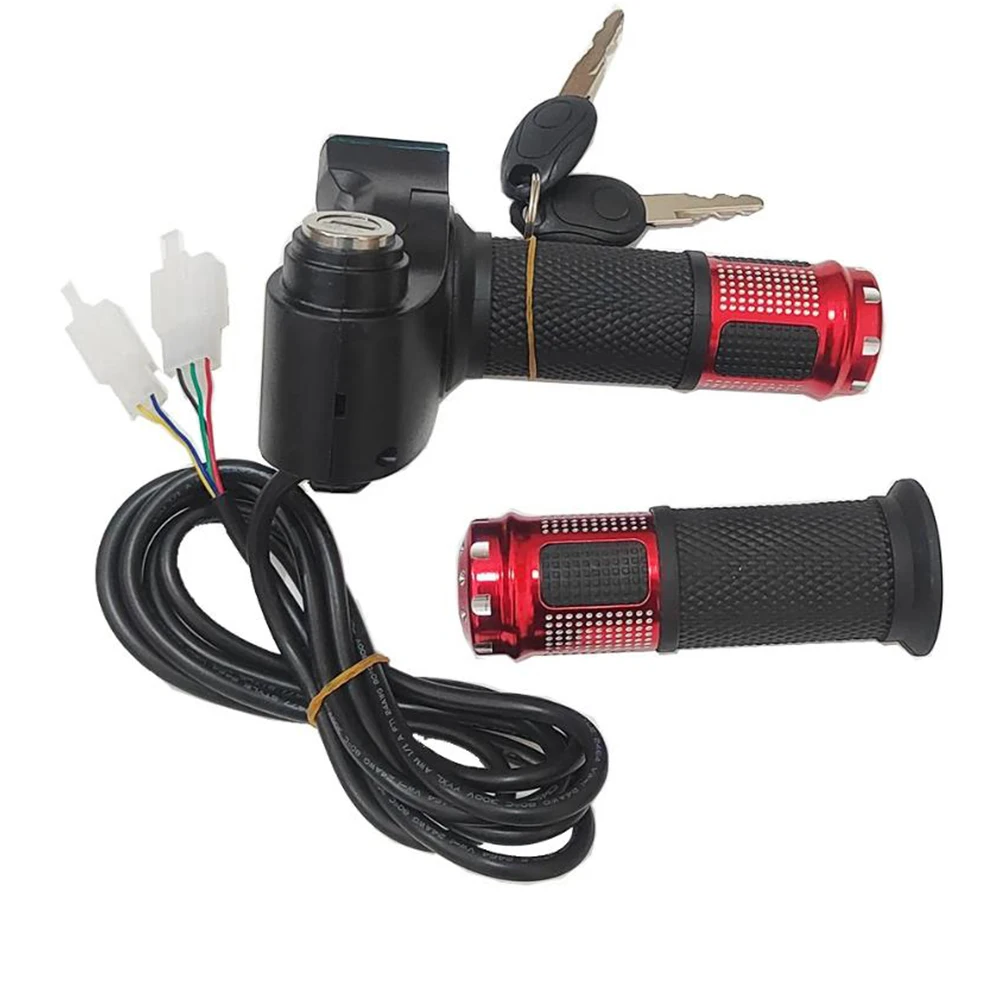

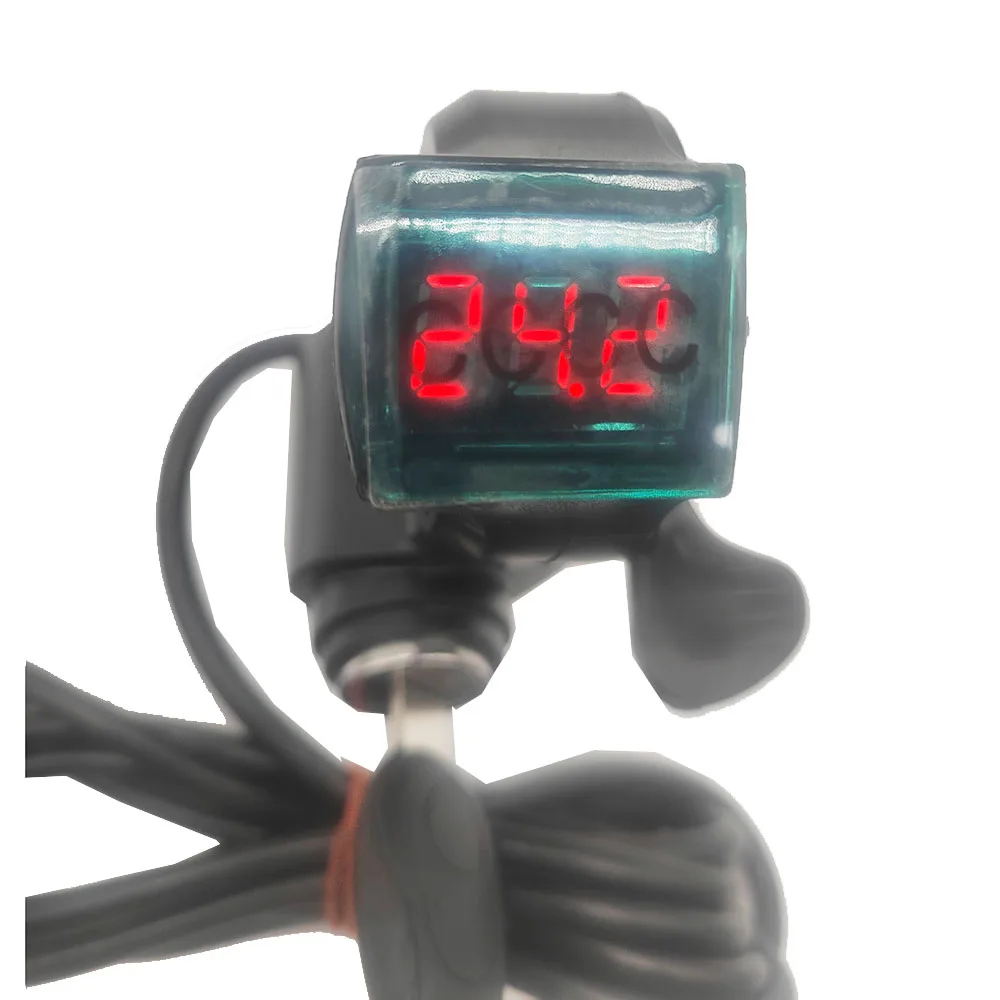

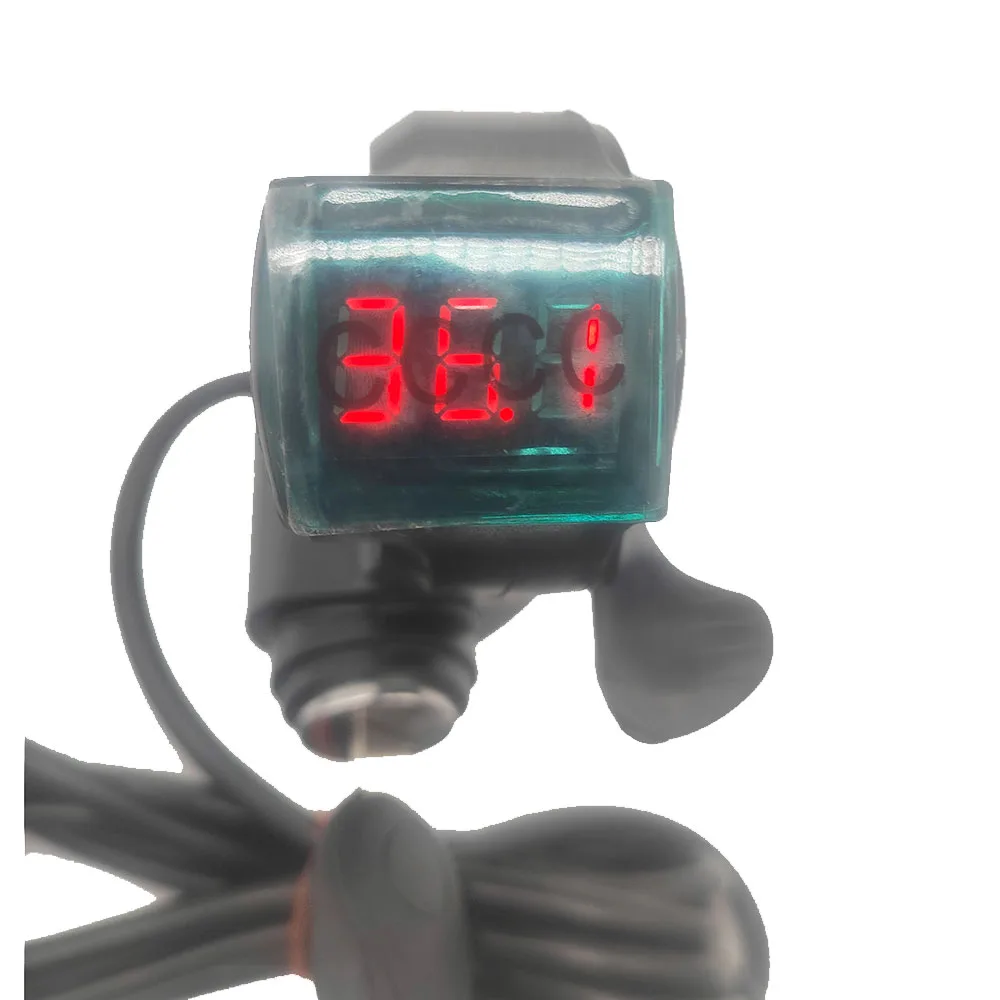

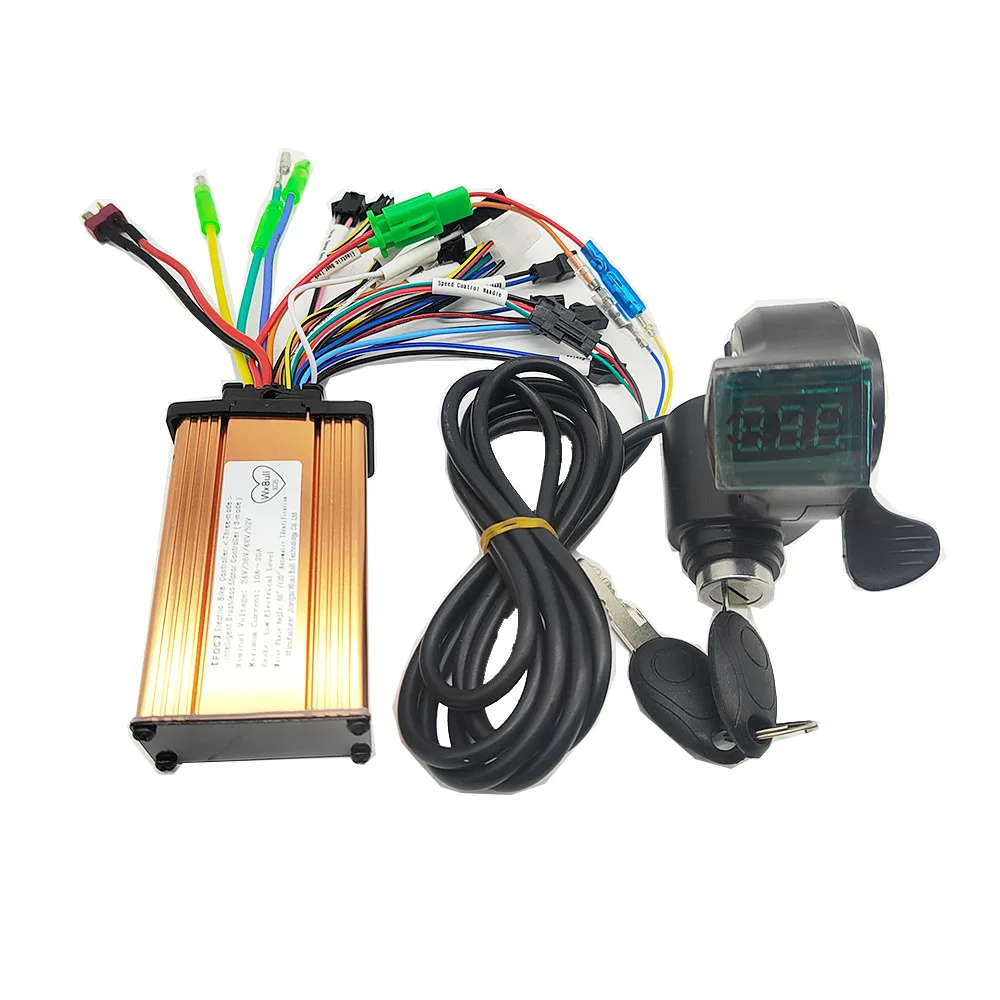

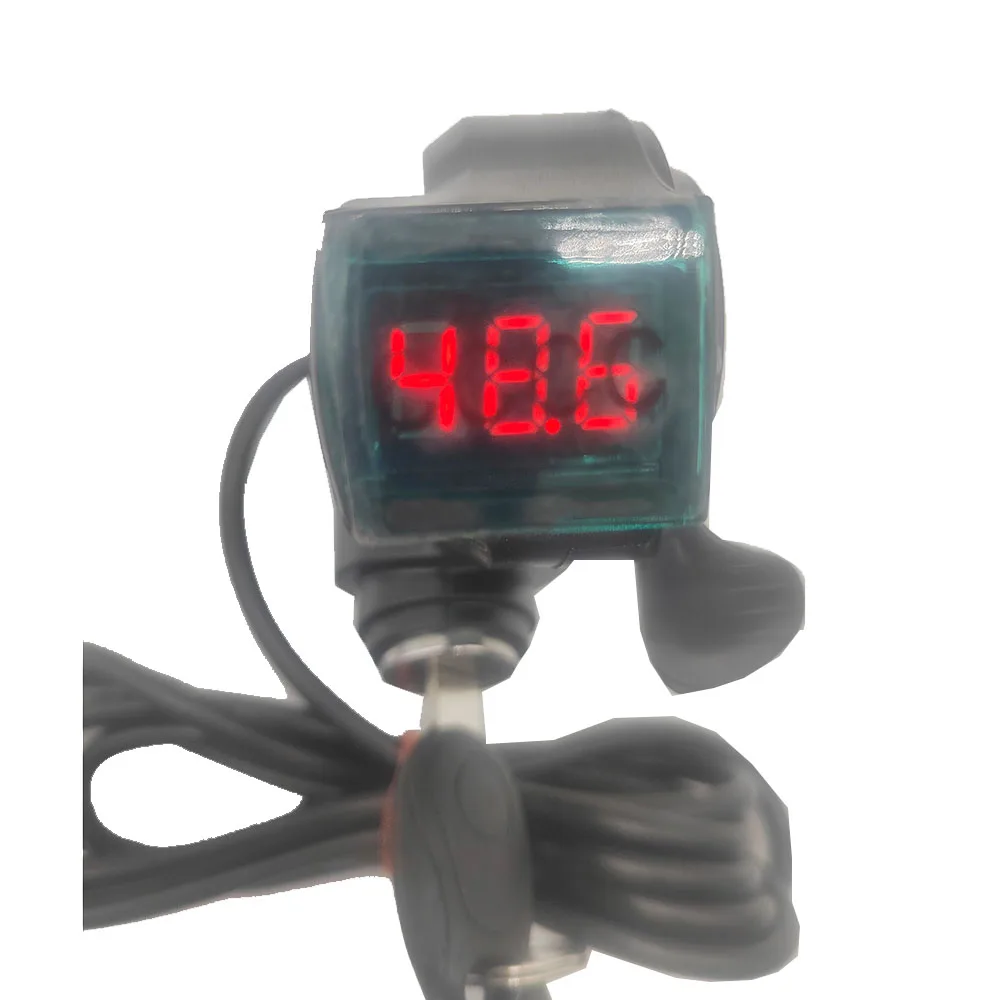

4.1 pair LCD throttle

About the geared motor power design 350W,500W

About the load, standard 100kg, max 200kg

About the speed,24V 350W Walking speed(5-20km/h)，36V-48V 350W about 15-30km/h ，36V 500W ,48V 500W about 20-40km/h.

About the operation, easy and comfortable.

High Torque 30-40 N.m

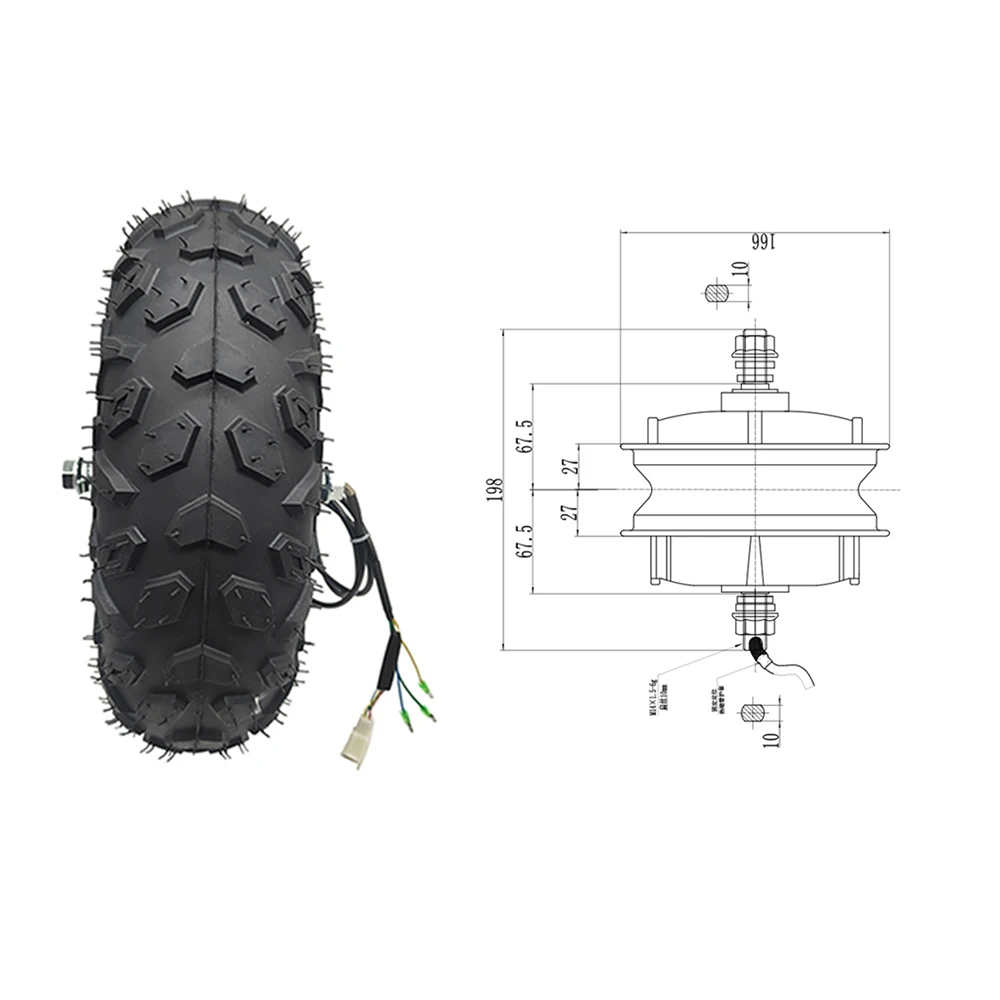

The tire is 350mm high, 120mm wide, 125mm open gear and 14mm shaft diameter

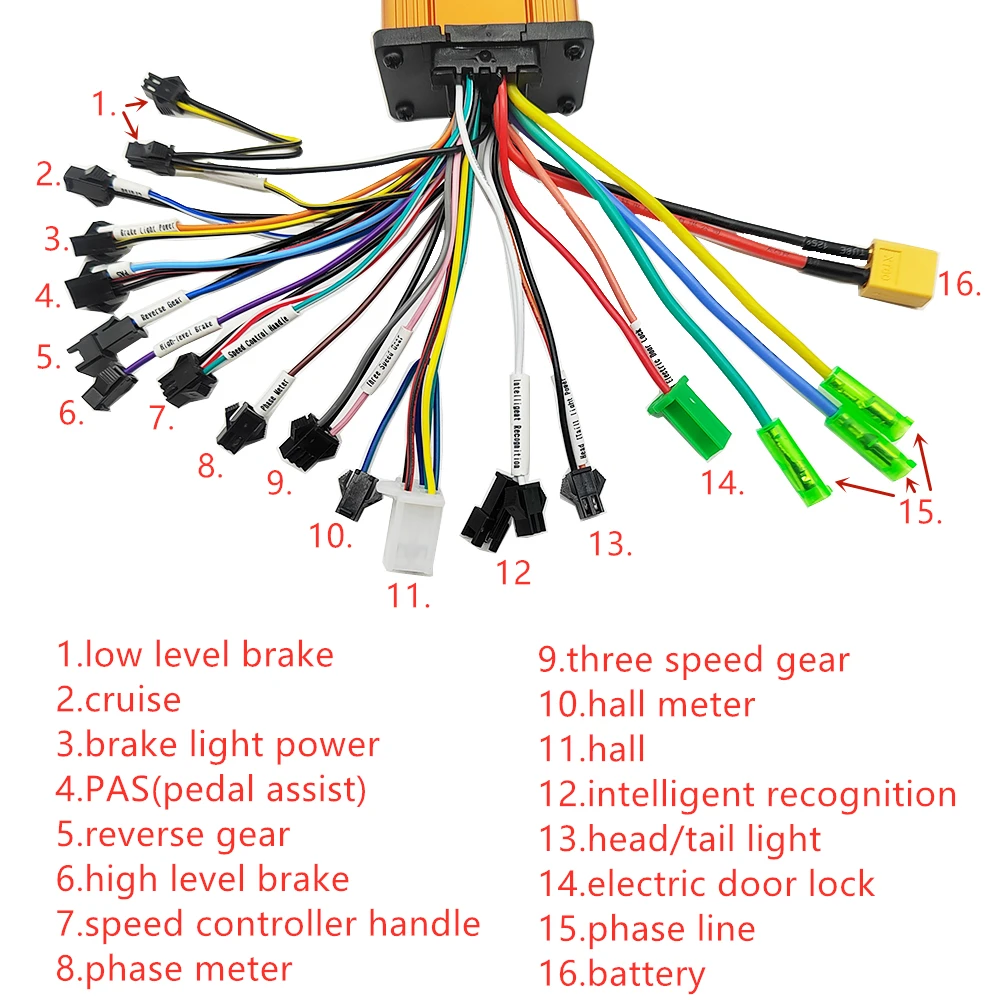

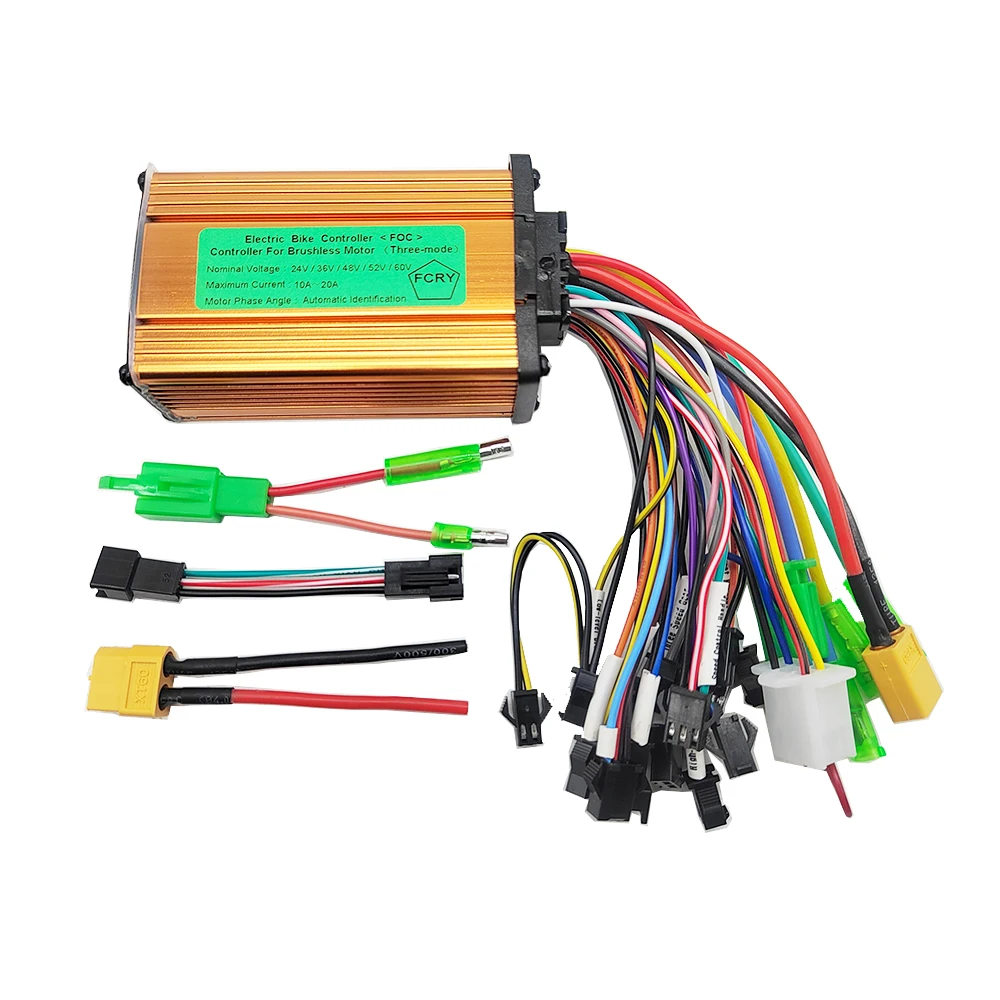

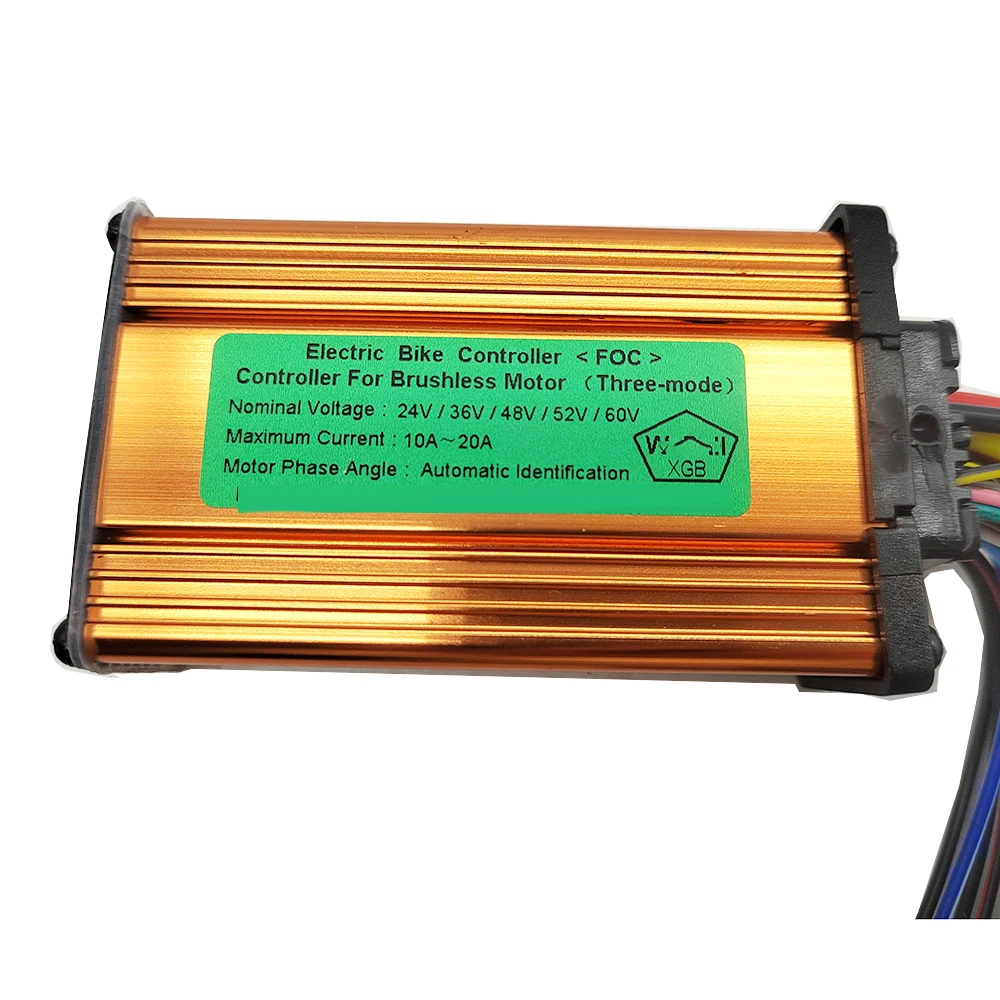

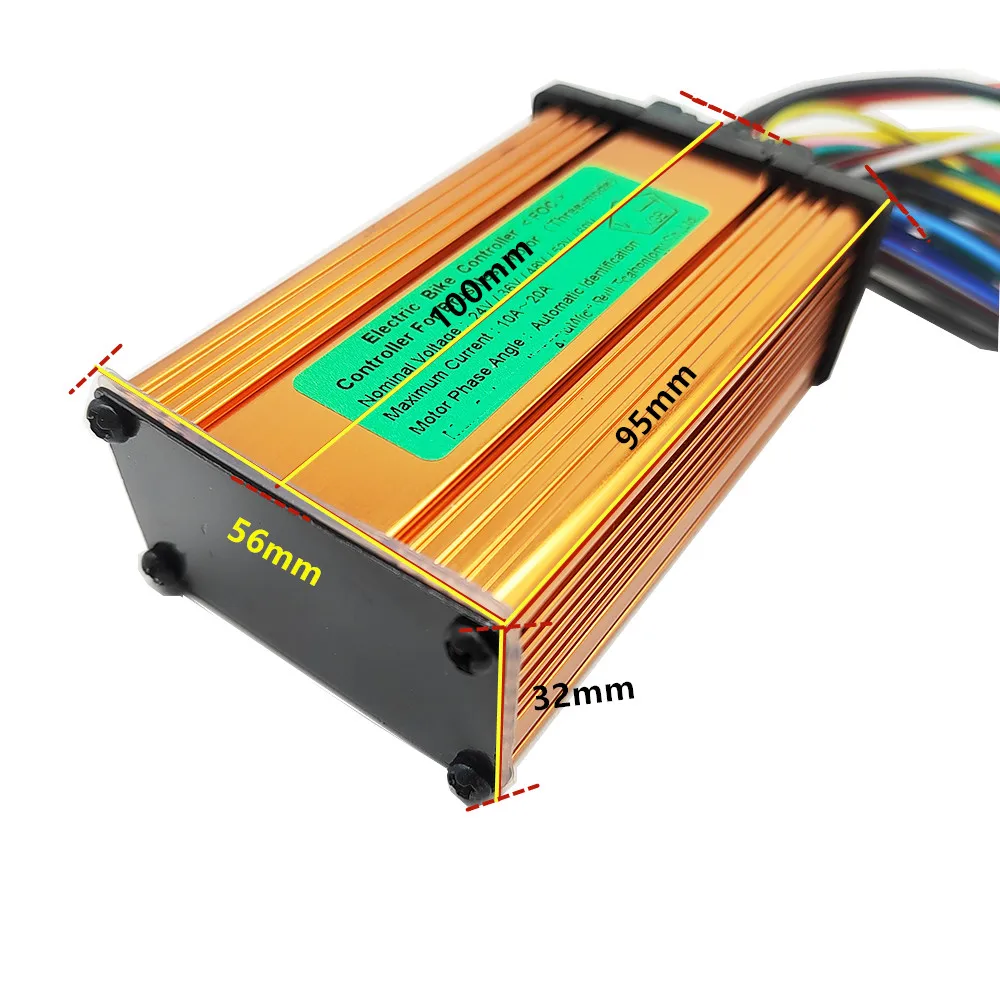

24/36V/48V/60V 250-350W 10A-20A brushless gold controller function:

1.low level brake

2.cruise

3.brake light power

4.PAS(pedal assist)

5.reverse gear

6.high level brake

7.speed controller handle（throttle）

8.phase meter

9.three speed gear

10.hall meter

11.hall

12.intelligent recognition（self-learning lines）

13.head/tail light

14.electric door lock

15.phase line

16.battery

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)

3. connect the battery line(red:battery+ , black:battery-)

4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)

This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

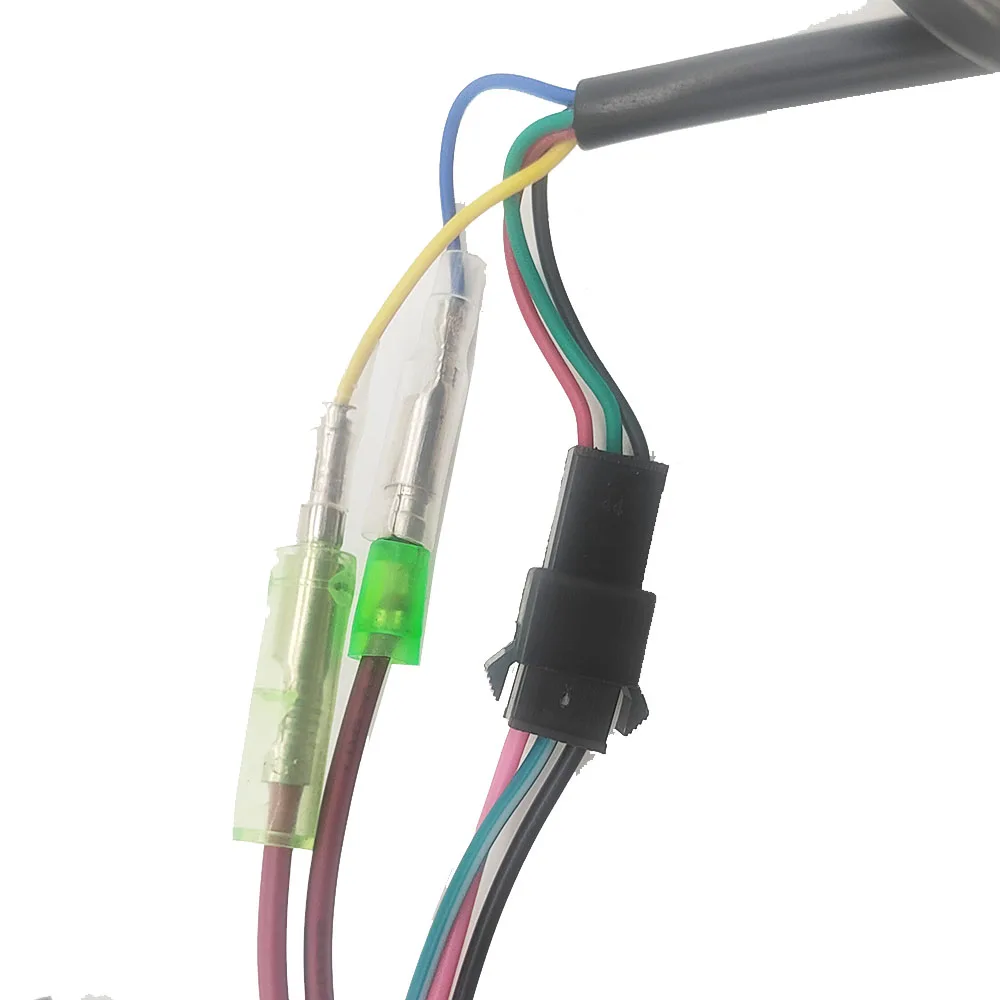

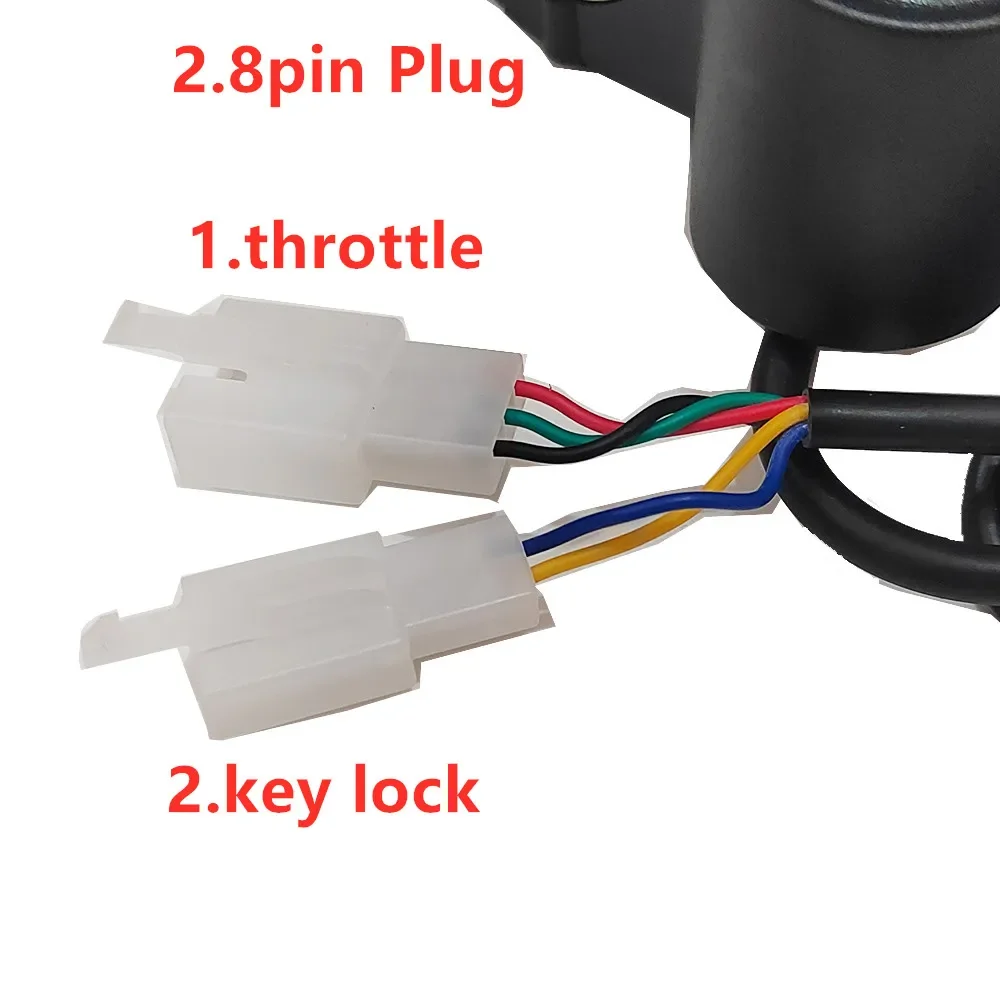

5. connect the controller throttle to throttle and need color to color connect,

connect controller electric door lock to throttle electric door lock

（if throttle not have electric door lock,let controller electric door lock short,

so controller electric door must connect ）

NOTE:when use throttle control speed,two intelligent recognition line must separate.

6.other functions can be connected as needed.

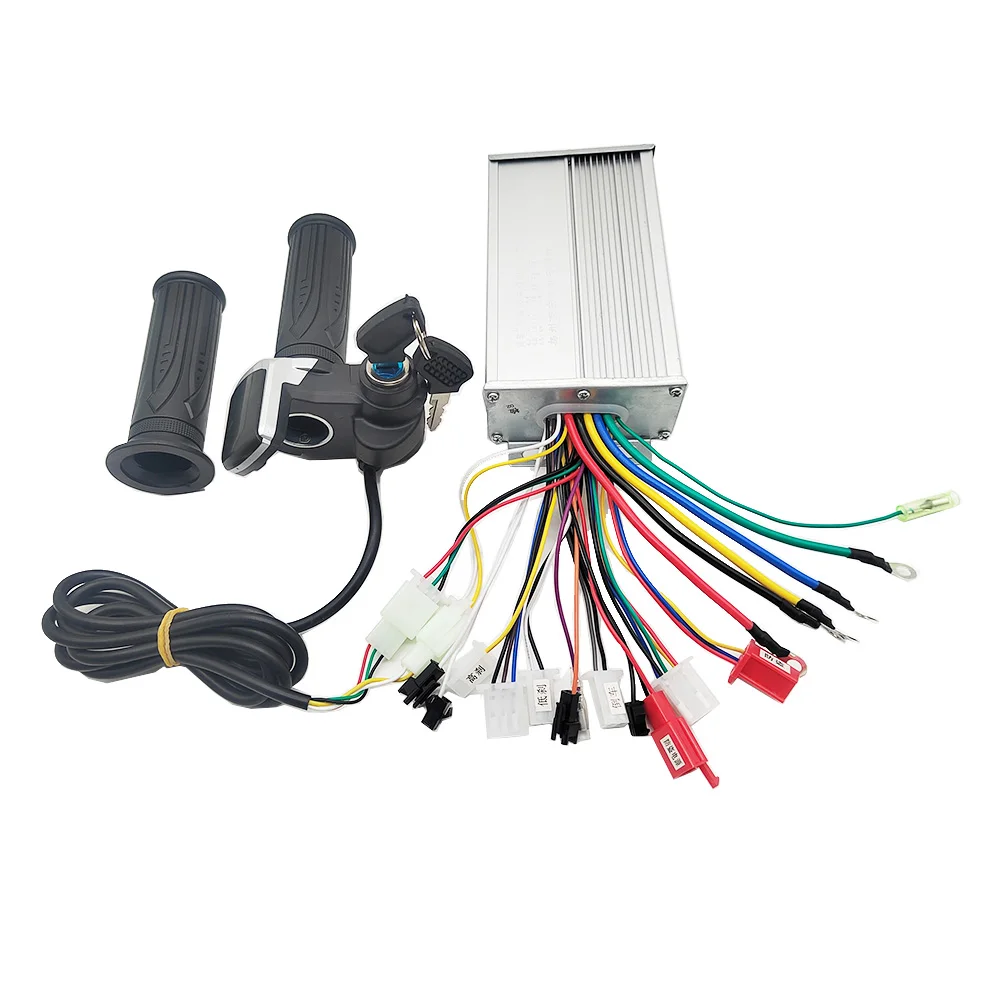

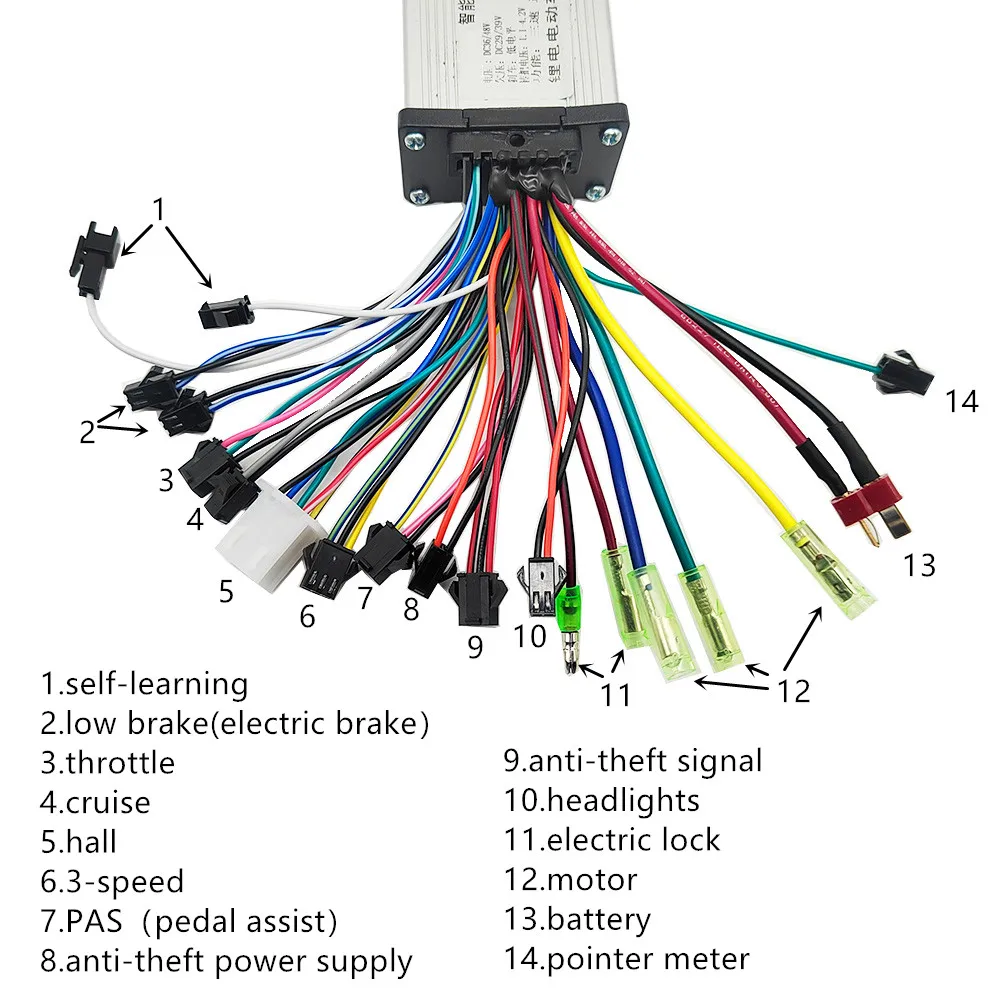

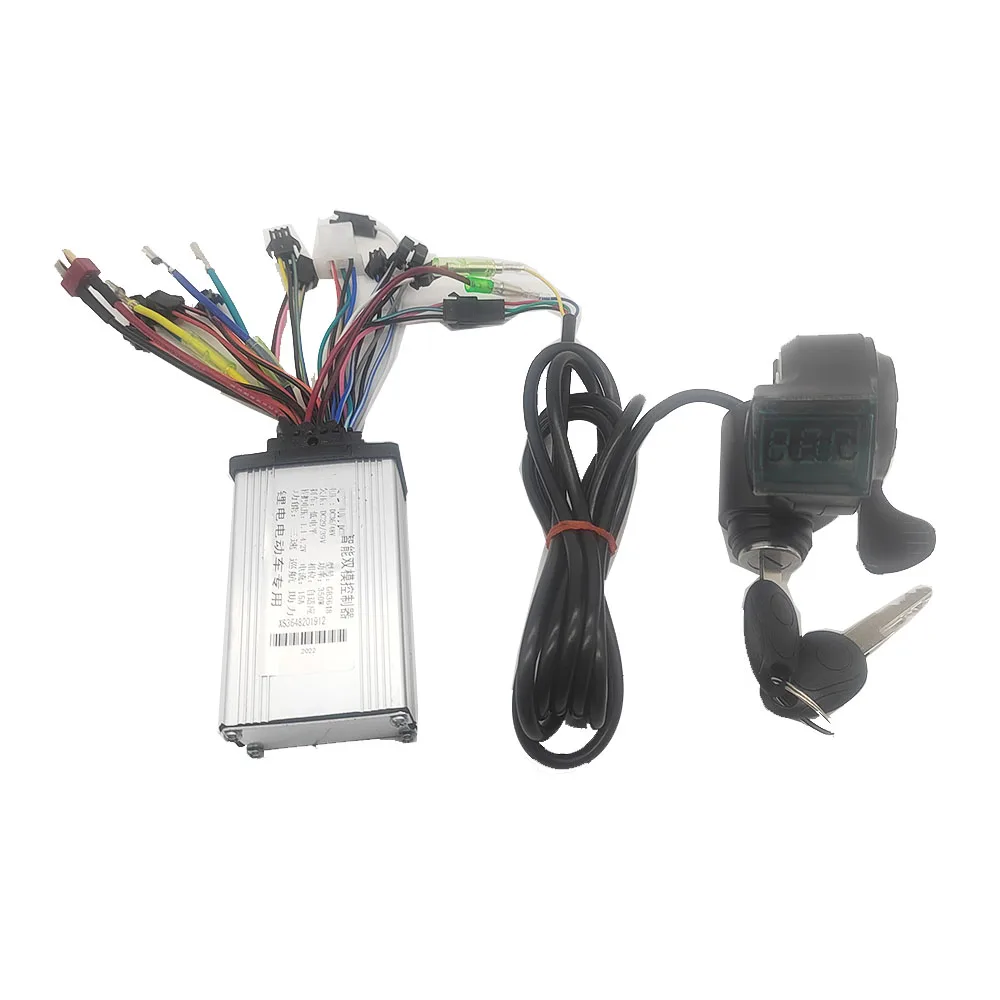

36V-48V 350W sliver controller function：

Rated Voltage: 36V/48V

Low Voltage : 30V/39V±0.5V

Rated Power: 350W

Limit Current: 15A

Phase Angle: Universal for 60° and 120°

Main functions: three-speed, cruise, 1:1 assist

1.self-learning

2.low brake(electric brake）

3.throttle

4.cruise

5.hall

6.3-speed

7.PAS（pedal assist）

8.anti-theft power supply

9.anti-theft signal

10.headlights

11.electric lock

12.motor

13.battery（red：battery+，black：battery-）

14.pointer meter

how to connect ？

1.connect the motor line (color to color）

2. connect the battery line(red wires :battery + , black:battery-)

3. connect the controller throttle line（color to color），connect electric lock

（if your throttle not have electric lock，controller electric lock can be shorted）

4. connect the hall line(if motor without hall line, don't need connect)

5.off power,let the two self-learning lines connect together, open power,the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. let two self-learning lines connect together again，if wheel forward ,Separate the self-learning line.)

note：when use throttle control speed，self-learning line must separate,if self-learning line connect together，throttle can't work.

6.other functions can be connected as needed.

NOTE:36V 500W and 48V 500W hub motor phase line plug not match to 36-48V 500W controller phase plug，so need buyer cut off plug to connect phase wires.please buyer know this before place order.if can't accept,please don't place order.

36V-48V 500W controller can work with hall connect sensor or not connect hall sensor

Rated Voltage: 36V/48V

Low Voltage : 31V/42V±0.5V

Rated Power: 500W

Limit Current:30A

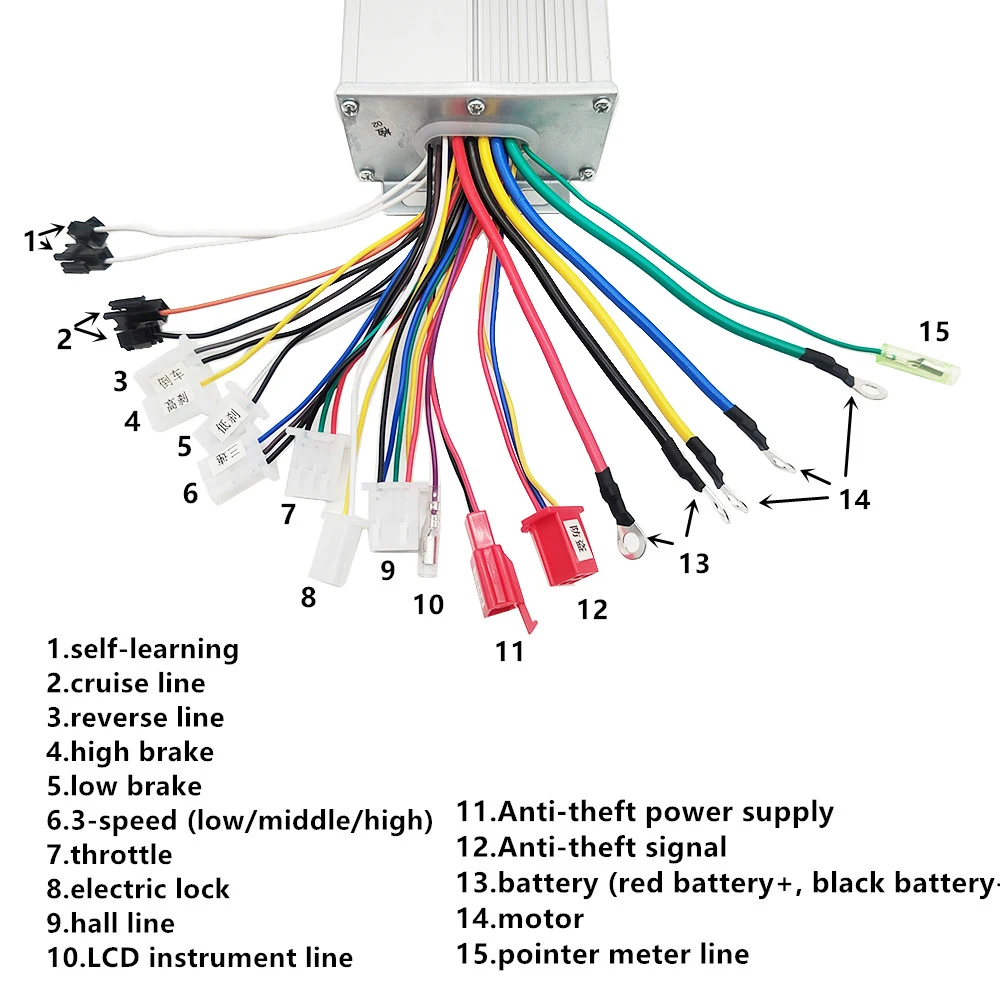

1.self-learning

2.cruise line

3.reverse line

4.high brake

5.low brake

6.3-speed (low/middle/high)

7.throttle

8.electric lock

9.hall line

10.LCD instrument line

11.Anti-theft power supply

12.Anti-theft signal

13.battery (red battery+, black battery-)

14.motor

15.pointer meter line

1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）

2. connect the battery line(red:battery + , black:battery-)

3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock

4.off power,let the two self-learning lines connect together, open power,the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. let two self-learning lines connect together again，if wheel forward ,Separate the self-learning line.)

note：when use throttle control speed，self-learning line must separate,if self-learning line connect together，throttle can't work.

5.other functions can be connected as needed.

after 2025.8.3 order：

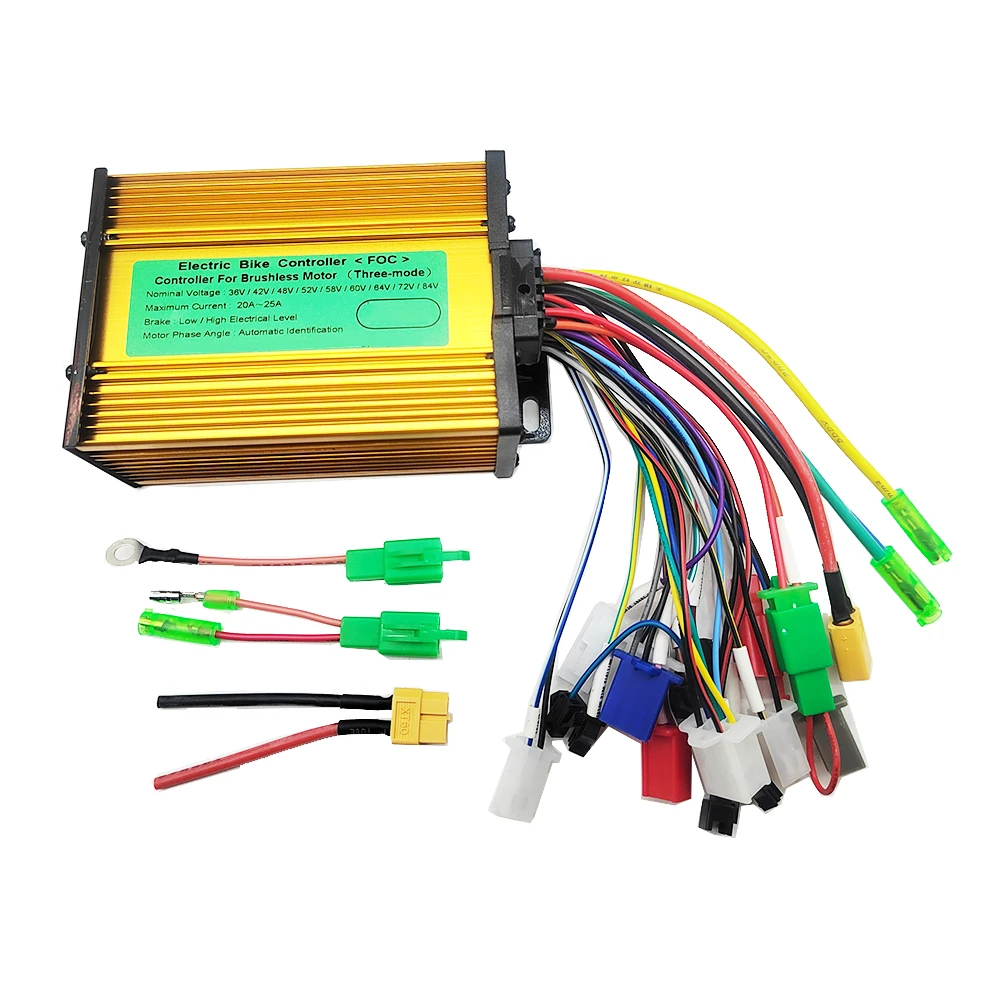

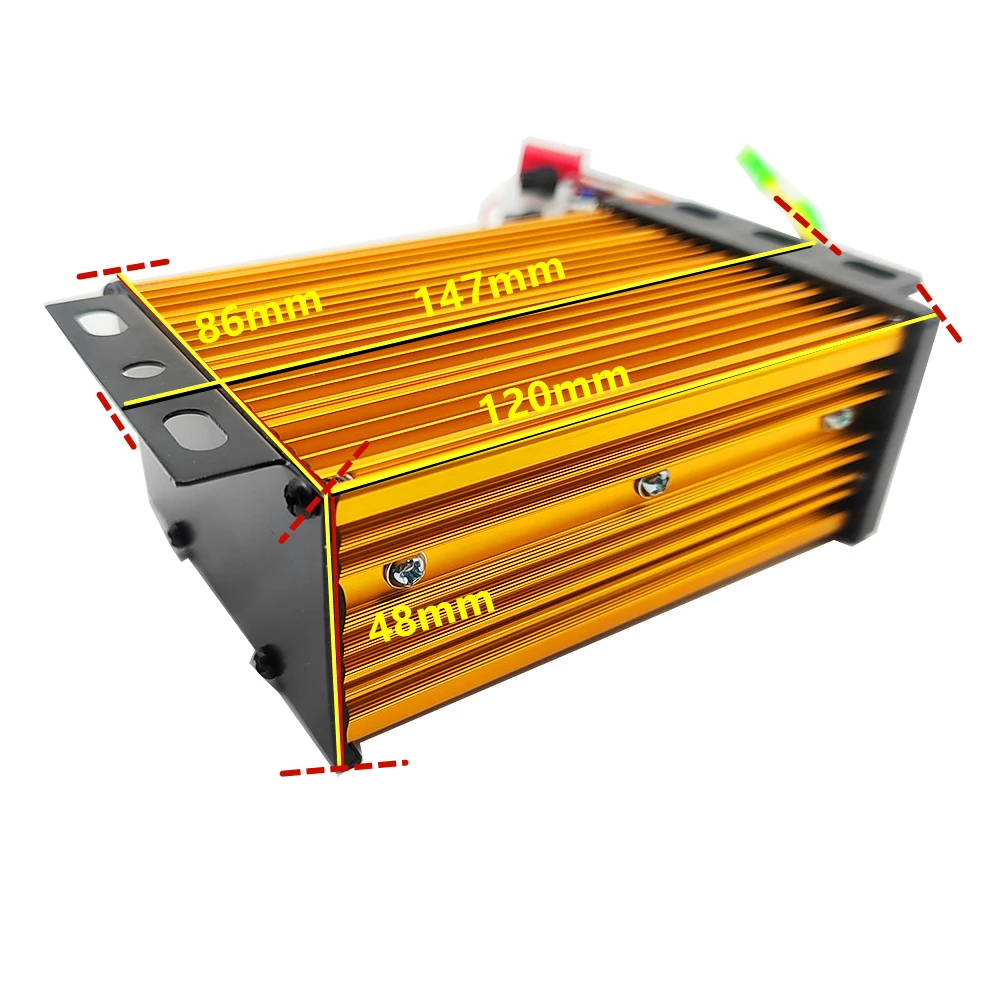

about 36V 500W and 48V 500W kit，use 20-25A gold controller：

voltage：36V/42V/48V/52V/60V/72V/84V universal

current：20A-25A

Phase angle: 60 °/120 ° all can be used

rated power:500W

1.PAS(pedal assist)

2.intelligent recognition（self-learnig line ）

3.low level brake

4.reverse gear

5.cruise

6.speed controller handle（throttle）

7.multiple data meter

8.hall meter

9.hall wires

10.three speed gear

11.phase meter

12.electric door lock

13.anti-theft alarm signal

14.anti-theft alarm power

15.high level brake

16.special for differential motor

17.phase line

18.battery

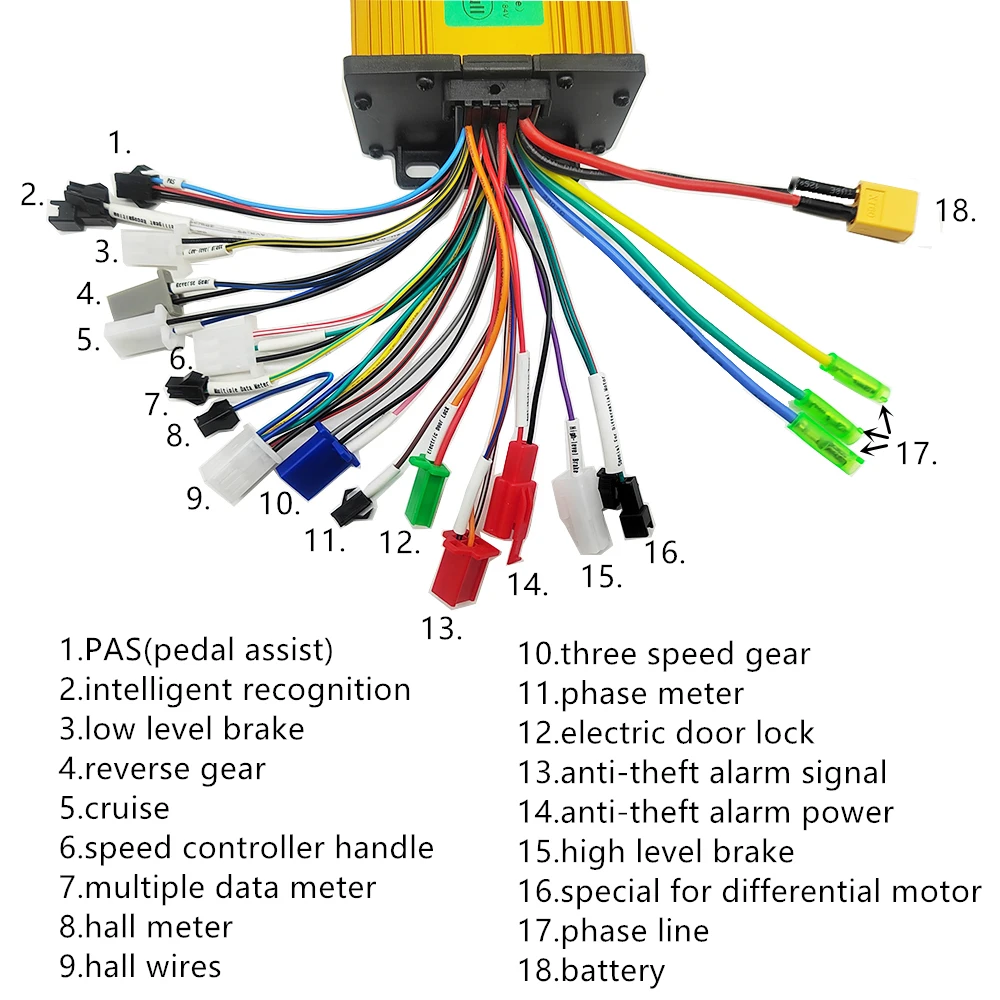

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)

3. connect the battery line(red:battery+ , black:battery-)

4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.

(1.if wheel forward ,Separate the intelligent recognition line.

2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)

This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

5. connect the controller throttle to throttle and need color to color connect,

connect controller electric door lock to throttle electric door lock

（if throttle not have electric door lock,let controller electric door lock short,

so controller electric door must connect ）

NOTE:when use throttle control speed,two intelligent recognition line must separate.

6.other functions can be connected as needed.
