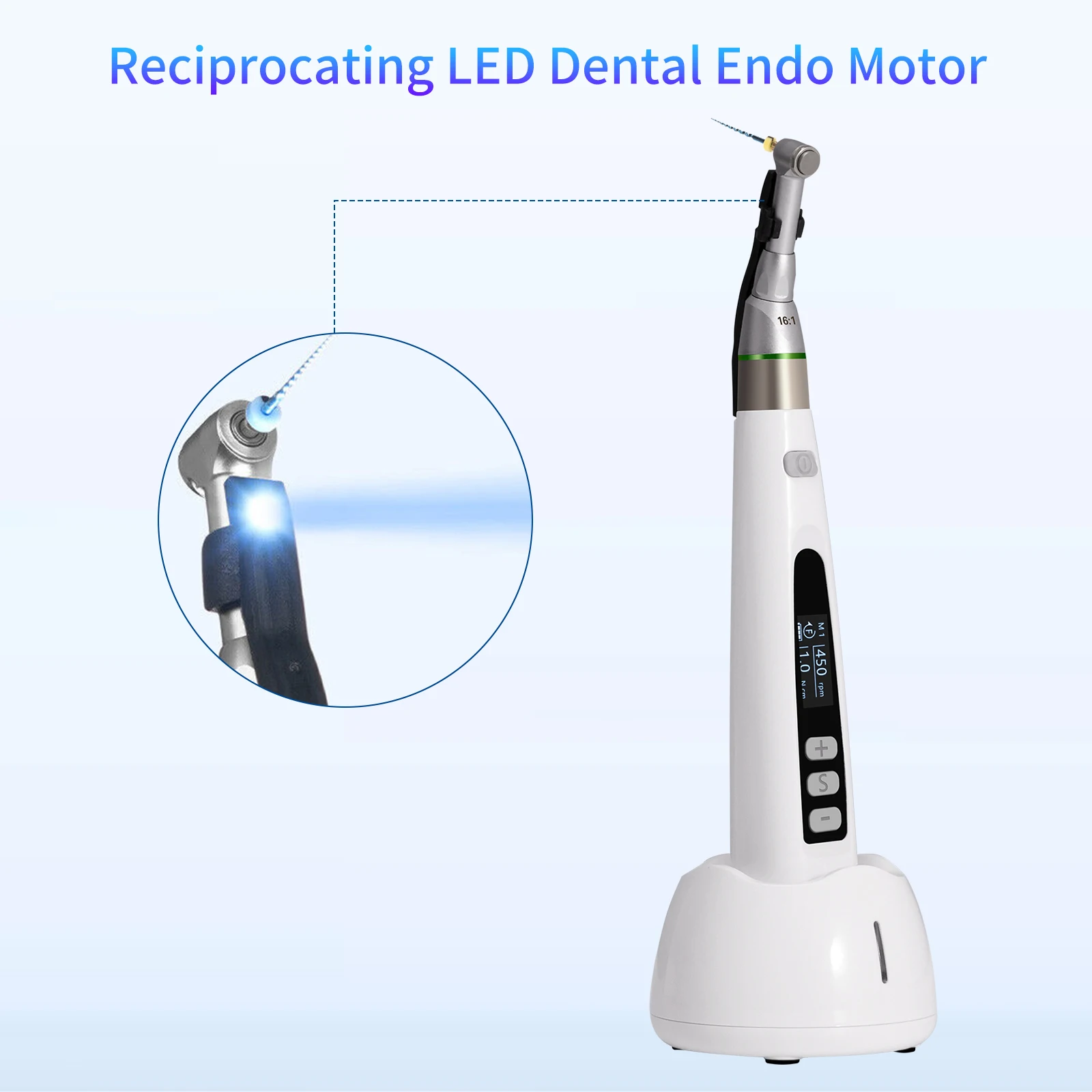

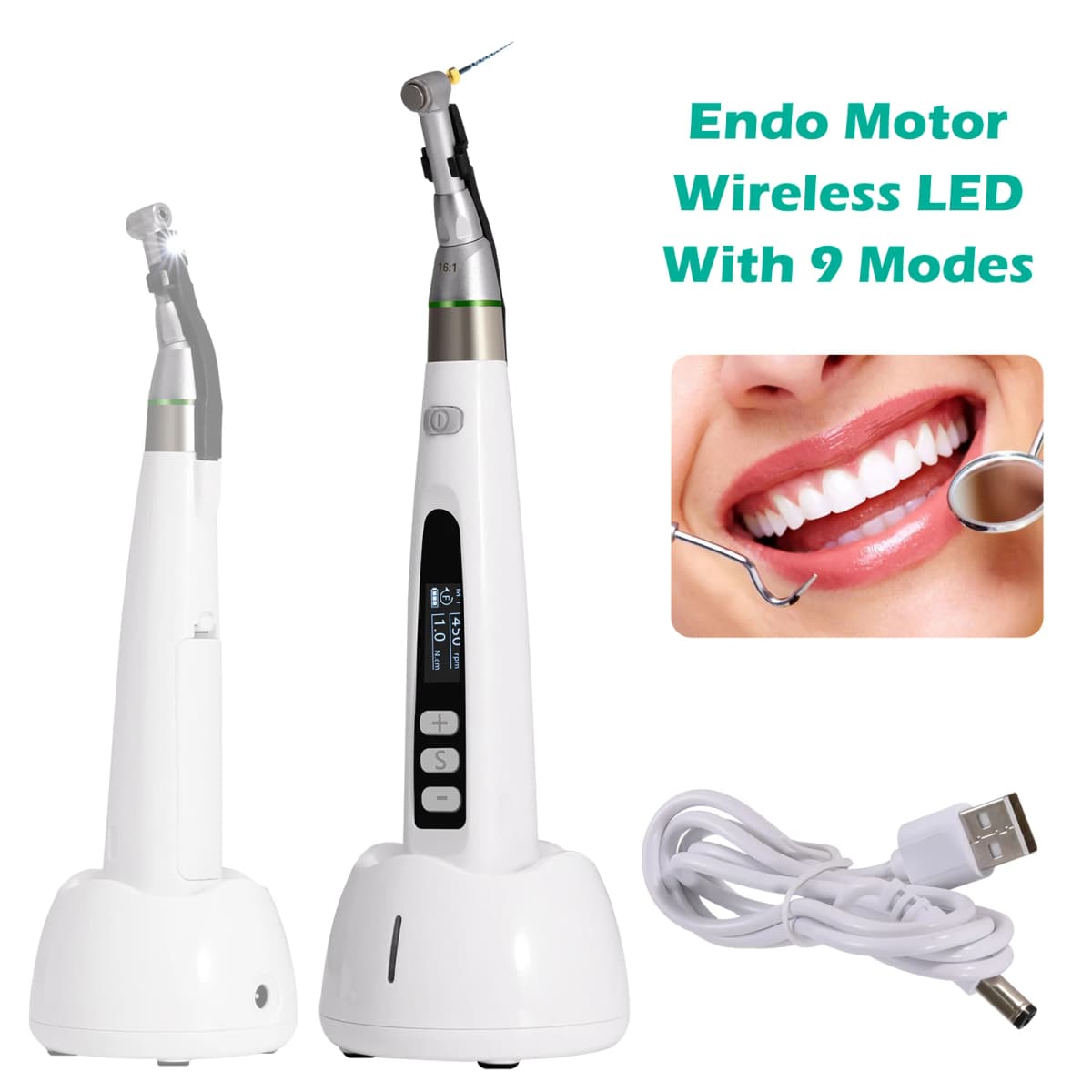

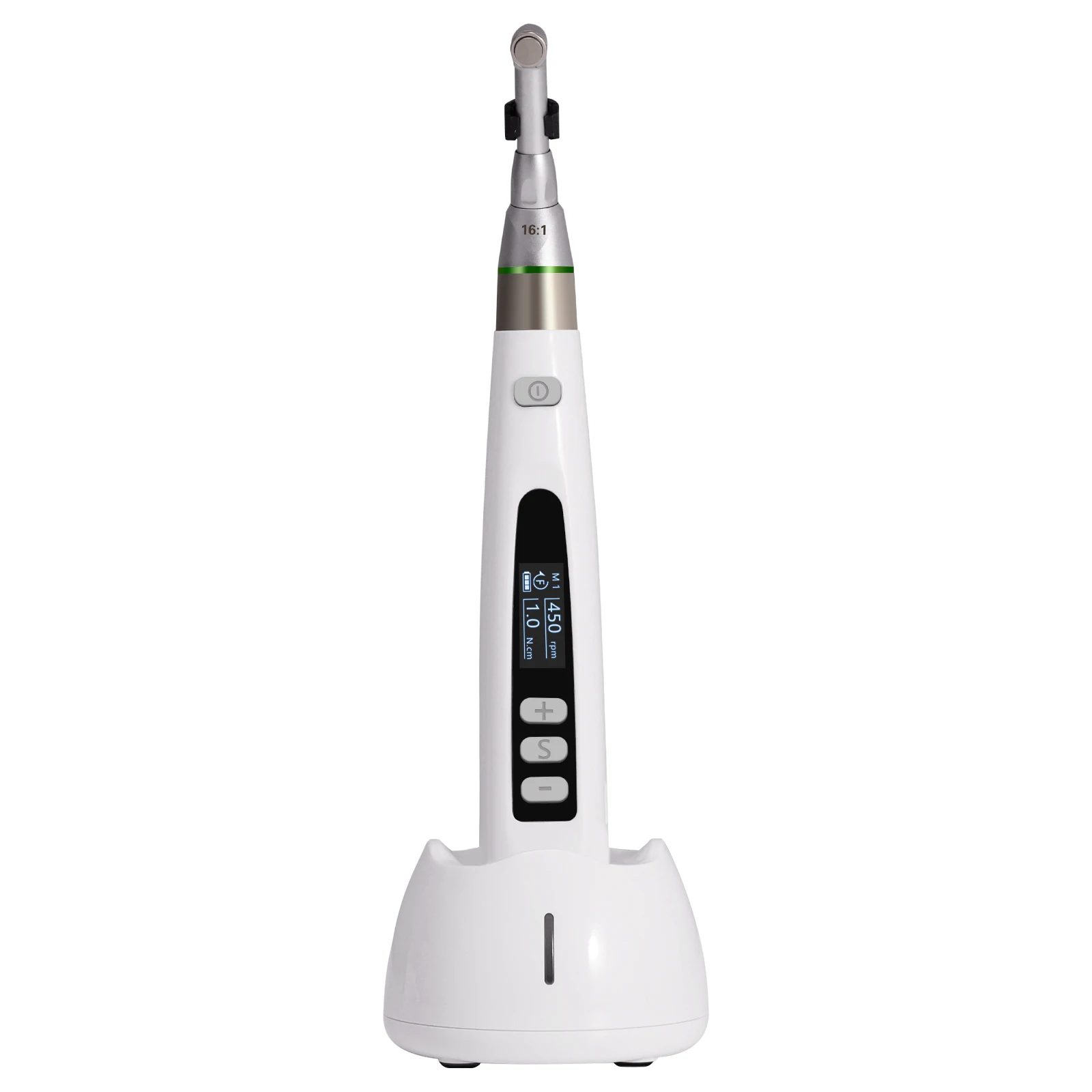

Dental Cordless & Wireless LED Light Endo Motor 16:1 Contra Angle Root Canal Treatment Endodontic

1. Product Overview

-Endo Motor is a dental instrument used to shape and clean the root canals of teeth during endodontic treatment.

-The primary function is to remove the infected pulp tissue, bacteria, and debris from the root canals; they also shape the canals to facilitate the filling and sealing process, which is crucial for the success of the treatment.

-This equipment should be operated by qualified or approved personnel. The operator should have specialized application skills and work in accordance with the manual.

2. Technical Specifications:

Main Unit：

Battery Voltage：DC3.7V
Battery capacity：800mAh
Charging time：3 hours approx
Weight：432g
Packing size：195*127*66mm

AC Adapter：

Rated input voltage：AC100-240V 50/60Hz
Output voltage：DC 5V/MICRO USB
Output current：1A

Operation Conditions：

Environment temperature：+5°C ~ +40°C
Relative humidity：10%-80%RH
Atmospheric pressure：50~106KPa

3. Display and Operation Modes

There are 9 built-in memory modes from M1 to M9, which can be configured for various operational requirements.

Rotation Mode Description:

Automatic Mode：

Continuous forward rotation, automatically reversing when encountering resistance. Restores to forward rotation once resistance is removed.

Forward Rotation Mode：

Automatically stops when encountering resistance.

Reverse-Stop Mode：

Automatically reverses when encountering resistance and stops working after reversing when no resistance is present.

Reverse Rotation Mode：

Continuous reverse rotation, operating in torque limit mode.

4. Cautions

Wear appropriate protective glasses during use to prevent debris from flying into your eyes during grinding.

Ensure the device is used in a dry and clean environment. Avoid allowing water or other liquids to enter the device.

Regularly check the charger and power plug. Replace them immediately if damaged.

Do not use a damaged charger or use the device with a loose power socket.

5. Packing List

Motor Handle：1 pc
Contra Angle：1 pc
LED Light：2 pcs
Charging Base：1 pc
Adaptor + USB Cable： 1 set
Operation Manual：1 pc
