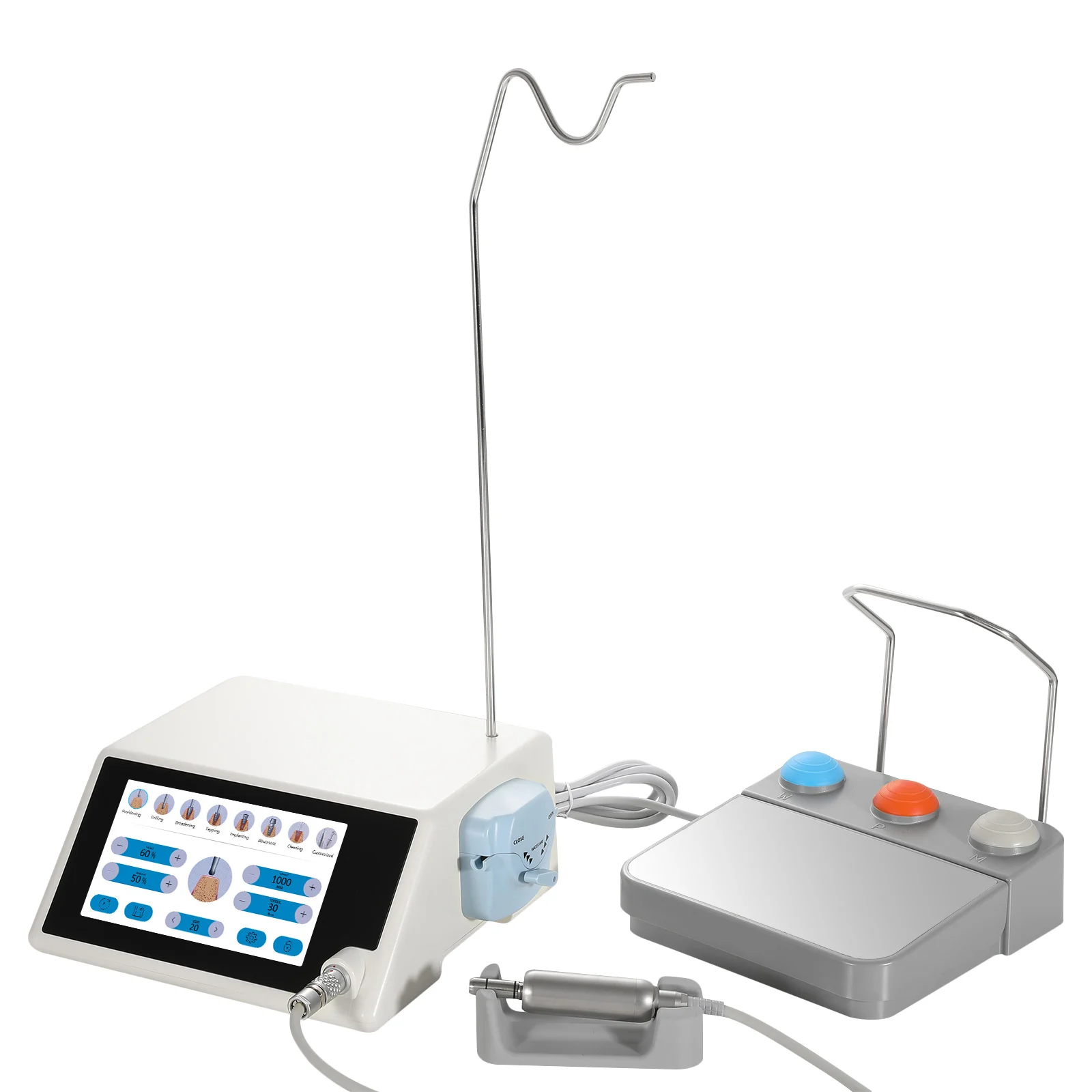

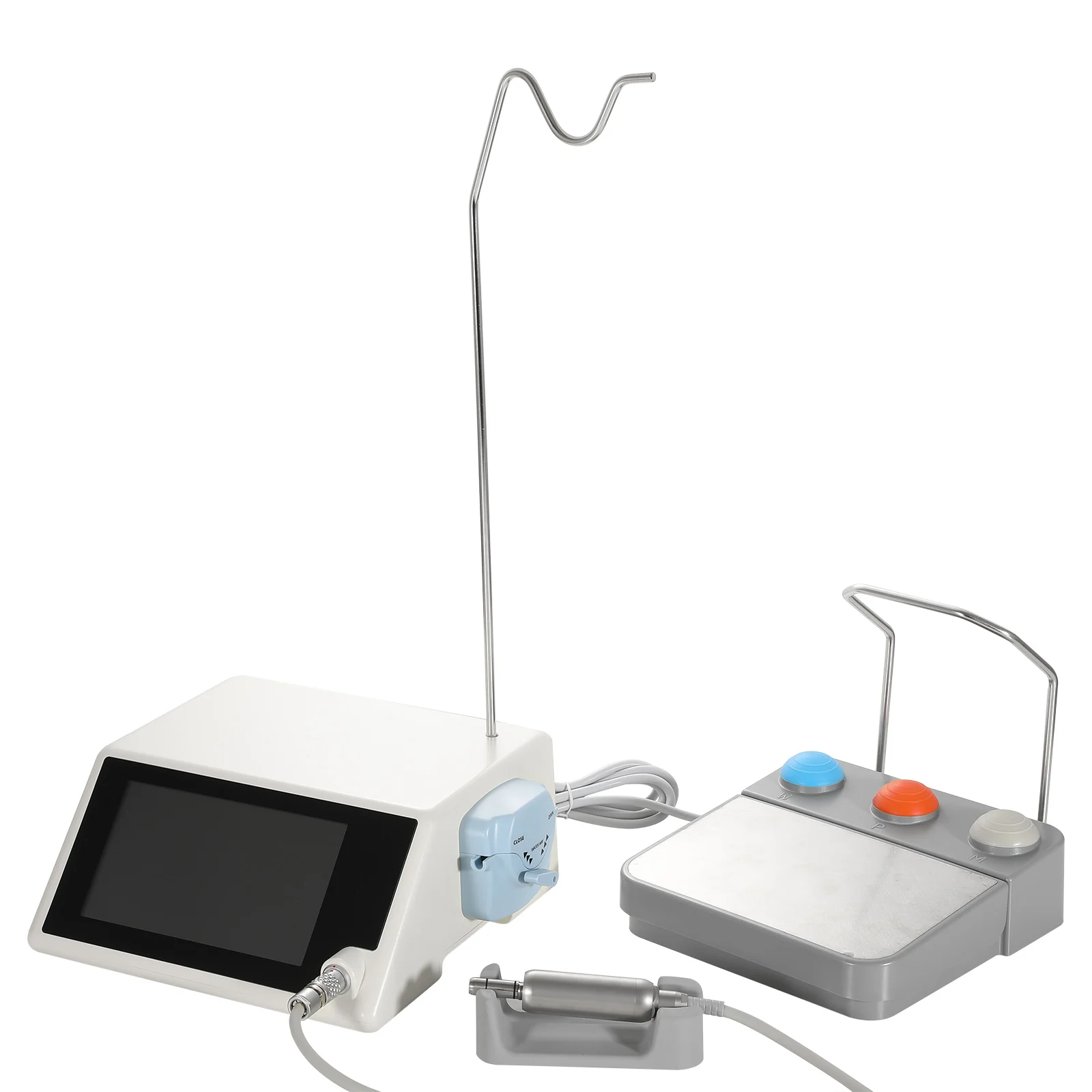

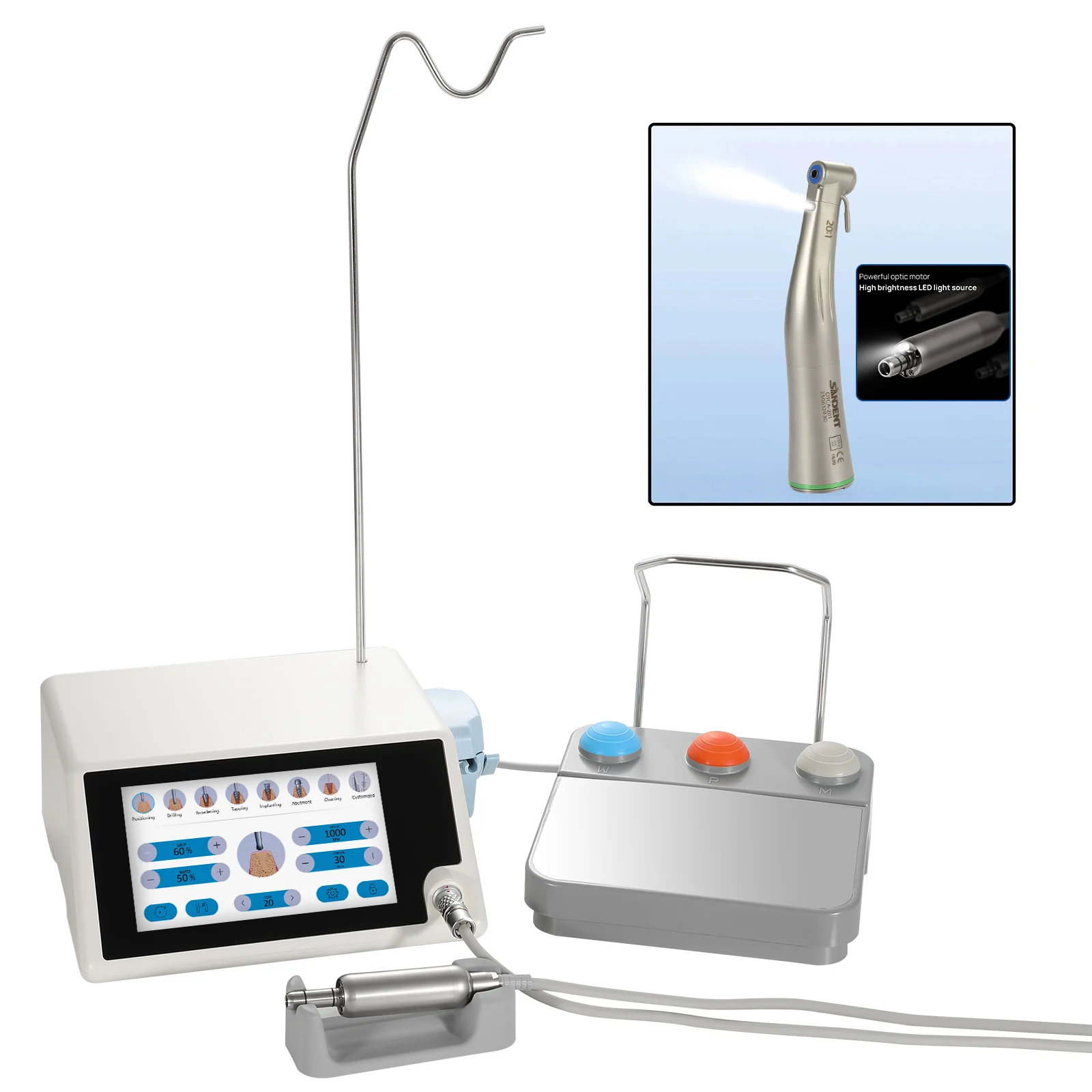

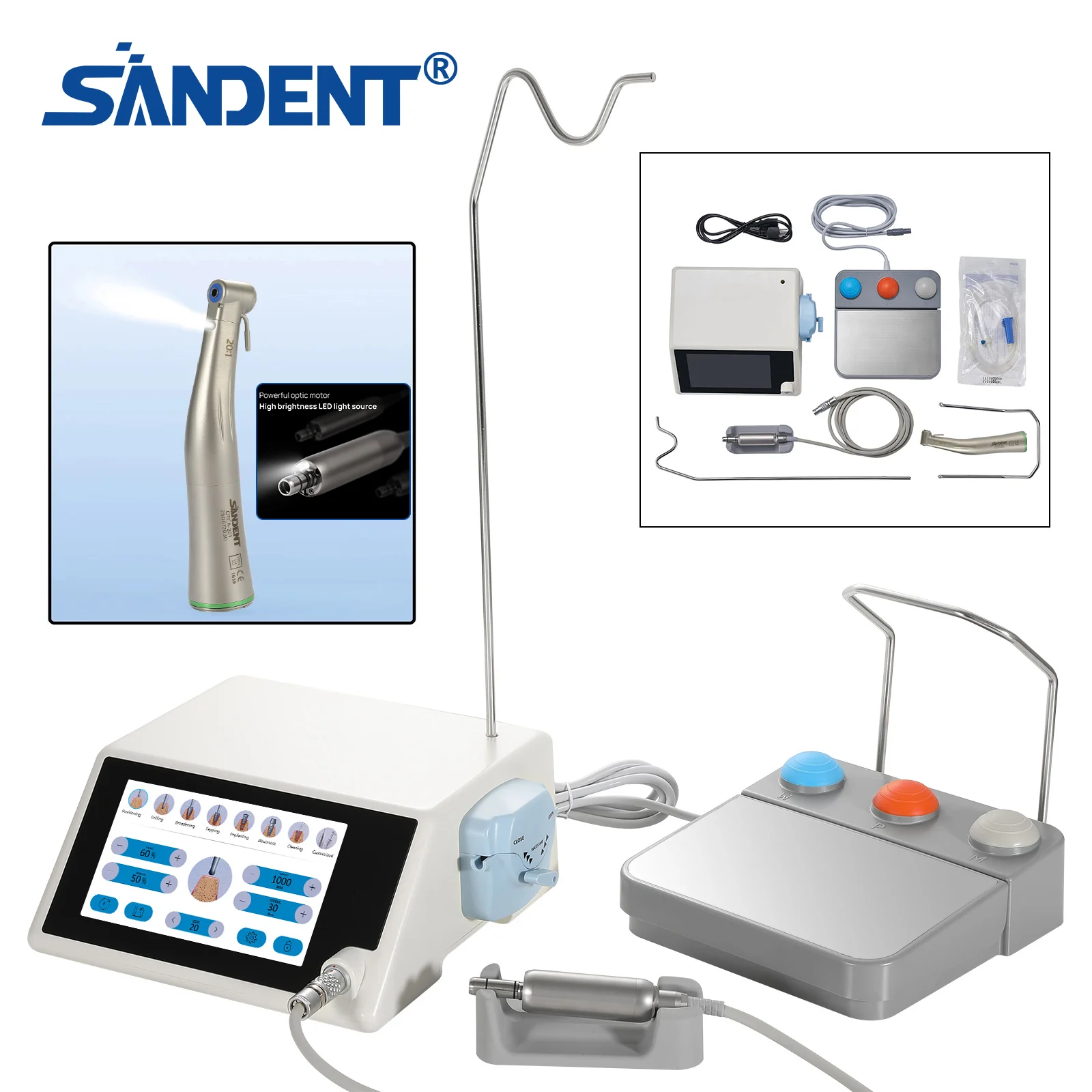

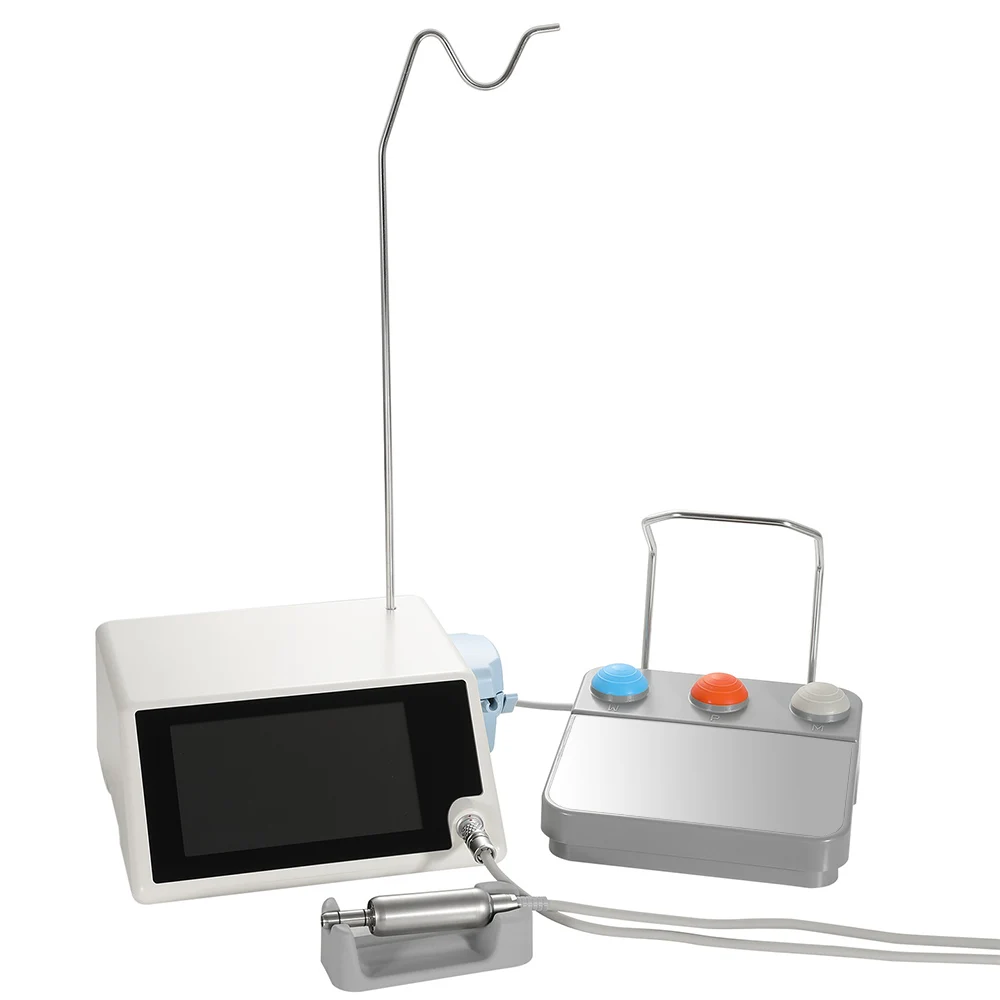

SANDENT Dental Brushless Surgical Implant Motor System Touch Screen Machine With 20:1 Contra Angle LED Fiber Optic Handpiece

Description:

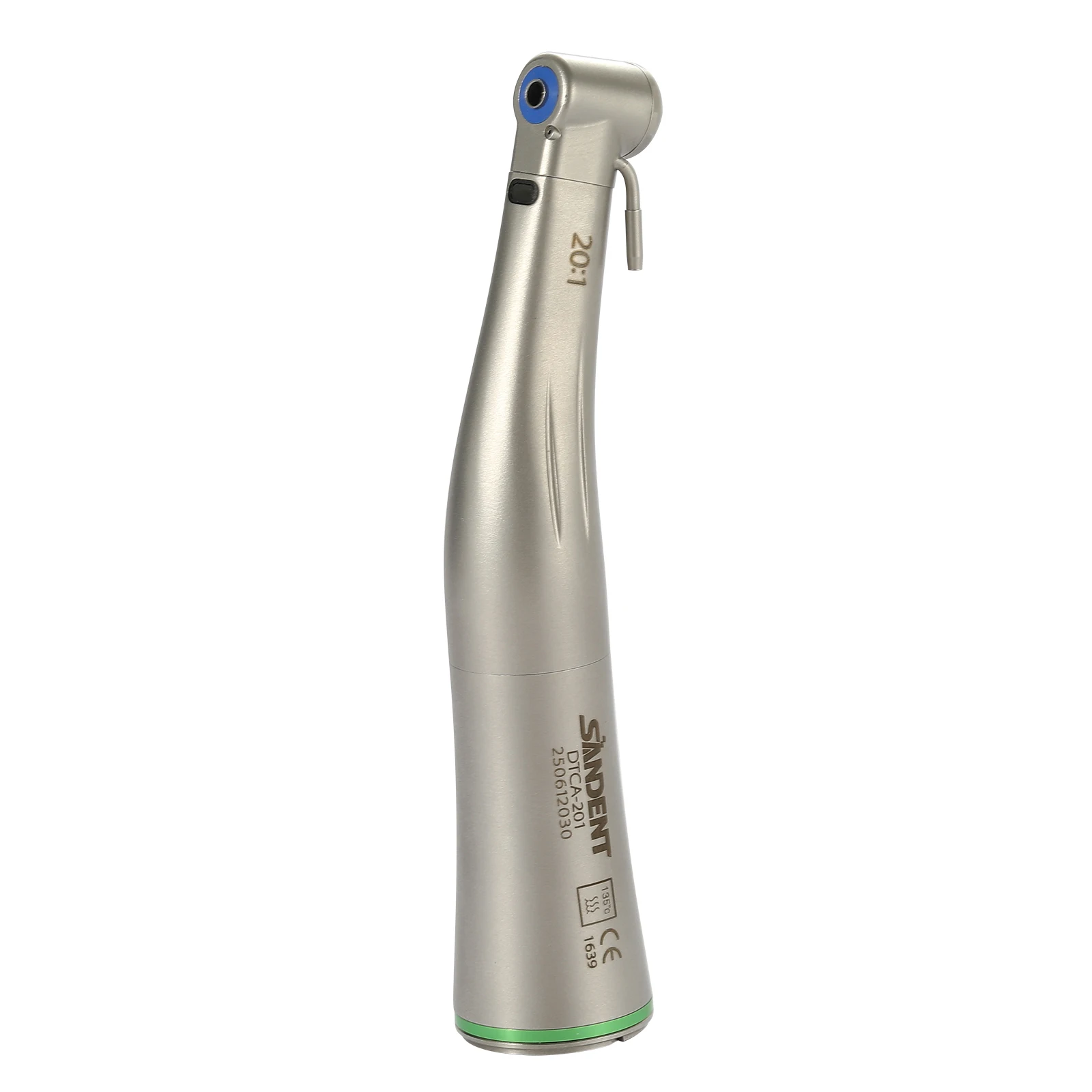

Dental Implant Motor Brushless Touch Screen Machine+ 20:1 LED Handpiece

Classification of equipment

Type of protection against electric shock:
— Class II equipment

Degree of protection against electric shock:
— Type B applied part

Degree ofprotectionagainst ingress of water as detailed in the current edition of IEC60529:
—Foot Control: IPX7 (Protected against the effects of continuous immersion in water)
—Main Unit: IP21

Motor specifications

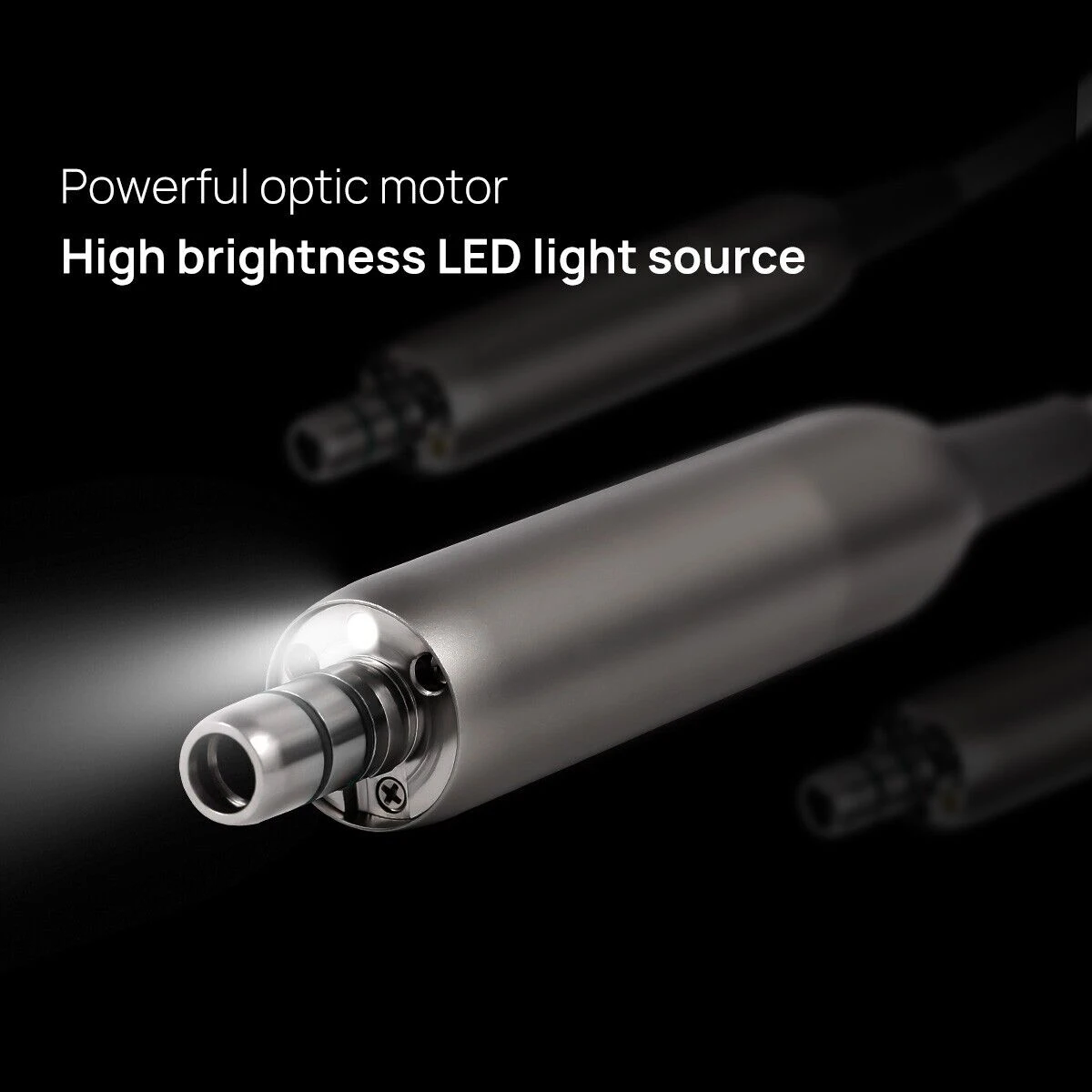

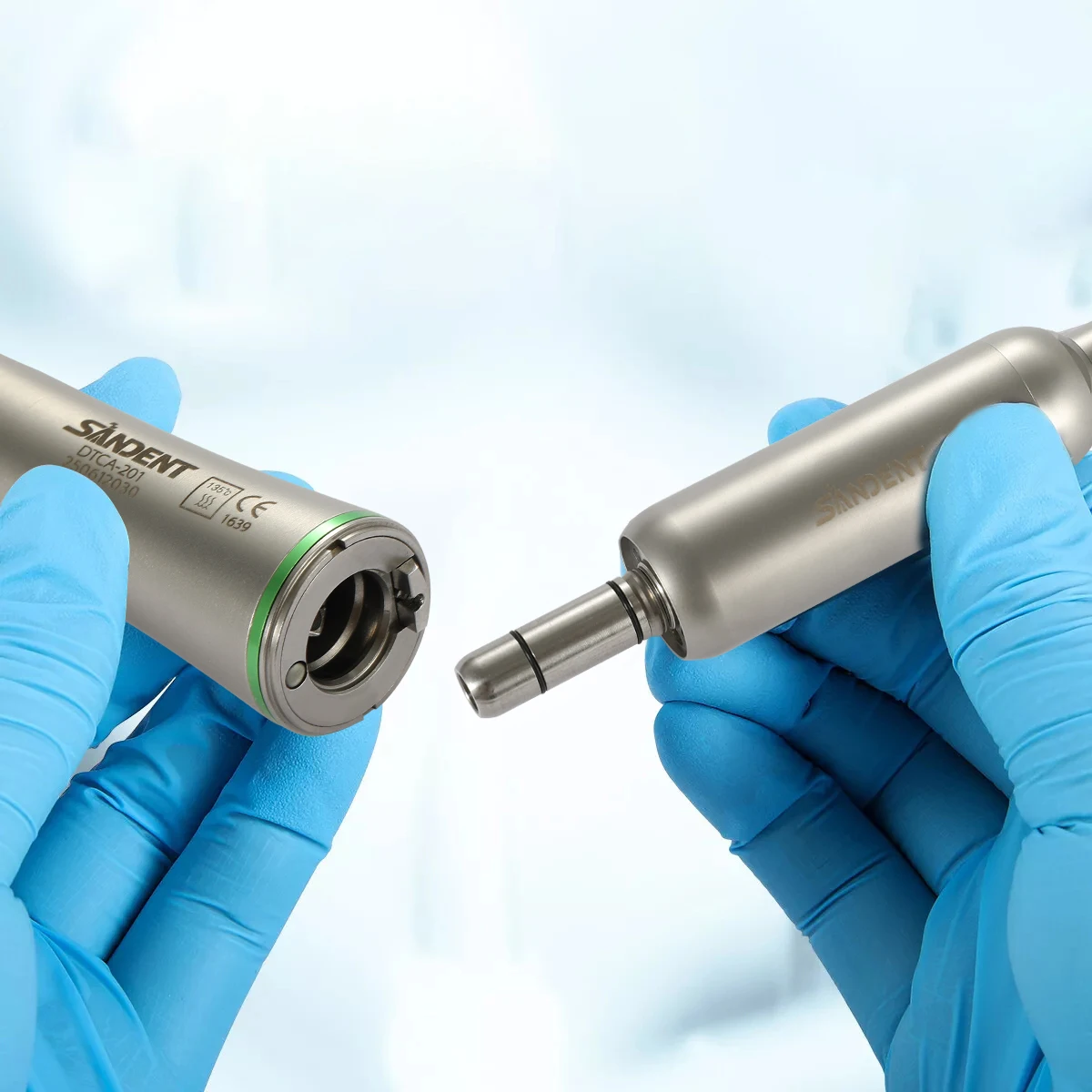

Micro-motor

Motor Rotation Speed Range:200-40000rpm（1:1 ratio）

Torque Range:5-80N.cm (20:1 ratio)

Dimension：ø24 x L116 mm

Weight：240g (include the cable weight)

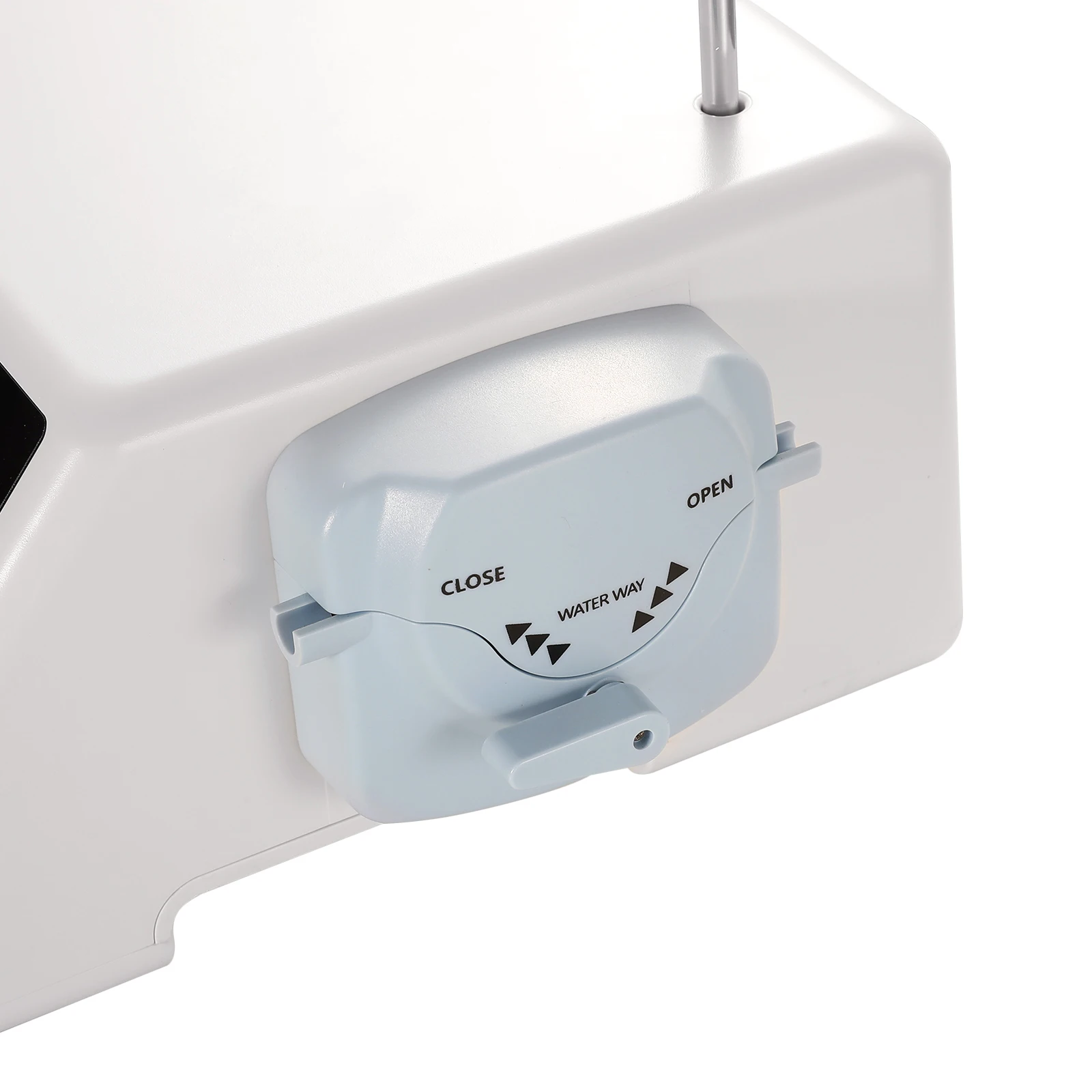

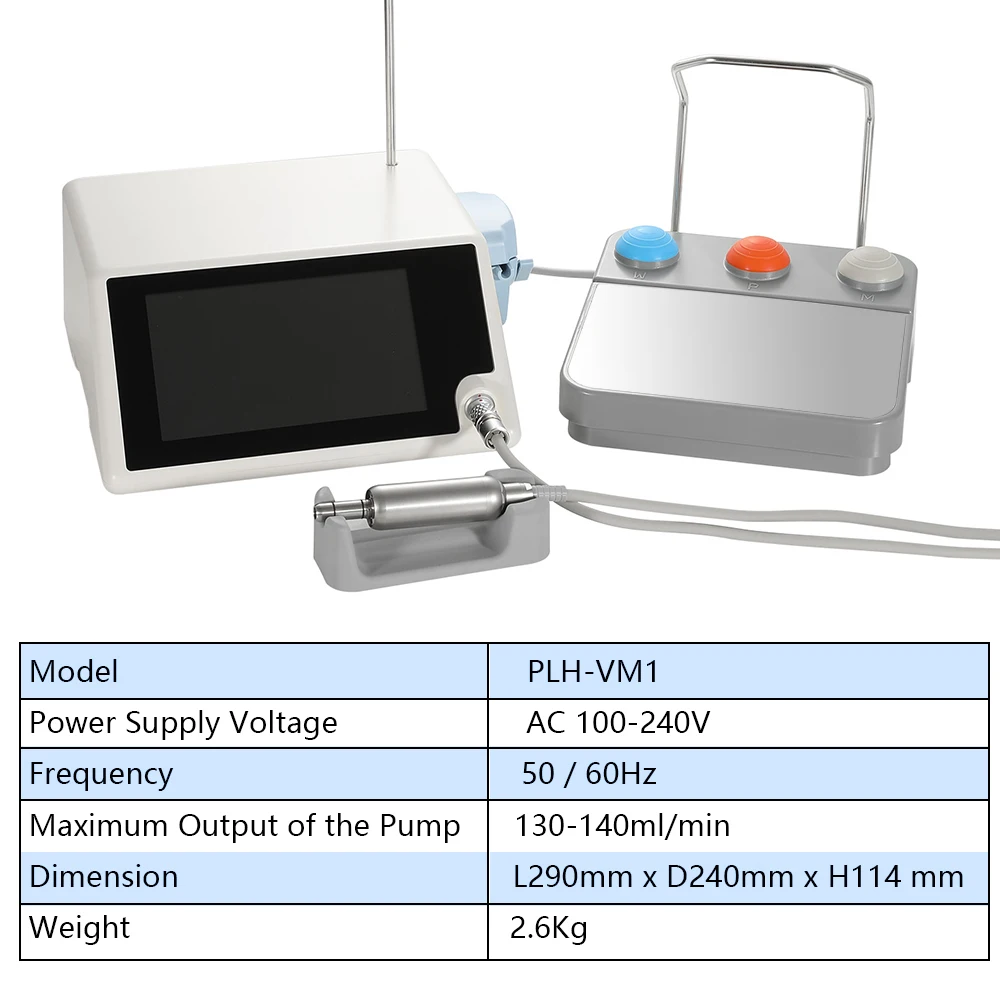

Control Unit with Coolant Pump

Model：DTA

Power Supply Voltage：AC 100-240V

Frequency：50 / 60Hz

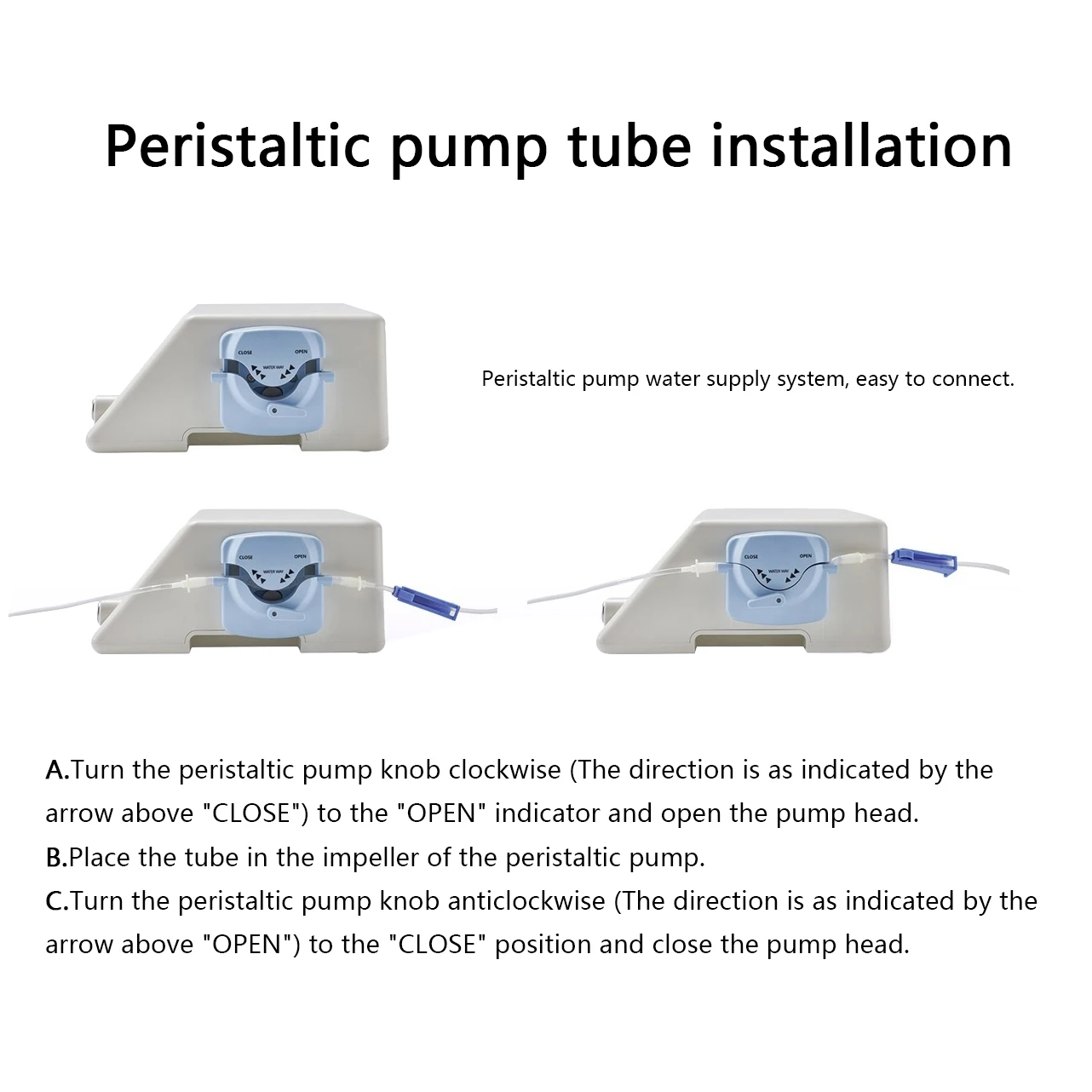

Maximum Output of the Pump：130-140ml/min

Dimension：L290mm x D240mm x H114 mm

Weight:2.6Kg

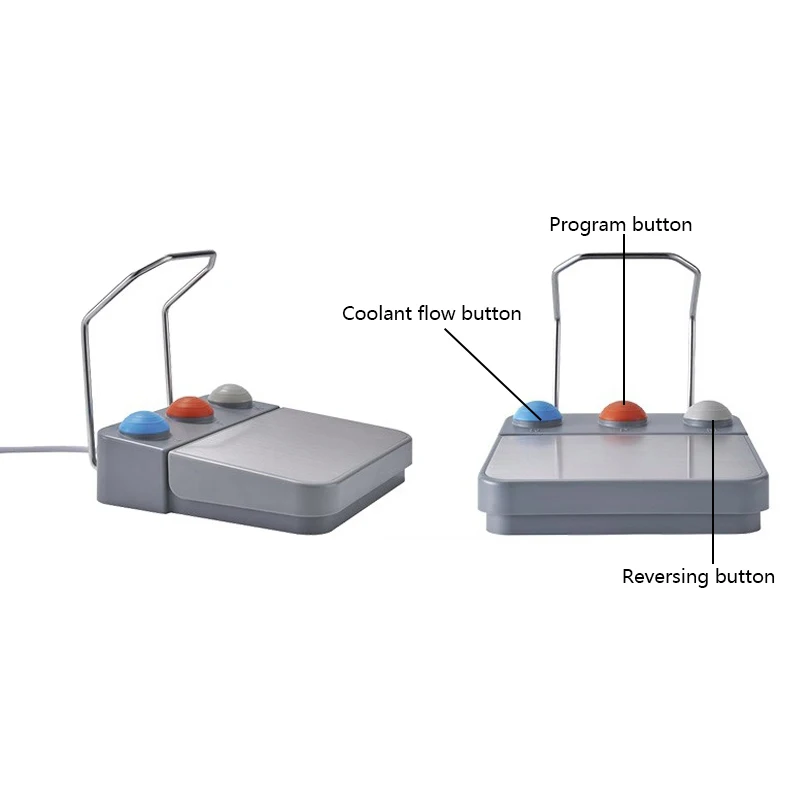

Foot Control

Pigtail length:1.8m

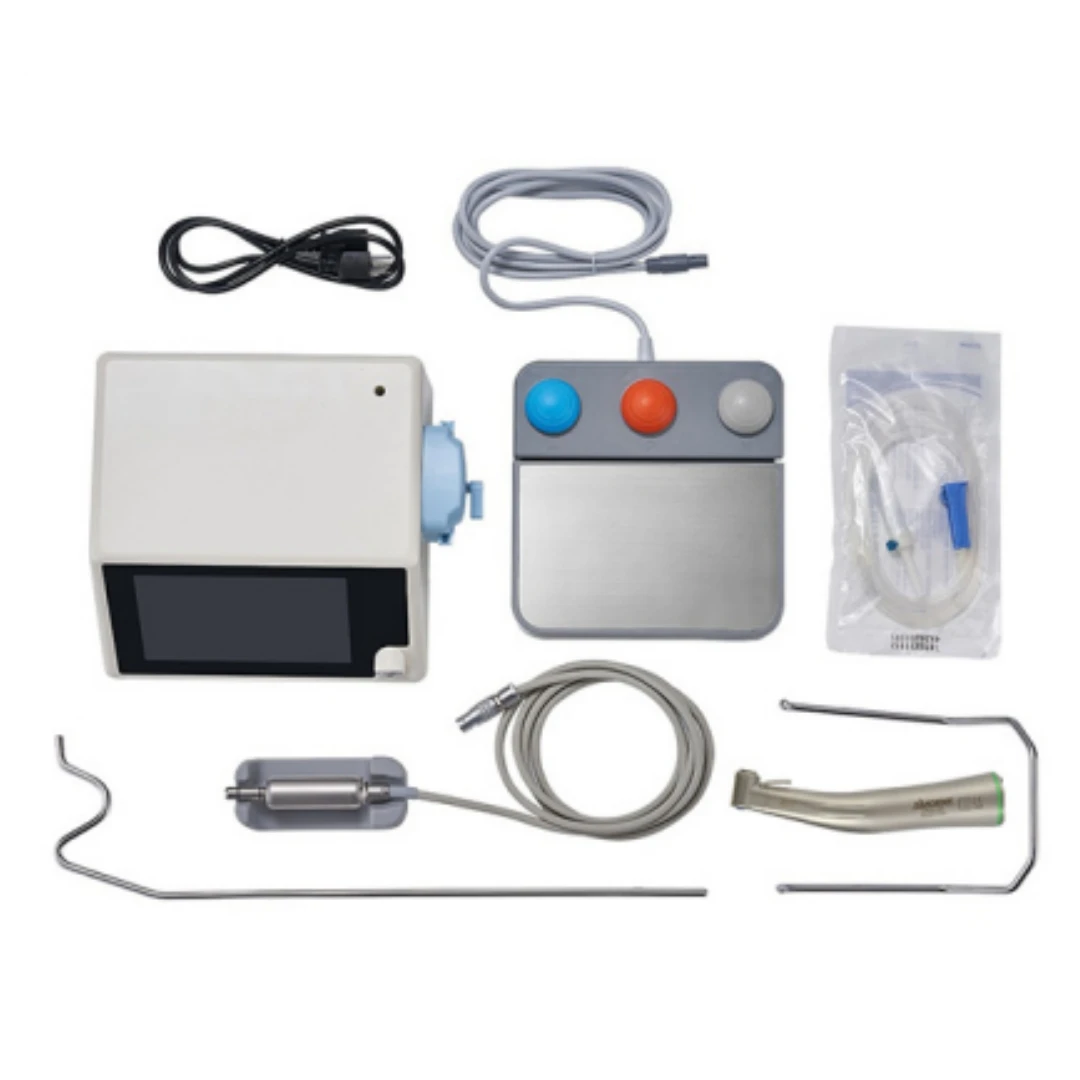

Package Contents

Control Unit*1
Handpiece*1
Foot Control*1
Power Cord*1

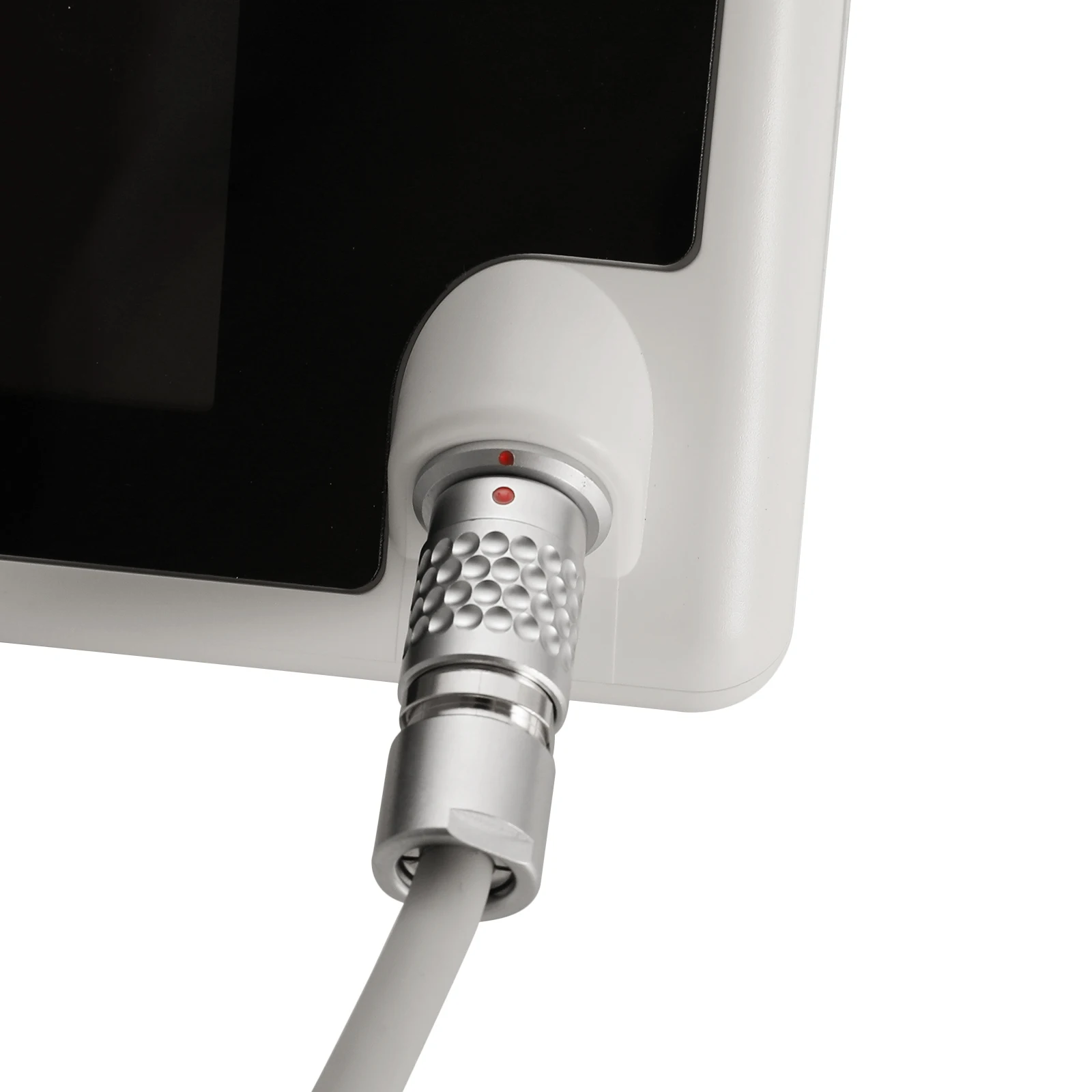

Motor Handle with Cable*1
Bottle Hanger Post*1
Silicon Rubber Stand*1
Irrigation Tube*2
