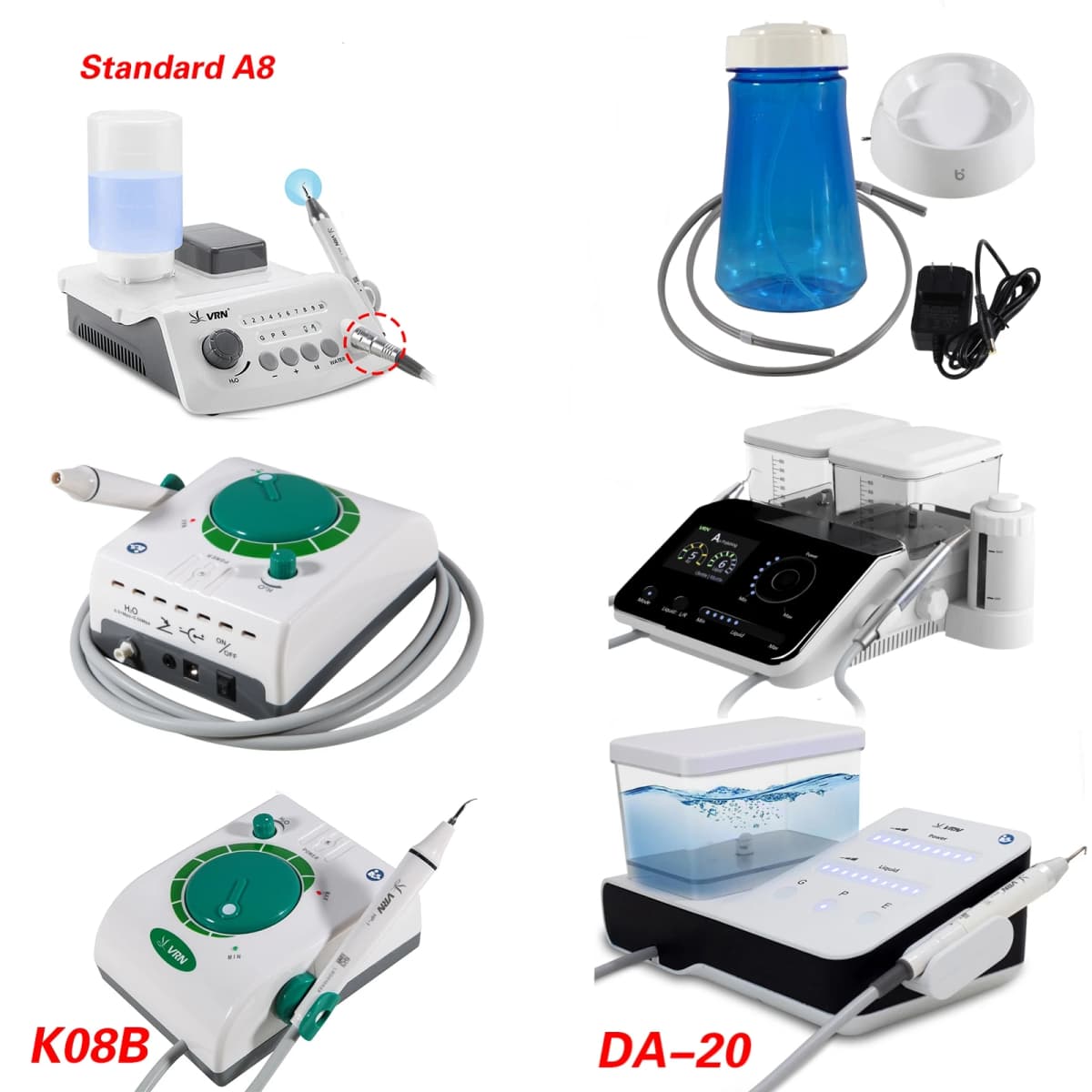

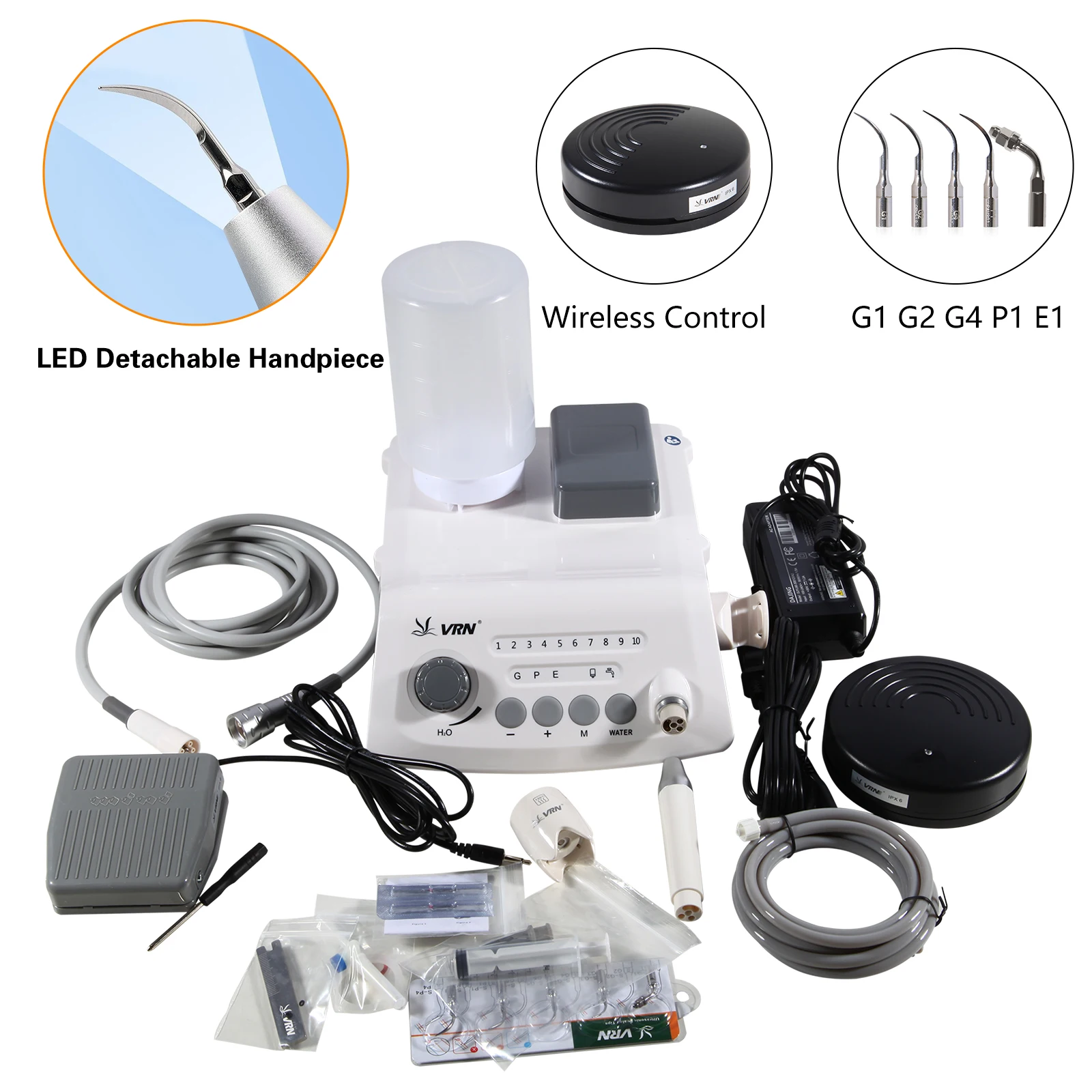

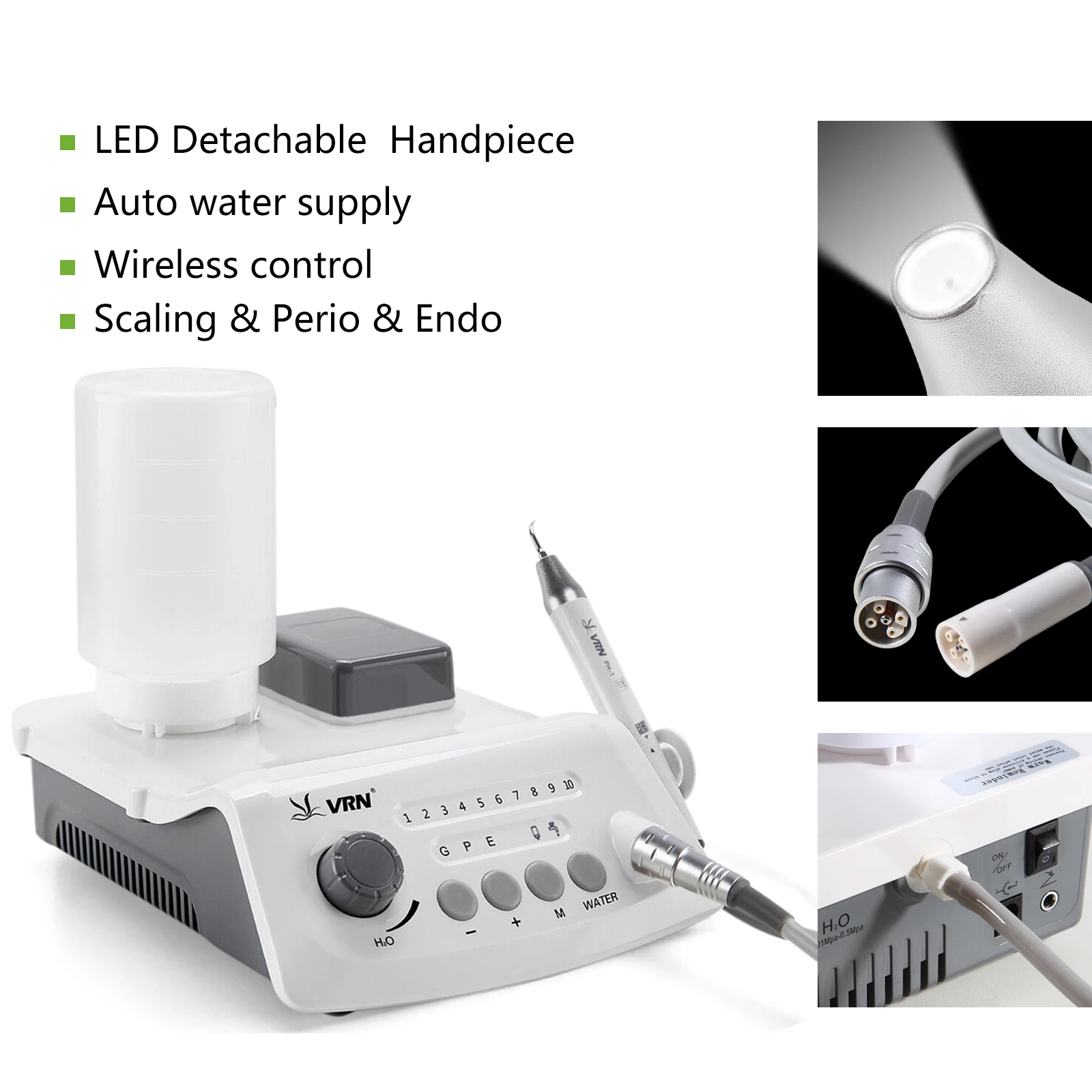

A8 Scaler:
Standard Version:

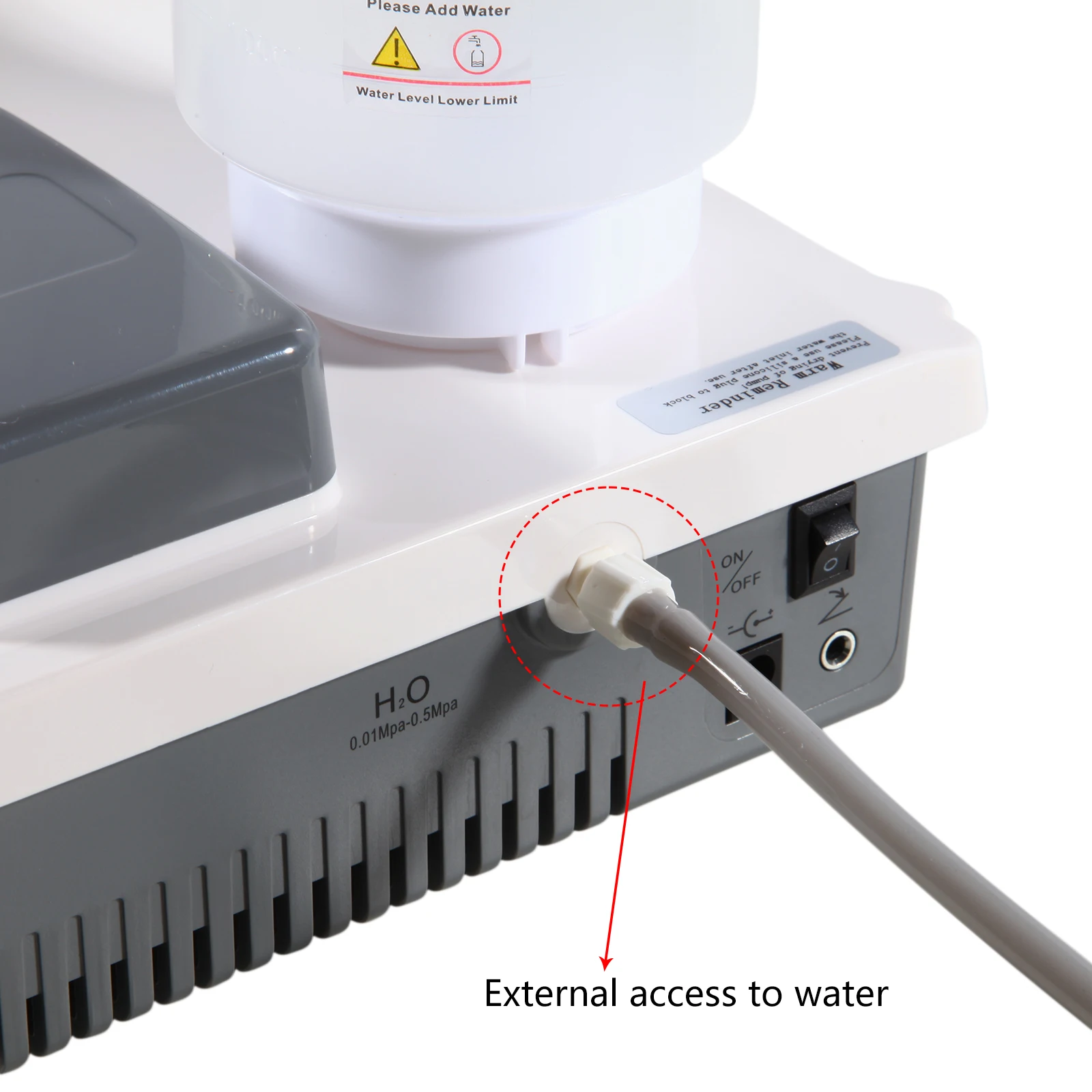

Can be connected to external spray

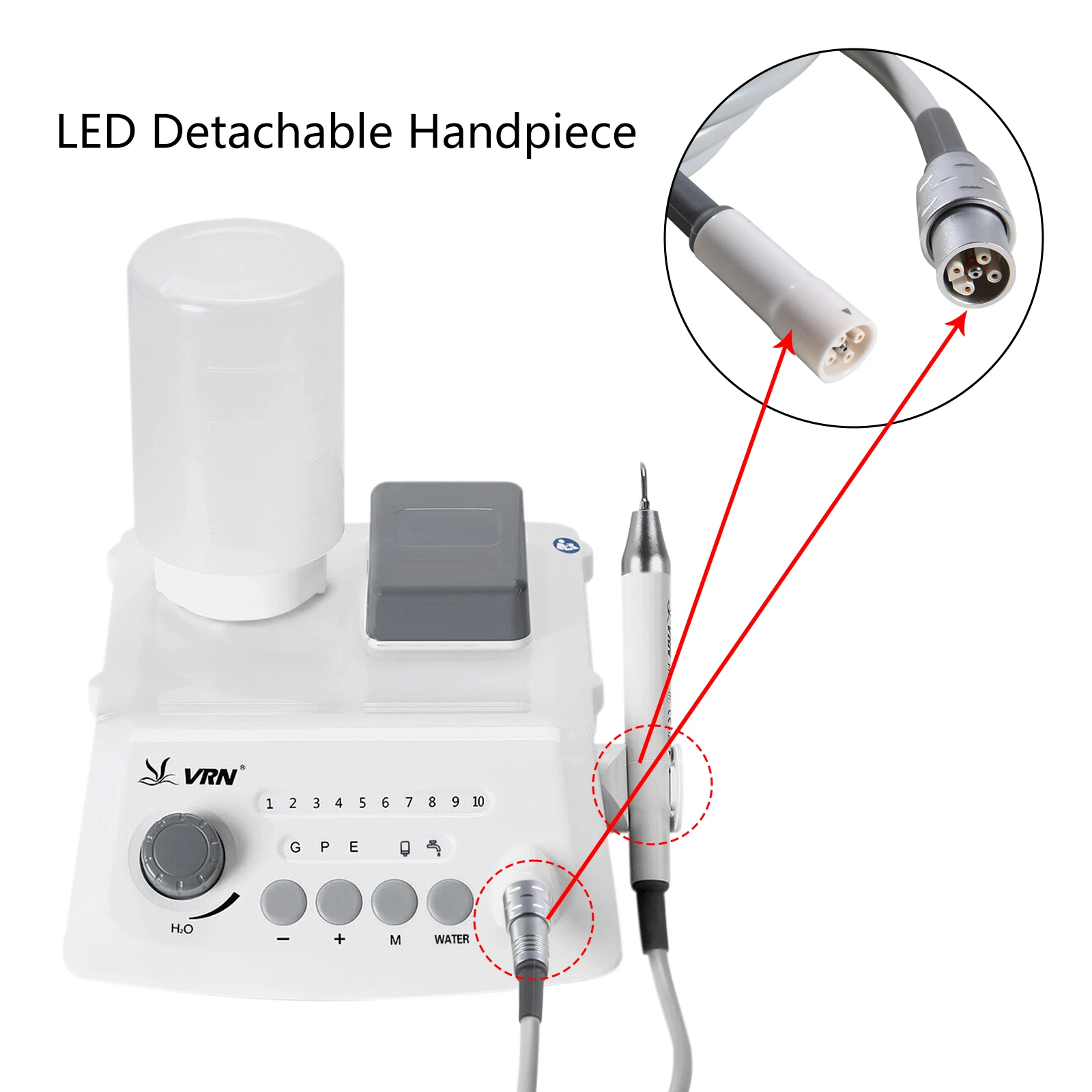

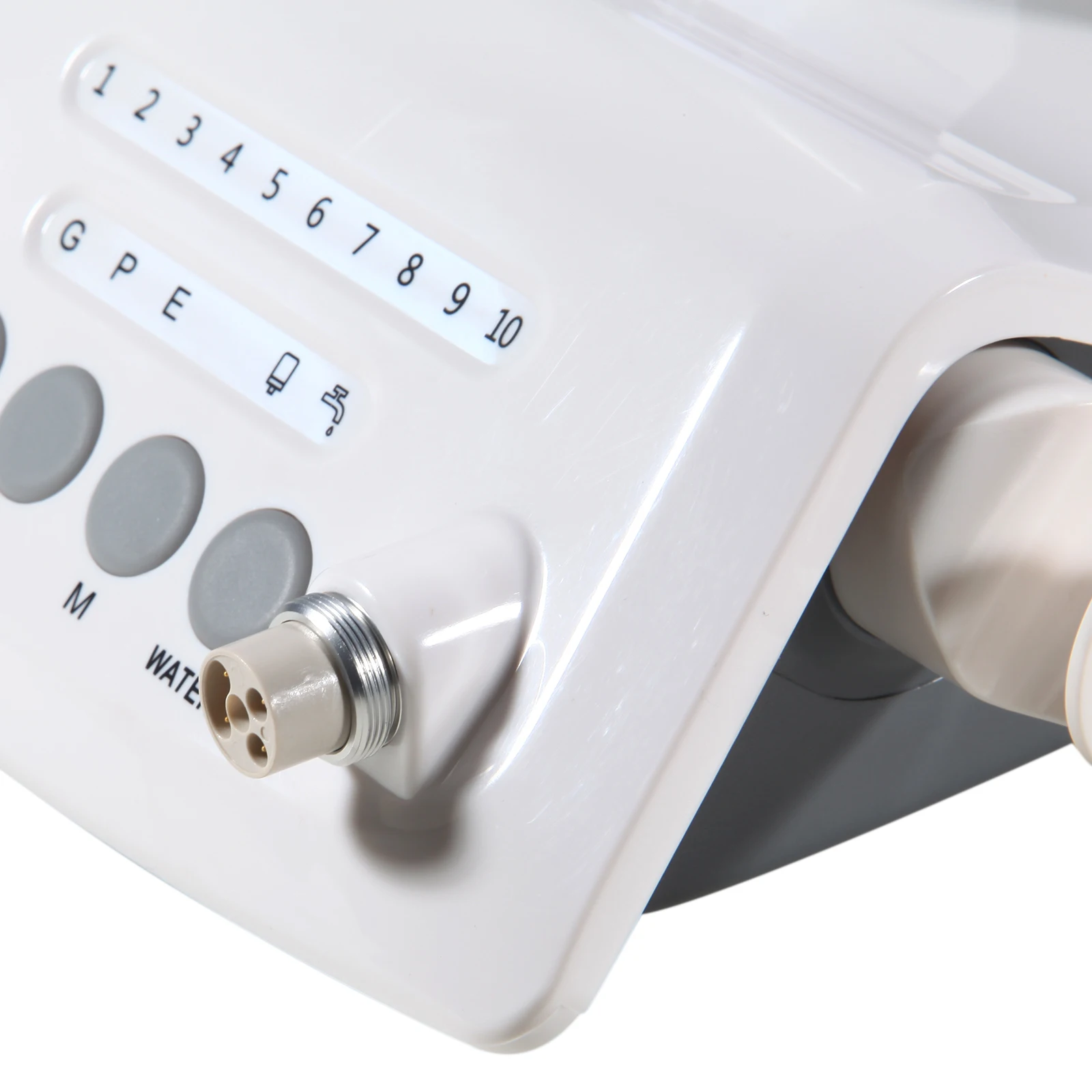

Detachable Cable
Brand: VRN

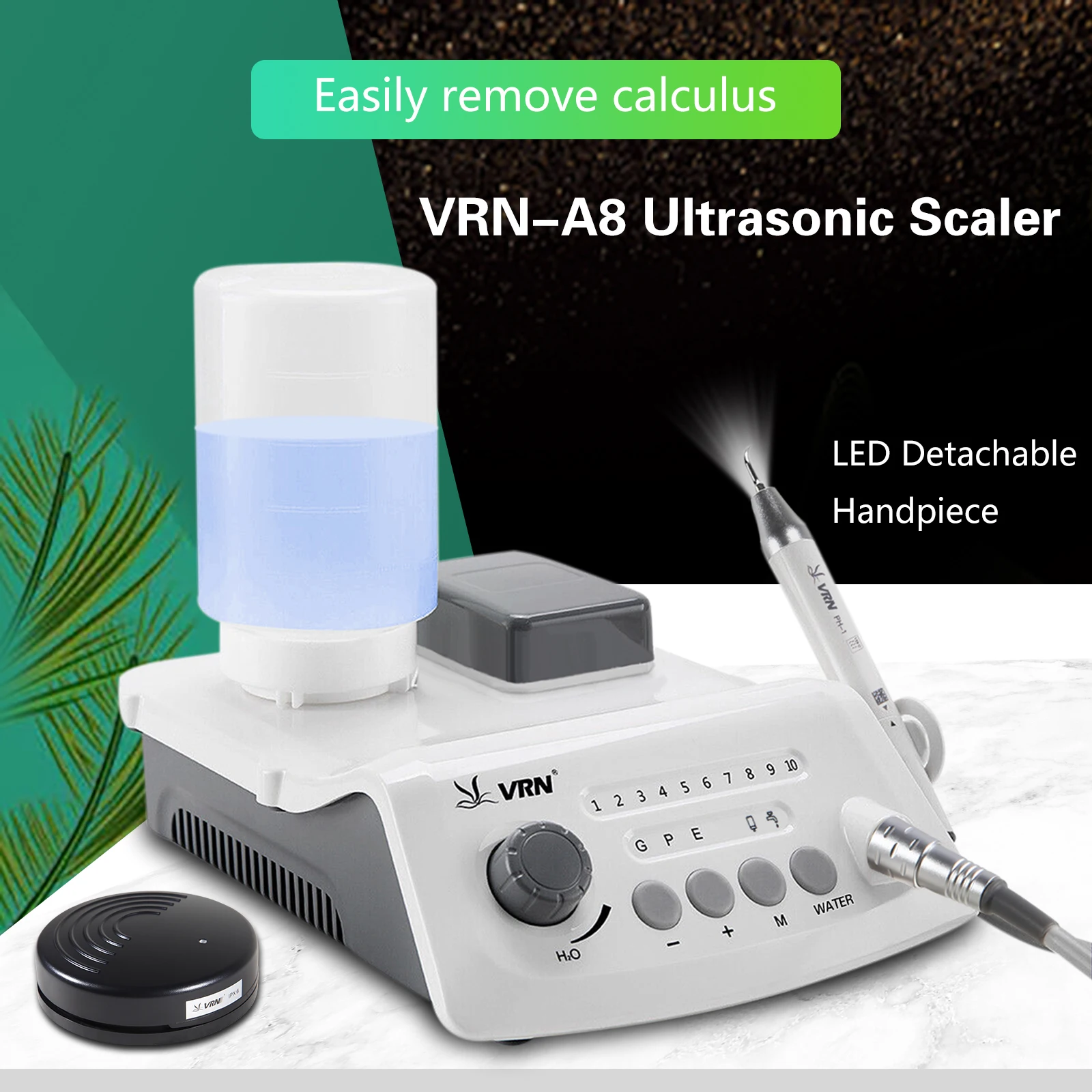

Model: VRN-A8
As a new strategic product of VRN for the high-end ultrasonic scaler market, VRN-A8 absorbed the excellent quality as VRN ever did before, adopting the exclusive patent technology - wireless control, with multiple functions, automatic water supply, intelligent vibration technology. It brings you a convenient, faster and more comfortable experience for treatment.
The technical specification :
Automatic Frequency Tracking
Patented Liquid Pumps, Digital Controlled
Function: Scaling, Perio, Endo
Control: Wireless foot switch
Water Supply: Auto-water supply
Handpiece: LED detachable handpiece
Working conditions:
Temperature :5℃-40℃
Relative humidity ≤80%
Atmospheric pressure : 75KPa-106KPa
Power supply:AC adapter: 100-240vac. 50-60Hz. 1 2AMax
Output: 30Vdc. 1.3A
For main unit: 30Vdc. 1.3A
Wireless control fool pedal battery: 1.5VX2
Receiving sensitivity: -114dB
Primary vibration excursion of the tip:
(a)Minimum, 1um, Deviation -50%
(b)Maximum. 100um, Deviation +50%
Output half-excursion:
(a)Minimum, O.1N, Deviation -50%
(b)Maximum. 2N, Deviation +50%
Vibration frequency of the tip: 25-31KHz
Input power: 30VA- 48VA
Ultrasonic output power: 3W-20W
Fuse: 125V 1.5A
Water pressure: O1MPa-0.05MPa
Weight of main unit: 0.75kg
Weight of adapter: 0.25kg
Size: 230mmx 155mm x 56mm
5 Tips: G1, G2, G4, P1, E1

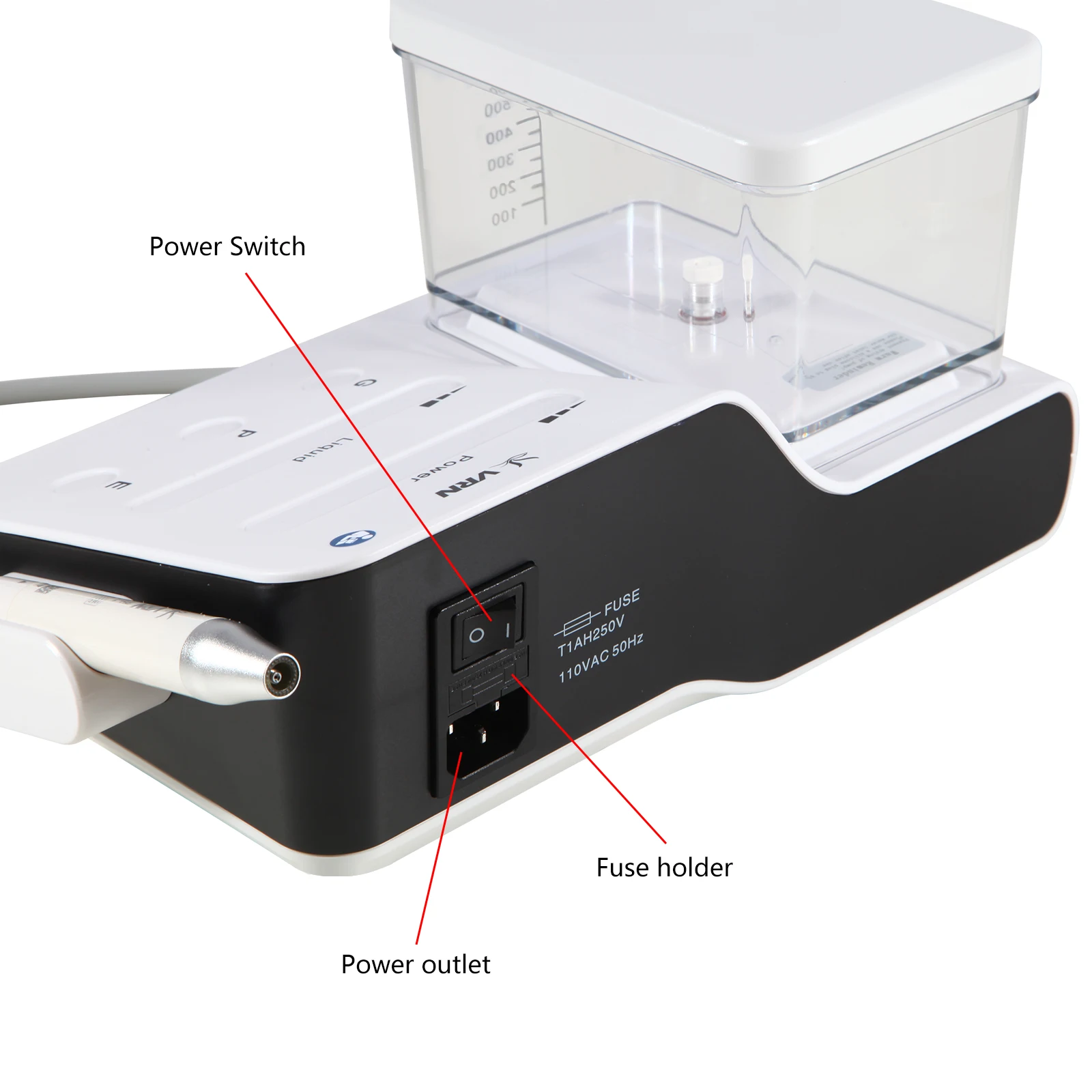

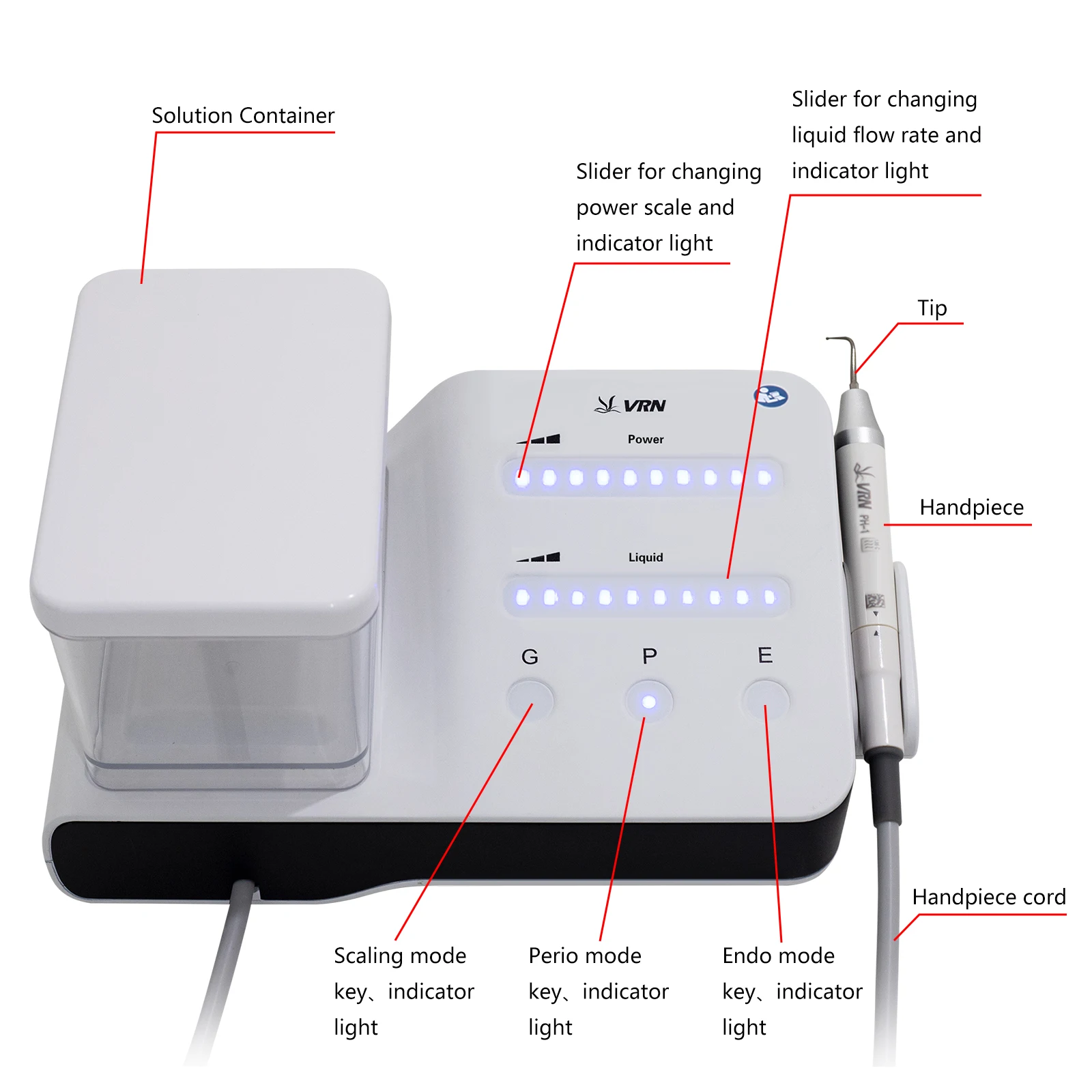

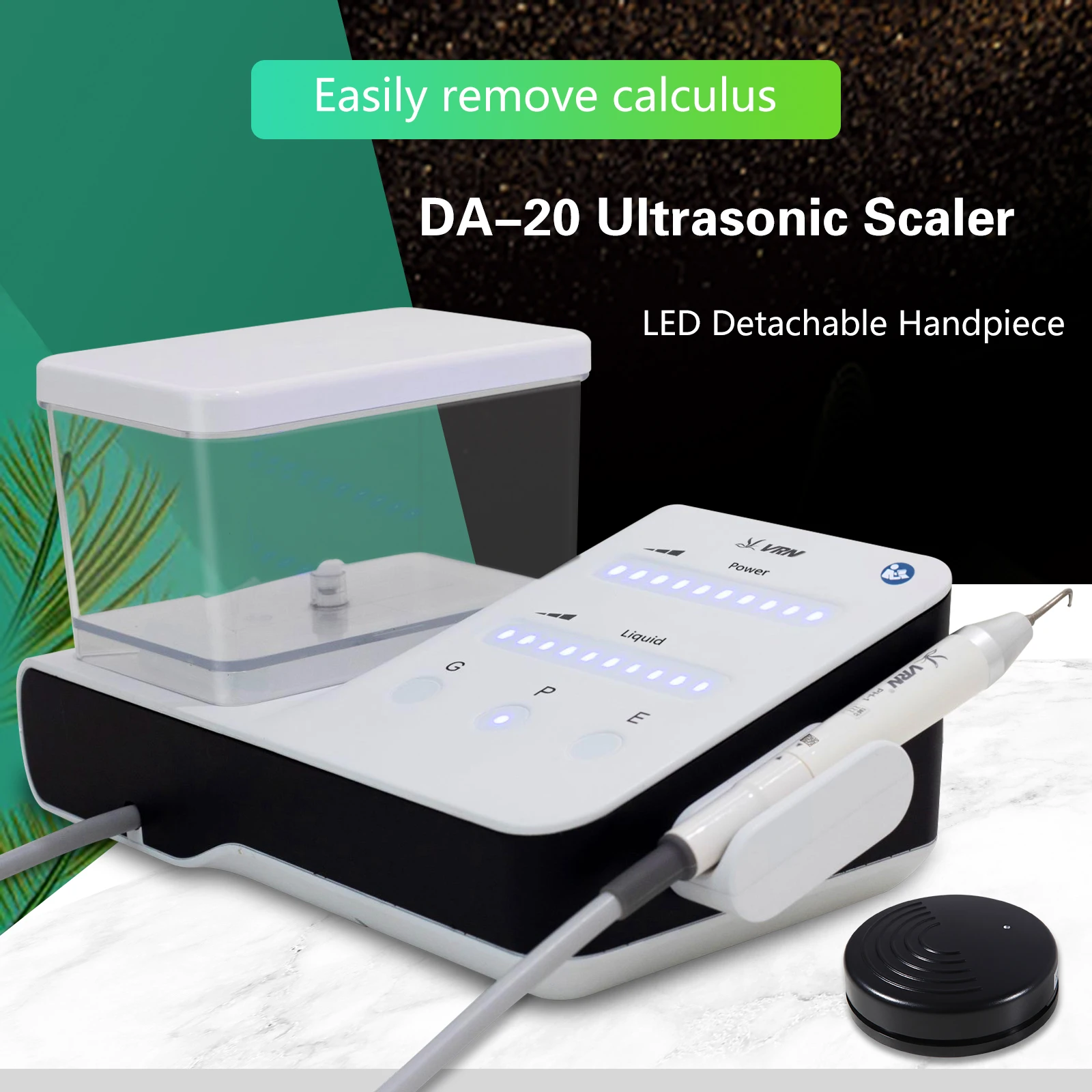

DA-20 Scaler:
Function & Introduction:
This Scaler adopts piezoceramic ultrasonic technology, which uses high-frequency and high-energy vibrations generated by ultrasonic waves to clean the surface of the teeth, break up calculus and stains in the periodontal pockets by tips, and then the rubble and plaque are washed down by the water spray produced by the device. It is designed for gingival, subgingival cleaning and root canal washing and has the function of automatic water supply.
It has following characteristics:
. The irrigation system inside the product is made of anti-bacterial materials. The liquids used in clinics, such as hydrogen peroxide, chlorhexidine, sodium hypochlorite, etc., can be applied in the mode of automatic water supply system, which can significantly improve the performance of teeth cleaning and root canal washing.
. The handpiece can be sterilized at 135℃ temperature and 0.22 MPa pressure.
. Automatically search for the best working condition, the performance of device is more stable.
. The device has a built-in computer microprocessing chip, which can intelligently control the working power and make treatment more comfortable.
. The wireless foot switch is used to remotely control the unit, which is more convenient to operate. At the same time, wired foot switches can also be selected according to user needs.

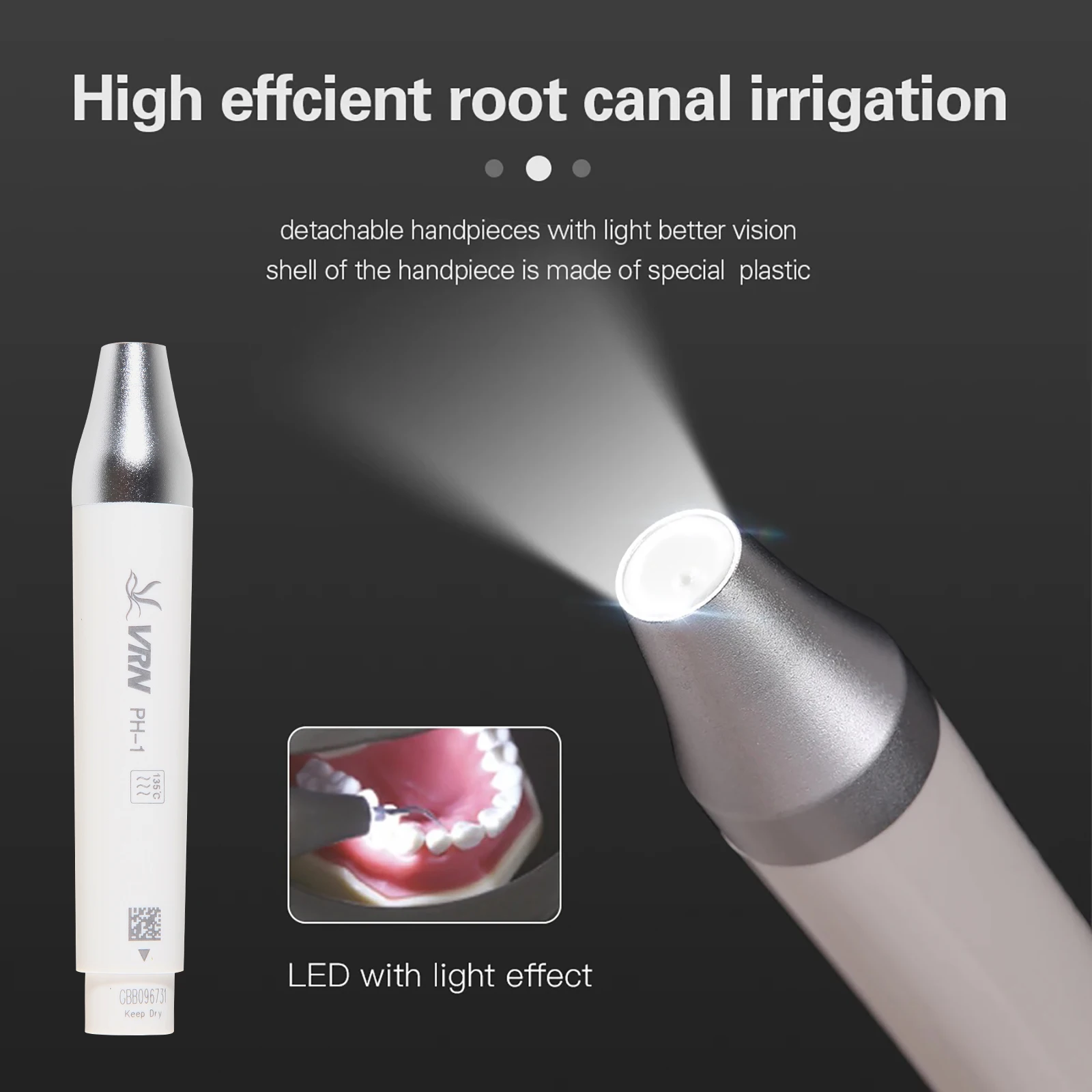

. High-brightness LED, which can improve the efficiency of clinical operation, and it can also use ordinary plug-in handpiece that has high compatibility.
. The product service life is 10 years.
Specifications:
. Input Voltage：110 V±22 V～ /220 V±22 V～，50/60 Hz
. Input Power：35 VA
. Batteries of wireless foot switch：AA Batteries×2
. Receiving sensitivity: -114 dB, receive frequency：2.4 G-2.5 G
. Tip amplitude： minimum,1 μm, deviation -50%
maximum, 100 μm, deviation +50%
. Half deflection force：minimum, 0.1 N, deviation -50% maximum, 5 N ，deviation +50%
. Vibration frequency of tip：18 kHz～45 kHz
(Note：The vibration frequencies of different types tips are different, but they are all distributed within the described range.)
. Output Voltage of tip：3 W～20 W
. Fuse：T1AH250V
. Weight：1.8 kg
. Operation modes：continuous running
. Protection against electric shock rating：Class Ⅱ equipment
. Protection against electric shock degree：B-type application part
. Ingress protection rating ： Ordinary equipment (IPX0), Wired foot switch is waterproof equipment （IPX1）, Wireless foot switch is waterproof equipment（ IPX4）
. Degree of safety application in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide:Non-AP,APG type equipment
. Wireless foot switch:
Emission frequency: 2.412 GHz-2.462 GHz
Modulation type: GFSK
Effective radiated power：12 dbm

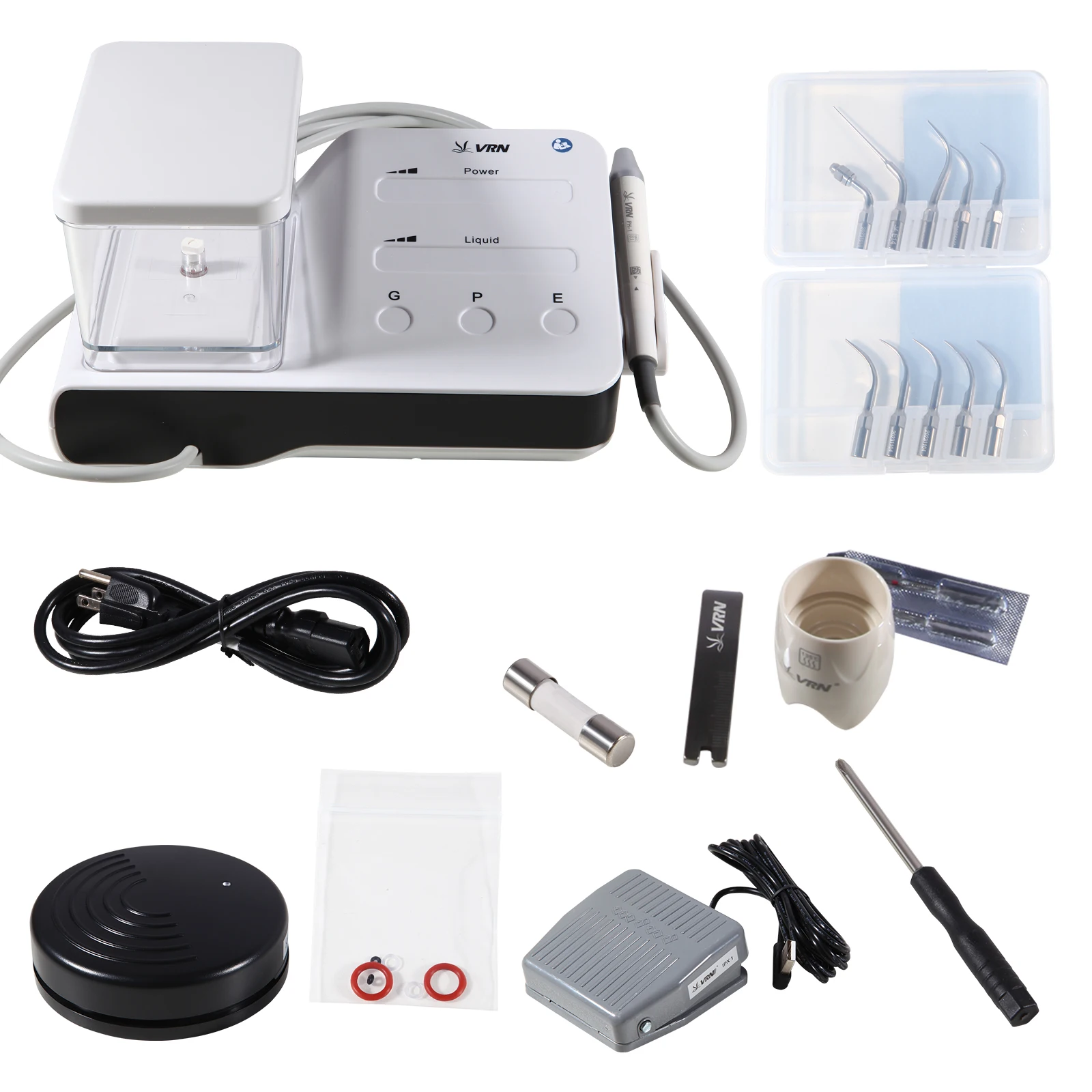

Packing List:
Main Unit*1
PH-1 LED Scaler Handpiece*1
Power Supply Cord*1
Wireless Foot Control*1
Water Bottle*1
E14 Perio Tips:E14*1、P1*2、G1*2、G2*1、G4*2、E1*1、P4*1
25# Endo File*2
O Ring*2
Torque Tip Wrench*2
Endo File Wrench*1
Waterproof Sticker*1
4*1 O Ring*2
3.2*1 O Ring*2
Screwdiriver*1
Instruction manual*1
Packing List*1
QC Certificate*1
Foot Control With Wire*1
Tips Contrast Cord*1
Fuse*1

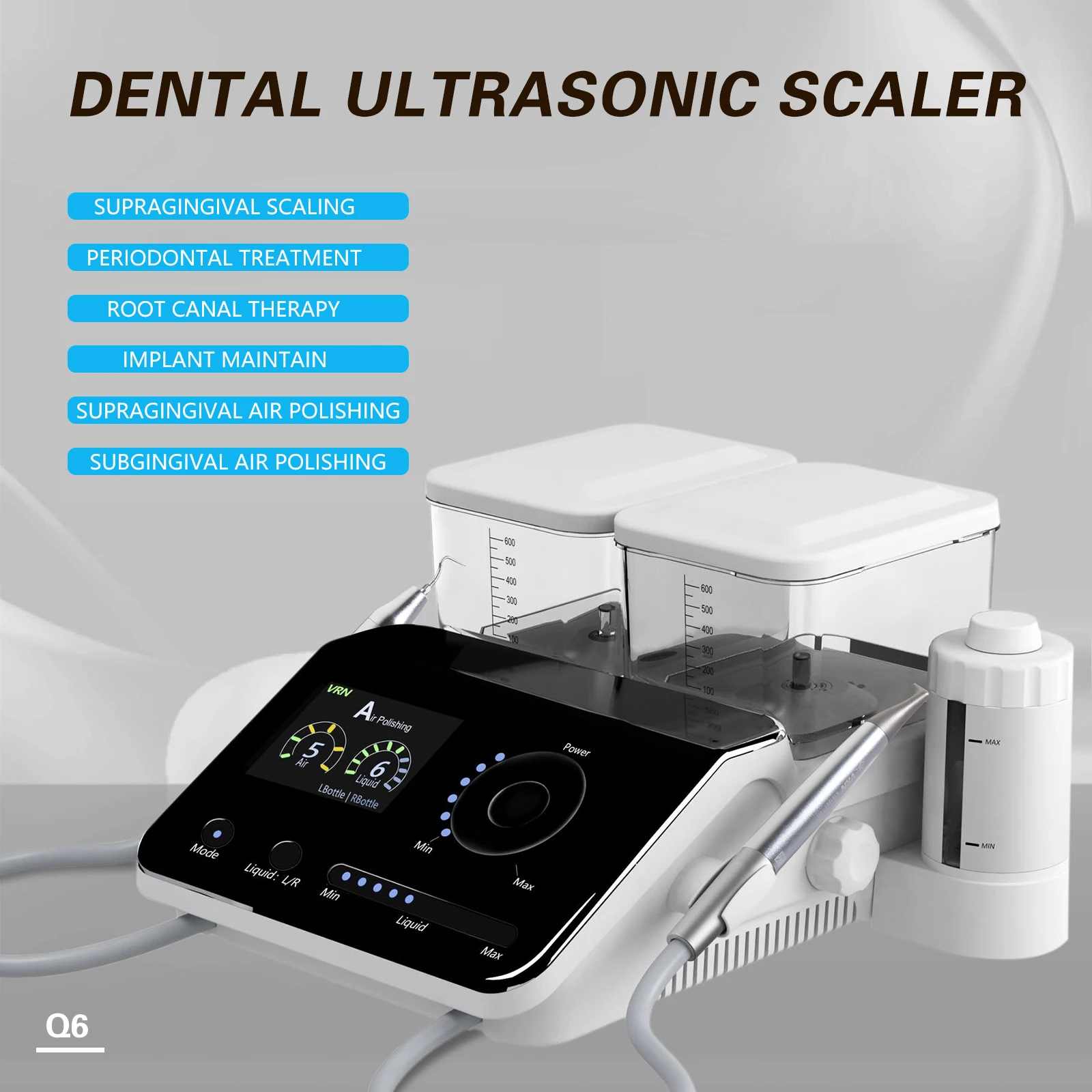

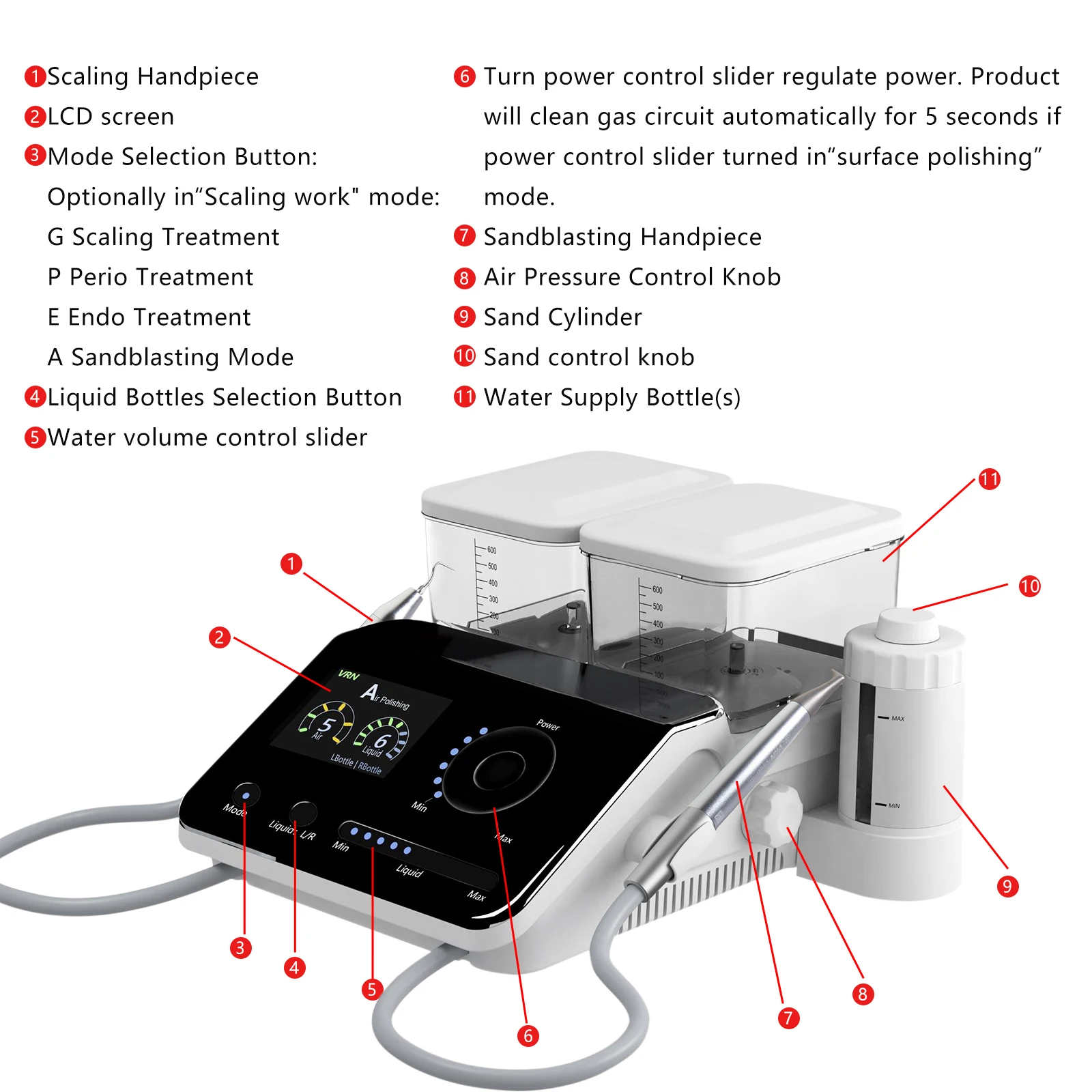

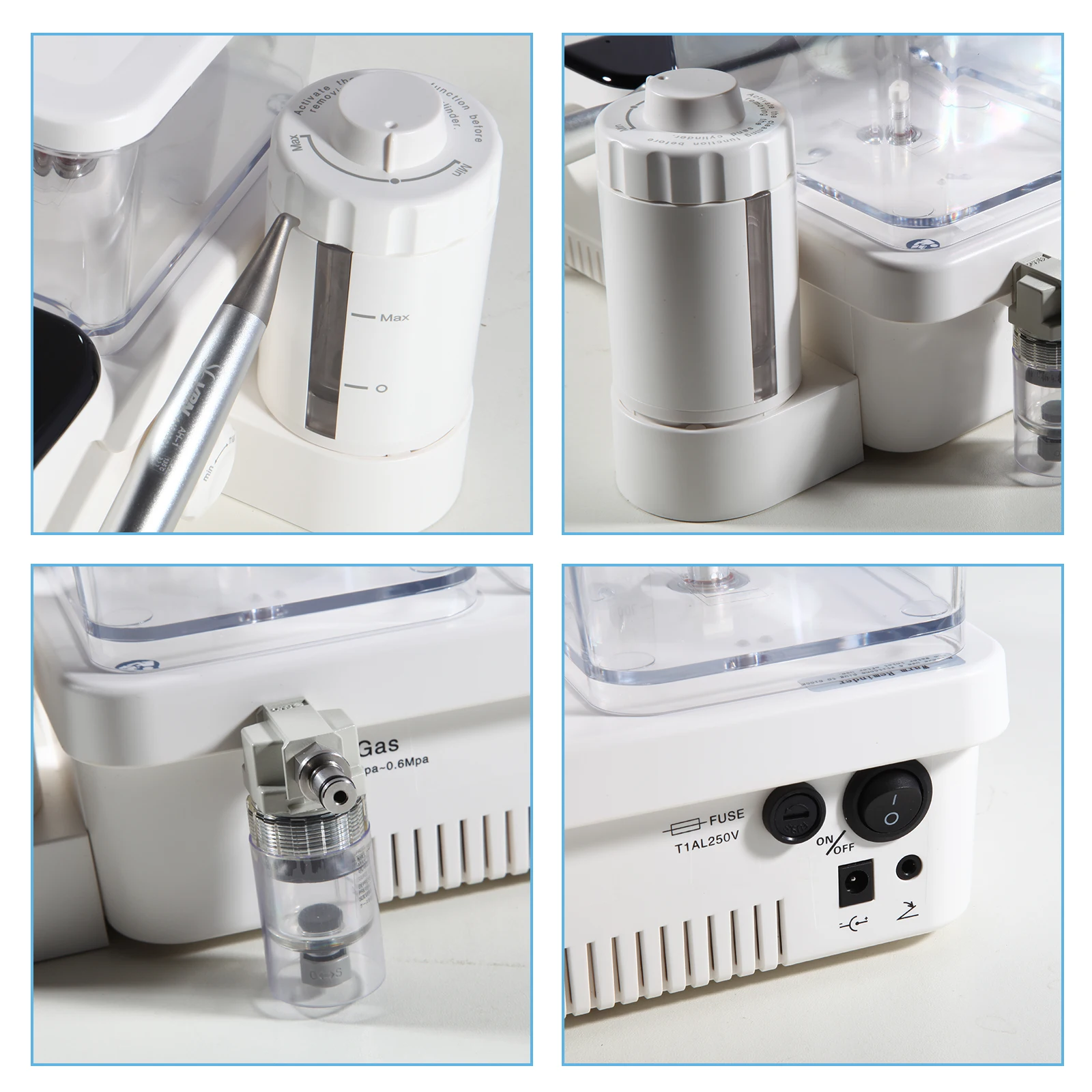

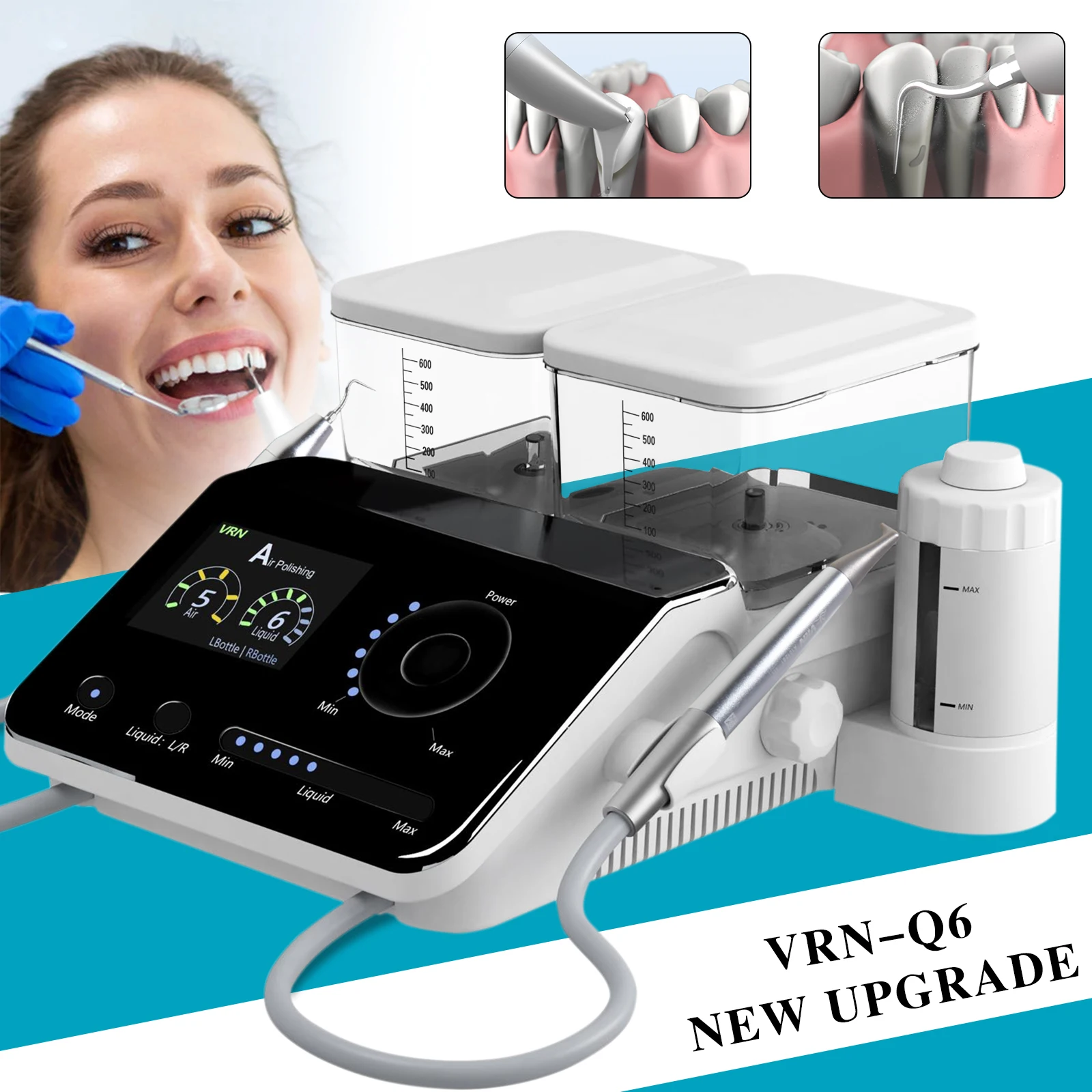

Q6 Scaler：
Function & Introduction:
Function: Scaling & Perio & Endo & Sand blasting & Implant Maintain

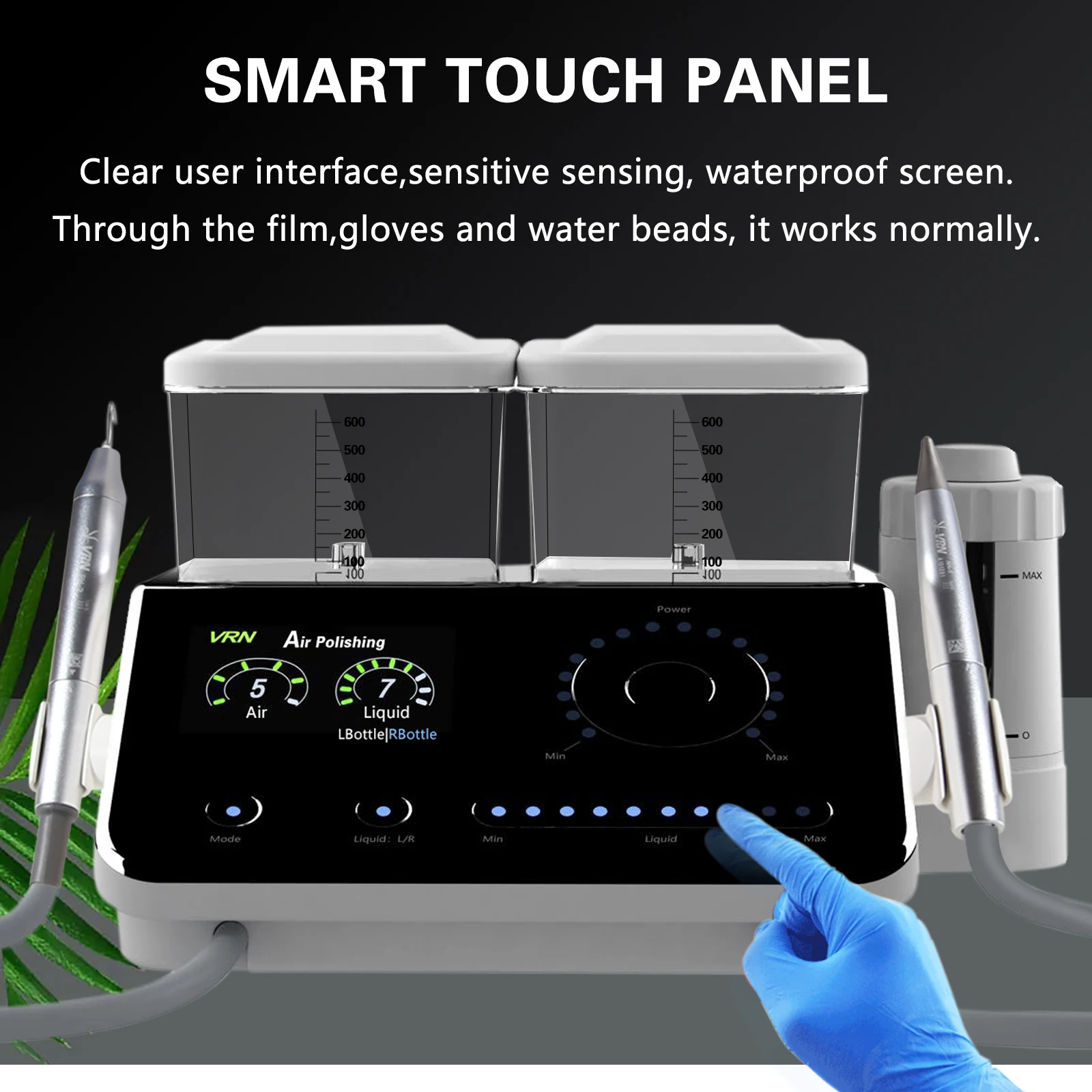

Smart,sensitive touch sysem,waterproof IML touch operation panel.
Wireless foot control,new water regulating design at the handpiece.
700ml high capacity water bottle×2pcs,anti-corrosion design,unique LED guiding light of water
bottle.
Handpiece intelligent recognition system to change the model automatically or give the points.
Specifications:
Input AC100~240V,50/60Hz
Main Unit Input DC30V,1.3A
Water Input pressure 0.5MPa~0.6MPa
Vibration frequency of the tip 28kHz+3kHz
Ultrasonic output power 3W~20W
Output Half-excursion 2N
Foot Switch Batteries 1.5V×2
Receiving Sensitivity -114Db
Main Unit Dimensions 310×370×170mm
Packing Size 470×400×235mm
Weight of main unit 1.50kg
Gross Weight 6kg
Quality guarantee host-3 years,handpiece-1 year
Scaling Tips:G1*1,G2*1,G3*1G4*1,G5*1,E1*1,IM1*1,P1*1,P2R*1,P2L*1, P3*1,P11*2,P12L*2,P12R*2P12*2,P13R*1,P13L*1,P15*1

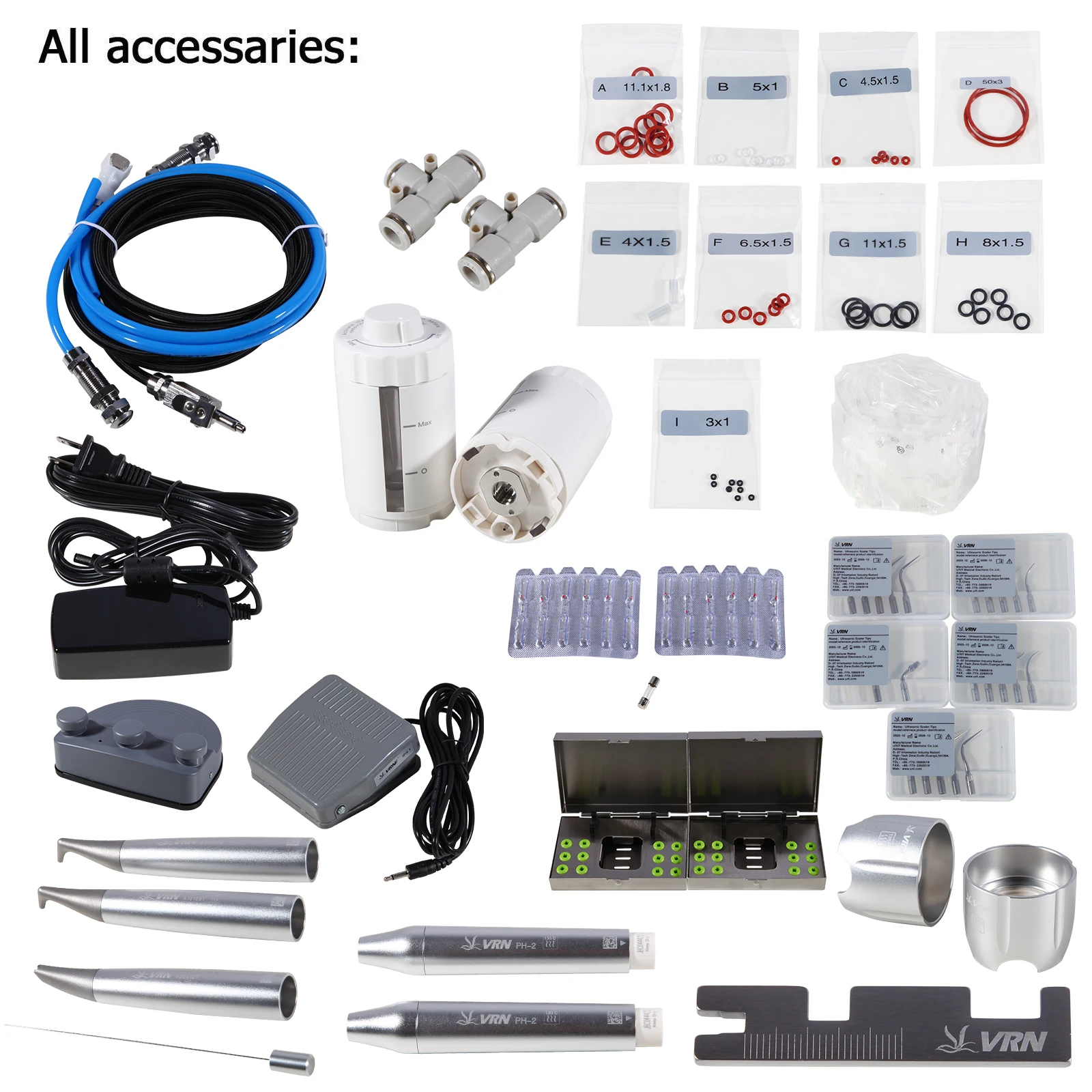

Packing list:
Main Unit*1
Water Tank*2
Wireless Foot Swtich*1
Foot Switch with wire*1

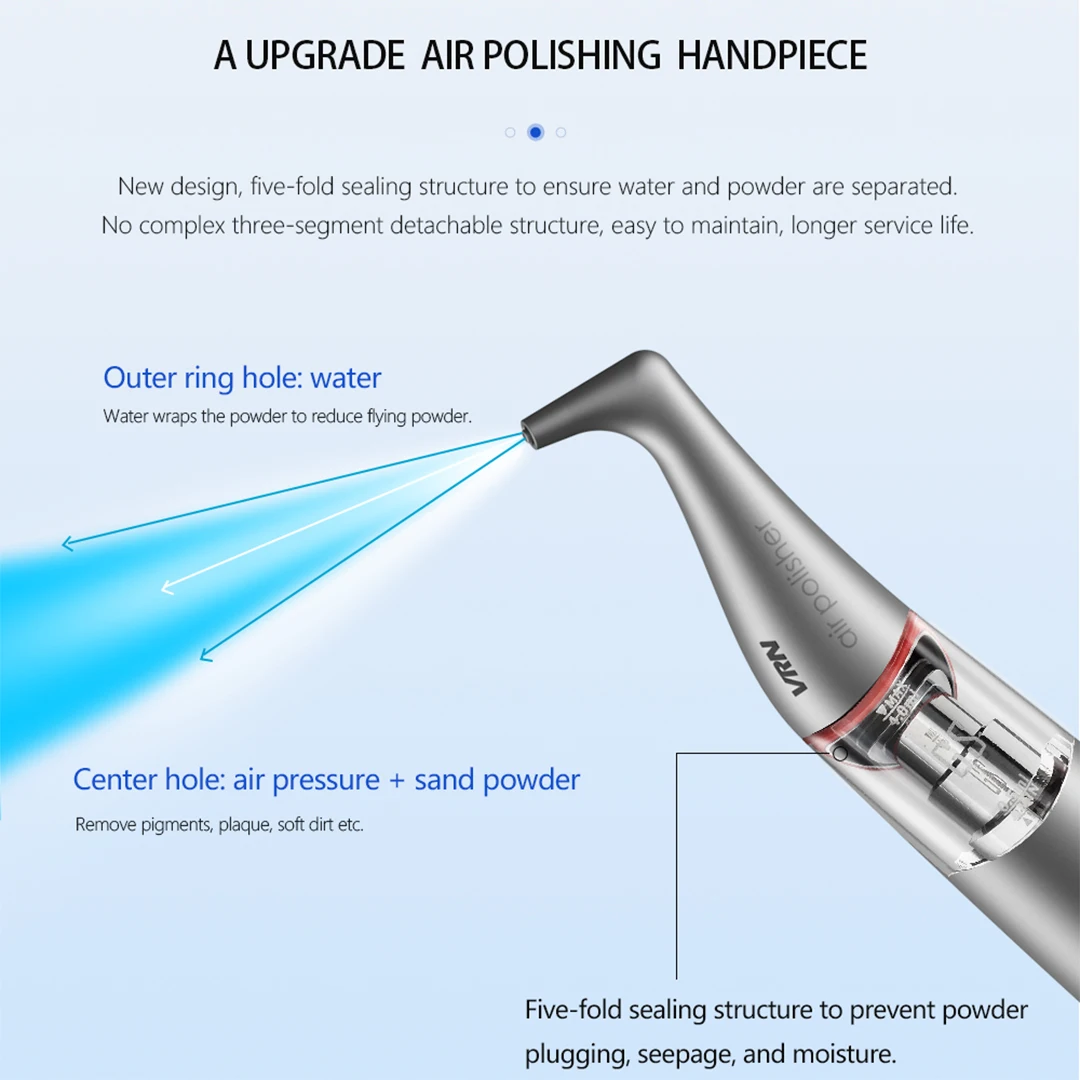

Sandblasting handpiece*2
Sandblasting Handpiece Tip*1
Subgingival Sandblasting Part*1
Subgingival Sandblasting Tip*40
PH-2 LED Scaler handpiece*2
Disinfection Box*2
Power Adaptor*1
Power Plug*1
Instruction manual*1
OC Certificate*1
Packing List*1
Water proof Sticker*1
Scaler Tips*22
20#Endo File*6
25#Endo File*6
6-6-6mm Three-way Valve*1
8-6mm Quick Connector*1
8-6-8mm Three-way Quick Connector*1
Internal Shut-Off Valve*1
Endo File Wrench*1
Torque Tip Wrench*2
Goggles*1
PU Pipe 8*6mm*0.5mm*2
PU Pipe 4*6mm*2mm*1
Niddle 1.0mm*1
Niddle 0.5mm*1
O Ring*2：3*1、4*1、6.5*1.2、12.5*1
Fuse*1

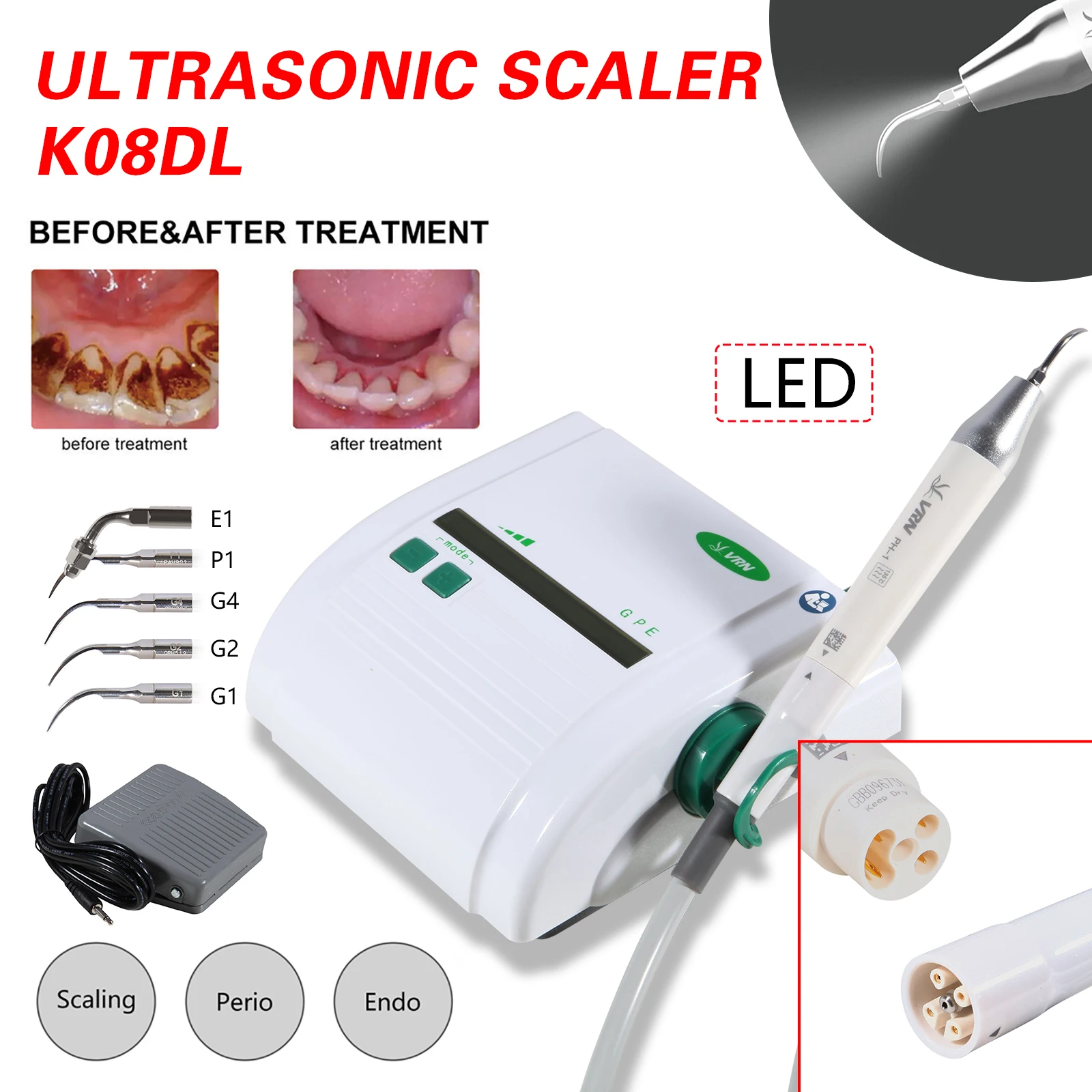

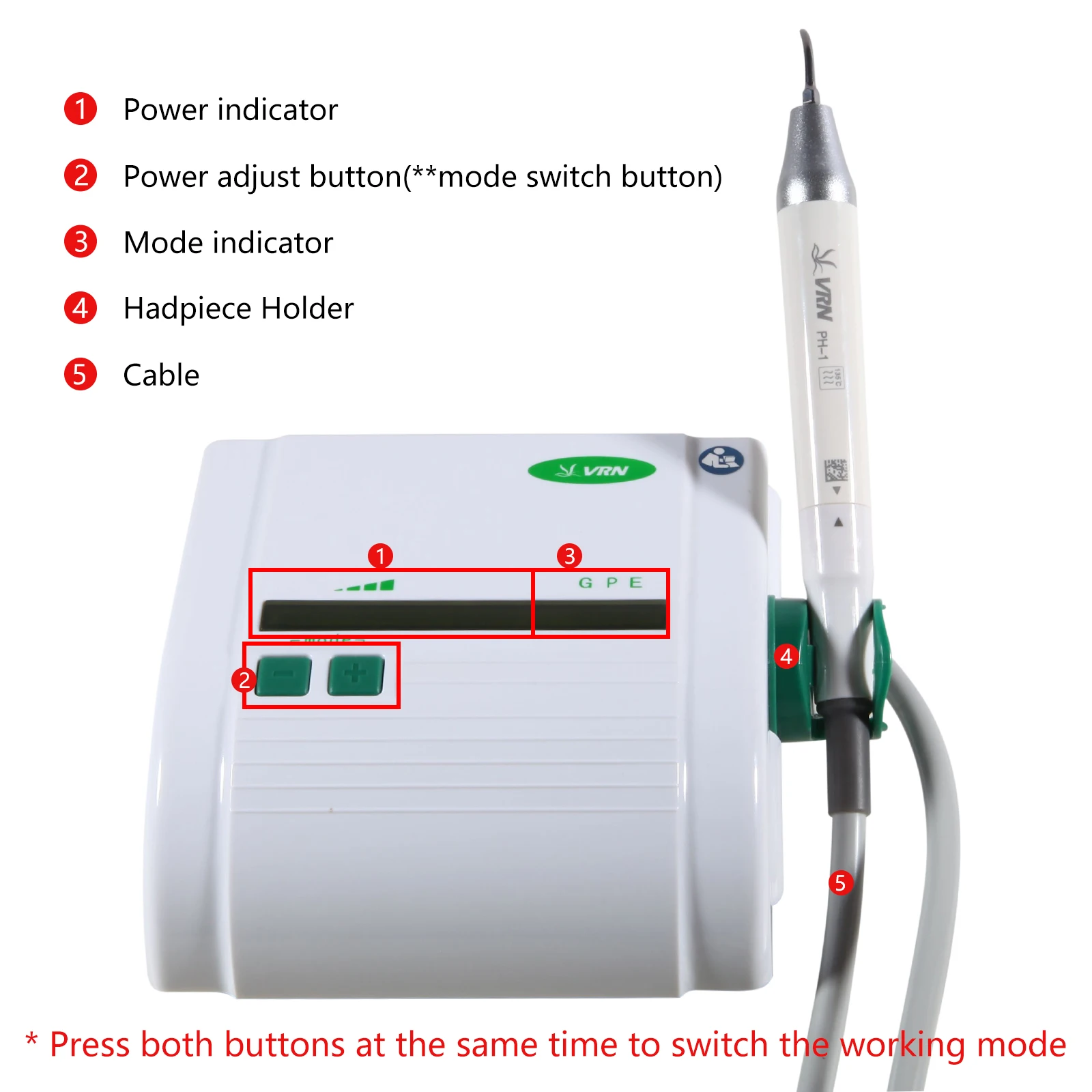

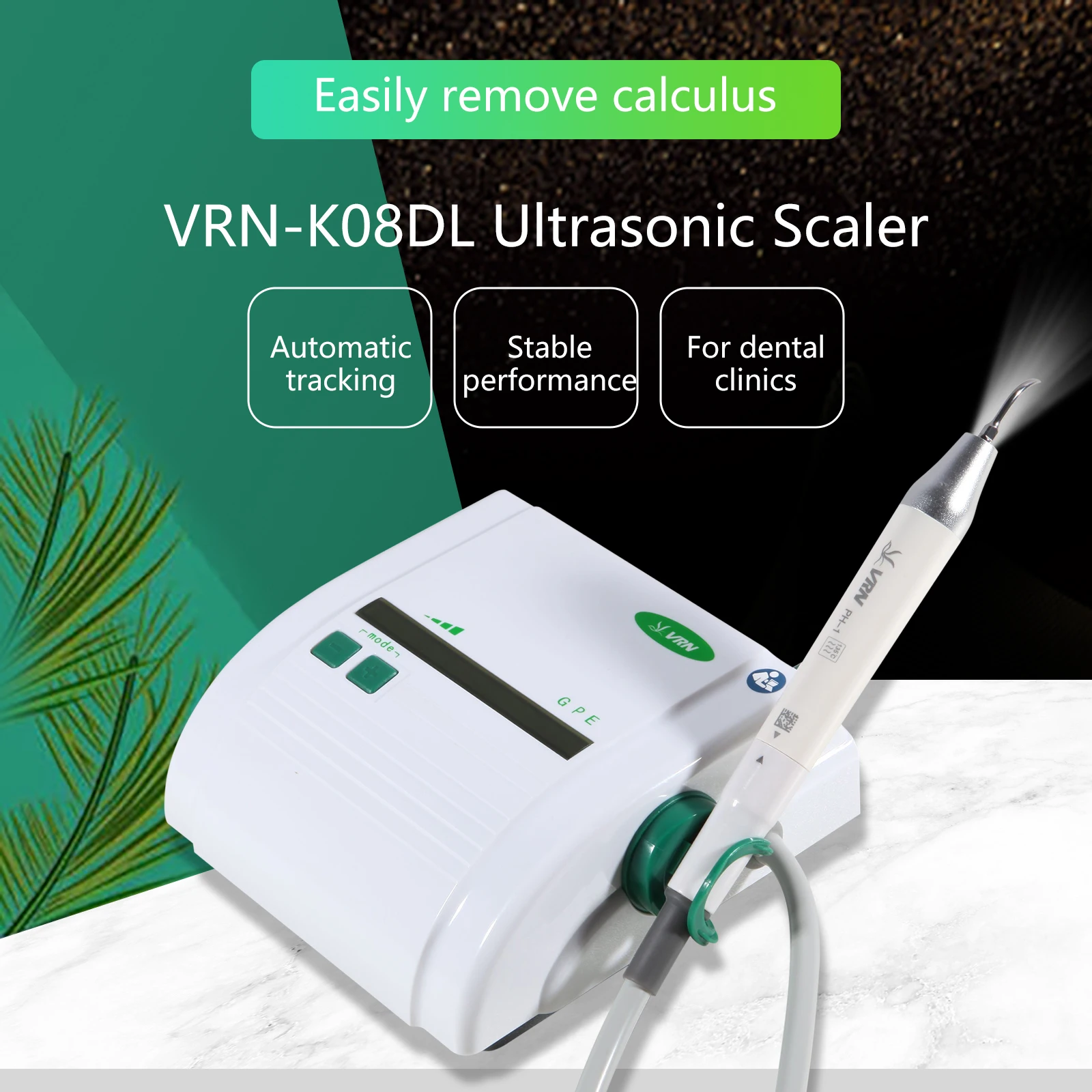

08DL Scaler：
Feature:
The product K08DL is mainly used for teeth cleaning and is also an indispensable equipment
for tooth disease prevention and treatment.This ultrasonic scaler has scaling，perio，endo
functions. Intelligent vibration core technology Inside, brings softer vibration and more
comfortable experience. Detachable handpiece can be autoclaved under high temperature and
pressure. Handpiece and tips fit with other brand scaler such as EMS.
Brand: VRN
Model: K08DL
Feature:
Automatic frequency tracking
Function: Scaling, Perio,Endo
Handpiece: Plastic LED Detachable Handpiece
Input Voltage: AC100~240V 47~63Hz
Input Power: 30VA~48VA
Main Unit input: DC30V 1.5A
Output half-excursion: ＜2N
Vibration frequency of the tip: 25~31KHZ
Vibration excursion of the tip: ≤100μm
Ultrasonic output power: 3W~20W
Water pressure: 0.01MPa~0.05MPa
5 Tips: G1*1,G2*1,G4*1, P1*1,E1*1

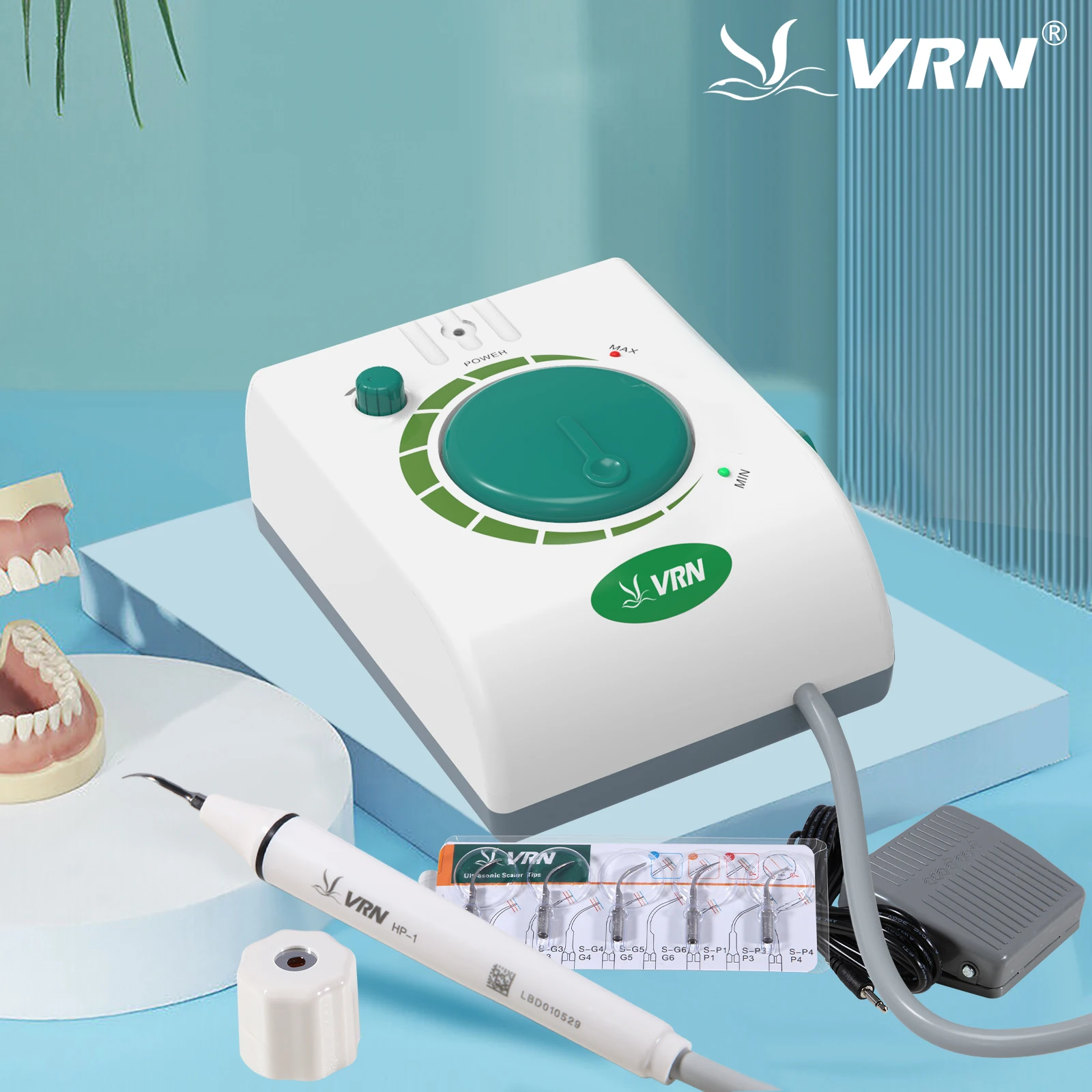

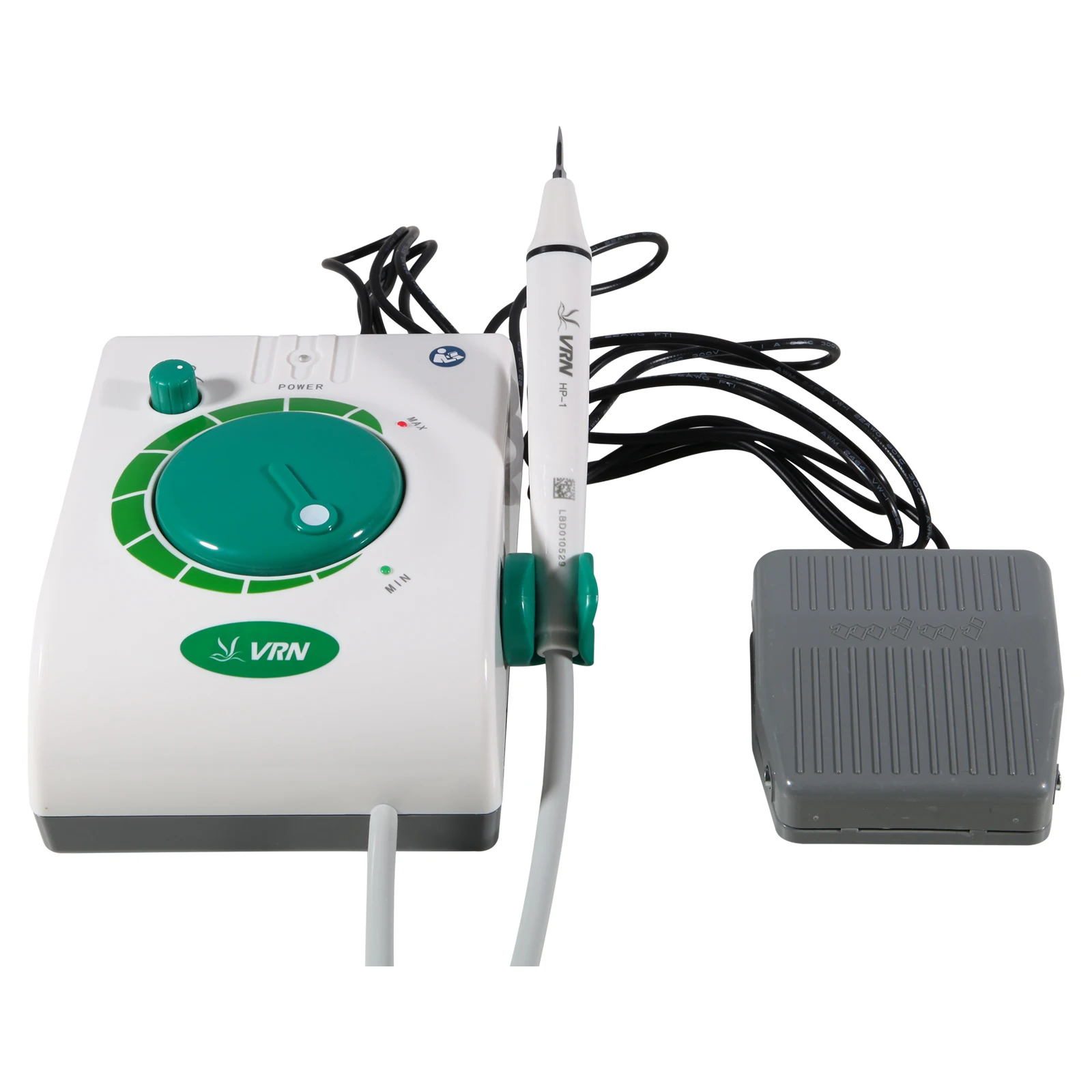

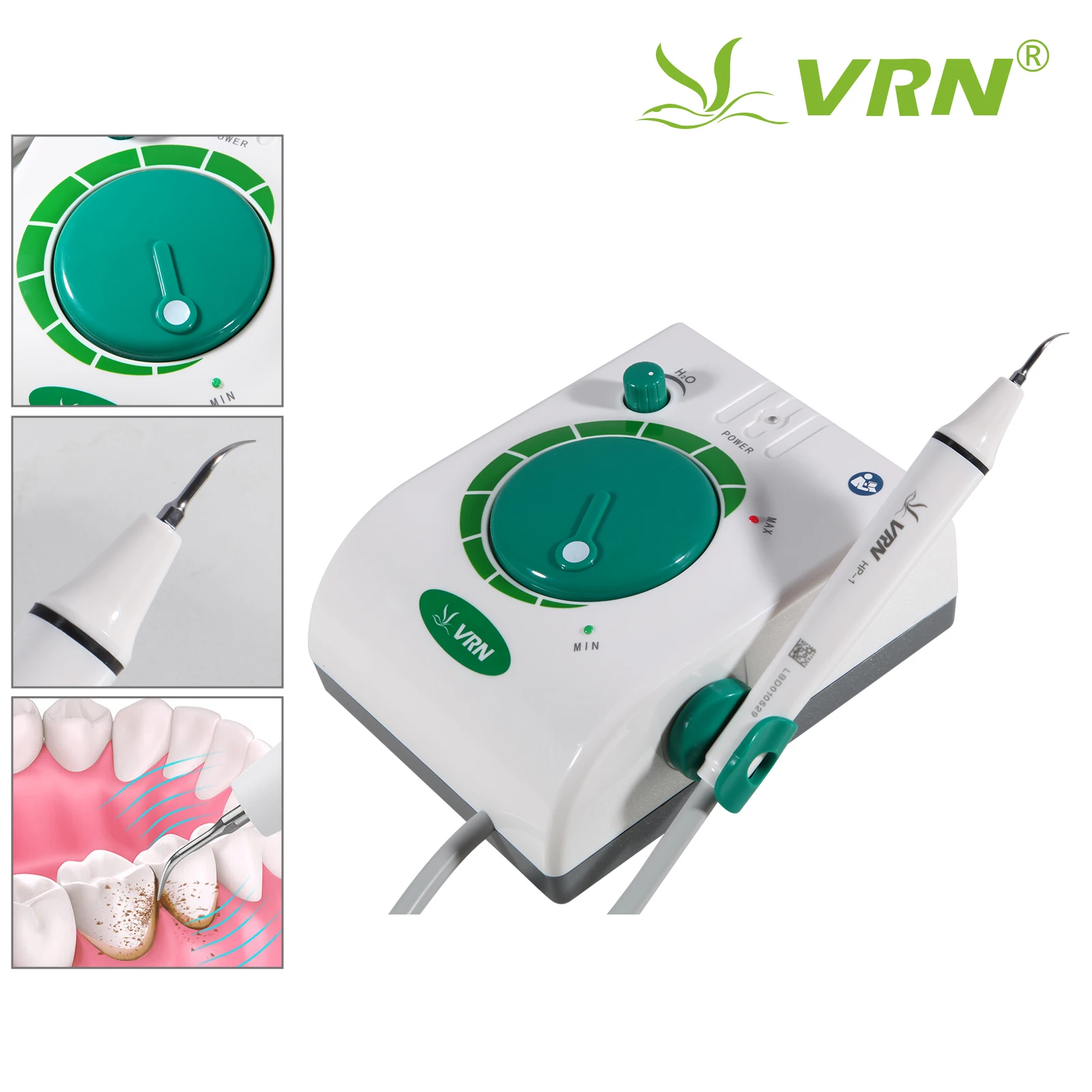

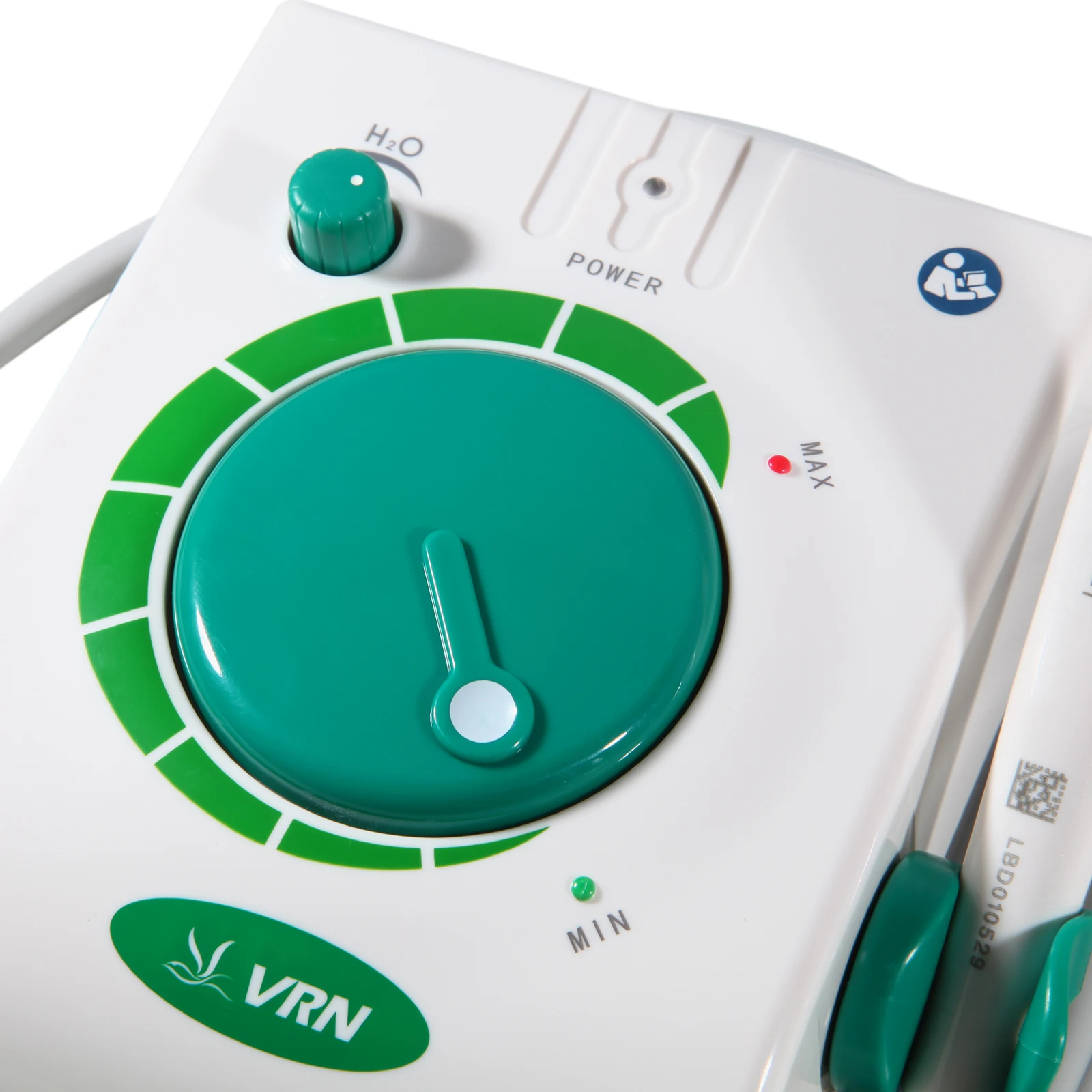

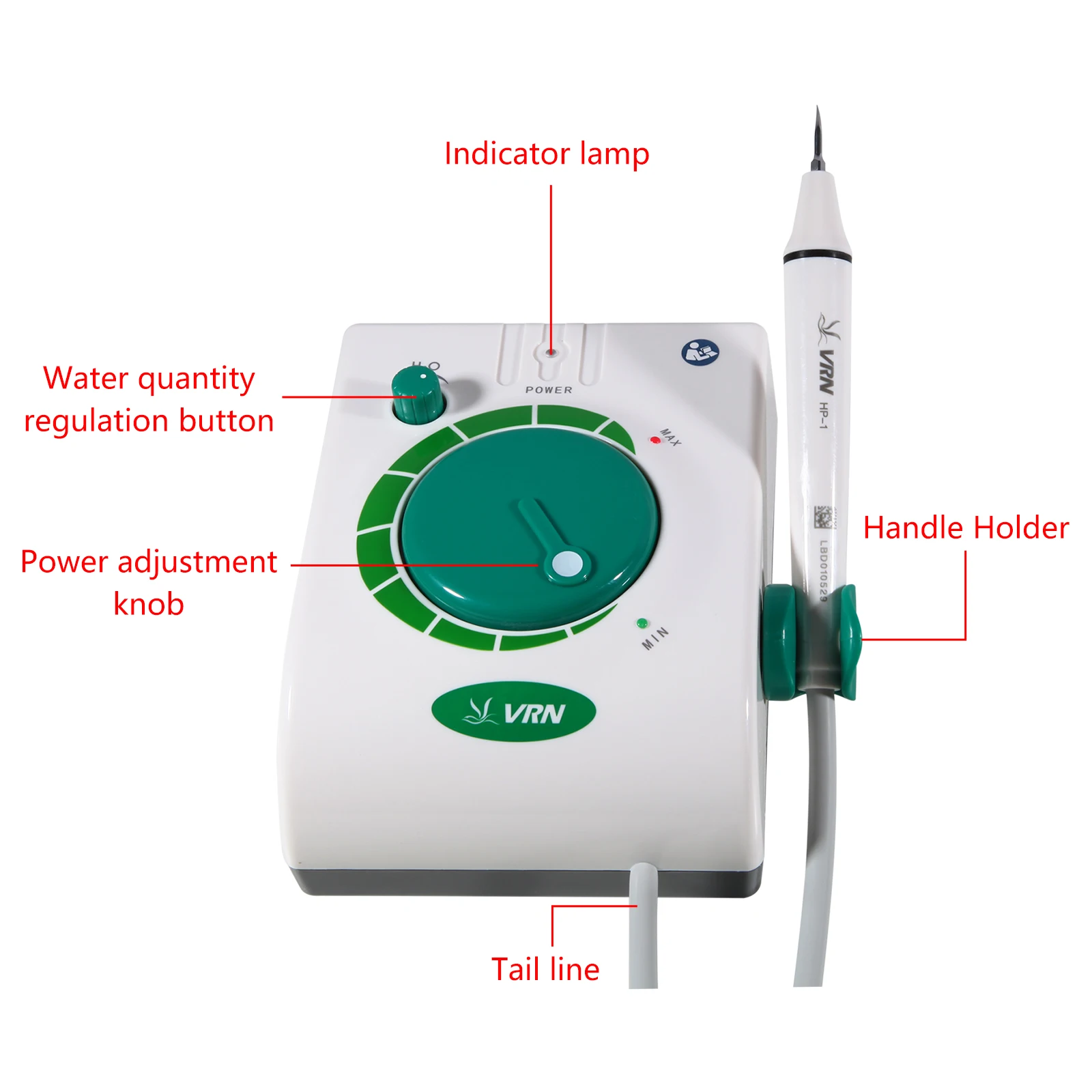

08B Scaler：
Features:
Function: Scaling & Perio
Sealed handpiece, fitting with EMS & UDS
Exclusive intelligent vibration technology, no pain, more comfort
1.Intelligent vibration core technology Inside, brings softer vibration and more comfortable experience.
2.Economy sealed handpiece, switching power adaptor adopted, five tips attached as free.
3.Comfortable scaling processing, no heat generating from handpiece and tips when long time operating.
4.Adopt high-grade titanium and excellent anti-fatigue and fracture resistance ability.
5.Antiblocking design for water route.
Specifications:
Function: Scaling, Perio
Handpiece: Sealed Handpiece
Input Voltage: AC100~240V 47~63Hz
Power: 30VA~48VA
Main Unit input: DC30V 1.5A
Output half-excursion: <2N
Vibration frequency of the tip: 25~31KHZ
Vibration excursion of the tip: ≤100μm
Ultrasonic output power: 3W~20W
Water pressure: 0.01MPa~0.05MPa
Main Unit Dimensions 80mm×170mm×170mm
Packing Size 275×230×140mm
Weight of main unit 0.75kg
Gross Weight 1.95kg
Scaling Tip G1*2, G2*1, G4*1, P1*1

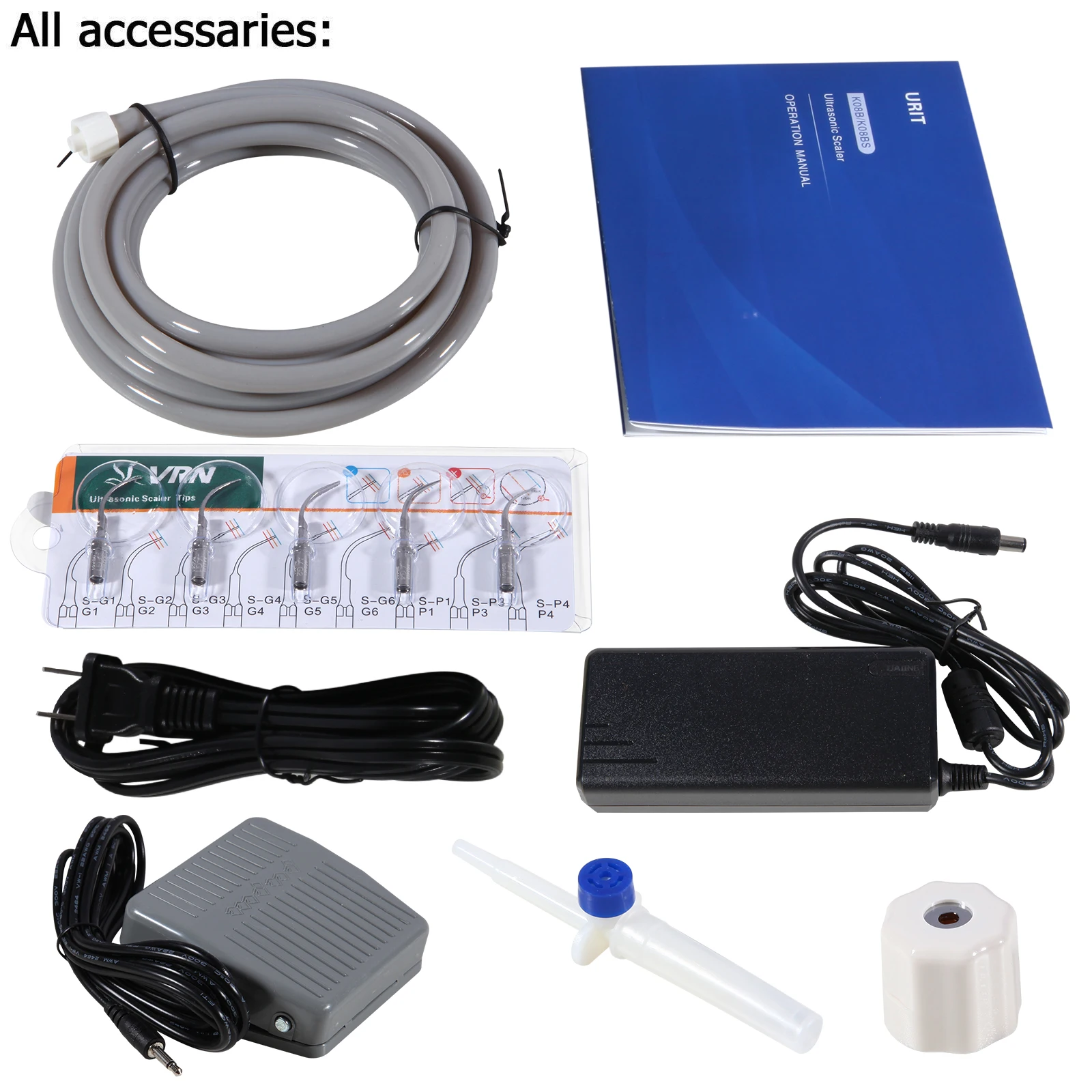

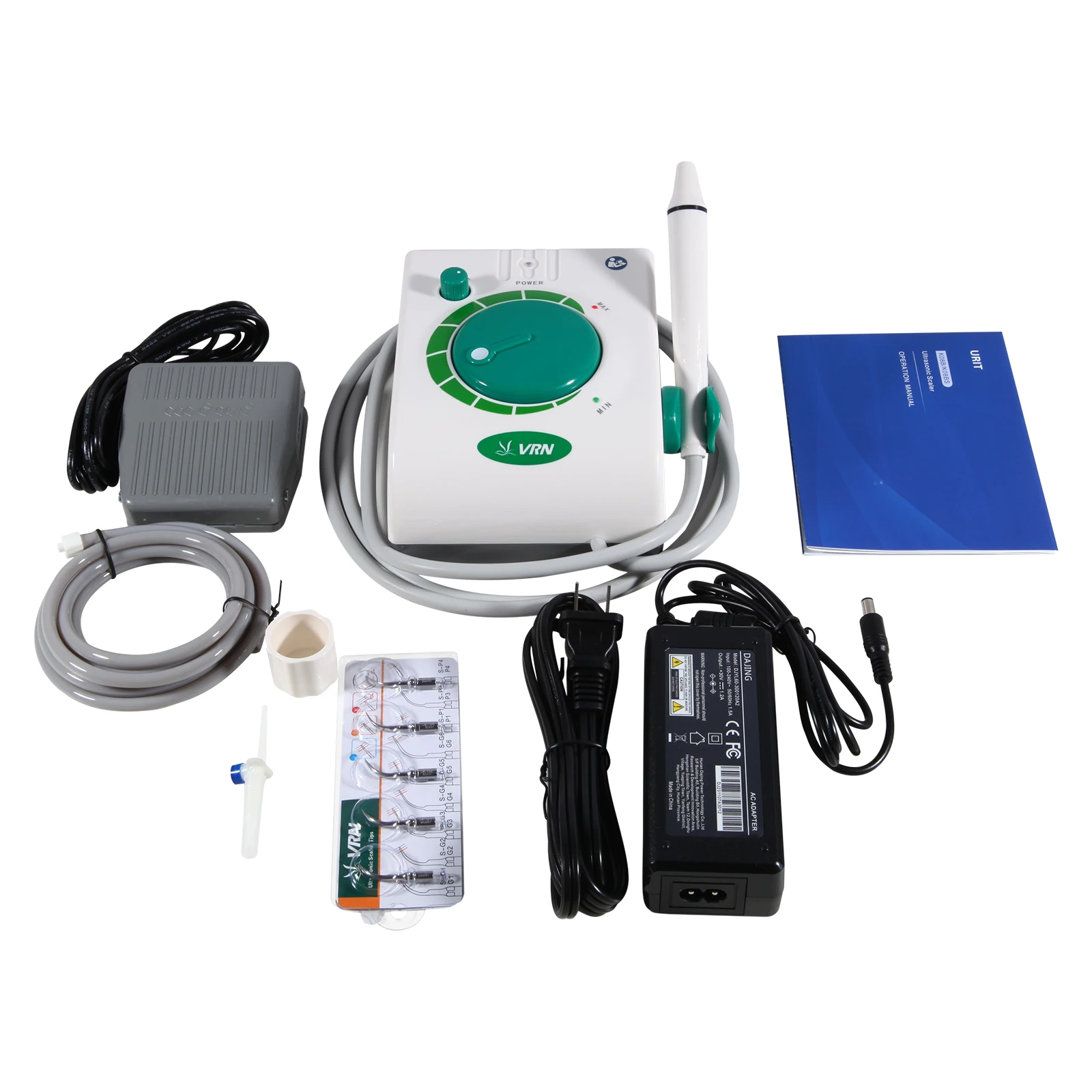

Packing List:
1 Main Unit*1
2 HP-1 Scaler Handpiece*1
3 Foot Switch*1
4 Scaler Tip*5(in 1 pack)
5 Scaler Tip Wrench*1
6 Power Adaptor*1
7 Power Adaptor Power Wire*1
8 Waterproof O-ring*2
9 2 / 3 Way Connector*1 set
10 Rubber Ring*1
11 PU Pipe*2
12 Instruction Menu*1
13 QC Certificate*1

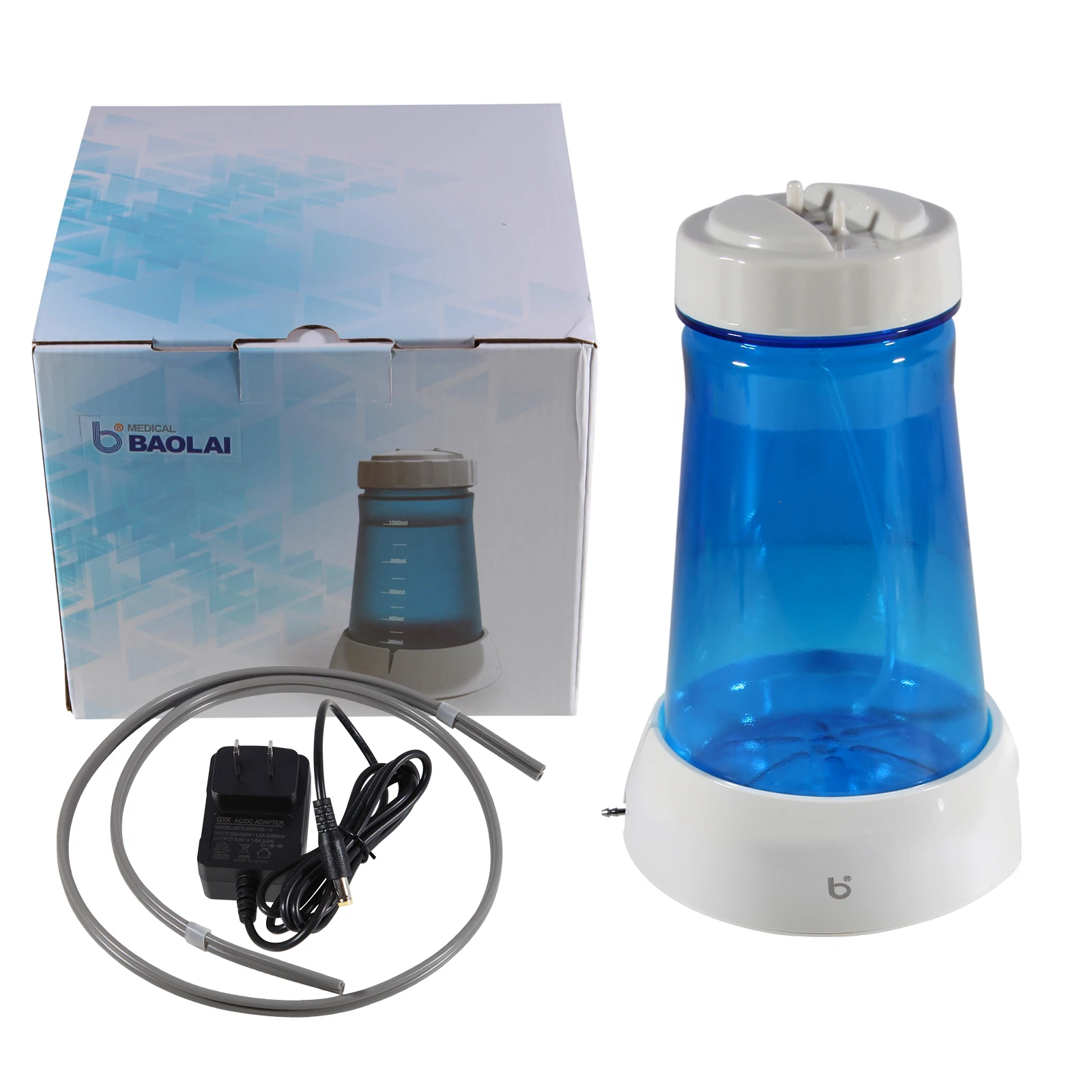

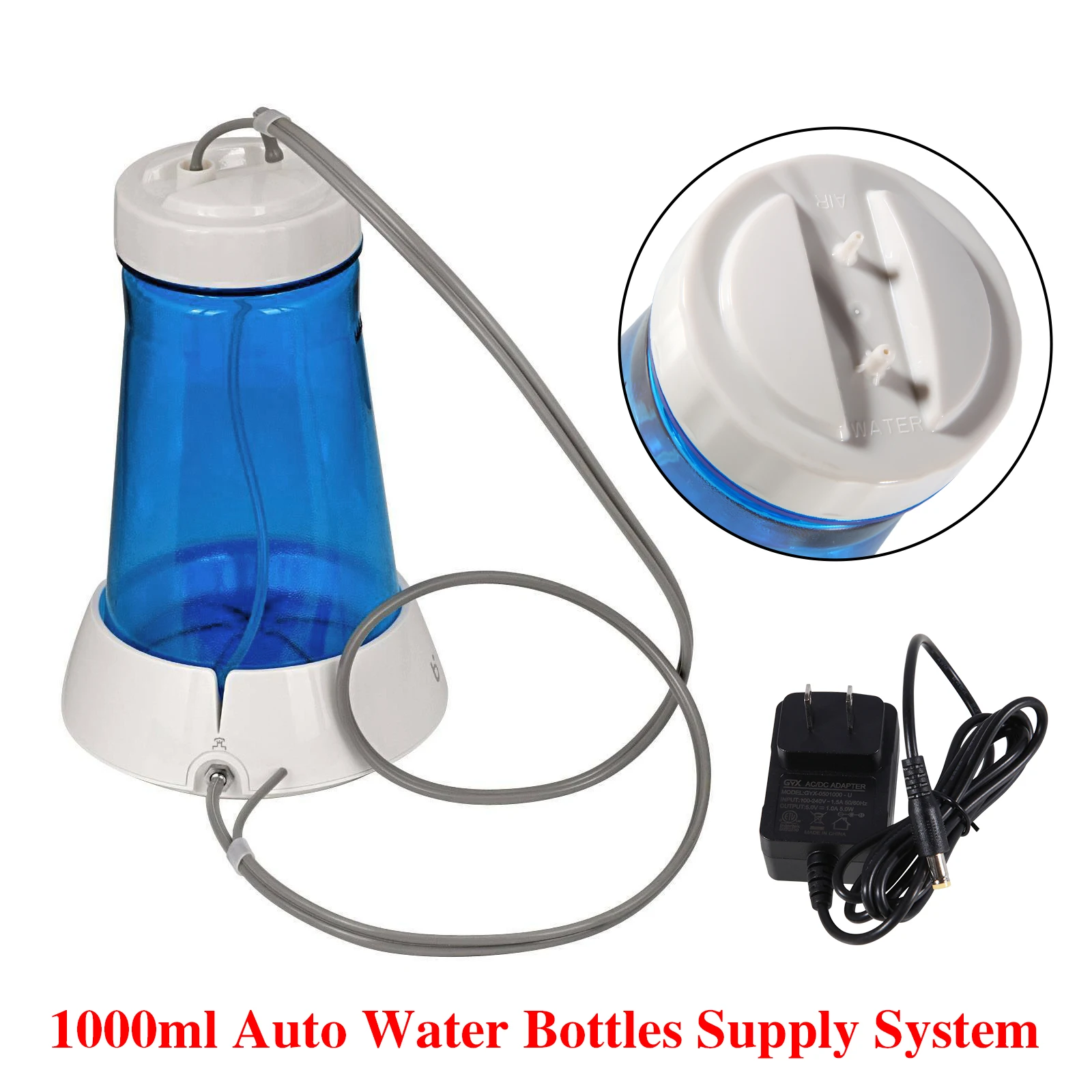

Auto-water Supply：
Features:
Auto water supply system
Suitable for worldwide voltage: 100-240V 50/60 Hz
Supply water for most scaler
Automatically adjust the pump, keep the water stable
Package:
1.Tube x 1
2.Power x 1
3. Instrument manual x 1
4. water bottle x 1
