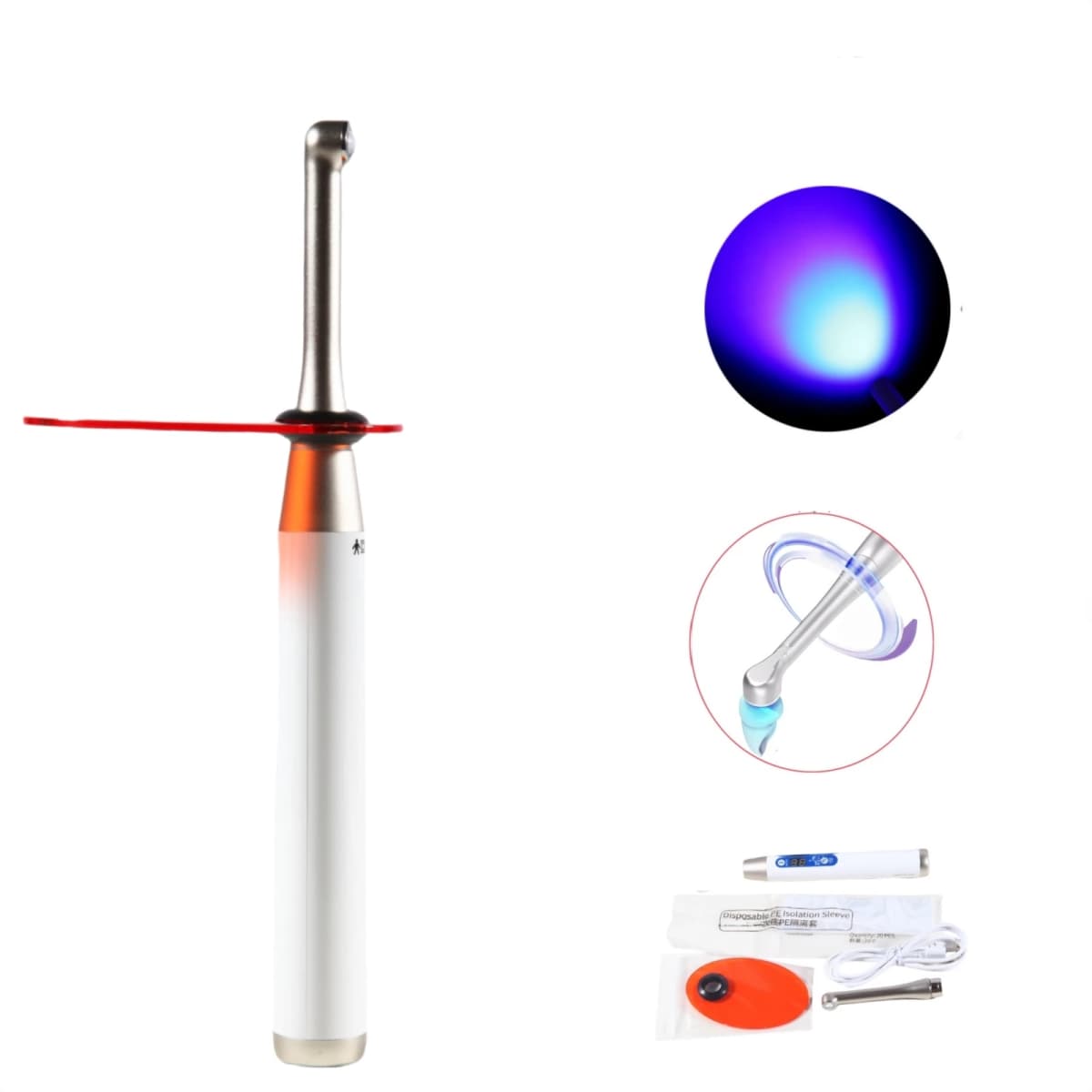

Dental Cure Lamp LED 5W Cordless 3 Modes Metal Head Dental Curing Light 3 Modes High Power Blue Light For Restore Teeth

Description:

1.This curing light adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time.

2.This product is used to restore teeth.

3.The device can only be used by the dentist who is qualifed and well-trained.This product is used on dental patient in the place of hospital or professional medical site.

Technical specifications
1. Dimension:25mm×240mm
2. Net weight:100g
3.Light intensity: 800mW/cm²~1400mW/cm²

Power source:

Power supply:rechargeable Lithium battery
Battery mode:ICR 18490
Battery voltage and capacity:3.7V/1400mAh
Battery has protection against Over-voltage,over-current and short circuit.

Adapter:

Power Input: AC 100V-240V,50Hz/60Hz
Input Power:10VA
Power Output:DC5V/1A

Light source:

5Whigh power blue light LED

Checking method:the LED light is fine when the light is on during operating correctly.

The wave length of this product can match with the clinical dental resin solidification,such as 3M,Dentsply etc.

Wave length:450nm-455nm

Working condition:

Environment temperature:+5℃ to+40℃
Relative humidity:10%~93%
Atmosphere pressure:70kPa to106kPa

Operation：

1. Press ON/OFF to turn on the product. Long press ON/OFF to turn off the product.

Press the time button, to select oftime which could be 5s, 10s.15s,20s.25s.30s.

2. During the operation, put the disposable sleeve on the top of the main unit, aim the top at the correct position,
press the ON/OFF button and the main unit will produce "Di" sound, the curing light radiates
blue light and starts working according to the set modes.

Meanwhile, it starts counting down and will produce tone at every 5 seconds, it stops
working when counting down to "0

Equipment safety:

Operating mode:intermittent operation

Protection type against electrical shock:class IⅡ.

Protection degree against electrical shock:typeB.

Protection against harmful ingress of water or particular matter: ordinary equipment (IPX0).

Safety in the presence of fammable anesthetic mixture with air, oxygen or nitrous oxide:not suitable under this condition.

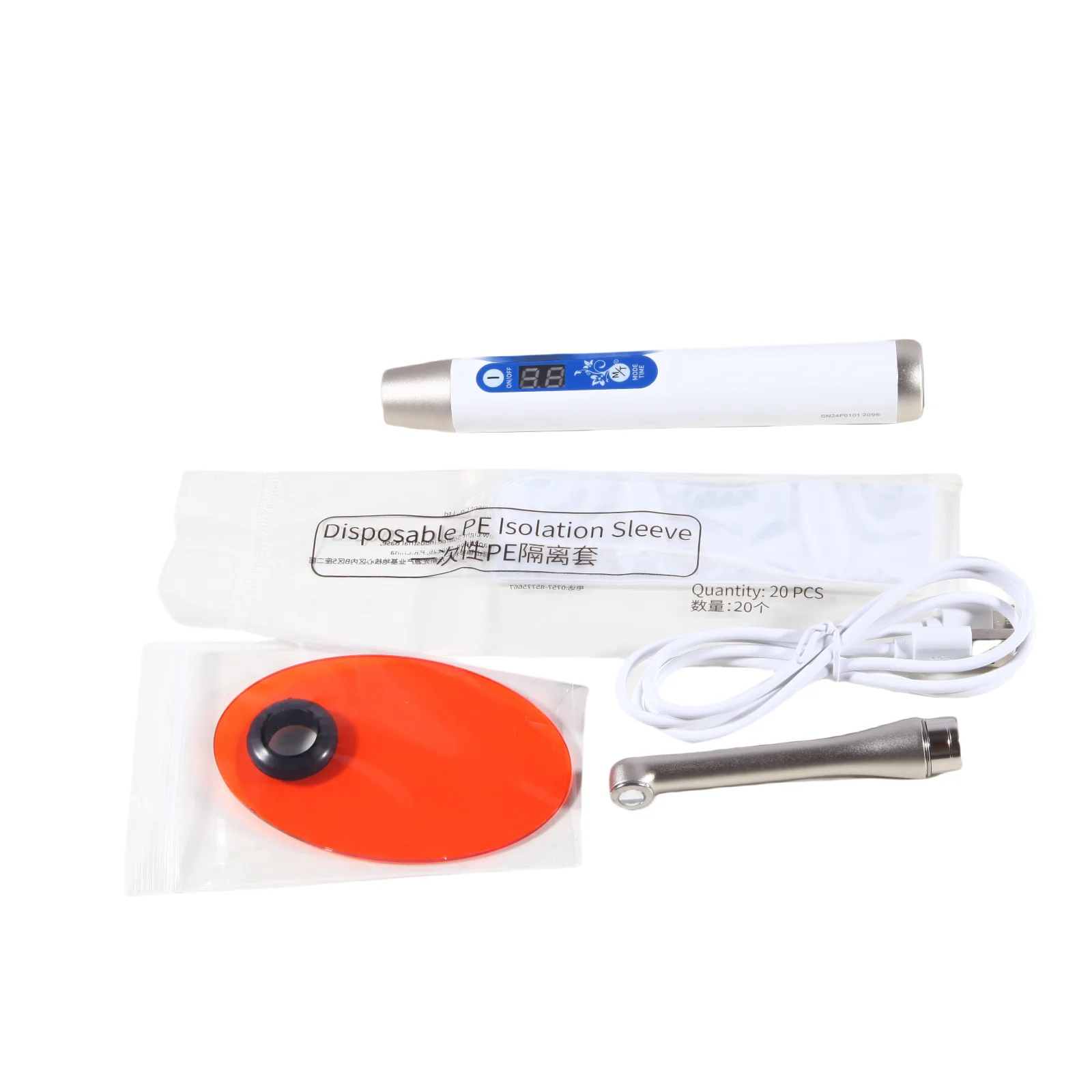

Package included:

1 x Main body
1 x Charging line
1 x Manual
