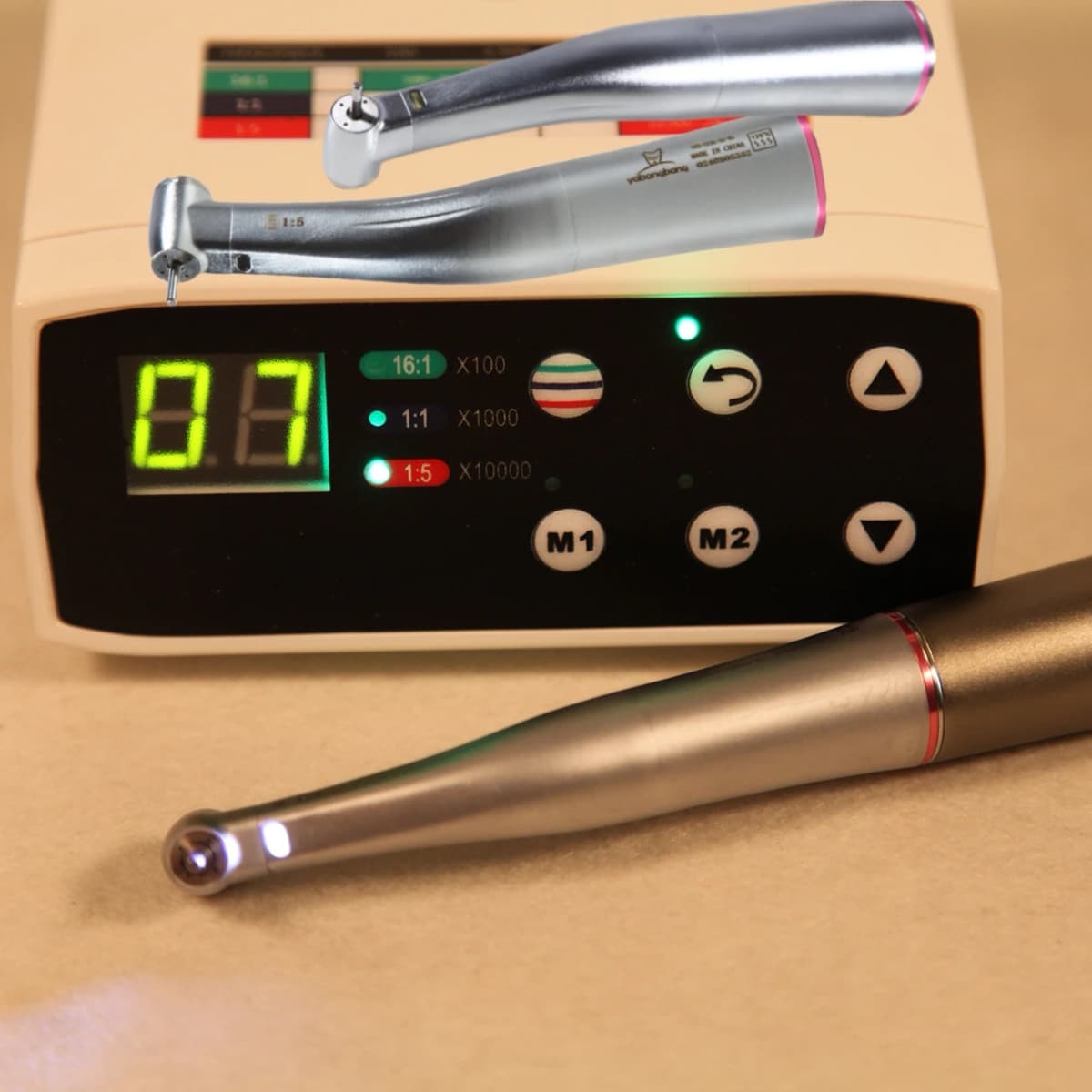

Dental LED Brushless Electric Micro Motor + 1:1 + 1:5 Standard / Mini Head Fiber Optic Increasing Contra Angle Handpiece Kit

Brushless Electric Motor +Handpiece KIT:

Brushless Electric Motor :

Technology :
Type of motor: brushless motor
Internal Spray
Three optional settings(1:1/1:5/16:1)
Rotation: 2,000-40,000rpm
2000rpm-40000rpm(1:1)
100rpm-2500rpm(16:1)
10000rpm-200000rpm(1:5)
Torque: 3.4Ncm
Power input: AC 100-240V
Size of motor:φ22xL71 mm
Weight of motor: 71g
Noise level: <60dB
Illuminate: LED(white light)
Size of control device: L150.00 x W128.00 x H55.00mm
Total weight: 1.25kg
Connector: ISO-E type

1:1 Fiber Optic LED Internal Handpiece

Feature:
*1:1 Speed clean head system
*High brightness fiber optic lighting
*Better cooling effect
*High hardness And Wearable
* Excellent corrosion resistance
*Clean head design
*Latch Grip


Description:
1. Air pressure: 0.3Mpa-0.35Mpa
2. Rotation Speed:18,000-25,000rpm/min
3. Brightness: 32000Lux
3.135°C Autoclavable, Sterilization can be done with High-temperature and High-pressure repeatedly
4.Noise≤68dB
5.Chuck type:Push button
6.Bur Type:φ2.35mm
7.Internal water spray
Available for various E-type motors in accordance with ISO standard

1:5 Increasing LED

Dental 1:5 Increasing LED Fiber Optic Low Speed Contra Angle

Internal Handpiece:
Standard/Mini head slim body
Low noise & vibration
Anti-overheating system
Durable
1:5 speed increasing
Clean head system
High brightness fiber optic lighting
Better cooling effect
High hardness
Wearable
Corrosion resistance

Specification:
Increasing 1:5 ratio
Clamping force: 4.0kg
Smallest head fiber optic handpiece
Internal four spray
Rotate speed : 200000rpm
Chuck type: push button
Brightness: 32000lux
Import ceramic bearing
Noise : ≤58db
Bur applicable: ∅1.59-1.60mm
ISO stand connector

Packing list:

Micromotor: ---------------------------1 pc
Control unit: ---------------------------1 pc
Micromotor tube:---------------------1 pc
Power adaptor:------------------------1 pc
Operation manual:--------------------1 pc
1:1 Fiber Optic Handpiece :---------------1 pc
1:5 Fiber Optic Handpiece:--------------------1 pc
1:5 Fiber Optic Handpiece:--------------------1 pc
