Dental Endo Gutta Percha Obturation System Heated Pen 2 Second Heating Double Charging/Simple /Tooth gum Cutter

Simple Heated Pen：

Model
Op-fill can be heat to 200 º C in 3s, can be melting all kinds of Gutta percha.It support the vertical compaction of Gutta percha for the root canal filling. It is intended exclusively for use by trained dentiet only in clinic or laboratory.


Safety caution:
The temperature of tip is very high during the surgery , in order to prevent from being burned, please avoid it directly contact to the soft tissue.


Specification
Charging system
Operating Voltage DC.3.6V
Adaptor Input: AC 110V 60HZ
Power: 10w
Charging time 4 hours
Packing size: 165*125*38mm


Usage:
Heat: Press the button to heat the tip, the Led indicator light red.The tip can reach working temperature within 3 second.
Charge:Put the obturation pen onto the charging base, the LED indicator light blue.The unit should be continuous charging more than 8 hours from low voltage to full charge.


Package includes:
Charging Base-----1 PC
Obturation Pen-----1 PC
Pen Tip -----2PCS

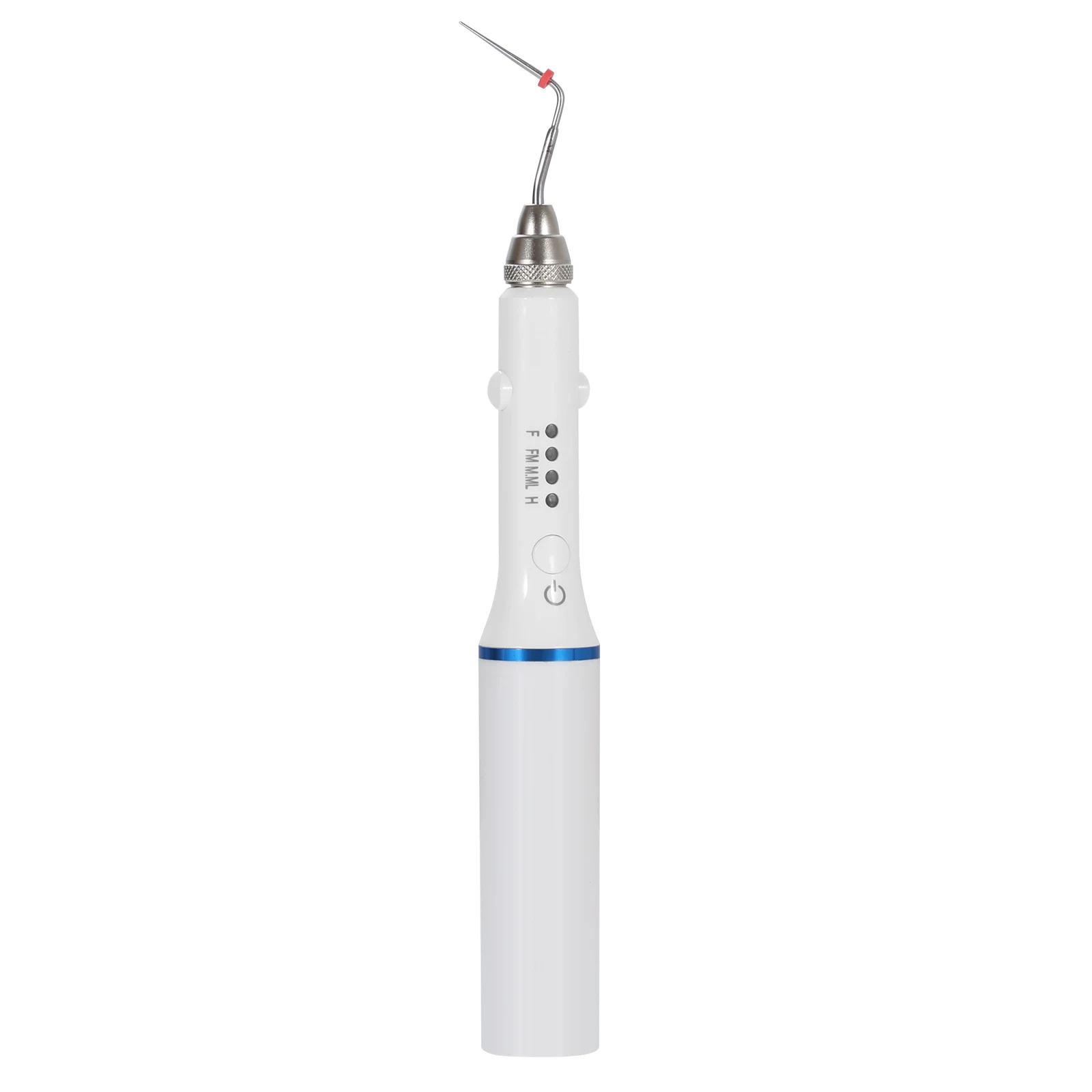

Double Charge heat Pen：

Features
1. The design is exquisite, the operation is simple, the body is light and comfortable, so that you can reduce the
fatigue caused by the long-term use of the wrist.
2. Hot tooth glue vertical pressure technology
3. Perfect top control, can fill the complex structure, make the three-dimensional root canal filling more sealed
4. Filling fast and precise
5. Compressed gutta-percha point is more compact
6. A more efficient, safer, faster, and more thorough root canal filling system.
7. The heating pin model and temperature mode are adjustable, and the compressed gutta-percha point is more compact.
8. User-friendly design for comfortable tactile enjoyment


Specification:
-100% Brand New ,High Quality
-Obturation Pen
-Color:White
-Temperature sensor IC type
-Heating time 2 Seconds
-Temperature range 180-300 ℃
-Charging system
-Operating Voltage DC.3.6V
-Adaptor Input: AC 100-240V Output: DC 5V/1.5A
-Charging time 4-6 hours
-Battery (Li-on)
-Capacity: DC3.7V/2800mAh
-Dimension: φ19 *65 (3pcs total)
-Operating condition: Temperature 0 ℃-45℃

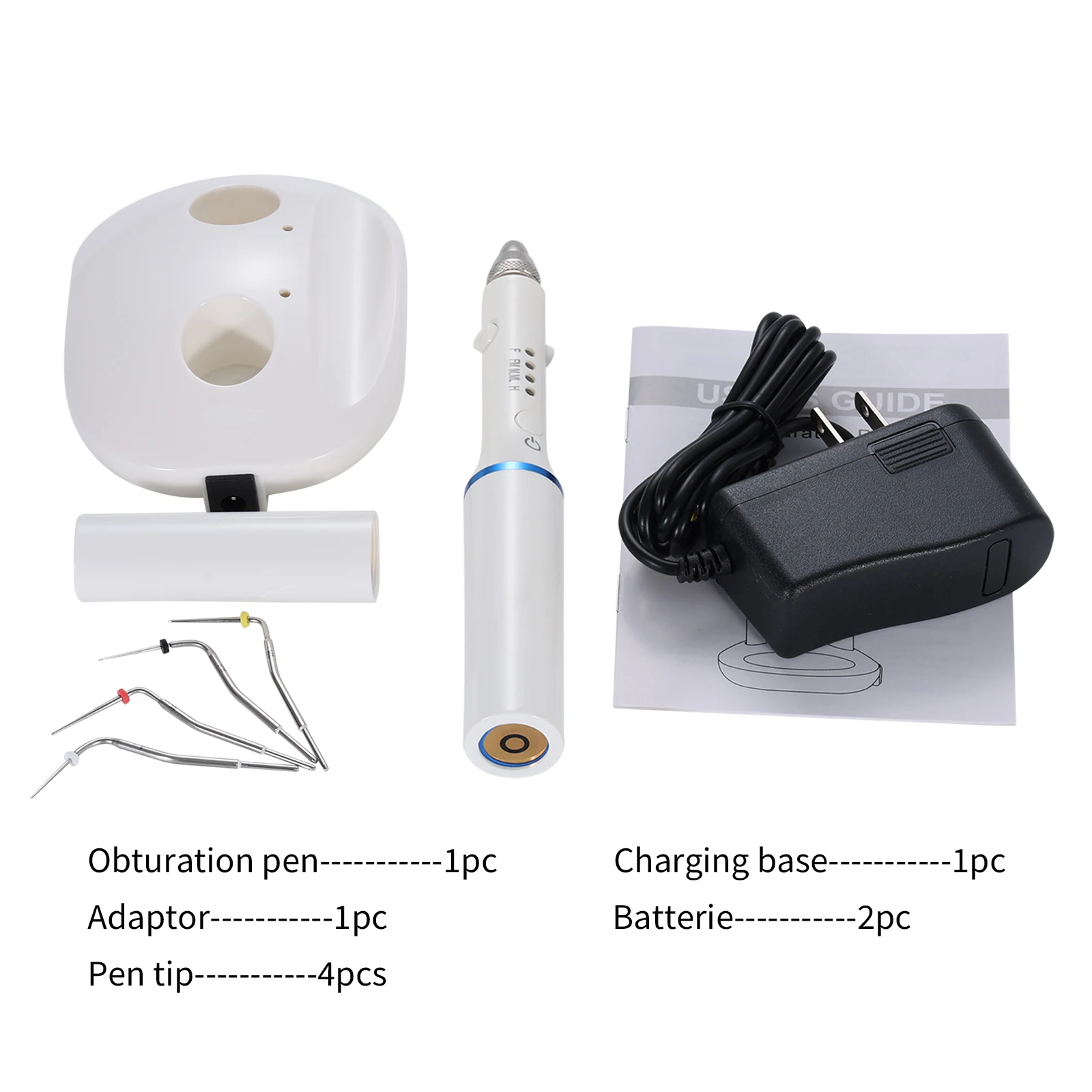

Package Included:
1 x Obturation Pen
4 x Pen Tip (Type F/FM/M/ML)
1 x Charging base(Double head charger)
1 x Charger
2 x Battery

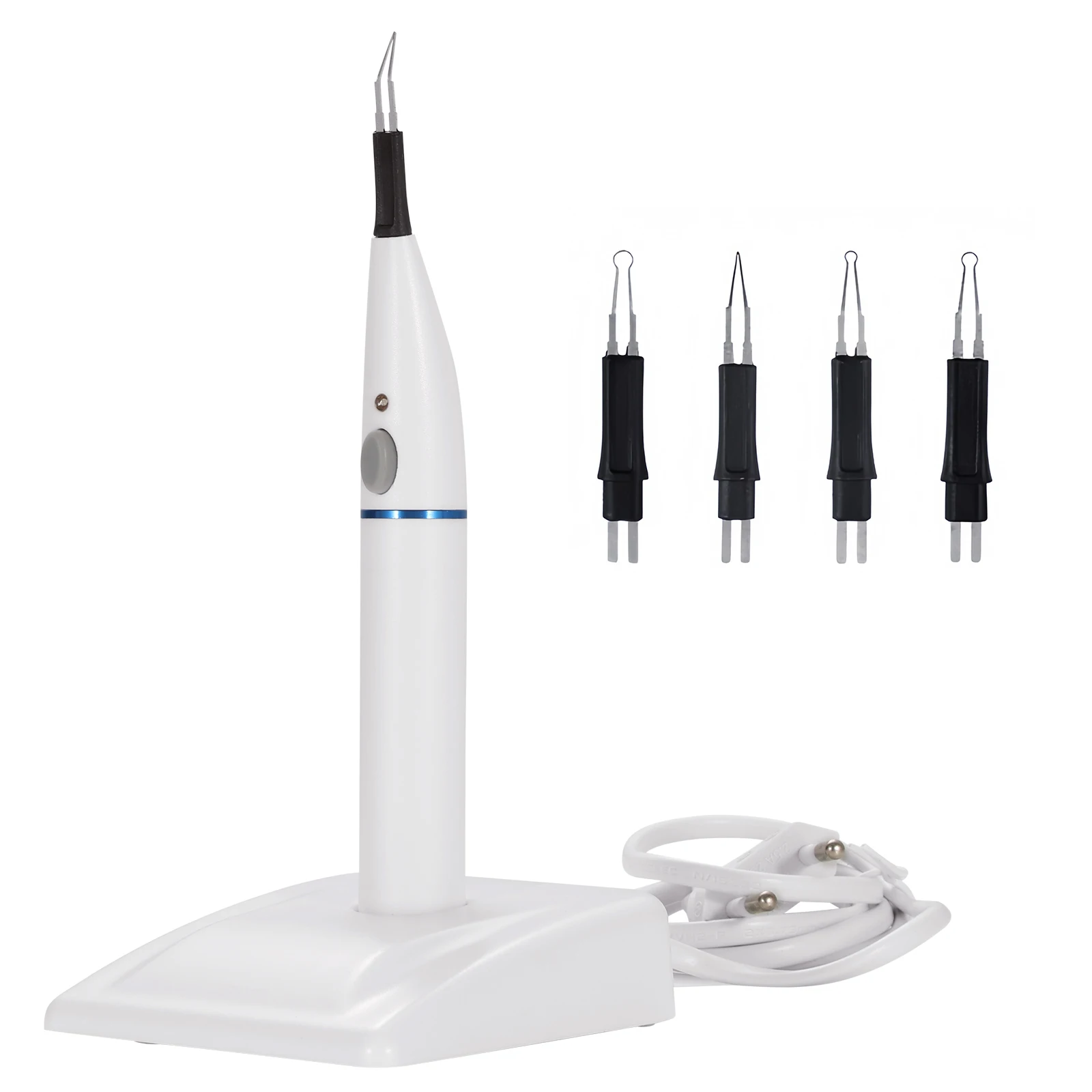

Tooth Gum Cutter：

Feature：
1. Design ingenious , Shape beautiful , Conform to the human body engineering
2. Wireless mode , Operation ,flexible, convenient
3. Rapid heating , highest temperature of 260º C
4. High-capacity can be charged Nickel cadmium battery, charging time 3 hours
5. Fever needle can be sterilized by high temperature and high pressure , repeated use.


Technical Paraments:
1. Charger voltage: AC110V or 220V 50/60HZ
2. Battery: 1.2V 2400mAh
3. Power2.5W
4. Weight: about 305g


Packing List:
1x main unit
4x tips
1x Box
1x English manual

Charging：
1.First,charge the instrument by connecting the charging station to a mains power socket

2. Plug the handipece into the socket in the charging station . While the instrument is charging,the LED lights up on the handpiece.


Use:
Fit a cutting tip onto the handpiece.Make sure that the angle of the tip is pointing in the opposite direction to the operating button,This makes work easier.


Important:

Never bend the tip while it is still in the handpiece.
1.Insert the cutting tip into the cavity while it is cold (without pressing the operating button).The gutta-percha point to be cut off must be encircled by the loop of the cutting tip.

2. As soon as the cutting tip is located directly on the canal access,press the operating button.

3.The tip heats up in seconds and the gutta-percha point can be quickly and cleanly removed.

4.After the point has been cut off ,release the operating button. The cutting tip immediately cools down and can be removed from the patients mouth .The operating button is a “contact button” which only switches the button is released,the instrument switches off.

5.Remove the cutting tip from the handpiece after use.
Attention:Please don’t continue to press the button more than 30 seconds.
