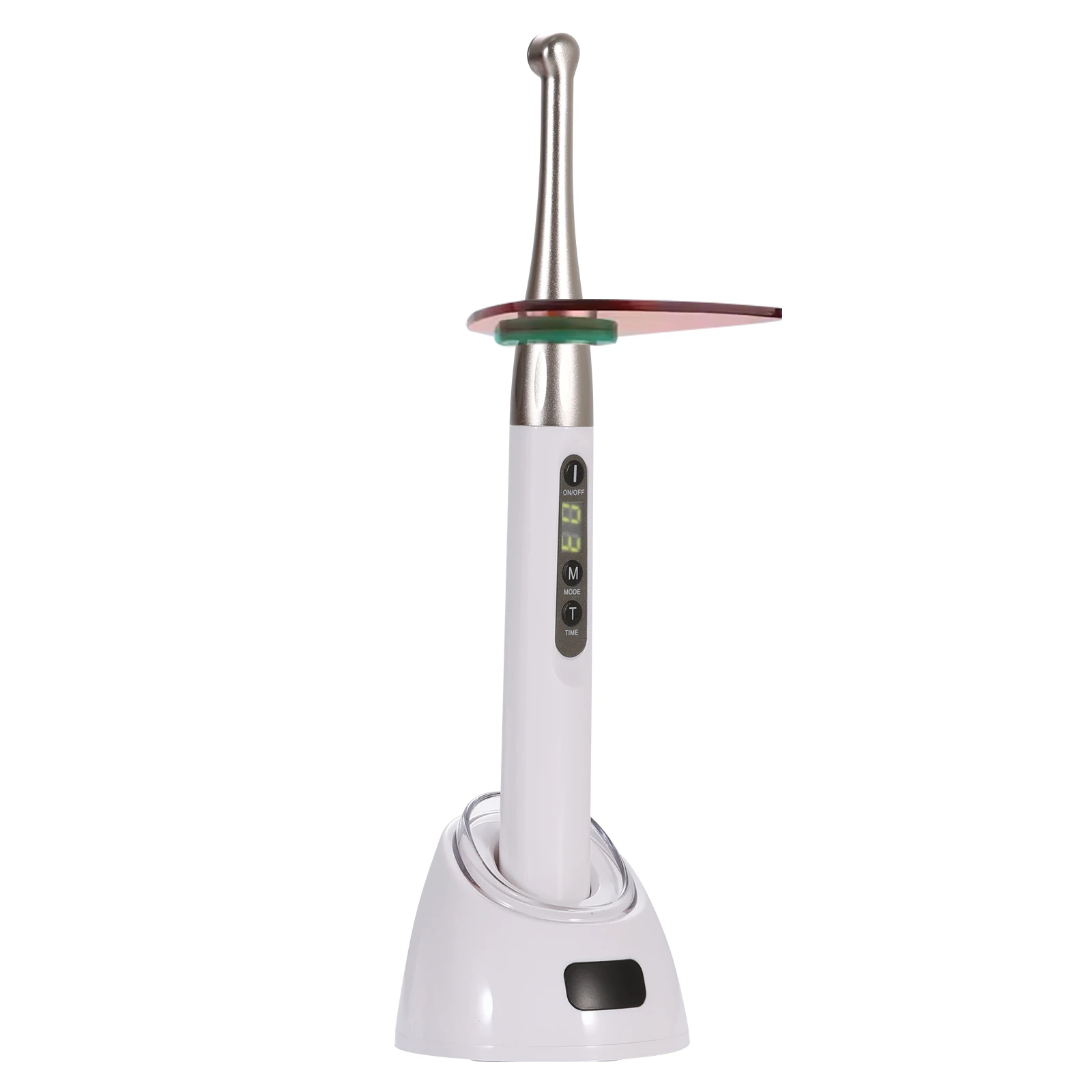

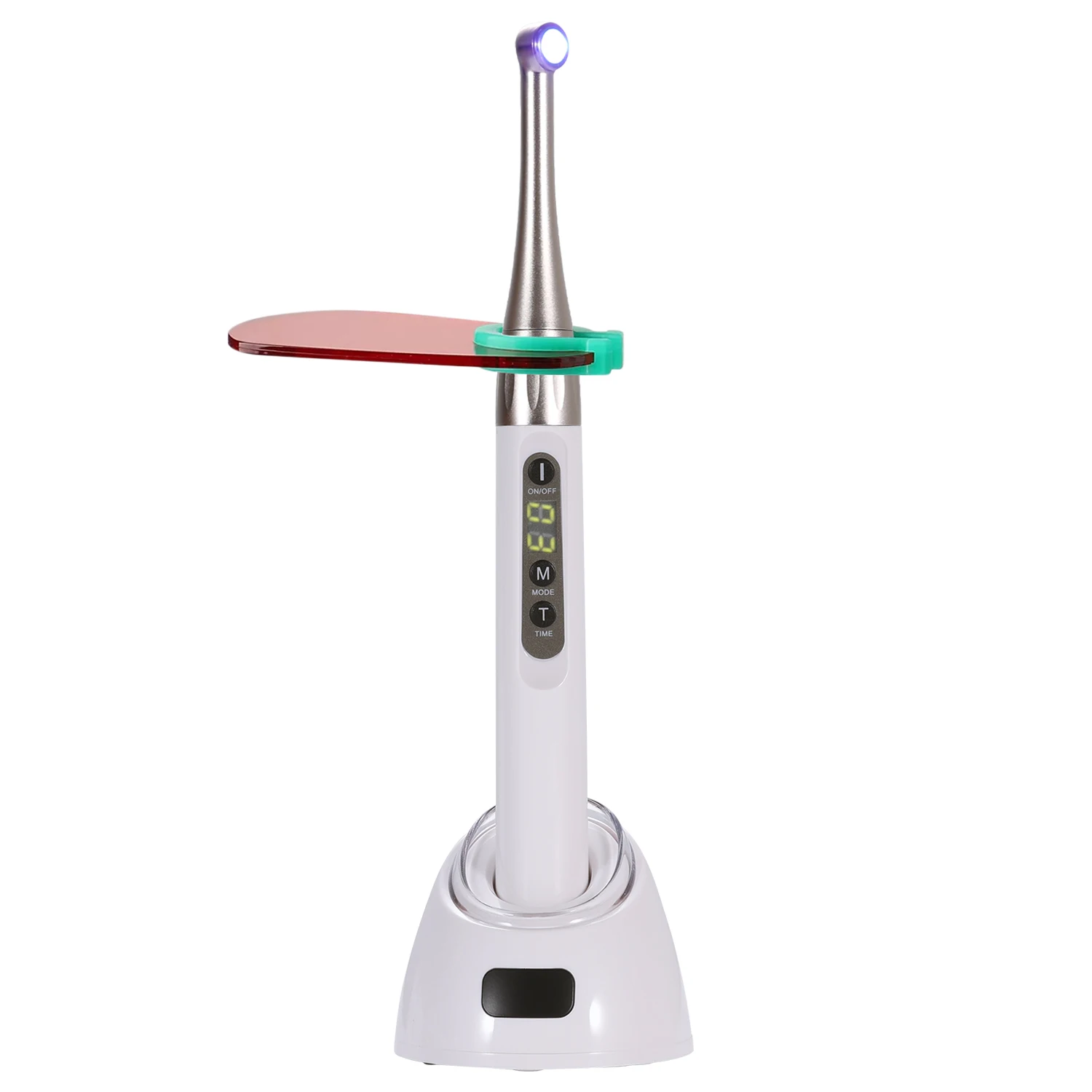

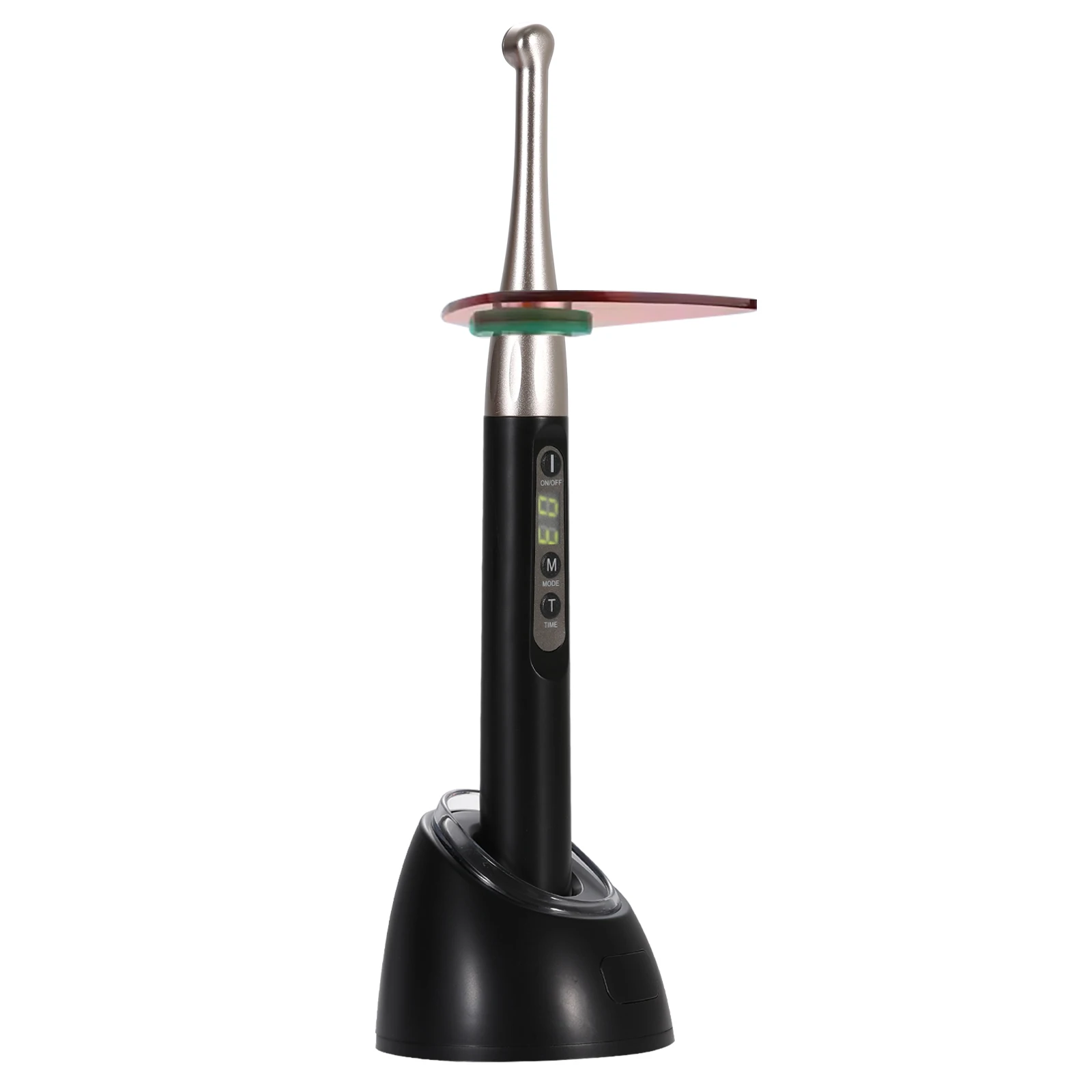

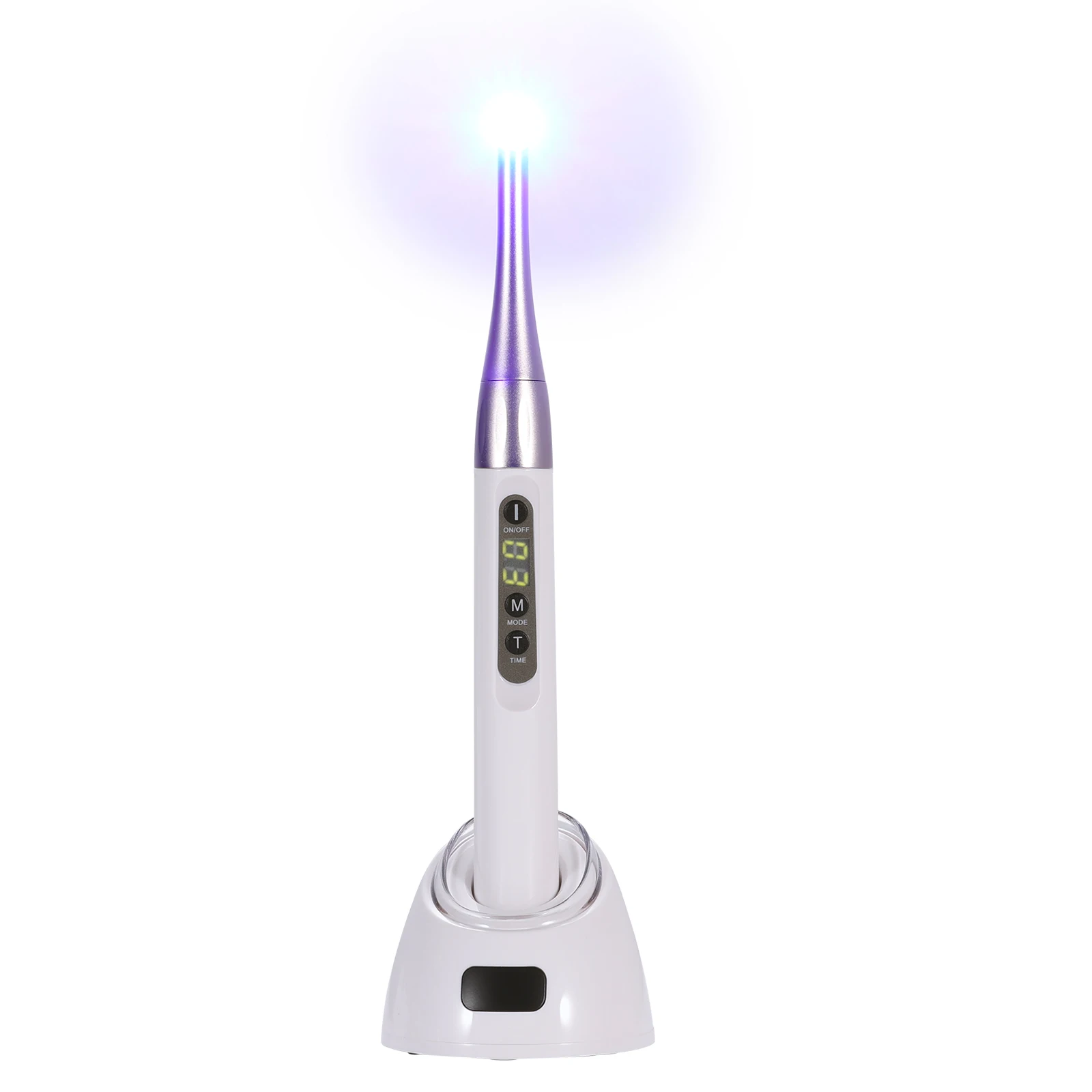

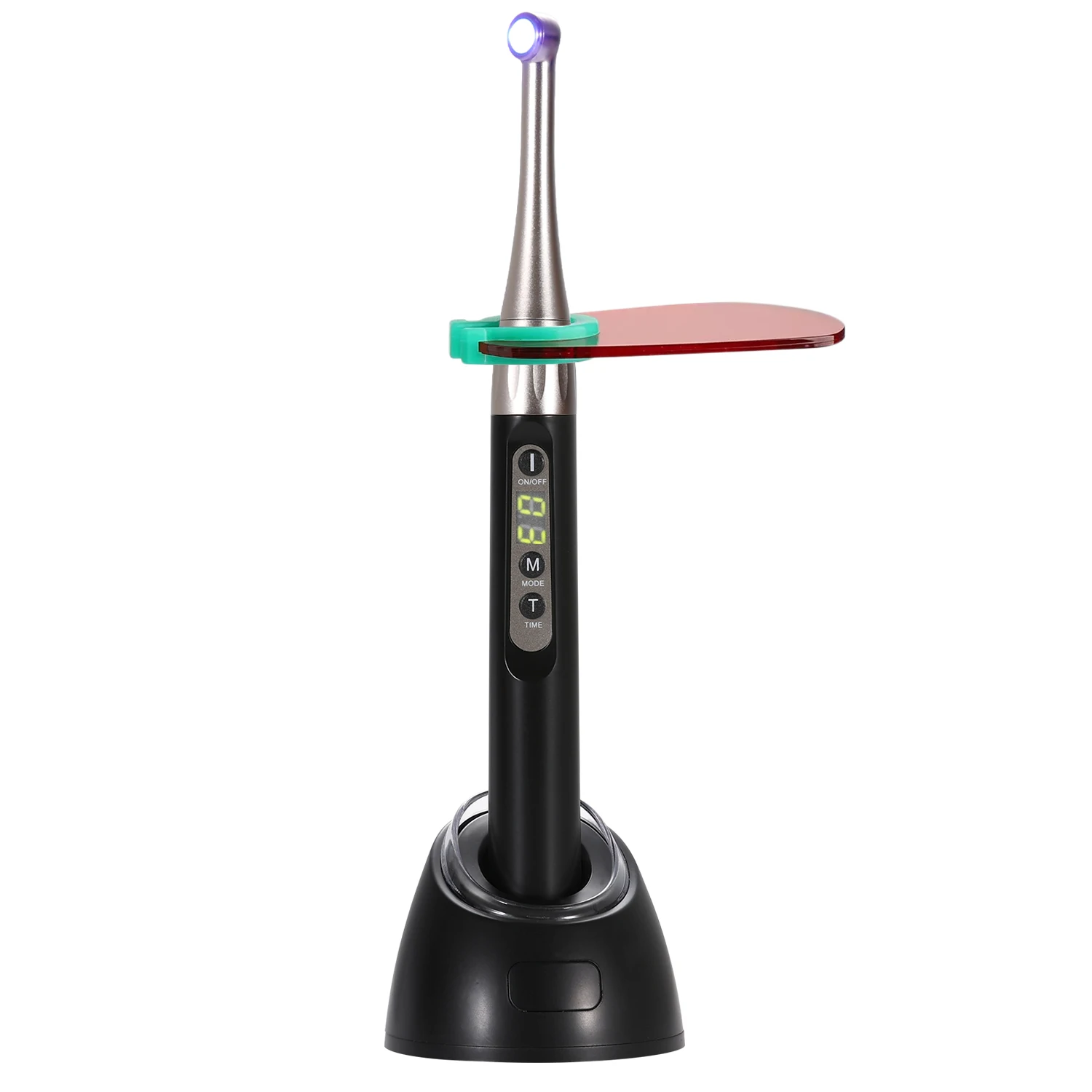

Dental iLed Max 1 Second Resin Cure Curing Light LED Wireless Curing Lamp 2500mw/c㎡ Fit Woodpecker

Description:

Technical specifications：
Dimensions:25mm×25mm×240mm.
Net weight:278g.

Power source：
Power supply:rechargeable Lithium battery
Battery mode:ICR 18490
Battery voltage and capacity:3.6V/1400mAh
Battery has protection against Over-voltage,over-current and short circuit.

Adapter：
Power Input:100V to 240V,50Hz/60Hz Input Power:10VA
Power Output:DC5V/1A

Light source:
15W high power blue light LED
Checking method:the LED light is fine when the light is on during operating correctly.
The wave length ofthis product can match with the clinical dental resin solidification,such as 3M,Dentsply etc.
Wave length:385nm-515nm
Light intensity:1000mW/cm²~2500mW/cm²

Working condition：
Environment temperature:+5℃ to +40℃
Relative humidity:30%~75%
Atmosphere pressure:70kPa to106kPa

Equipment safety:
Operatíng mode:intermittent operation
Protection type against electrical shock:class II.
Protection degree against electrical shock:type B
Protection against harmful ingress of water or particular matter ordinary equipment(IPX0).
Safety in the presence of flammable anesthetic mixture with air, oxygen or nitrous oxide:not suitable under this condition.

Install and uninstall way

The top of the unit can be turned 360 degrees to both left and right while it is forbidden to remove.
When the battery needs to be charged,connect the plug ofthe adapter into the AC100V~240V power supply.Then connect the output plug of the adapter to the DC 5.0V input plug ofthe pedestal,then put the main unit into the pedestal.

Operation:

Press the mode button.Following two modes are available.

TURBO Mode:screen shows P1,Press the time button to select of time which could be 1 and 3 seconds.Its output light intensity is about 2300mW/cm²-2500mW/cm² .

NORMALMode:screen shows P2,Press the time button to select oftime

which could be 5,10,15and 20 seconds.Its output light intensity is about 1000mW/cm²-1200mW/cm² .

During the operation,put the disposable sleeve on the top of the main unit,aim the top at the correct position,press the ON/OFF button and the main unit will produce "Bi"sound,the curing light radiates blue light and starts working according to the set modes.Meanwhile,it starts counting down and will produce tone at every 5 seconds,it stops working when counting down to "0".

During operation,the blue light can be stopped by press the power button at any time.

After a working cycle,operator can press the ON/OFF switch to start another working cycle.Stop operating if the equipment began to heat obviously,do not restart until the equipment cool down.Suggest continues working cycle less than 10 times.

Low power detective circuit is fixed inside of the main unit,when low power is detected,the display screen of main unit will wink,please charge in time.

When the battery needs to be charged,connect the plug ofthe adapter into the AC100V~240V power supply.Then connect the output plug of the adapter to the DC 5.0V input plug of the pedestal,and then the logo turn to blue.Put the main unit to the charging point ofthe pedestal, the display screen turn to scrolling display,and the curing lights starts charging.When charging finished,the display screen display "111".

After operating,take off the disposable sleeve and throw away, forbidden to reuse.

This equipment will turn off automatically if don't any action within 2 minutes,turn it on by press any button.

The depth of solidification of composite is no less than 2mm per 1 second.

Packing List ：

LED curing light main unit*1
Optical fiber (Curing light guide)*1
Light hood*1
Charger pedestal*1
Power adapter*1
