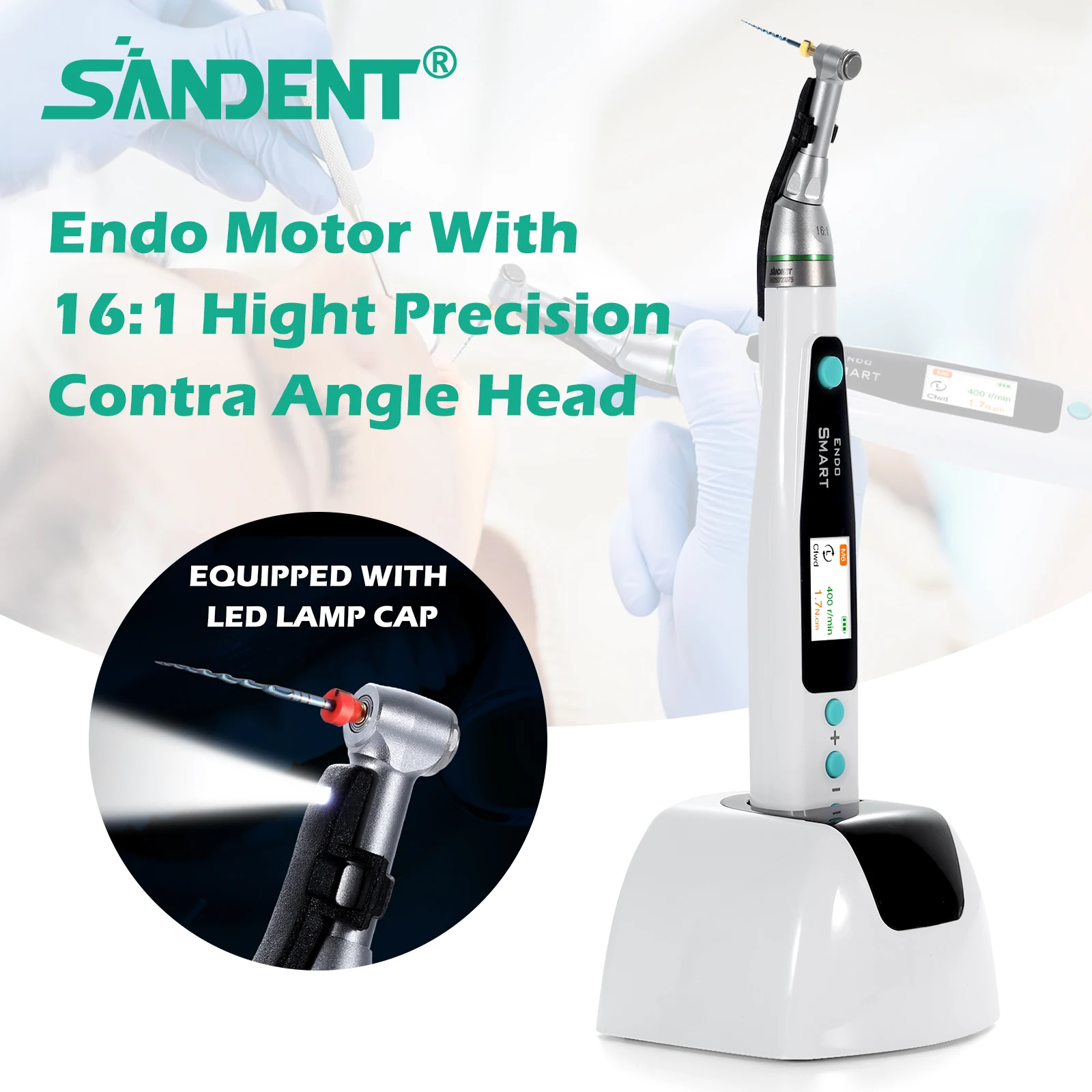

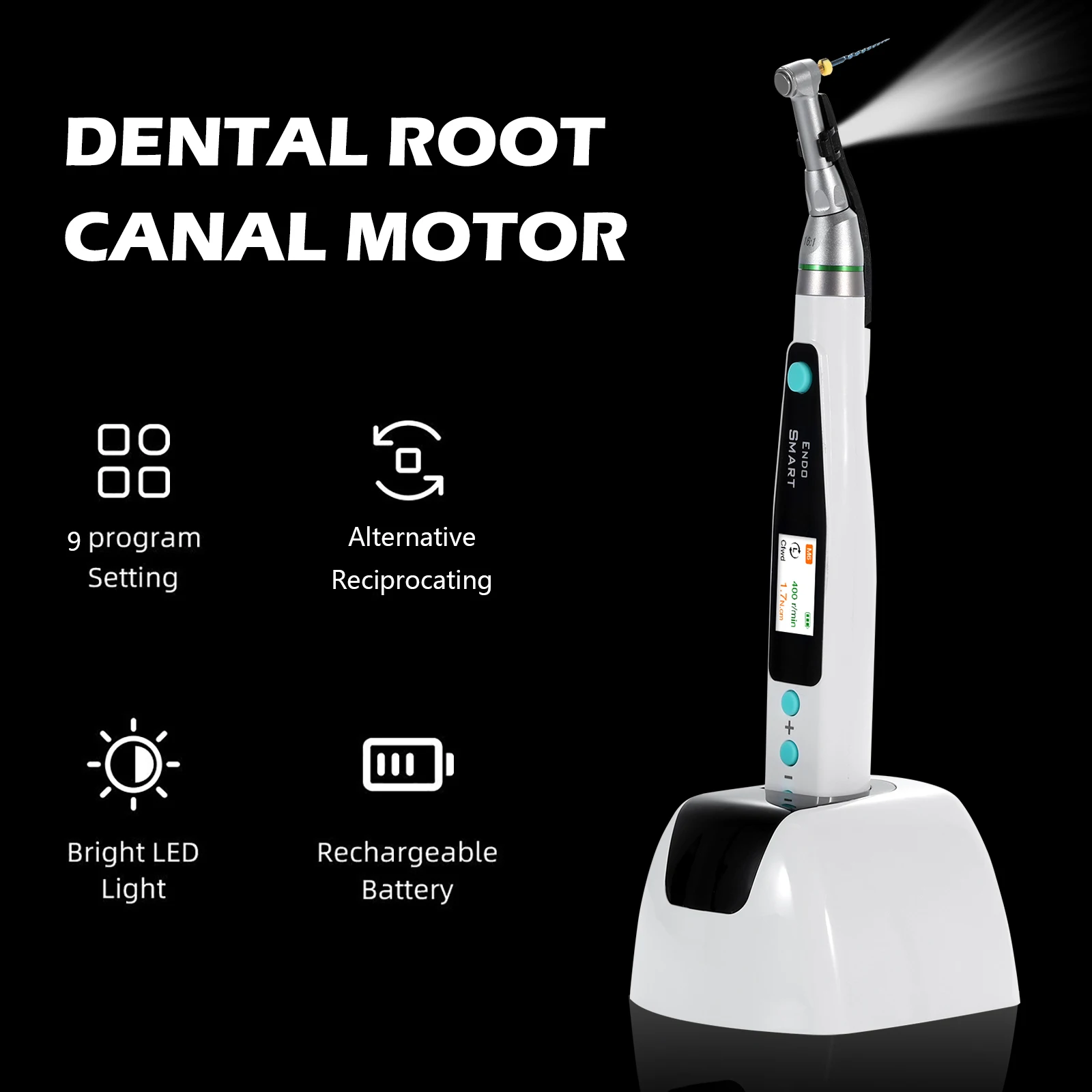

SANDENT Dental Endodontic Cordless LED Endo Motor 16:1 Contra Angle Handpiece for Root Canal Therapy

Endo Motor:

Description:

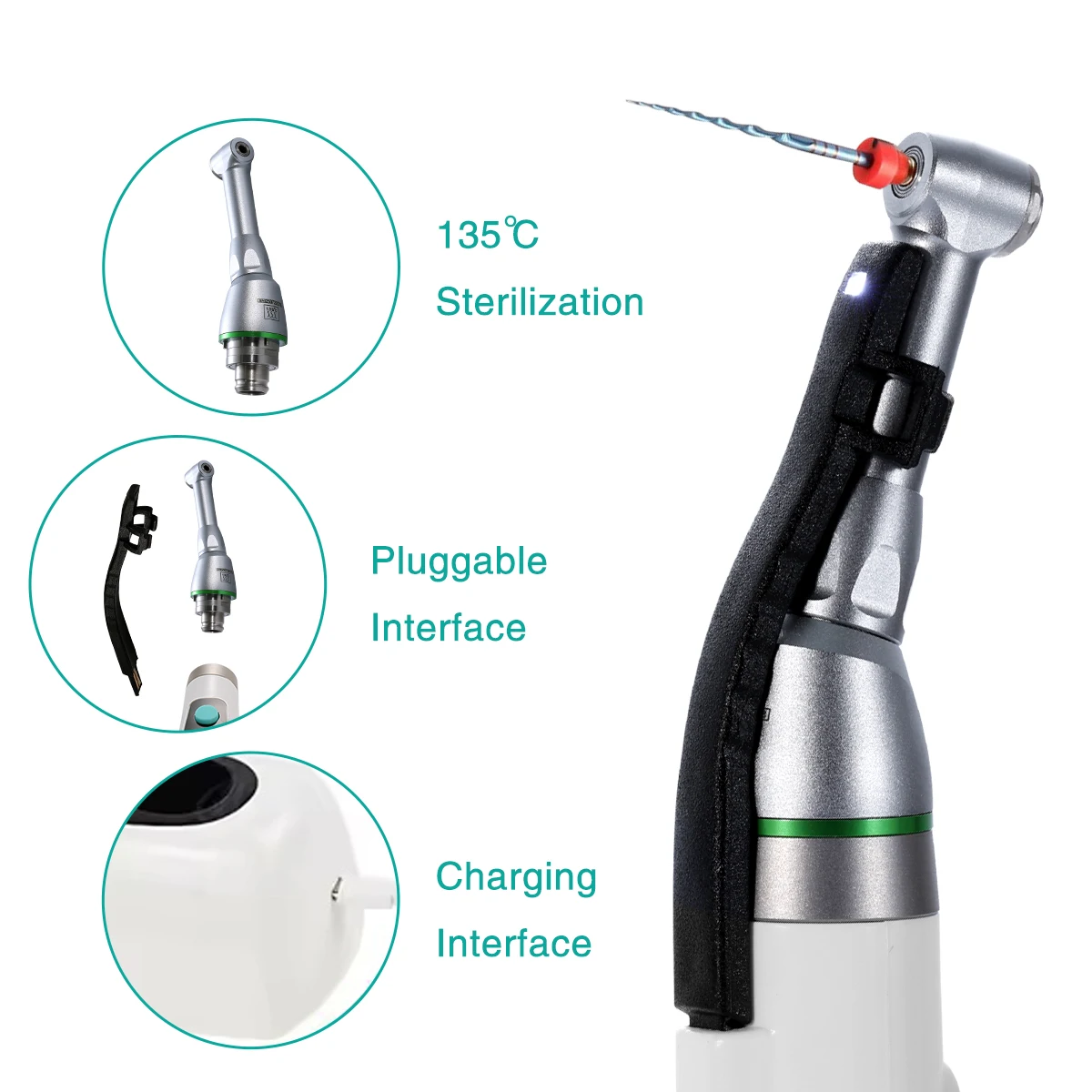

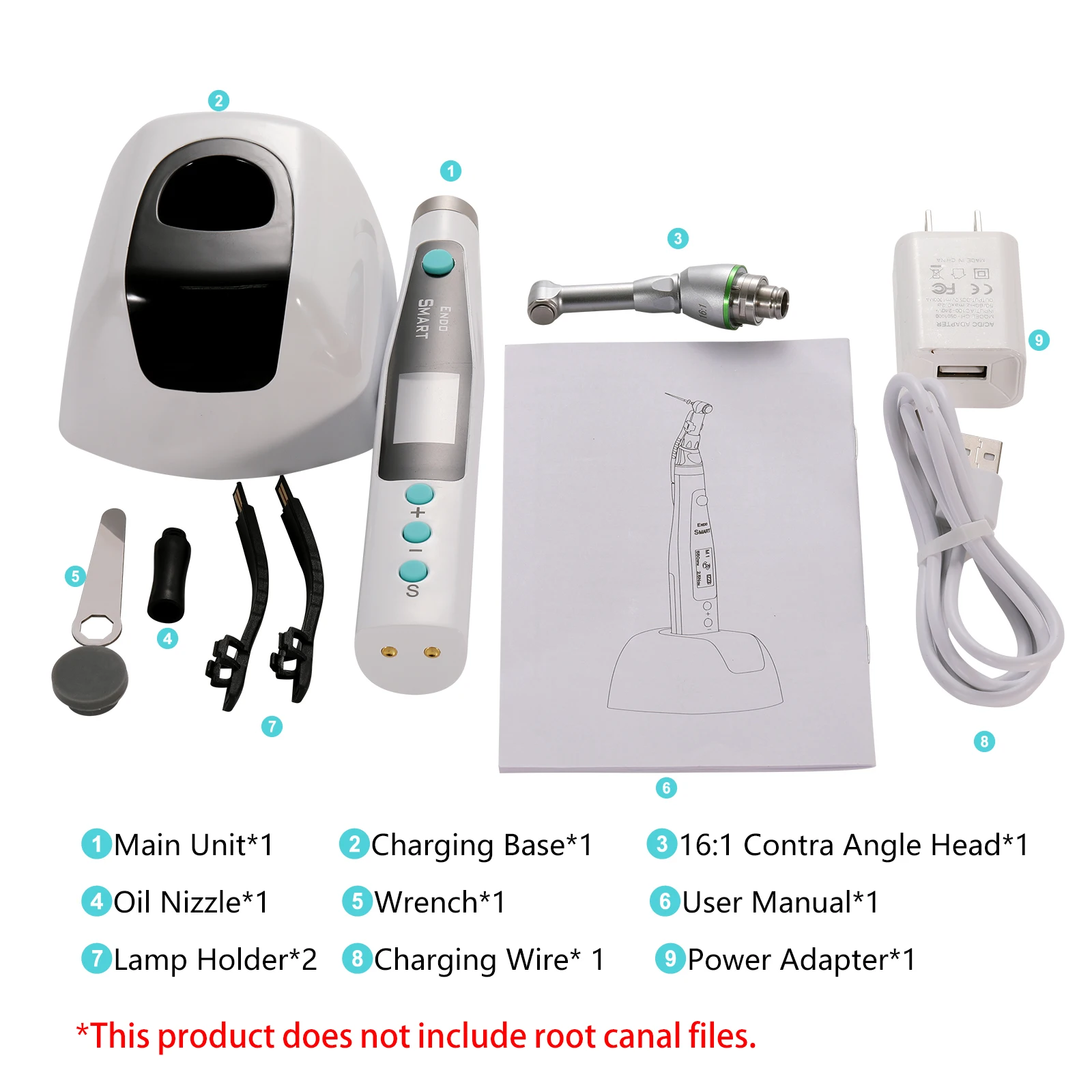

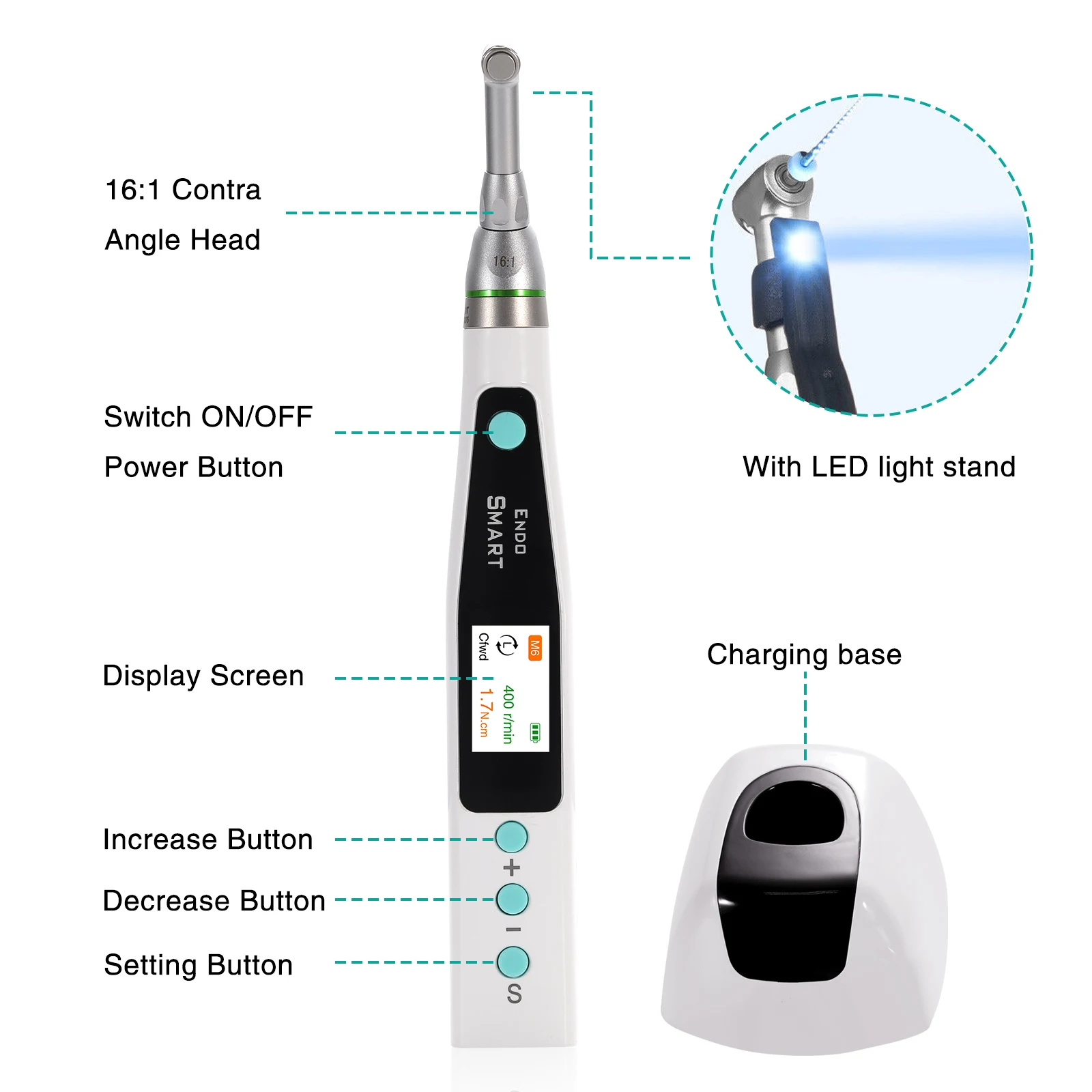

Main structure:consists of control part,motor,Contra Angle head,power adapter and charging base.
Application:Used in root canal therapy,root canal preparation stage shaping and cleaning,the product does not contain the root tip positioning function. Electrical safety classification:Class Il,internal power supply:
Has a type B application section
Product Code:XLY-Q200
Software release:LX037-GZ-101.1.0.0-170324

Power supply mode:Rechargeable

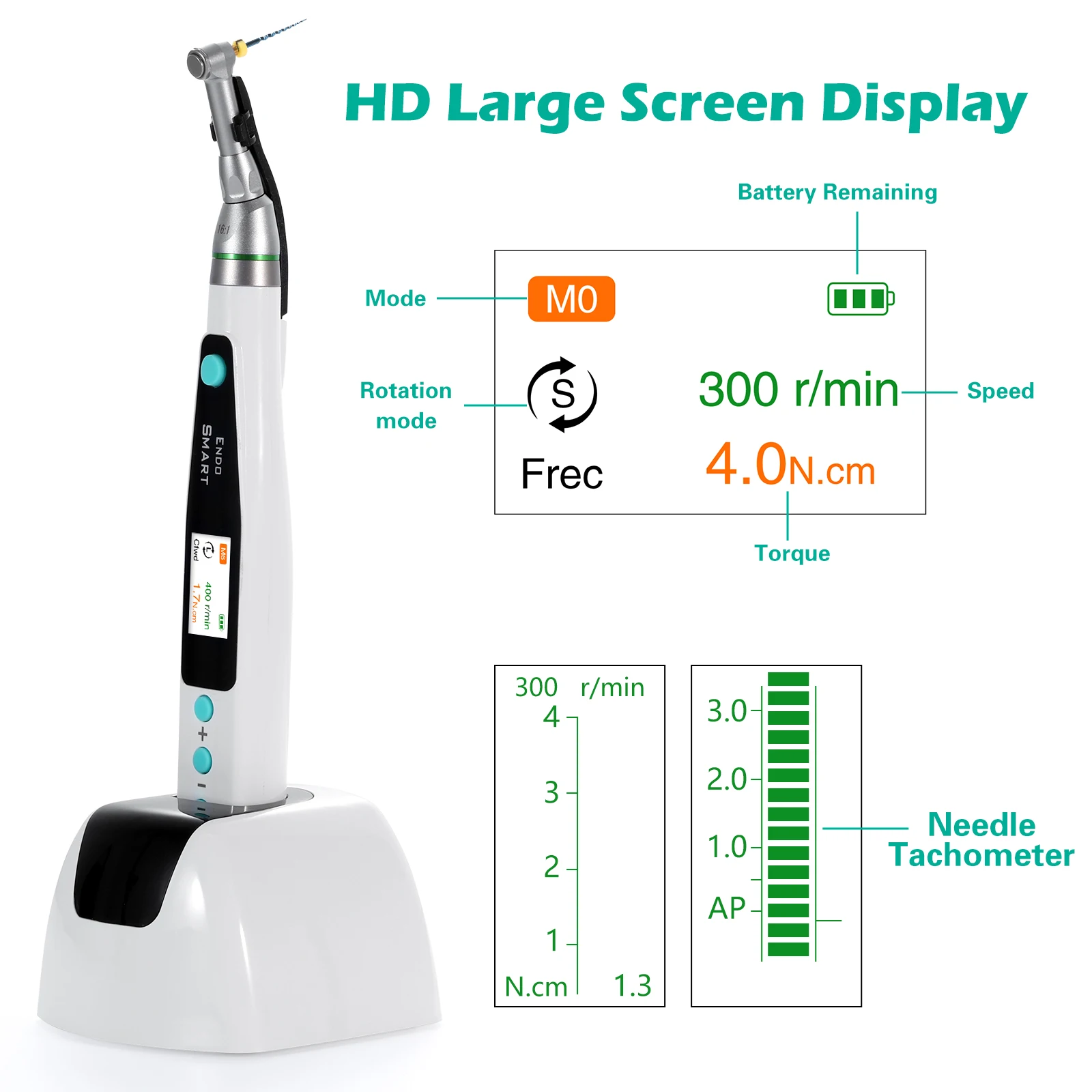

Functional characteristics:Portable Digital display type,Nine-memory program,Quadruple inversion mode,Speed optional,Torque optional

Technical parameters:
Type B application section
Shell protection:IPX0
Classification according to the degree of safety for use with flammable anesthetic gases mixed with air and nitrous oxide:Non-APIAPG type.


*Body
Size：Diameter,27×215mm
Classification：Common,Type B
Running mode: Continuous running
Standard operating voltage: d.c.3.7V

*Power adapter
Input voltage: 100V-240V～50/60Hz
Output voltage:d.c.5V,1A
Specifications:GC09-050100-5A


*Battery
Type:Lithiumion battery Capacity:800mAh
Charging voltage:3.7V
Type specification:INR 14500


*Program parameter
Procedure: 9 kinds
Working Mode: 4 kinds Standard head:16:1
Net weight: 265g
Rotate speed: 140-550 r/min Torque:0.3-4.0N.cm

*Transportation and storage environment
a)Environment temperature range:-20℃~+55℃;
b)Relative humidity range:≤80%;
c)Atmospheric pressure range:70kPa~106kPa;


*Operating environment
a)Environment temperature range:5℃~40℃;
b)Relative humidity range:≤80%;
c)Atmospheric pressure range:70 kPa~106kPa;
d)power supply:d.c.3.7V(-10%~+5%)
e)Avoid using this product in an environment with electromagnetic interference(such as near a microwave oven)
f)The charger of this product shall meet the requirements of GB9706.1-2007.

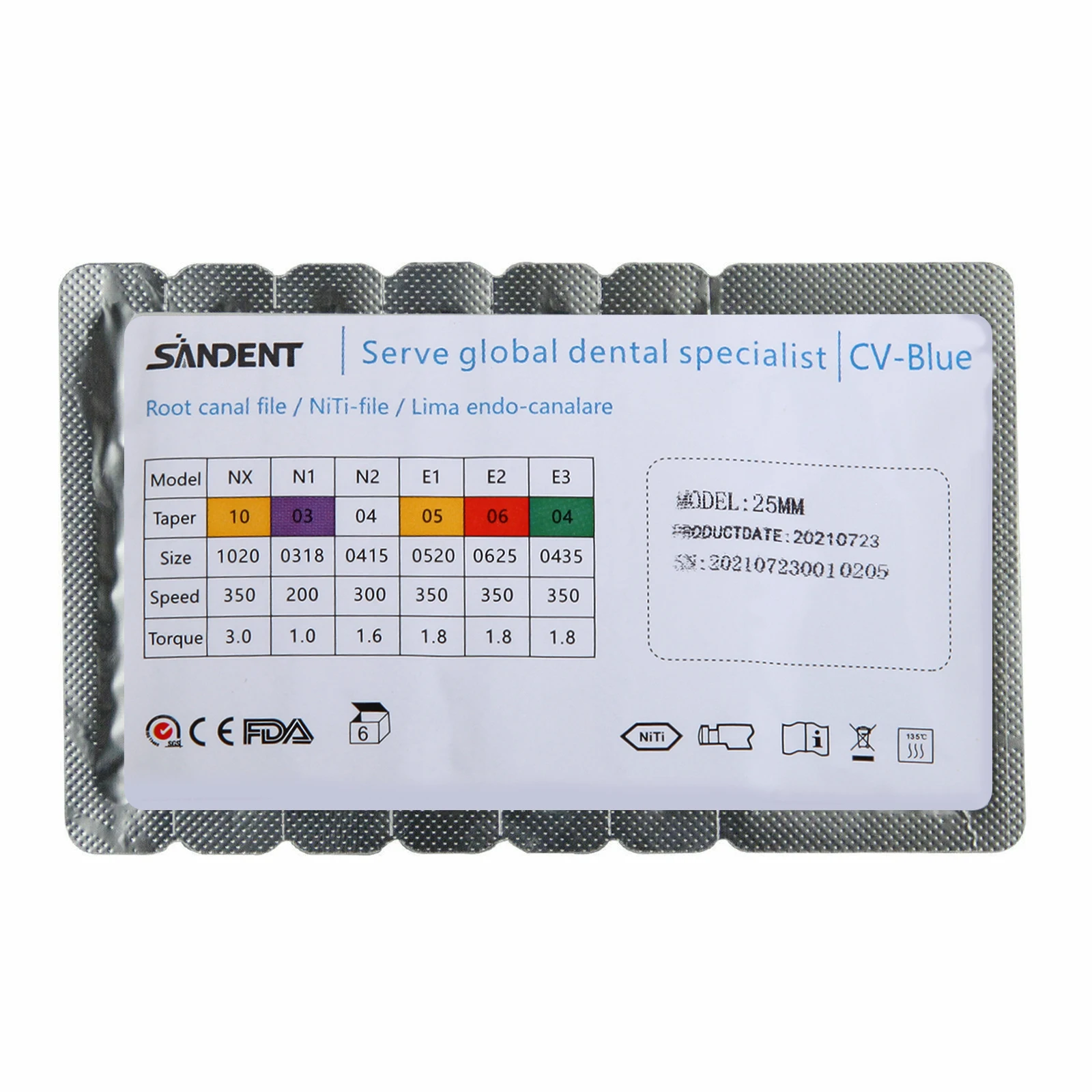

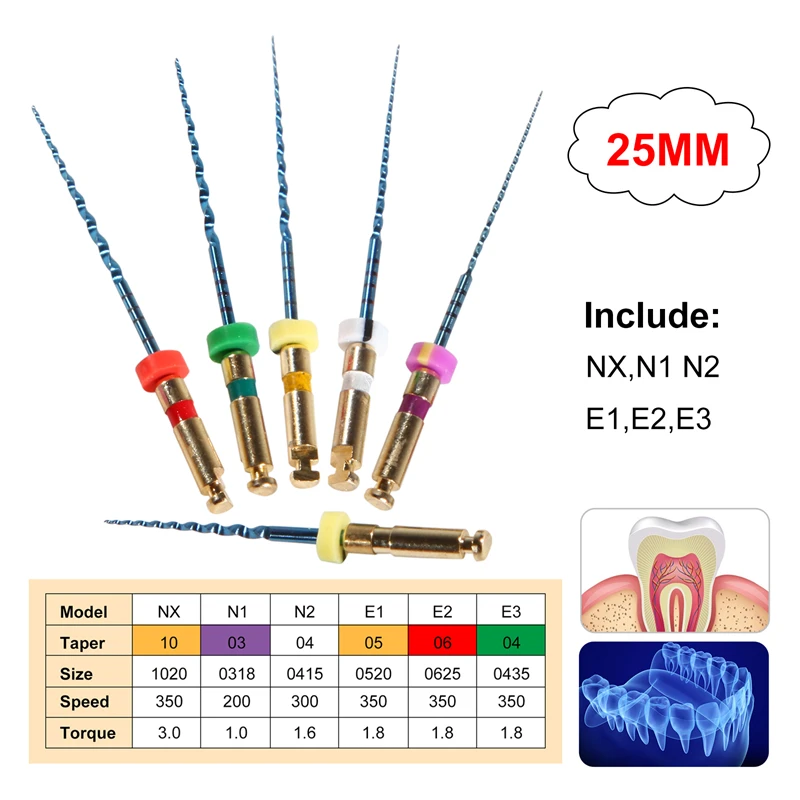

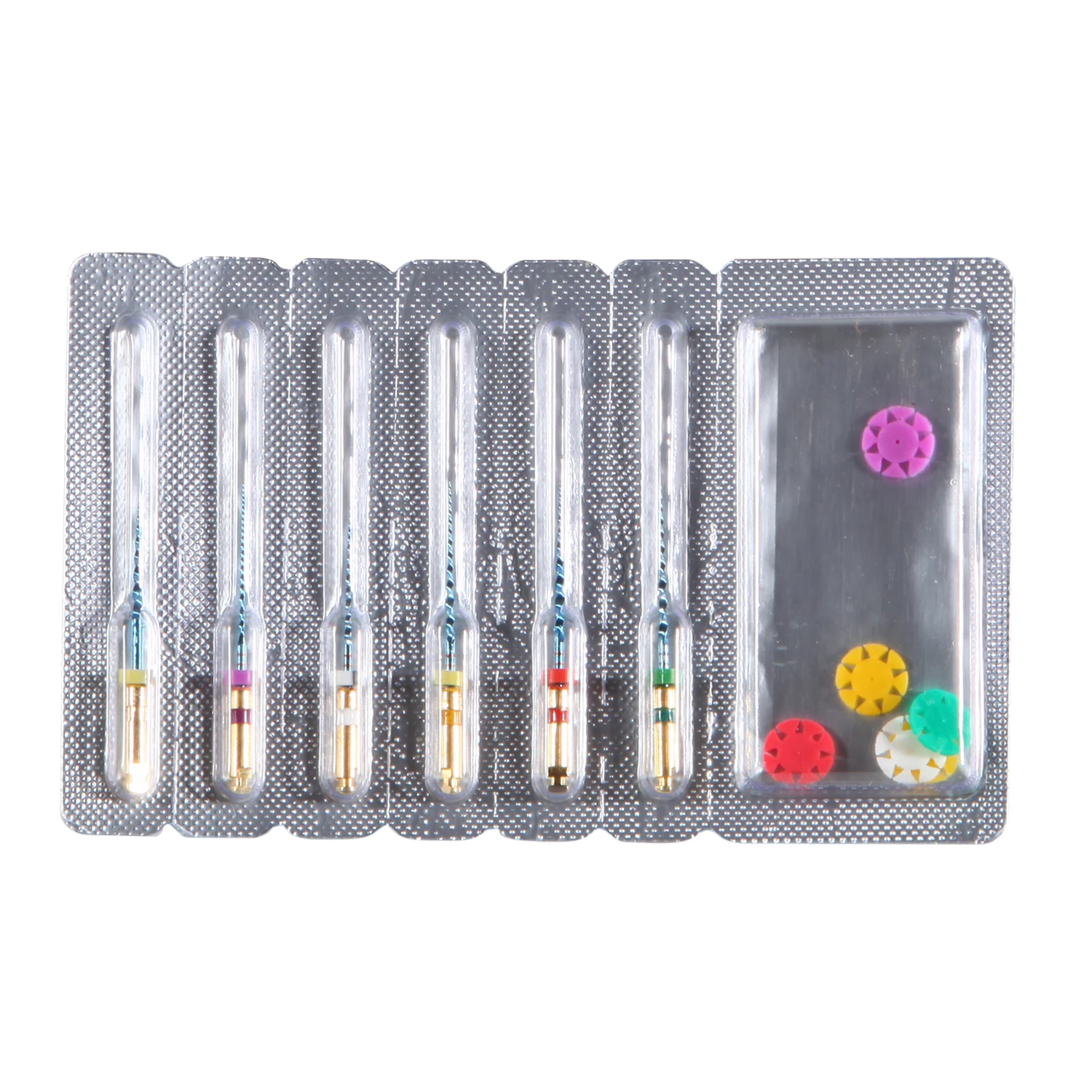

Root Canal Niti Files 25MM:

Endo files applies to endo motor for the root canal treatment in the root canal therapy such as pulp necrosis, chronic pulpitis, chronic apical periodontitis, pulp-periodontal syndrome and for who has system disease which not suitable for teeth extraction but in need of treatment or keep offending teeth temporarily.


Certificates: FDA, CE
Material: NiTi
Length: 25mm
For dental Engine Use


Model:

NX/N1/N2/E1/E2/E3


Model NX N1 N2 E1 E2 E3
Taper 10 0.3 04 06 06 06
Size 1020 0318 0420 0620 0625 0630
Speed 350 200 300 350 350 350
Torque 3.0 1.0 1.6 1.8 1.8 1.8



6pcs/1 Pack
