Universal Locator Core Tool & Retention Caps Kit for Dental Implant Overdenture Abutment Attachment

Dental Implant Retention Caps Removable Insertion Extraction Universal Locator Core Tool Abutment Overdenture Attachment Kit

Applications

This kit is designed for chairside and laboratory use in implant-supported overdenture treatment, including:
Removing and replacing worn LOCATOR male caps
Adjusting retention strength for overdentures
Seating new retainers into denture caps
Screwing the abutment into the implant fixture
Laboratory processing and blocking out during denture fabrication

Product Highlights

✅ All-in-One Kit for Complete Overdenture Maintenance

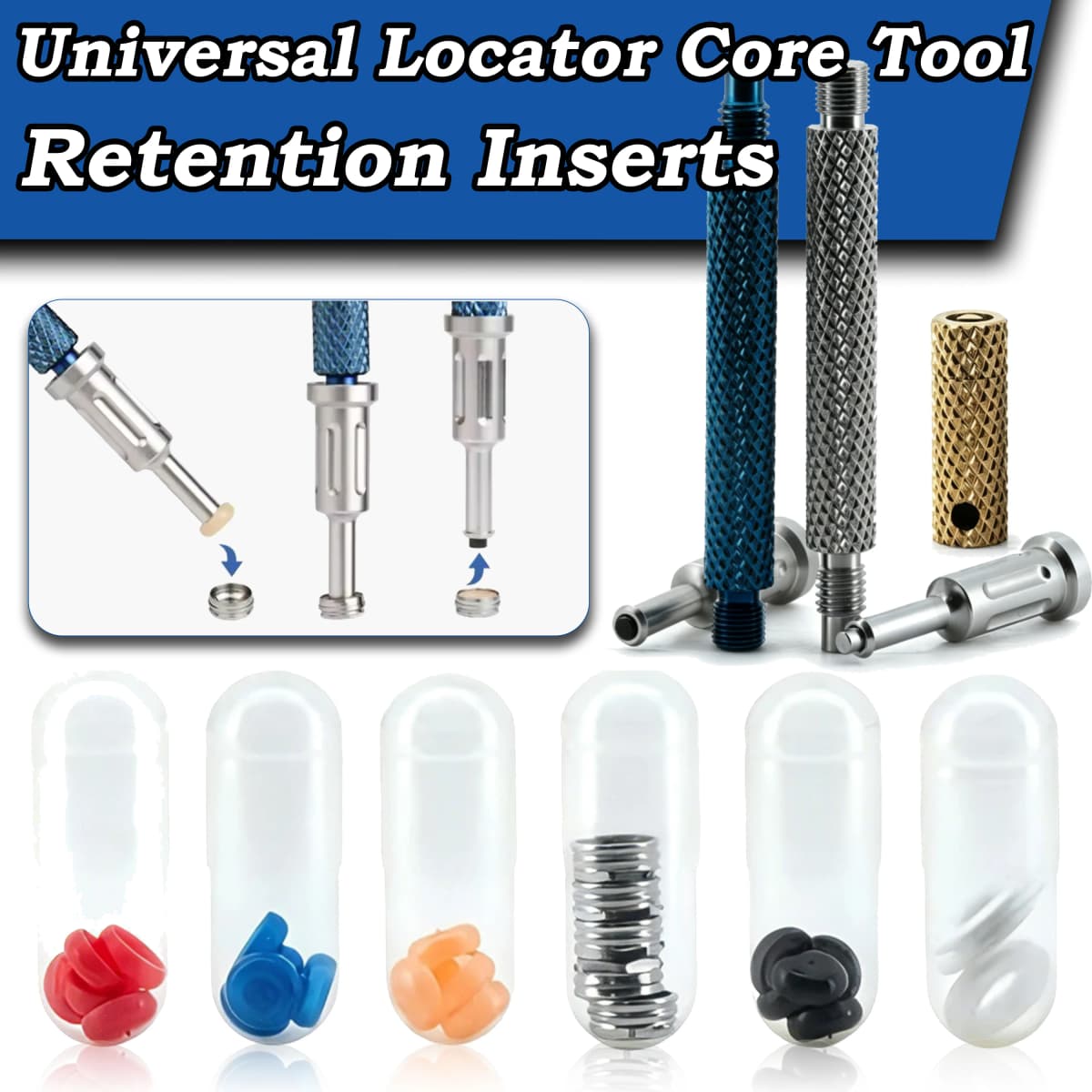

This comprehensive kit includes everything you need for implant overdenture care: 3 grades of retention caps (0.8/1.2/2.4 lbs), metal housing caps, laboratory processing caps, block-out spacers, female caps, and a multi-functional core tool.
✅ 3-in-1 Universal Core Tool

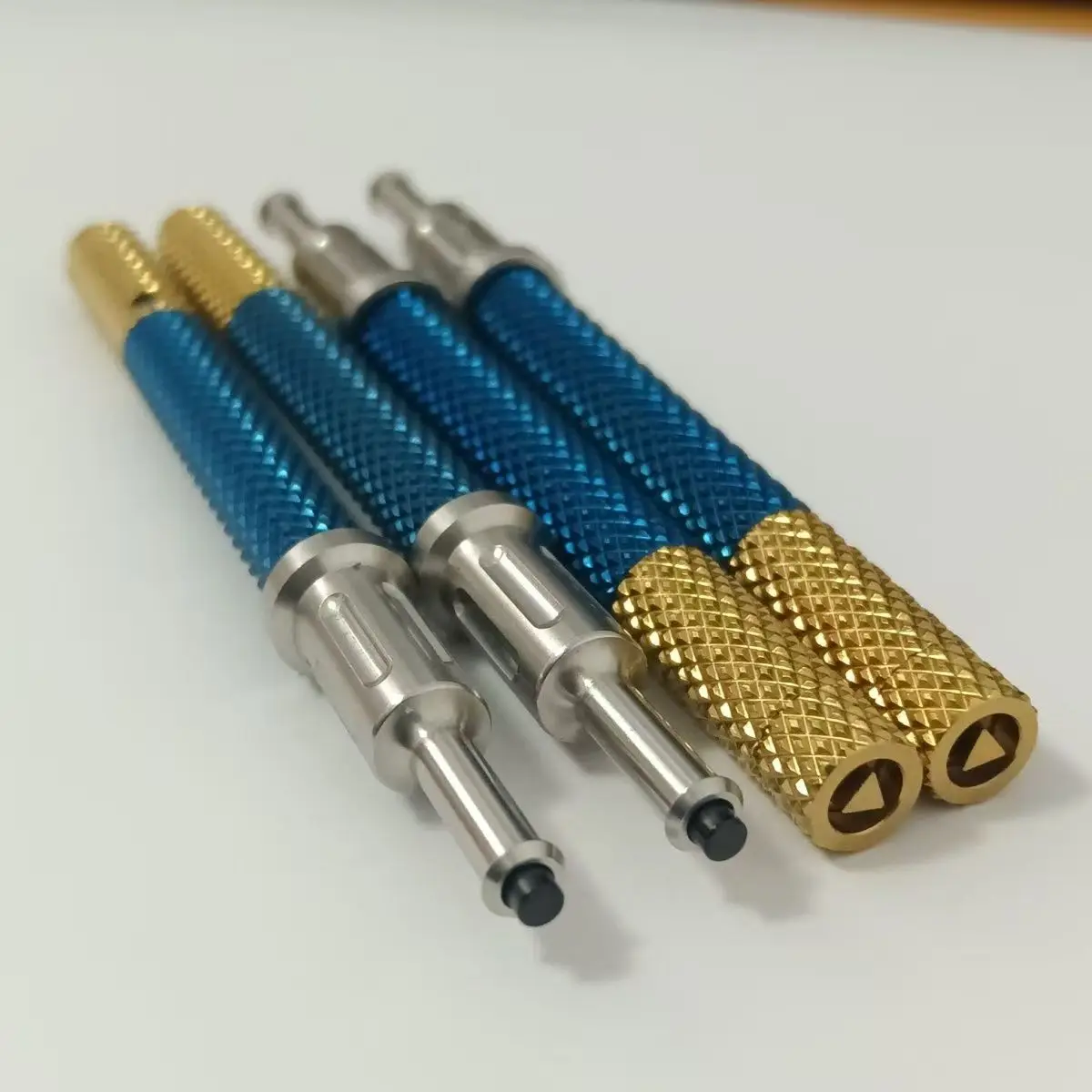

The ergonomic core tool performs 3 key functions: removing worn male caps, inserting new retainers, and screwing the abutment into the implant. It works with all standard LOCATOR-style attachments.
✅ Graded Retention Strength for Custom Fit
Choose from 3 retention levels (yellow 0.8lbs / blue 1.2lbs / pink 2.4lbs) to match patient needs, from soft retention to strong, stable hold.
✅ Medical-Grade & Autoclavable Materials
All metal components are made of high-quality stainless steel, fully autoclavable for repeated clinical use.

How to Use

Step 1: Prepare the Tool
Loosen the removal end of the core tool counterclockwise. A visible gap will appear between the removal and seating parts.
Step 2: Remove the Old Male Cap
Insert the removal tip into the denture cap and push straight to the bottom of the male. Tilt the tool so the sharp edge grips the male, then pull it out of the cap.
Step 3: Disengage the Male from the Tool
Point the tool down and away from you. Tighten the removal tool clockwise back onto the core tool. This will release the male from the tip.
Step 4: Insert the New Male Cap
Separate the removal part from the core tool. Use the seating end to place the new male into the empty denture cap.
