Dental Original KWS 4X 5X 6X LED Surgical Binocular Magnifier Loupes Magnifier 420mm Medical Surgica Dental Headlamp

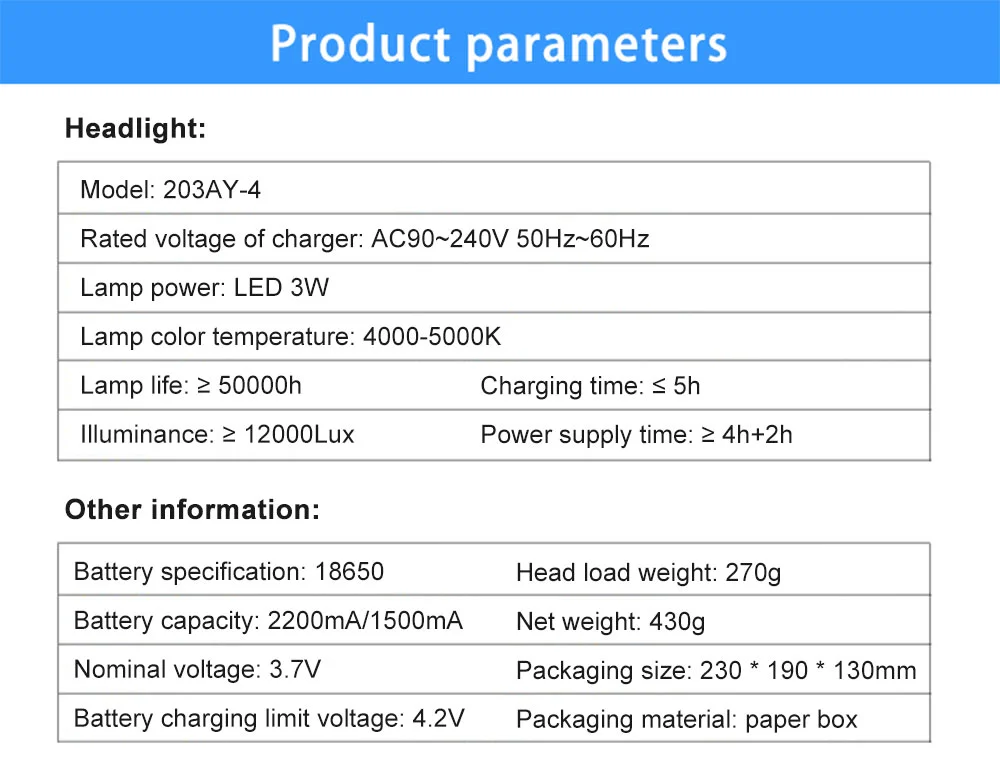

Technical Parameter

Rated voltage of charger: AC90~240V 50Hz~60Hz

Light bulb power: LED 3W

Light bulb color temperature: 4000~5000K

Lamp lifespan: ≥ 50000h

Maximum illumination: ≥ 12000Lux (at 200mm)

Charging time: ≤ 5h

Power supply time: ≥ 4h+2h

Model: 203AY

Battery specification: 18650

Battery capacity: 2200mA/1500mA

Nominal voltage: 3.7V

Battery charging limit voltage: 4.2V

Head weight: 270g

Net weight: 430g

Packaging size: 230 * 190 * 130mm

Packaging Material: Paper Box

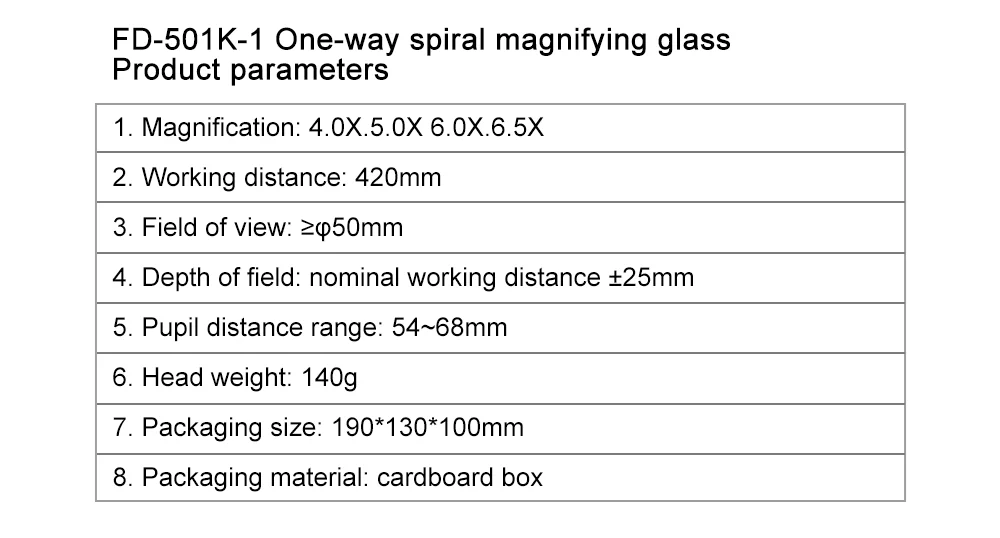

FD-501K-1 Unidirectional Spiral Magnifier

Product parameters

1. Magnification ratio: 4.0X, 5.0X, 6.0X, optional

2. Working distance: 420mm

3. Field of view range: ≥ φ50mm

4. Depth of field: nominal working distance ± 25mm

5. Pupil distance range: 54-68mm

6. Head weight: 140g

7. Packaging size: 190 * 130 * 100mm

8. Packaging material: cardboard box
