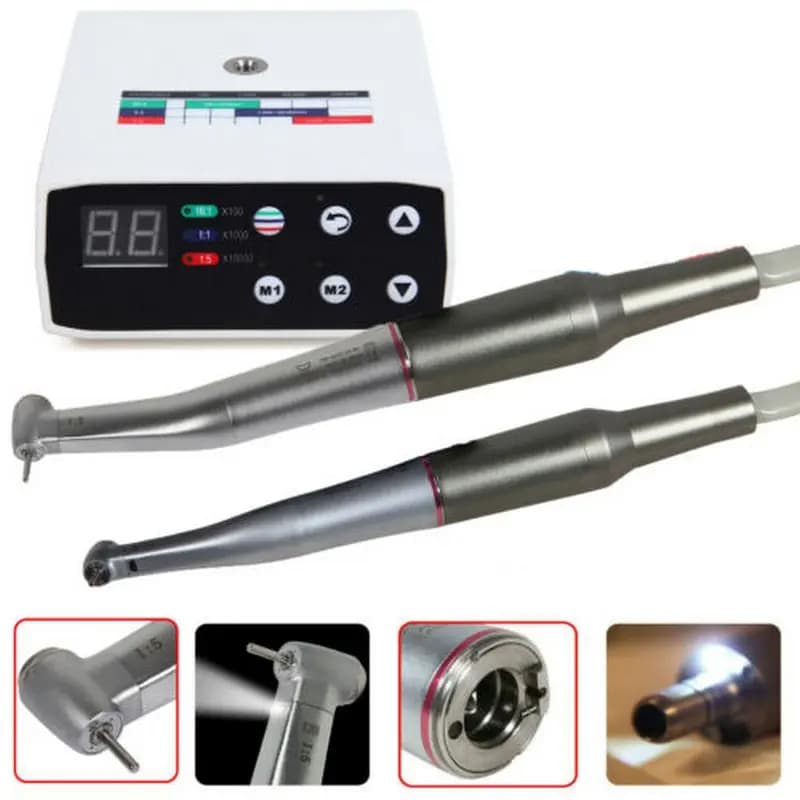

Dental LED Brushless Electric Micro Motor / 1:5 Fiber Optic Increasing Handpiece

Brushless Electric Motor :

Technology :
Type of motor: brushless motor
Internal Spray
Three optional settings(1:1/1:5/16:1)
Rotation: 2,000-40,000rpm
2000rpm-40000rpm(1:1)
100rpm-2500rpm(16:1)
10000rpm-200000rpm(1:5)
Torque: 3.4Ncm
Power input: AC 100-240V
Size of motor:φ22xL71 mm
Weight of motor: 71g
Noise level: <60dB
Illuminate: LED(white light)
Size of control device: L150.00 x W128.00 x H55.00mm
Total weight: 1.25kg
Connector: ISO-E type

Packing list:
Micromotor: ---------------------------1 pc
Control unit: ---------------------------1 pc
Micromotor tube:---------------------1 pc
Power adaptor:------------------------1 pc
Operation manual:--------------------1 pc

1:5 Increasing LED

Dental 1:5 Increasing LED Fiber Optic Low Speed Contra Angle

Internal Handpiece:
Small head slim body
Low noise & vibration
Anti-overheating system
Durable
1:5 speed increasing
Clean head system
High brightness fiber optic lighting
Better cooling effect
High hardness
Wearable
Corrosion resistance

Specification:
Increasing 1:5 ratio
Clamping force: 4.0kg
Smallest head fiber optic handpiece
Internal four spray
Rotate speed : 200000rpm
Chuck type: push button
Brightness: 32000lux
Import ceramic bearing
Noise : ≤58db
Bur applicable: ∅1.59-1.60mm
ISO stand connector

1:5 Increasing No LED Handpiece:

Feature:
Small head slim body
Low noise & vibration
Durable
1:5 speed increasing
High hardness
Wearable
Corrosion resistance

Specification:
Increasing 1:5 ratio
Internal 4 water sprays
Import ceramic bearing
Clamping force: 4.0kg
Air pressure: 0.3mpa-0.35mpa
Rotate speed : 10,000-200,000rpm/min
Min intensity: 25,000lux
Bur applicable: 1.60mm
Noise : ≤60db
Chuck type: push button
Suitable for disinfection of high temperature steam at 135℃
