Dental High & Low Speed Handpiece Kit Straight Contra Angle Single Water Spray Air Turbine 2/4 Hole Dentistry Tools Set

Specification:

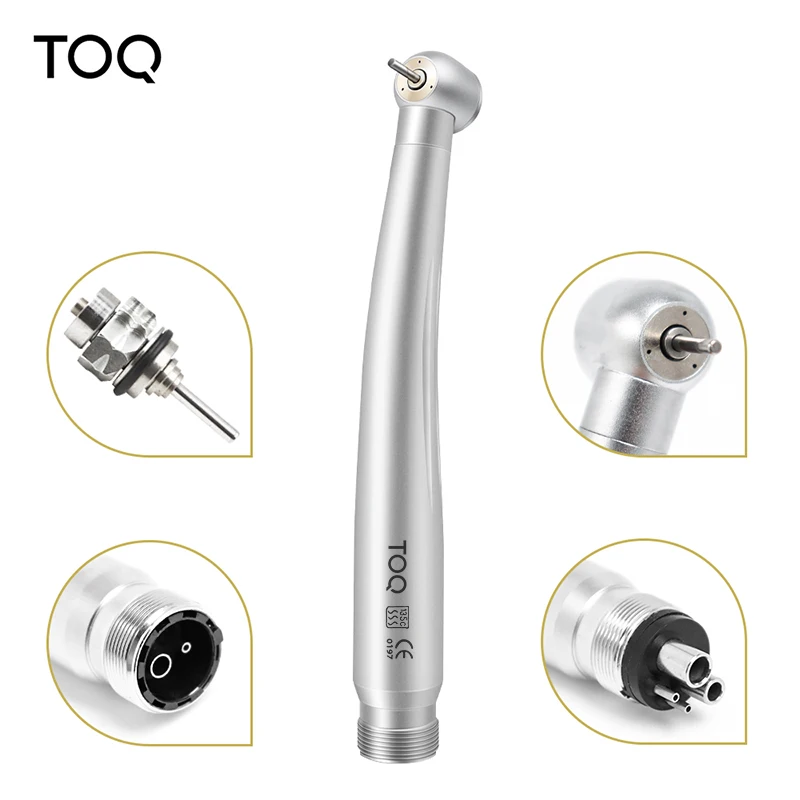

High speed handpiece:

Description: Torque Push button type, high speed handpiece, three-way water spray

Needle Change Type:Push button

Air Pressure:180~250 KPa (1.8~2.5 kgf/cm2)

Water Pressure:198Kpa (2 kg)

Rotation Speed:370,000-420,000 rpm

Bur Applicable:φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise:≤70dB

Low speed kits Features:

E-type connector

Key type

Precise technology, Steady, no vibration while revolving, offering a steady operation.

Suitable for any E-type handpiece accords with ISO standard

135°C Autoclavable, suitable for both steam and chemical autoclave

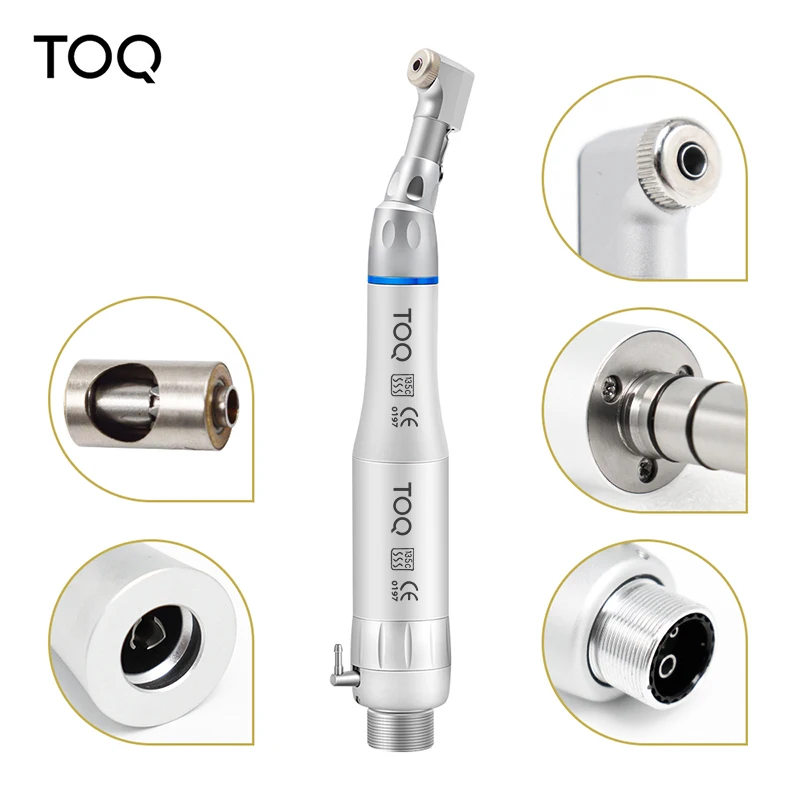

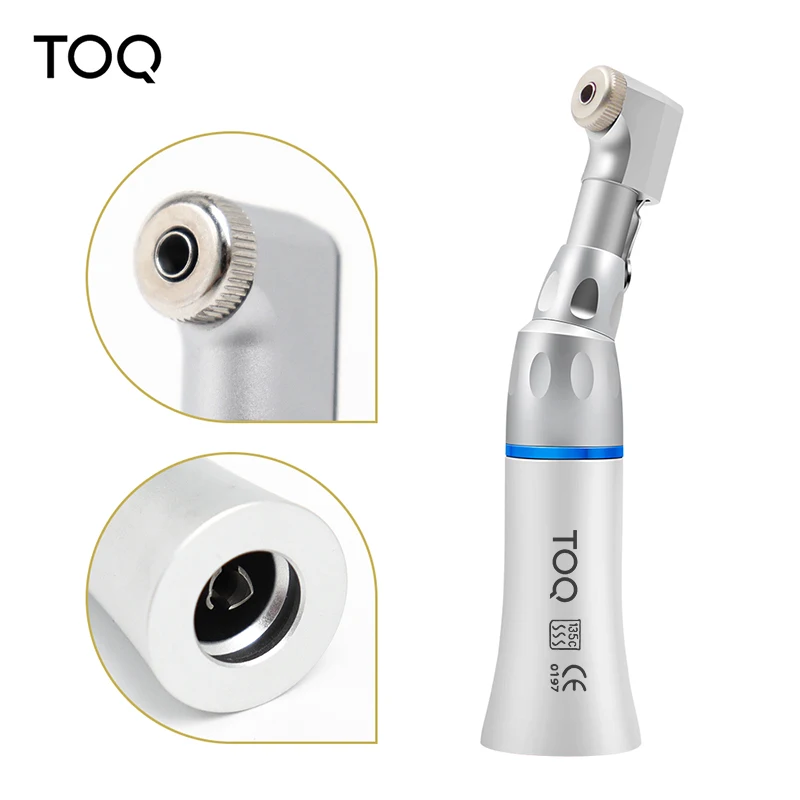

Contra angle handpiece:

Low Speed 22,000-27,000 rpm.

The shank of the instrument mounted therein is 2.35 mm

Fastening of the instruments with a turning latch

Autoclavable 135°C

For any lab or E-type motors

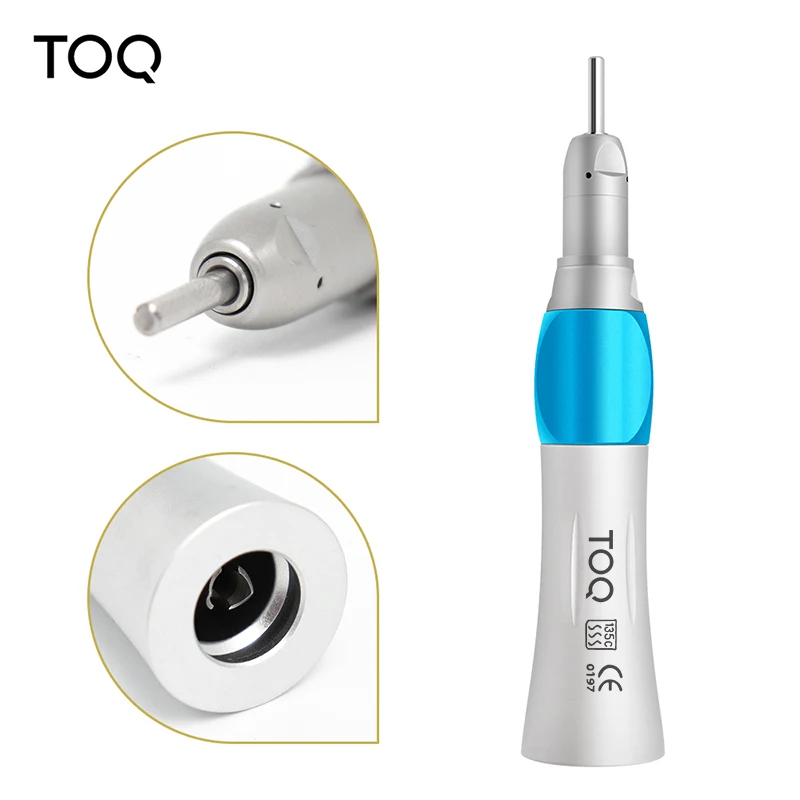

Straight Nosecone

Working pressure: 0.3MPa ;

0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).

Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)

Noise: ≤68dB

Air consumption: about 56L/min

Ratio: 1:1

Max speed of contra angle: 25000rpm/min.

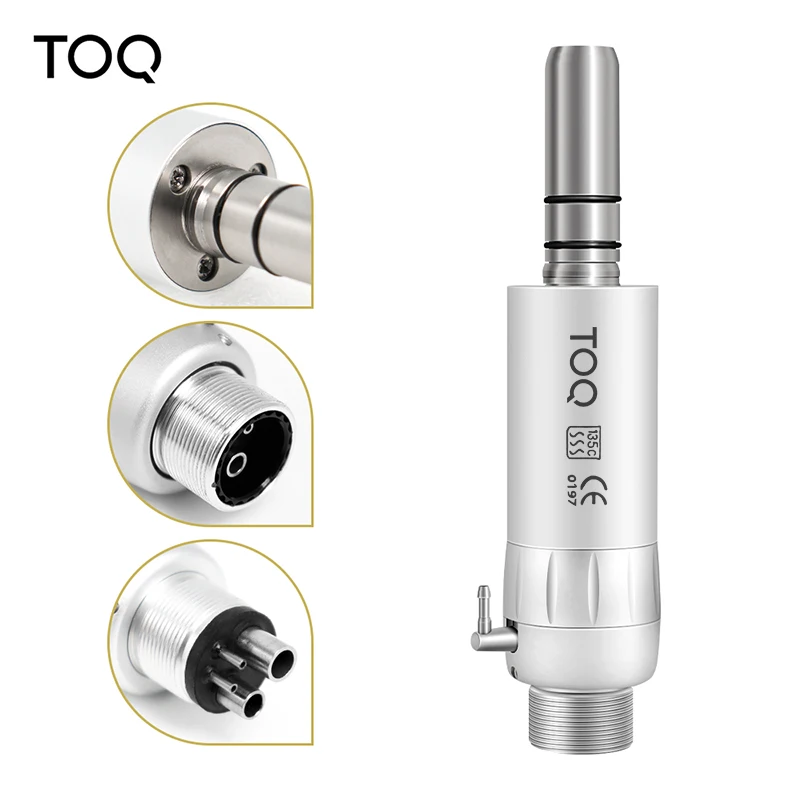

Air Mortor:

- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)

- 1:1 Direct Drive

- 2/4 Hole

- Max speed 20,000 min-1

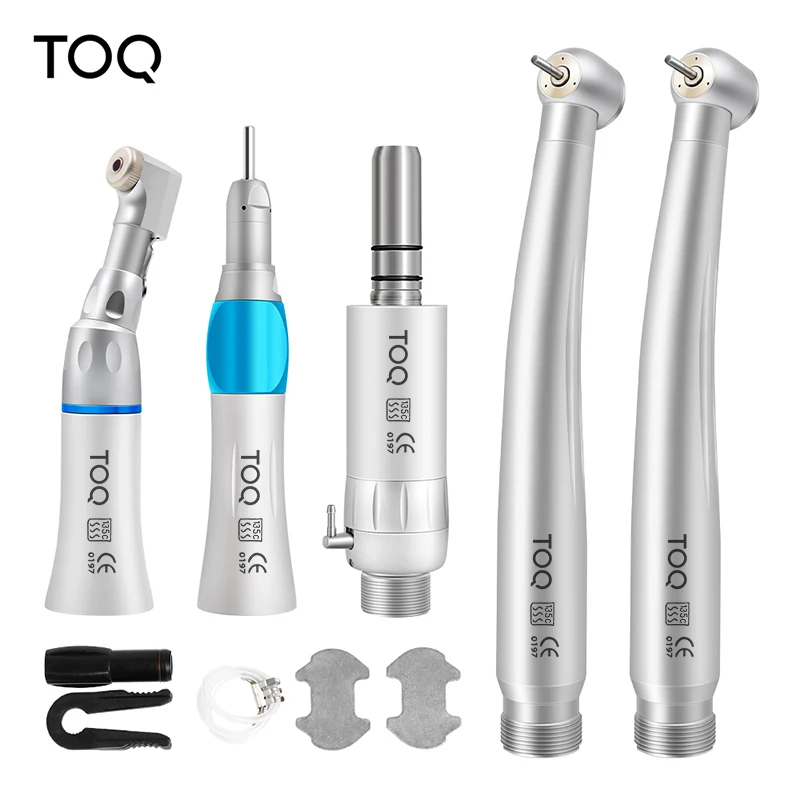

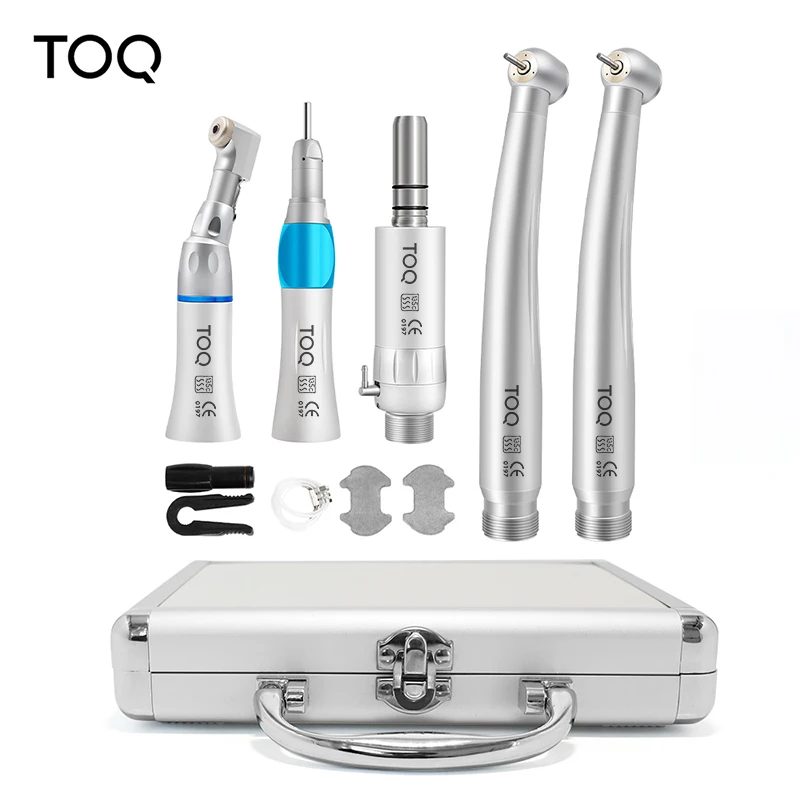

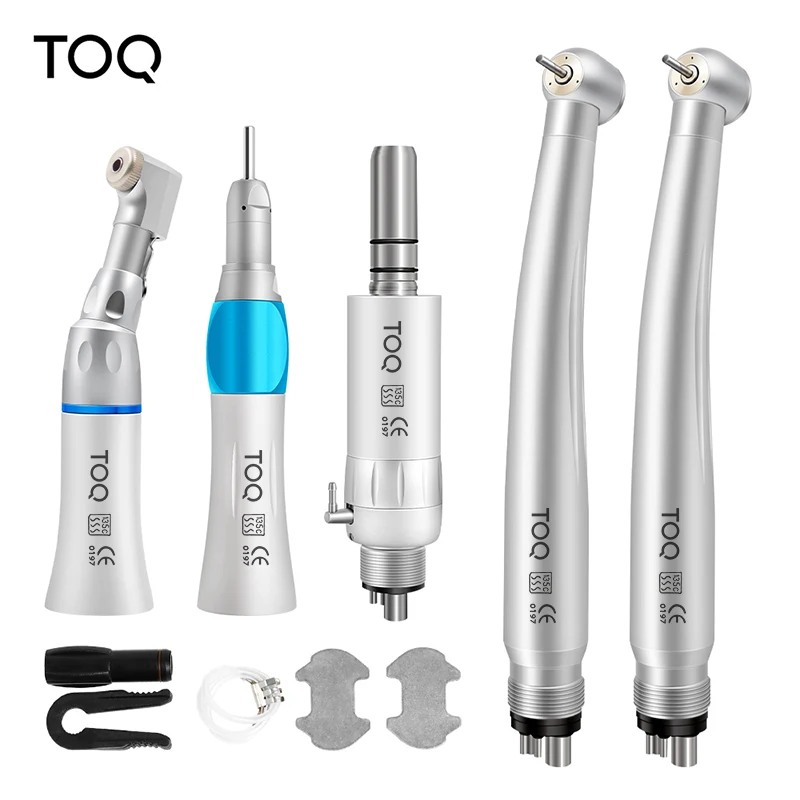

Packing List:

2 X High Speed Handpiece

1 X Low Speed Handpiece kit ( Contra Angle + Air Motor + Straight Nose Cone)
