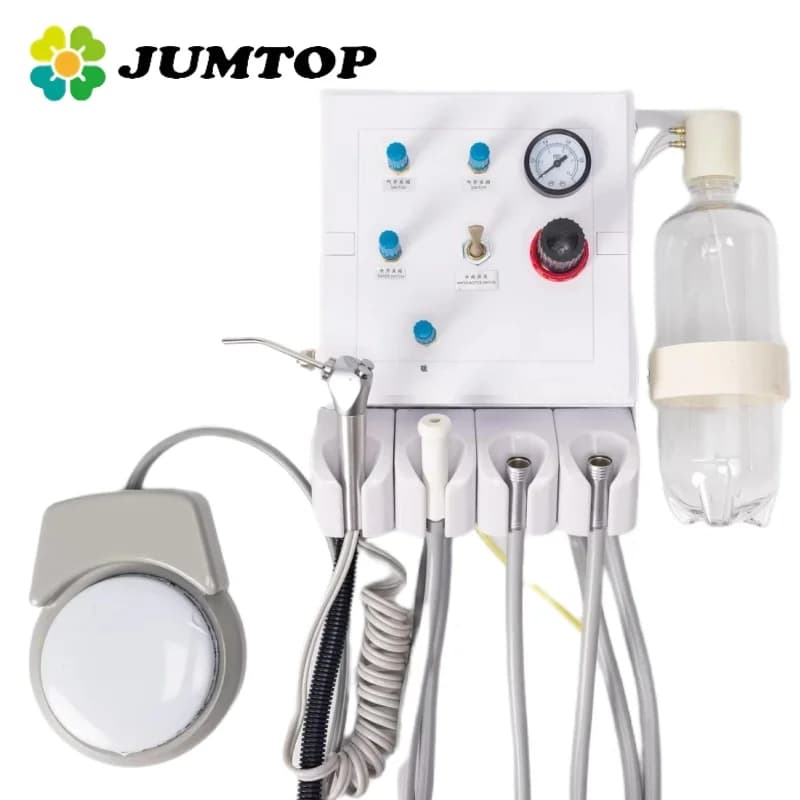

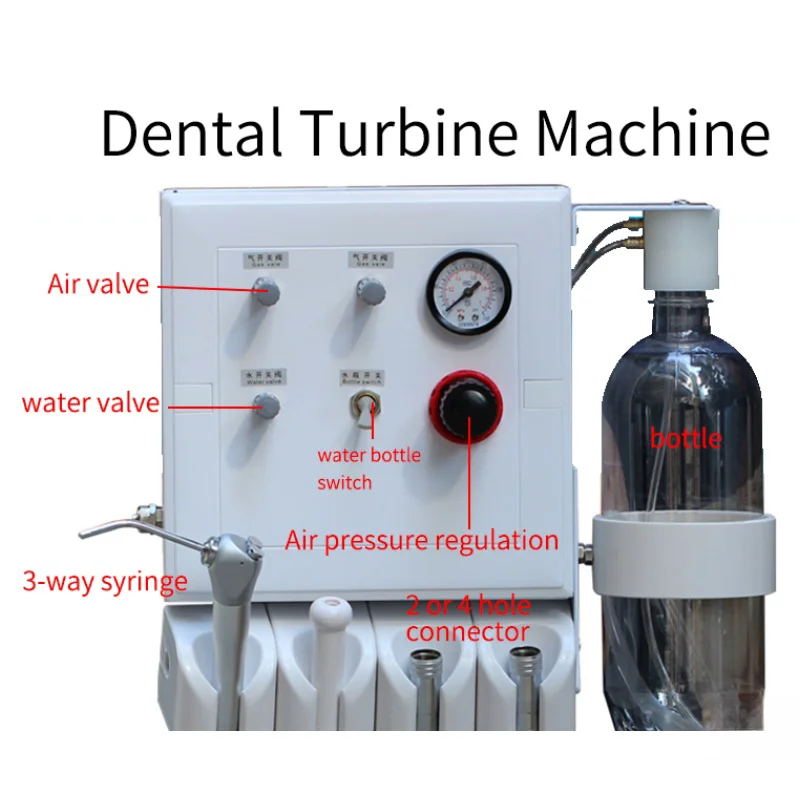

JUMTOP Dental Turbine Unit with Saliva Suction Tube 3 Way Syringe Handpiece Work With Air Compressor

Specifications:
Name: Portale Dental Unit
Air pressure outout: 0-4kg
Air pressure input: 4-8kg
Weight: 2.5kg
Packing: 22*22*26cm
Control Way: Pneumatic control
Water pressure input: 2kg
Water pressure output: 0-2kg

Method of Use

1. Link
Connect the gas source with fast interface ; connect water with files . According to different requirements ,
connect it with external accessories and equipments .Turn on water vapor switch .after work ,shut off the
gas source

2. Use
Connect it with high-speed ahndpiee ,adjust pneumatic to 0.2,adjust conditioning cooling water to
be like frost when the handpiece works linking sandblasting guns adjust pmeumatice to 0.3,proper
amount of water is suitable, After using ,first shut off the sandblasting guns ,then stop it .

Connect it with the scaler adjust pneumatic ti 0.3 ahjust the amount of water to make the scaler
viberate.

Connecting low-speed mobile phones ,the greatest pressure regulatoer can operate ,aircraft control
valve system has been adjusted by 0.4 ,user need not to use machine whose air pressure is higher
than 0.3.
