T238 Portable Electric Speed Loader Lite Edition Automatic BB Magazine Loader For GBB AEG Spring Bolt Action Magazines BB Loader

Description

The T238 Electric BB Speed Loader Lite Edition is an smart loading system designed for Airsoft magazines. Powered by a 3S LiPo battery and high-torque motor, it enables rapid reloading for GBB, AEG, and other standard magazines. It features fixed-count loading mode and dynamic loading mode, with a 5-way button and OLED screen for customizable settings and real-time data display. Built-in jam clearing, anti-stall protection, and low-voltage cutoff ensure stable and efficient operation.

Features

5 independent PRESET slots for custom loading counts per magazine

Supports 2S/3S LiPo batteries with automatic cell count detection

Support Manual Loading Mode and Fixed Quantity Mode

Max loading speed: 16 BBs/sec (@12.6V)

Max thrust: 55N – Easily loads PTS EPM1 250-rd magazines

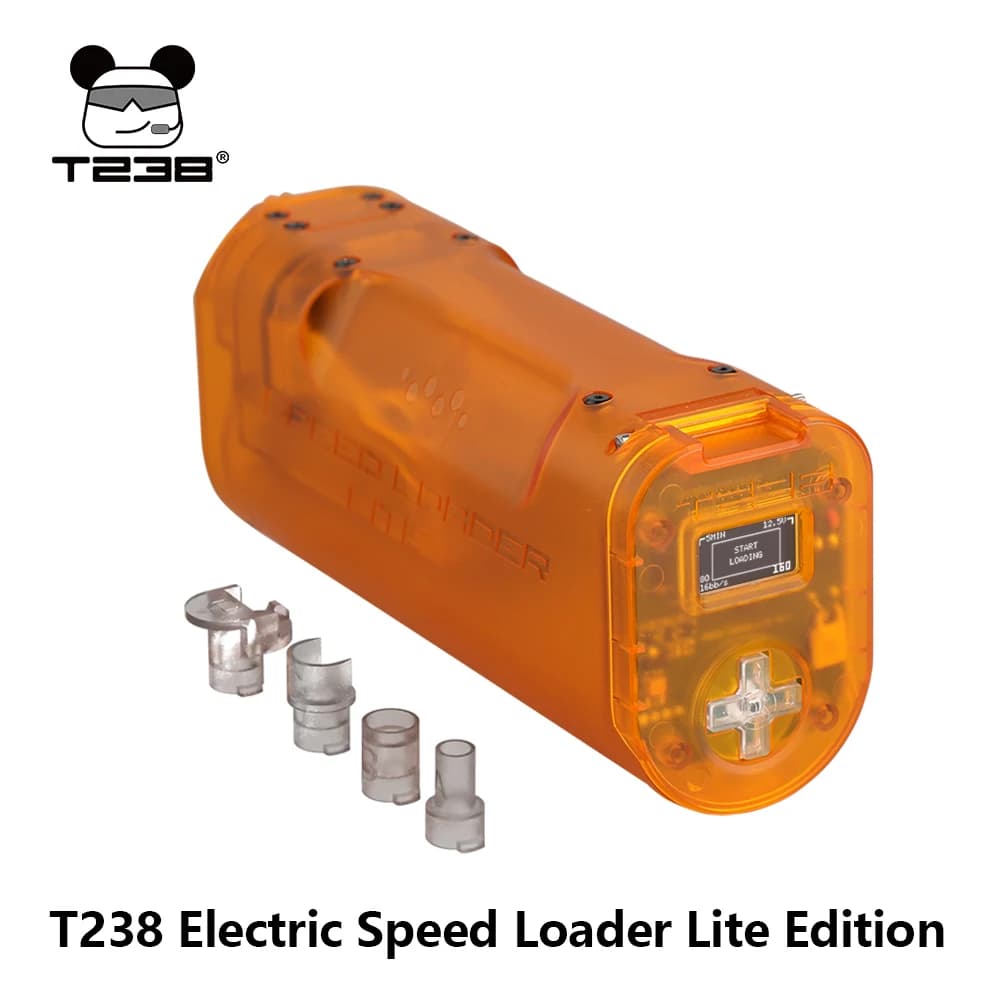

Includes 4 nozzle adapters for GBB/AEG/Spring bolt action replica magazines

Empty Loader alert: Buzzer + OLED warning when speed loader is running out of BBs

Real-time stats display: Voltage/BB count/loading speed

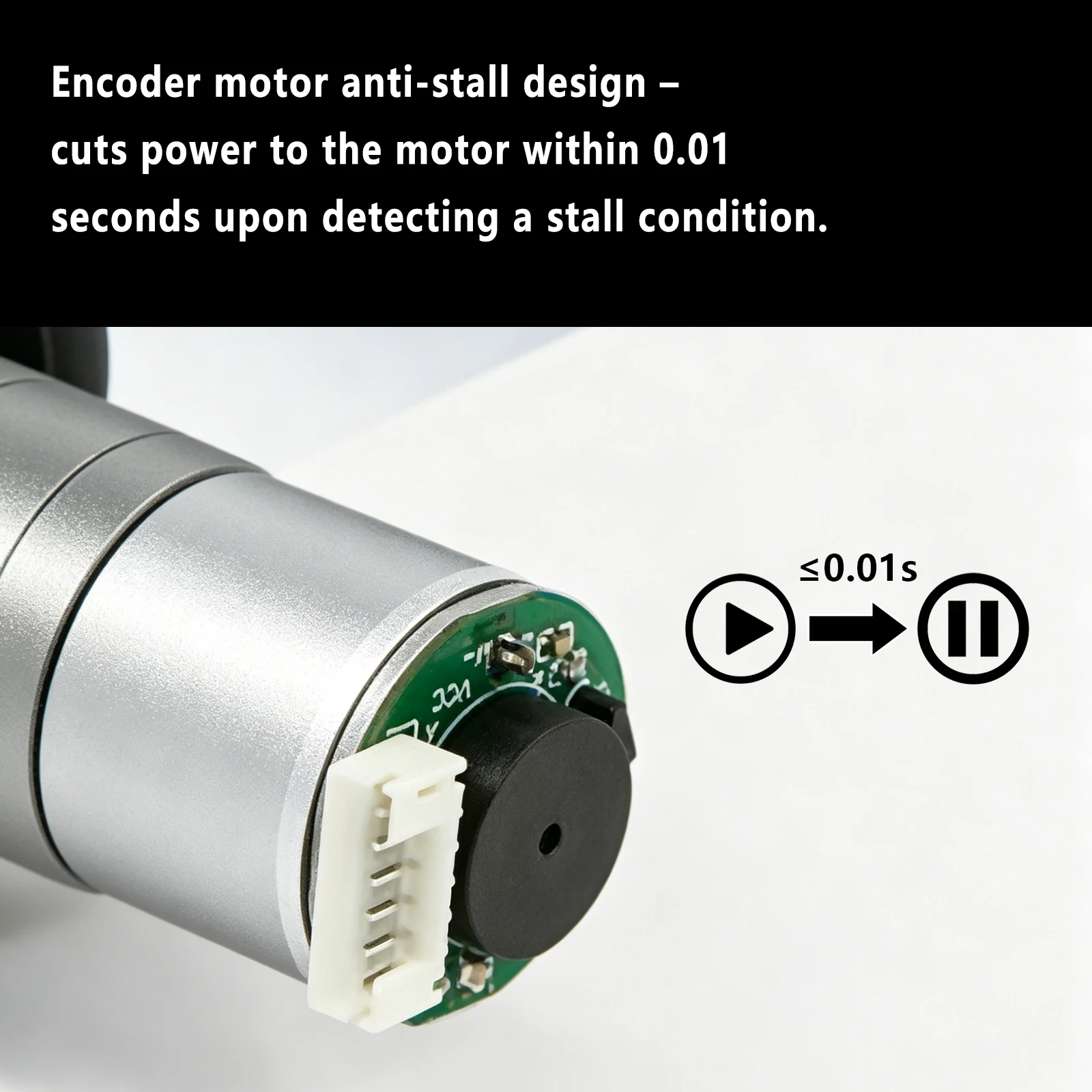

Anti-stall protection: Prevents gear damage during stall

Jam clearing function: Vibrates gears to resolve jams

Smart safeguards: Low/high voltage cutoff/Overheat protection/Auto-shutdown after prolonged inactivity

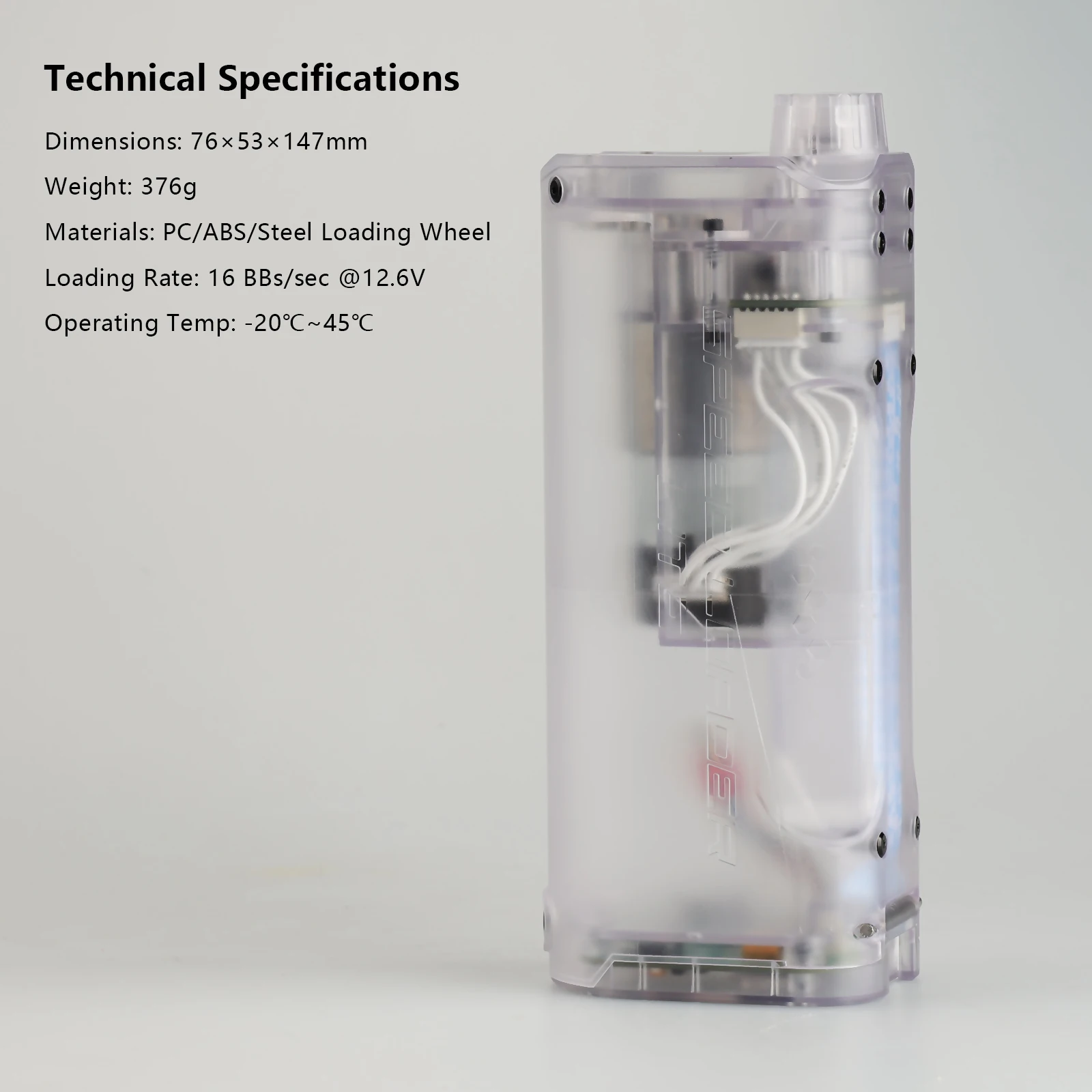

Specifications

Specifications

1 Basic Information

Size: 76x53x185mm

Weight: 376g(Empty)

Material: ABS/PC(304 steel loading wheel)

2 Performance

Capacity: About 1100 (6mm BB)

Speed: 11-16BBs/S(@35 battery), 7-12BBs/S(@25 battery)

Loading thrust: About 55N

3 Electrical Specifications

Input: DC 6V-13V

Power consumption:

Standby state after startup: 0.3W @2S battery/0.46W @3S batteryNo-load working state: 2.2W-3.7W(@25 battery)/3.3W-5.6W@35 battery

Maximum power: 40W

Battery: T-shaped plug, maximum supported size is 102x19xl6mm

4.Compatible magazines: Various normal magazines (spring type magazines)

Select the appropriate adapter based on the magazine type:

Adapter A: Suitable for most AEG magazines such as AK, AR, etc

Adapter B: Suitable for gas shotgun shell

Adapter C: Suitable for most bolt action spring replica magazines

Adapter D: Suitable for most GBB magazines such as WE/GHK/MWS/MARUI

To install the adapter:

Insert the adapter into the adapter slot and rotate it clockwise by

90 degrees.

To remove the adapter:

Rotate it counterclockwise by 90 degrees to release,
