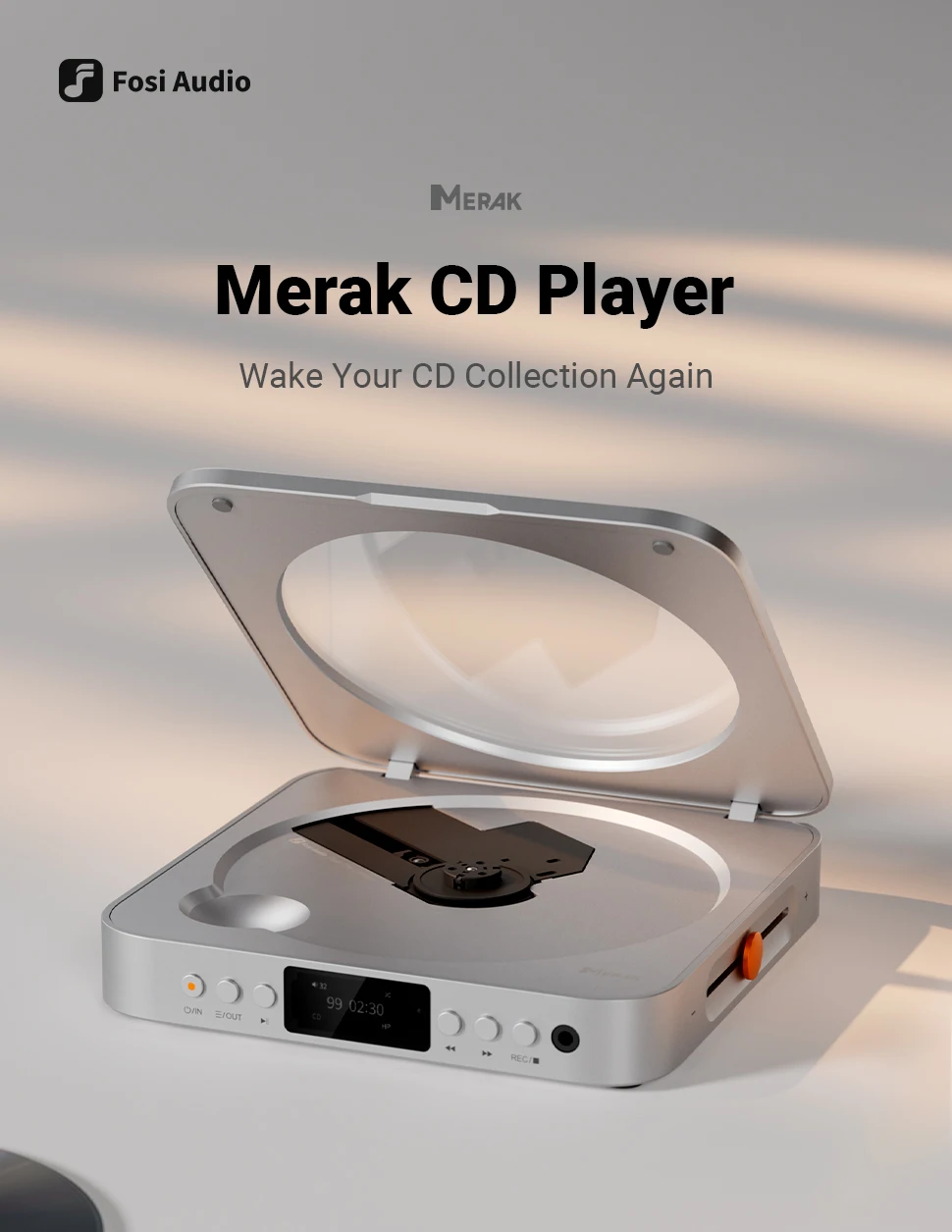

Fosi Audio Merak HiFi CD Player with Remote CS43131 DAC 210MW *2 Headphone Amp Supports USB Ripping USB Drive Input

Feature：

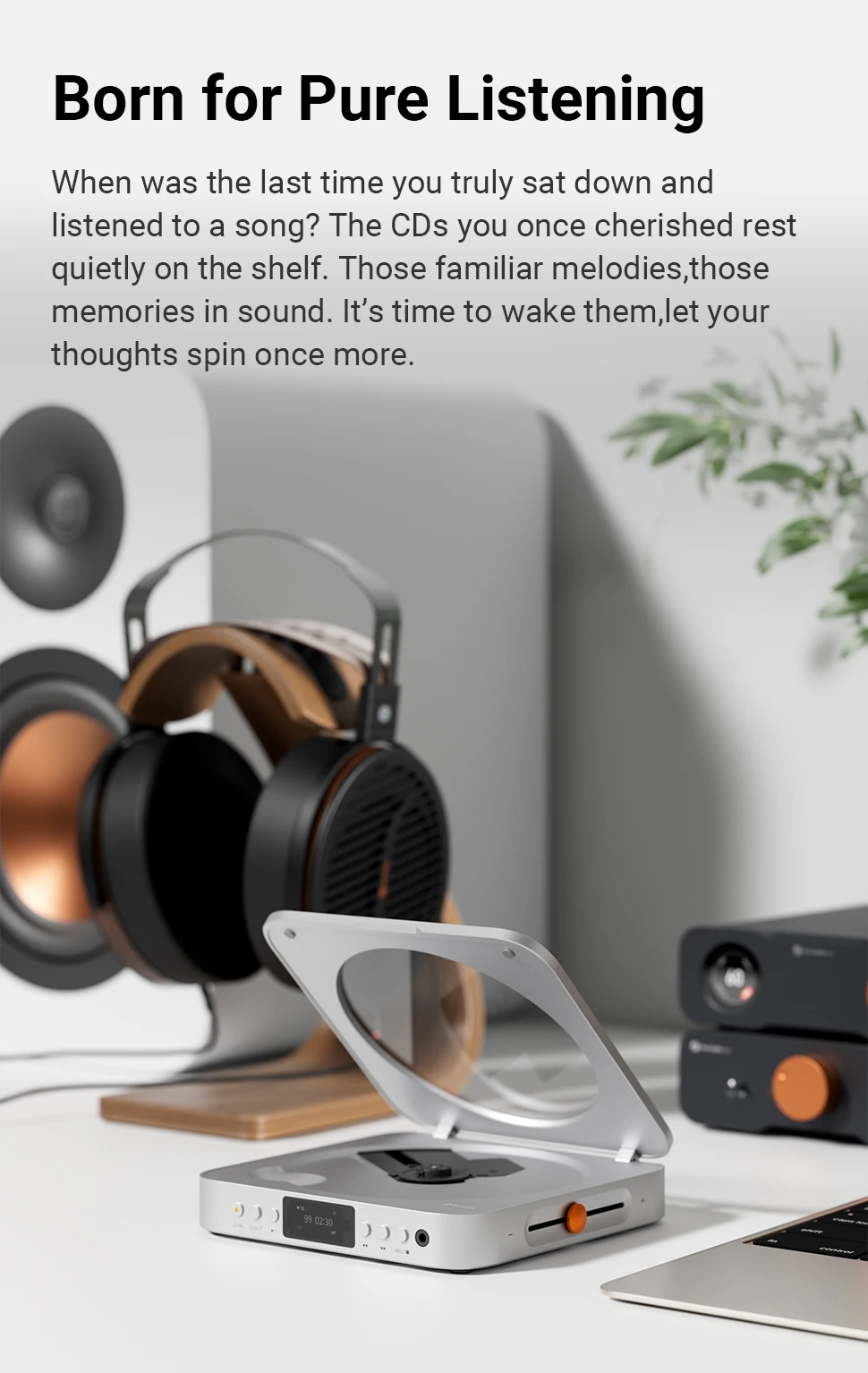

1. Revive Your CD Collection

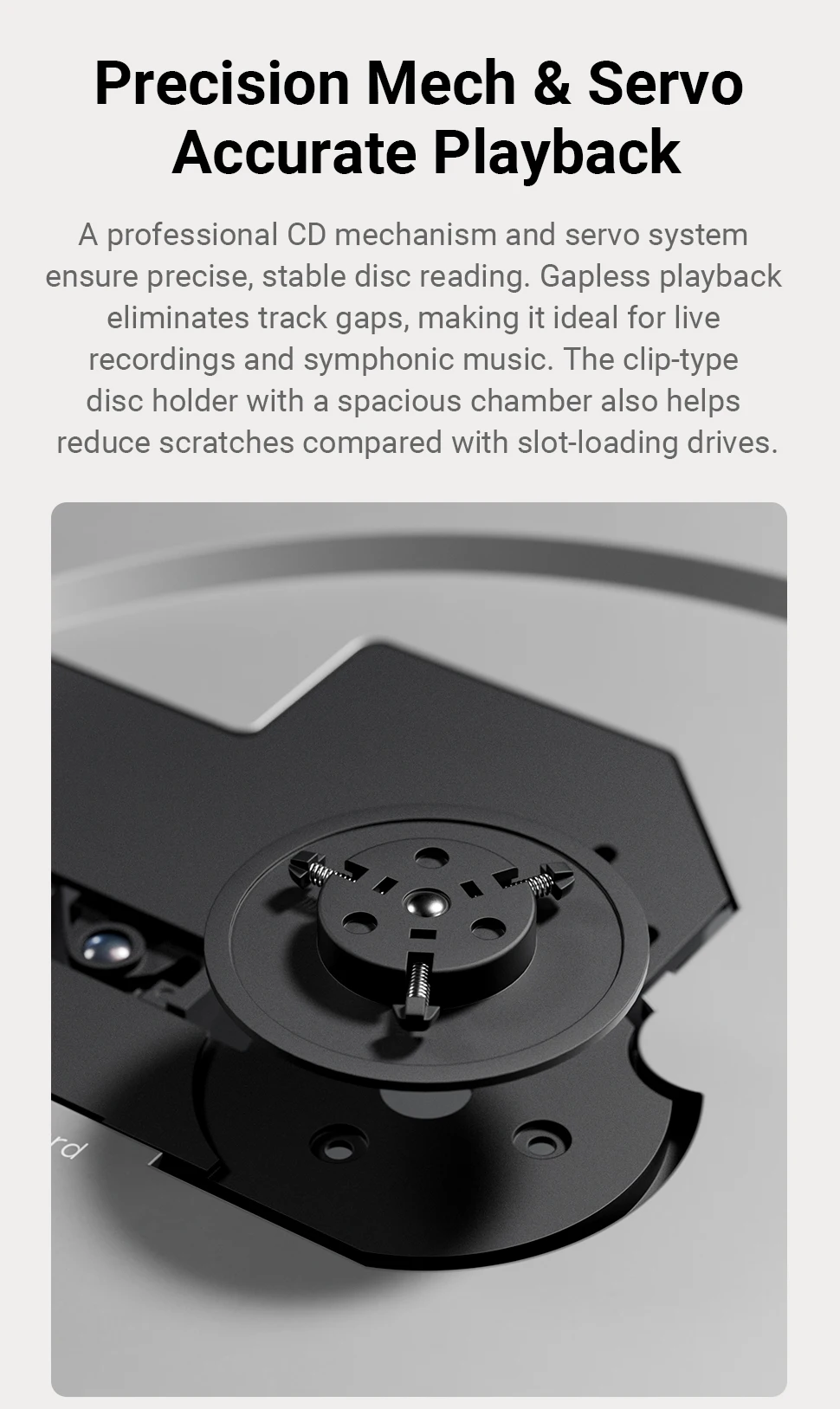

Those cherished CDs have rested on the shelf for too long. With its professional-grade CD mechanism and servo system, the Merak delivers precise, stable disc reading—bringing your familiar melodies and musical memories back to life with pure, uninterrupted listening pleasure.

2. USB Playback, Music On Demand
Beyond CDs, the Merak supports USB flash drives up to 128GB, compatible with MP3, WAV, FLAC, and more. Simply plug in your drive and enjoy your digital music library instantly—no discs needed, total flexibility at your fingertips.

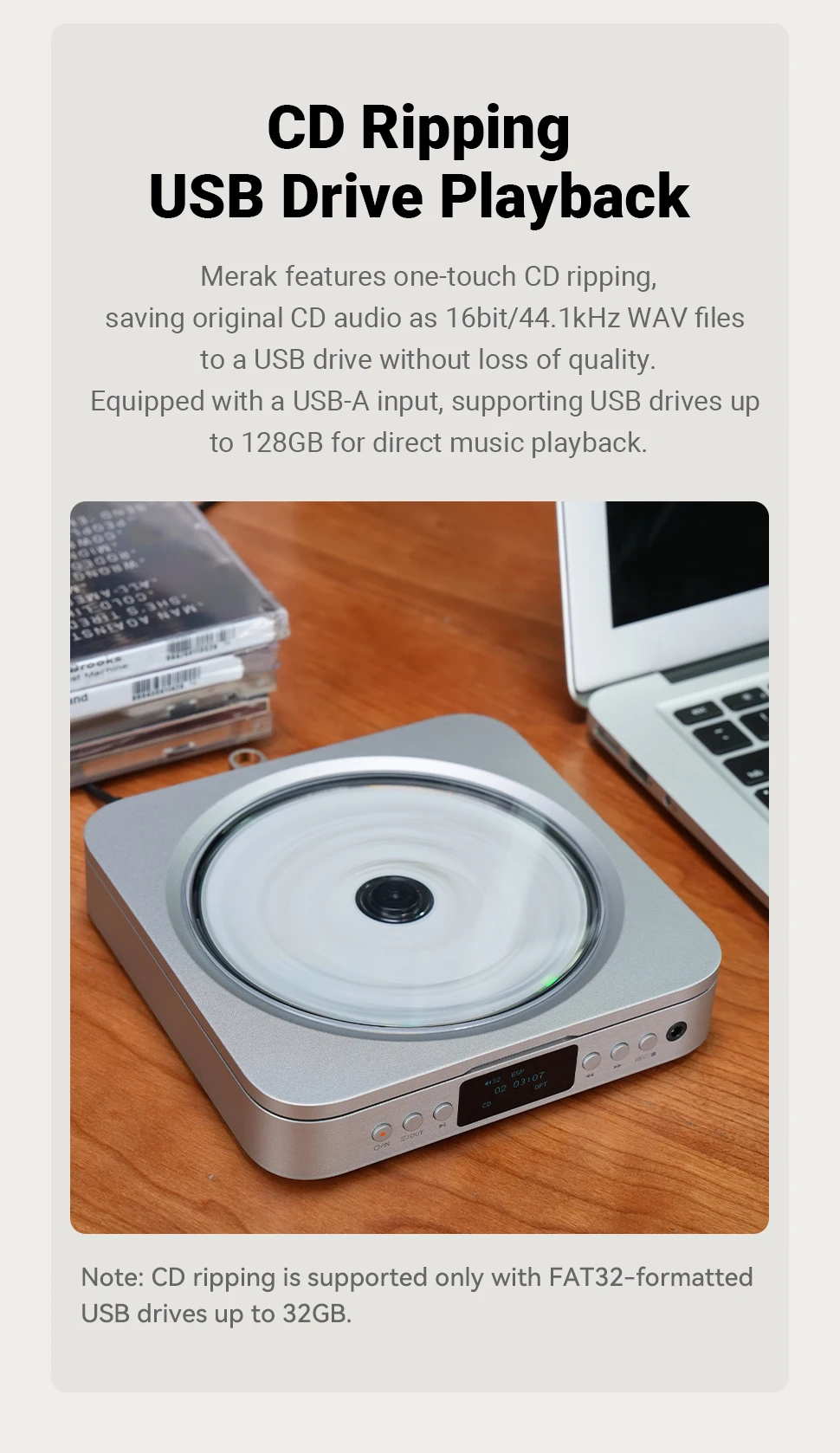

3. One-Touch CD Ripping, Preserve Forever
The one-touch ripping feature saves original CD audio as 16bit/44.1kHz WAV files directly to your USB drive with zero quality loss. Create perfect digital backups of your precious collection and keep those classic sounds alive forever.

4. Audiophile-Grade Fidelity

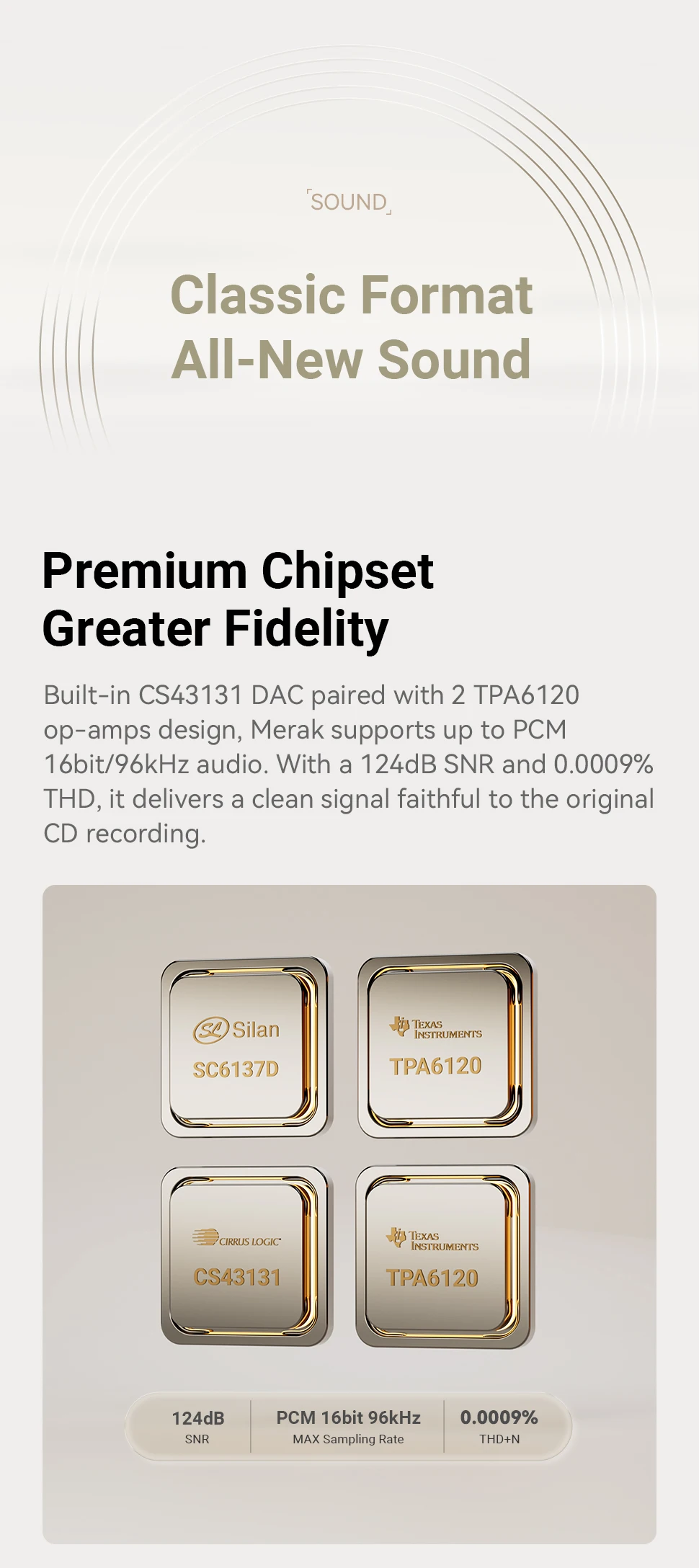

Powered by the premium CS43131 DAC and dual TPA6120 op-amps, the Merak supports up to PCM 16bit/96kHz with 124dB SNR and 0.0009% THD+N. Every note comes through crystal clear, staying faithful to the original studio recording.

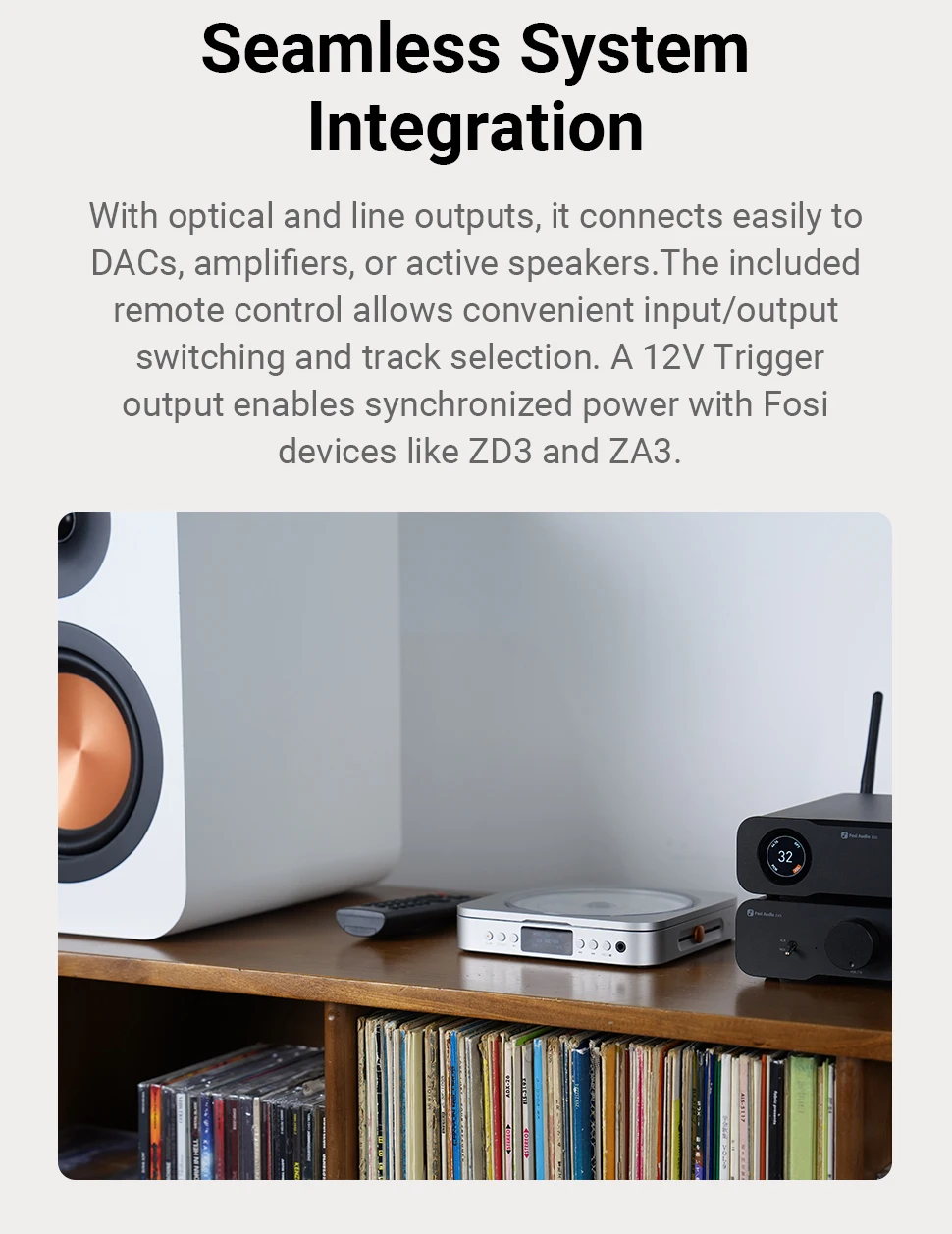

5. Versatile Connectivity for Every Setup

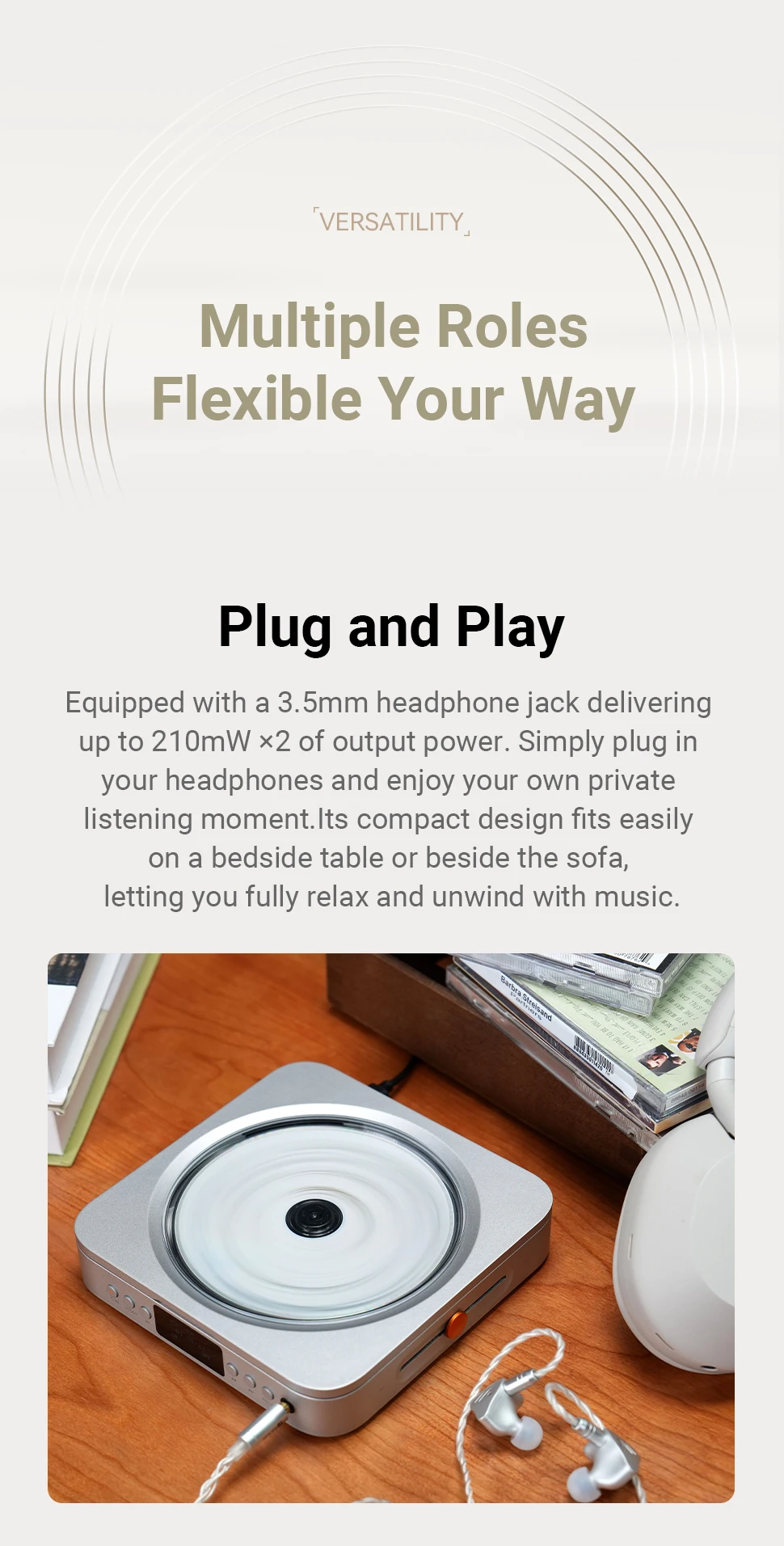

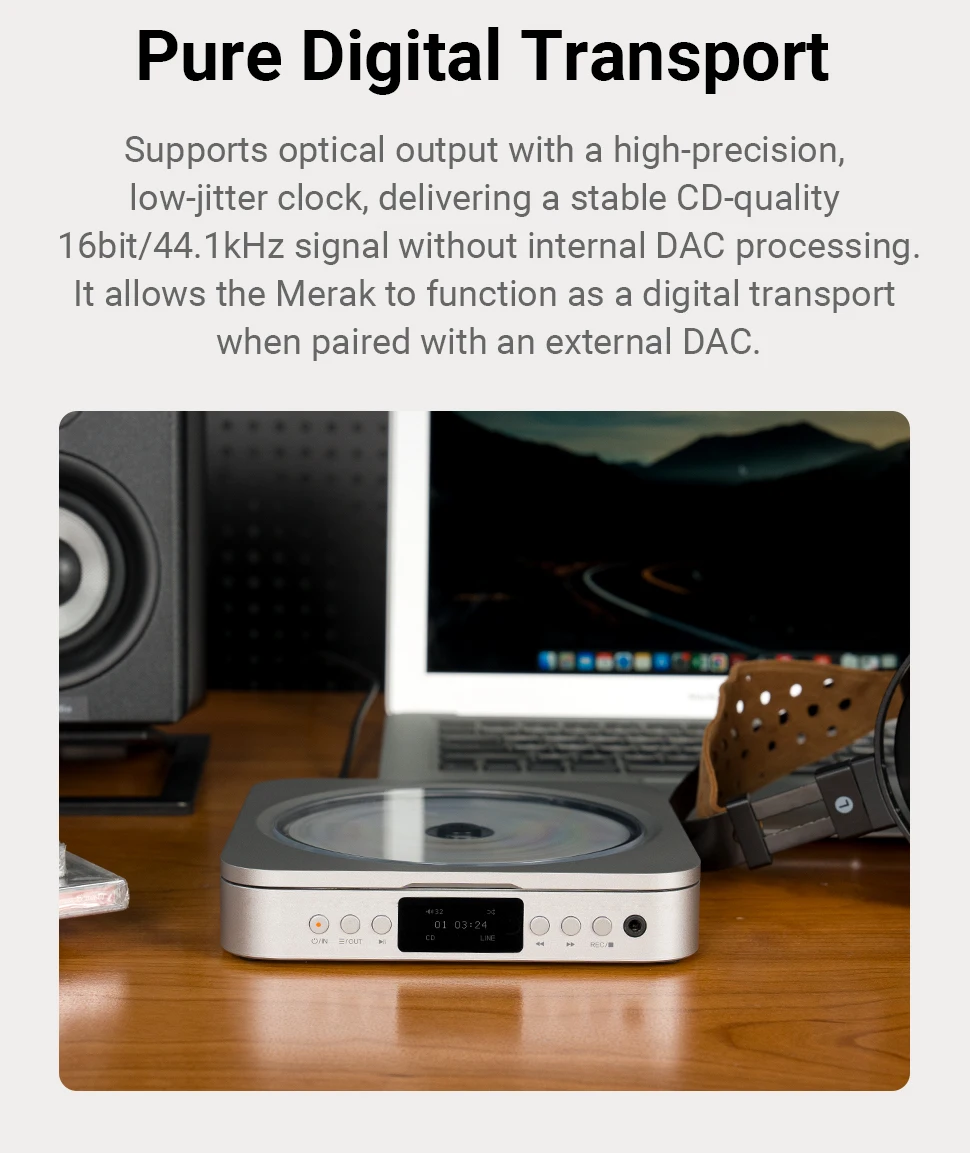

With 3.5mm headphone jack, optical output, and line out, the Merak adapts to any scenario—private late-night sessions, professional headphone amplification, or seamless integration into your existing hi-fi system. It’s the reliable centerpiece of your listening journey.

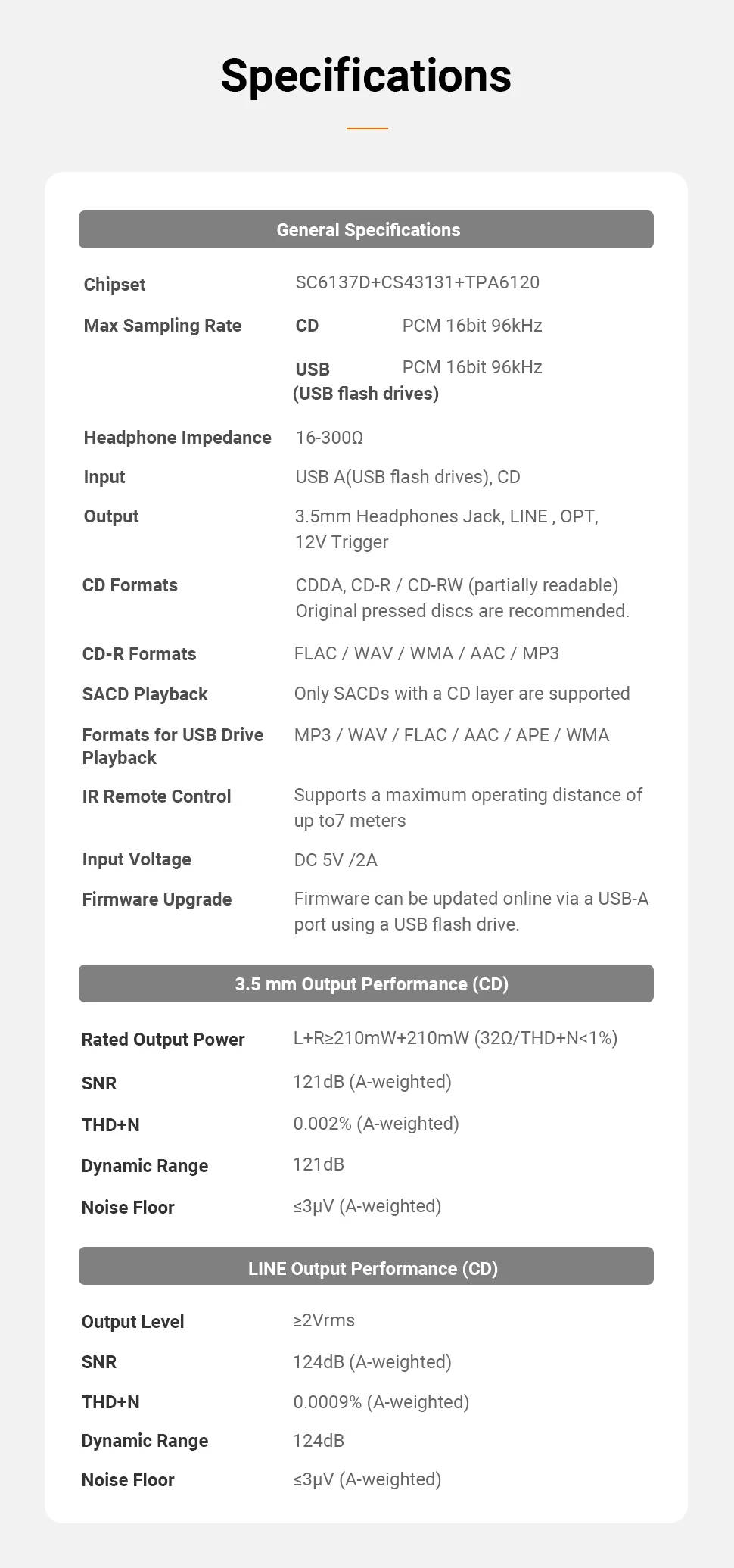

Specifications

Chipset：SC6137D+CS43131+TPA6120
Max Sampling Rate
CD：PCM 16bit 96kHz
USB（USB flash drives）：PCM 16bit 96kHz
Headphone Impedance：16-300Ω
Input：USB A（USB flash drives）、CD

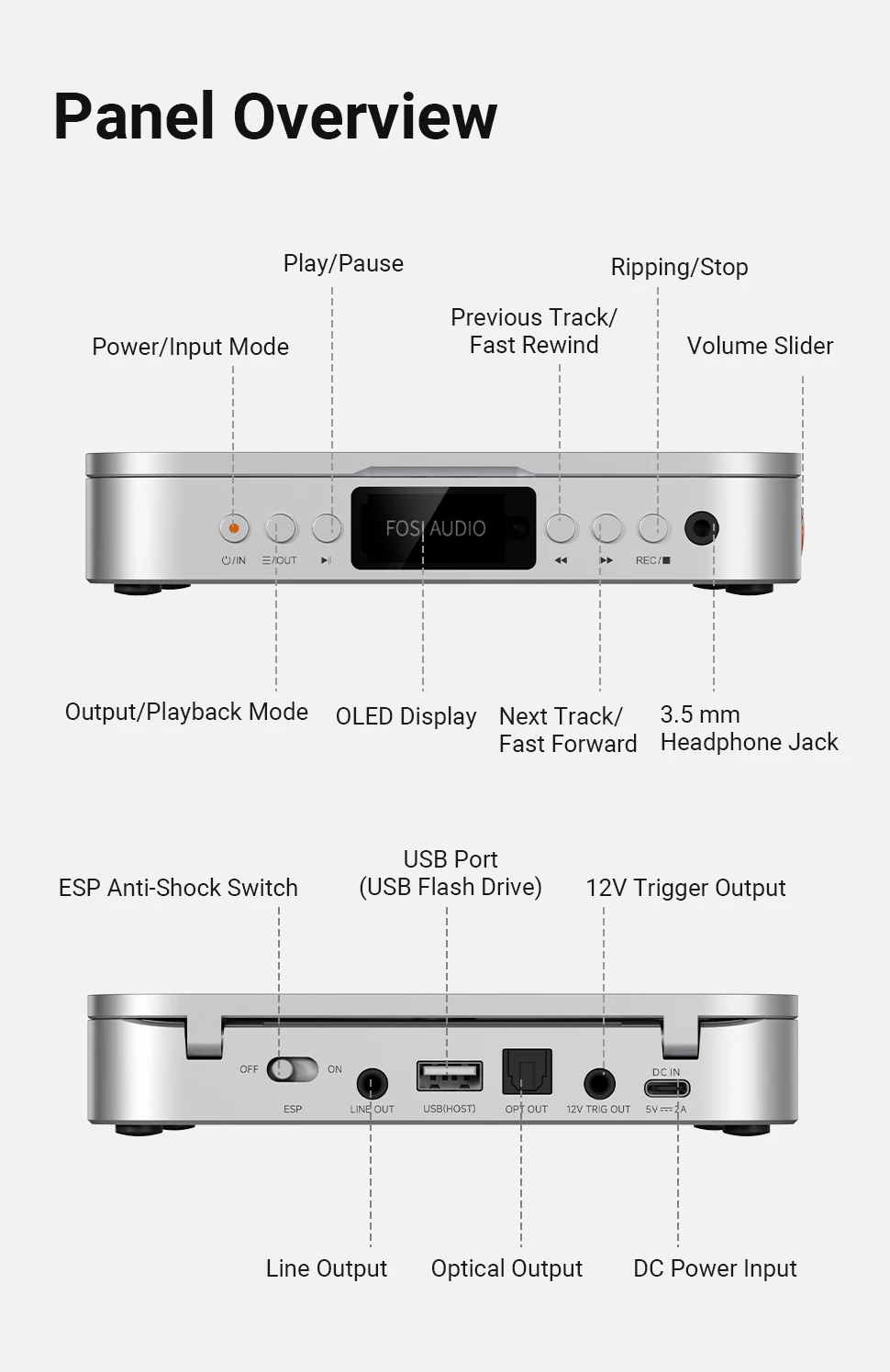

Output：3.5mm Headphones Jack、LINE、OPT、12V Trigger

CD Formats：
CDDA, CD-R / CD-RW (partially readable)
Original pressed discs are recommended.
CD-R Formats：FLAC / WAV / WMA / AAC / MP3

SACD Playback：Only SACDs with a CD layer are supported.
Formats for USB Drive Playback：MP3 / WAV / FLAC / AAC / APE / WMA
IR Remote Control：Supports a maximum operating distance of up to 7 meters.
Input Voltage：DC 5V /2A

3.5 mm Output Performance (CD)

Rated Output Power L+R≥210mW+210mW (32Ω/THD+N＜1%)
SNR 121 dB (A-weighted)
THD+N 0.002% (A-weighted)
Dynamic Range 121dB
Noise Floor ≤3µV (A-weighted)

LINE Output Performance (CD)

Output Level ≥2Vrms
SNR 124dB (A-weighted)
THD+N 0.0009% (A-weighted)
Dynamic Range 124dB
Noise Floor ≤3µV (A-weighted)

Firmware Update

A new firmware is now available to improve audio track switching performance and resolve the brief 1–2 second pause that may occur on some devices when switching audio tracks.

Firmware Download & Upgrade Guide:
https://support.fosiaudio.com/products/merak/dfbd/e35a/a77e
