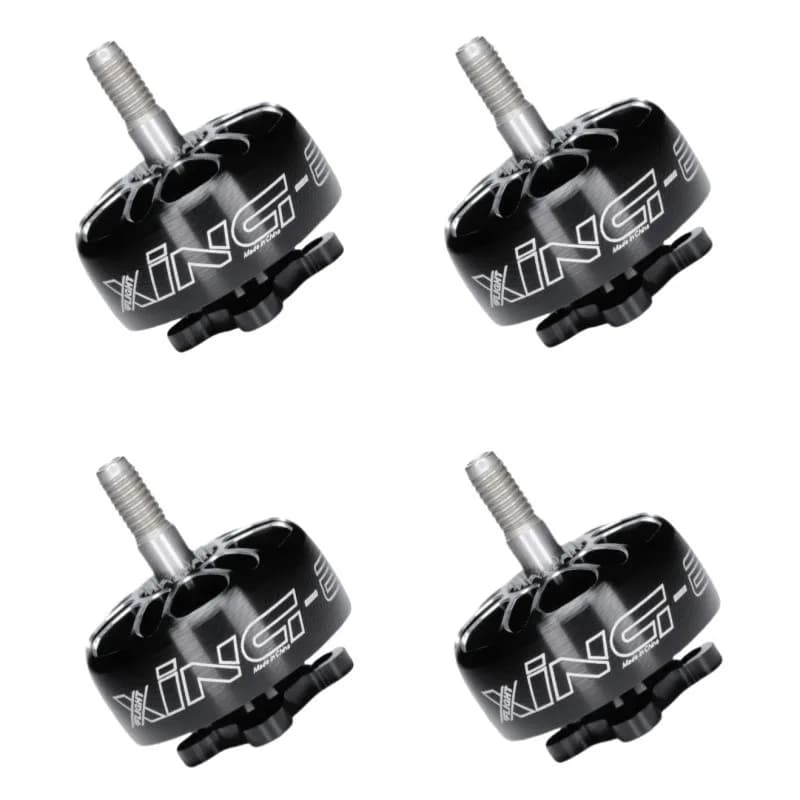

4PCS iFlight XING E Pro 2207 1800KV 6S /2450KV 2750KV 4S Brushless Motor for FPV RC Multicopter Racing Drone Parts DIY PARTS

4PCS iFlight XING E Pro 2207 1800KV 6S /2450KV 2750KV 4S Brushless Motor for FPV RC Multicopter Racing Drone Parts DIY PARTS
Specification:Brand Name: iFlight
Model: XING-E Pro 2207
Item Name: 2207 1800KV 2450KV 2750KV Brushless Motor
KV: 1800KV /2450KV /2750KV ( Optional)
Version: CW Screw Thread
Input Voltage: 3-6S @ 1800KV ;
2-4S @ 2450KV / 2750KV
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension: 28.5x19.7mm (Dia*Len)
Weight: 33.8g
Idle Current(10) @10V: less than 1.2A (1800KV);
less than 2.0A(2450KV); less than 2.2A (2750KV)
Max. Con. Power (180S): 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KV
Internal Resistance: 81.5mΩ@1800KV; 46.8mΩ@2450KV ; 41mΩ@2750KV
Max. Current (180S): 35.22A@1800KV; 42.63A@2450KV;50.03A@2750KV
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.
This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Package included:
4pcs MOTOR XING-E Pro 2207 motor
