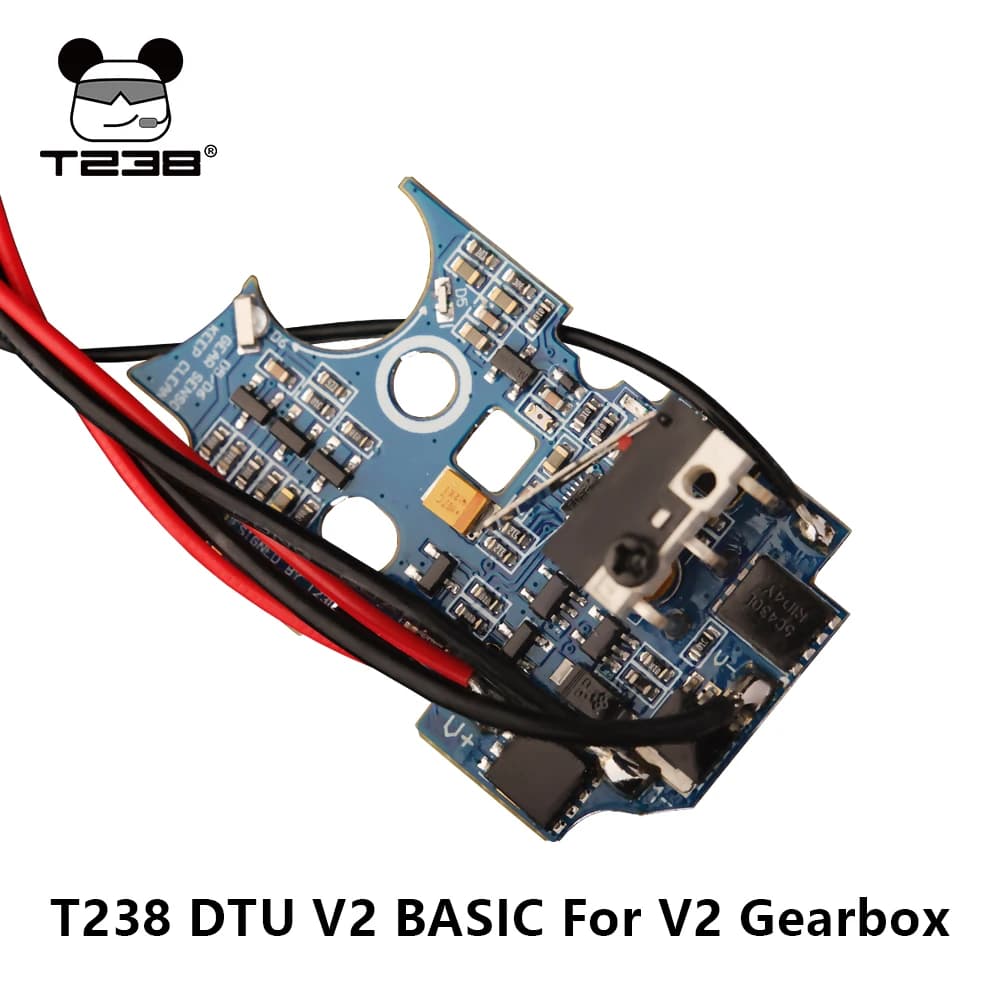

T238 Electronic Trigger V2 1.9 Basic With Binary Overheat Protection Active Braking for AIRSOFT Gel Ball V2 Gearbox

Description:

The T238 DTU BASIC is an entry-level programmable MOSFET designed for reliability and ease of use. It delivers stable semi-auto performance and essential protections, including battery over-discharge, motor short-circuit, and MOSFET overheat protection.

Key Features:

Enhanced Shooting Modes: Features Binary Trigger and Paintball mode for versatile gameplay.

Smart Safeguards: Integrated optical gear sensor provides block-up protection, while Active Brake technology ensures precise gear stopping.

Gel Blaster Ready: Includes a 1-second auto-loading function for motorized gel ball magazines.

Core Specs: Operating Voltage: 6-16.8V | Max Current: 300A Inrush / 100A Brake | Compatible: Standard V2 Gearboxes.

Size: 45*30*14mm

Functions:

1.Paintball Mode: Single shot at low trigger frequency, auto-switches to binary at high frequency.

2.Block-up protection. When gearbox Block-up occurs, the system stops working and emits an elongated ‘beep’ sound. Please check the wave box immediately by power off.

3.Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 1 second.

4.Short circuit protection. When a short circuit is detected in the motor/magazine circuit, the system will cut off the power to the motor/magazine and prompt through LED flashing. Please disconnect the battery in a timely manner and troubleshoot the problem.

5.Battery Over-Discharge Protection: The system automatically detects the number of battery cells. When the voltage of any single cell drops below the preset threshold, the system will: Emit an audible "Beep! Beep! Beep! Beep!" warning through the motor. Enter shutdown/sleep mode. Please immediately replace the battery upon hearing the low-voltage alarm.

6.When the MOSFET is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.

Main Parameters

Size: 49 × 28 × 15 mm

Operating Voltage: 7.4–11.1 V

Active Brake Technology

Optical Sensor for Gear Detection

Binary Trigger Shooting Mode

Overheat Protection

Maximum Inrush Current: 300 A

Maximum Brake Current: 100 A

Compatible with Standard Gearbox V2

Note:

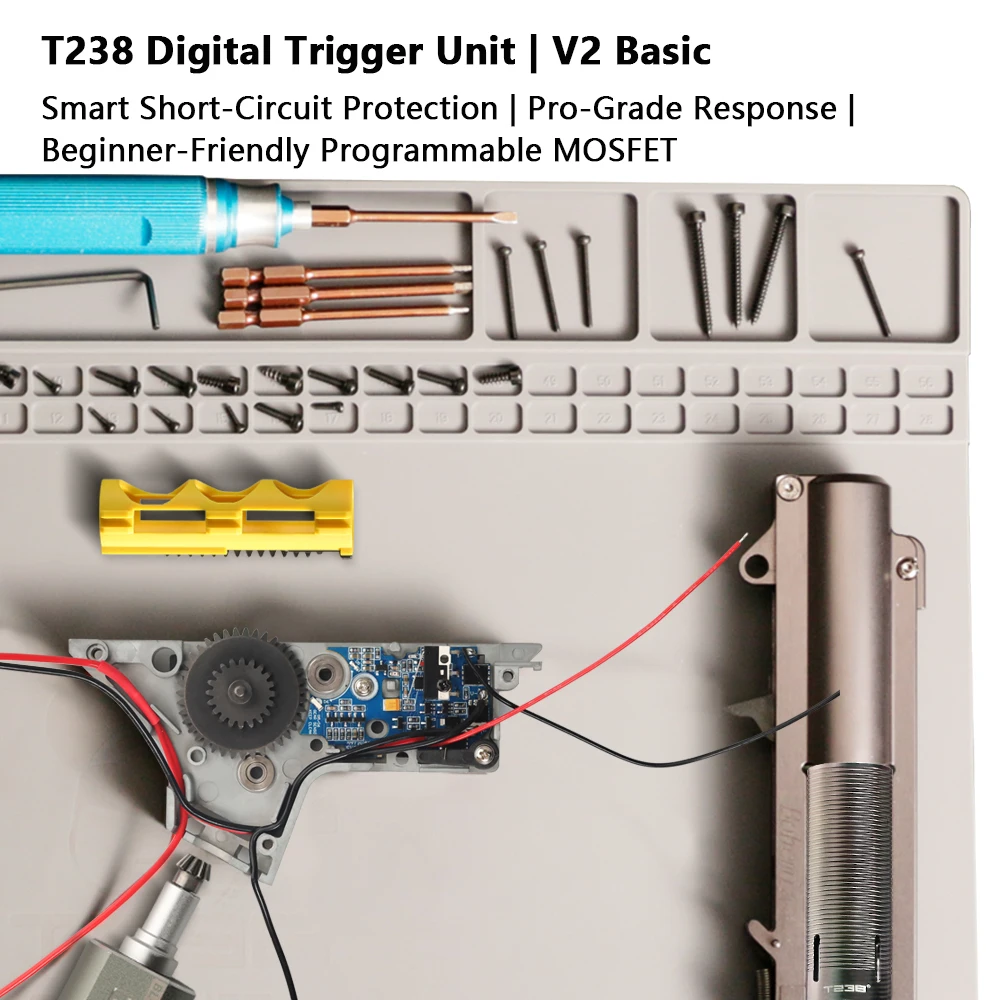

This product requires soldering and wiring. It is recommended that installation is undertaken by an experienced technician.
