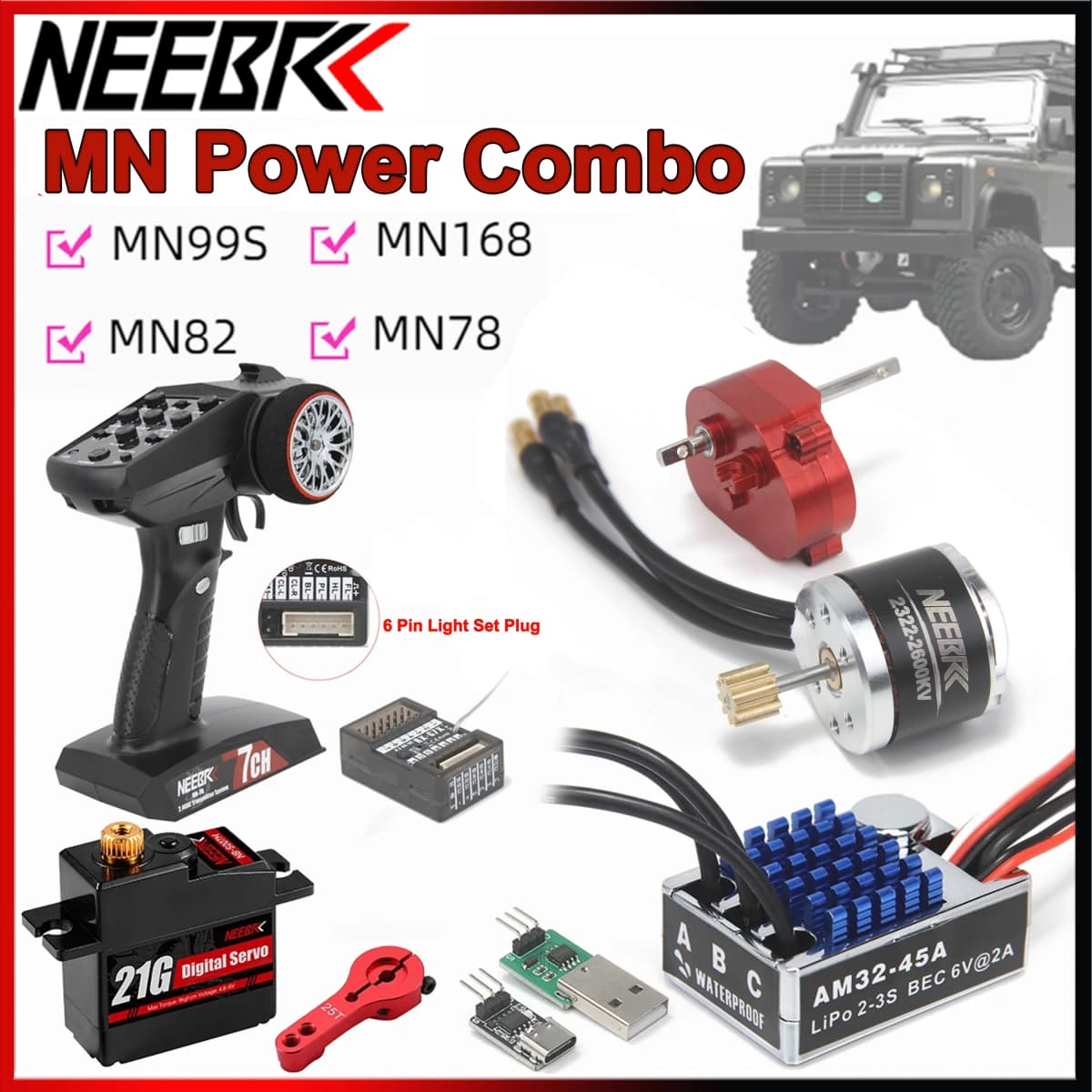

Power Combo 2322 2600KV Brushless Motor Metal Gear Box AM32 45A ESC 7CH Transmitter 21G Servo for RC Car MN82 MN78 MN168 MN99

Power Combo 2322 2600KV Brushless Motor Metal Gear Box AM32 45A ESC 7CH Transmitter 21G Servo for RC Car MN82 MN78 MN168 MN99

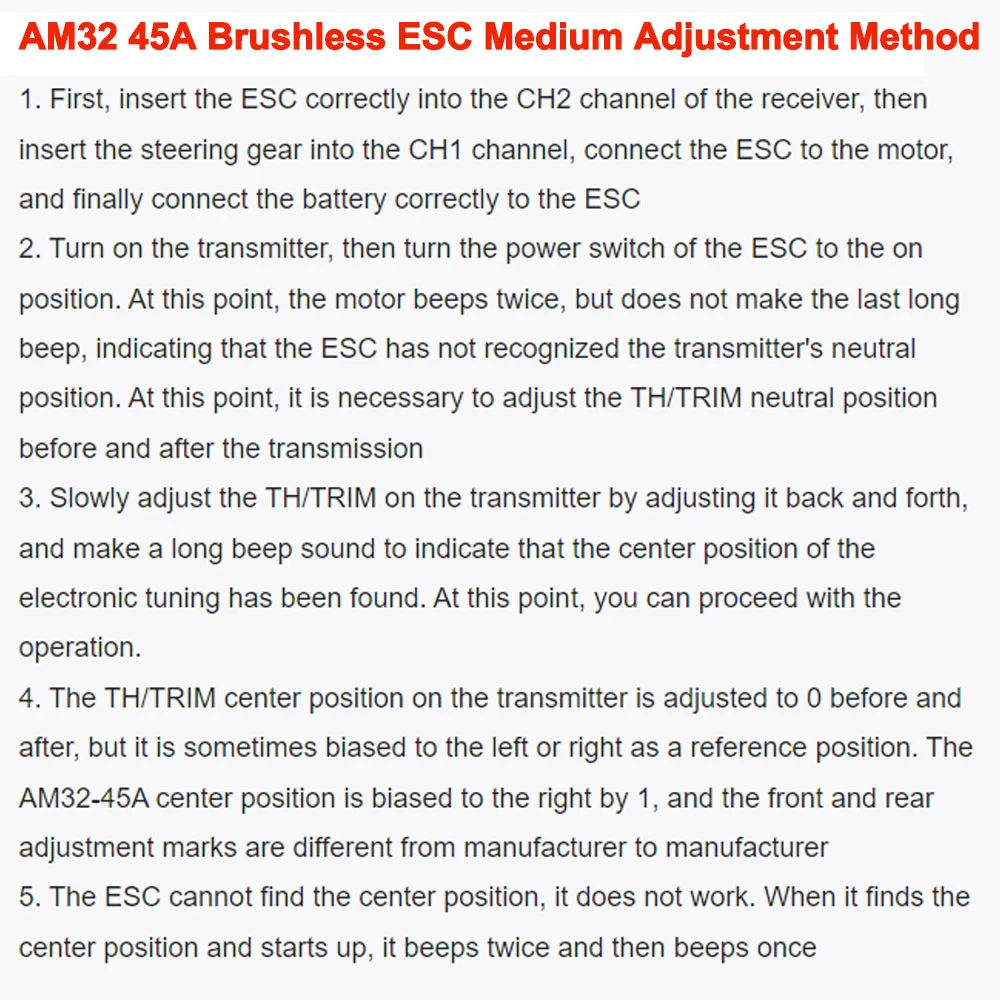

Note: Due to AM32 parameters, if the ESC switch is turned on, the motor will only make two drops without a long drop. It is not that the motor does not work, but that the ESC switch does not recognize the central position of the remote controller. It is necessary to fine tune the TH/TRIM central position. It can be operated when a long drop sound is made when adjusting back and forth.
Features:

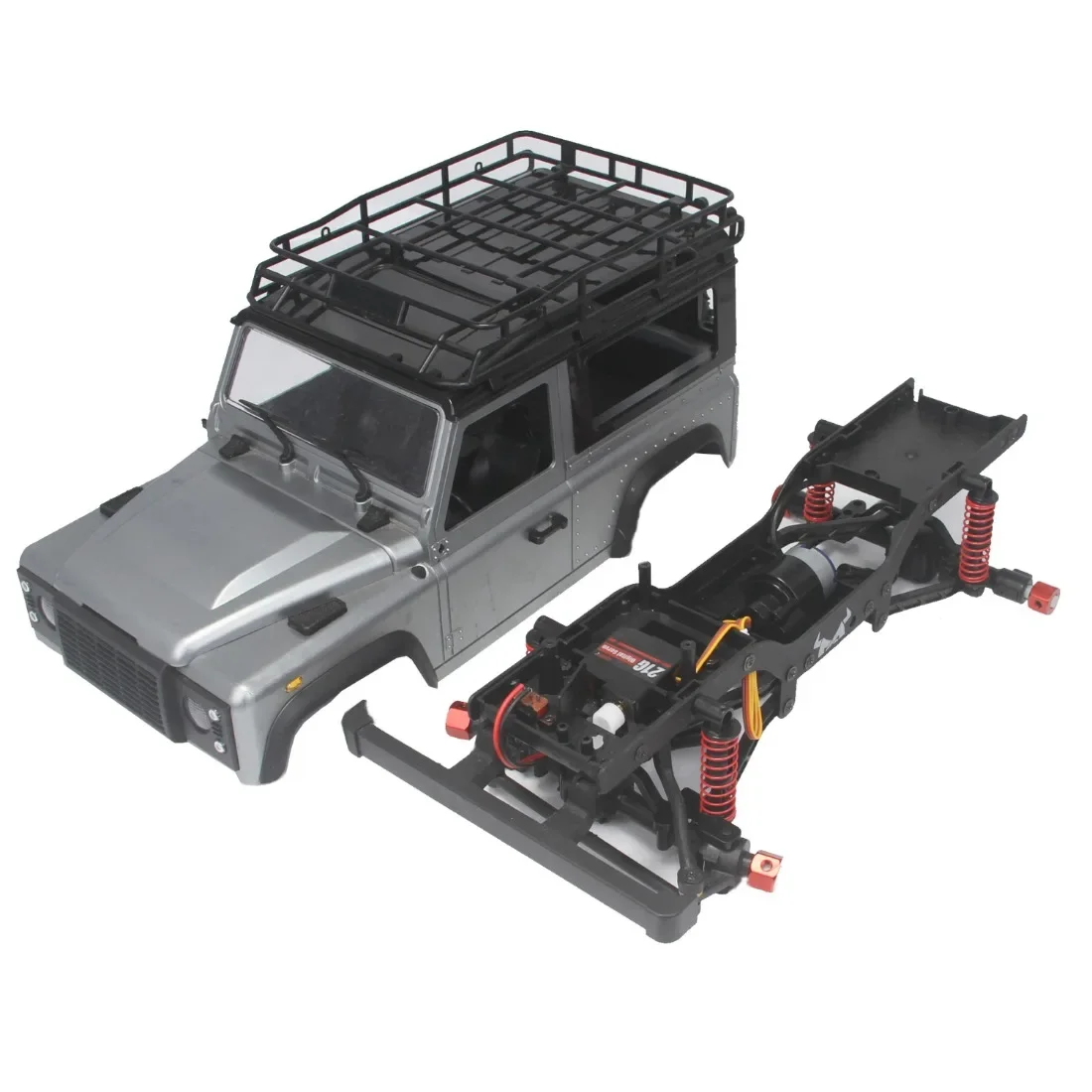

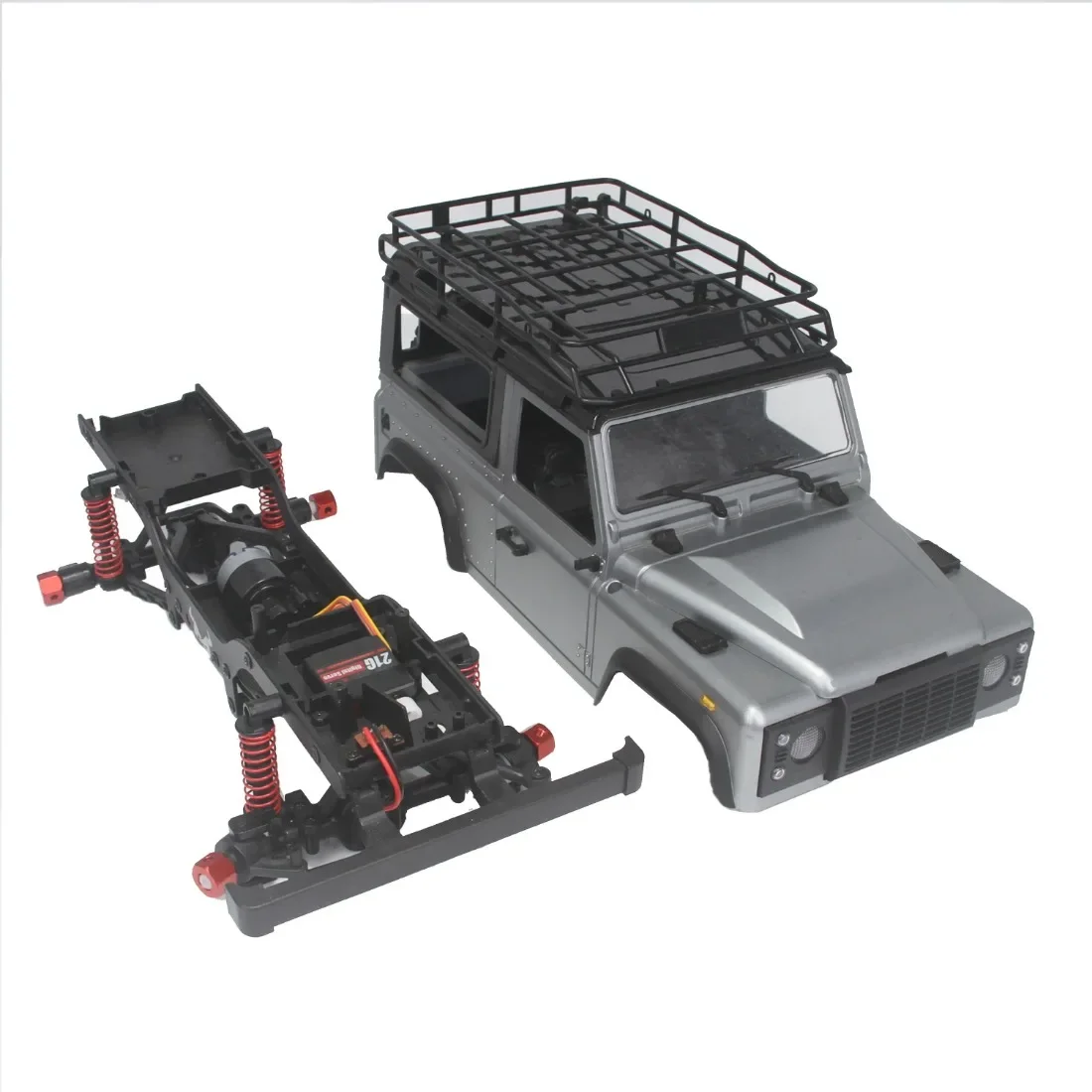

Applicable vehicle models: MN82 MN99S MN168 MN78
The receiver has been upgraded and does not require a light control adapter. It can be directly plugged in, perfectly adapting to the MN series models.

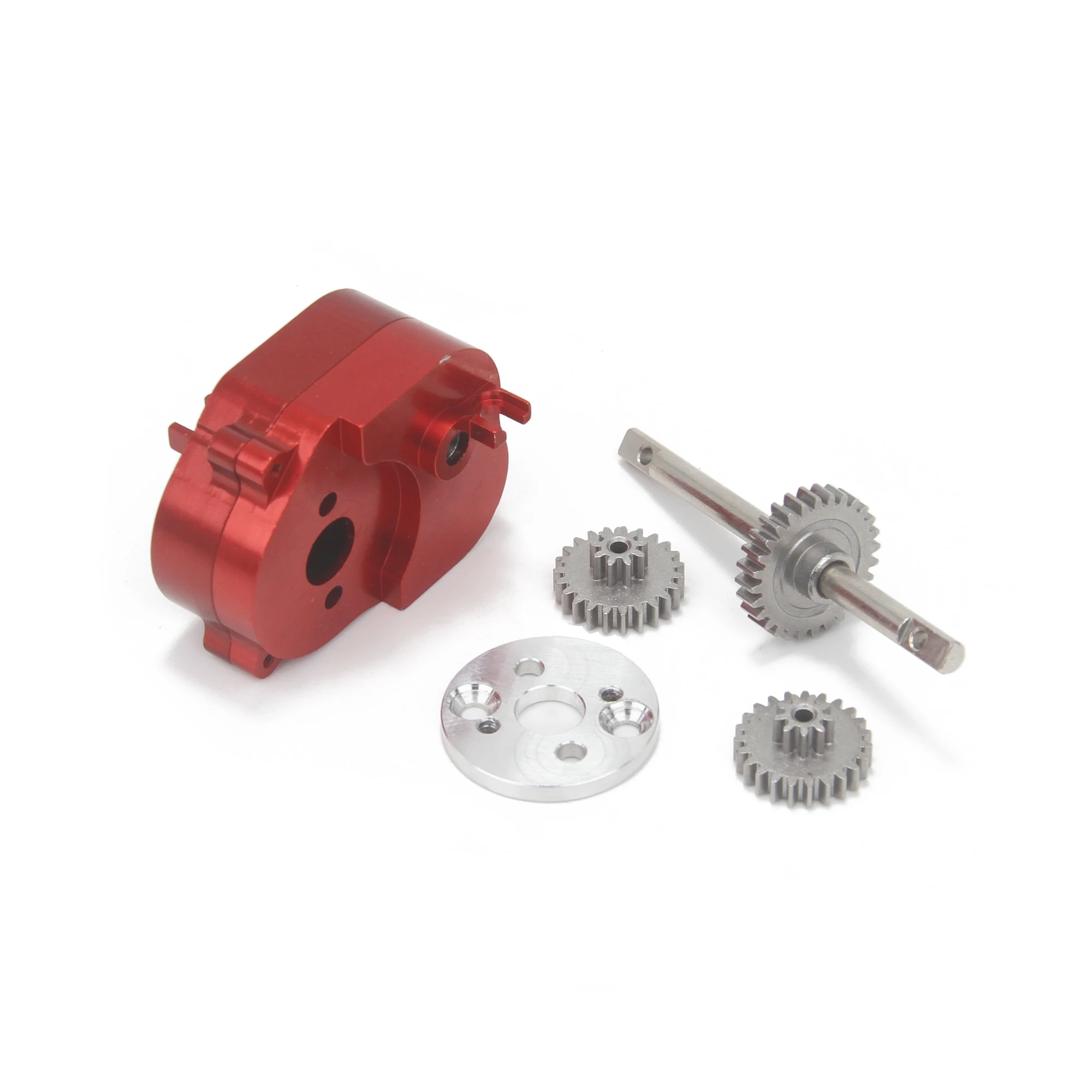

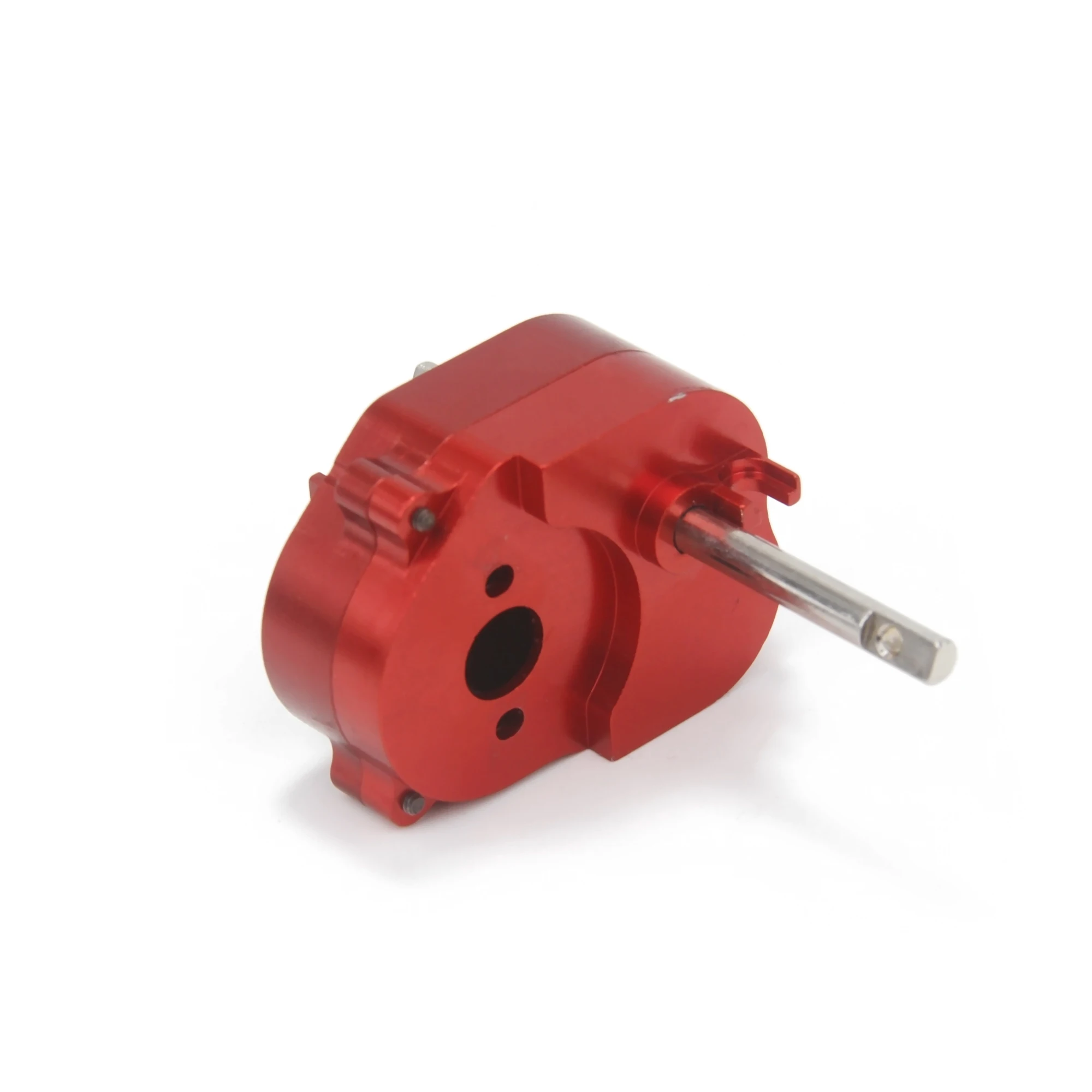

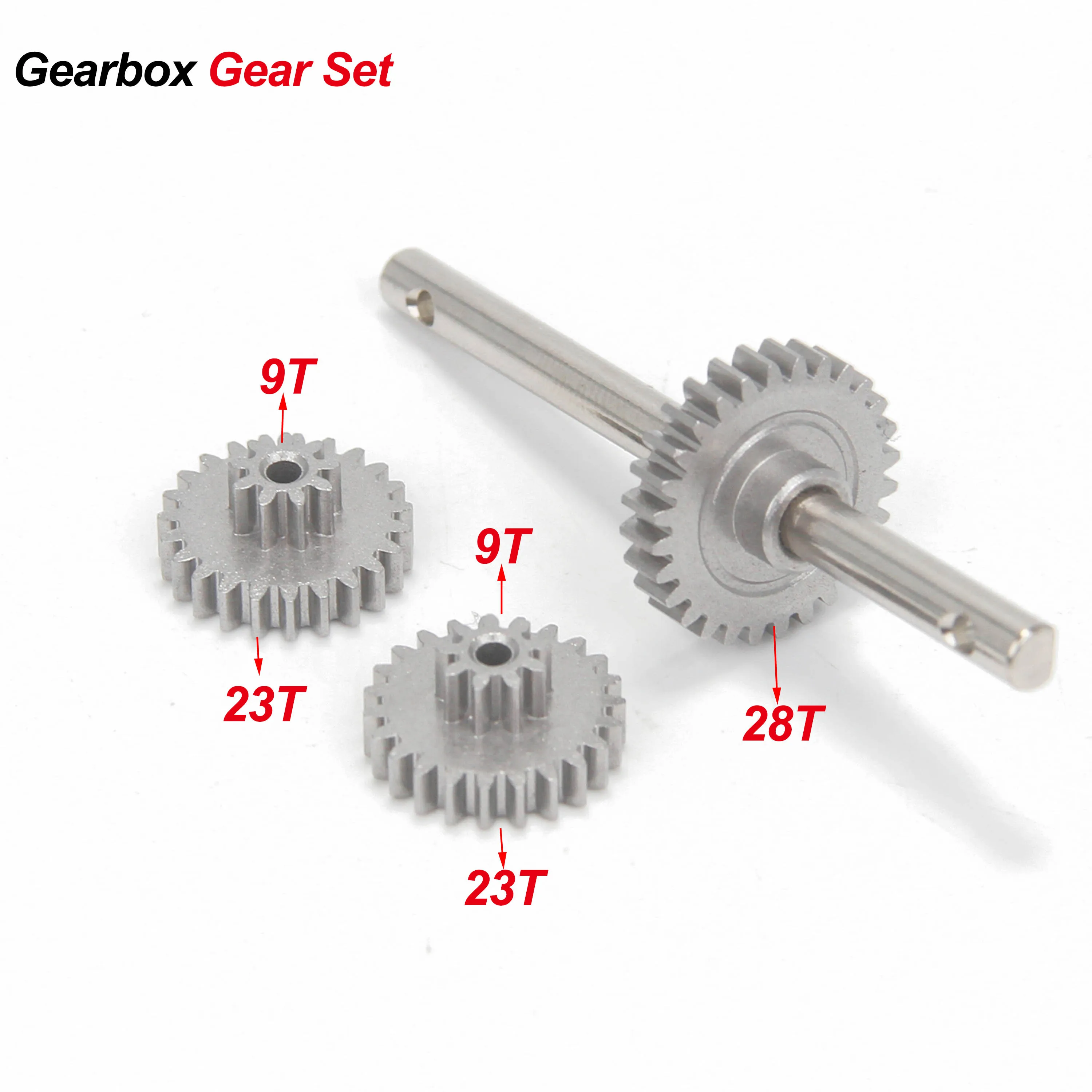

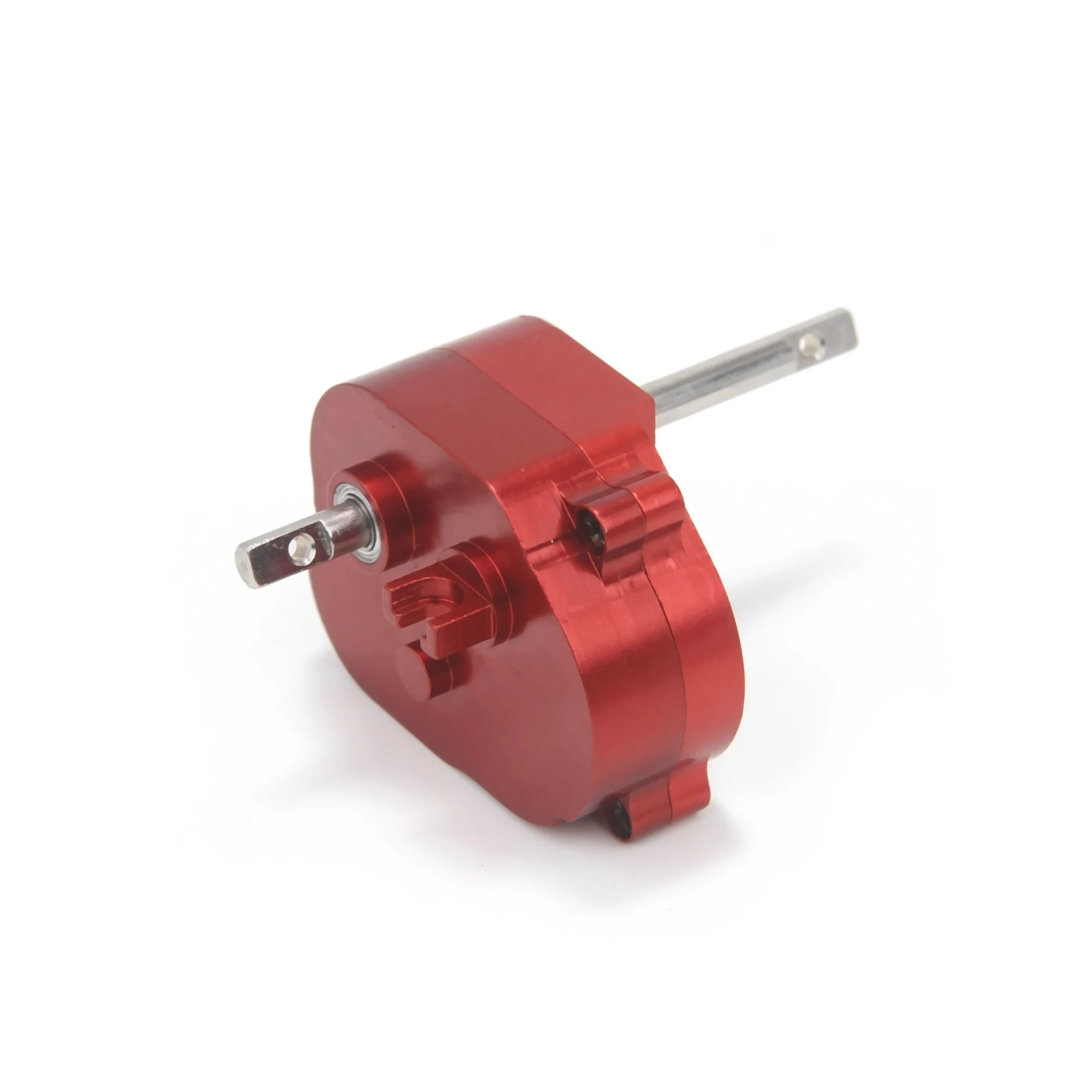

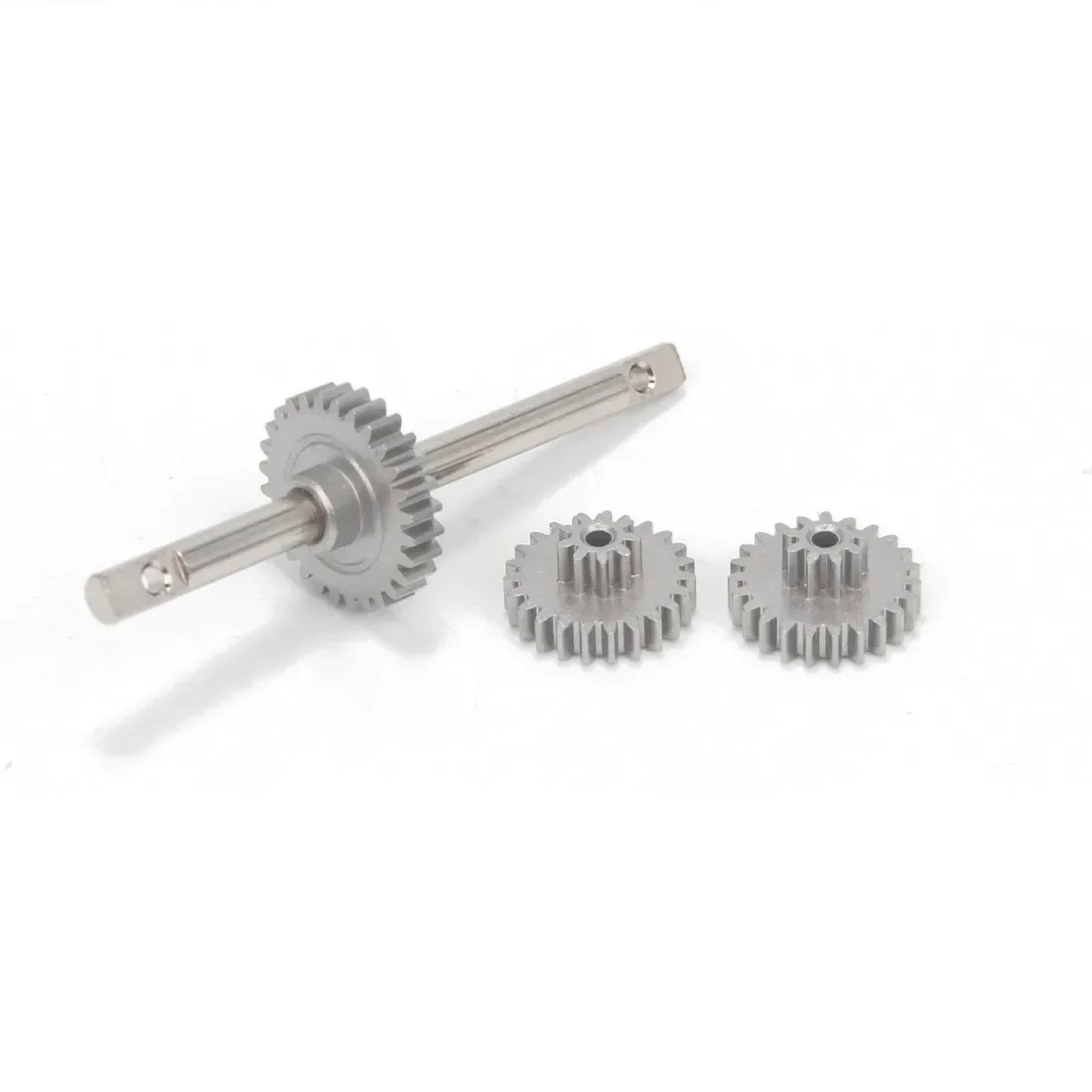

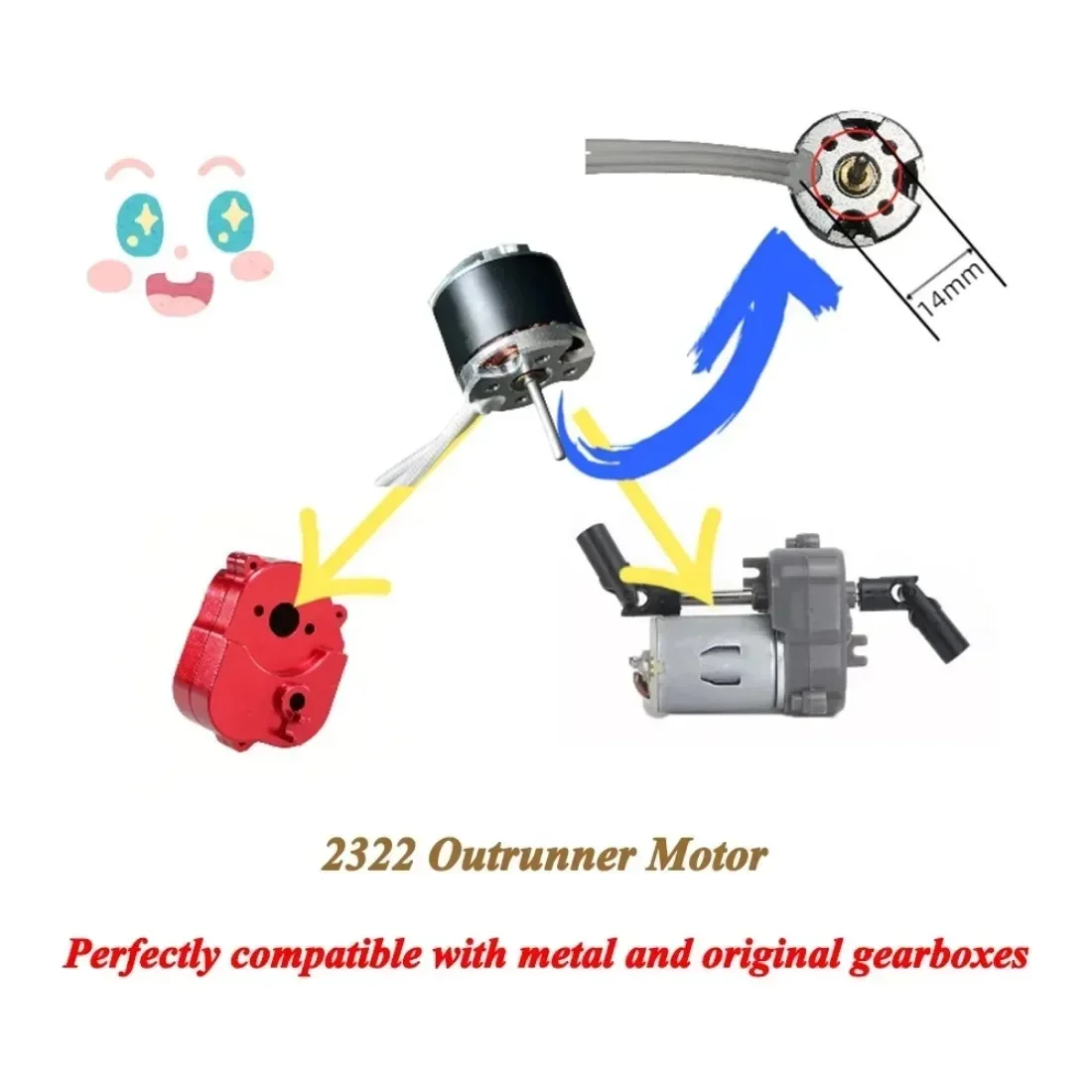

Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:

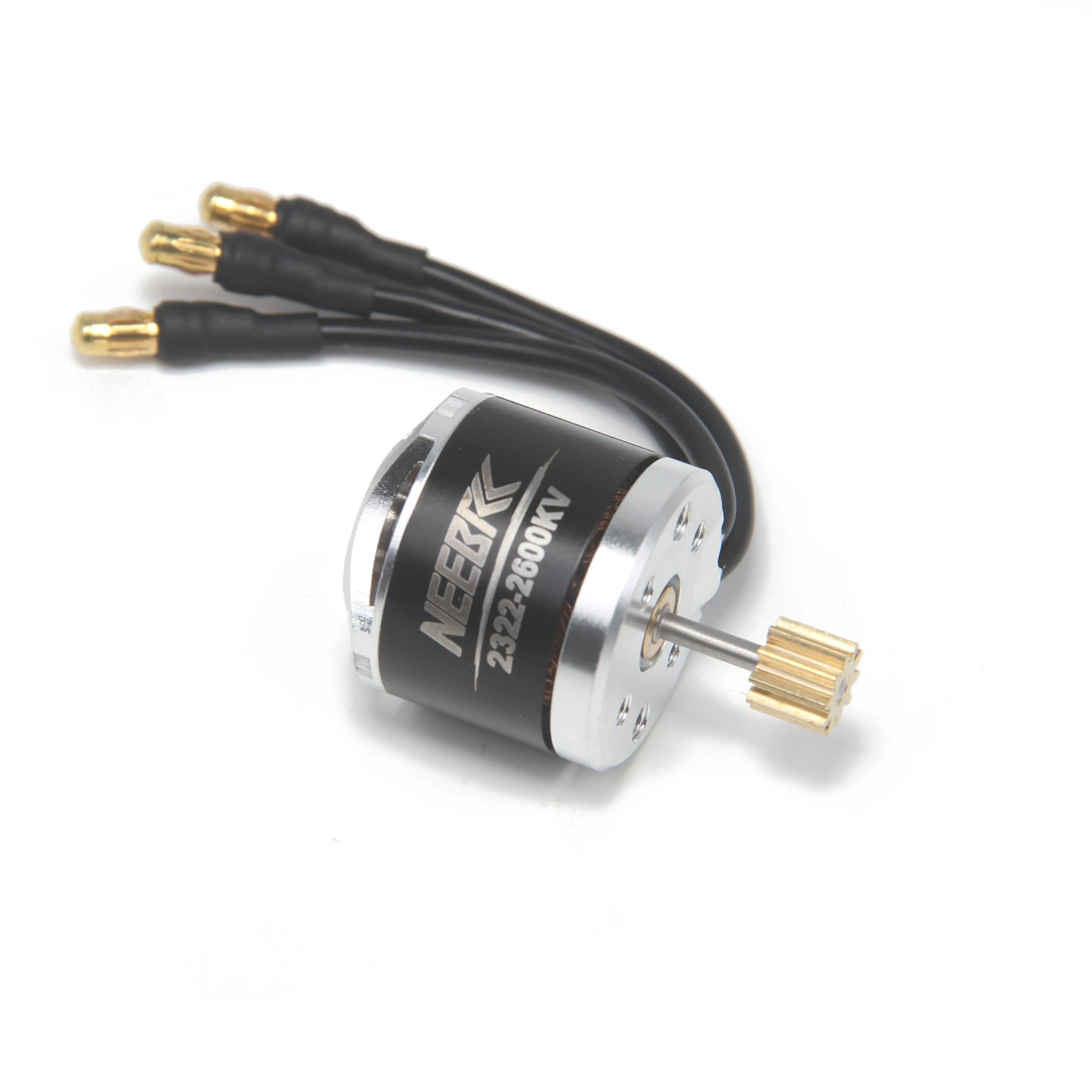

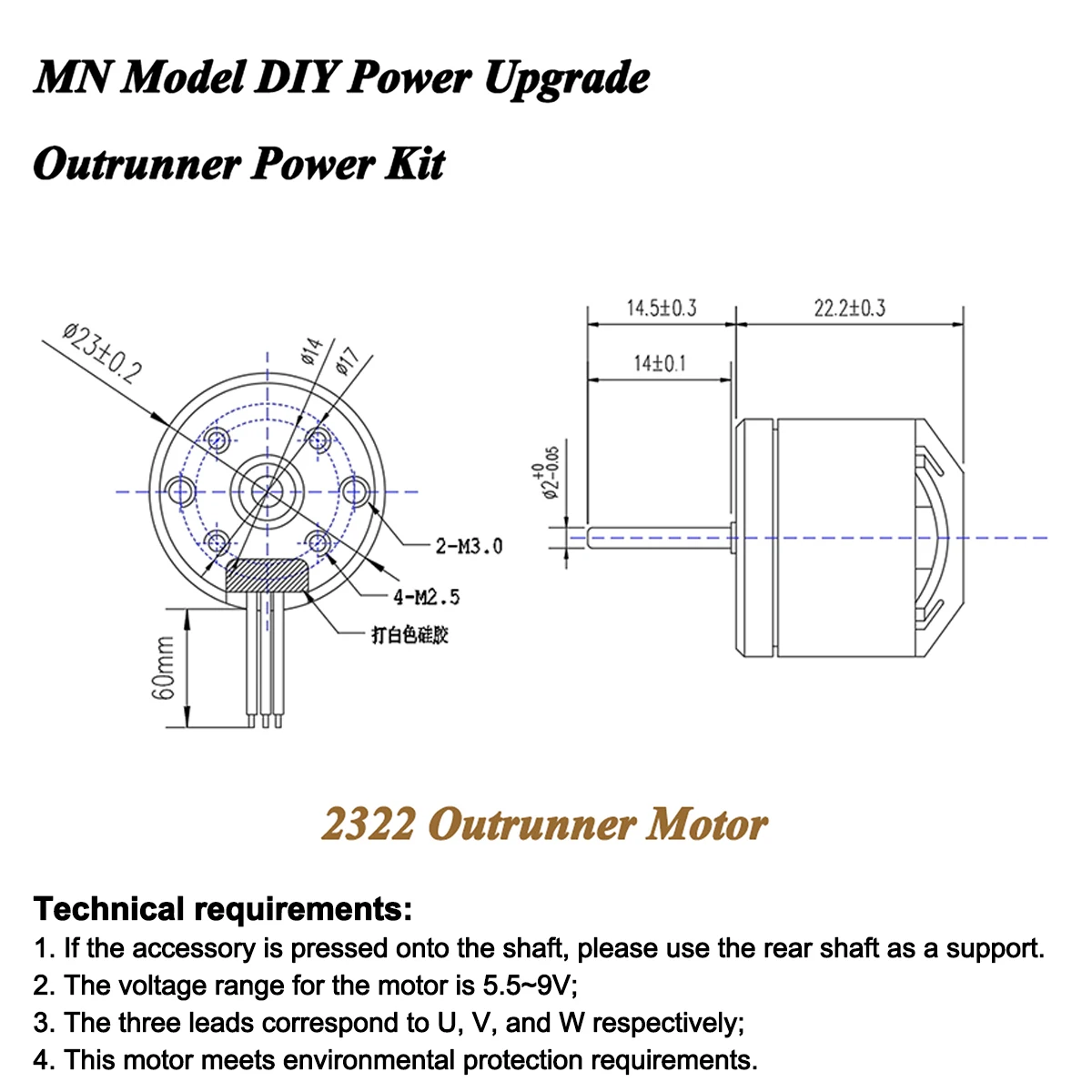

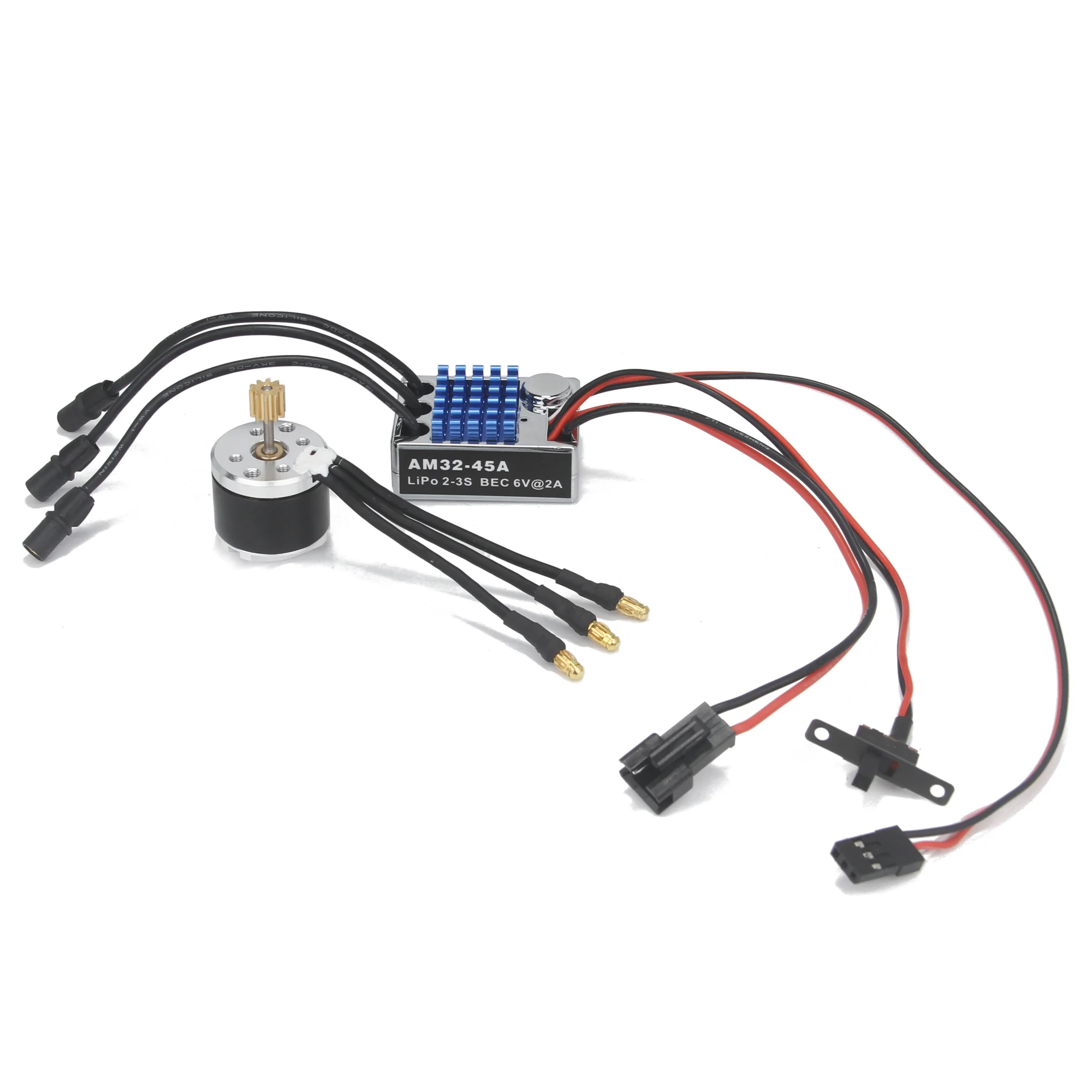

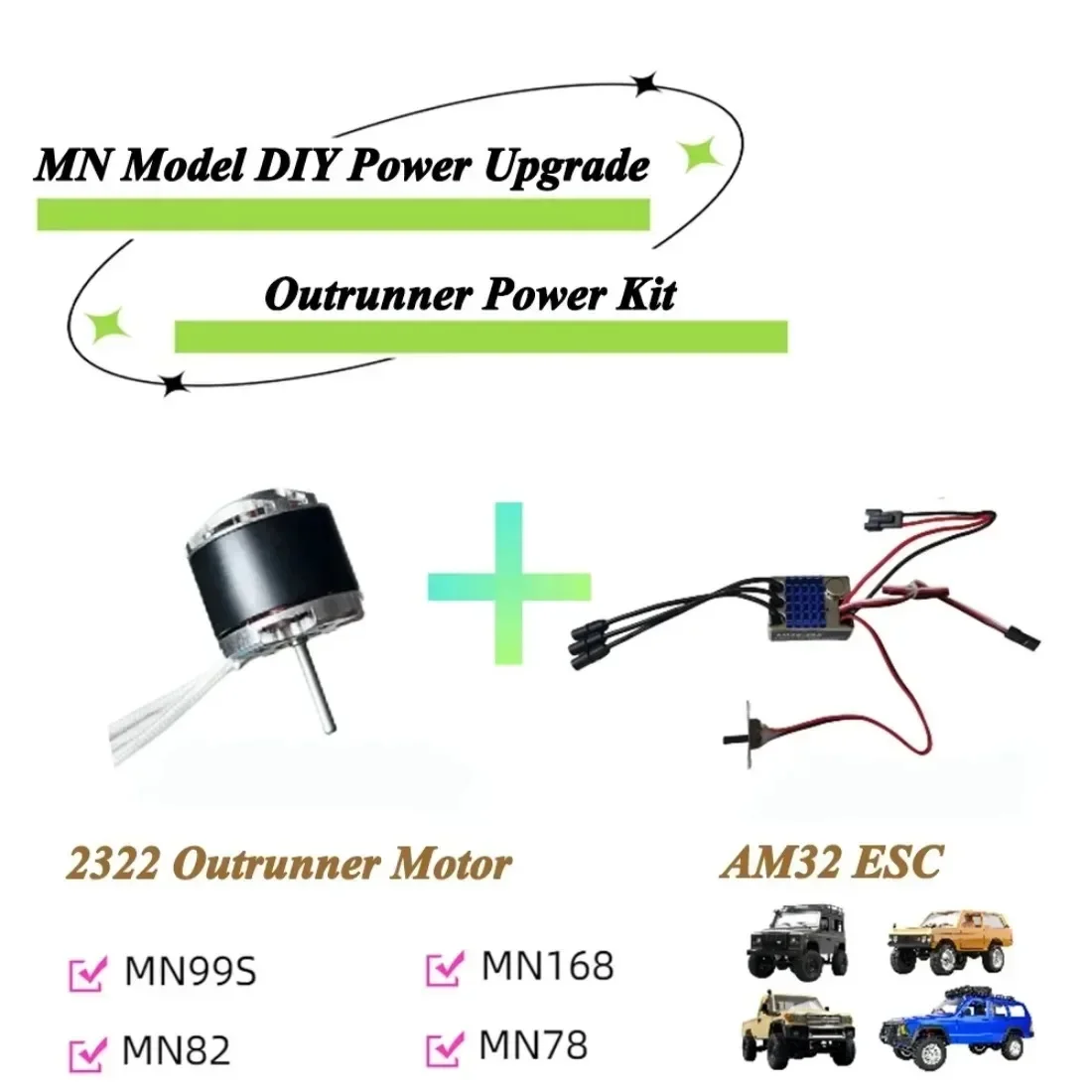

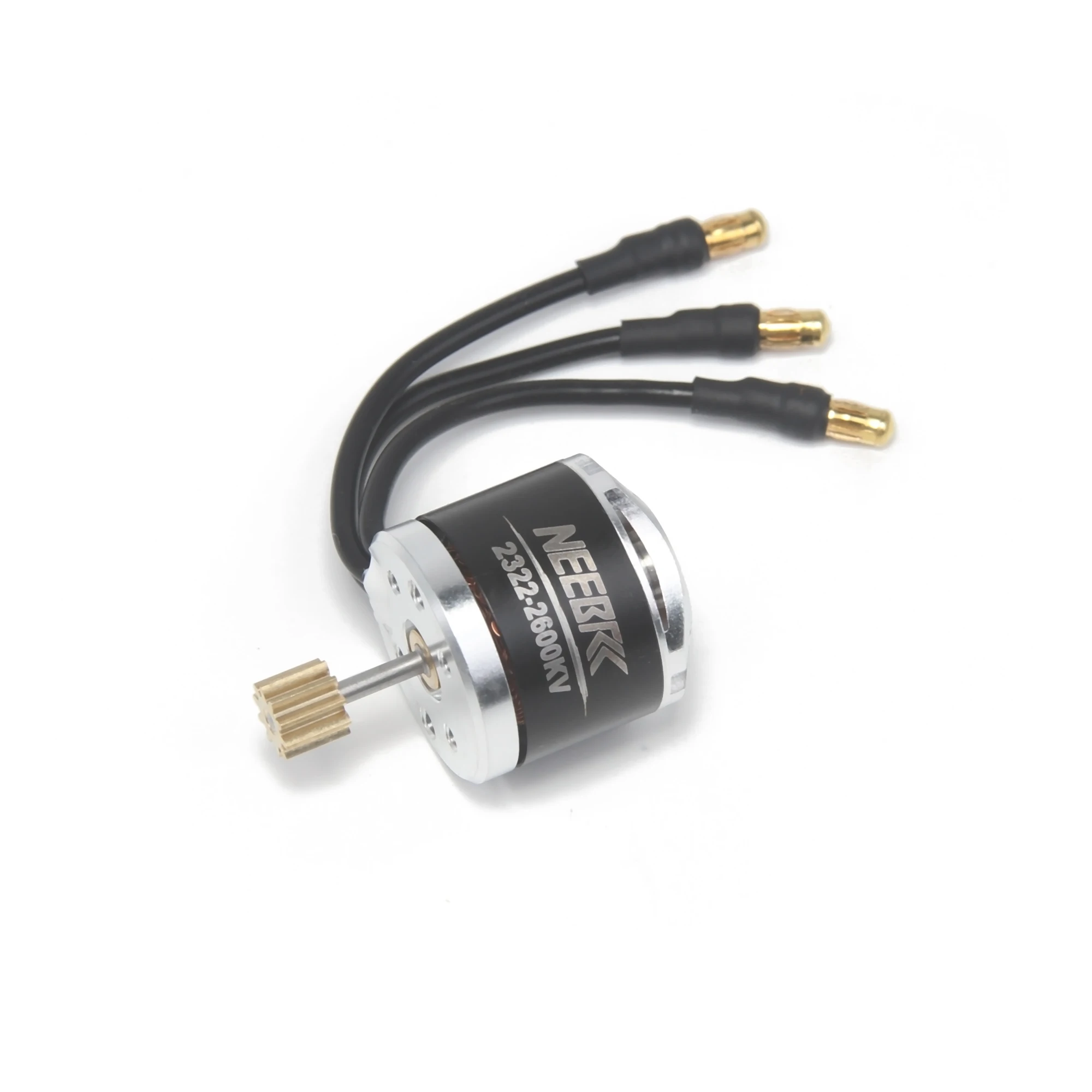

Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of gear teeth: 10T

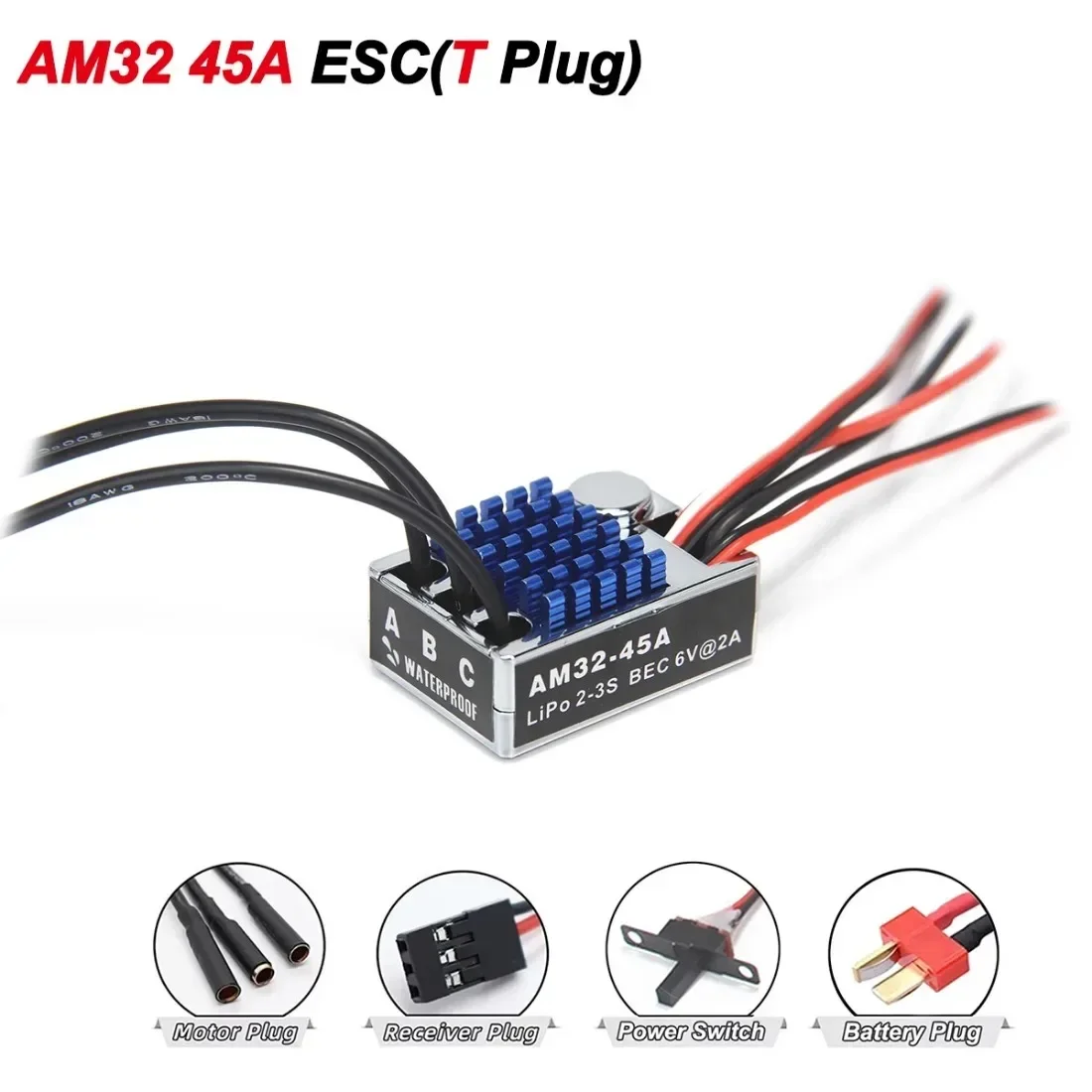

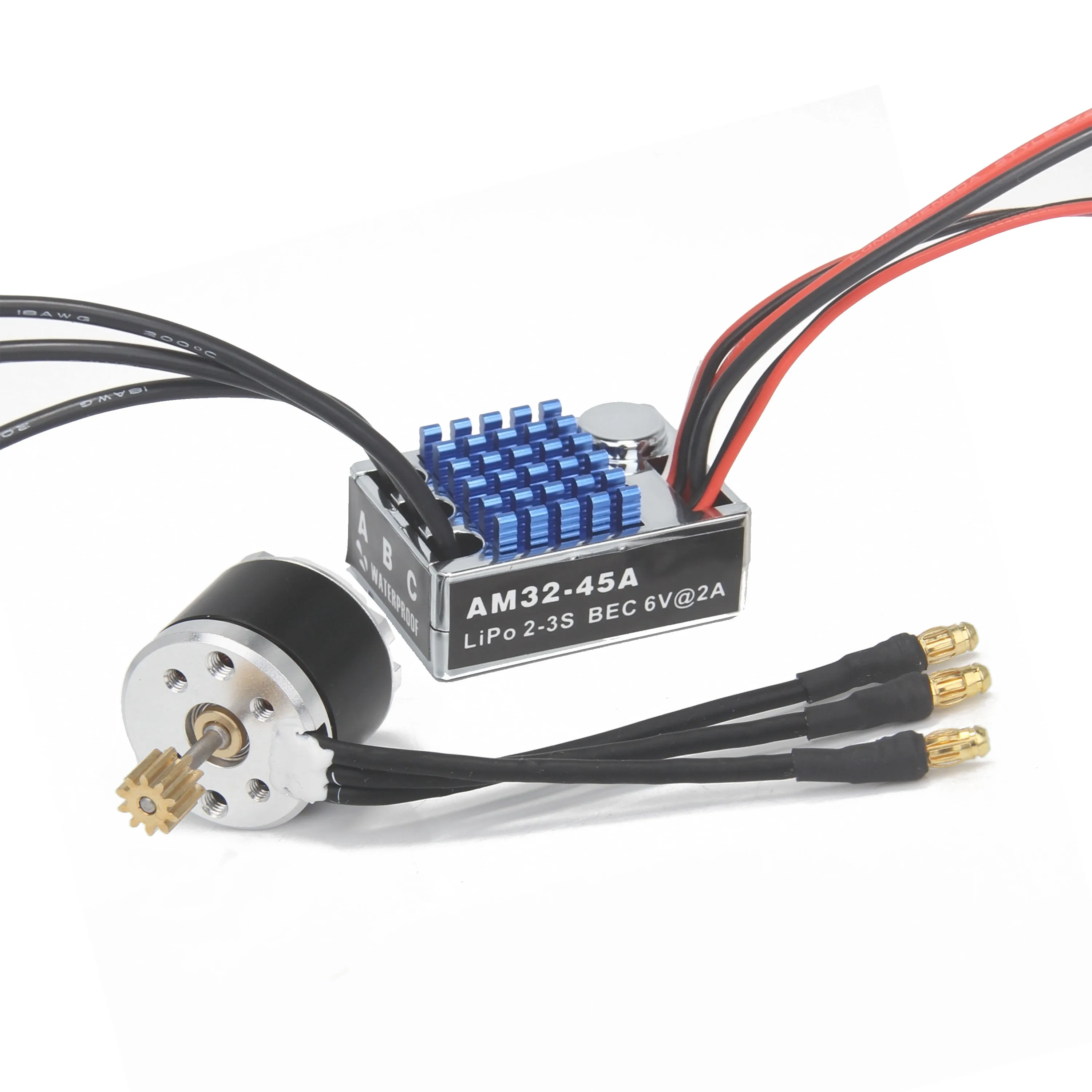

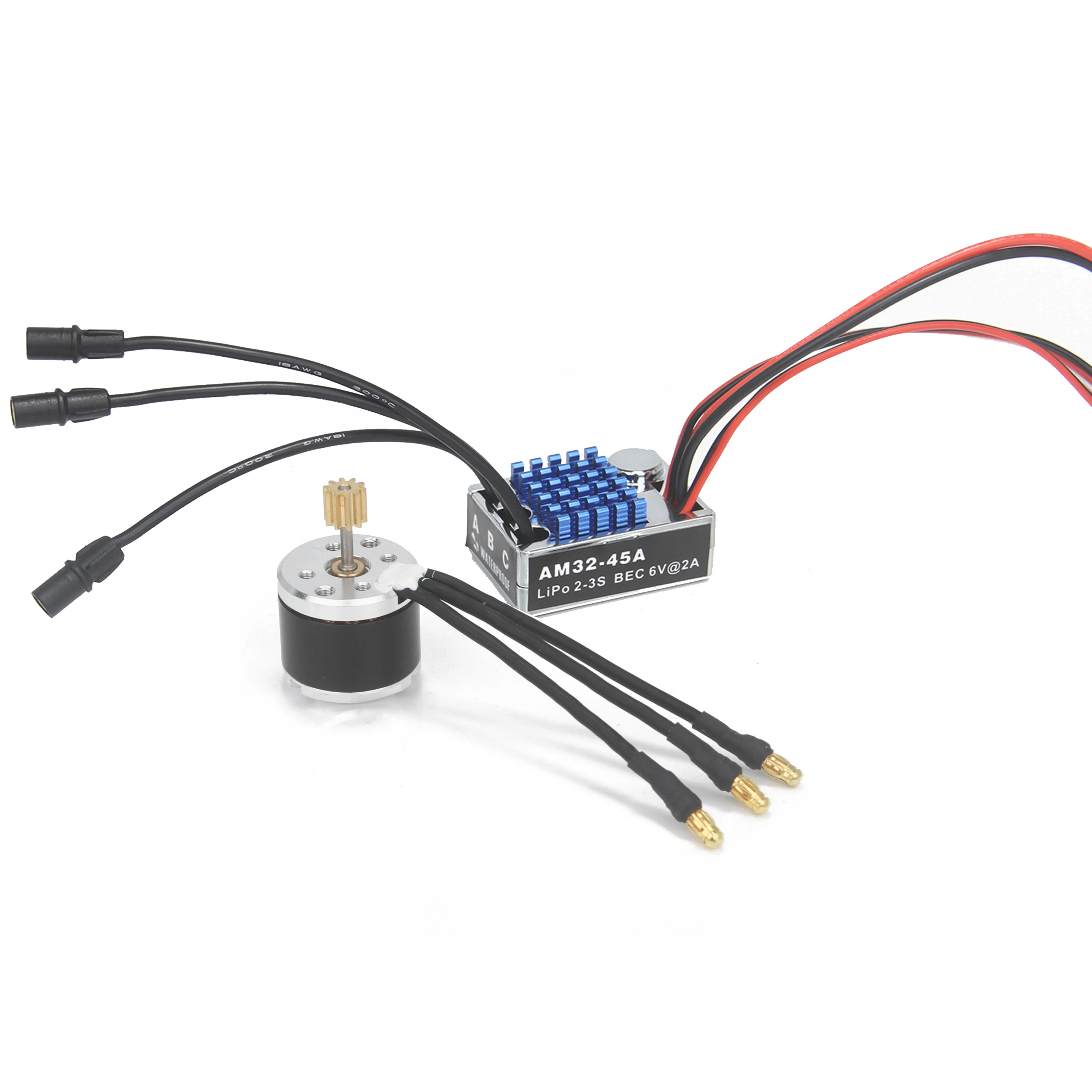

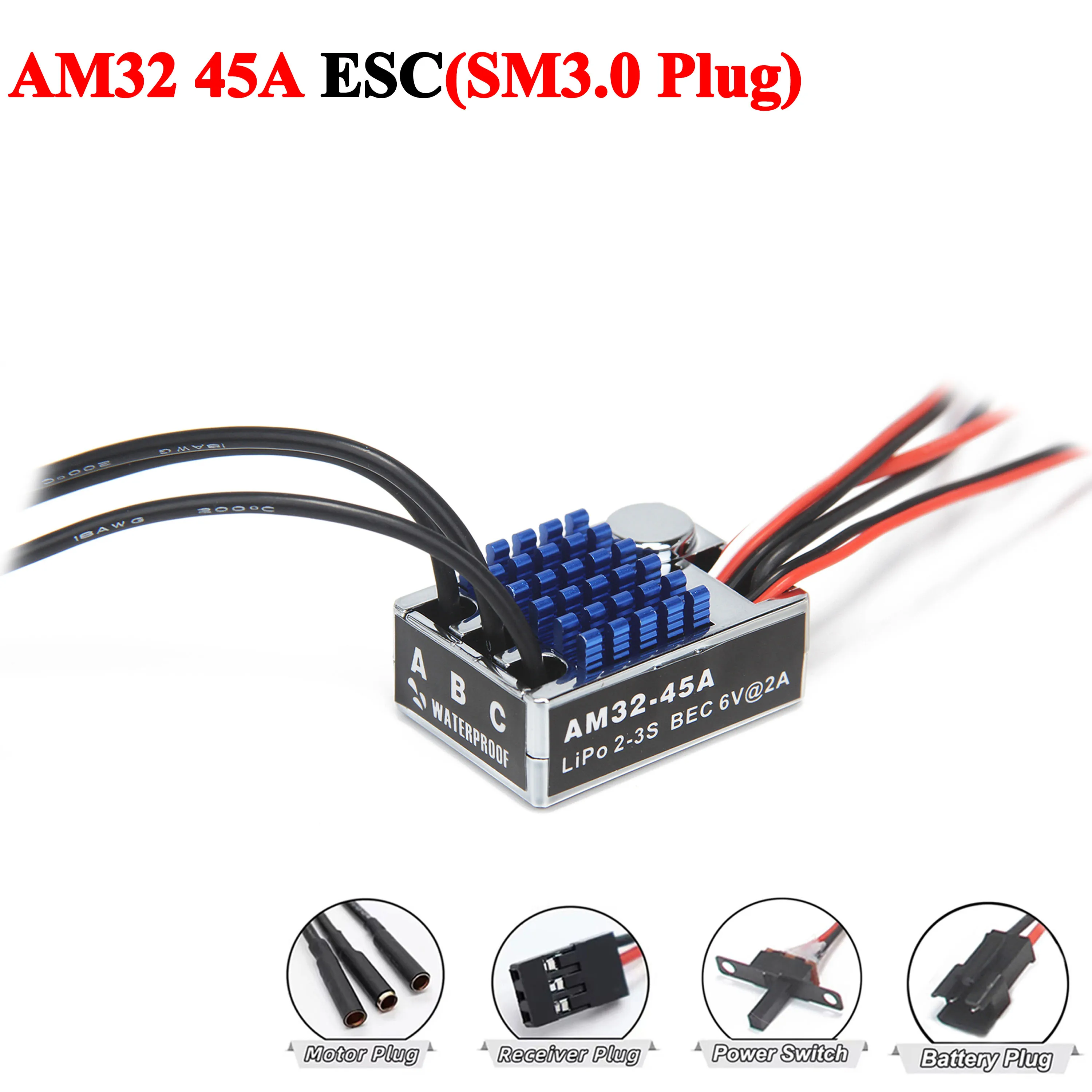

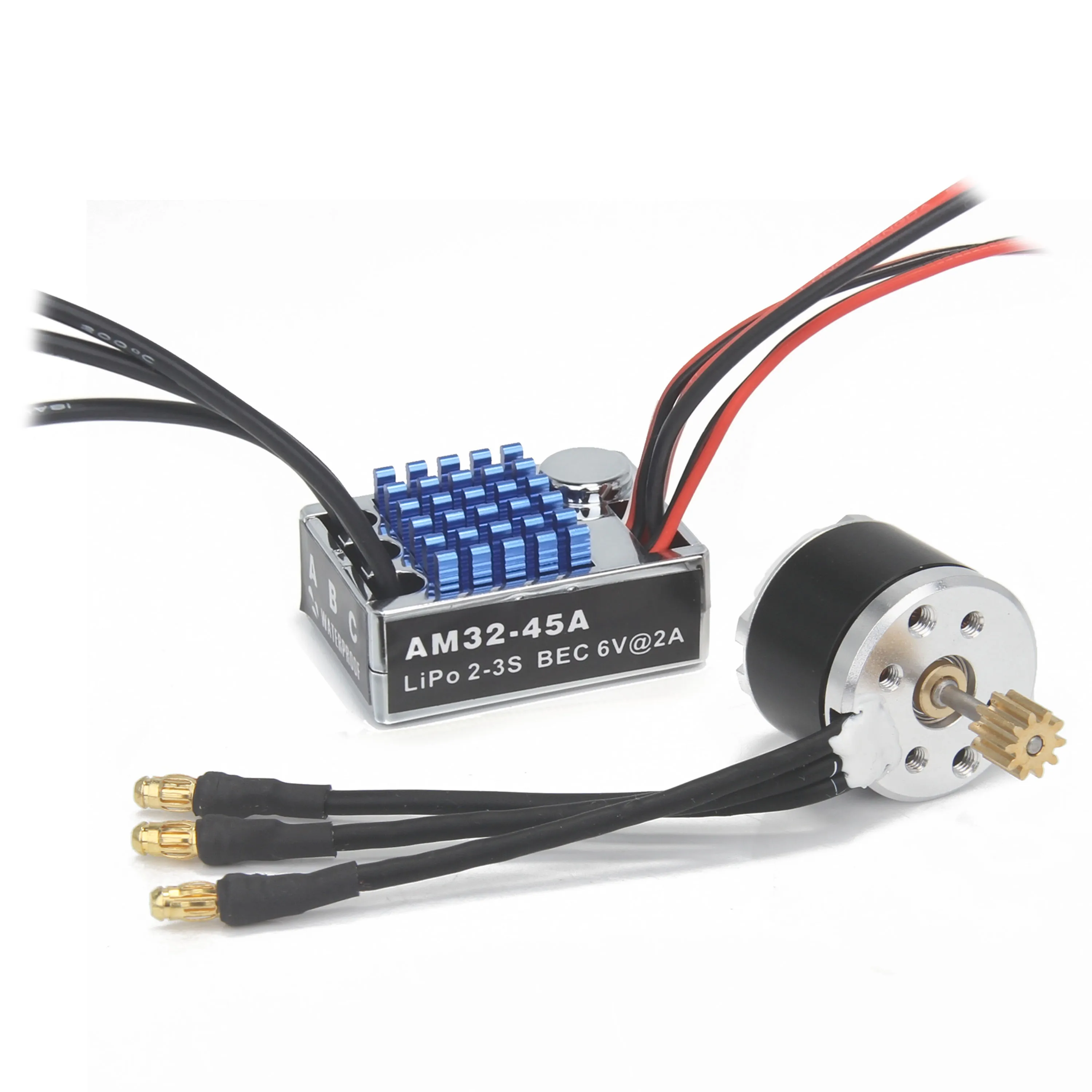

AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
Battery Connector: SM3.0/T Plug
Cont.Current:45A
Start-up:Sine start
Low speed torque compensation: Comes with low-speed torque compensation
Size: 38.5*28*18.5mm
Case Material: Plastic

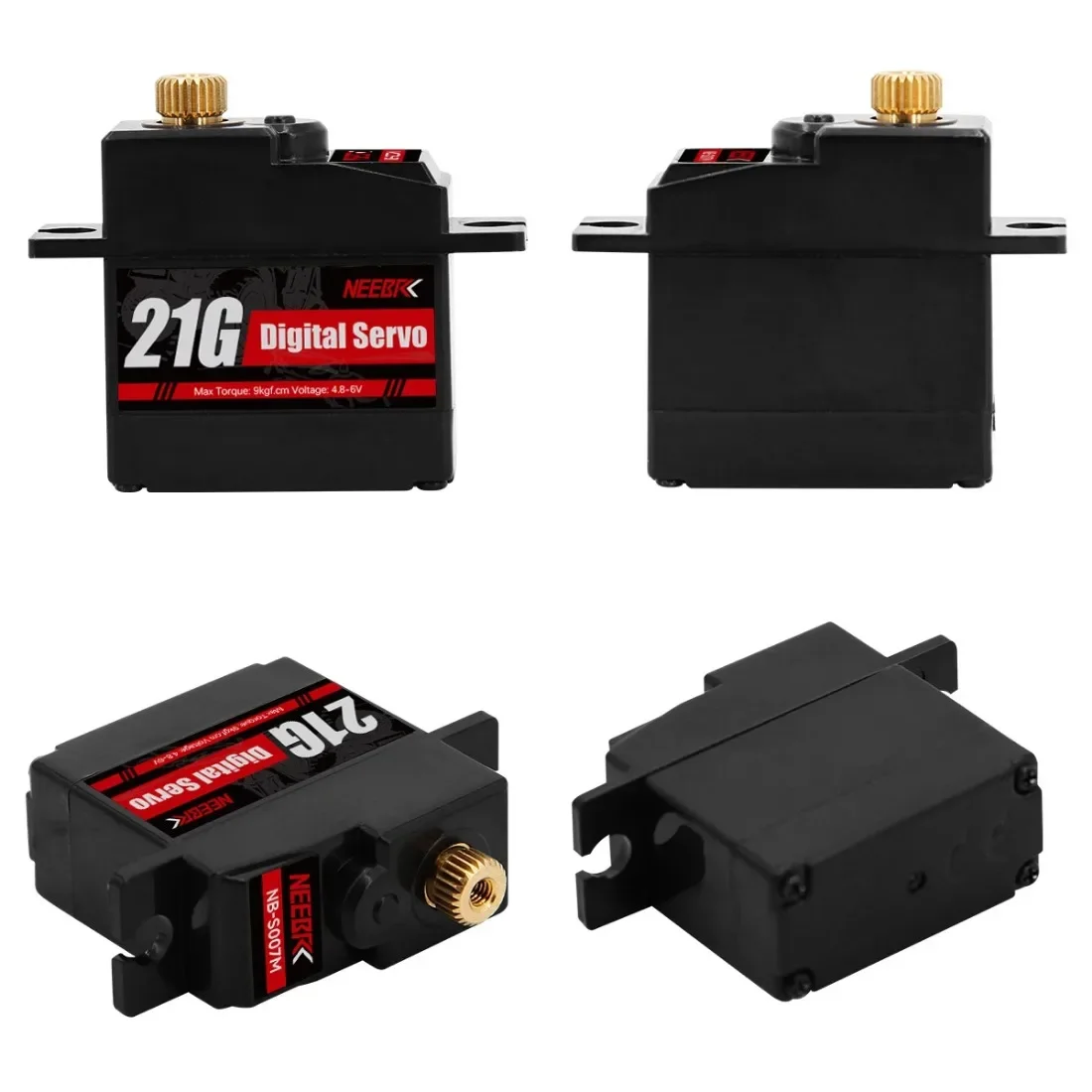

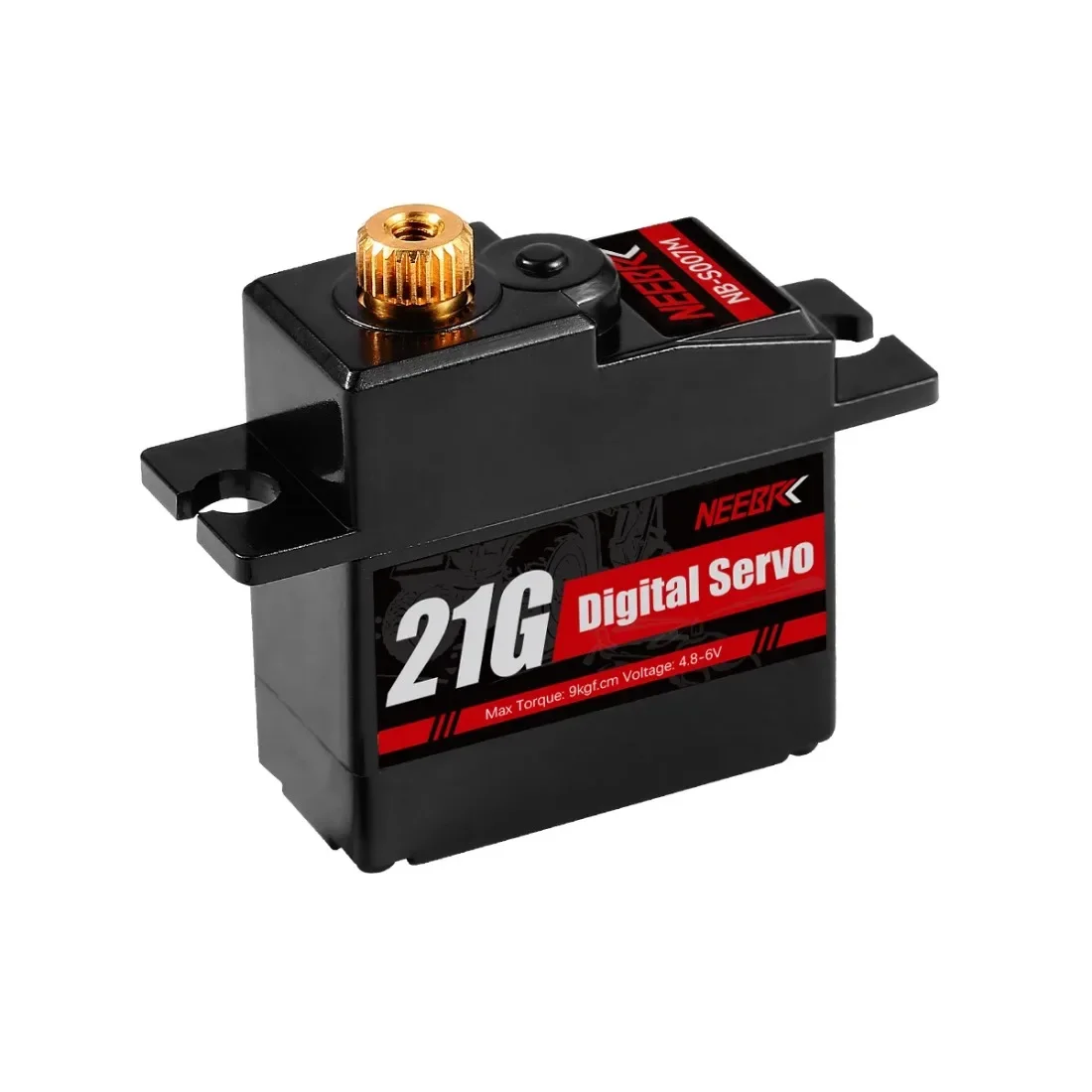

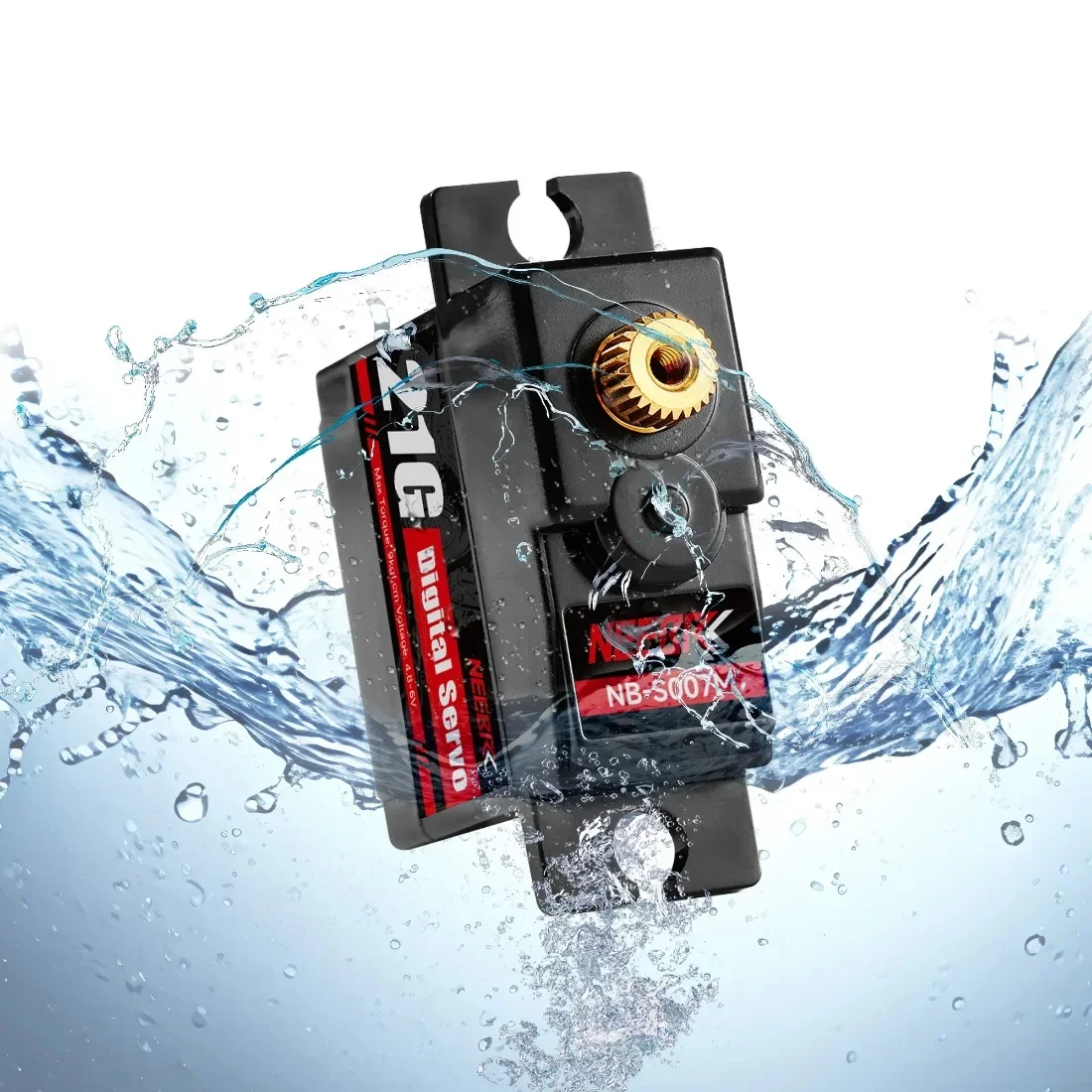

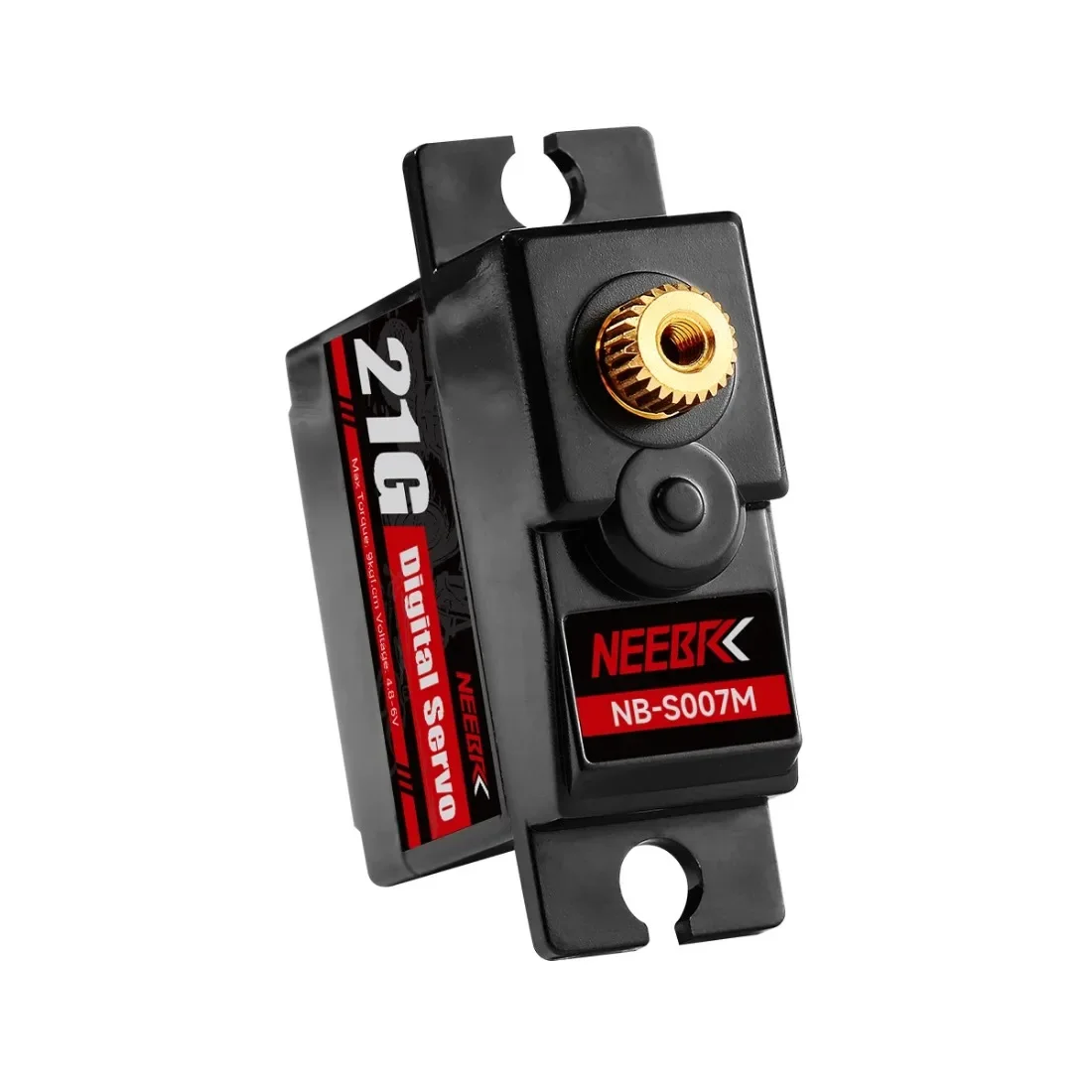

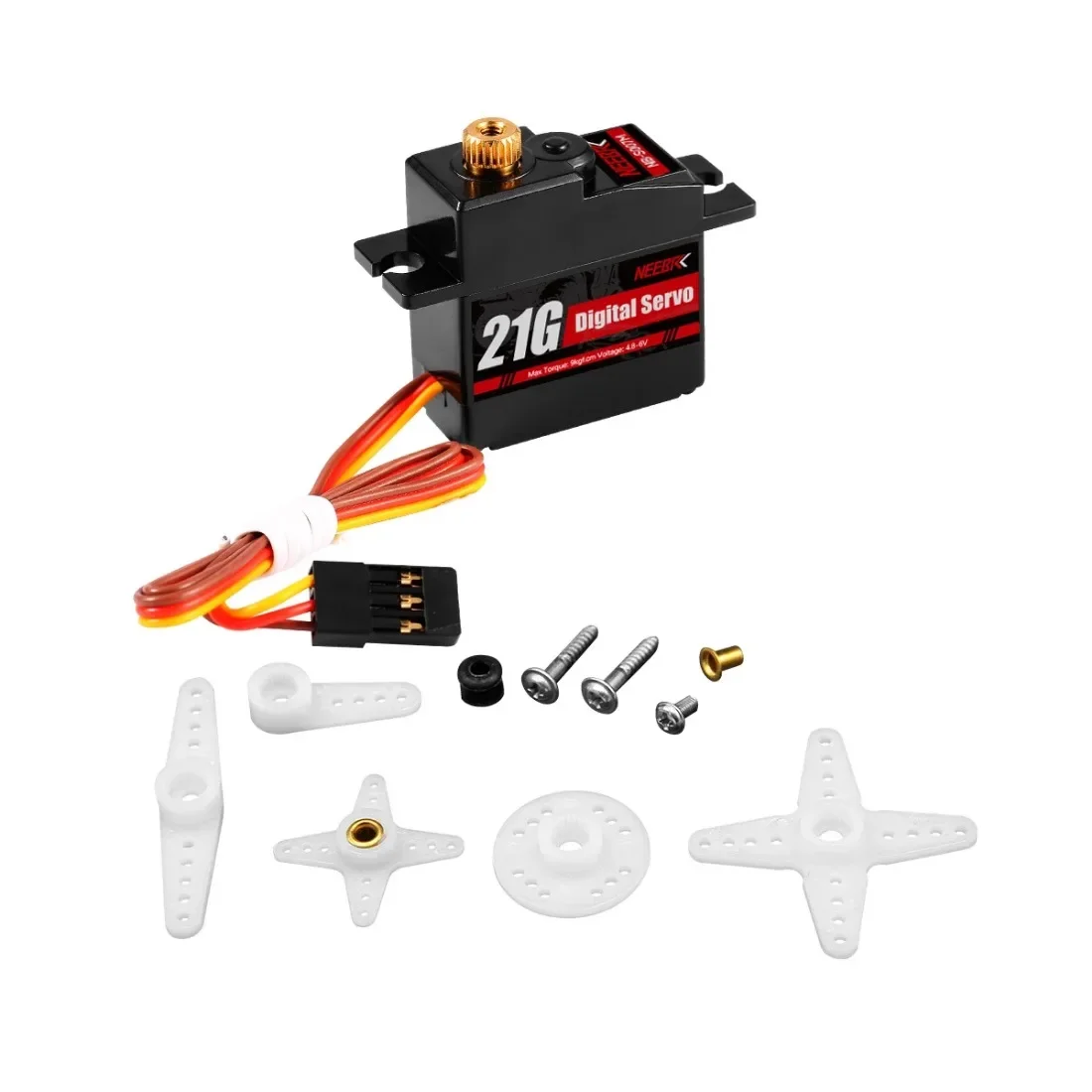

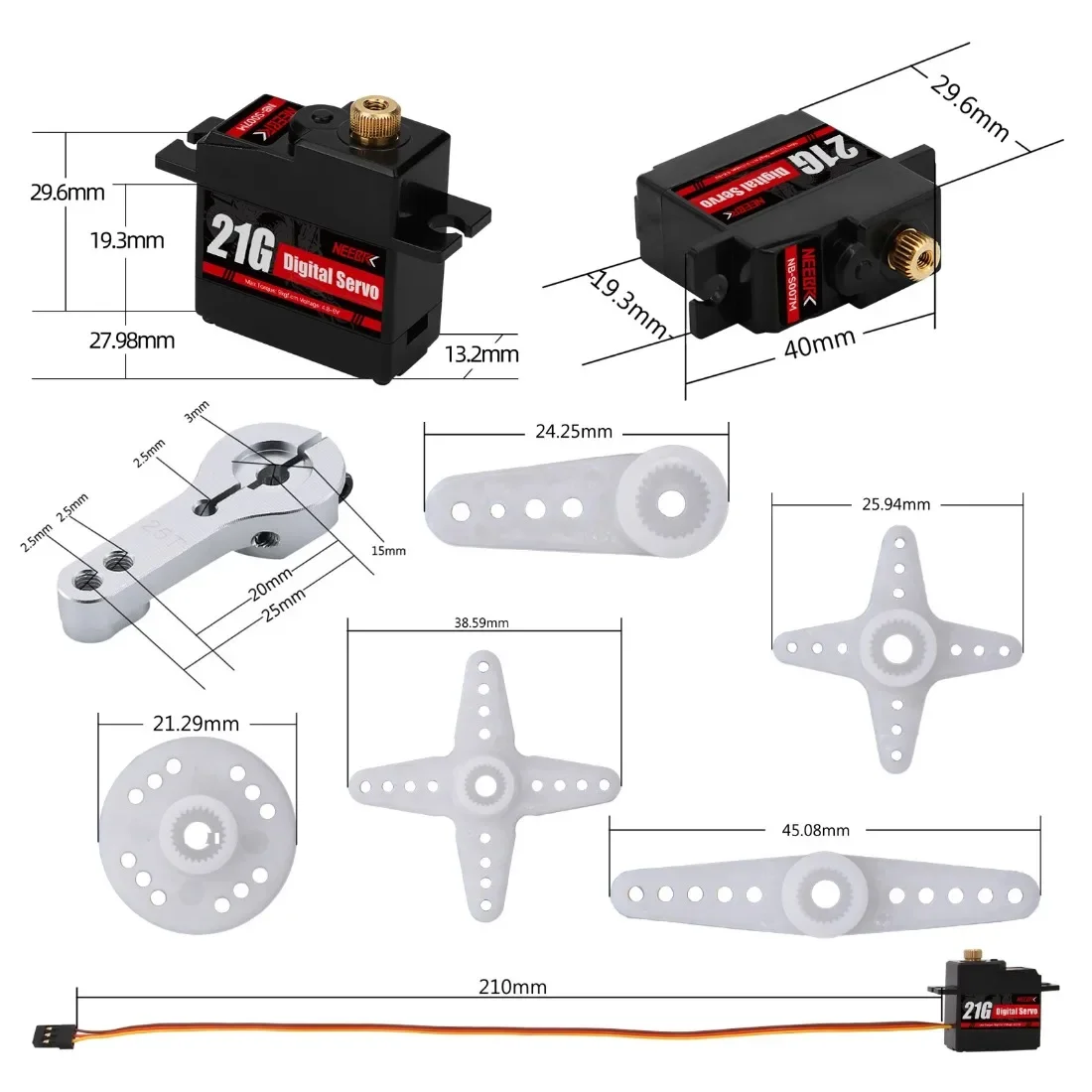

21g Servo S007M Specification:
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:
Item name: NEEBRC NB-S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 9kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA
Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Horn Gear Spline: 25T/Φ5.77
Weight: 20.7 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)

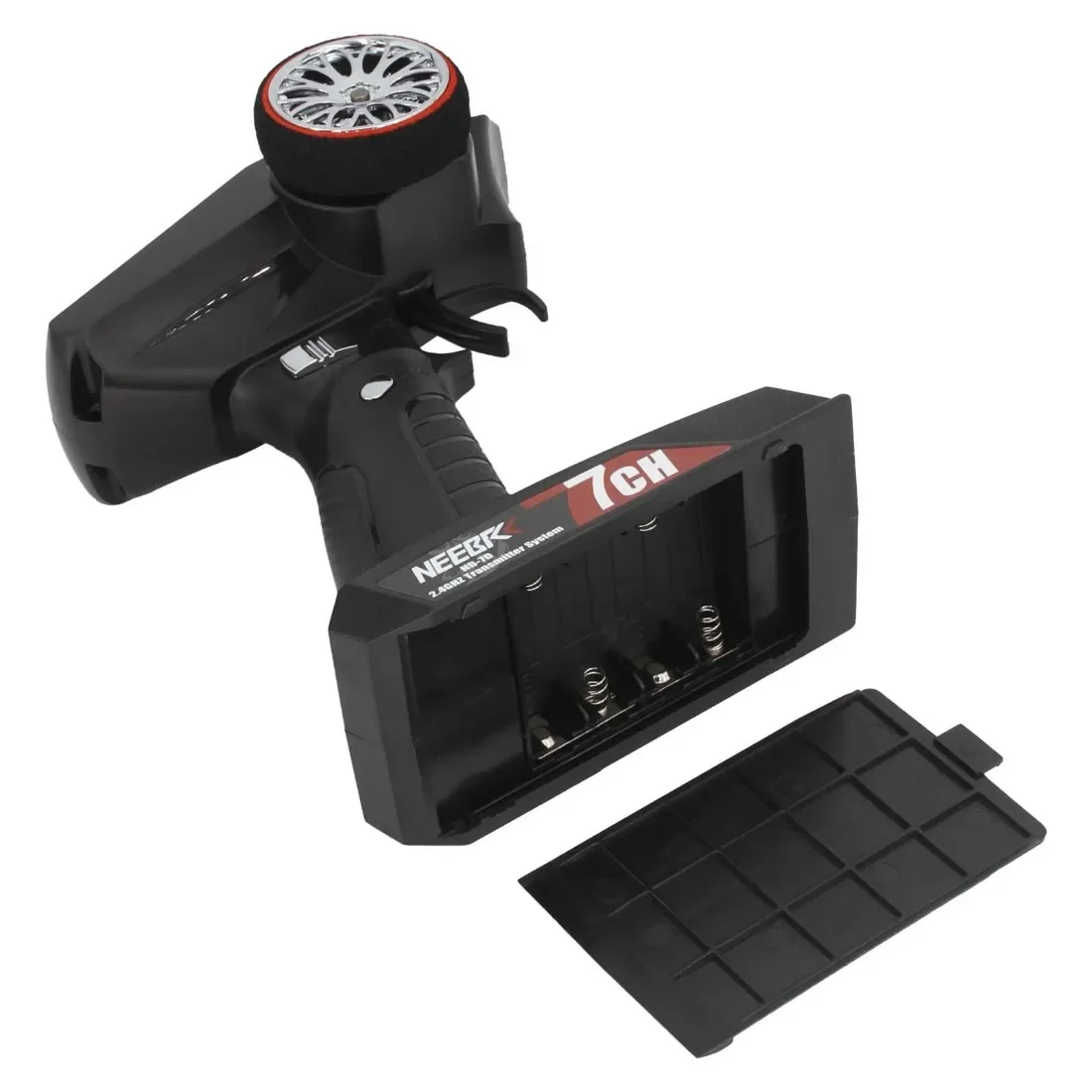

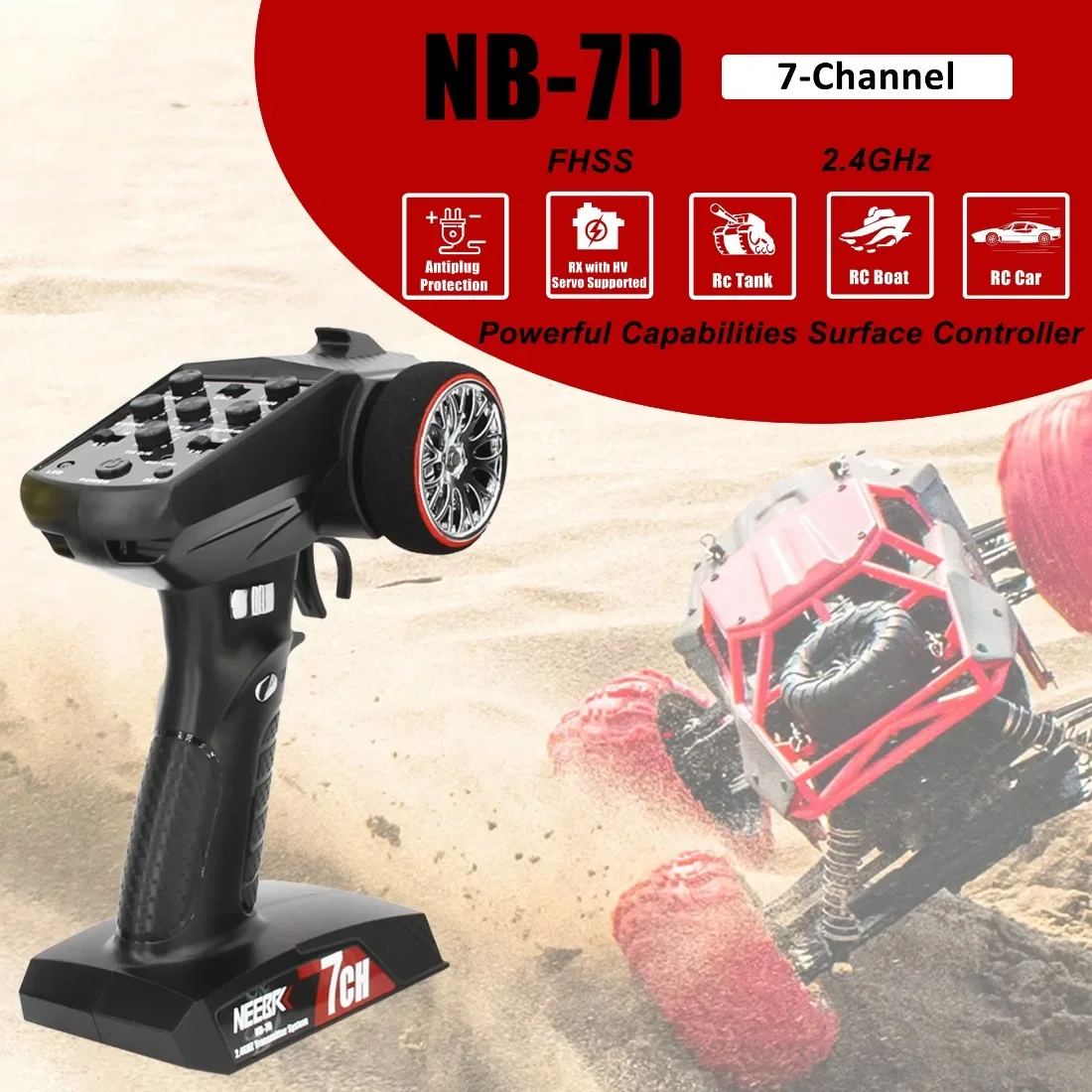

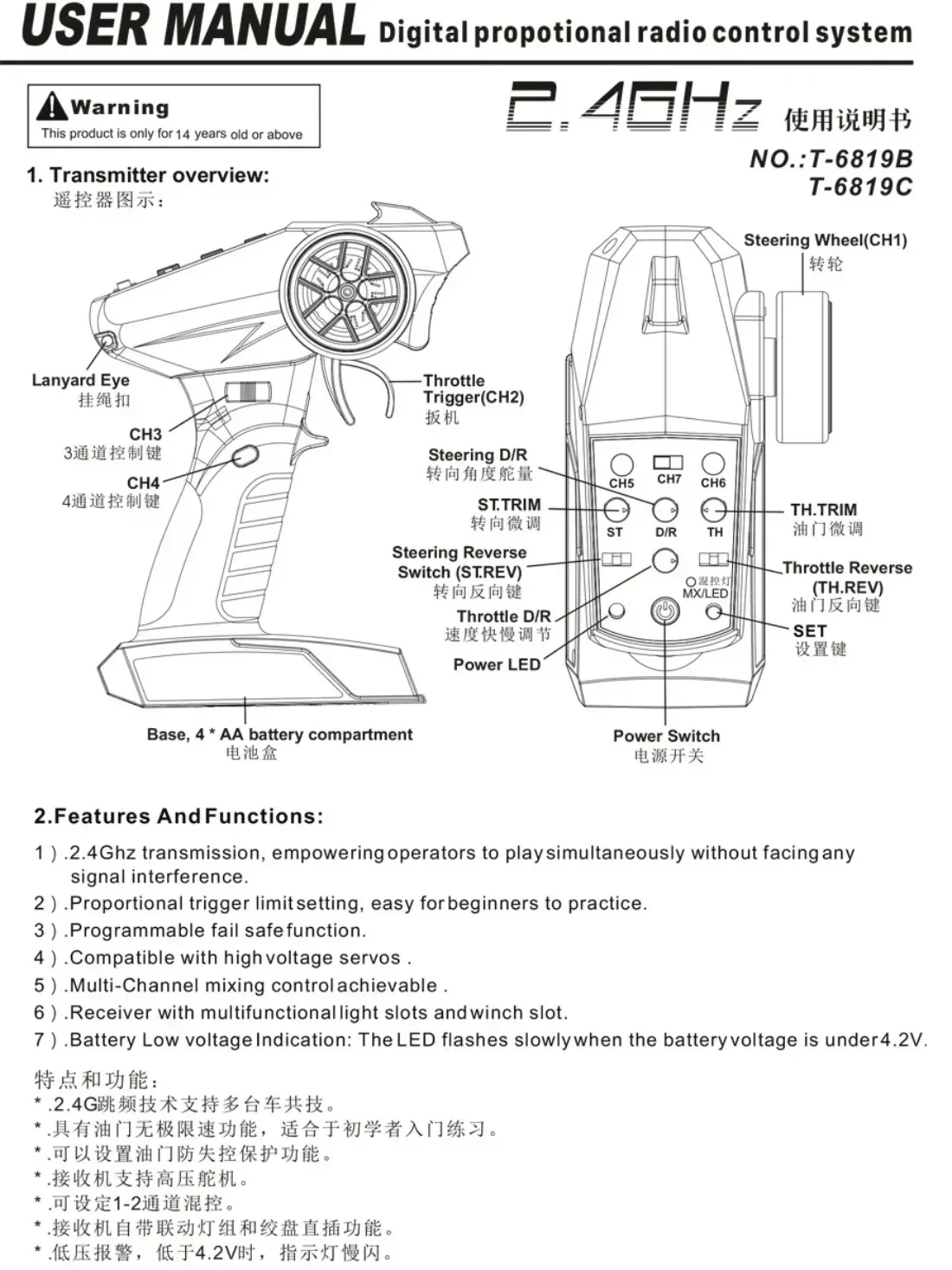

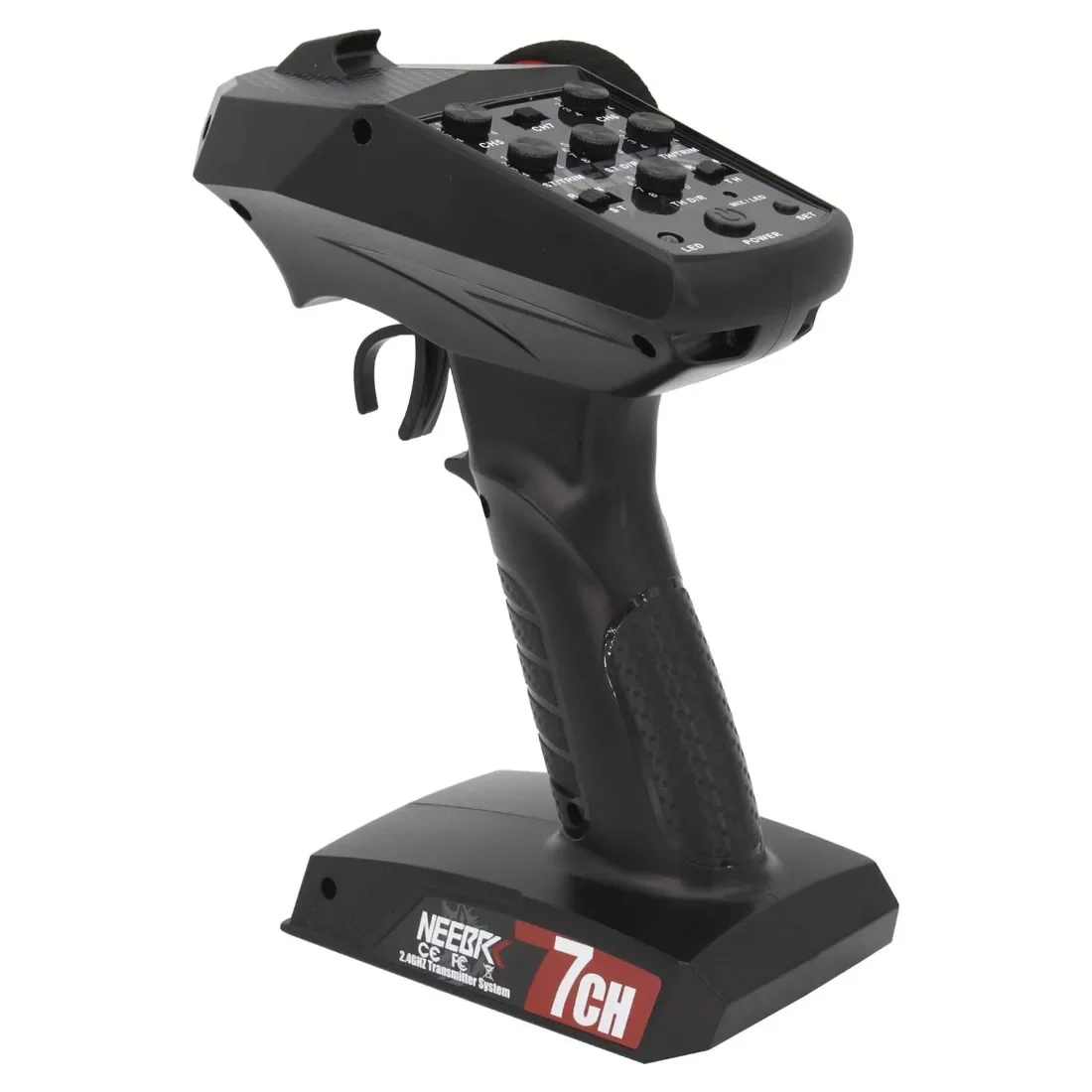

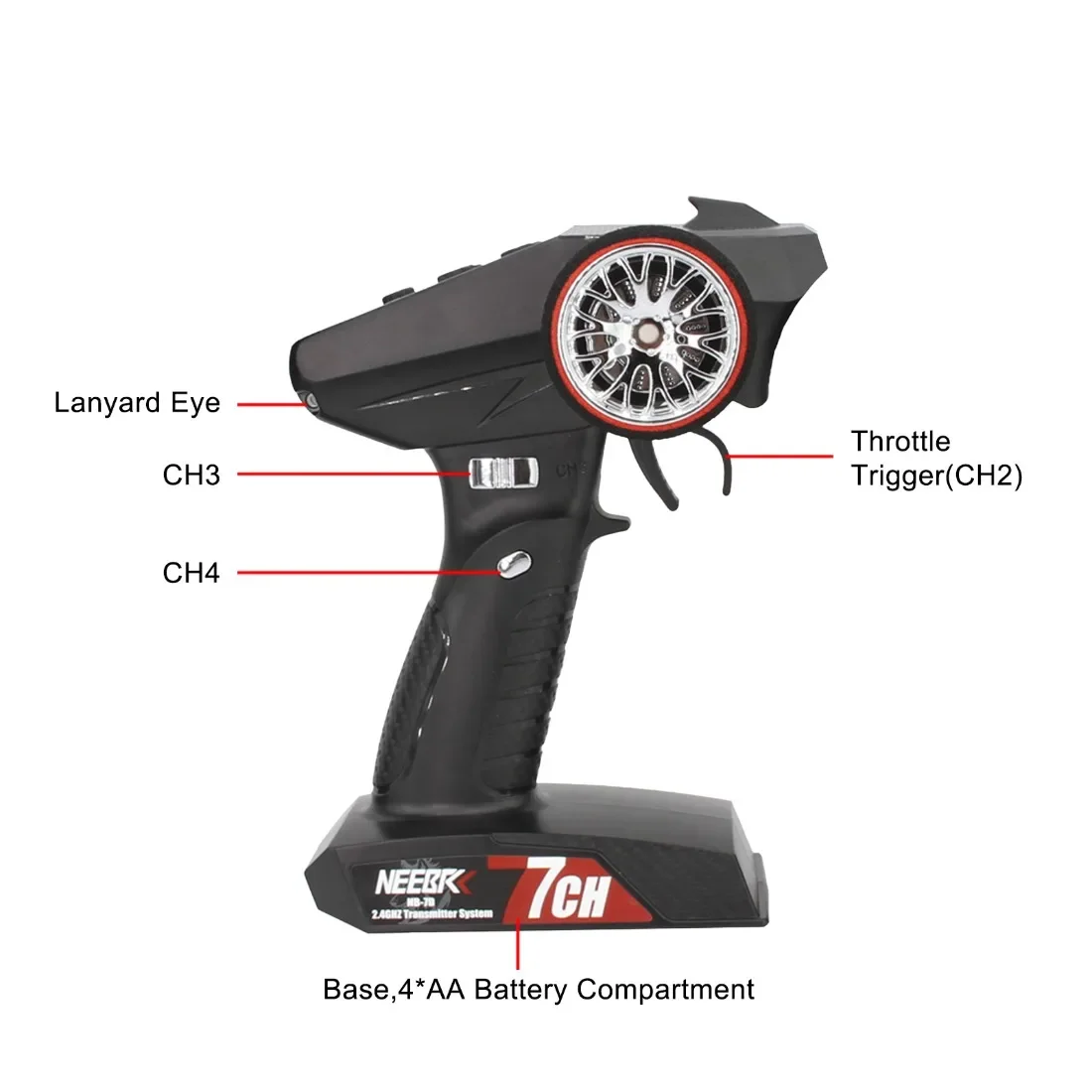

7CH Transmitter&Receiver:
Features And Functions:
2.4Ghz transmission, empowering operators to play simultaneously without facing any signal interference.
Proportional trigger limit setting, easy for beginners to practice.
Programmable fail safe function.
Compatible with high voltage servos .
Multi-Channel mixing control achievable .
Receiver with multifunctional light slots and winch slot.
Battery Low voltage Indication: The LED flashes slowly when the battery voltage is under 4.2V.

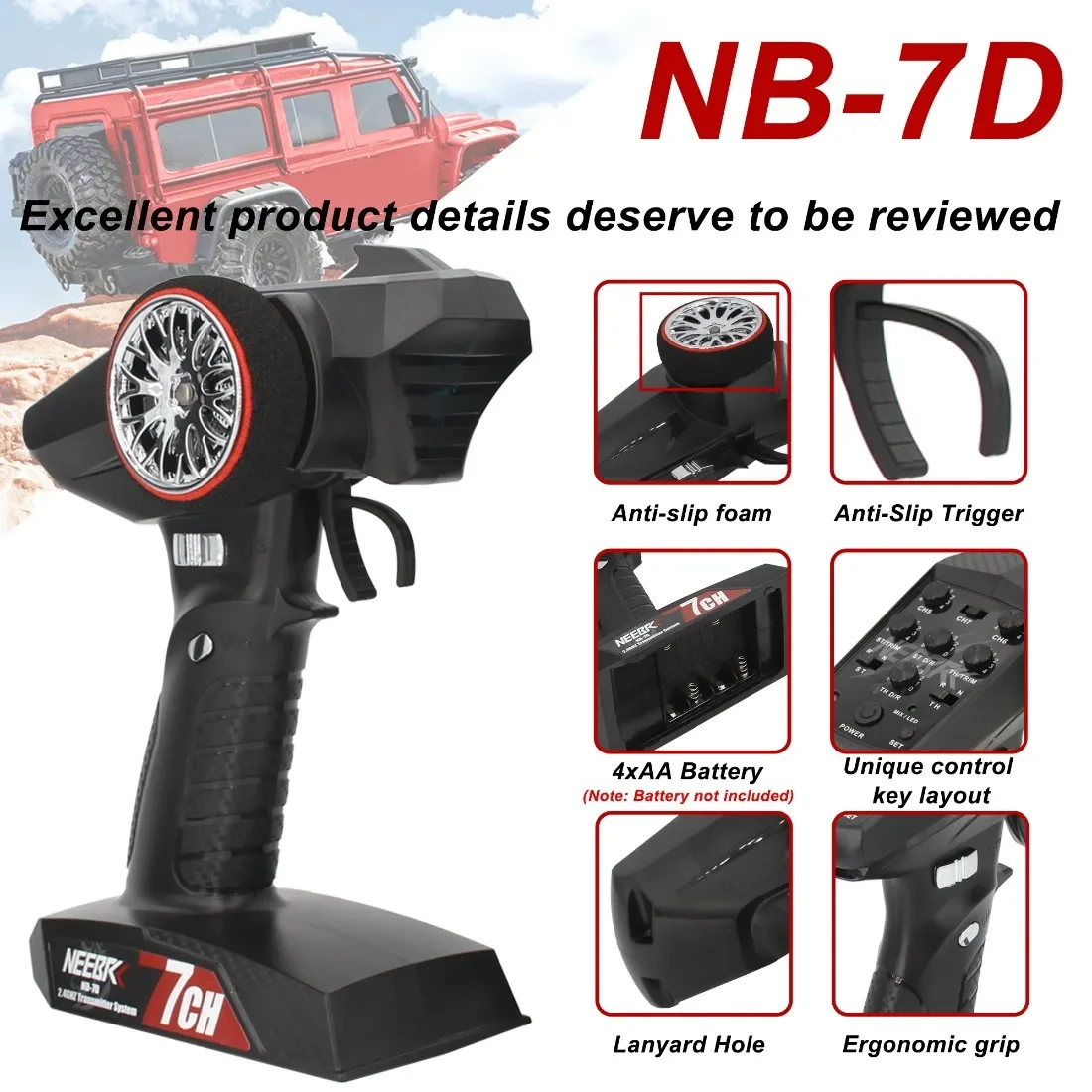

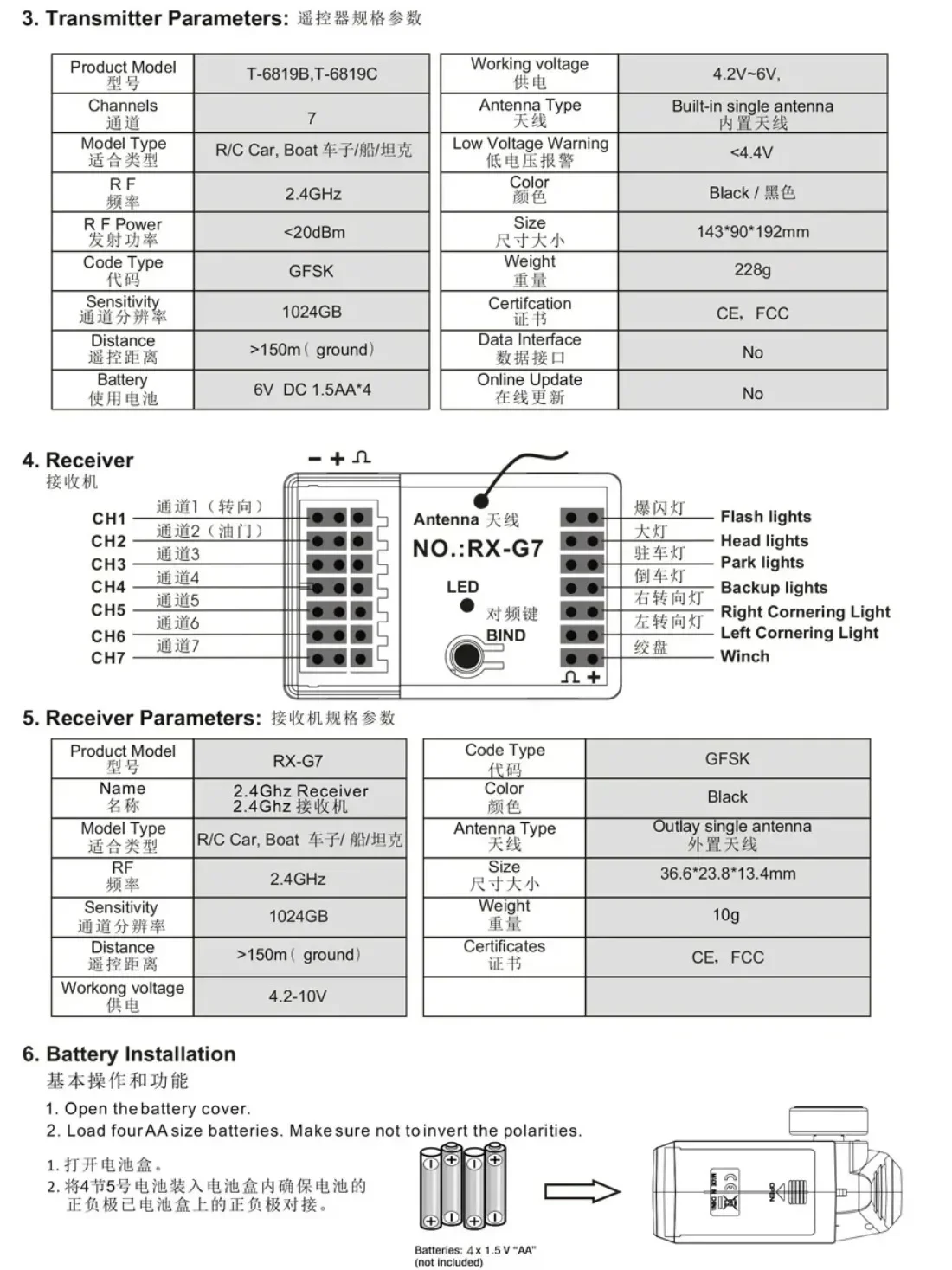

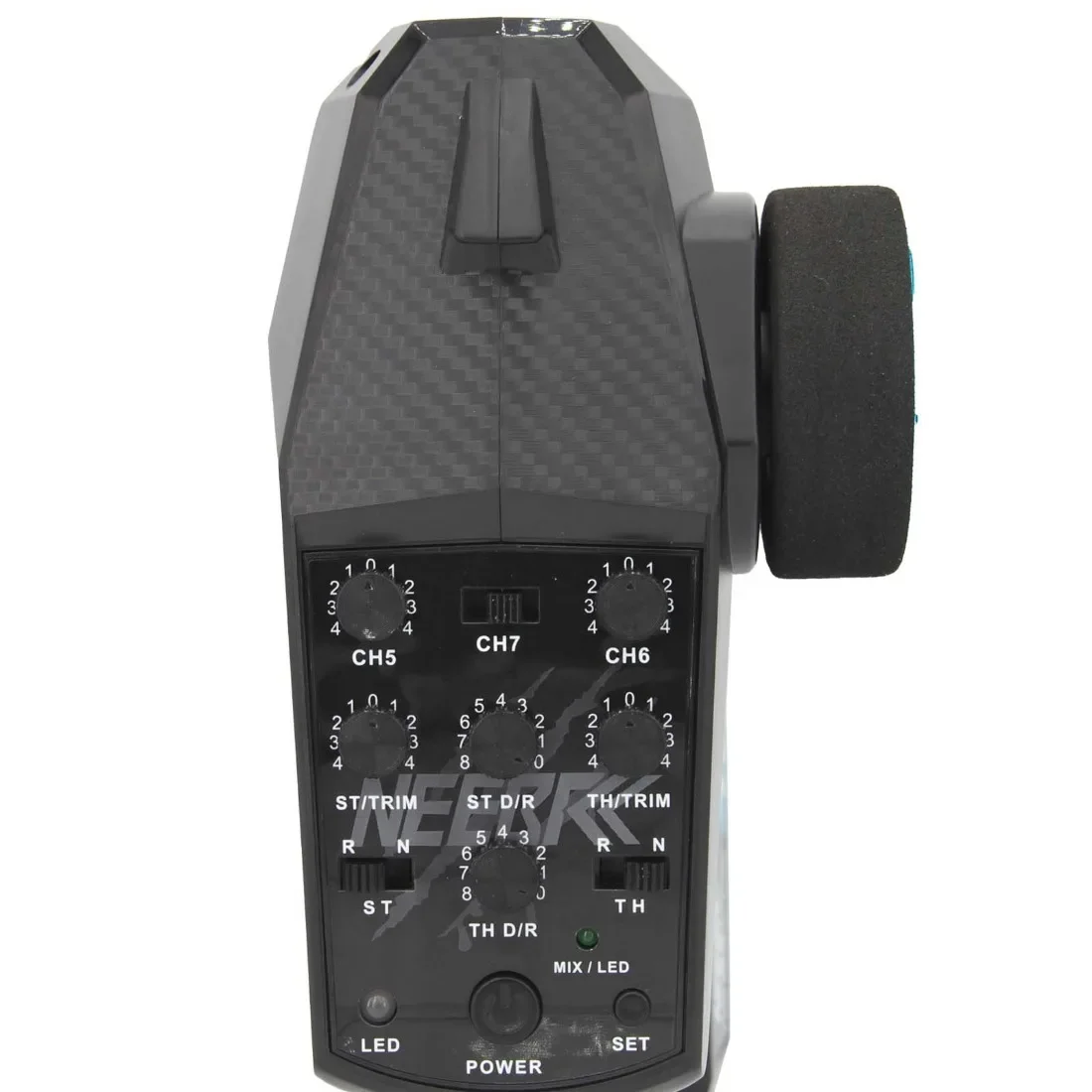

Transmitter Specification:
Product Model:NB-7D
Wheelhandle Color Optional:Blue/Red/Gold
Channel: 7
Model Type:RC Car/Boat
RF:2.4GHz
RF Power: <20dBm
Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)
Battery:6V DC 1.5AA*4
Working voltage:4.2-6V
Antenna Type: Built-in single antenna
Low Voltage Warning:<4.4V

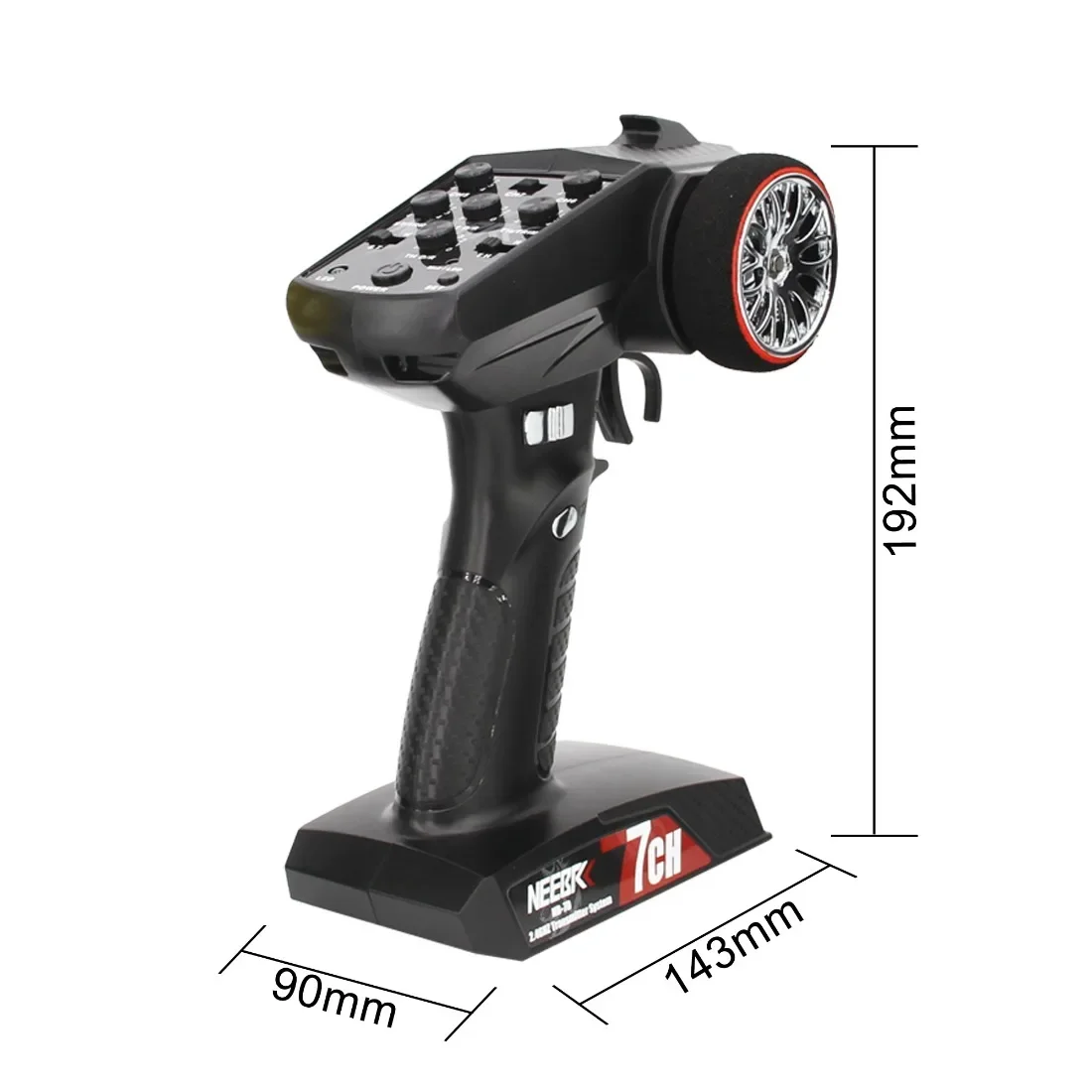

Size: 143*90*192mm
Weight: 228g
Certification:CE FCC
Data Interface: NO
Online Update: NO

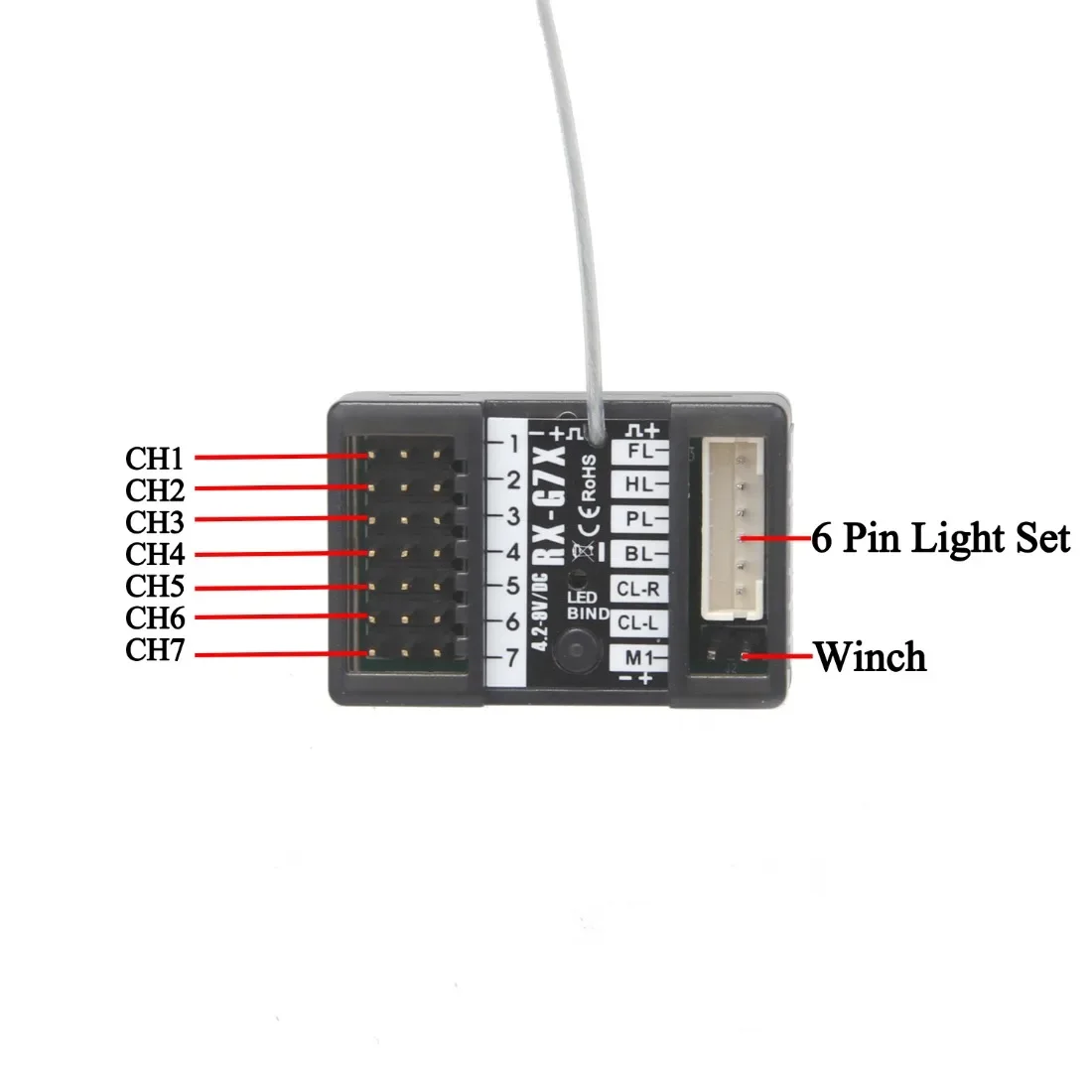

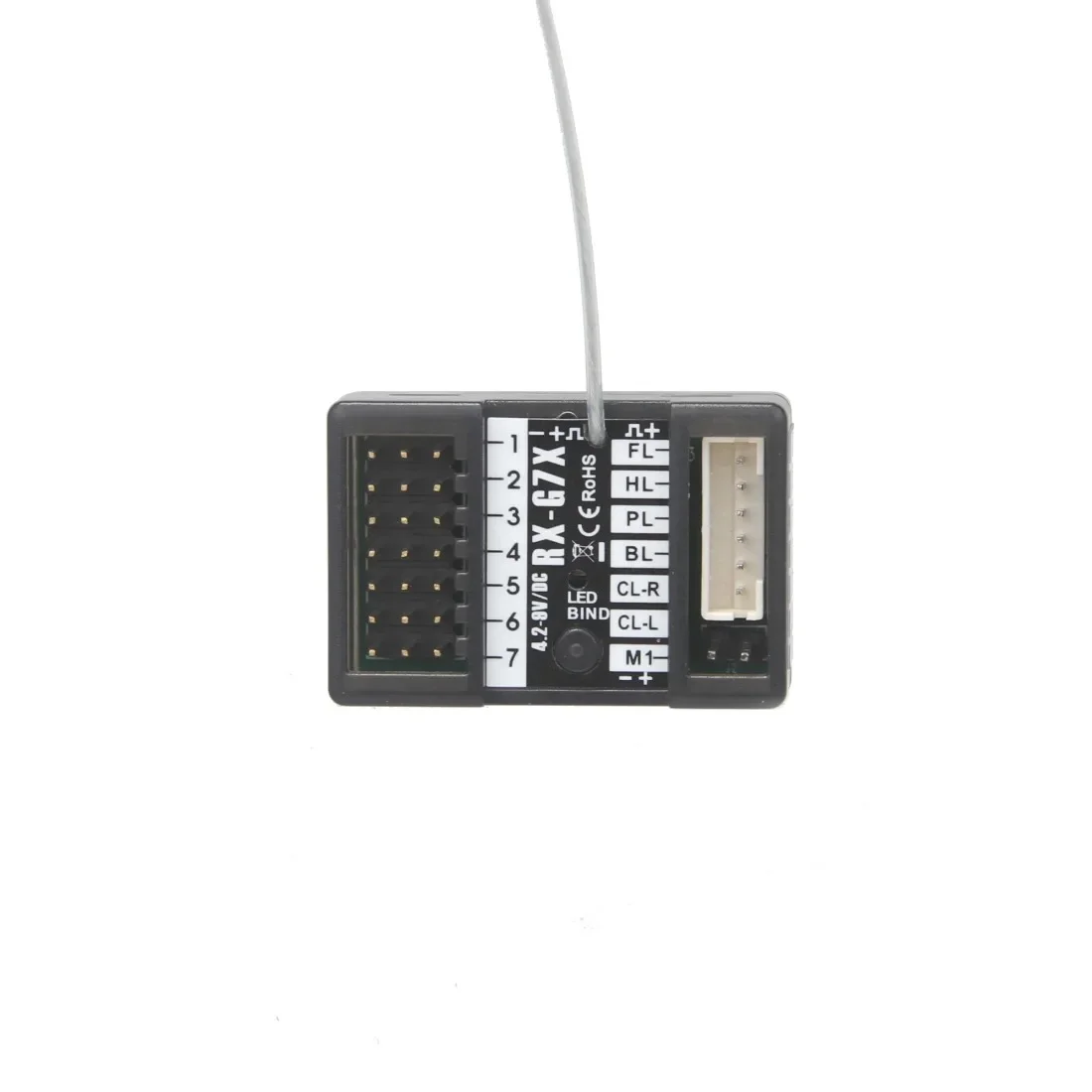

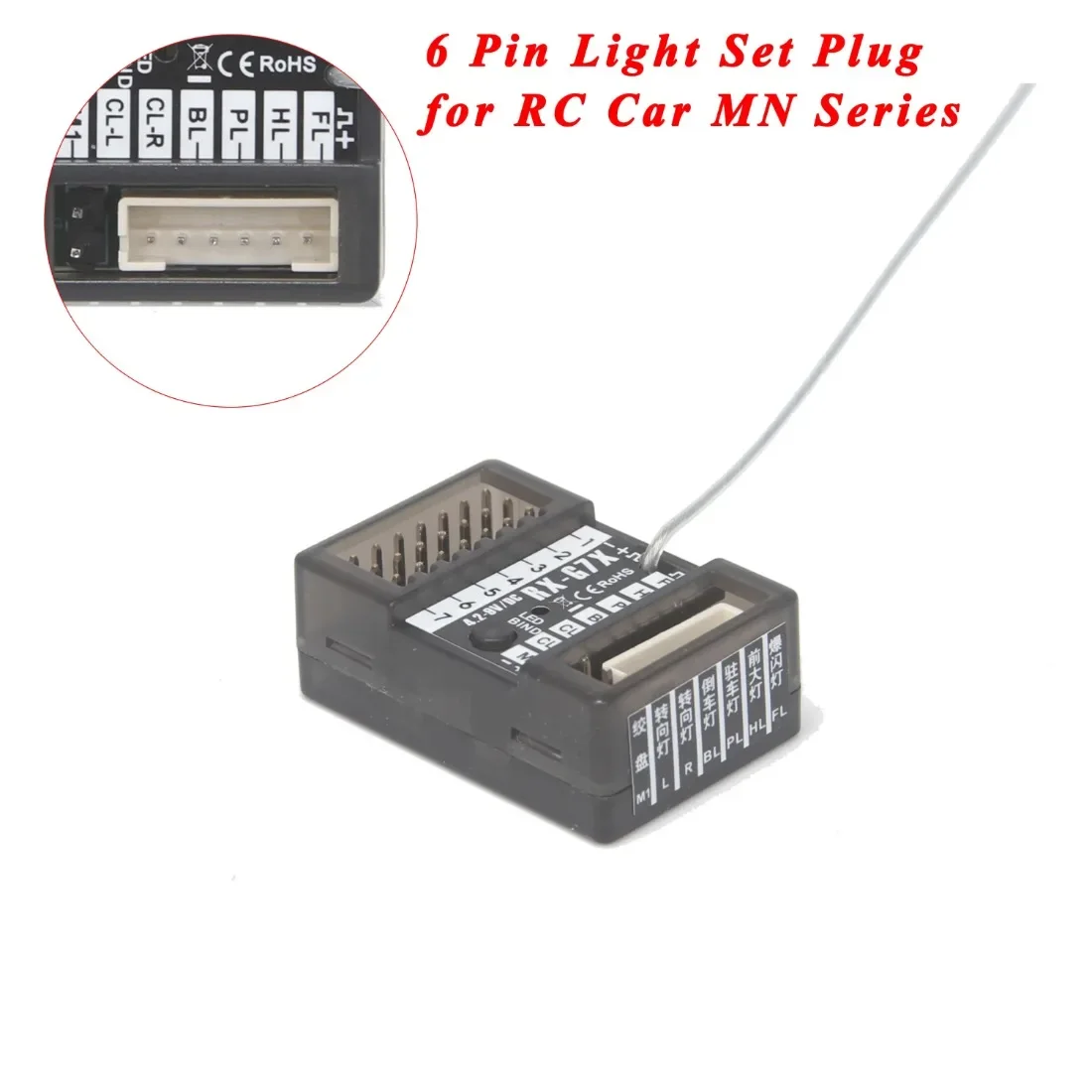

Receiver Specification:
Product Model:RX-G7X
Channel: 7
Model Type:RC Car/Boat
RF:2.4GHz
Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)
Working voltage :4.2V-10V
Antenna Type:Outlay single antenna
Size: 36.6*23.8*13.4mm
Weight:10g
Certification:CE FCC

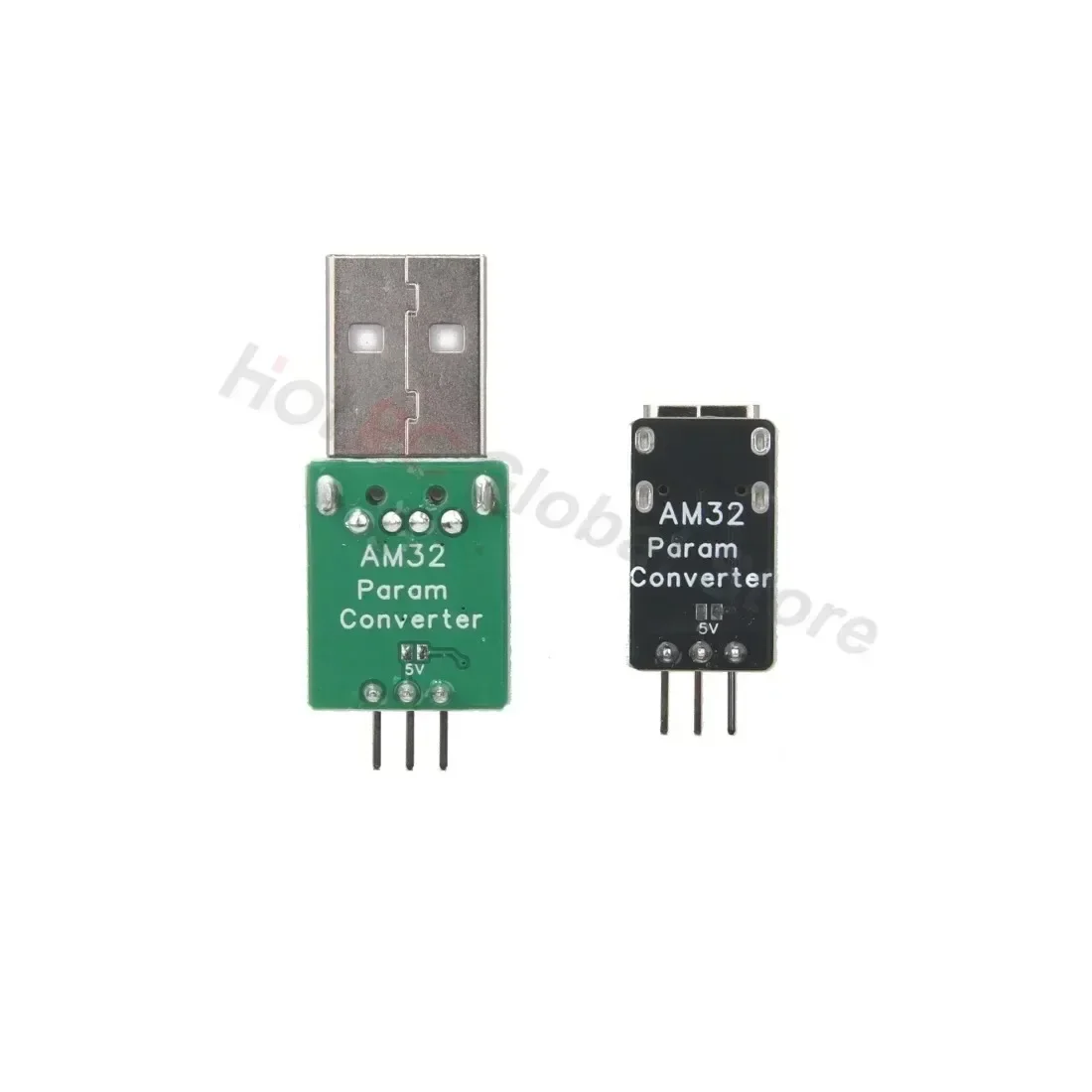

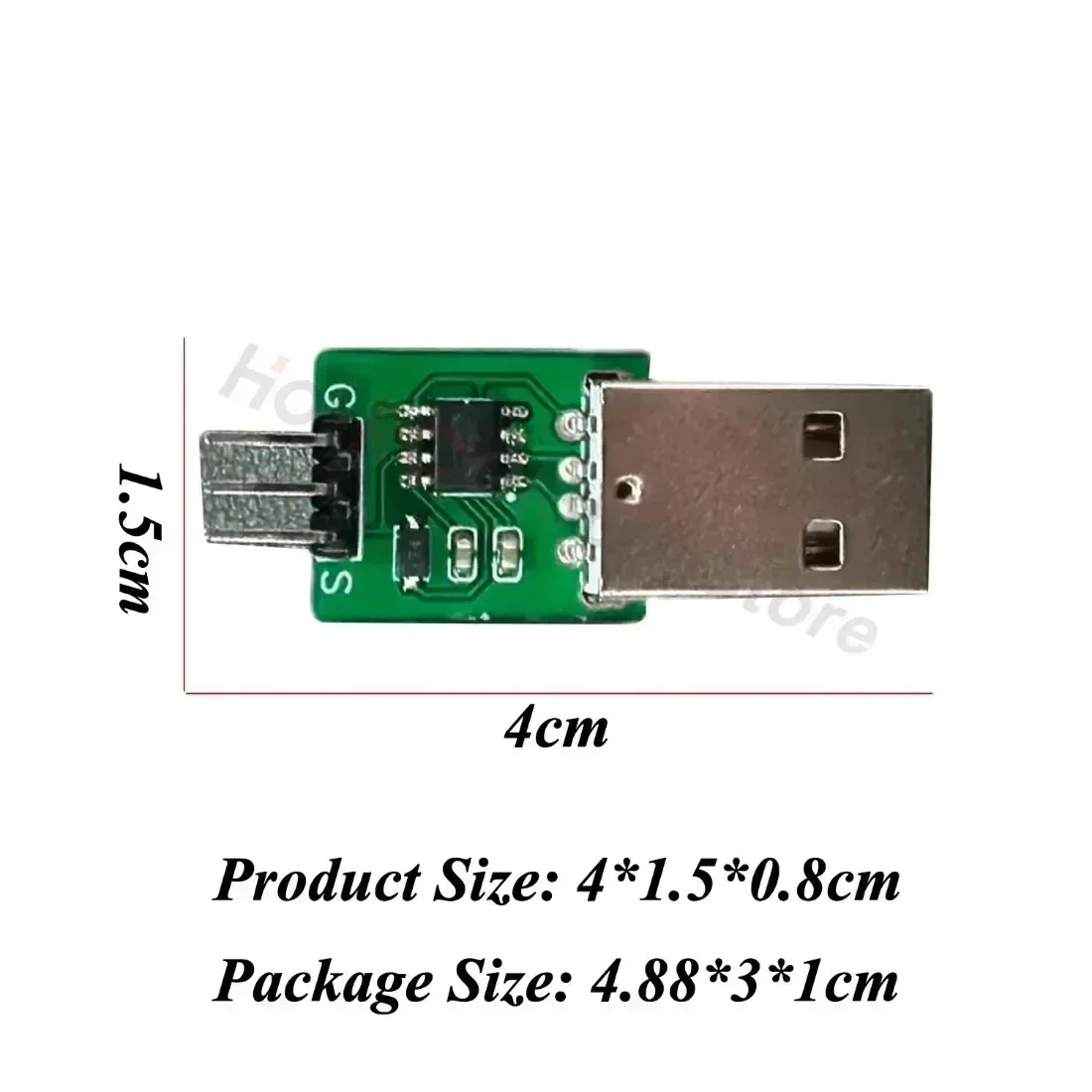

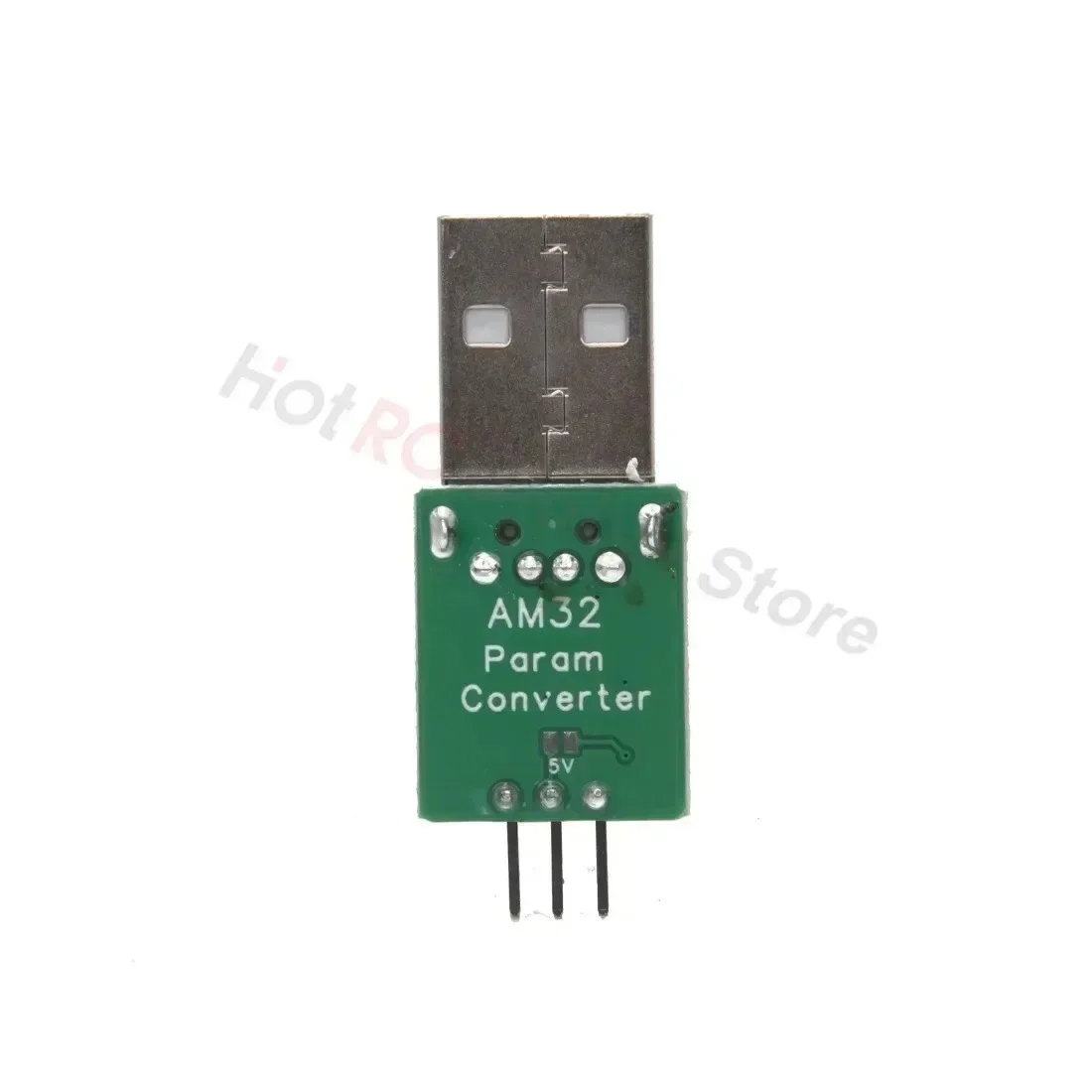

USBLink

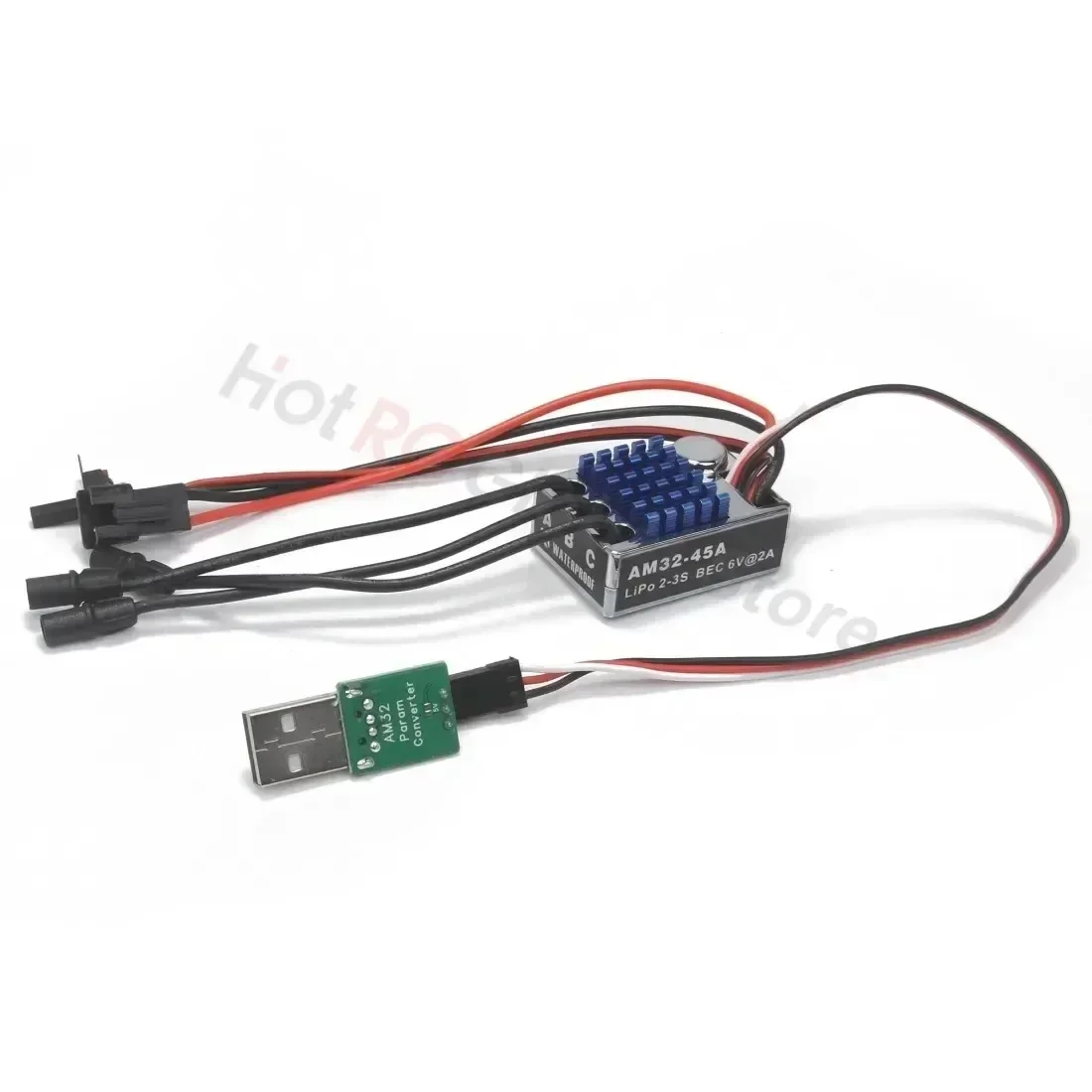

For AM32/BL32, connects the ESC to a computer for configuration or firmware upgrade.
Portable and easy to use, simply connect the ESC signal plug, connect the USB Type-C cable to a computer, and install the VCP driver.
AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.
Specification:
Item Name: AM32 ESC Param Converter USB Link
Product size: 4*1.5*0.8cm
Package size: 4.88*3*1cm
Quantity: 1 piece

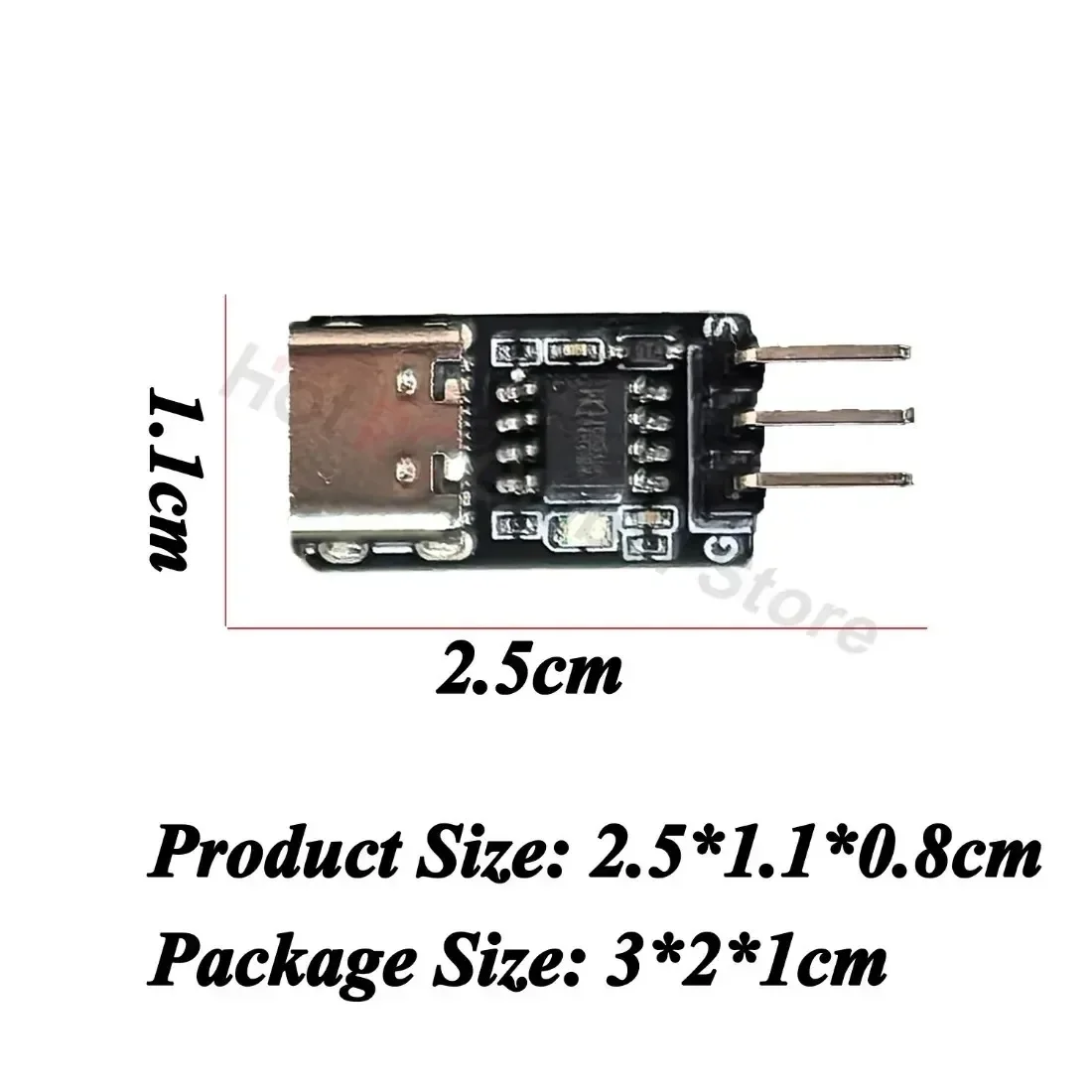

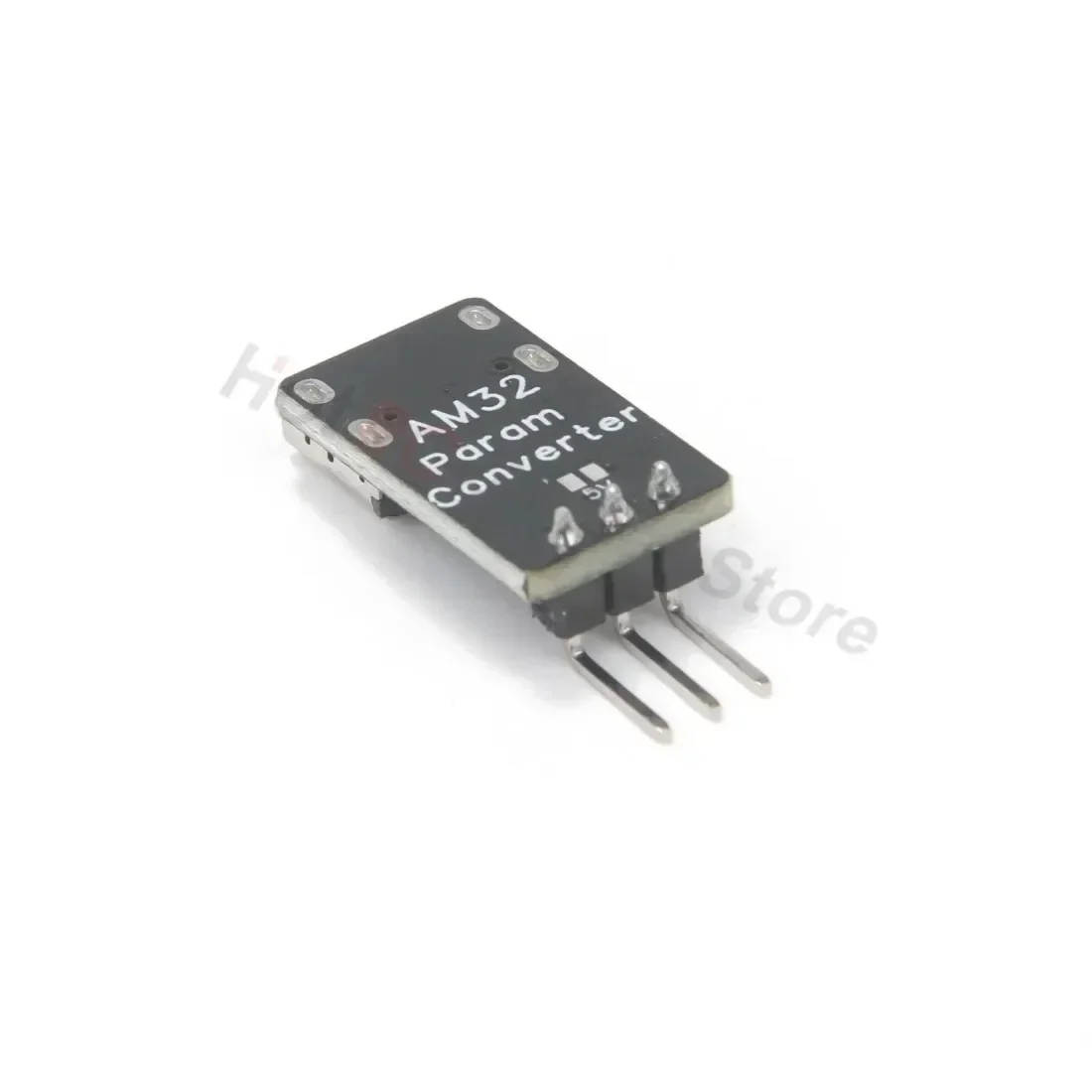

Item Name: AM32 ESC Param Converter Type-C Link
Product size: 2.5*1.1*0.8cm
Package size: 3*2*1cm
Quantity: 1 piece
