ToolkitRC M7 Charger Intelligent Discharge Lithium Battery 1S 2S 3S-6S Server ESC Receiver Detection IPS Model Toy Accessories

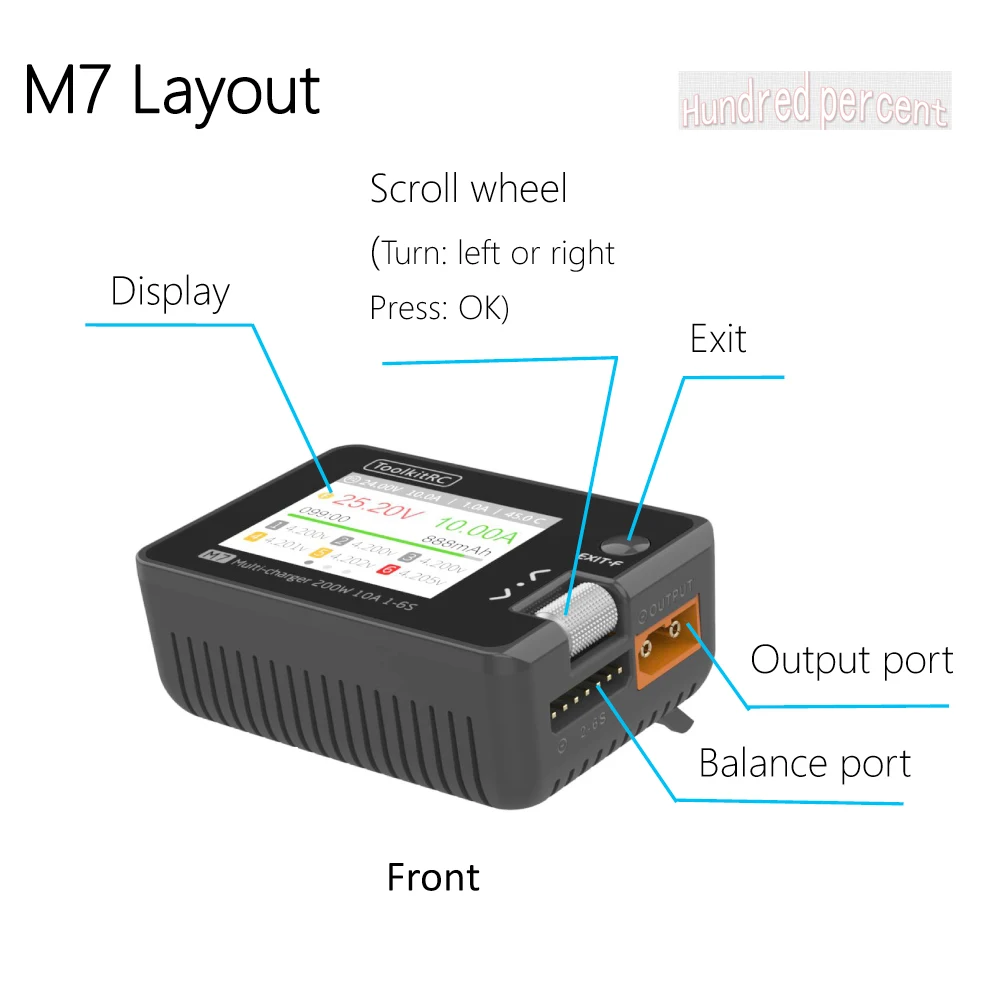

M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.

M7 SPECS:

Product size: 73*51*27 mm

Product weight: 90g

Pack size: 84*79*39 mm

Pack weight: 150g

LCD: IPS 2.0inch LCD 320*240 Pixel

Input voltage: 7.0-28.0V @MAX 12A

Type of battery: Lipo LiHV LiFe Lion@1-6

NiMh @1-16S Pb @1-10S

Balance current: 400mA @2-6S

Charger power: 200W @MAX 10A

Discharge power: 200W @MAX 10A Recycle mode

10W@3A Normal mode

USB: 2.1A @5.0V or Upgrade

Input:

PWM: 880-2200us @20-400Hz

PPM: 880-2200us*8CH @20-50Hz

SBUS: 880-2200us*16CH @20-100Hz

Voltage: 1.0-5.0V @1-6S

Internal resistance: 1-99mR @1-6S

ESC: 200W@10A PWM Output

Output:

PWM: 500-2500us @20-1000Hz

PPM: 880-2200us*8CH @20-50Hz

SBUS: 880-2200us*16CH @20-100Hz

Power supply: 1.0-28.0V @1.0-10A mode:CC+CV

OverCurrent Cutoff time: <5ms

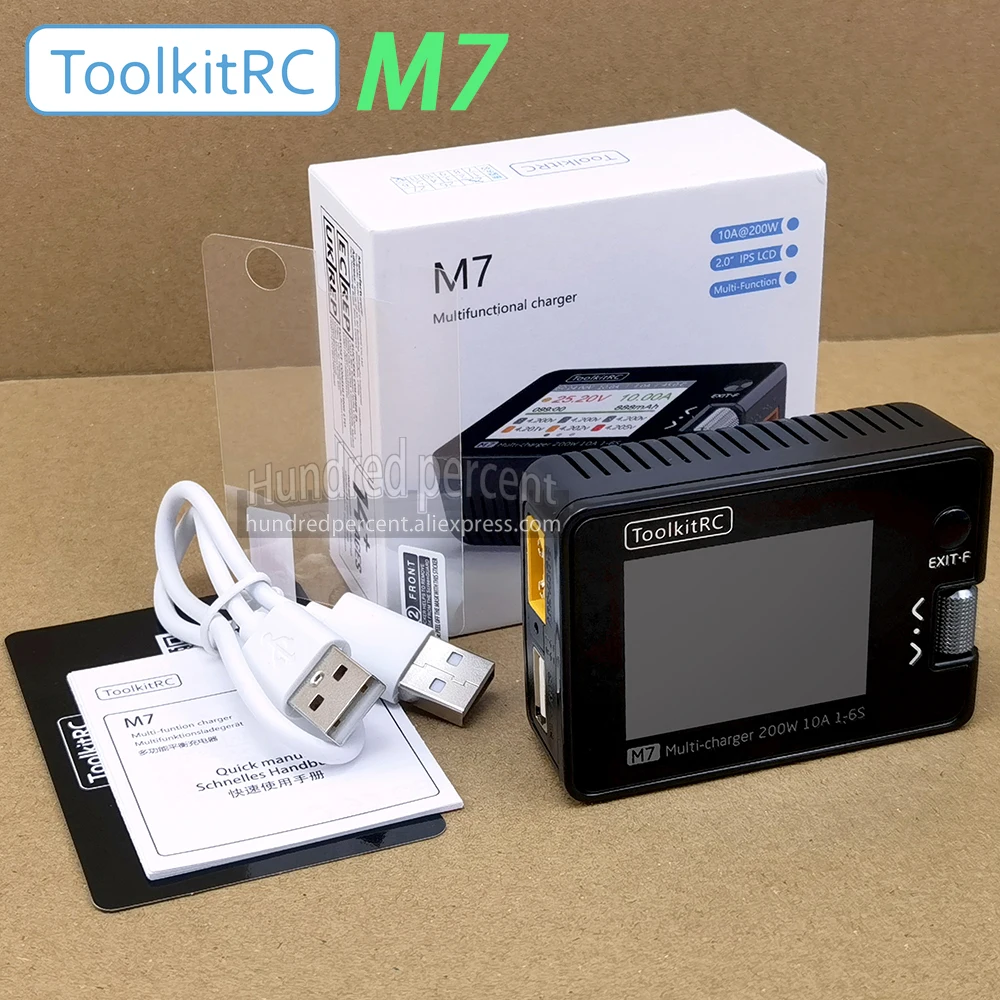

Packaging included:

1X ToolkitRC M7 Charger
