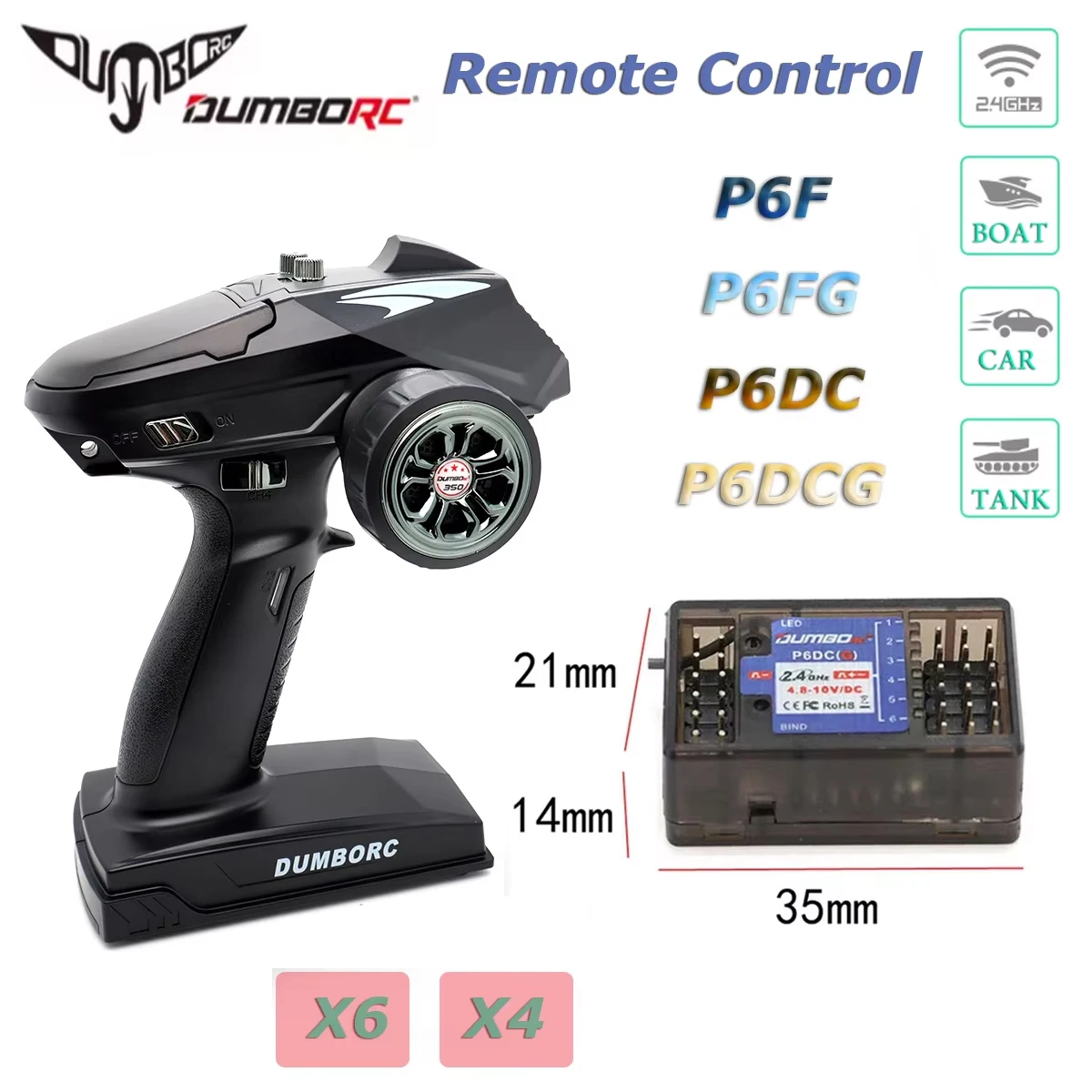

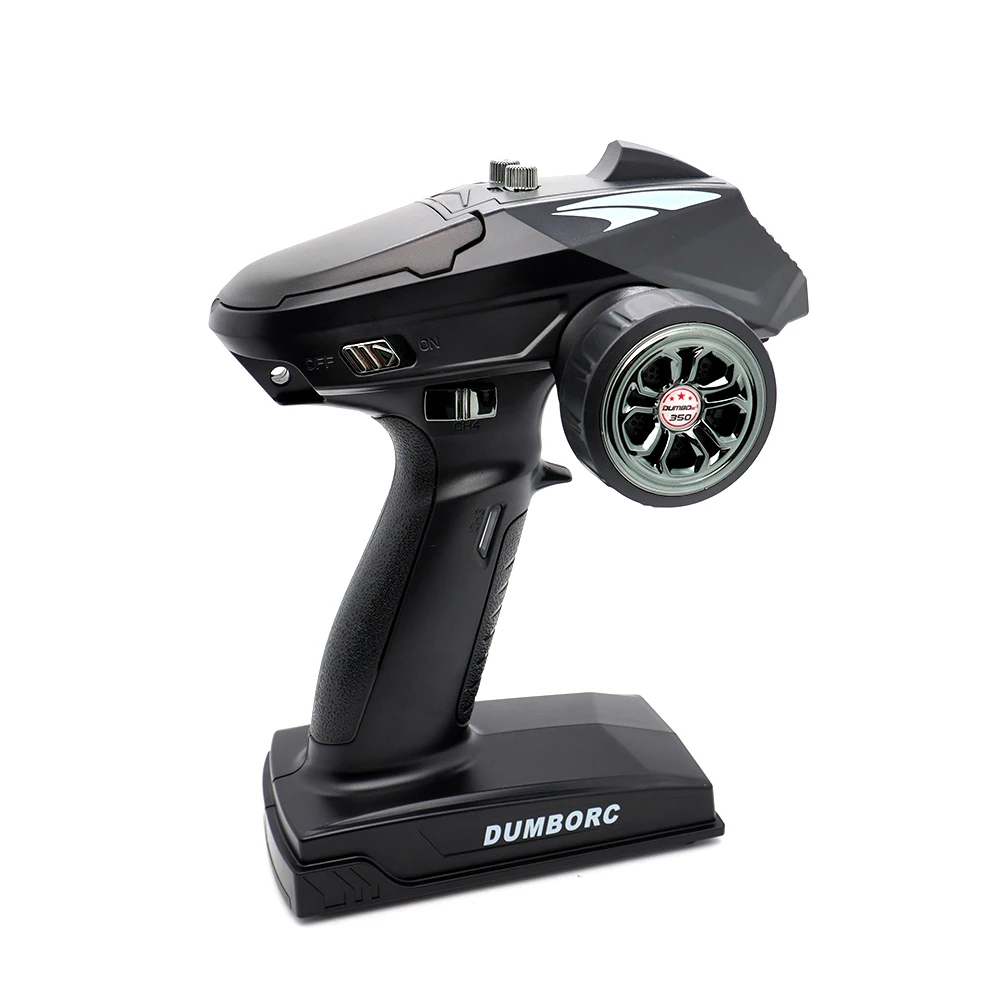

DumboRC 2.4G X6 6CH X4 4CH Transmitter Remote Control With P6F/P6FG/P6DC/P6DVCG (Gyro) DC Receiver For RC Car Boat Tank Model

DumboRC 2.4G X6 6CH X4 4CH Transmitter Remote Control With P6F/P6FG/P6DC/P6DVCG (Gyro) DC Receiver For Wltoys ZD Racing Axial SCX10 D90 MN-90 RC Car Boat Tank Model

Transmitter Features:

1. 2.4G technology, FHSS 67 channels frequency-hopping spread spectrum, highly resistant to anti-jamming

2. Receiver response time is 3ms, ensuring a fast response and better control

3. Smooth and highly sensitive to control inputs and stable at distances from 400-500m

4. Compatible with a variety of vehicles; suitable for RC cars, RC boats and RC tanks

5. With brake and fail safe, out of control protection function

6. Each of the 3 channels can be set respectively, supporting mixed control of 1 and 2 channels

7. Voltage range of the transmitter 4.8V-12V(support 1s-3s) , automatic identification of voltage, low voltage wamning: 7.4V/4.8V

8. Voltage range of the receiver: 3. 3V-10V, working current 30mA, supports high voltage servos

9. The receiver's integrated gyro(optional) , ensures that the RC vehicles stay in course, preventing measure, drifts and turnovers. Supports gyro sensitivity adjustment 10. The unique throttle speed limit adjustment function, allows beginners to practice at a safe speed

Transmitter Specification:

Brand:DumboRC

Material: Plastic + Electronic Components

Fit For:Rc Car Boat Tank Model,such as jjrc q65,mn-90 and so on

Model:X4/X6

Channel:4/6CH

Remote Control Voltage Range: 4.8-12v

Voltage Alarm: 7.4v 4.8v

Remote Control Working Current: 80-120mA

Control Distance: 400-500 meters

RF Power: <20dbm

Modulation Mode: GFSK

Data Resolution: 4096 levels, 0.5us per level

Spreading Mode: FHSS 67 channel pseudo-random frequency hopping

Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)

Support Receiver: X6F/X6FG/X6DC/X6DCG/X6YC

Model: P6F/P6FG

Channel: 6CH

Voltage Range: 4.8-10V

Operating Current: 30mA

Modulation Mode: GFSK

Spread Spectrum: FHSS

Control Distance: More than 400 meters

Support HV servo, and maximum servo voltage is 10V.

Note: No gyro function/Gyro function included.

Support Transmitter: X4 X5 X6 X6P

Weight: 6g

Model: P6DC/P6DCG

Channel: 6CH

Voltage Range: 4.8-10V

Operating Current: 30mA

Modulation Mode: GFSK

Spread Spectrum: FHSS

Control Distance: More than 400 meters

Support HV servo, and maximum servo voltage is 10V.

With LED lamp control interface

This receiver integrates the lamp group, and not using Y wires getting singals of CH1 and CH2 as traditional wiring method.

Note: No gyro function/Gyro function included.

Support Transmitter: X4 X5 X6 X6P

Weight: 9g

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
