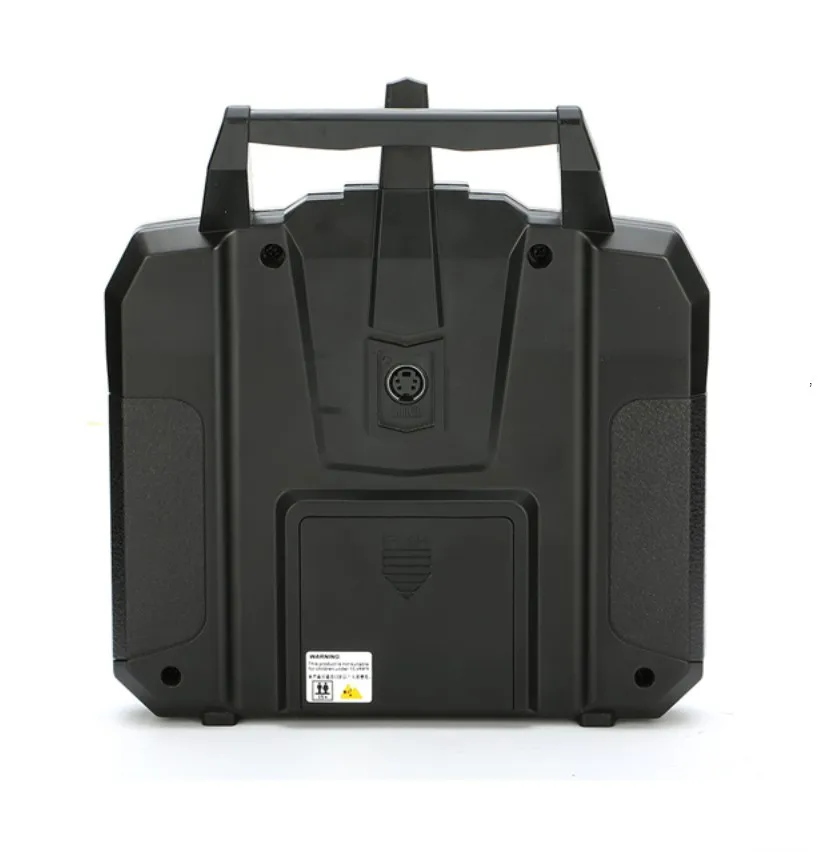

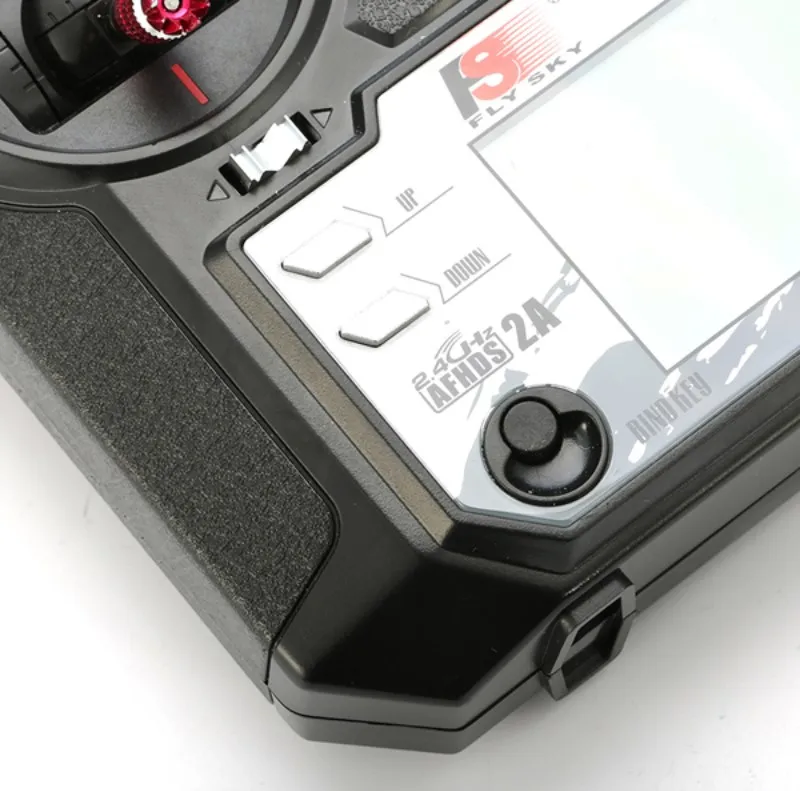

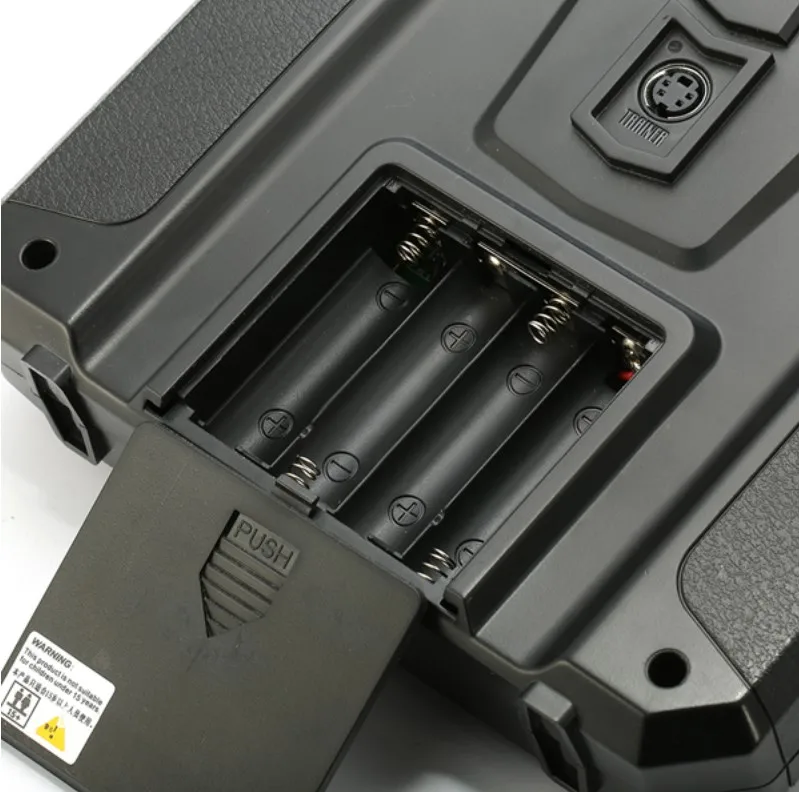

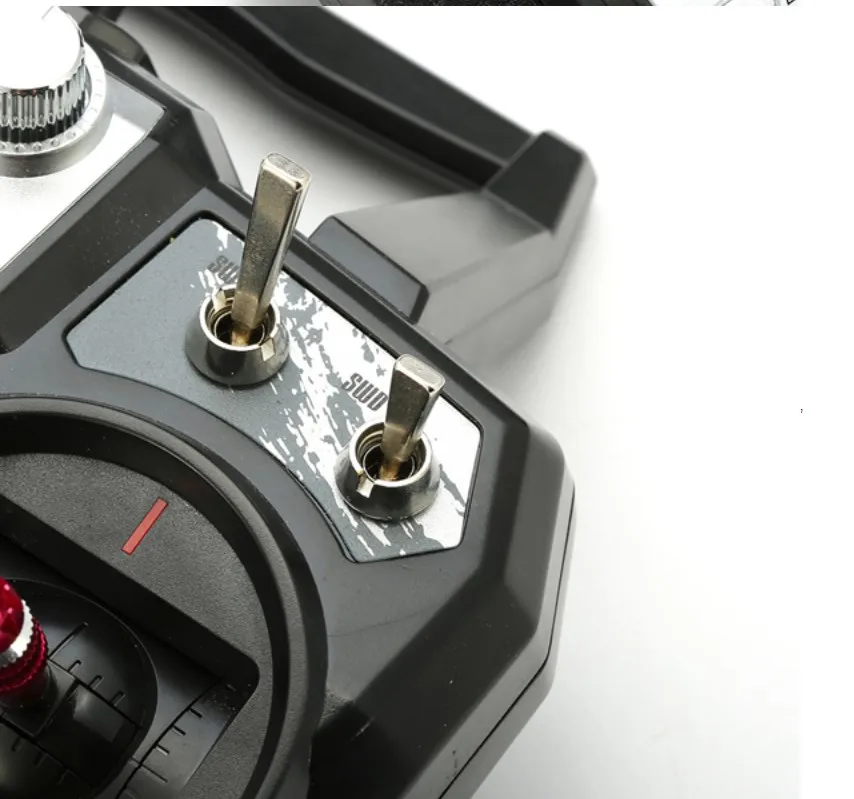

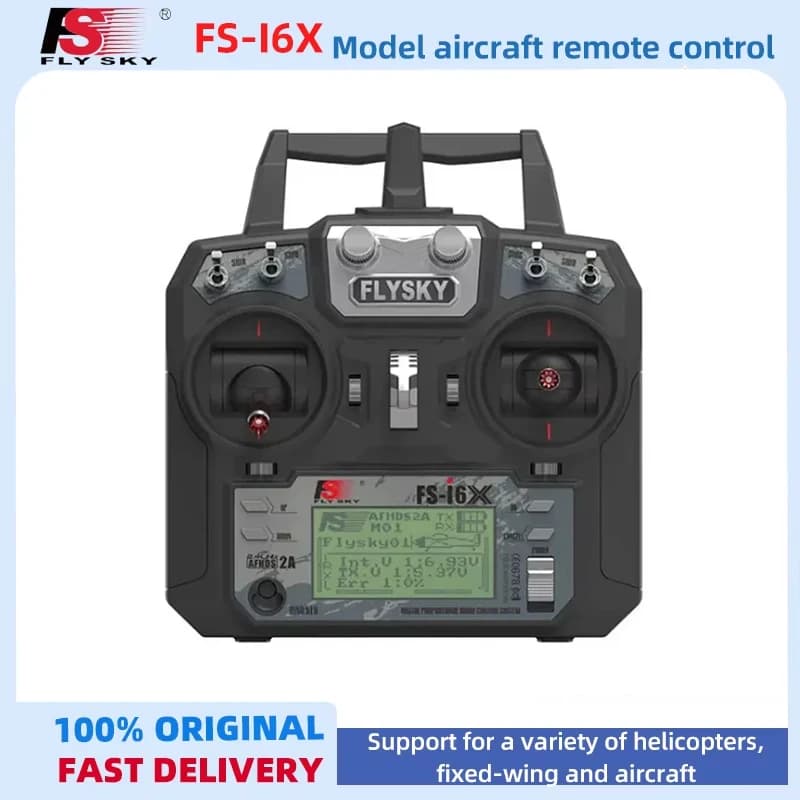

FLYSKY FS-I6X I6X 2.4G 10CH AFHDS 2A Radio Transmitter with IA6B IA10B Receiver

FS-i6X Specifications:

Item: FS-i6X RC Transmitter

Channel: 6-10 (Default 6)

Mode:mode 1 is right throttle hand(throttle stick on the right side), mode 2 is left throttle hand (throttle stick on the left side)

Model Type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF Power: < 20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFDHS

Modulation Type: GFSK

Stick Resolution 4096

Low Voltage Warning: < 4.2V

DSC port: PS/2 Port PPM

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: 392g

Power: 6V DC 1.5AA*4

Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight

Size: 174x89x190mm

On-line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

Mode: mode 2(left hand throttle)

Note: Only i6x means the package comes without receiver, only i6x transmitter. This transmitter comes wtih 6 channels, it need to modify by yourself if you wanna it be 10 channel.

FS-IA6B Specifications:

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Weight: 14.9g

Antenna lenght: 26mm

Size: 47.4*262.2*15 mm

Certificate: CE ,FCC

FS-IA10B Specifications:

Number of Channels: 10

Suitable models: Airplane / glider / helicopter Health

Frequency range :2.4-2 .48 GHz

Number of newspapers: 160

Transmitting power: not more than 20dBm

Receiver sensitivity:-105dBm

2.4G modes: automatic frequency second generation digital system

Encoding: GFSK

Antenna length: 26 mm * 2 (dual antenna)

Weight: 19.3 g

Input power :4.0-6 .5 V DC

Dimensions: 47 * 33.1 * 14.7 mm

Color: Black

Certification: CE0678, FCC

i-BUS Interface: Yes

Data acquisition interface: Yes
