Haute42 Arcade Hitbox Controller Fight Stick PC Joystick Hitbox Controller Keyboard For Ps4 / Switch/Steam Arcade Fighting PC

Haute42 Arcade Hitbox Controller Fight Stick PC Joystick Hitbox Controller Keyboard For Ps4 / Switch/Steam Arcade Fighting PC

Product Description

Working voltage: 5V
Link method: USB Type-C
Product size: 196mm * 125mm * 12.5mm
Supported Platforms : pc /ps3/ps4/switch/ Android/Steam
Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller,6 anti slip pads

HautePad S Series

Ten years of gaming peripheral experience
Carefully crafted portable Hitbox
Take you back to the arcade er
The heart of combat never stops!

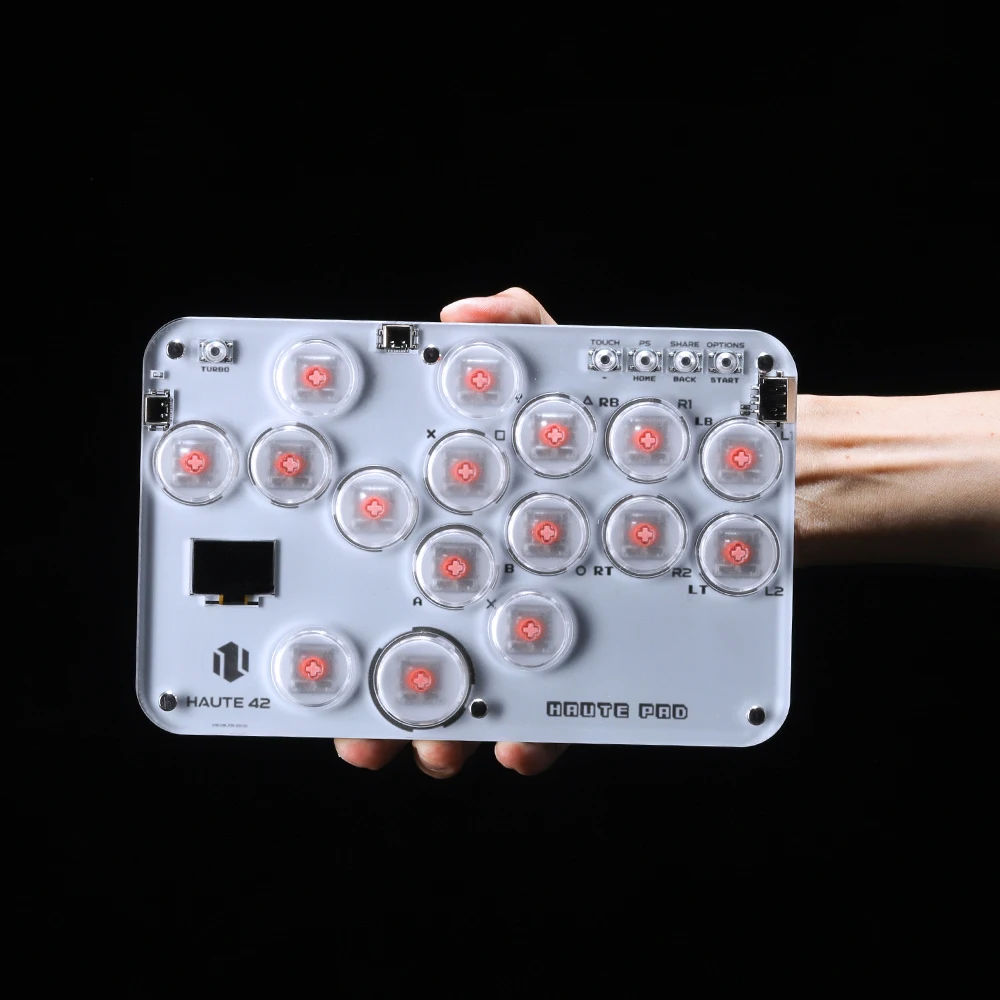

This is a transparent acrylic material with RGB lighting effect, an mini hitbox style arcade keyboard with 16 buttons, providing a comfortable feeling and allowing you to enjoy fighting games. Buyers can create their own hitbox skins to make the controller look cooler and more personalized

Adopting a cost-effective combat chip, the Raspberry Pi RP2024 main control chip

Characteristic:

Dual core ARM Cortex-M0+@ 133MHZ
Supported by dedicated QSPI bus, up to 16MB off chip flash memory
Fully connected AHB crossover switch
Integrated 264kB on-chip SRAM in six independent groups
40nm process node manufacturing, low dynamic power consumption, and low leakage
1ms delay, no frame leakage rate above 95%
Supports firmware updates
more functions and compatibility coming soon

01 Compatibility

B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.

PS4 /Ps5 Mode

This product will be disconnected at 8 minutes after connecting to the PS4/PS5 console.
You can avoid this 8-Minute Timeout by uploading the verification files which required for PS4 mode. More details, please check on the official website：haute42-cosmox.com

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.

TURBO

Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

04 RGB LED Setting

●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
