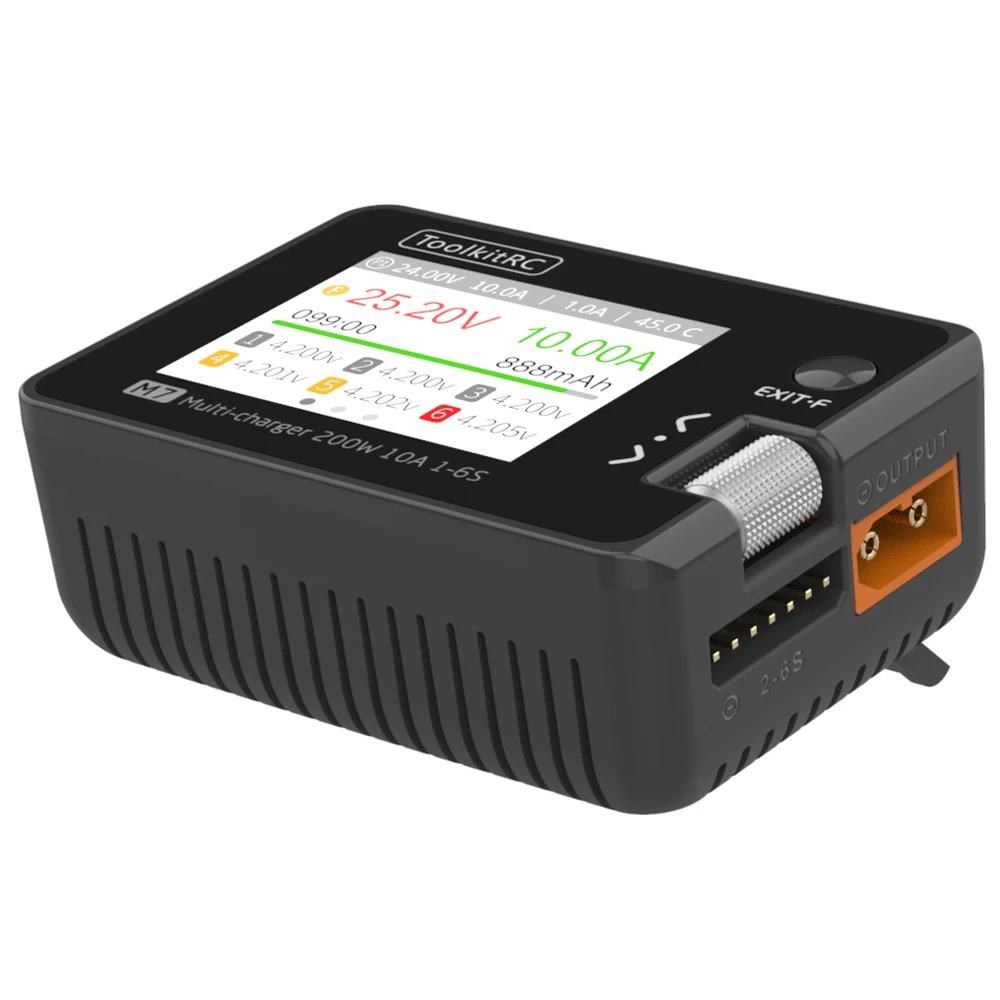

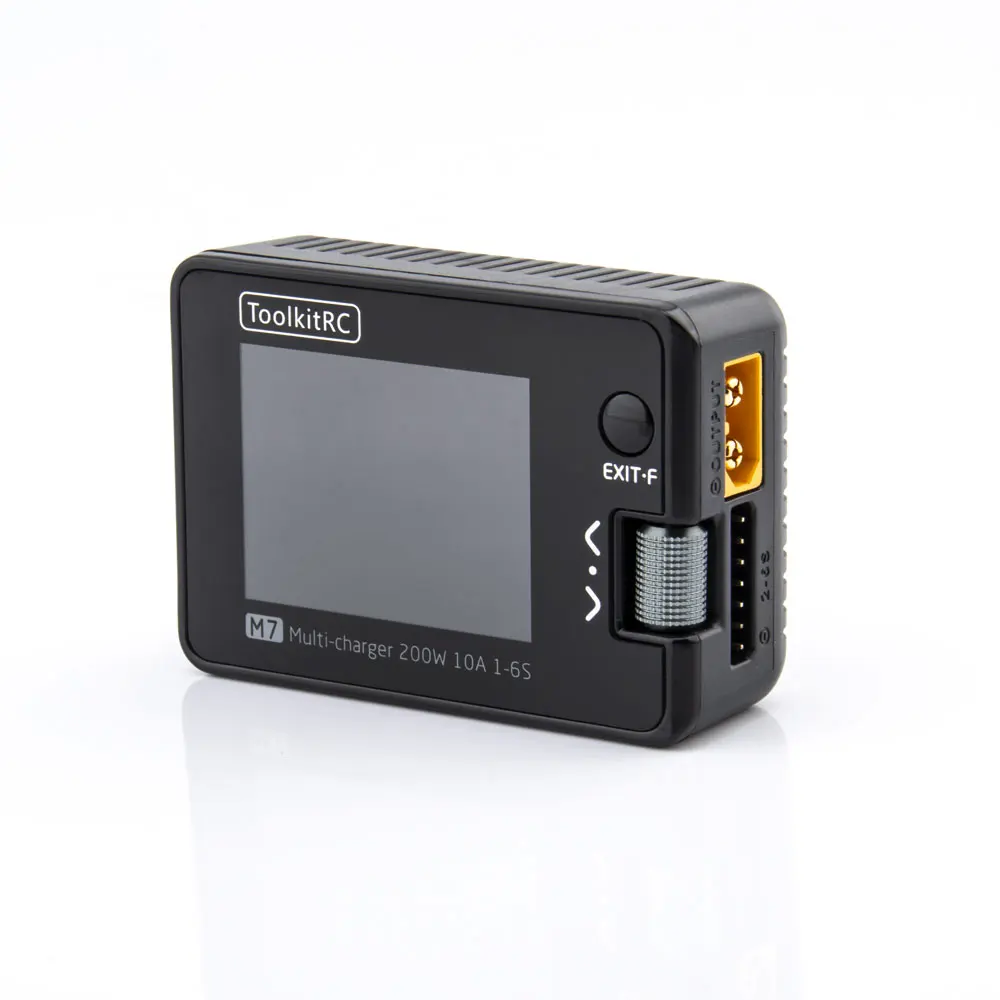

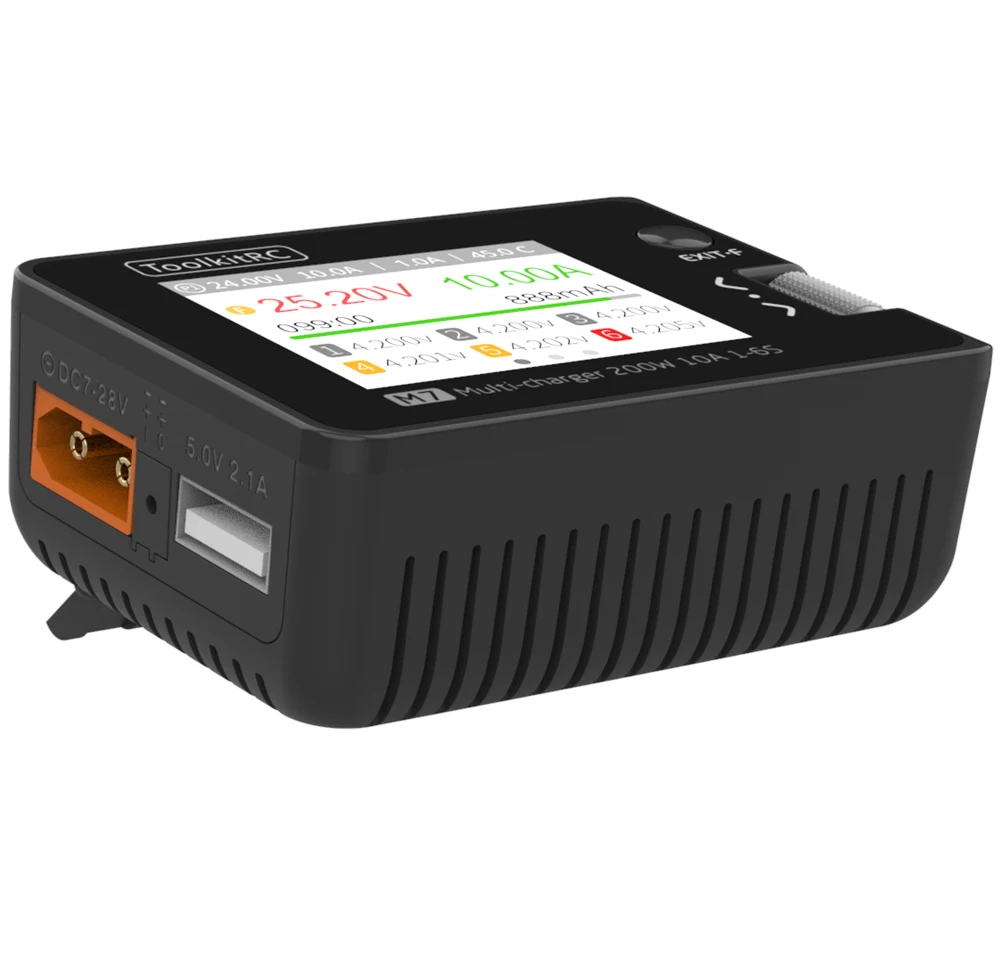

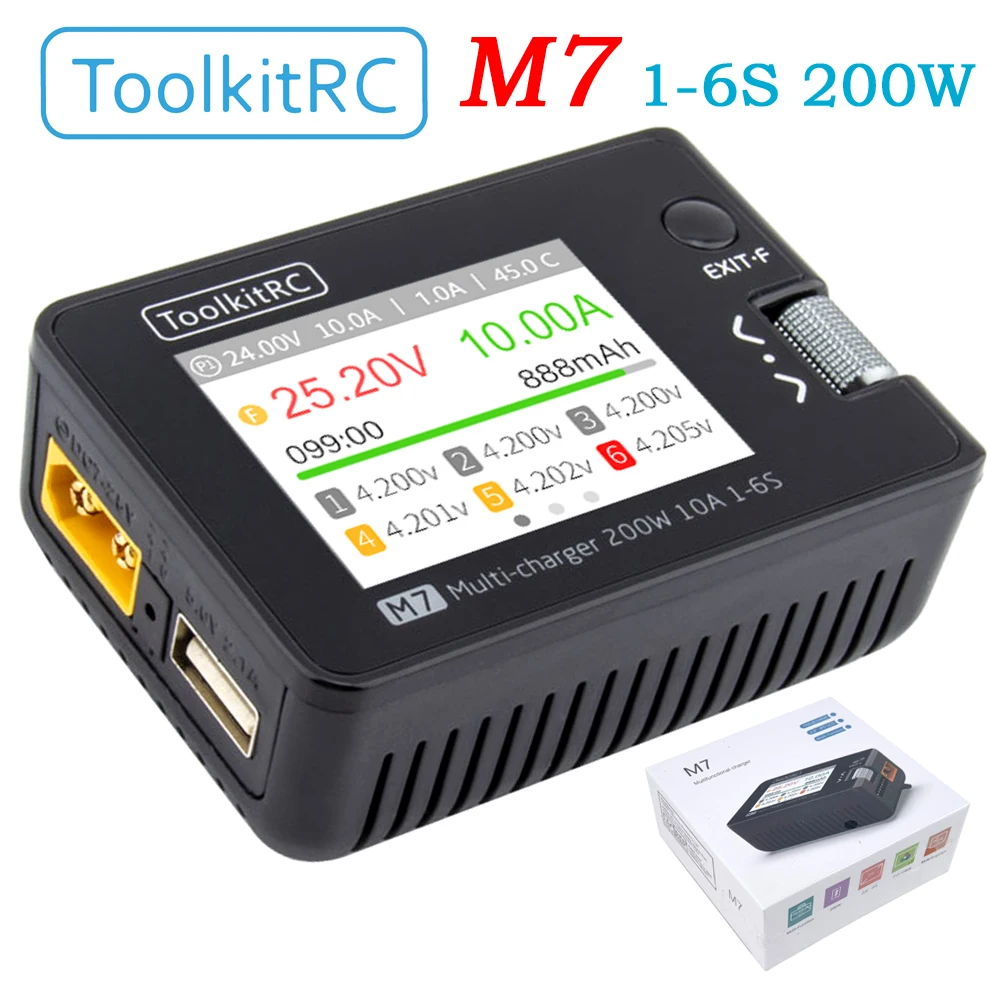

ToolkitRC M7 200W 10A DC Balance Charger Discharger for 1-6S Lipo Battery With Voltage Servo Checker ESC Tester Receiver LCD IPS

M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.

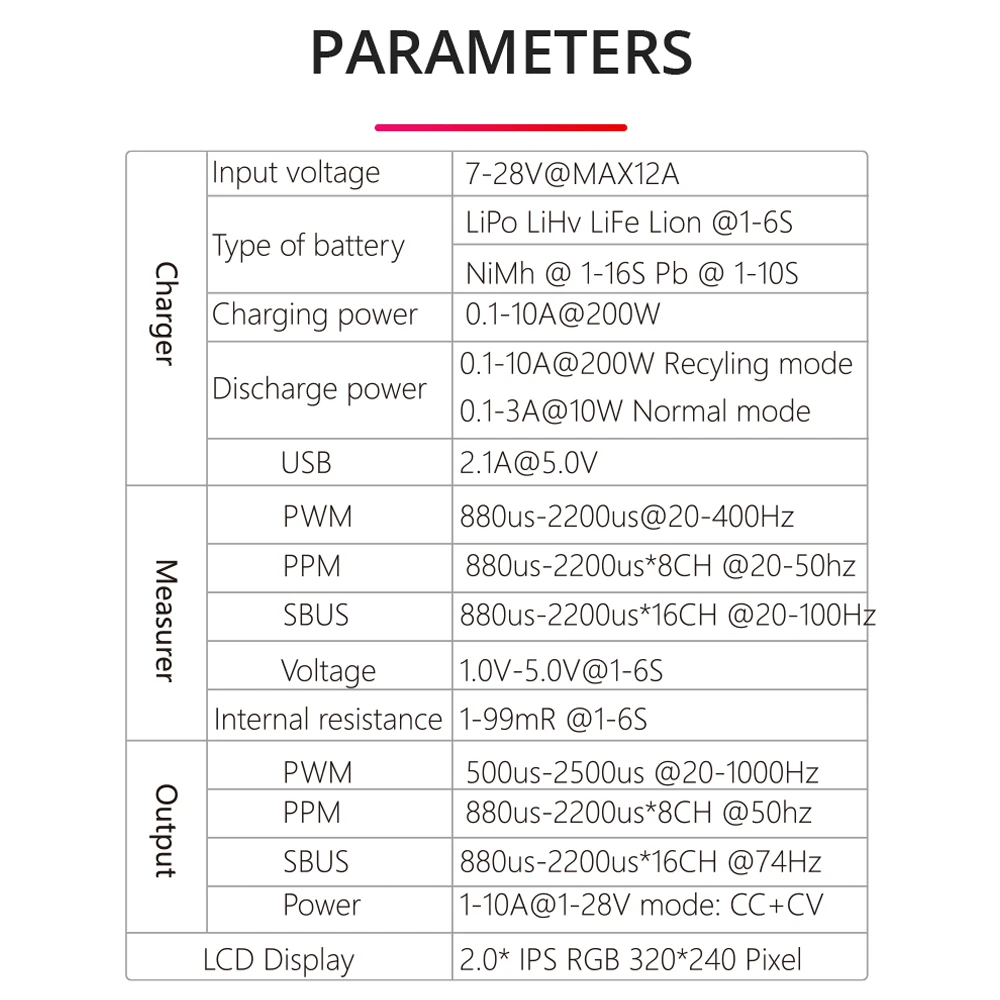

M7 SPECS:
Product size: 73*51*27 mm
​Product weight: 90g
​Pack size: 84*79*39 mm
​Pack weight: 150g

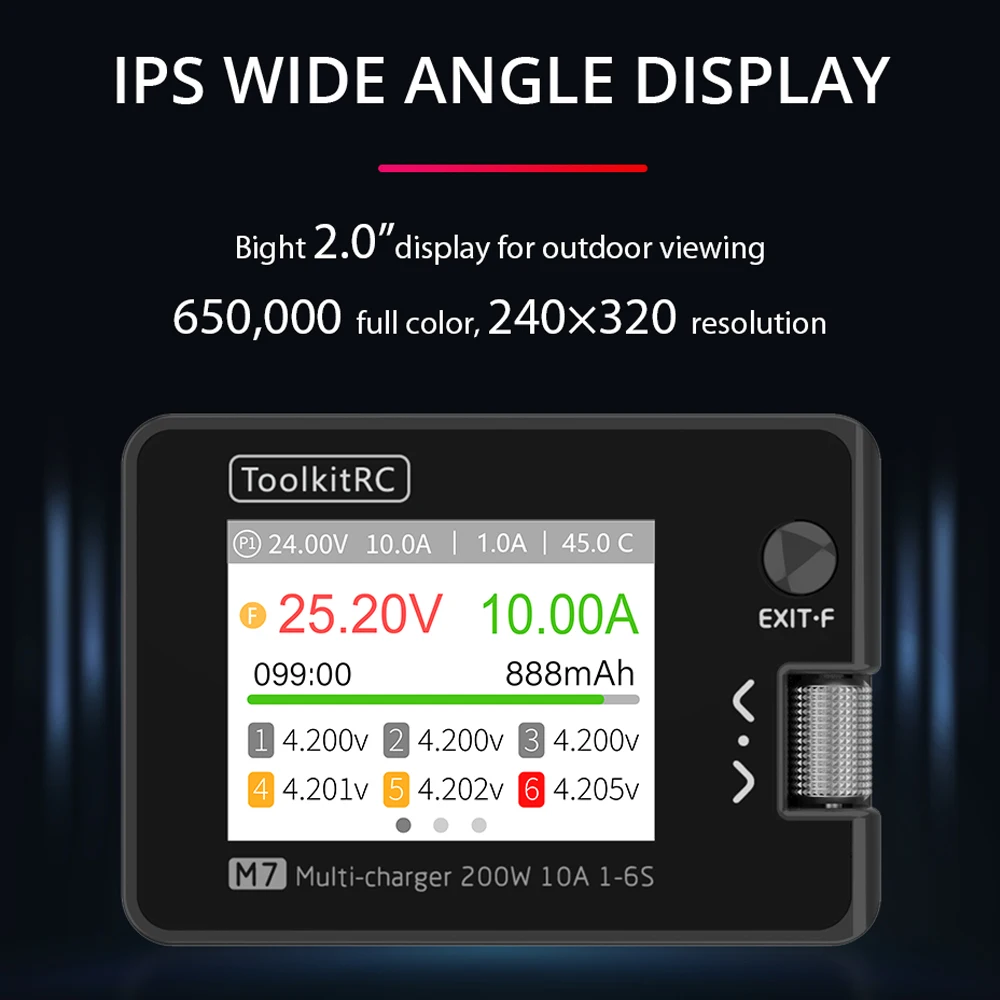

​LCD: IPS 2.0inch LCD 320*240 Pixel
​Input voltage: 7.0-28.0V @MAX 12A
​Type of battery: Lipo LiHV LiFe Lion@1-6
NiMh @1-16S Pb @1-10S
​Balance current: 400mA @2-6S
​Charger power: 200W @MAX 10A

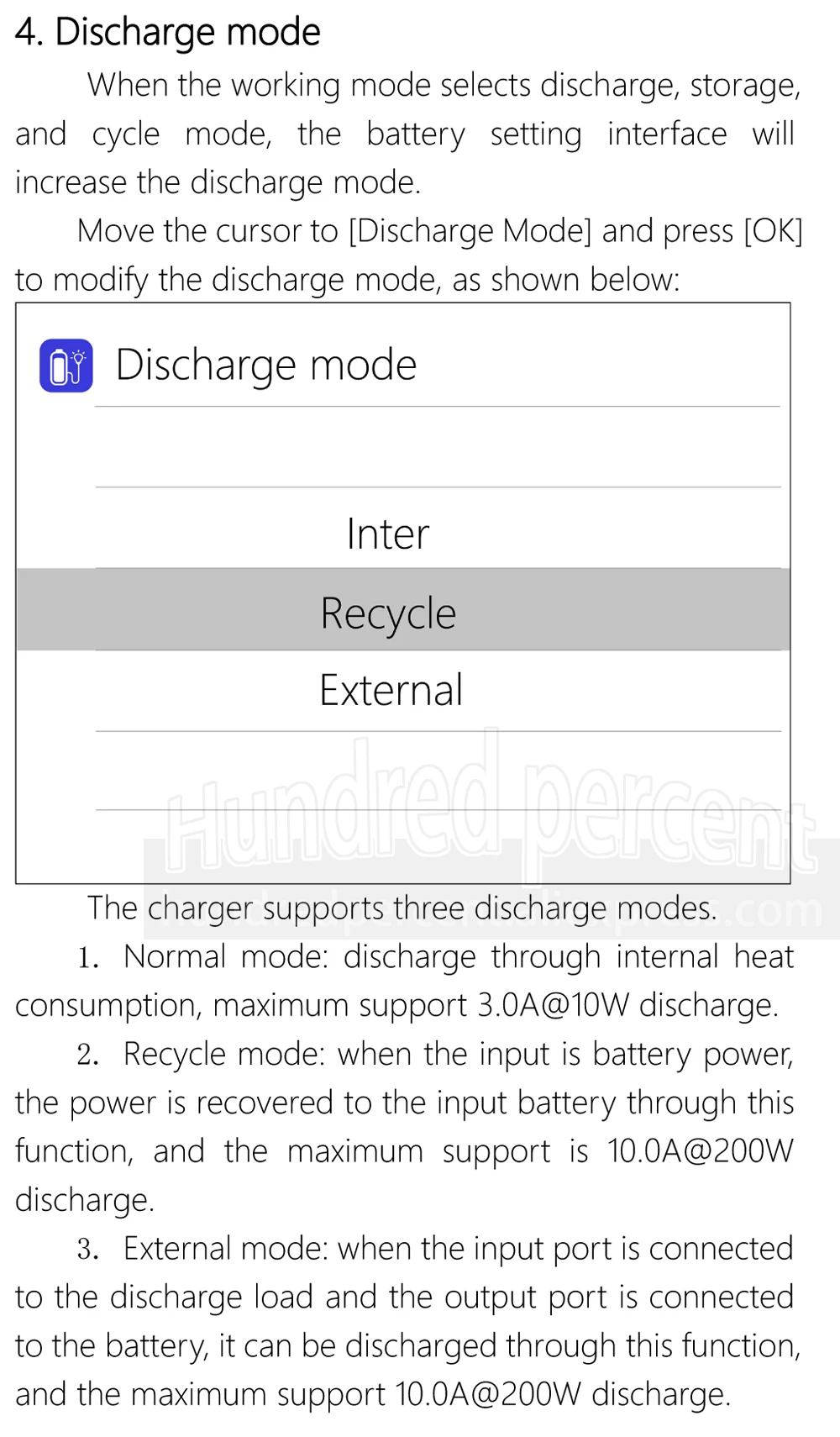

​Discharge power: 200W @MAX 10A Recycle mode 10W@3A Normal mode
​USB: 2.1A @5.0V or Upgrade

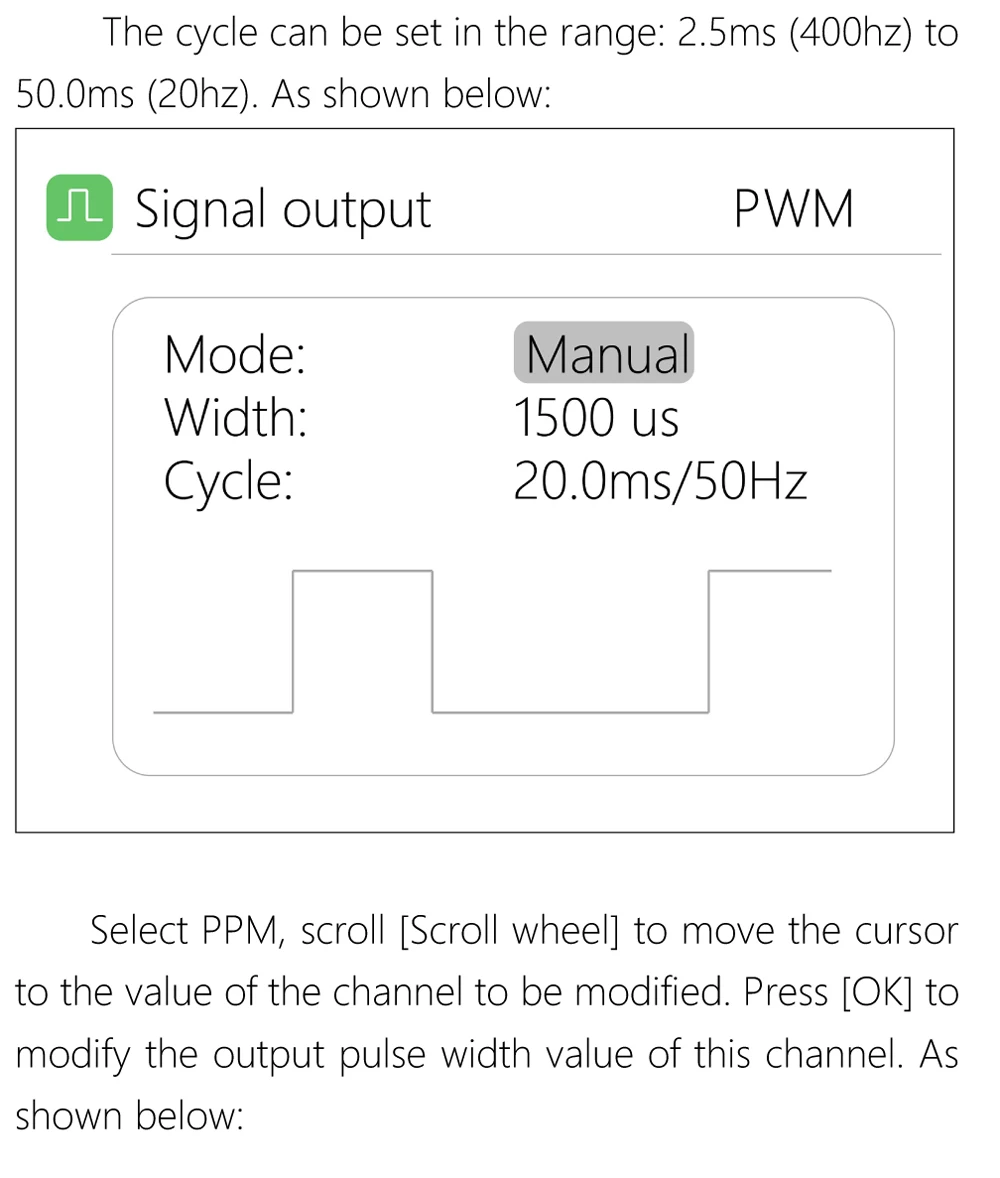

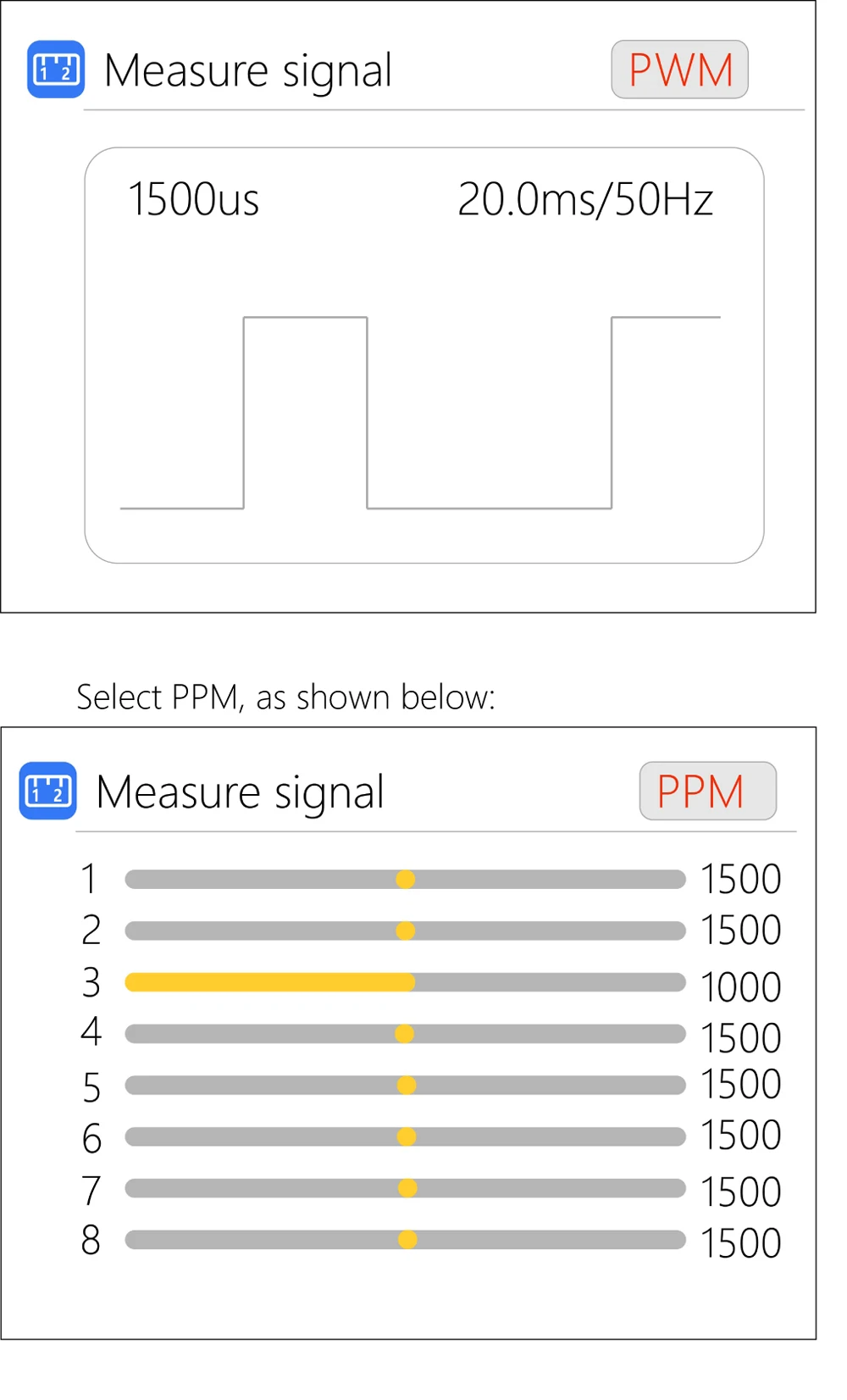

Input:PWM:
880-2200us @20-400Hz
​PPM: 880-2200us*8CH @20-50Hz

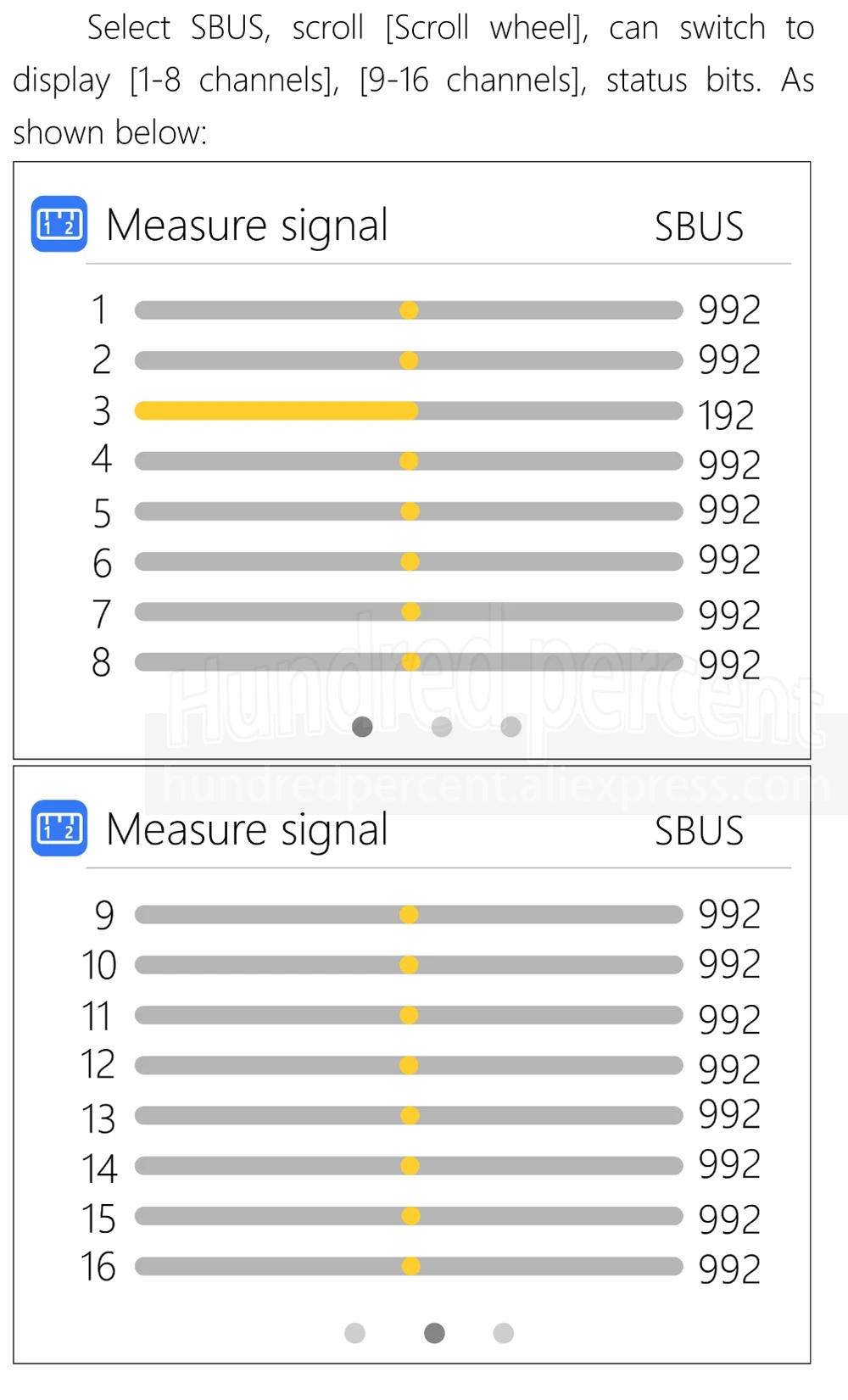

​SBUS: 880-2200us*16CH @20-100Hz
​Voltage: 1.0-5.0V @1-6S
​Internal resistance:
1-99mR @1-6S

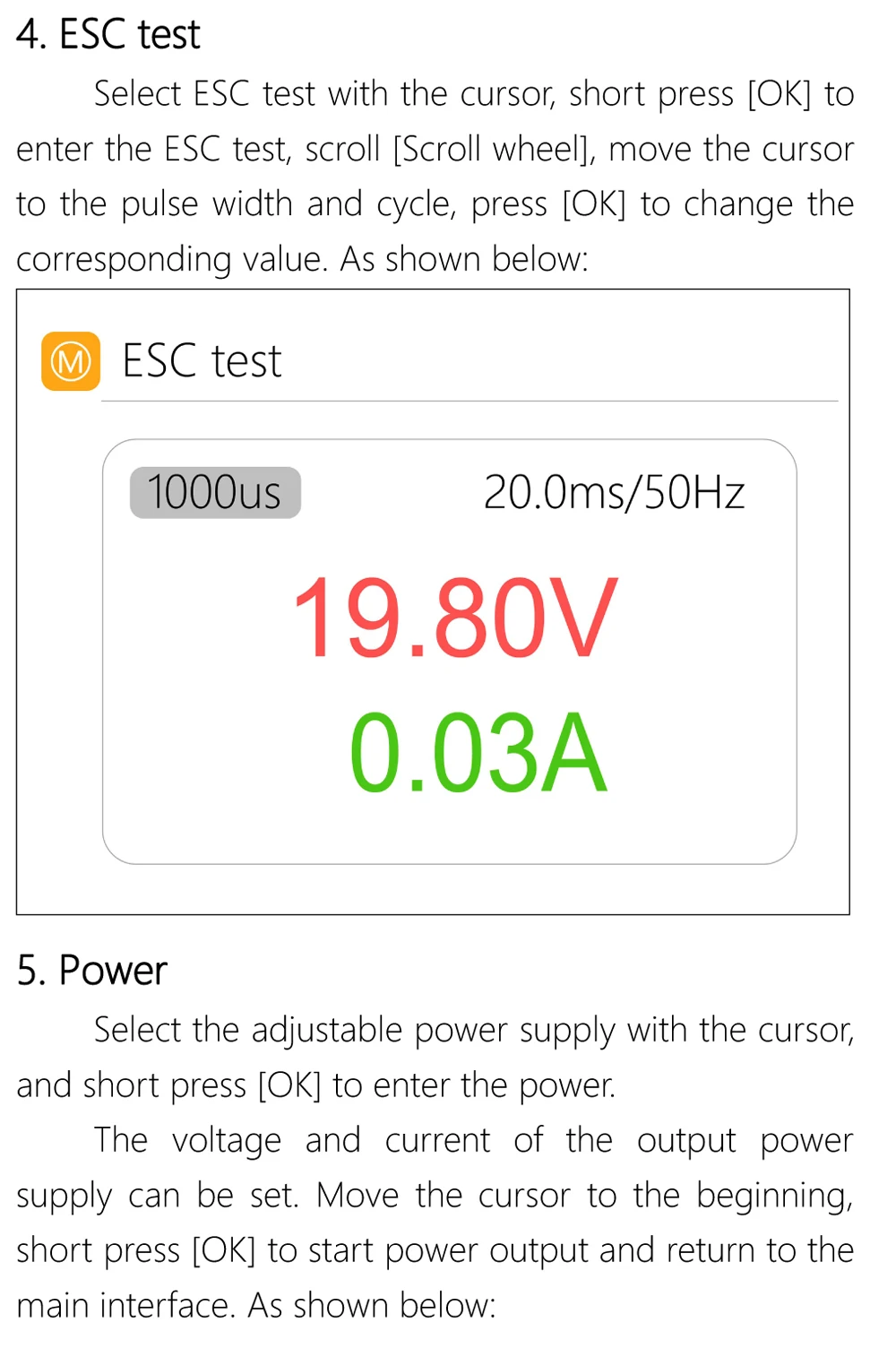

​ESC: 200W@10A PWM Output

Output:
PWM: 500-2500us @20-1000Hz
​PPM: 880-2200us*8CH @20-50Hz
​SBUS: 880-2200us*16CH @20-100Hz

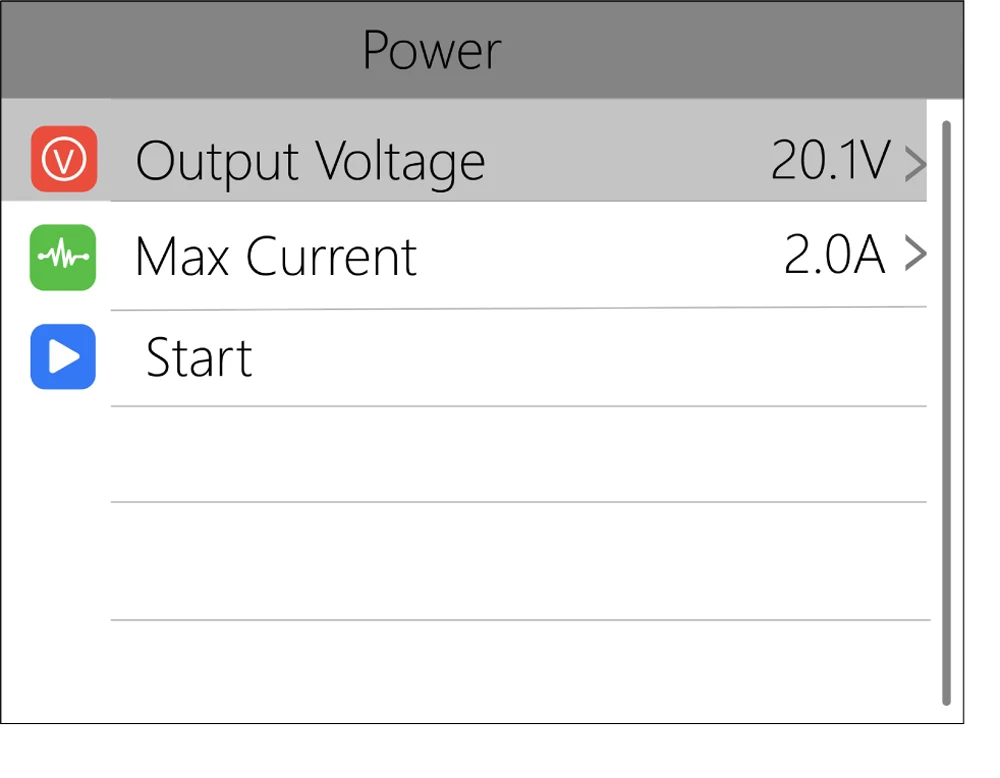

​Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
​OverCurrent Cutoff time: <5ms

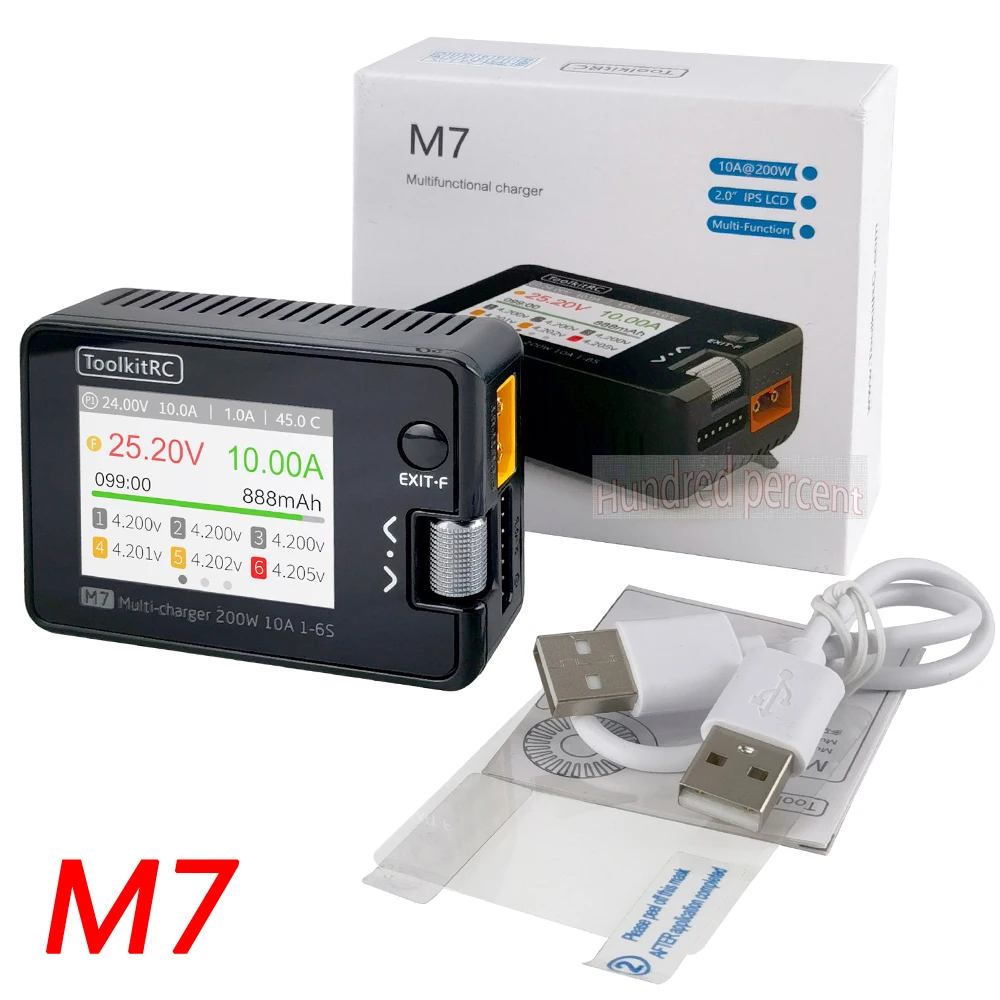

Packaging included:
1X ToolkitRC M7 Charger

Note: After the M7 charger is powered on, it will display a voltage of 0.12V in an unloaded state, which is normal and does not affect use. If the voltage displayed is inaccurate after connecting your battery, you can use a multimeter to measure the battery voltage, record it on paper, and then enter the voltage calibration page of the M7 charger to manually calibrate the voltage.

Other functions
1. Firmware upgrade
After connecting the M7 to the computer with the USB data cable in the box, the computer will recognize a U disk named T oolkit. Download the upgrade file app.upg on the official website and overwrite the files in the U disk to upgrade the firmware.

2. USB 5.0V output
In addition to the above upgrade functions, the USB interface can also output 2.0A current to charge mobile devices.

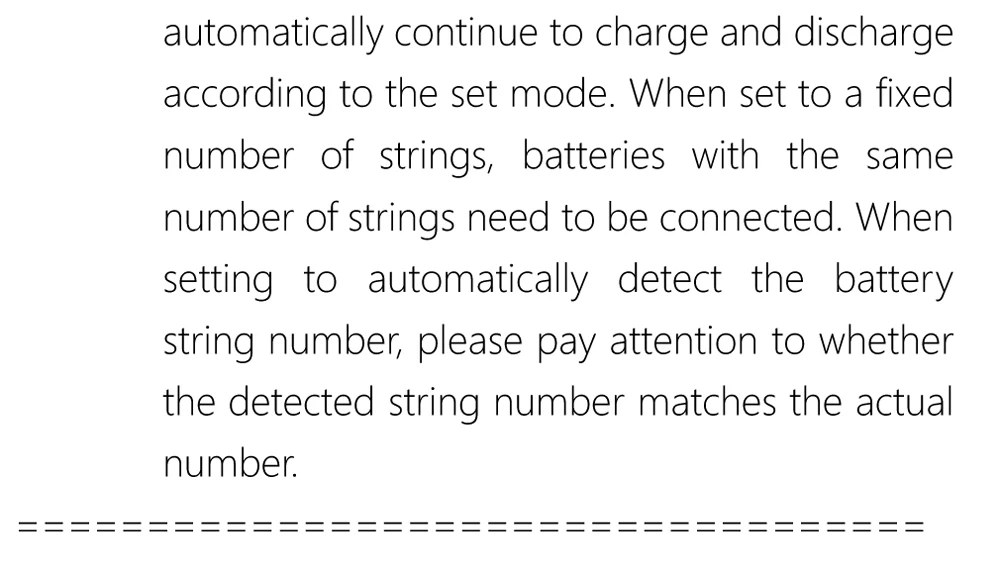

3. Automatically continue charging and discharging
When a battery is fully charged, after unplugging the battery for 2 seconds, connect to the next battery, the device will automatically continue to charge and discharge, you can start and stop this function in the settings menu

4. Fan level
When the internal temperature of the device exceeds 45°C, the fan turns on half-speed air volume to reduce noise. When the internal temperature exceeds 53°C, the fan turns on full-speed air volume to enhance heat dissipation.

6. Manually calibrate the voltage
In the shutdown state, press and hold the [roller]
without releasing, connect the power supply, and the system will enter the manual voltage calibration function. Use a voltmeter to measure the actual voltage of each battery, move the cursor to the corresponding voltagevalue, modify the voltage value to be consistent with the@ToolkiRC 2021 44 voltmeter value, and achieve calibration. After the calibration is completed, move the cursor to save, short
press once, the buzzer will beep once, the save is successful. Just exit or shut down

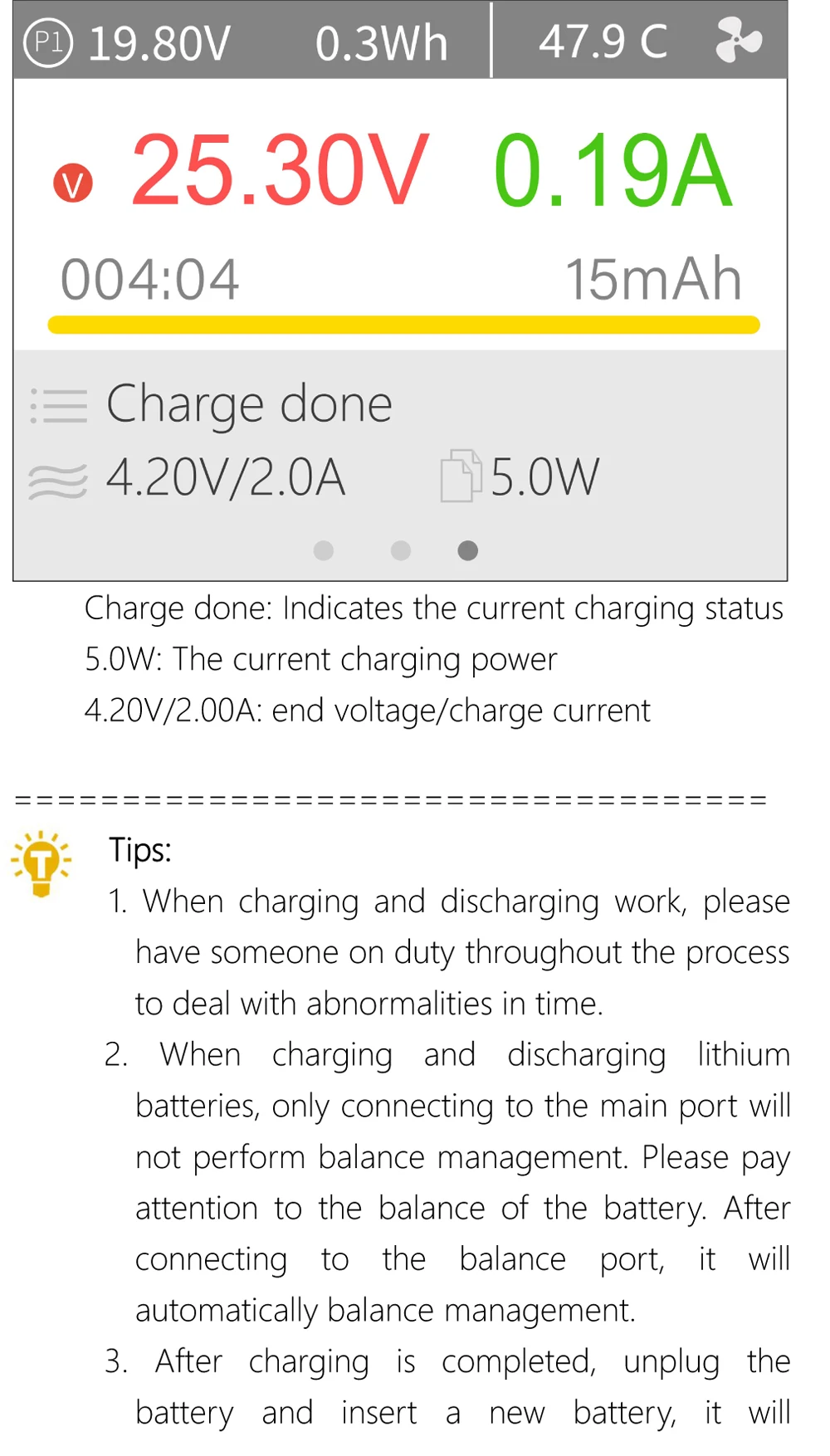

7, fully charged
When the lithium battery is fully charged, it will
prompt "Fast charge is done". If the battery is not removed, the constant voltage trickle charge will be performed automatically to make the battery reach a more full state.
