CADDX Walksnail Avatar VRX 10km 4 Antenna HDMI-Compatible 1080P/60FPS HD Pro Kit Dual Antenna Moonlight Kit for FPV Low Latency

Please remember that the order value does not include tax and VAT fees. we do not bear any tax and vat. you should pay tax and vat by yourself! if you mind import tax and VAT. Please do not place a order! Thank you.

Prepare for an unparalleled FPV experience with the Walksnail Avatar FPV VRX – your key to boundless aerial exploration.

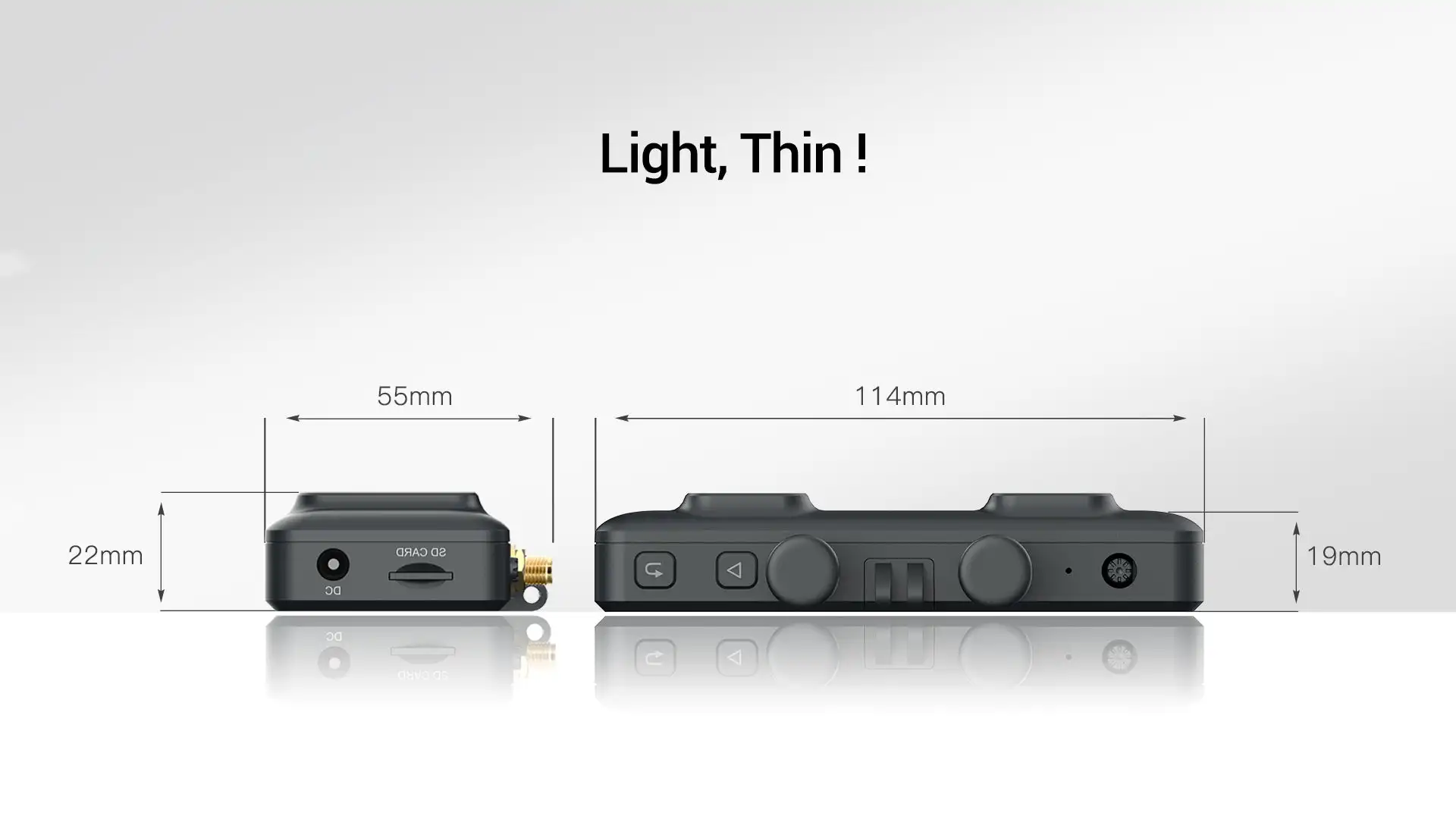

Lightweight Design, Effortless Portability

Engineered for on-the-go adventures, the Walksnail Avatar FPV VRX boasts a light and thin design, weighing in at just 83g and measuring a mere 114*55*22mm.

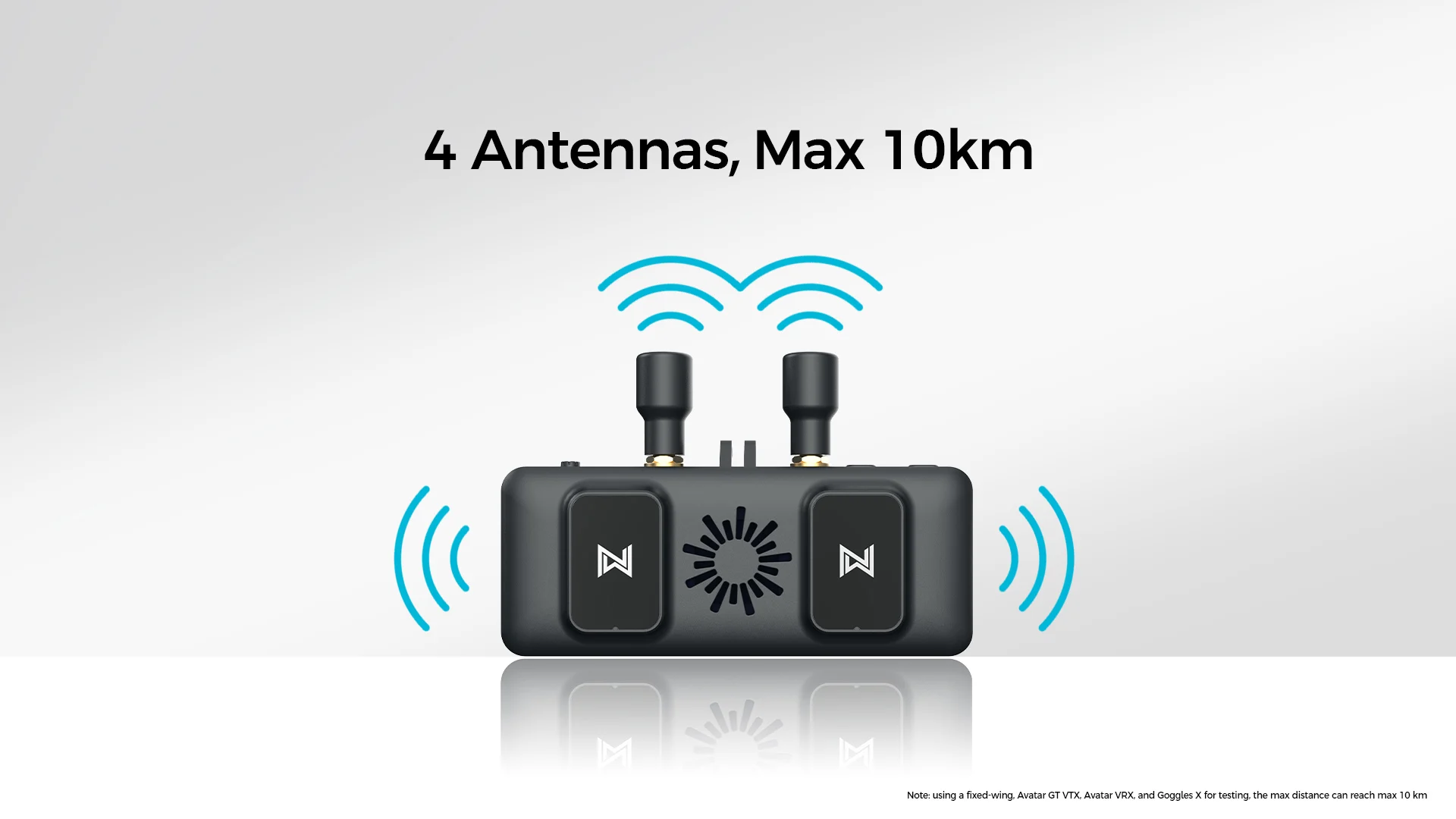

Extended Reach, Uninterrupted Transmission

Equipped with an advanced 4-antenna design, including 2 directional antennas, the Walksnail Avatar FPV VRX ensures uninterrupted connectivity with an impressive maximum transmission distance of 10km. Stay connected with confidence!

HD Visuals, Fluid Flight Experience

Immerse yourself in stunning 1080P/60FPS resolution, powered by cutting-edge H.265 encoding technology. With a minimal delay of just 22ms, each frame comes to life with unparalleled clarity, delivering a seamless and immersive FPV experience.

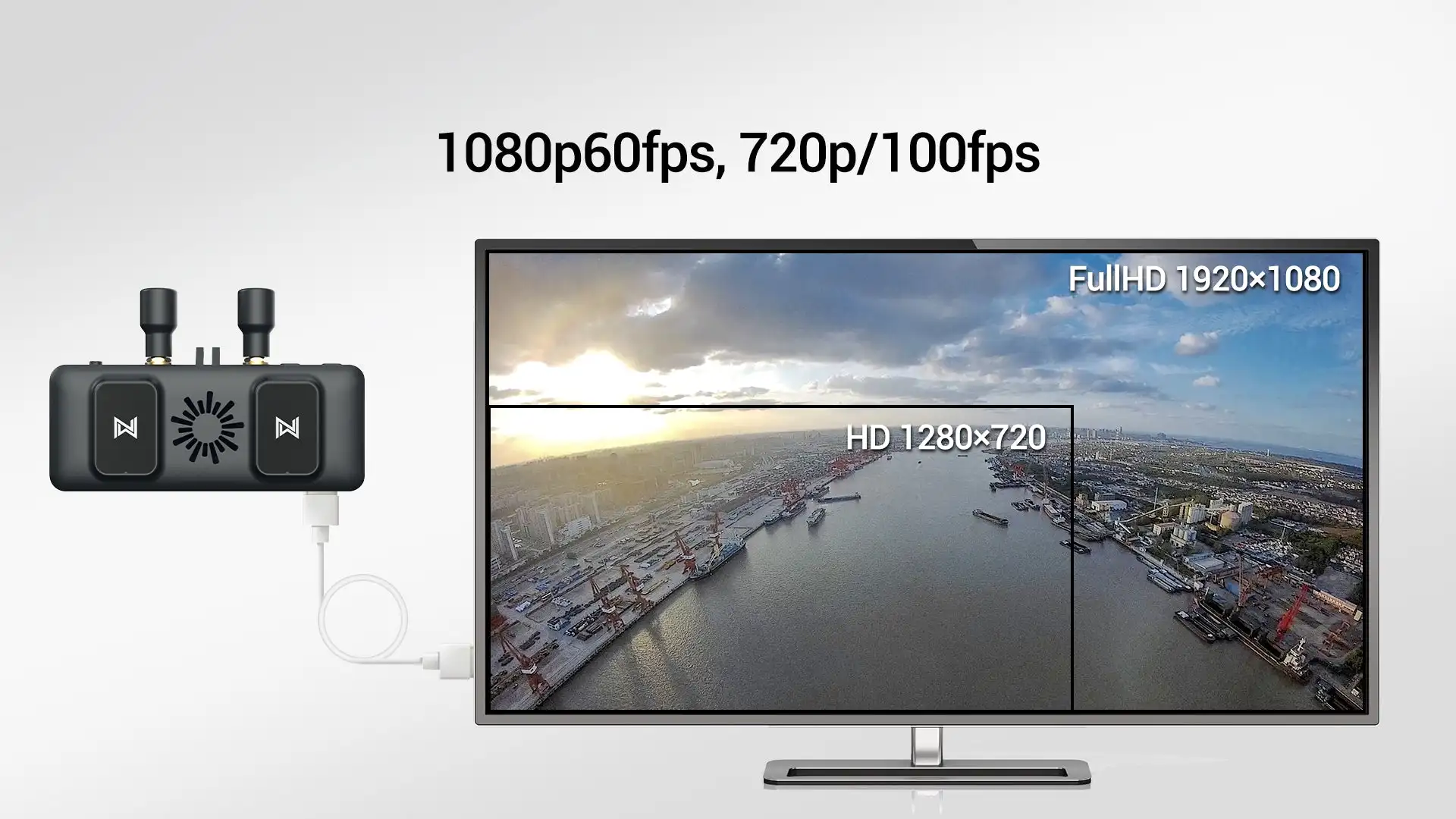

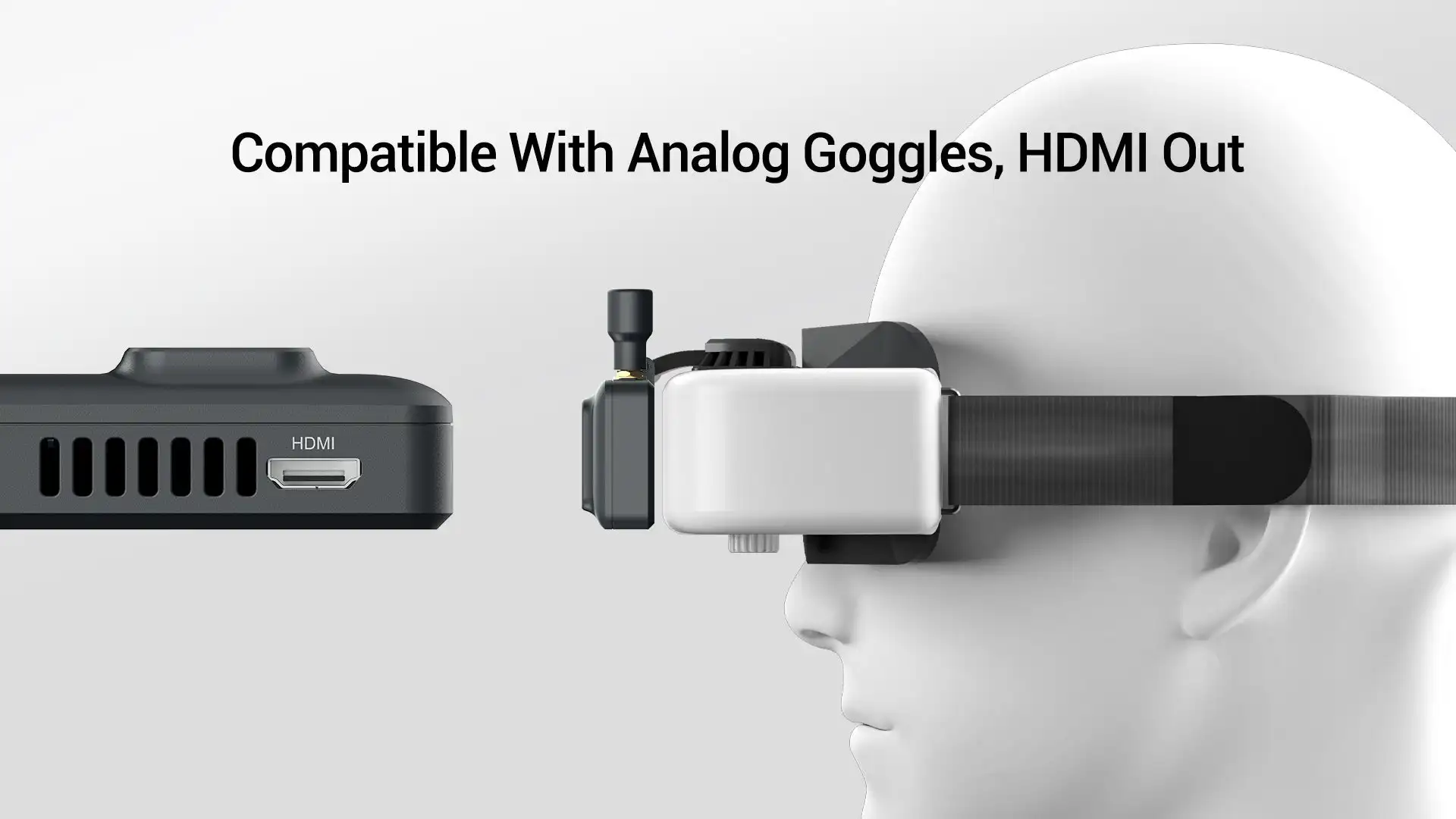

Seamless Connectivity, Unparalleled Enjoyment

Enjoy seamless connectivity with HDMI output functionality, ensuring you can enjoy uncompressed video signals from the Walksnail HD system. Immerse yourself in the action and witness the world from a whole new perspective, with unparalleled clarity and precision.

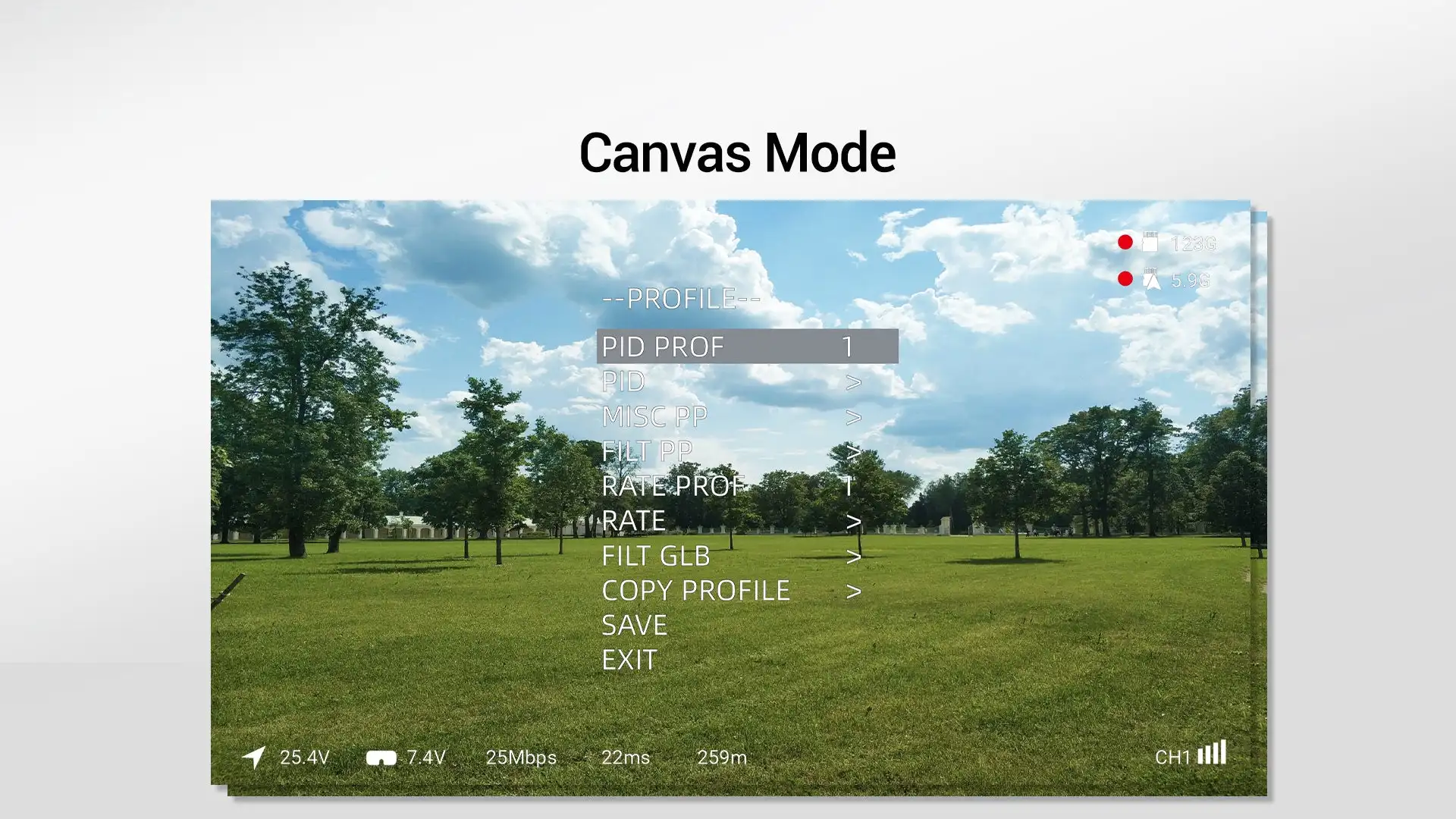

Personalized Control, Effortless Customization

Take control of your FPV experience with Canvas Mode support, seamlessly integrating betaflight full OSD display. Compatible with betaflight, inav, and kiss full OSD systems, customize your FPV setup on the fly with intuitive remote control functionality. Adjust parameters effortlessly and tailor your experience to suit your preferences seamlessly.

Camera

Model Avatar nano/Avatar camera

Image Sensor 1/2.7''1nch

Resolution 1080P/60fps,720P/120fps,720P/60fps

Ratio 16/9 4/3

Lens 2.1mm

FOV 170°

Aperture F2.0

Shutter Rolling shutter

Min.Illumination 0.001Lux

Weight 3.5g/6g

Dimensions 14*14*17mm/19*19*22mm

Coaxial Cable 90mm/140mm

VTX

Model Avatar module

Communication Frequency 5.725-5.850GHz

Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;

MIC:<25dBm

1/O Interface JST1.0*6(Power in)JST1.0*4(USB)

Mounting Holes 25.5*25.5mm

Dimensions 33*33*9.5mm

Storage 8G

Recording 1080p/720p

Weight 16g

Operating Temperature -20-40℃

Channels 8

Wide Power Input 6V-25.2V

Supported FC System Betaflight

OSD Canvas mode

Latency Average delay 22ms

Antenna 2(IPEX)

Goggles Antenna

Model Red bird

Polarization LHCP

Bandwidth 5.6GHz-6.0GHZ

Average Gain 1.9dBi

Radiation Efficiency ≥97%

VSWR ≤1.3

Cross-Polar Rejection -15to-30dB

Connector RP-SMA

Dimension H24.8mm*R15.3mm

Weight 4.2g

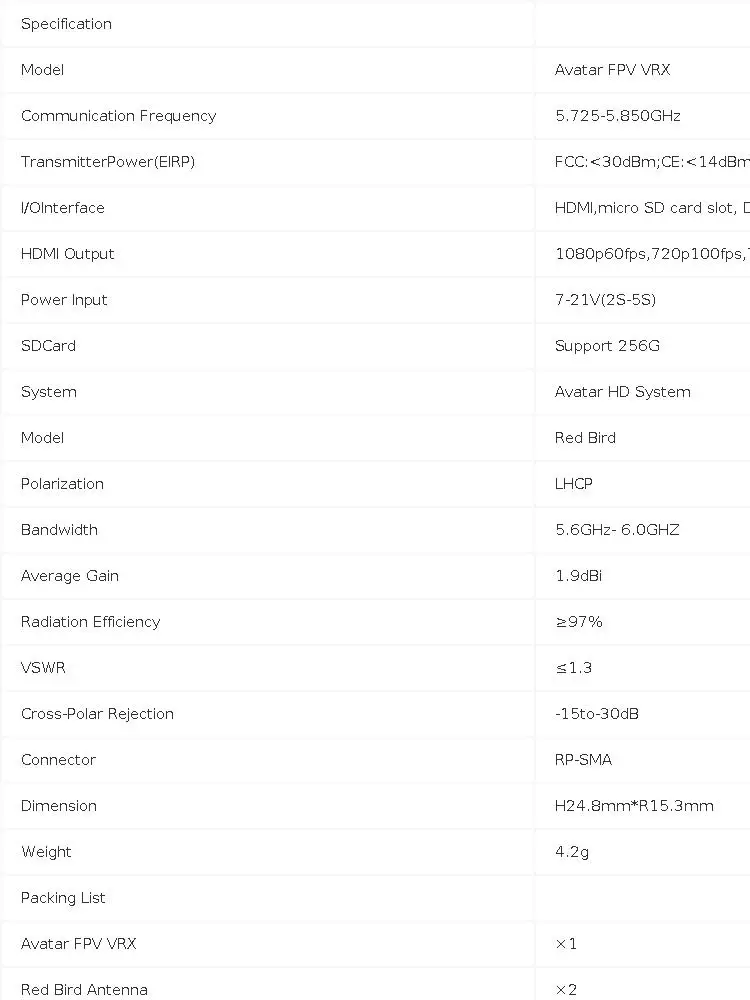

Avatar HD VRX

Model Avatar HD VRX

CommunicationFrequency 5.725-5.850GHz

TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm

I/OInterface HDMI,microSDcardslot,DC5.5*2.1mm

HDMIOutput 1080p60fps,720p100fps,720p60fps

PowerInput 7-21V(2S-5S)

SDCard Support256G

System AvatarHDsystem

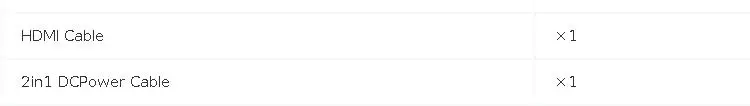

Packing List

Avatar VRX ×1

RedBirdAntenna ×2

HDMICable ×1

2in1DCPowerCable ×1

Avatar HD KIT X1

4 Pin USB Cable X1

6 Pin Power Cable X1

M2x3/4/5mm Screws X4

M1.2x1.5mm Screws X2

Avatar HD Nano KIT X1

4 Pin USB Cable X1

6 Pin Power Cable X1

M2x3/4/5mm Screws X2

M1.2x1.5mm Screws X2

14-19mm Bracket X1

Avatar Mini 1S KIT X1

4 Pin USB Cable X1

6 Pin Power Cable X1

M2x3/4mm Screws X2

M2x16mm Screws X4

M2 Screw nut X4

2.1x3.4x1mm Gasket X5

Discover the Next Level of FPV Exploration with the Walksnail Avatar FPV VRX – Where Performance, Portability, and Precision merge!
