MOES Tuya WiFi Smart Control Panel 3.5" Touch Screen, 3 Relays & Buttons, IR Remote, Bluetooth Sigmesh Hub, Home Automation

MOES Tuya WiFi 3.5-inch Smart Control Panel Screen 3 Relays 3 Physical Buttons IR Remote Control Bluetooth Sigmesh Hub Built-in
BY-MOES
Packing List
Smart Control Panel Mini*1
User Manual *1
Screw *4
Reset pin*1

Note: The center control panel does not support voice or video intercom.

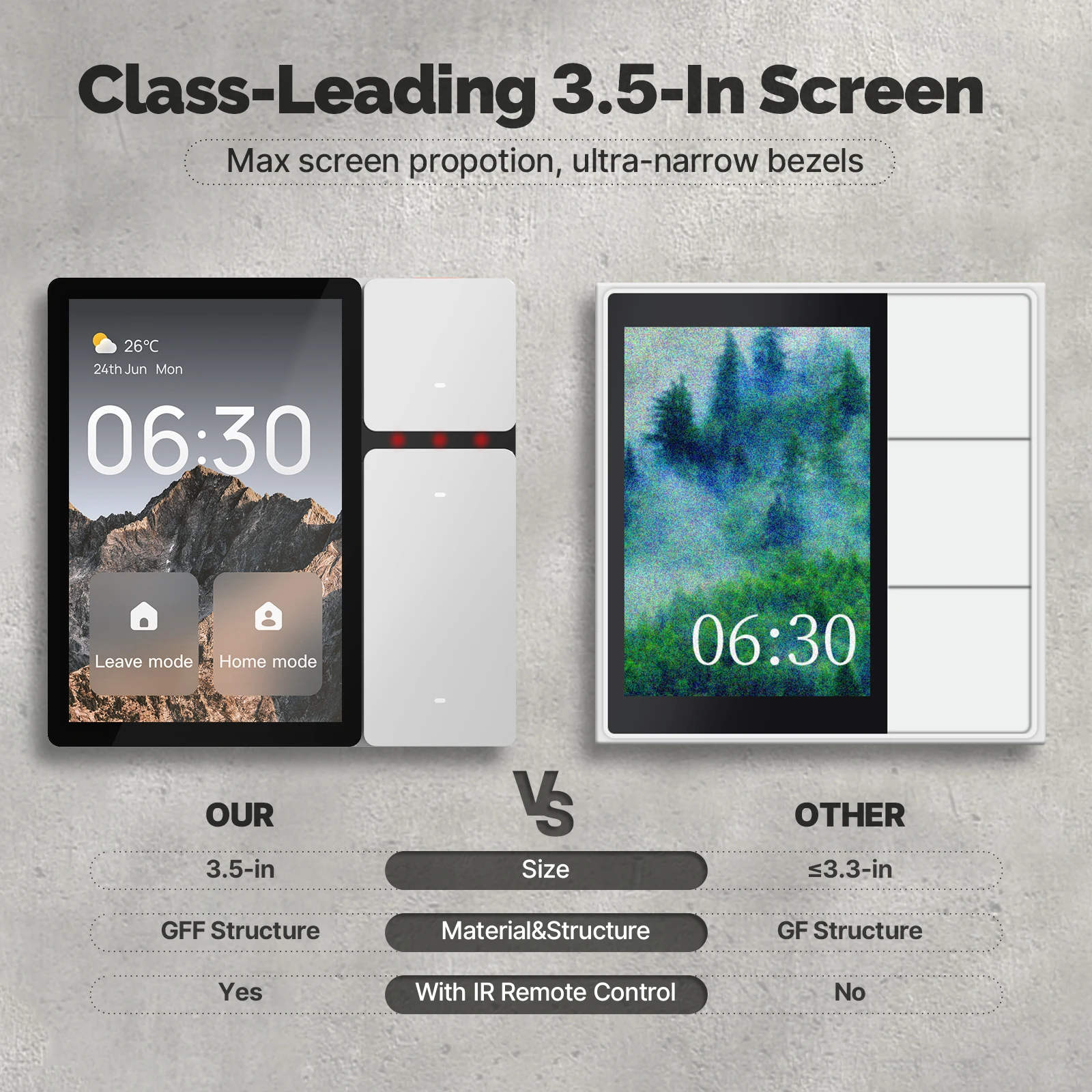

Class-leading 3.5-in screen

Max screen propotion, ultra-narrow bezels

Comparison with other control panels

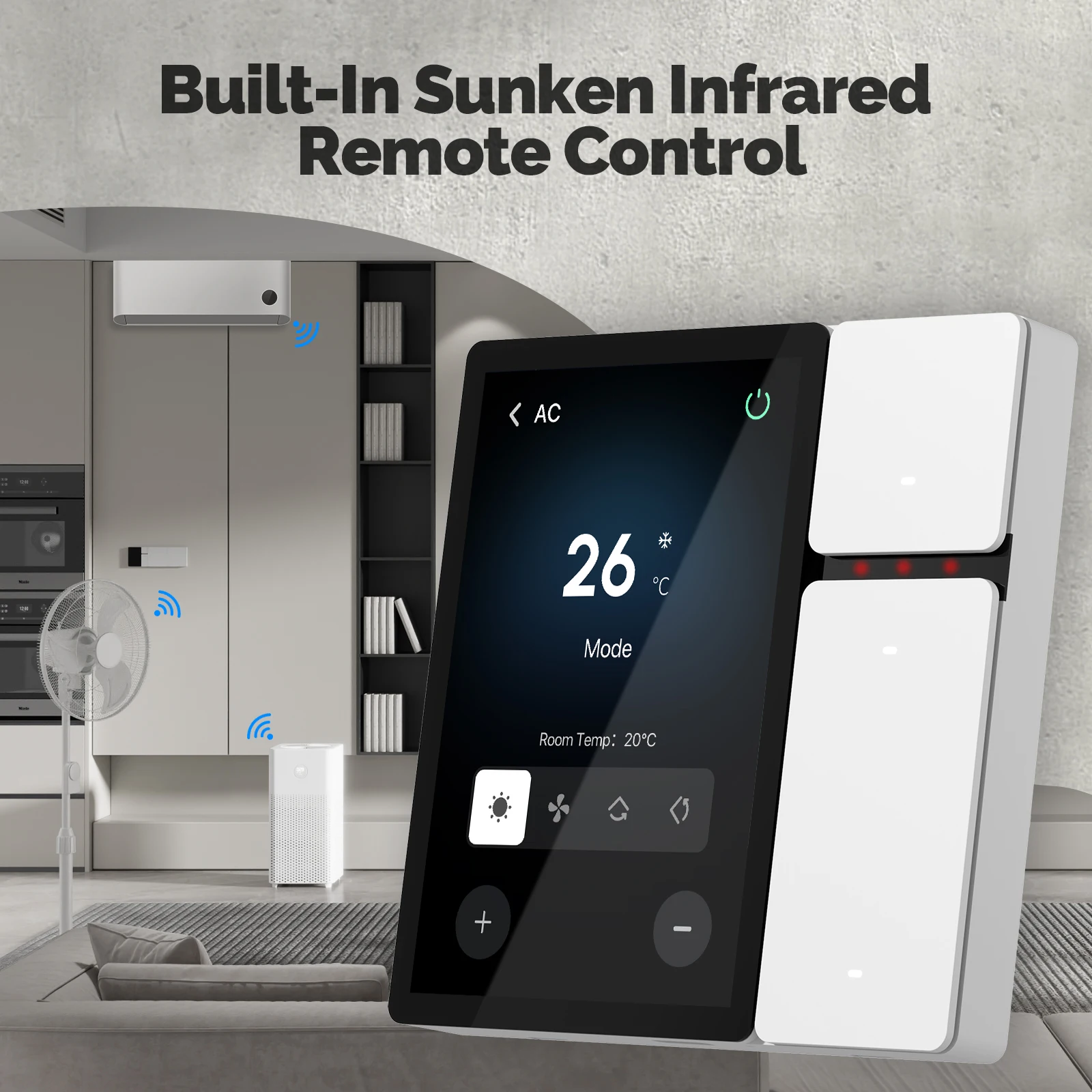

Built-in sunken infrared remote control

（Three infrared sensors）

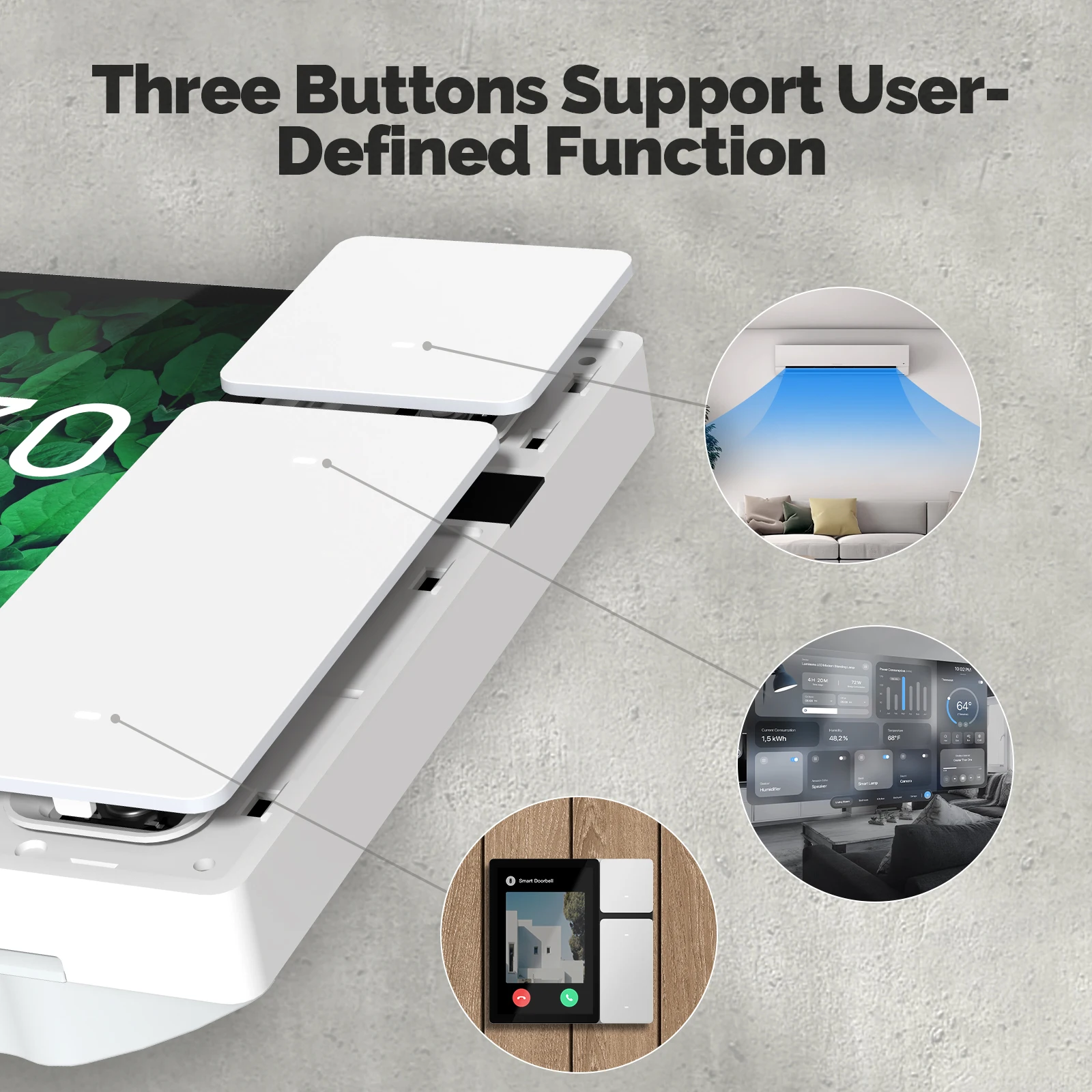

Three buttons support user-defined function

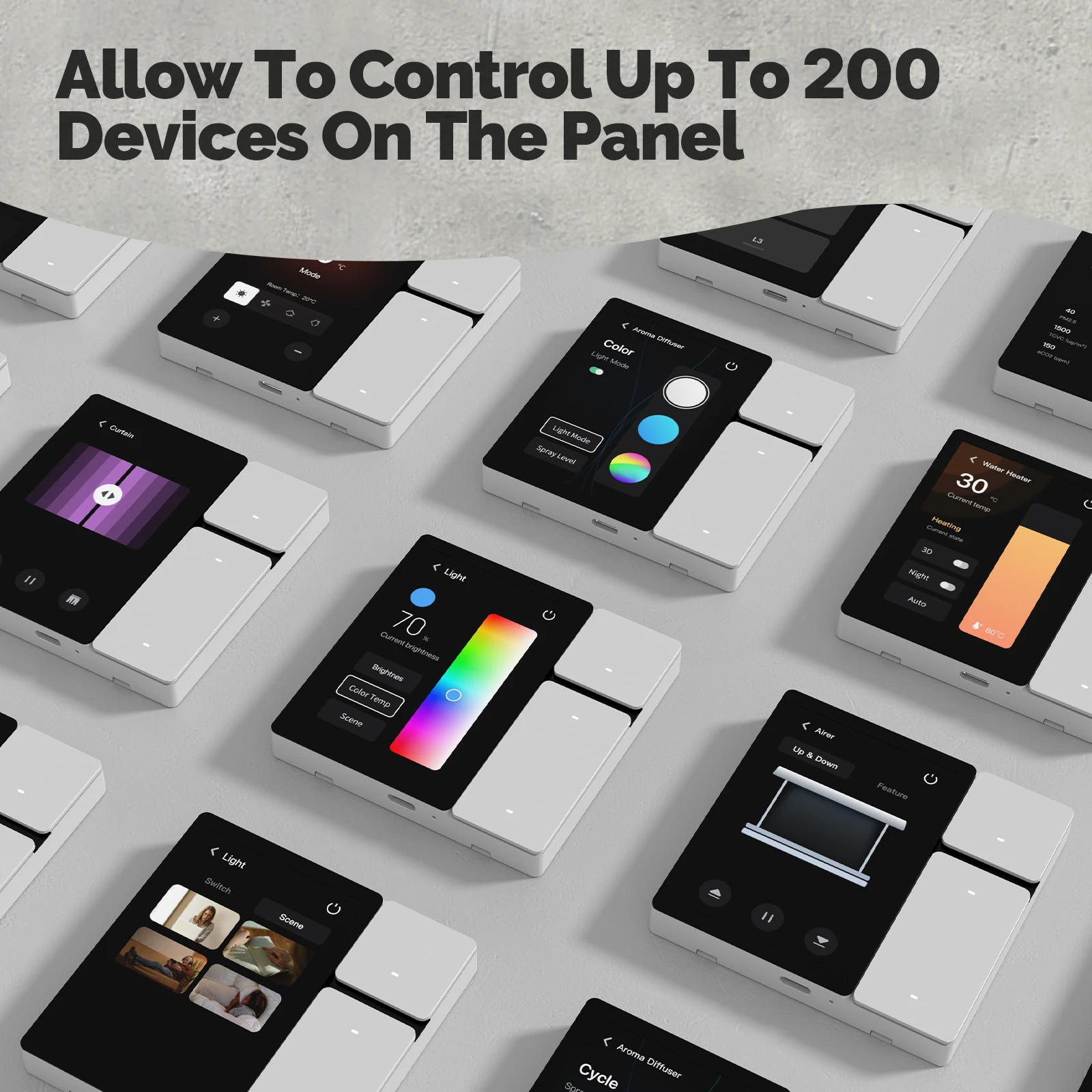

Allow to control up to 200 devices on the panel

Unlike similar competing products on the market that only support 8 devices and 8 scenes, Mini supports more than 110 device categories, covering all commonly used categories in the home, and does not limit the number of devices and scenes
that can be controlled on the screen. 200 devices can be displayed and controlled on the screen.

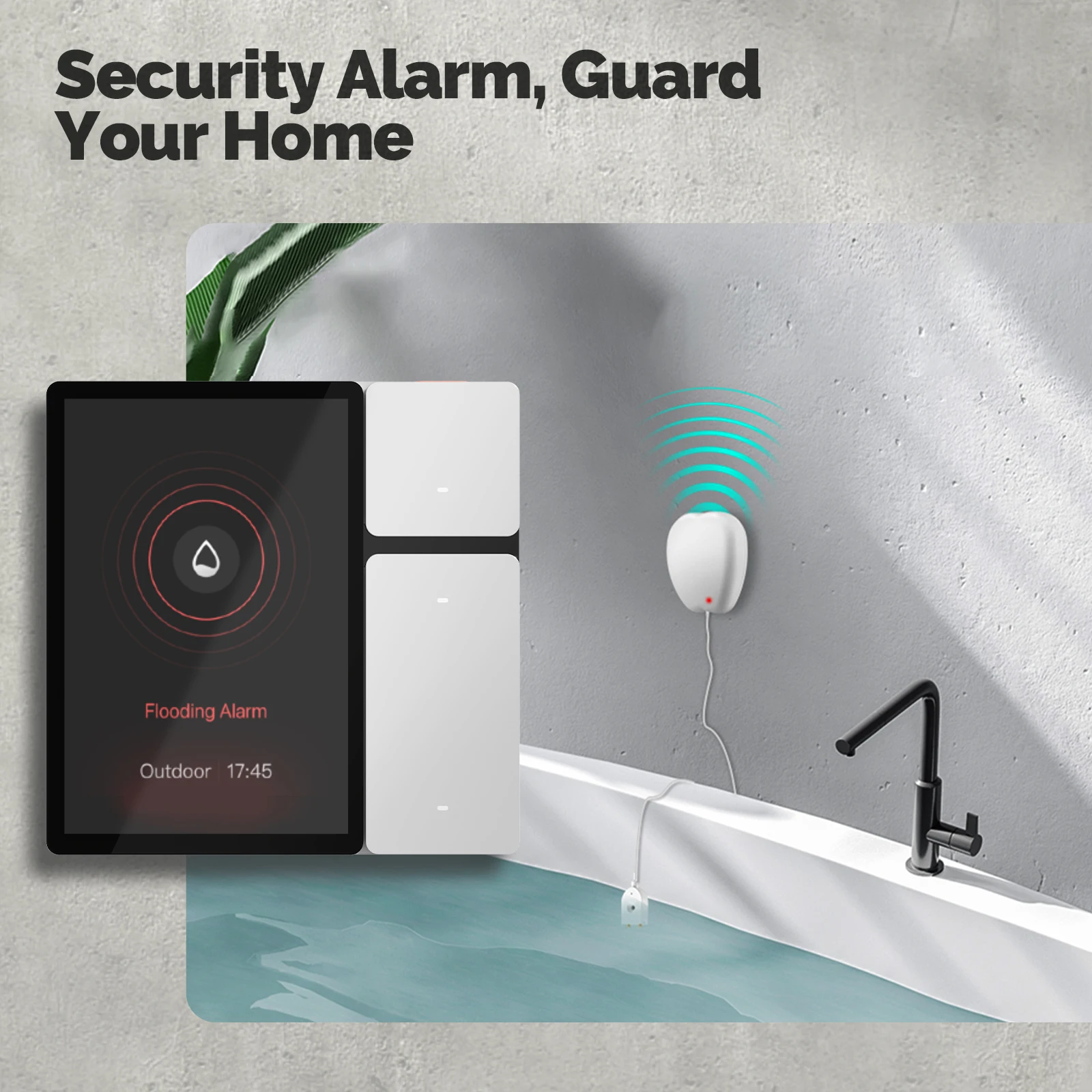

Security alarm, guard your home

Mini supports automatic association with security devices(smoke sensor, gas sensor, water sensor, SOS emergency button) under the account. When the security device detects a danger, Mini will sound an alarm and display an alarm card on the screen to remind the user.

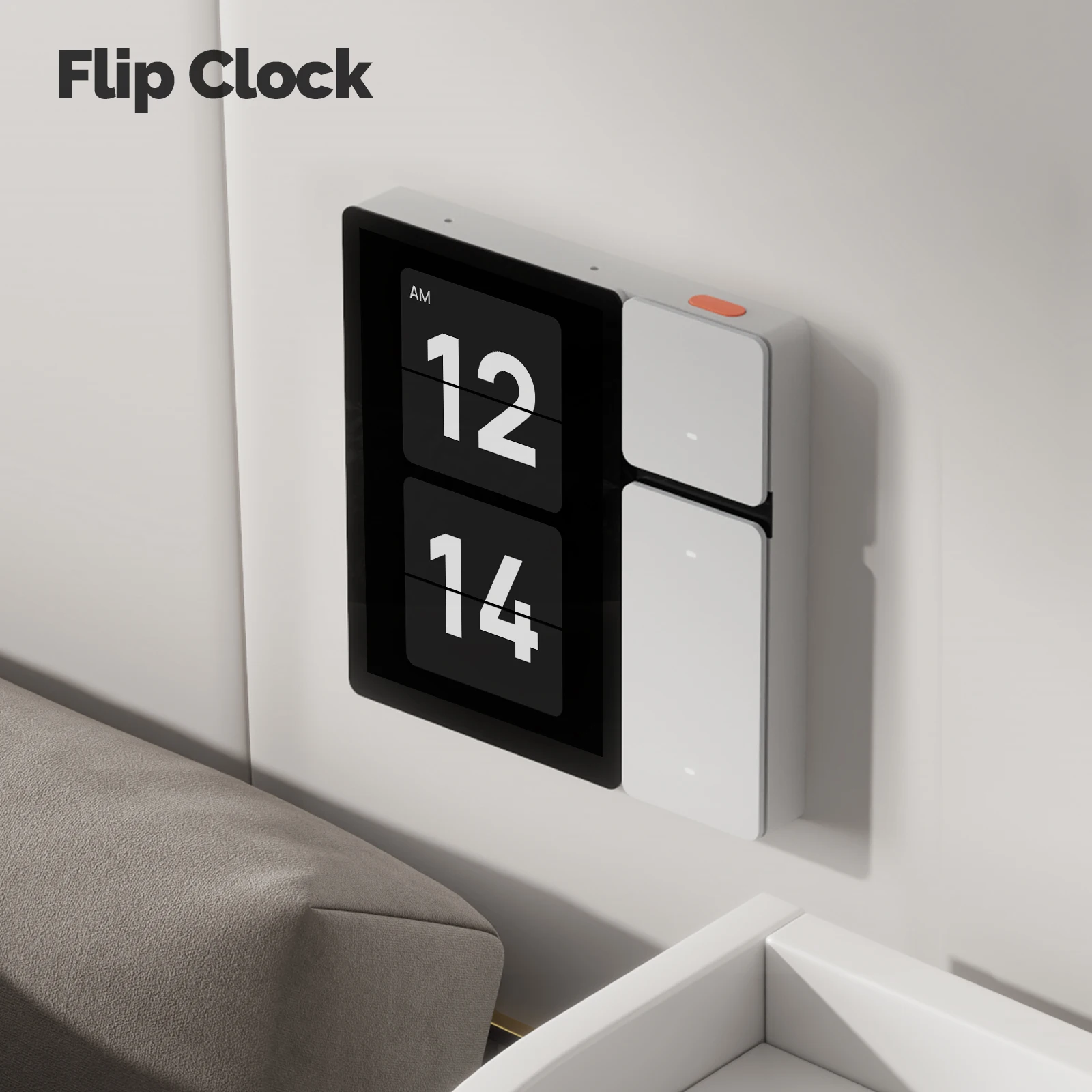

Flip Clock

Wall technology aesthetics is not only an interactive entrance for smart devices throughout the home, but also an art piece that decorates the wall. When there is no operation, it will automatically enter the Flip Clock screen saver. From now on, the home space will also be an art space.

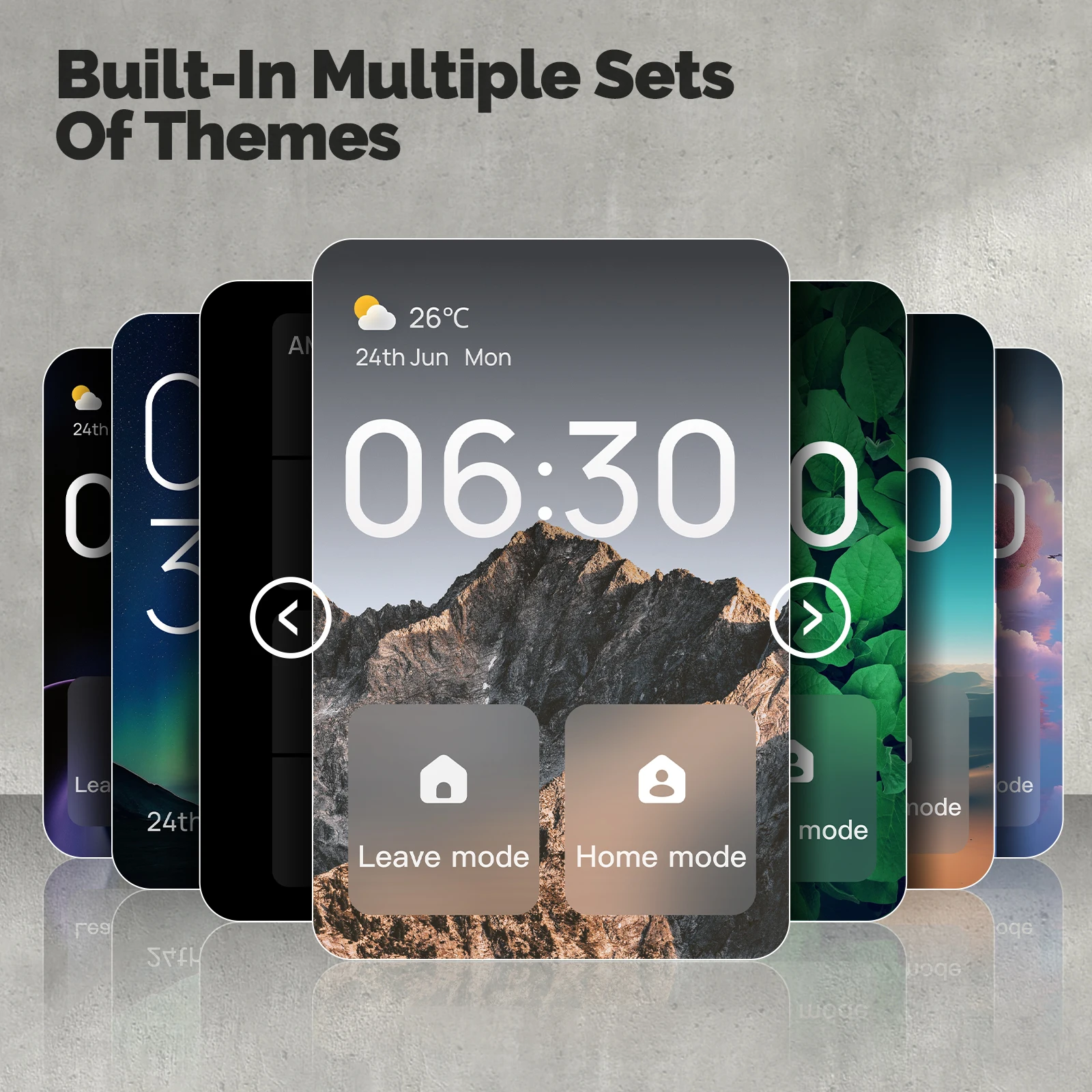

Built-in multiple sets of themes

The central control panel comes with multiple themes and screen savers of different styles to choose from. You can choose according to your preferences and home decoration style. The screen saver supports sliding show to add color to your home.

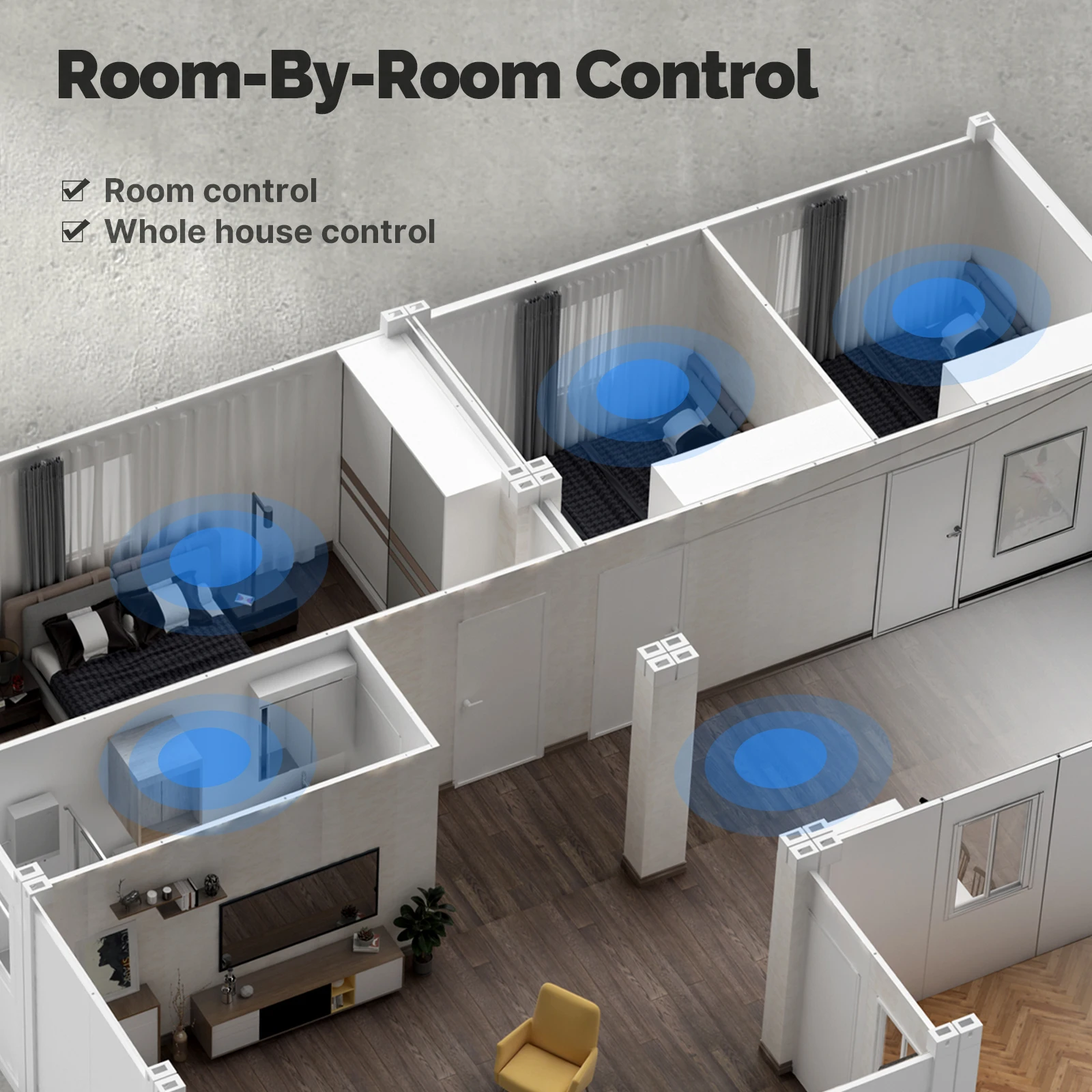

Room-by-room control

Mini supports single-room, multi-room, and whole-house partition control. When installed in the bedroom, you can only choose to display smart devices in the bedroom to avoid interference with
other areas, so that each partition can be controlled independently without interfering with each other.

OS 5.0, Better smart interaction

Mini uses the self-developed IoT operating system OS 5.0, to bring faster system response and smoother control experience. The lightweight operating system also brings excellent performance of long-term operation without lag and low heat generation.

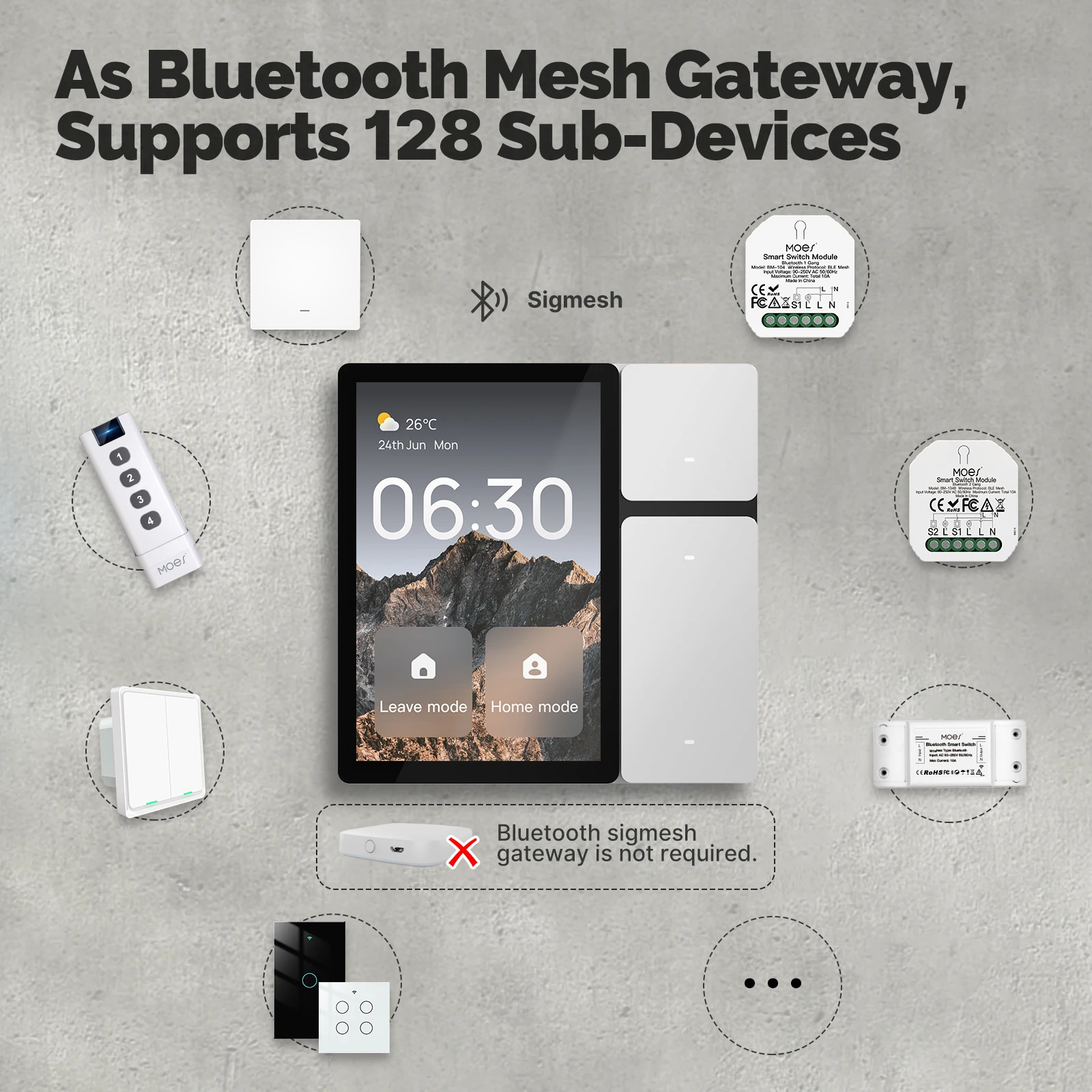

As Bluetooth Mesh Gateway, supports 128 sub-devices

It can be used as a Bluetooth Sigmesh gateway, supporting the addition of up to 128 sub-devices, which can basically cover the household control requirements for Bluetooth Sigmesh devices.

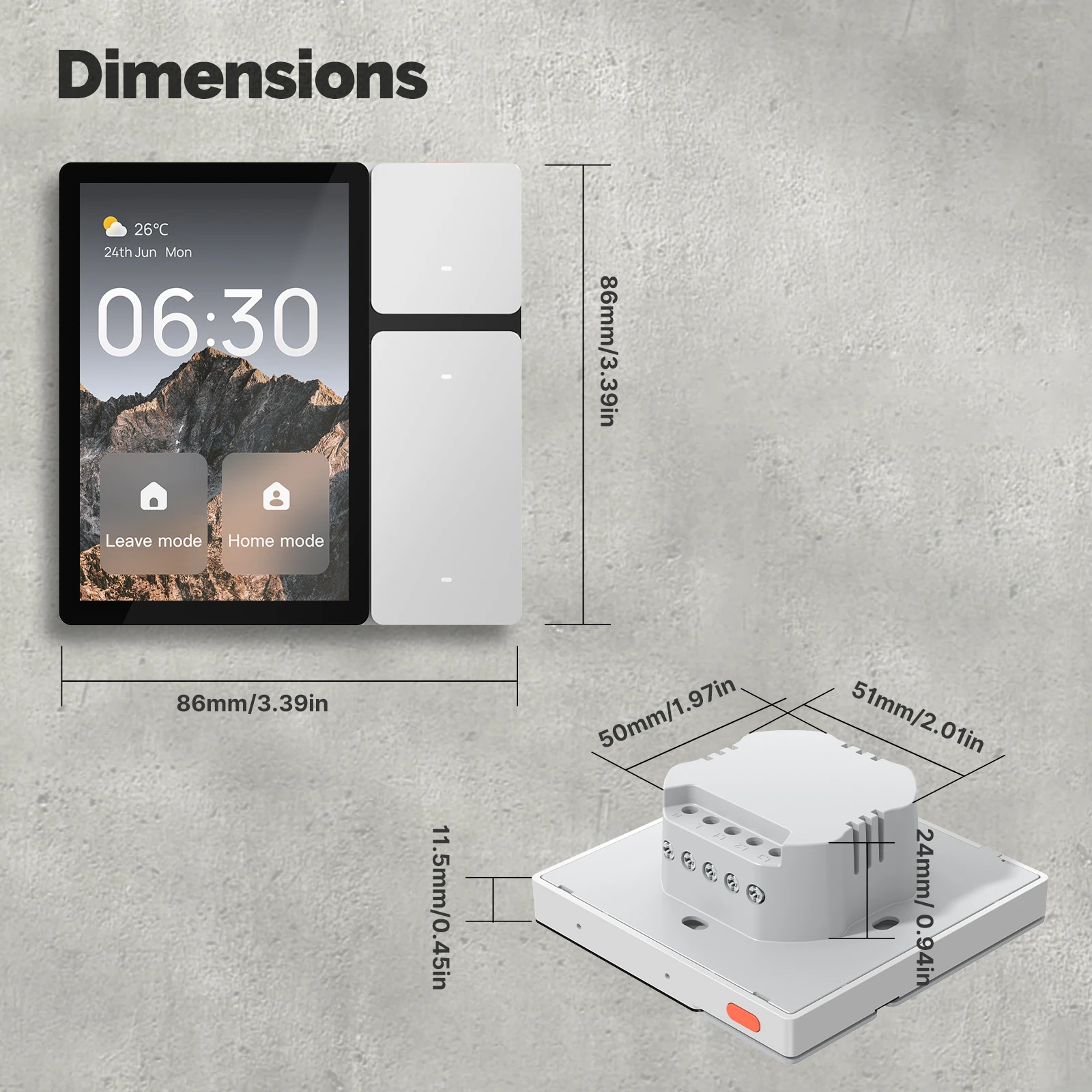

Dimensions

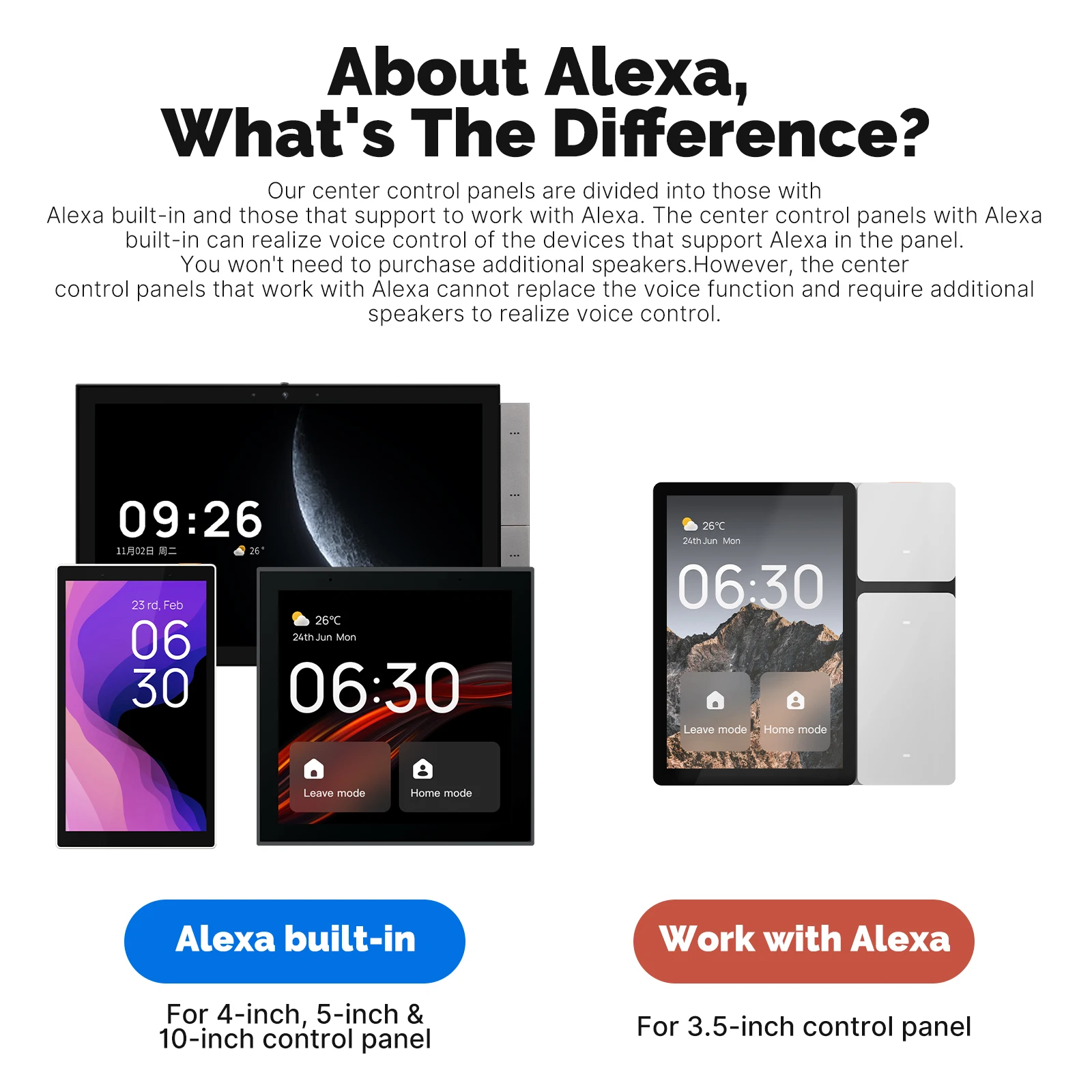

About Alexa, what's the difference?

Our center control panels are divided into those with Alexa built-in and those that support to work with Alexa.
The center control panels with Alexa built-in can realize voice control of the devices that support Alexa in the panel. You won't need to purchase additional speakers.
However, the center control panels that work with Alexa cannot replace the voice function and require additional speakers to realize voice control.

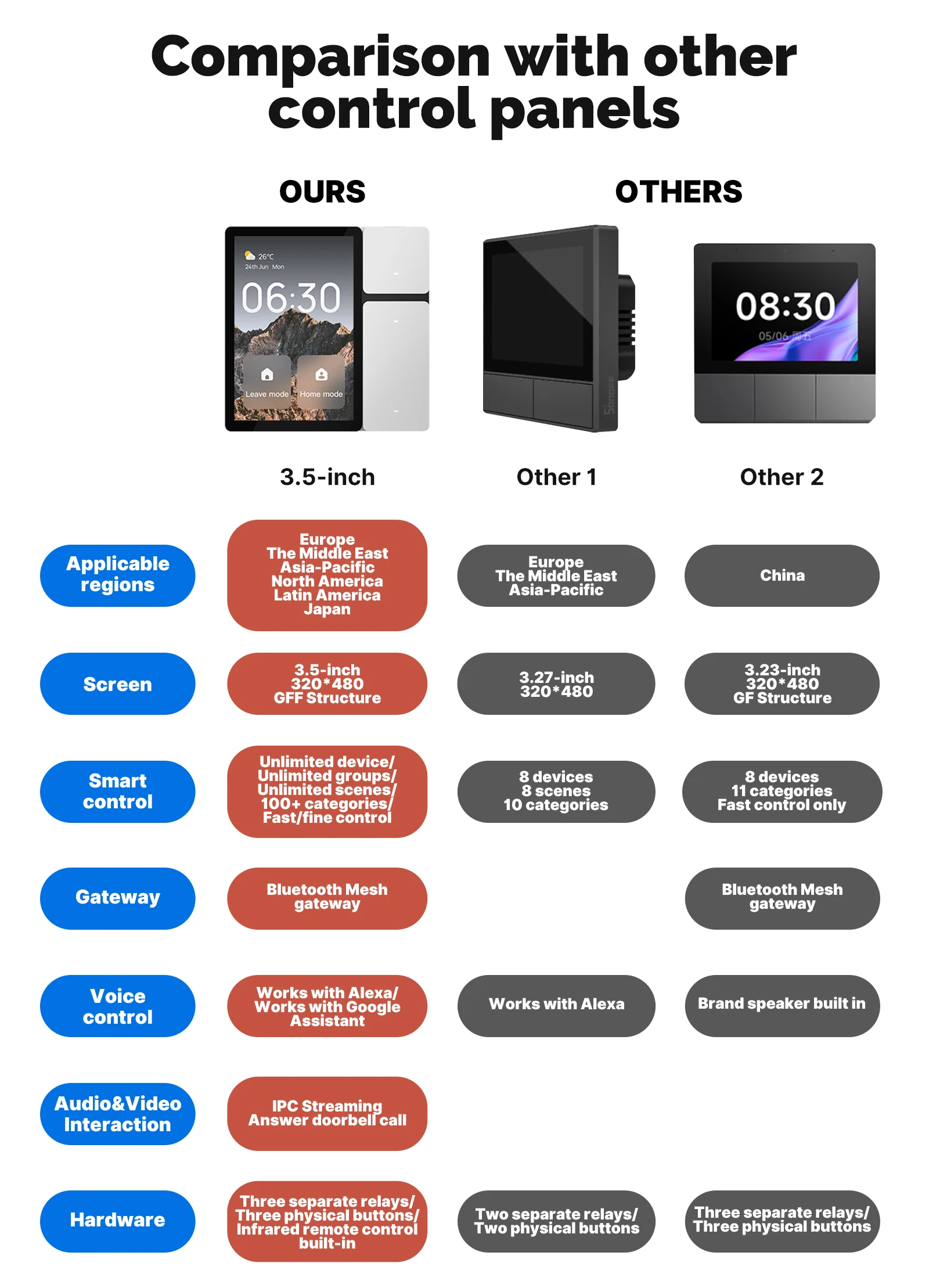

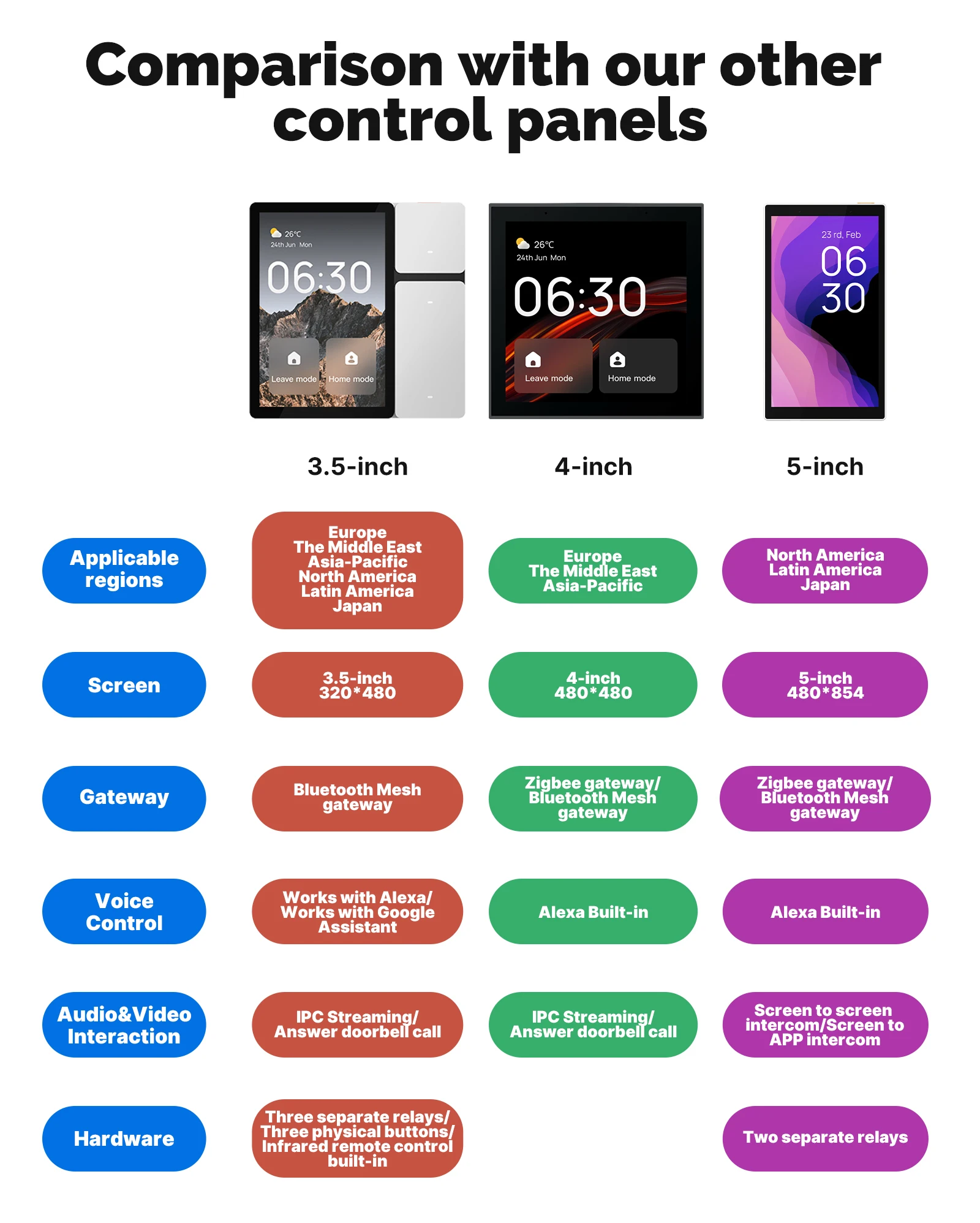

Comparison with our other control panels

Technical Specifications:

Product Name: Smart Control Panel Mini
Product Model: TPP06
Input: 100-240V～；50/60Hz
Wireless Protocol: Wi-Fi、Sigmesh、IR
Maximum Load:
Maximum total load: 600W
Maximum load per channel: 200W
Operating Temperature: 0°C～40°C
Operating Humidity: 5% to 90% RH (Non-condensing)
Size:
86*86*11.5mm (excluding base)
86*86*35.5mm (including base)
Frequency Band: 2400-2483.5MHz
Maximum Radio Transmit Power: 20dBm
