DUMBORC 2.4GHz Receiver P6F P6F(G) P6DC P6DC(G) P4FM(G) P4FM P6FP P10F P10F(G) Receiver with Gyro/without Gyro For RC Car Boat

DUMBORC 2.4GHz Mini Receiver P6F P6F(G) P6DC P6DC(G) P4FM(G) P4FM P6FP P10F P10F(G) Receiver with Gyro/without Gyro For RC Car Boat

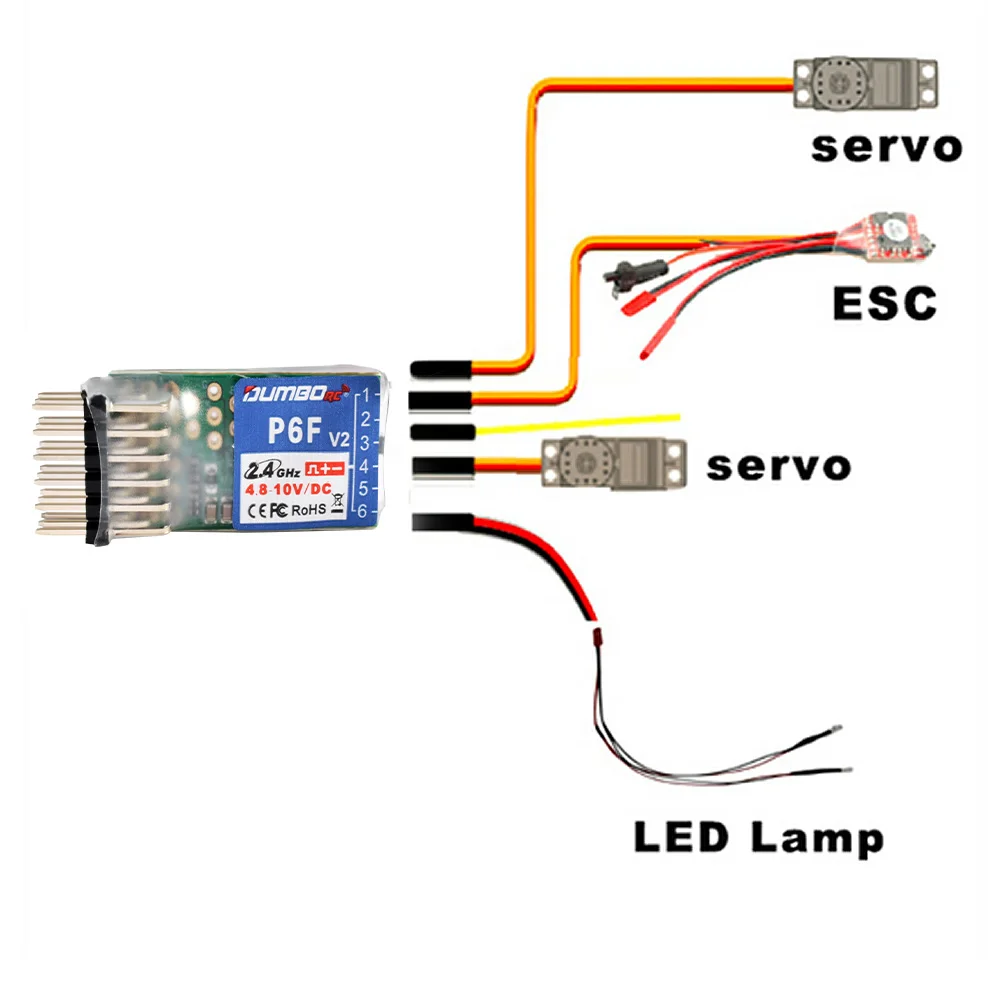

P6F P6FG Features:

1. Receiver voltage range: 3.3V-10V, working current 30mA, support high-voltage steering gear.

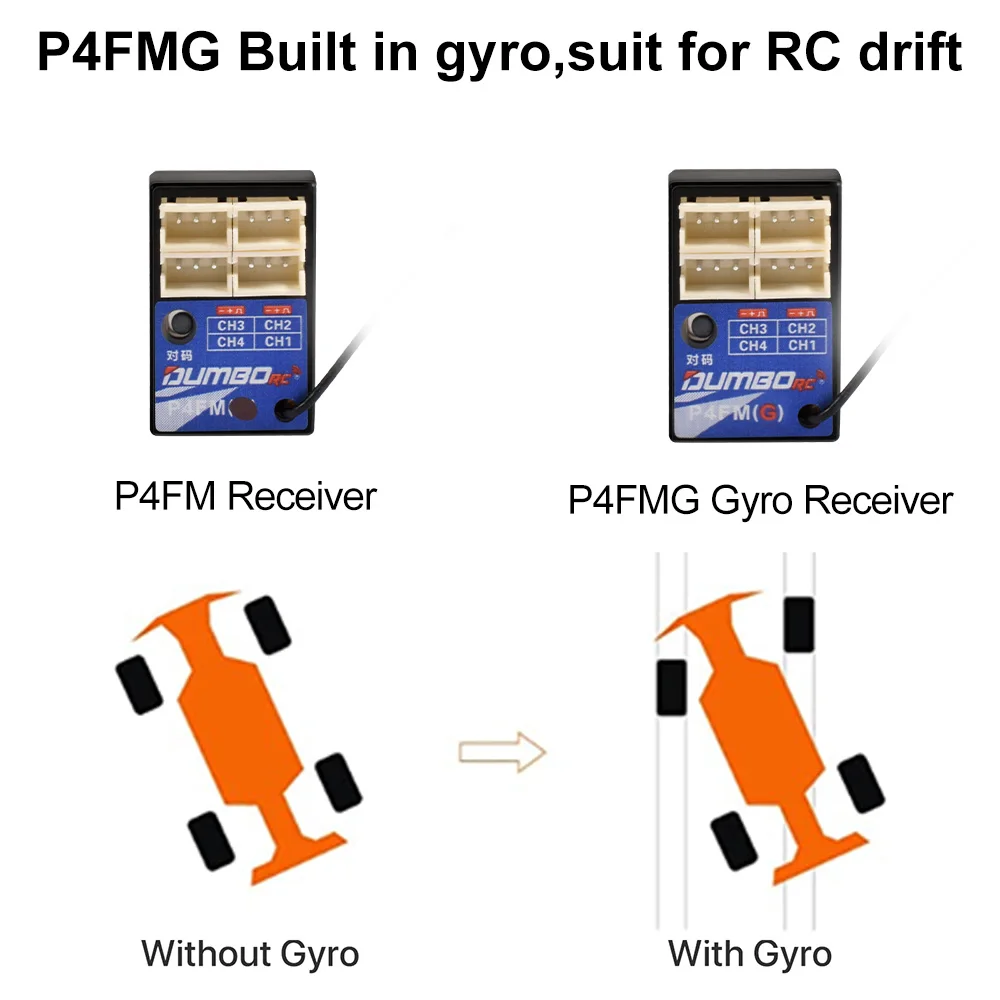

2. Receiver integrated gyroscope (P6F/P6FG) ensures that the model is in line to prevent tail flick and rollover. Support gyroscope sensitivity adjustment.

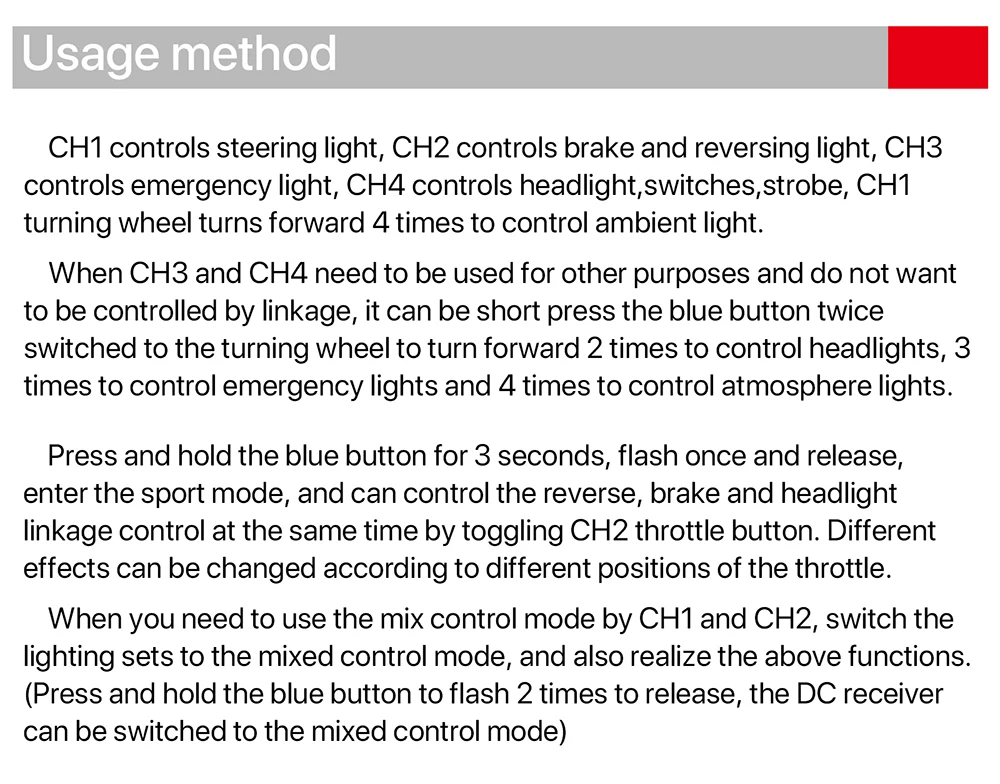

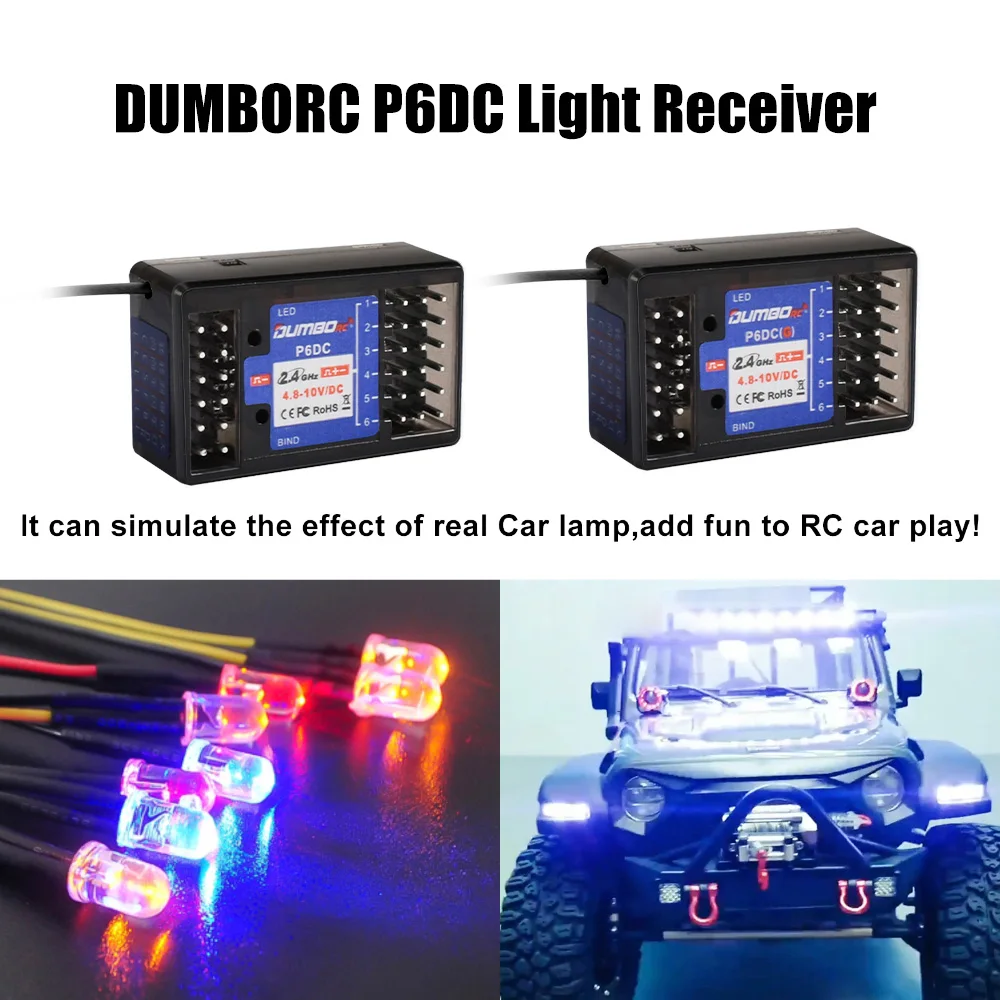

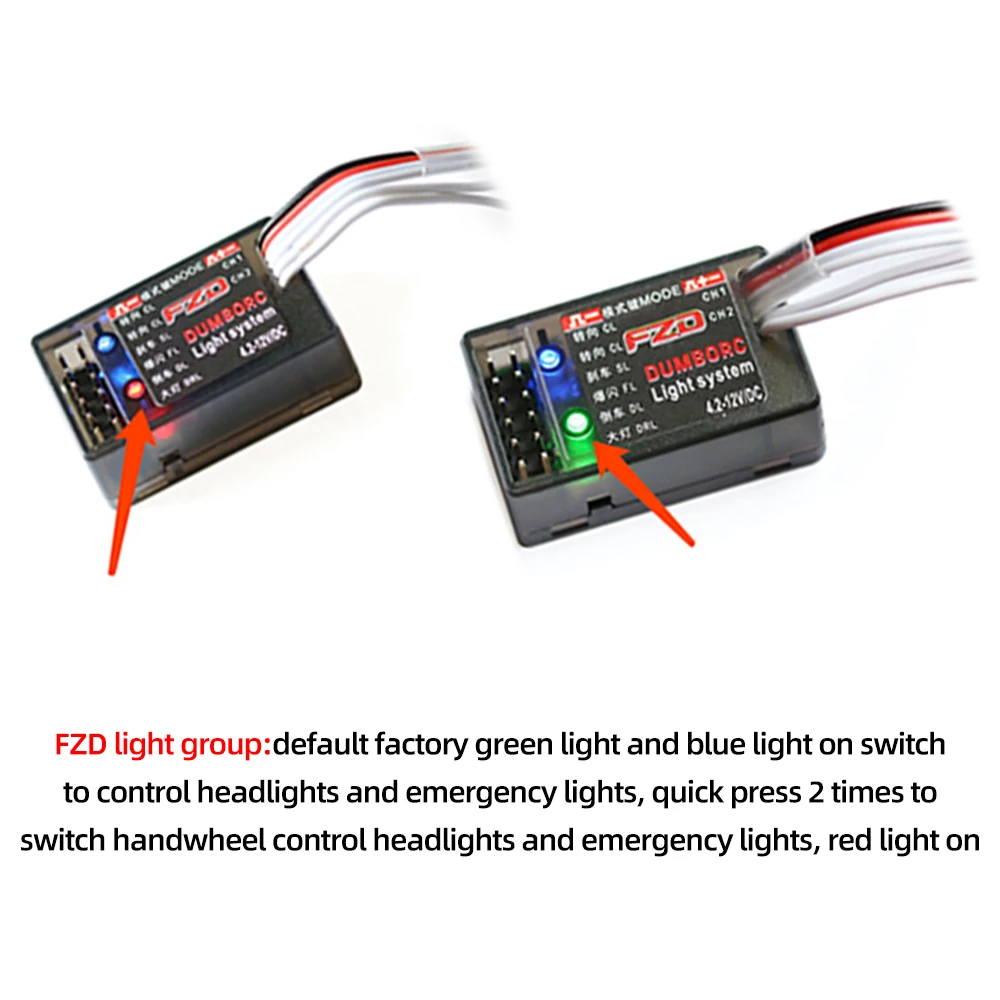

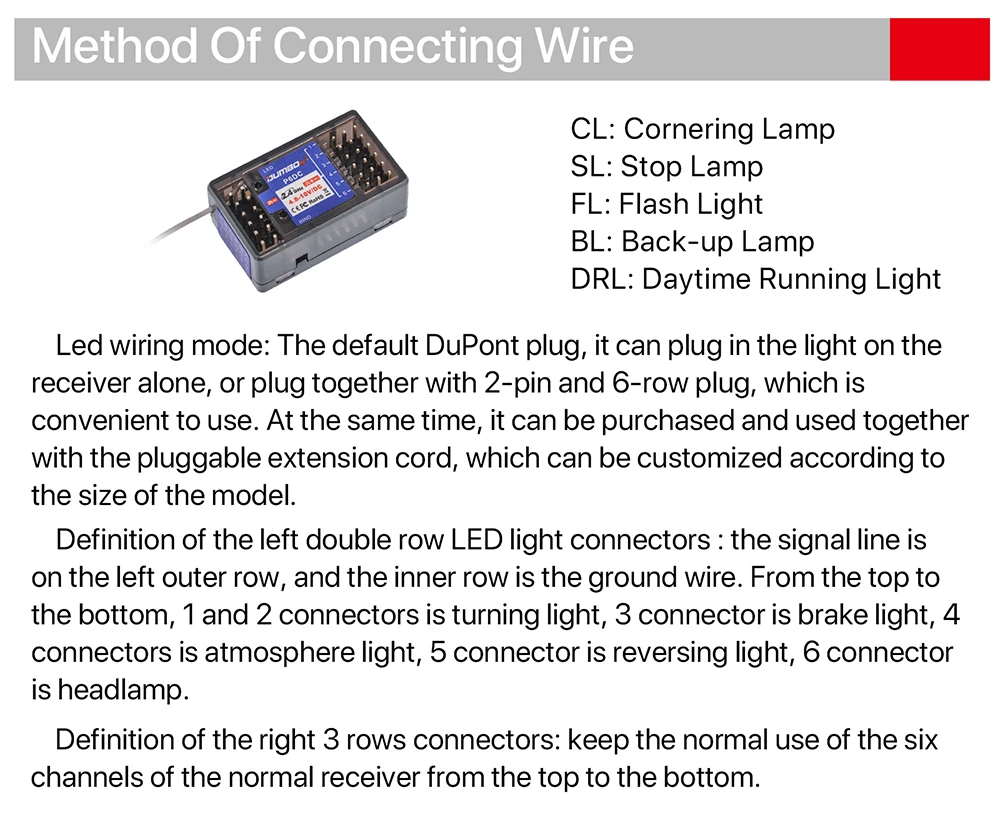

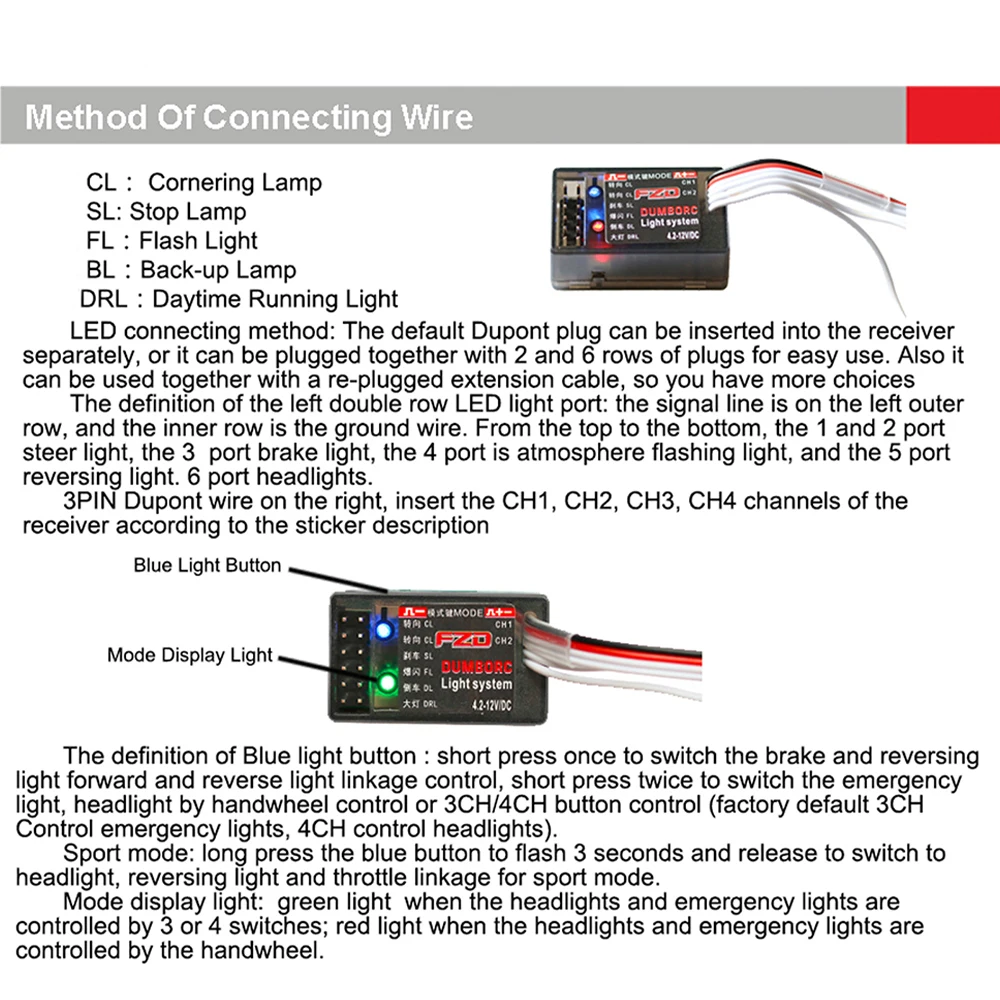

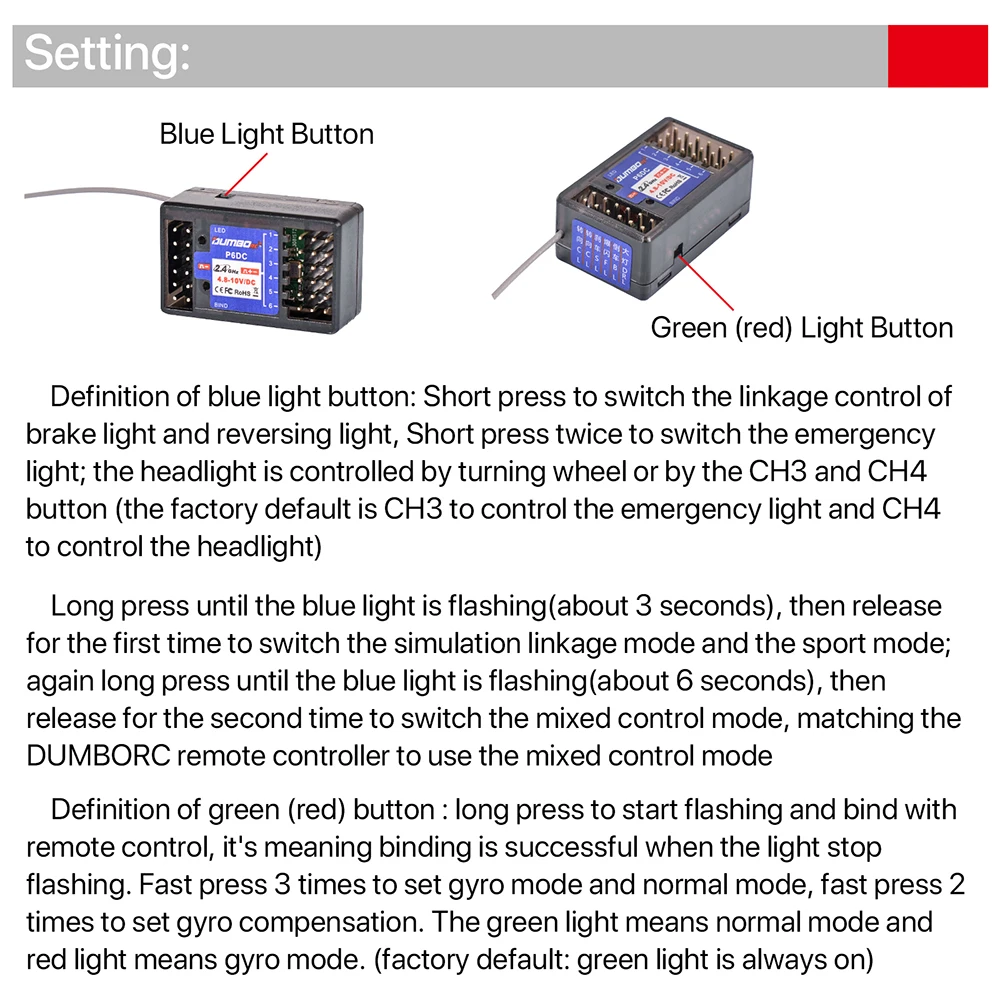

P6DC P6DCG Features:

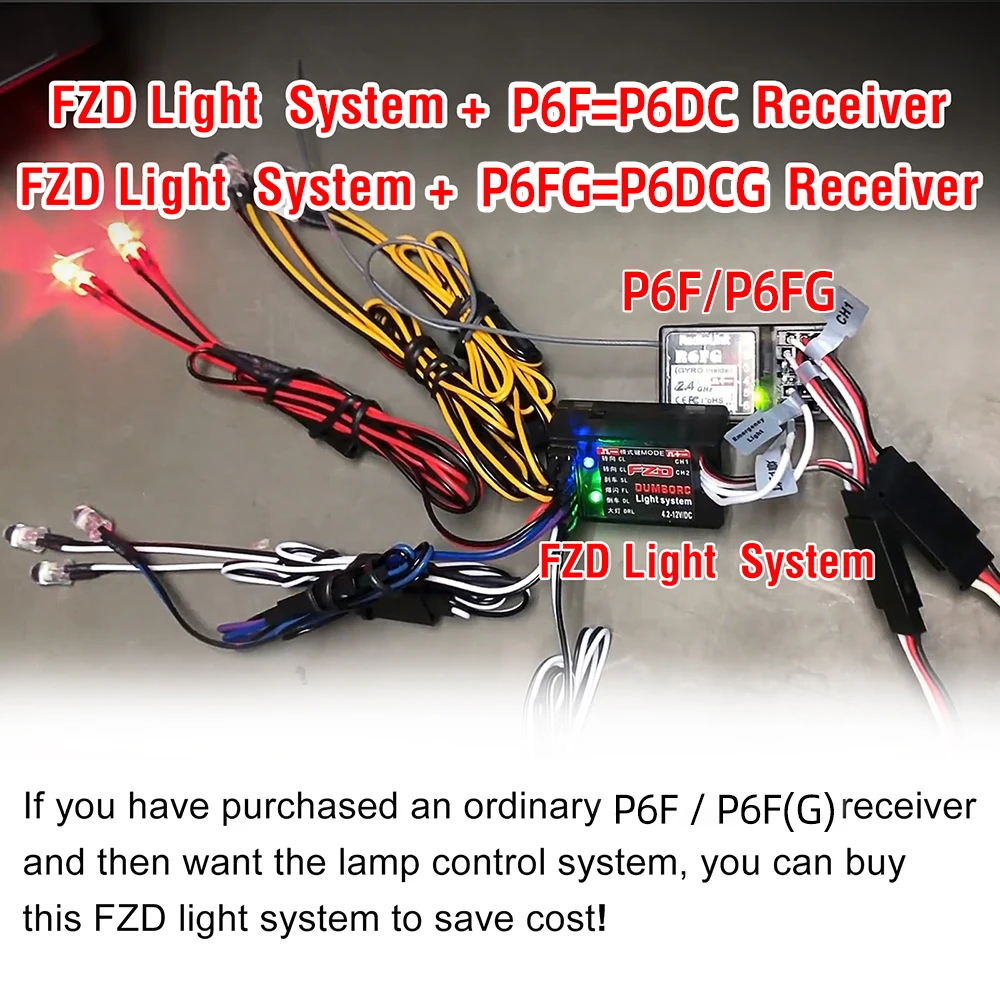

1. Integrated light group, avoid too many y lines lead to the wiring is very ugly.

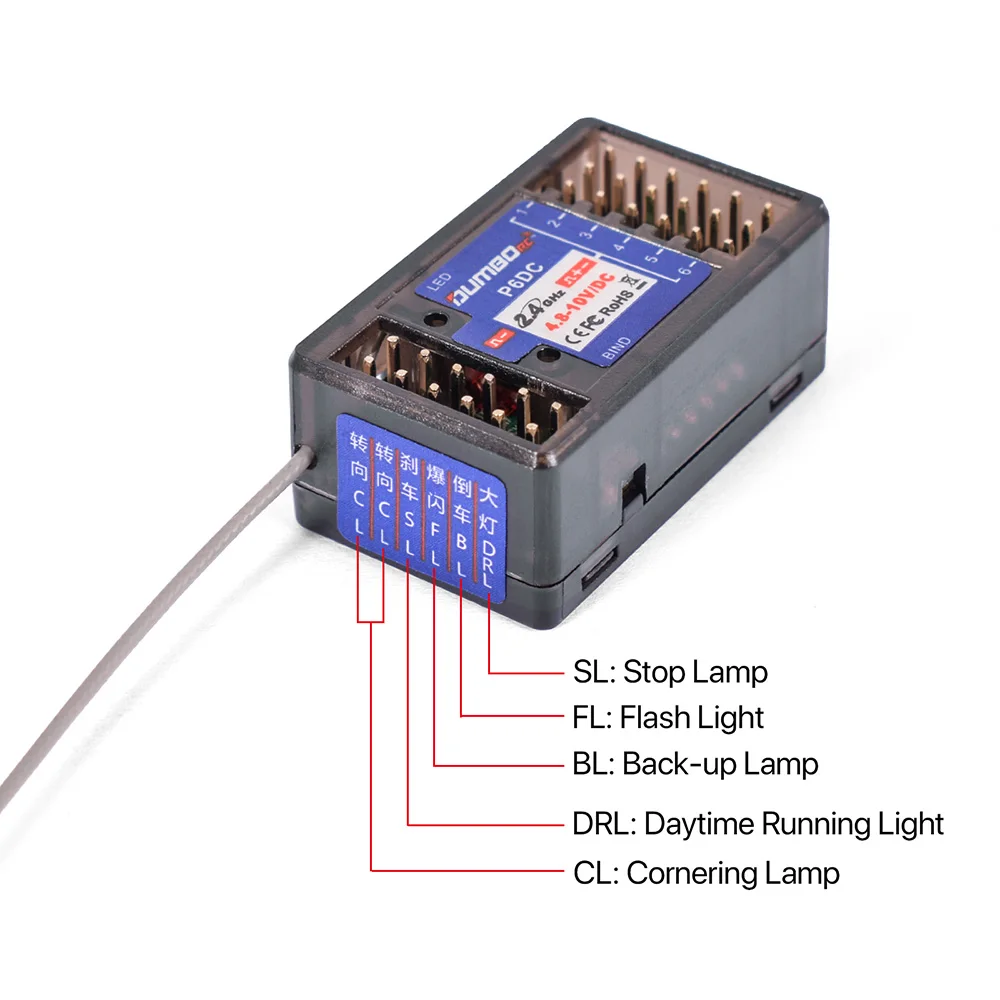

2. It can realize the linkage simulation of steering, headlight, brake, reversing, atmosphere and emergency light.

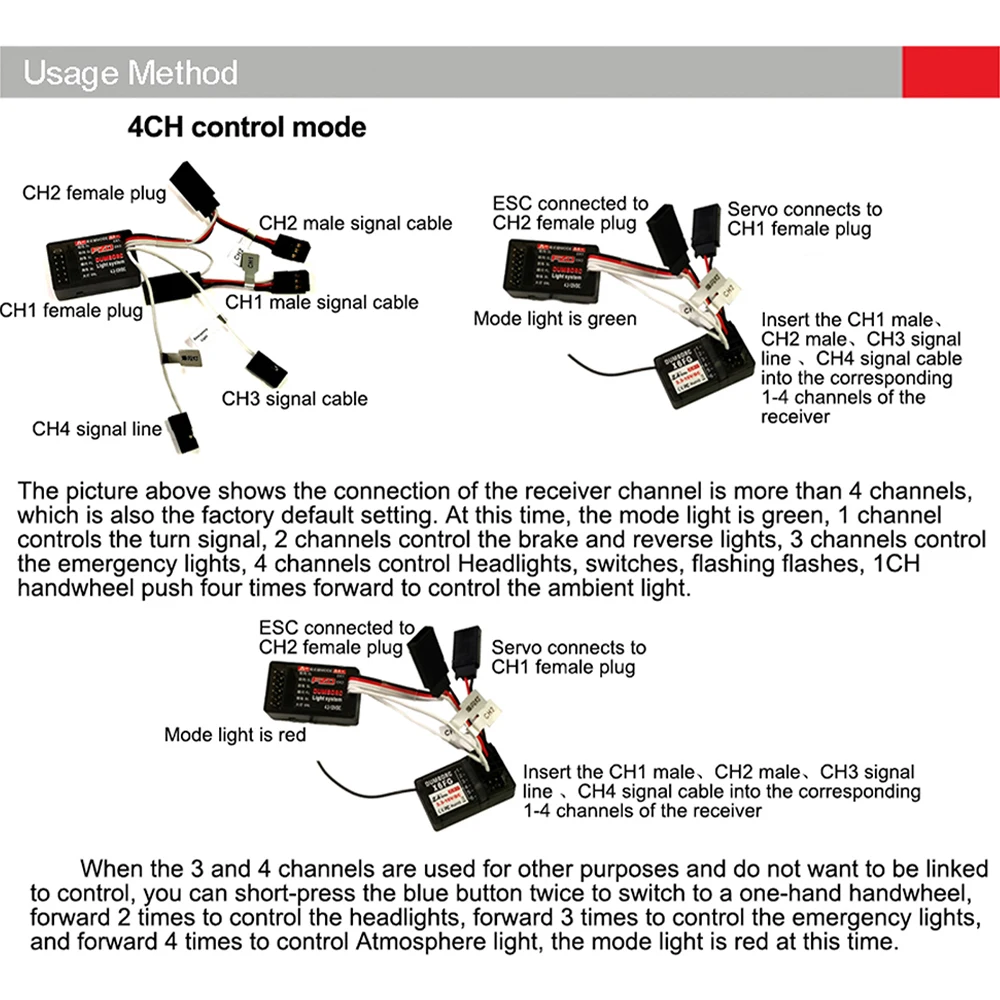

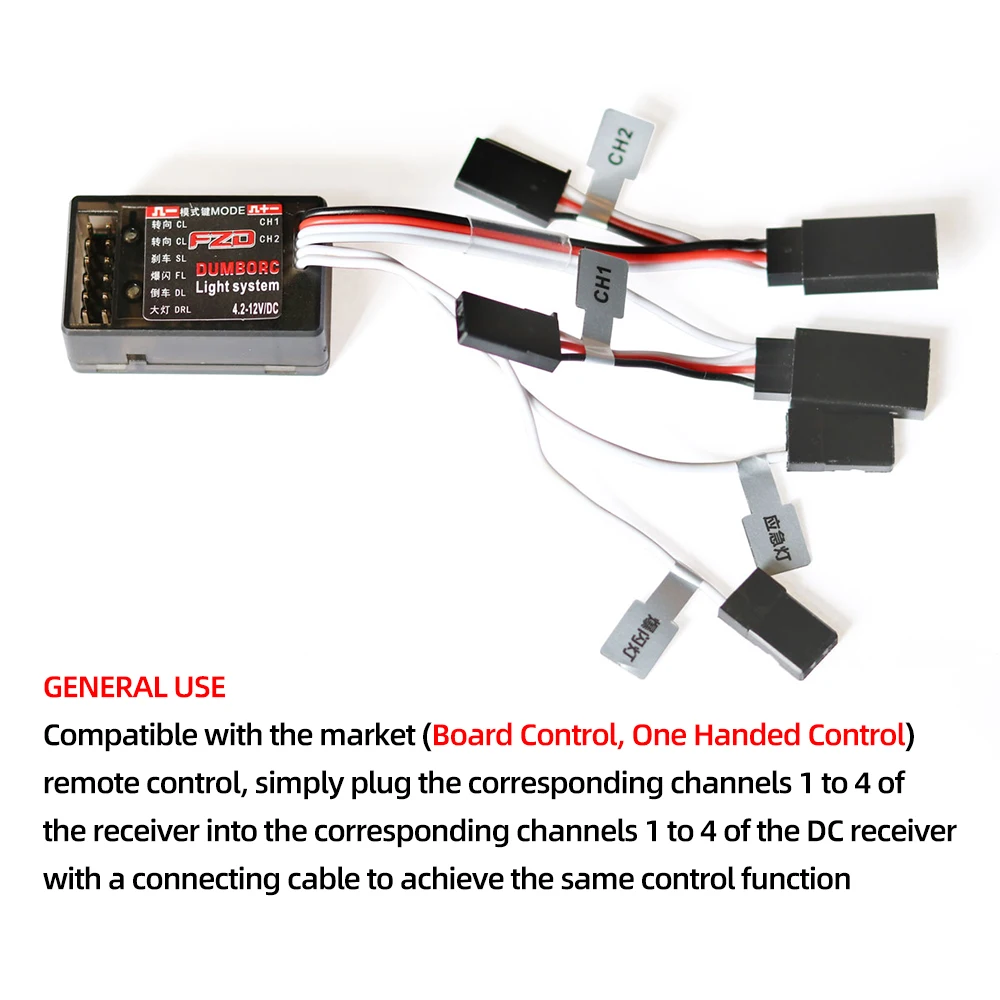

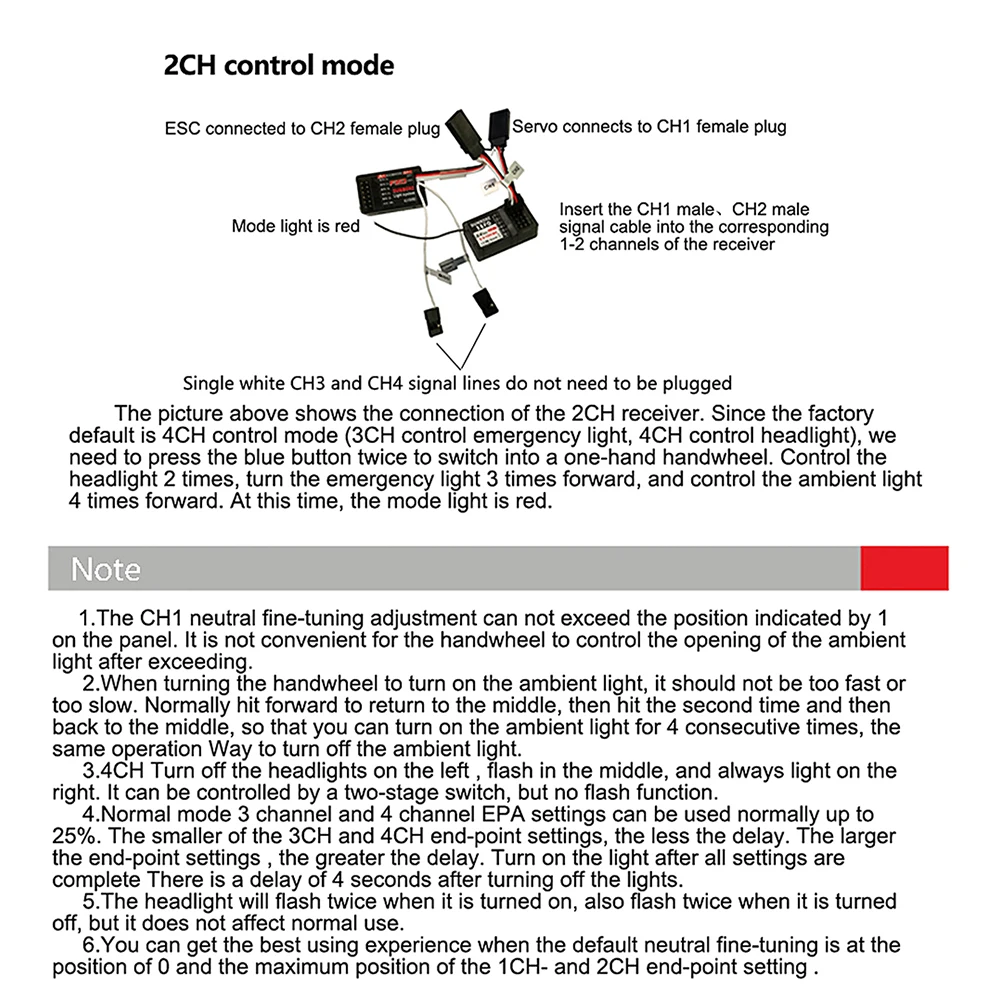

3. Compatible with the market (gun control board control) remote control, it only needs to plug the 1-4 channel of the corresponding receiver with the connecting wire to the corresponding 1-4 channel of the DC receiver, then the same control function can be realized.

4. Pluggable extension cord can be selected to replace the battery or maintain the model installed on the lamp shell quickly and conveniently.

5. It supports the lamp group function in the mixed control mode.

P6F P6FG(bent) Features:

1. Receiver voltage range: 3.3V-10V, working current 30mA, support high-voltage steering gear.

2. 6CH DumboRC Receiver: DUMBORC X4 X5 X6 transmitter only.

3. Mini RC Car Receiver: miniZ 1/28 1/24 RC Car.

P4FM P4FMG Features:

1. 4CH Dumbo RC Receiver: DUMBORC X4FM / X4FMG Gyro 4ch RC receiver for DUMBORC transmitter only.

2. FHSS RC Receiver: FHSS Signal Spread Spectrum,(67 channel pseudo-random frequency hopping)Adopt FHSS spectrum anti-interference technology, keep the signal stable

4. Compatible RC Controller: X4 X6 series/X5P series/X6PM series remote control

5. Mini RC Car Receiver: Application car/boat.

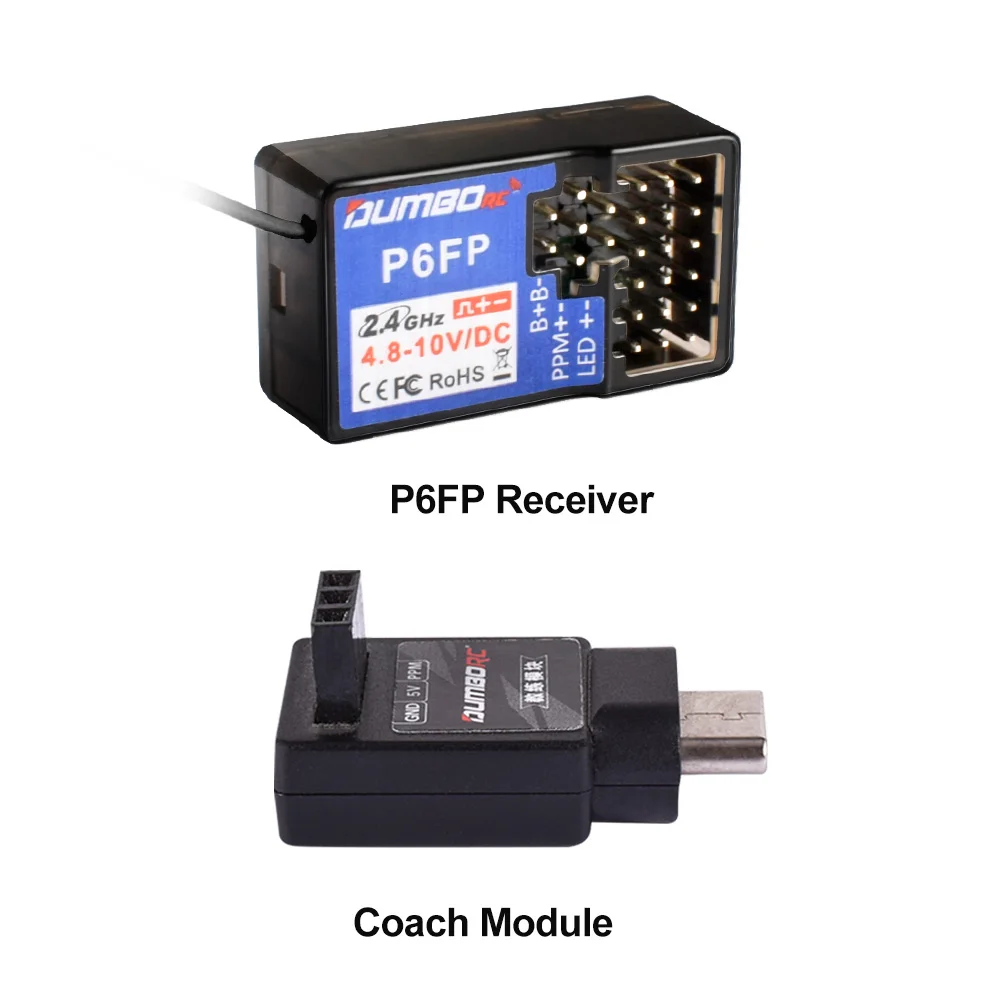

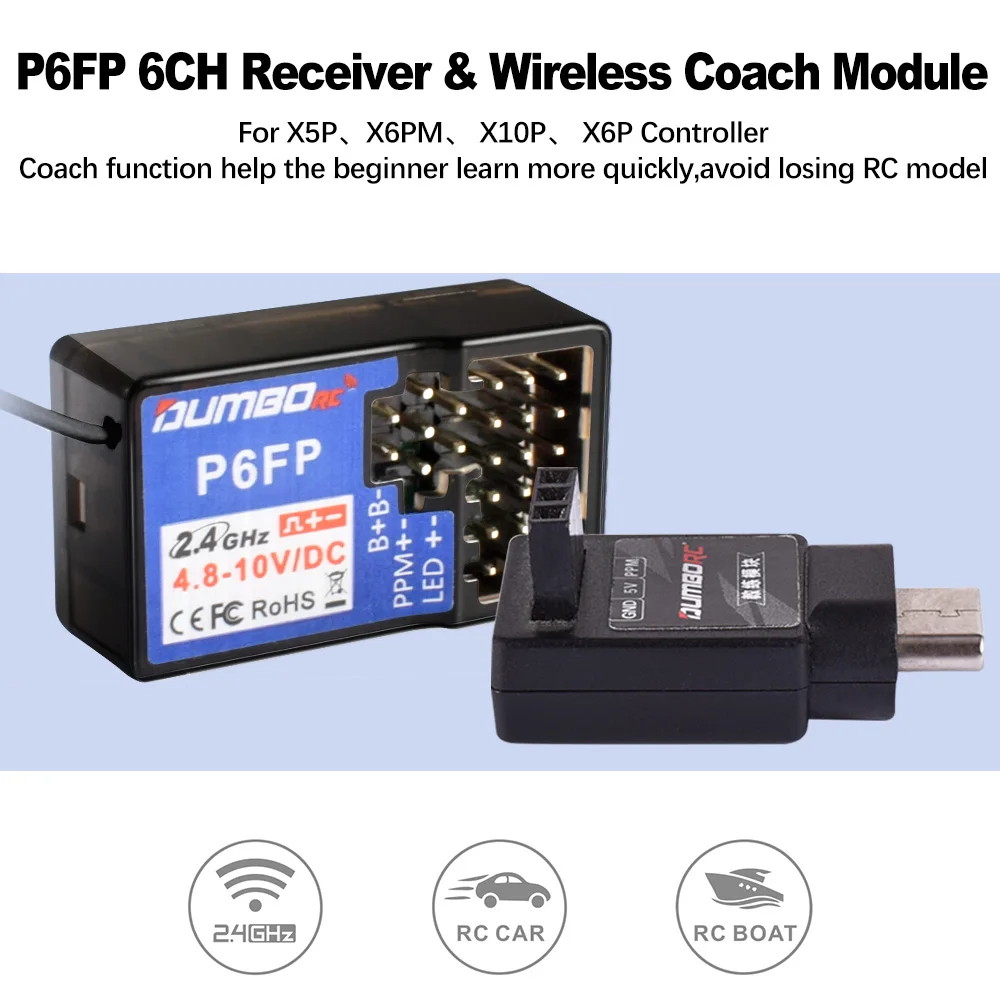

P6FP Features:

1. DUMBORC RC Receiver: For DUMBORC Transmitter X5P、X6PM、X10P、X6P series.

2. Lamp Control: Not occupy the existing channel and can switch on and off the lights in any channel.The voltage between LED lamp pins is equal to the voltage connected to the receiver.

3. Voltage Return In 50 Meters: The remote control shall have the voltage return function.The voltage is displayed as a percentage, and 25% of the power will alarm and remind .

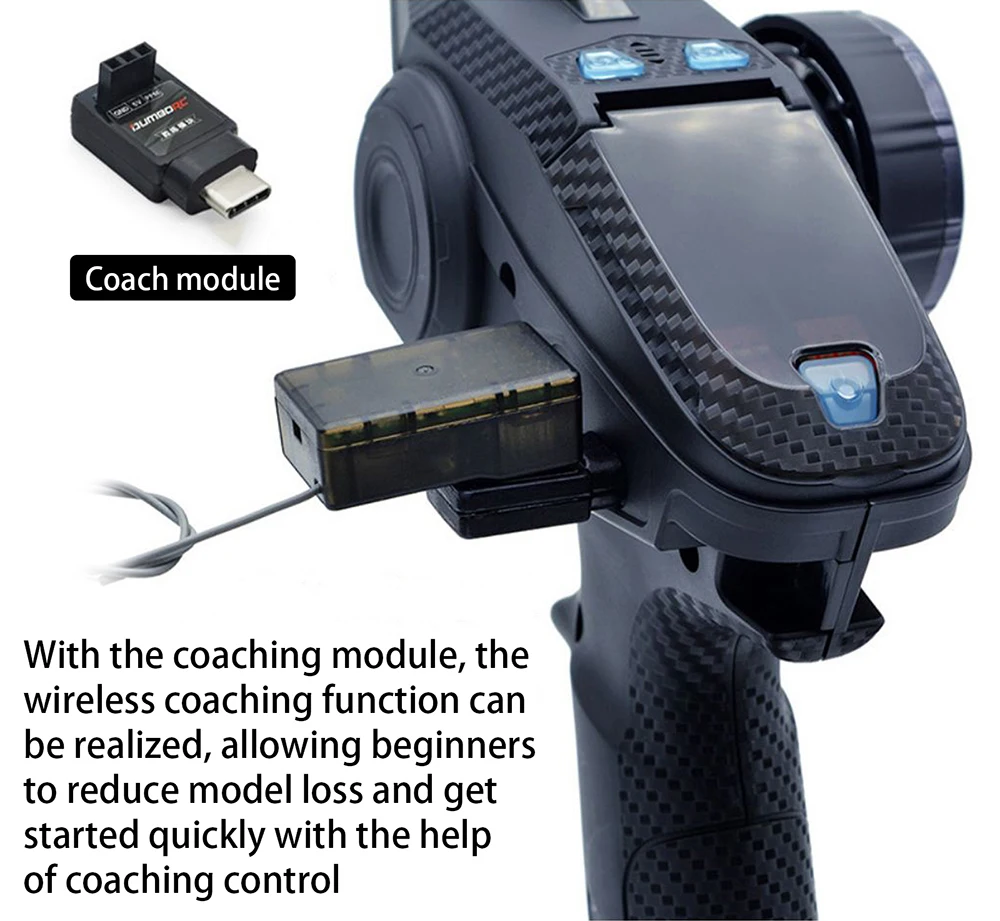

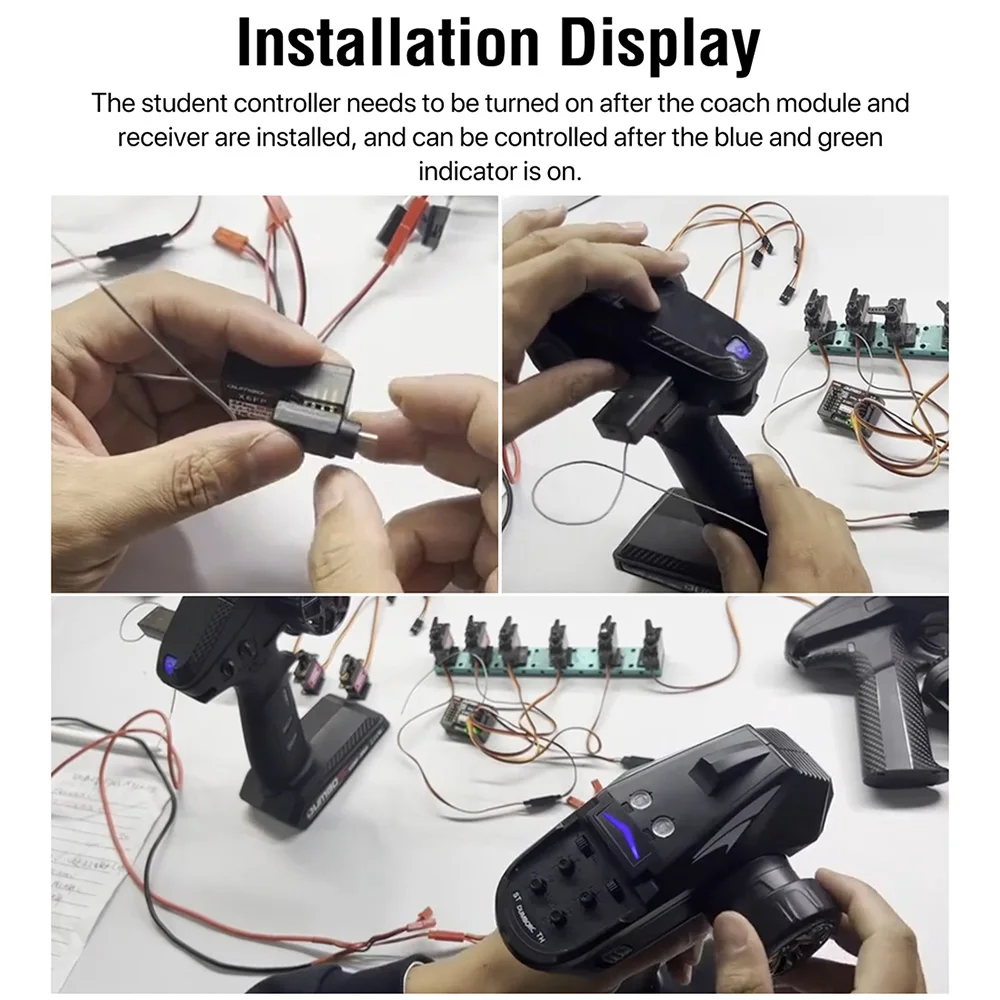

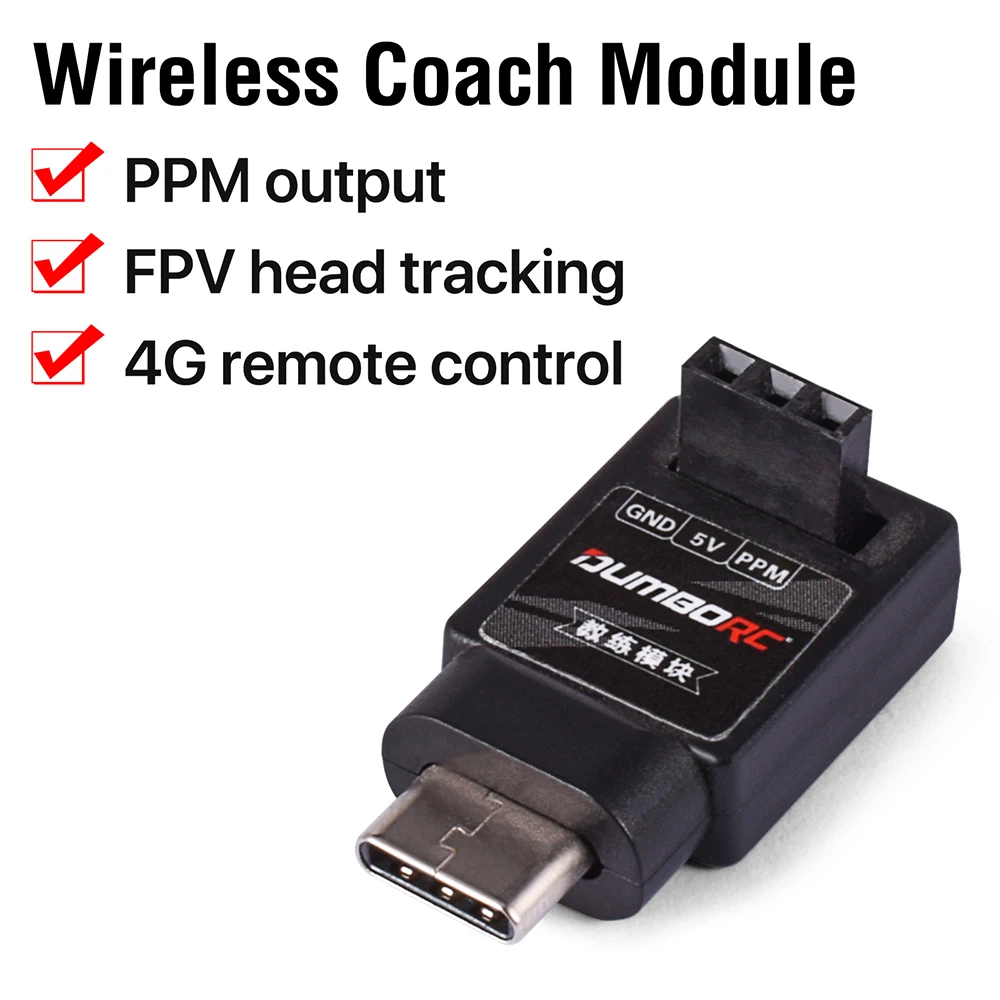

4. PPM Coach Function: The receiver has two output modes: PWM and PPM, work with Wireless Trainer Module and connected to the student control with PM input to realize the coach function

5. Control Distance: FHSS communication technology makes P6FG with stable signal and outstanding range over 1300 feet (400 meters).

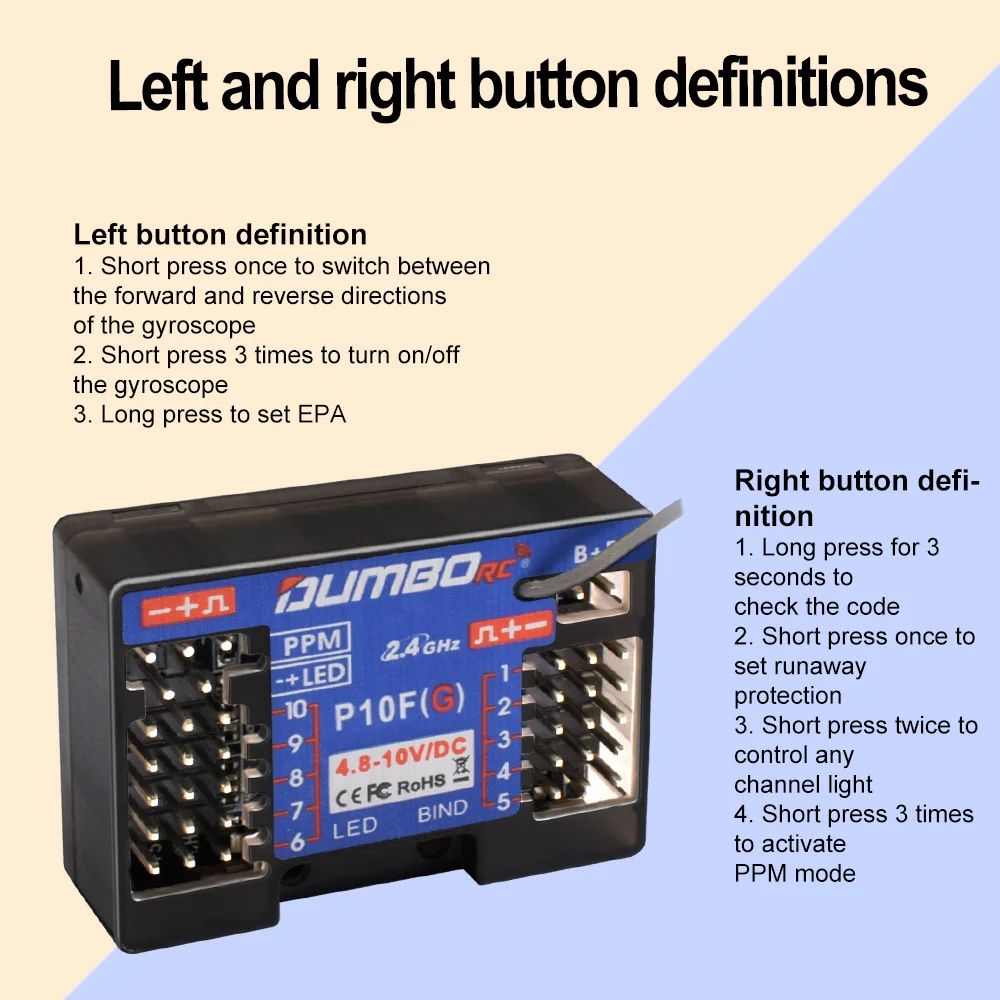

P10F P10FG Features:

1. Excellent Anti-interference: With new communication technology, which makes X10FG with stable signal and outstanding ground control range about 400m.

2. Superb Fast Response: high resolution ratio, stable signal output to provide a fast response for all channels. Cost-effective, with brakes and fail-safe protection function, suitable for rc cars, boats, and tanks.

3. Receiver voltage range: 4.8-10V, operating current 30mA ,support work with high voltage servo.

4. Equipped with a voltage return receiver(optional) ,it supports return the vehicle's battery voltage.

5. Receiver with coach interface (Purchase wireless trainer moduleseparately).

How to Match Code With Transmitter:

1. Put the transmitter and the receiver close to each other within 50 centimeters.

2. Turn on the transmitter, then power on the Receiver.

3. There is a black button on the Receiver, press the binding button twice in two seconds and release, receiver light start blinking, after about blinking 8 times, match code success then receiver signal LED always on!

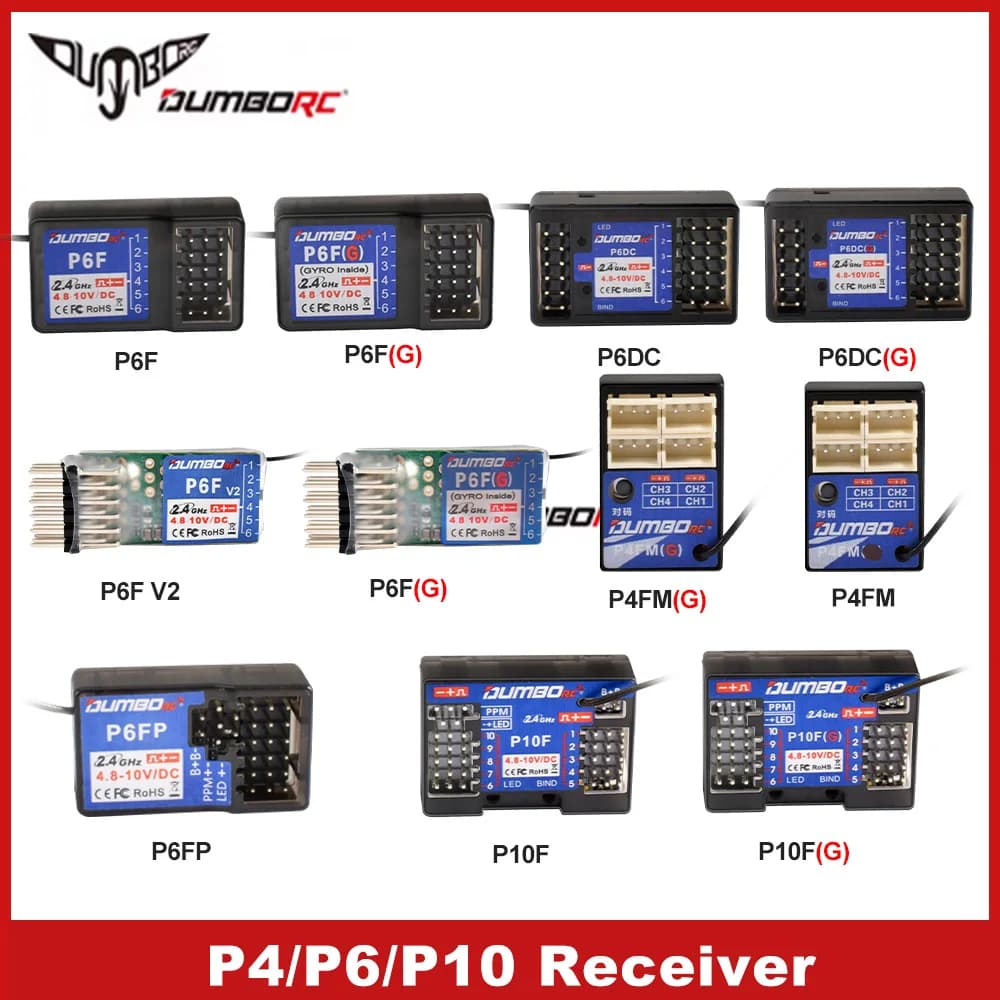

Description:

P6F receiver with 6 channels is compatible with X4 X5 X6 X6P transmitter.

P6DC（G） receiver with 6 channels is compatible with X6 transmitter.

P6DC receiver with 6 channels is compatible with X4 X5 X6 X6P transmitter.

P6DC（G） receiver with 6 channels is compatible with X6 transmitter.

P6F (bent) Receiver with 6 channels compatible with X4 X5 X6 Transmitter miniZ 1/28 1/24 RC Car.

P6DCG(bent) Receiver with 6 channels compatible with X6 Transmitter miniZ 1/28 1/24 RC Car.

P4FM P4FMG Receiver with 4 channels is compatible with X4 X6 series/X5P series/X6PM series transmitter.

P10F P10FG receiver with 6 channels is compatible with X10P-350 Transmitter.

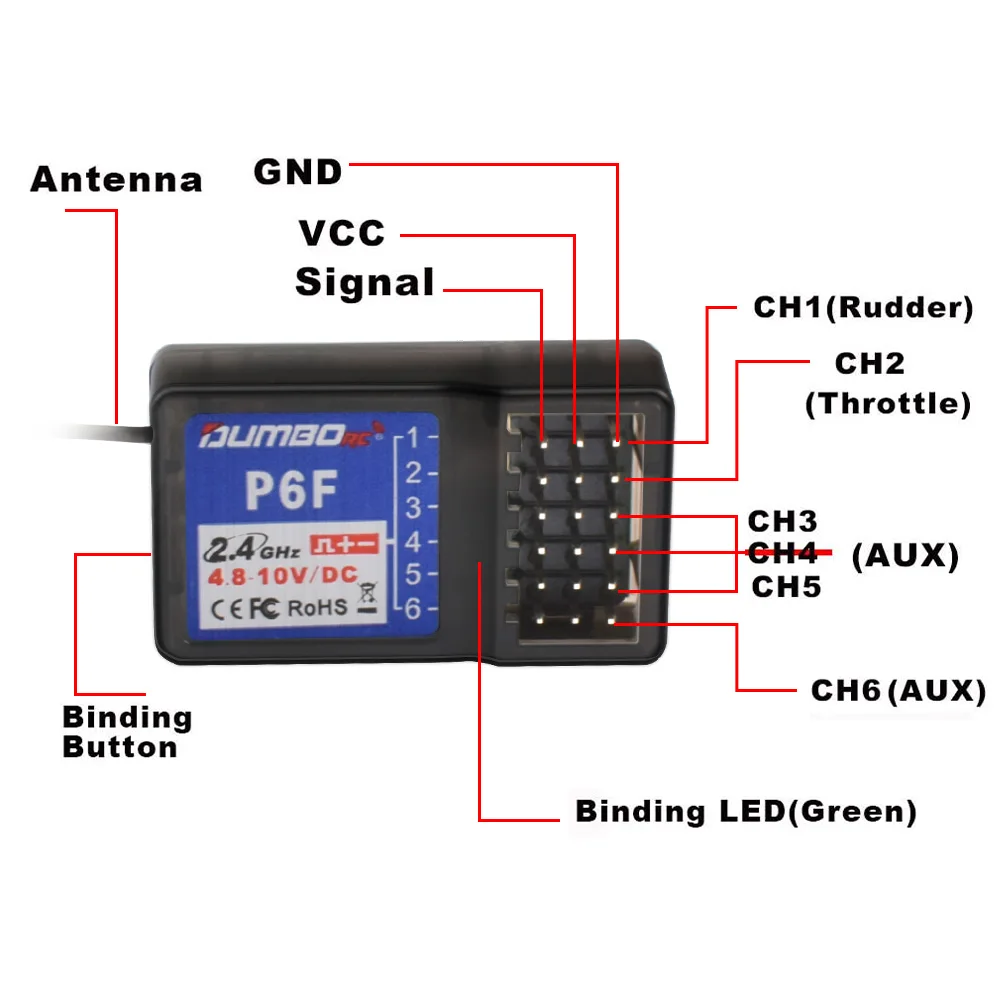

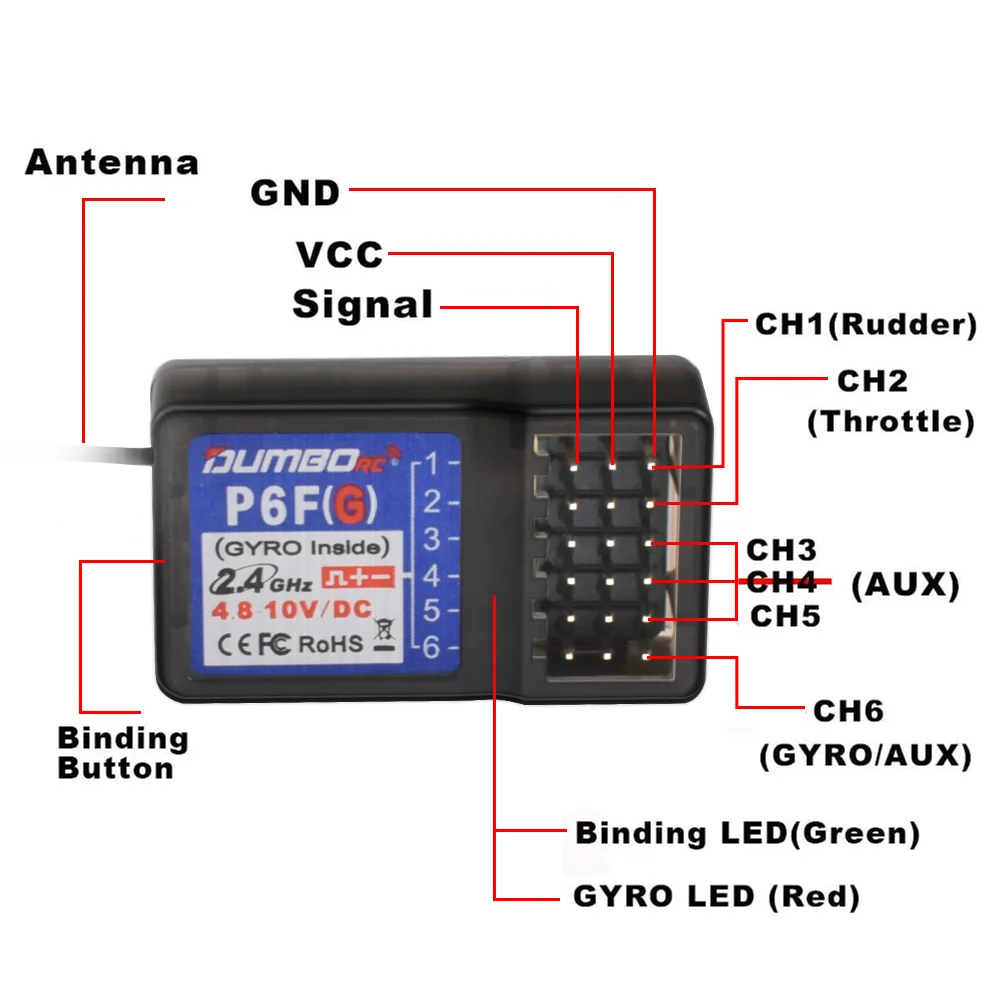

P6F P6FG Specifications:

Material:plastic and electronic components

Channel:6CH

Model:Car/boat/tank

Modulation Mode: GFSK

Spread Spectrum: FHSS

Control Distance: More than 400M

Voltage Range:3.3-10V

Working Current:30mA

Antenna length:106 mm

P6F without Gyro,P6F(G) with Gyro

P6DC P6DCG Specifications:

Material: Componant Material

Channel:6CH

Voltage Range:4.8-10V

Compatible with:X4 X5 X6 Transmitter

P6DC without Gyro,P6DCG with Gyro

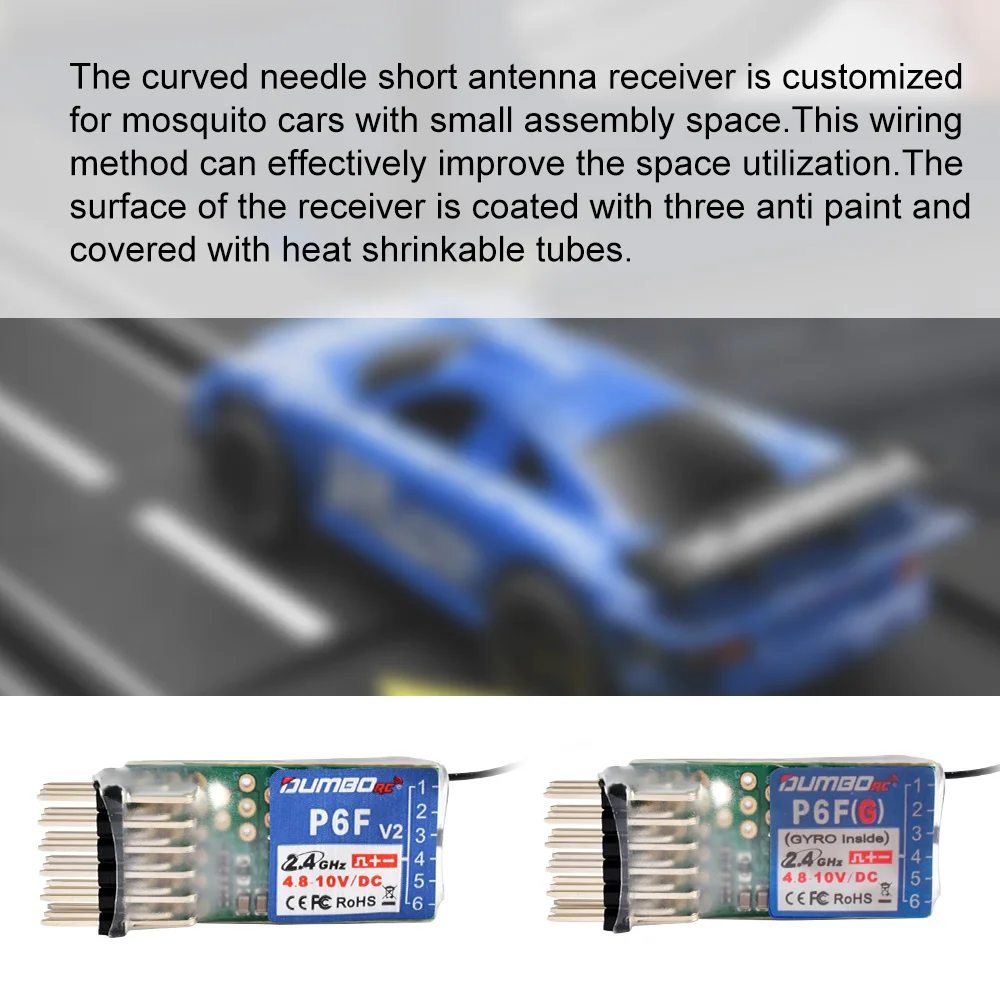

P6F P6FG (bent) Specifications:

Channel:6CH

Model:Car/boat/tank

Modulation Mode: GFSK

Spread Spectrum: FHSS

Control Distance: More than 400 meters

Voltage Range:3.3-10V

Working Current:30mA

Compatible with:X6 Transmitter

Size:35*20*13mm, antenna length 106 mm

P6F : without Gyro, P6FG : with Gyro

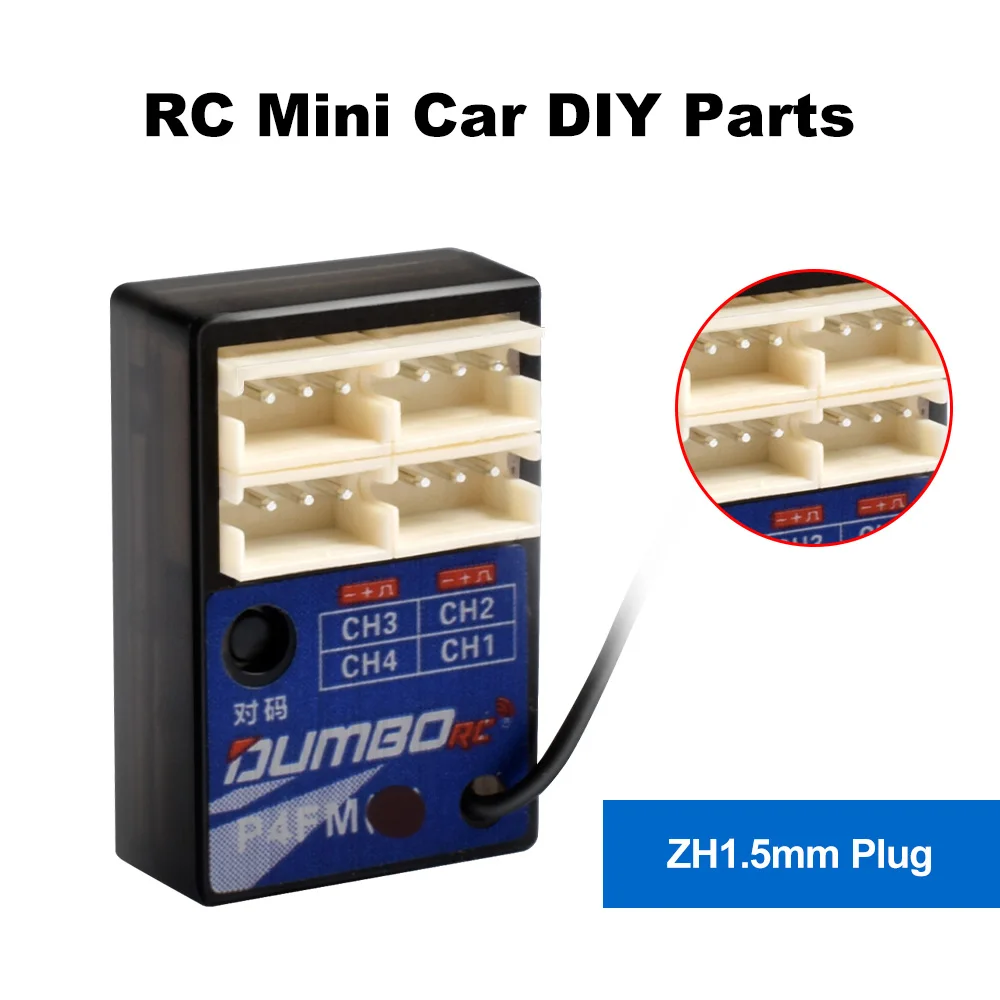

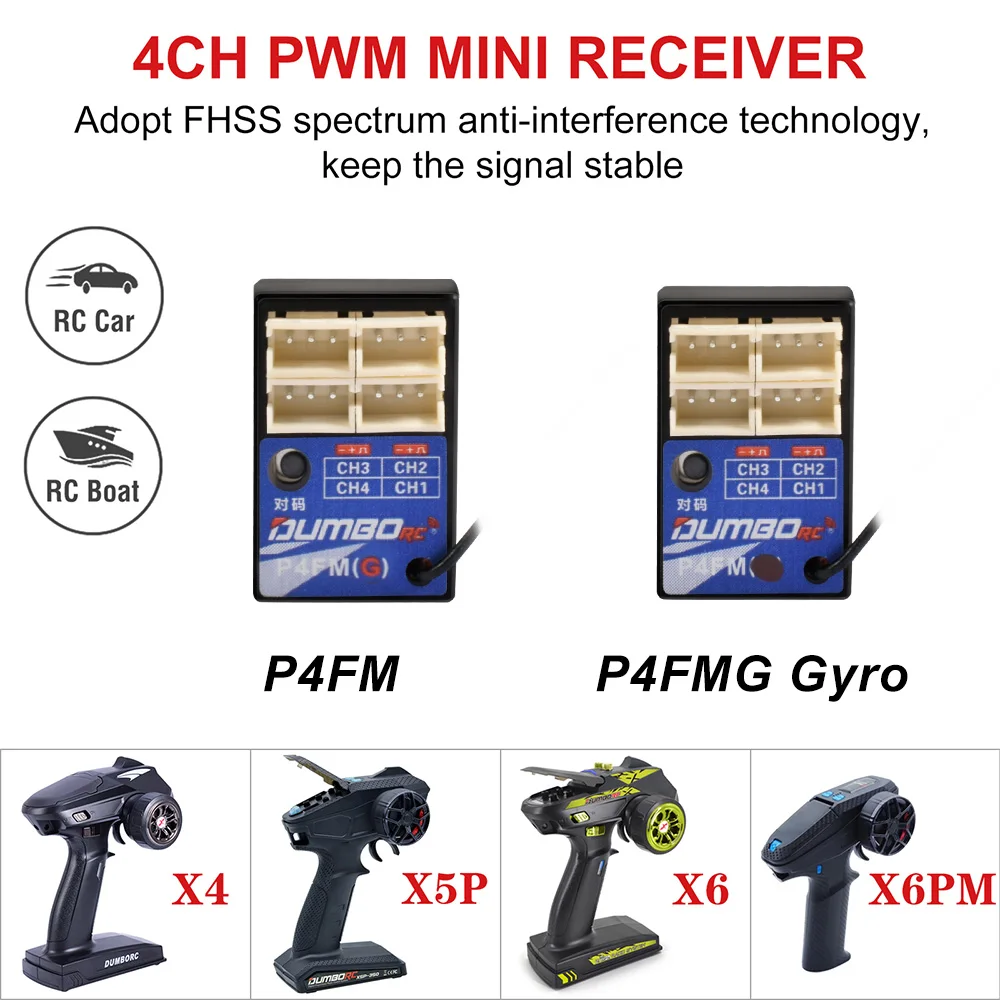

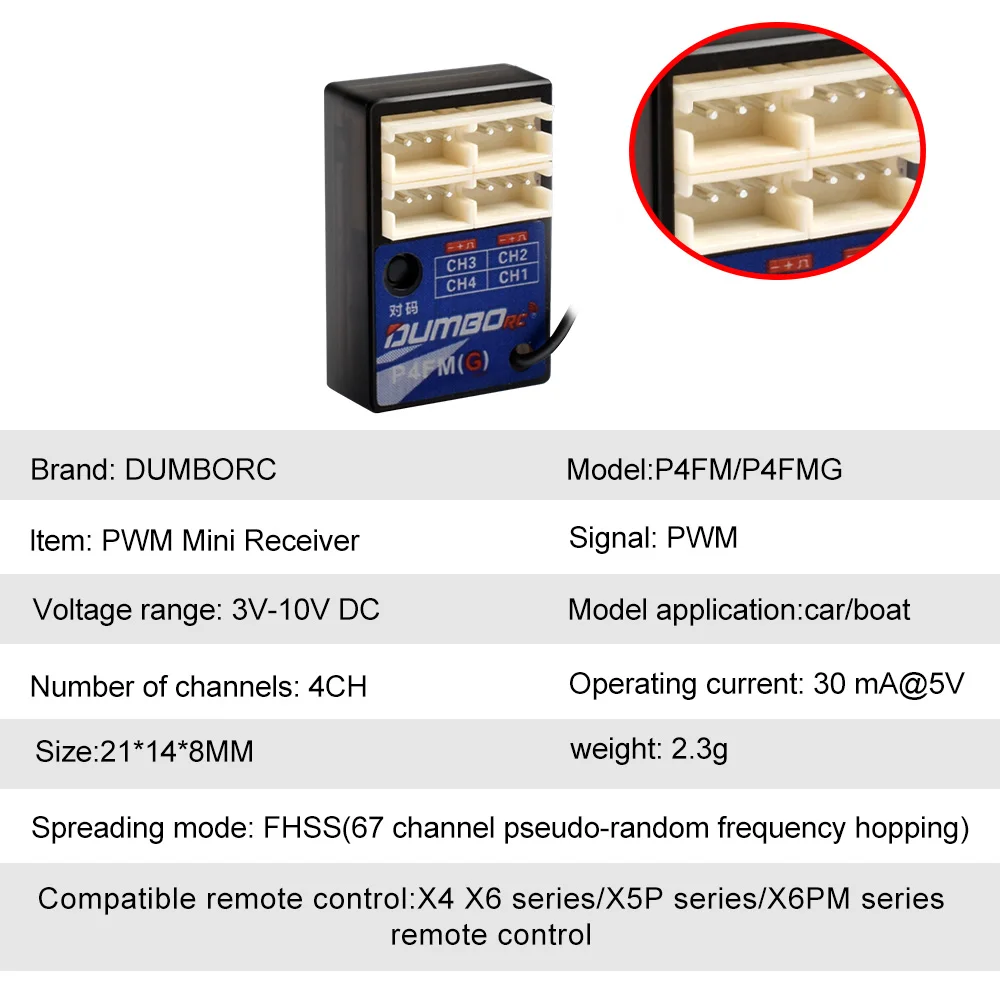

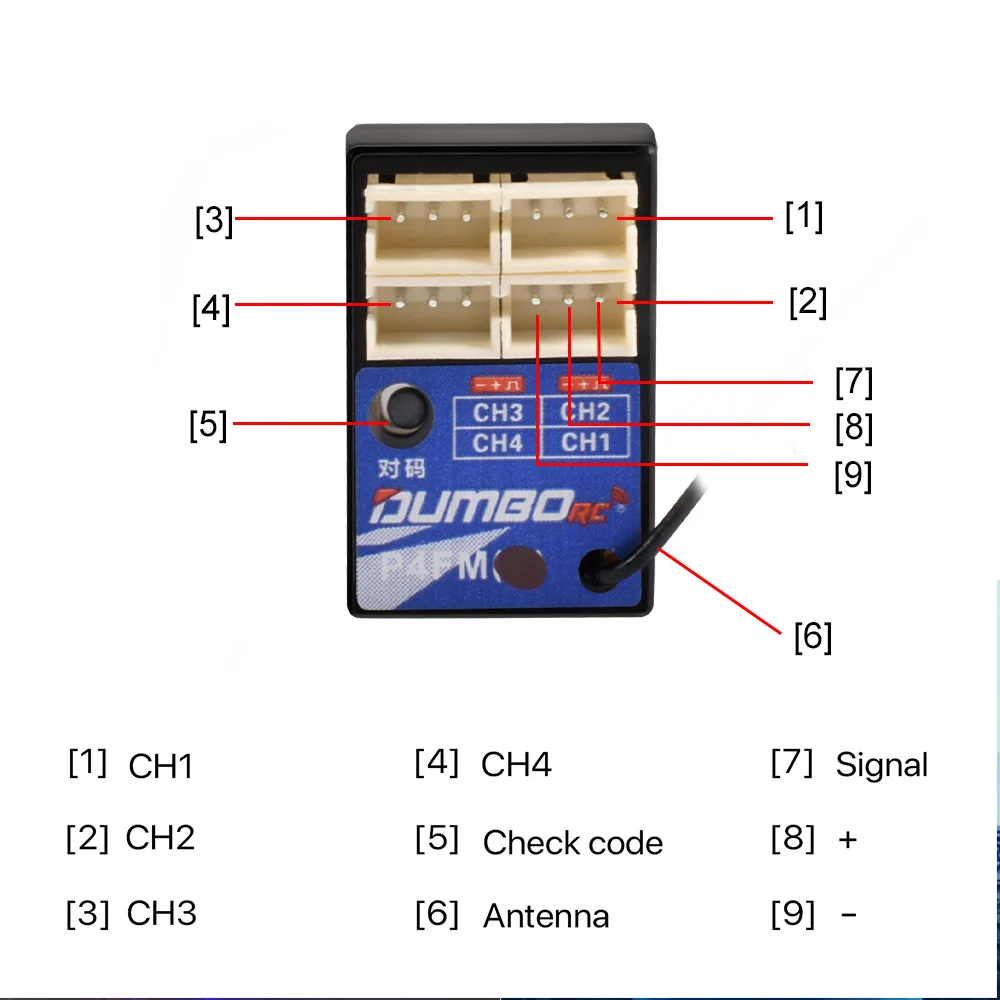

P4FM P4FMG Specifications:

Signal: PWM

Voltage range: 3V-10V DC

Model application:car/boat

Size: 25*13*8 mm

Channels: 4CH

Operating current: 30 mA@5V

Spreading mode: FHSS (67 channel pseudo-random frequency hopping)

Compatible remote control: X4 X6 series/X5P series/X6PM series remote control

P4FM without Gyro, P4FMG with Gyro

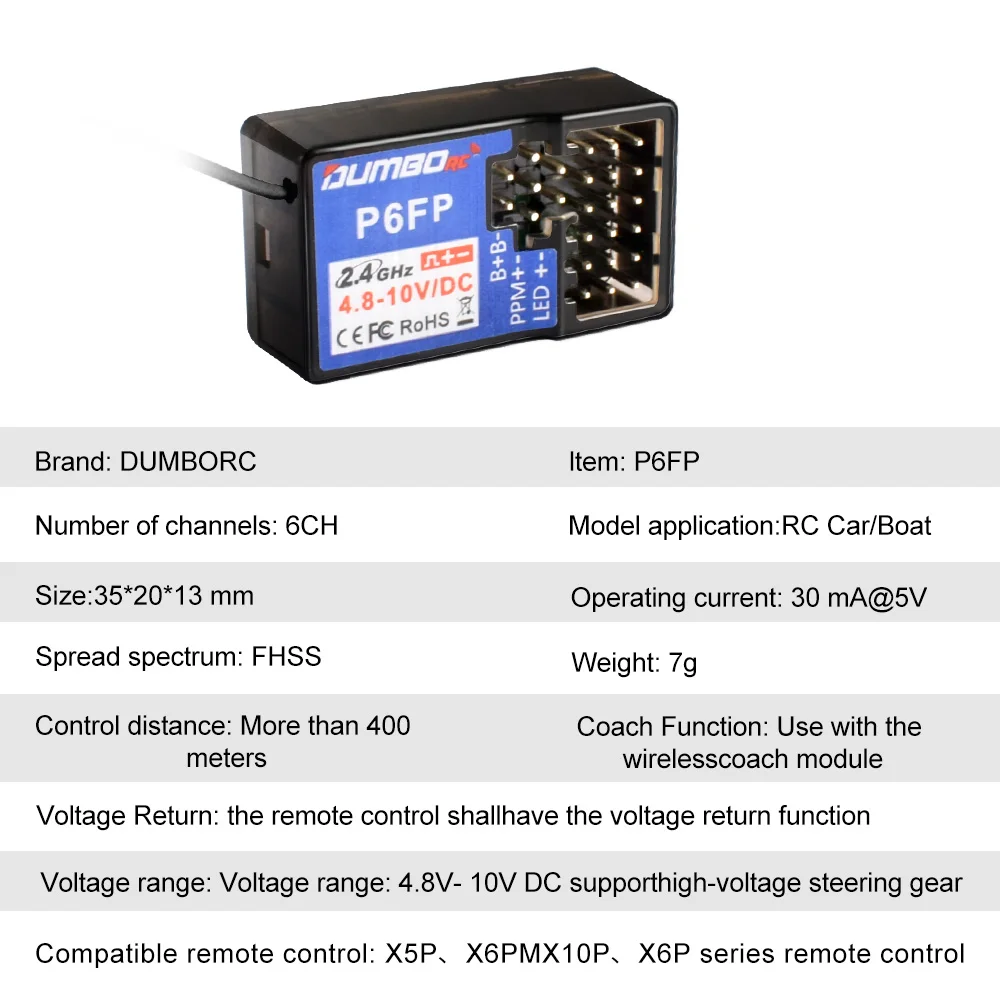

X6FP Specifications:

Voltage range: 4.8V-10V DC support high-voltage steering gear

Operating current: 30 mA@5V

Model application: RC Car/Boat

Number of channels: 6CH

Spread Spectrum: FHSS

Control Distance: More than 400M

Voltage Return: the remote control shall have the voltage return function

Coach function: Use with the wireless coach module

Compatible remote control: X5P、X6PM、X10P、X6P series remote control

Antenna length: 106 mm

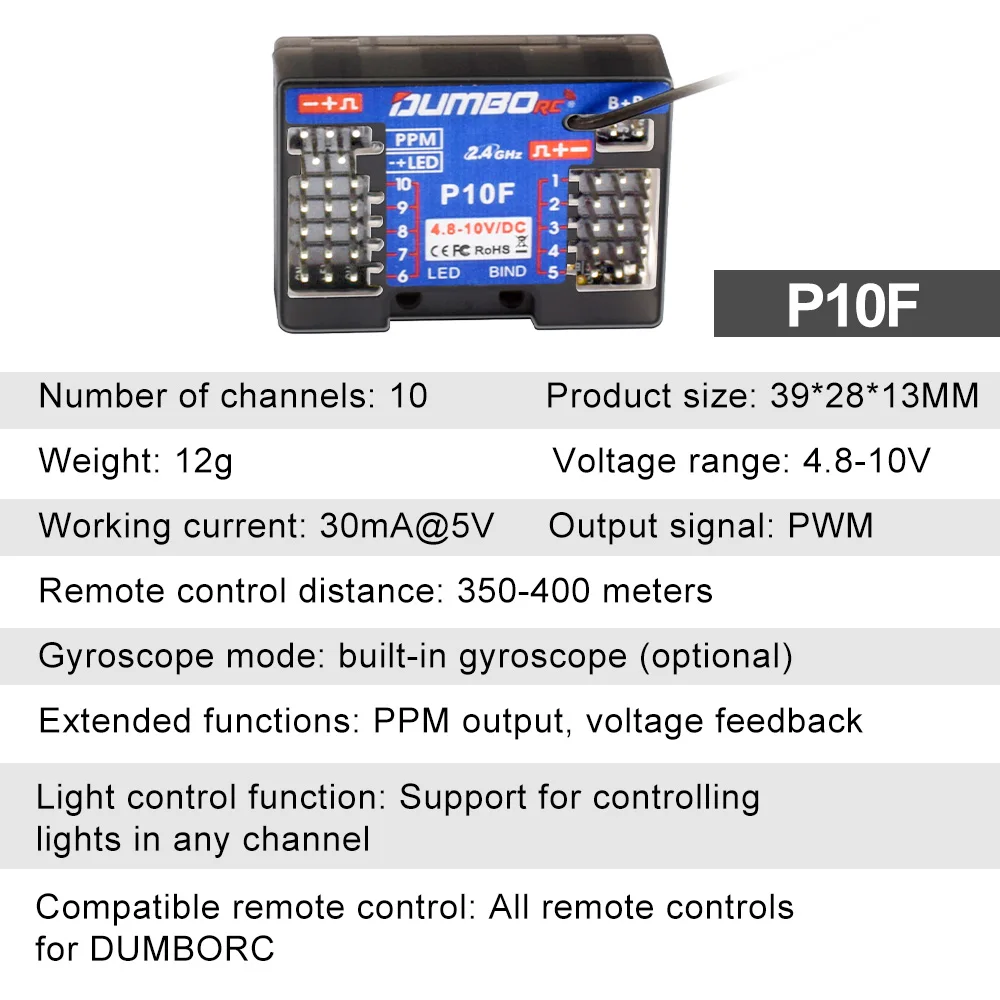

P10F P10FG Specifications:

Channel: 10CH

Fit For: RC Car Boat Tank

Modulation Mode: GFSK

Spreading Mode: FHSS 67 channel pseudo-random frequency hopping

Receiver Voltage Range: 4.8-10V

Receiver Operating Current: 30mA

P10F without Gyro, P10FG with Gyro

Package contents:

1*DUMBORC Receiver
