Wireless Microphone System G-MARK GX1.1 UHF XLR Adapter 16 Channels Audio Transmitter And Receiver For 48V Phantom Power Condens

Support 48V Phantom Power Supply:

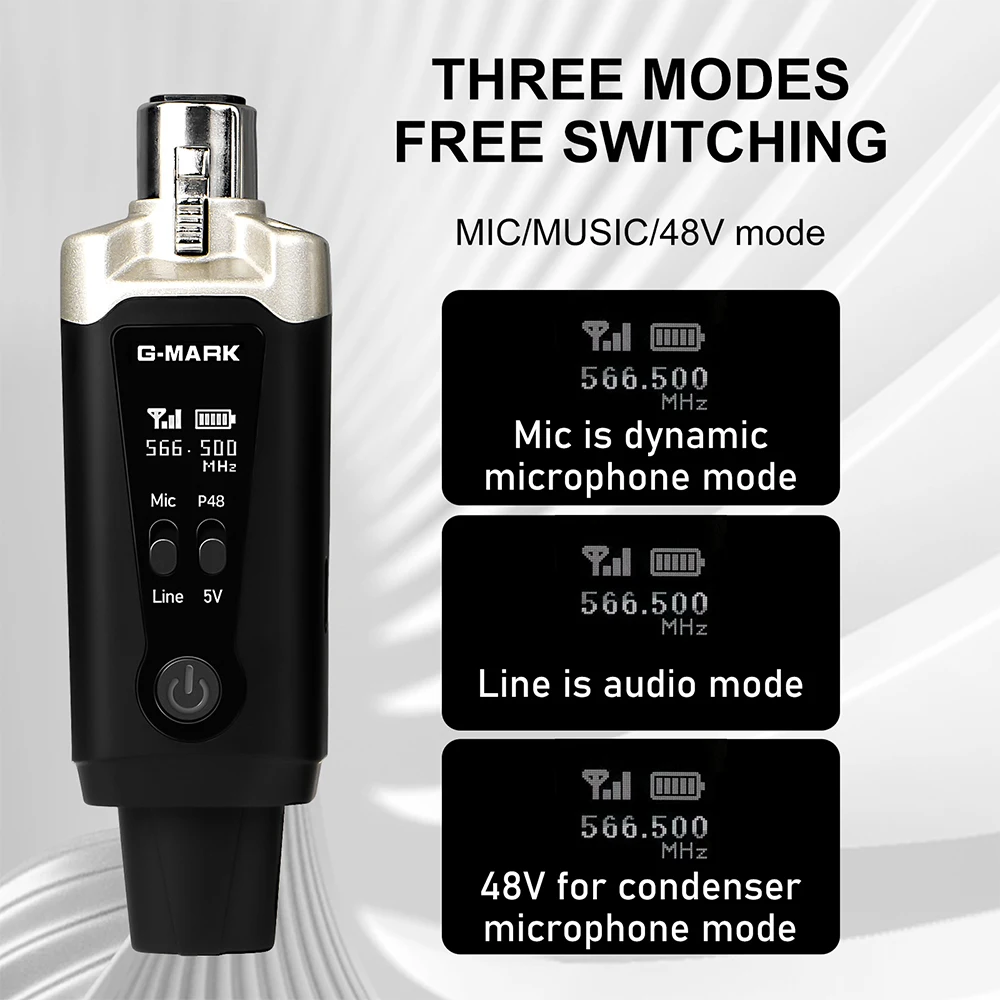

Turn off the phantom power switch, the GX1.1 audio Wireless XLR transmitter and receiver can be used to connect dynamic microphones. Turn on the phantom power switch, GX1.1 can be used to connect a condenser mic. Normal working hours are 6-8 hours. The actual usage time differs due to the power consumption of the microphones of each brand. It is recommended that you test the actual available time before the official performance to avoid affecting your normal work.

Ultra Long Distance Transmission:

UHF band is optimal for mic wireless system , solid RF connection over a 164 - 262 feet range（normal）, uncompressed wireless signal transmission, low noise, and latency. Up to 110 dB signal-to-noise ratio provides clear, detailed audio at any volume. High-resolution 24-bit / 48kbps audio. Broad 40Hz - 20KHz frequency response.

Anti-interference:

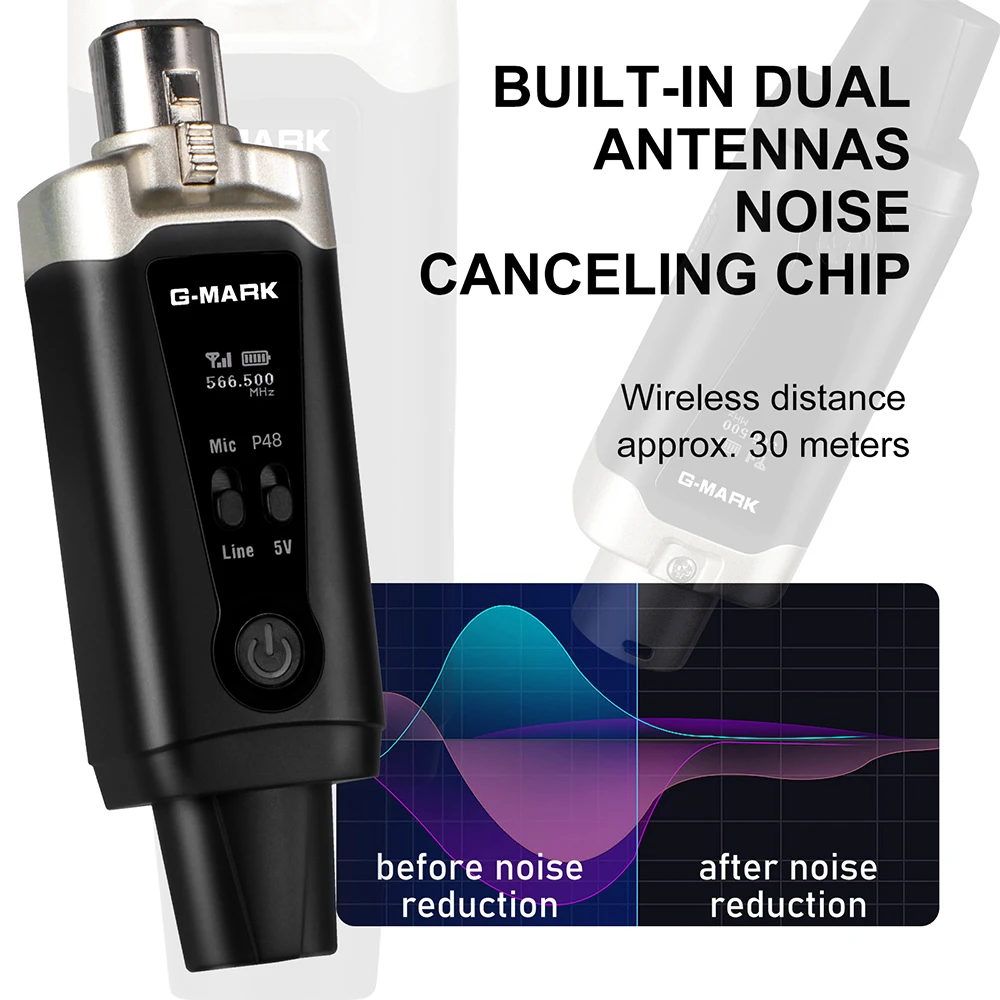

The GX1.1 XLR transmitter and XLR receiver adopts ultra-high frequency UHF transmission technology, strong anti-interference ability, and ultra-high frequency response range, ensuring that your voice is transmitted stably and clearly to the audio receiving device.

Metal XLR Interface:

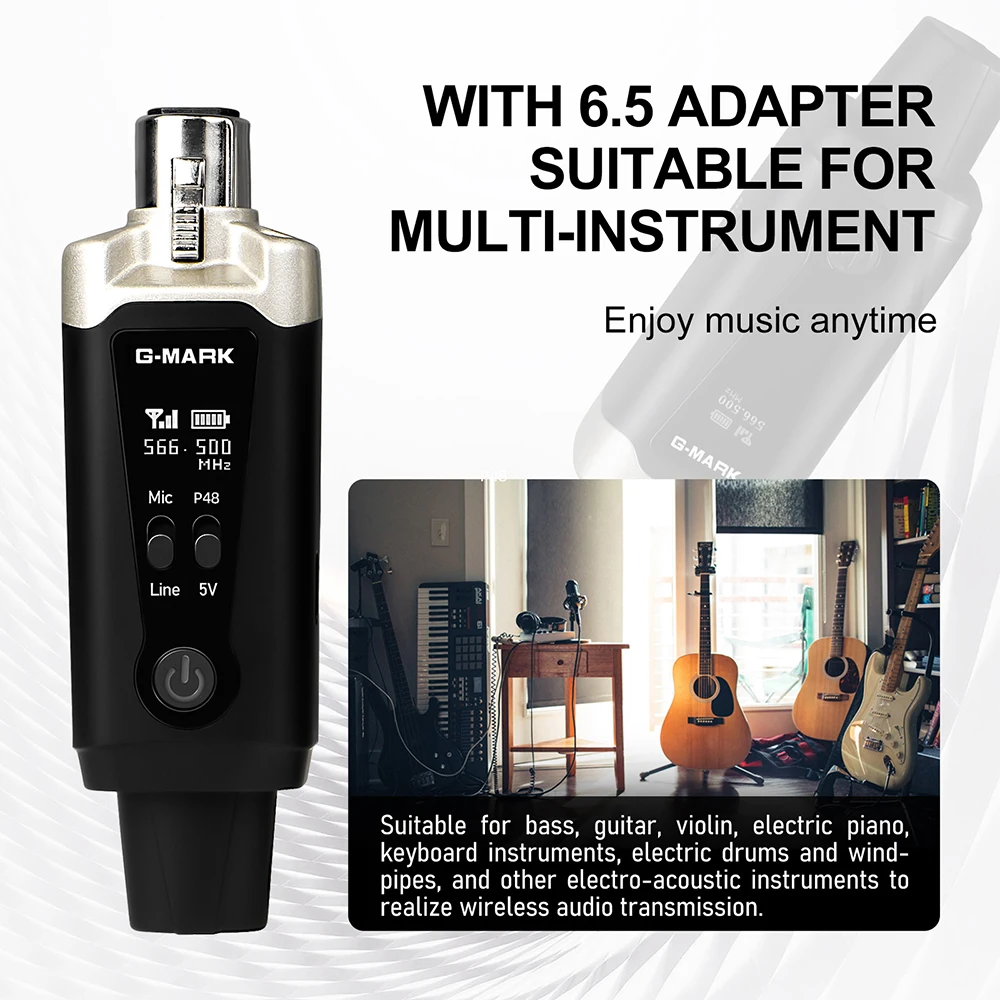

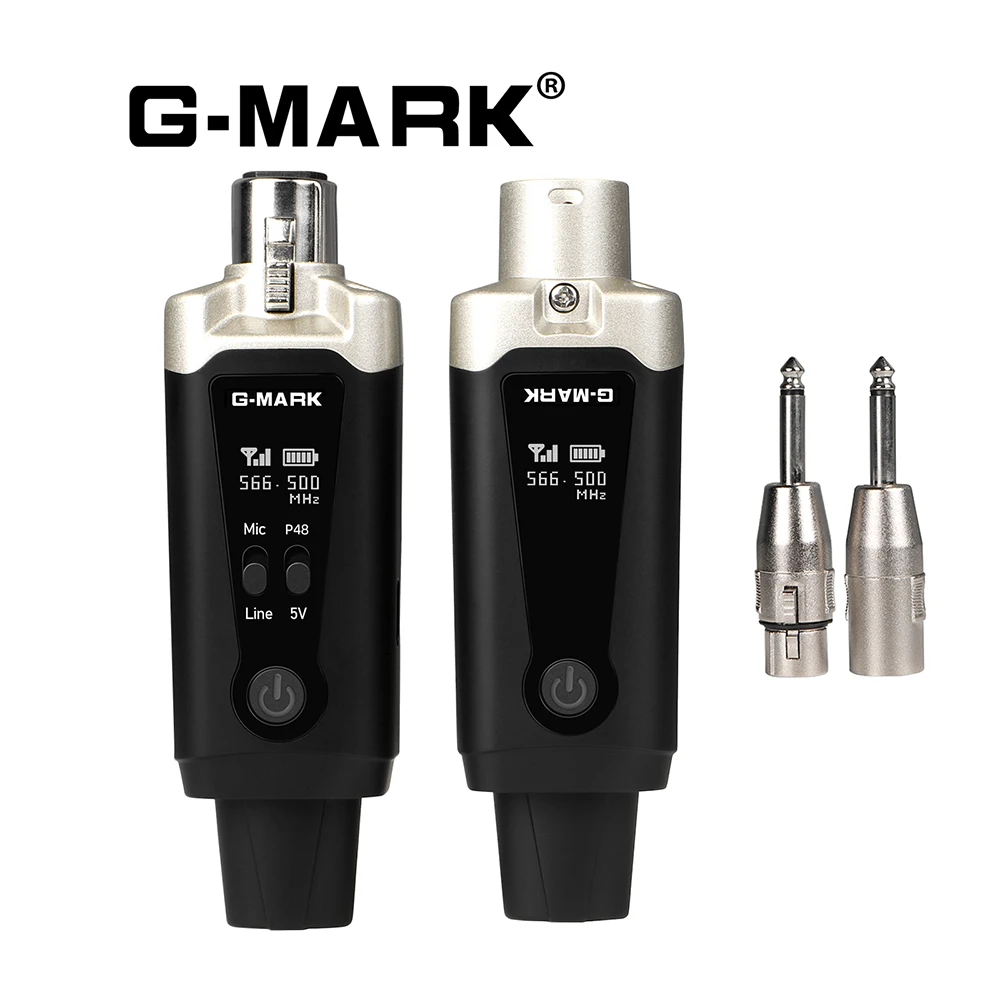

Connect various devices more firmly and stably, such as microphones, speakers, mixers, and PA systems. Comes with an XLR to 1/4 adapter, allowing the GX1.1 wireless XLR microphone transmitter-receiver to be widely used in different usage scenarios.

The built-in lithium battery provides 5 Hours of battery last longer and a stable wireless technology (rechargeable battery for Transmitter & Receiver).Low Latency / 16 Frequency Points: Support 16 sets in the same place simultaneously. Works with any dynamic/harmonic microphone, Audio mixer, or PA system, and provides stable and reliable wireless transmission.Less than 6 ms latency(normal), Simultaneous broadcasts on 16 channels, perfect for venues, weddings, and mobile DJs.

Low Latency / 16 Frequency Points:

Support 16 sets in the same place simultaneously. Works with any dynamic/harmonic microphone, Audio mixer, or PA system, and provides stable and reliable wireless transmission.Less than 6 ms latency(normal), Simultaneous broadcasts on 16 channels, perfect for venues, weddings, and mobile DJs.

The built-in lithium battery provides 5 Hours of battery last longer and a stable wireless technology (rechargeable battery for Transmitter & Receiver).

1.Three-pin XLR interface

2.Battery indicator: when the three battery power lights are on,the battery is fully charged; When the battery power is blinking,it indicates that the battery is low and the battery power is only 10%. It needs to be charged.

3. Charging interface

4.On the key, long press 1 second to start, long press 1 second to shut down

Transmitter Instructions:

A. Turn on key, long press 1 second to turn on, long press 1 second to turn off

B. Double click the switch key to enter frequency modulation,continue to double click and then switch to the next frequency point, and save automatically after 3 seconds of rest.

C. The factory standard voltage is set at 5V.

This machine has been paired with the authentication code before

leaving the factory. if the frequency is confused in the process of

sale or use, as long as the transmitter receiver is re-matched, it can continue to use.

Receiver Instructions:

This product adopts high integrated chip design, ID code matching

authentication

Frequency range: 560.5-589.5MHz

Adjustable channel: 16 frequency adjustable points

Channel interval: 0.5-2.5MHz

Modulation Mode: DQPSK
