NEW RadioMaster T8L Radio FCC / LBT 2.4G ELRS 10CH Transmitter X5 Hall Gimbal Adjustable Power 10-100mW Wi-Fi Remote Controller

👇Other types of Controllers

The RadioMaster T8L brings the power of ExpressLRS 2.4GHz into a clean, compact form — and is the first screenless radio controller officially supported by ExpressLRS.

Designed for pilots who value simplicity, portability, and reliability, the T8L delivers responsive control with up to 10 channels via the CRSF protocol. Whether you’re flying a micro multi-copter, fixed-wing aircraft, or just need a dependable backup radio, the T8L provides a smooth, streamlined experience — perfect for indoor or park flying.

With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge — no display or external software required.

Features

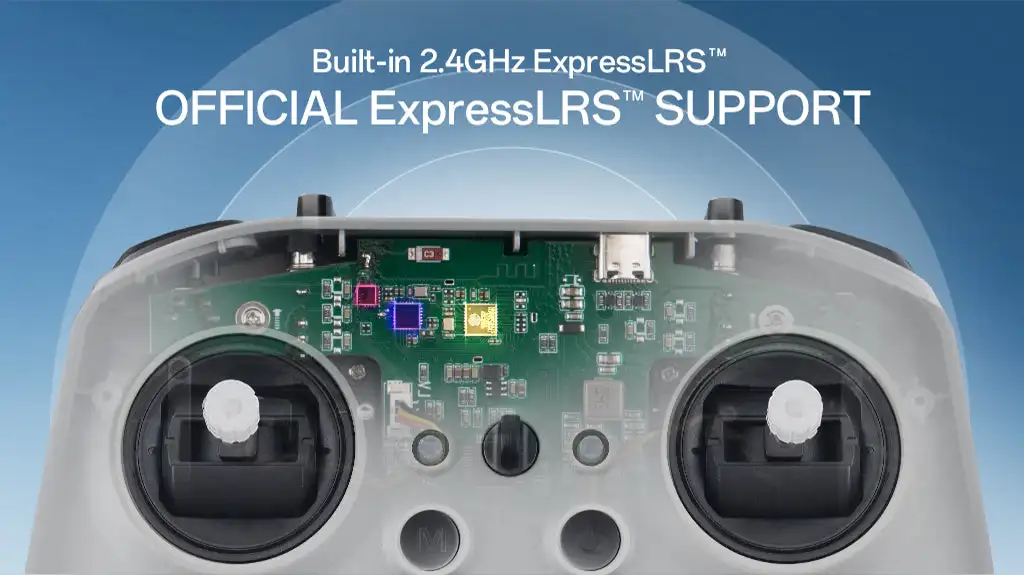

Built-in ExpressLRS 2.4GHz module

Single button press binding to any ExpressLRS receiver

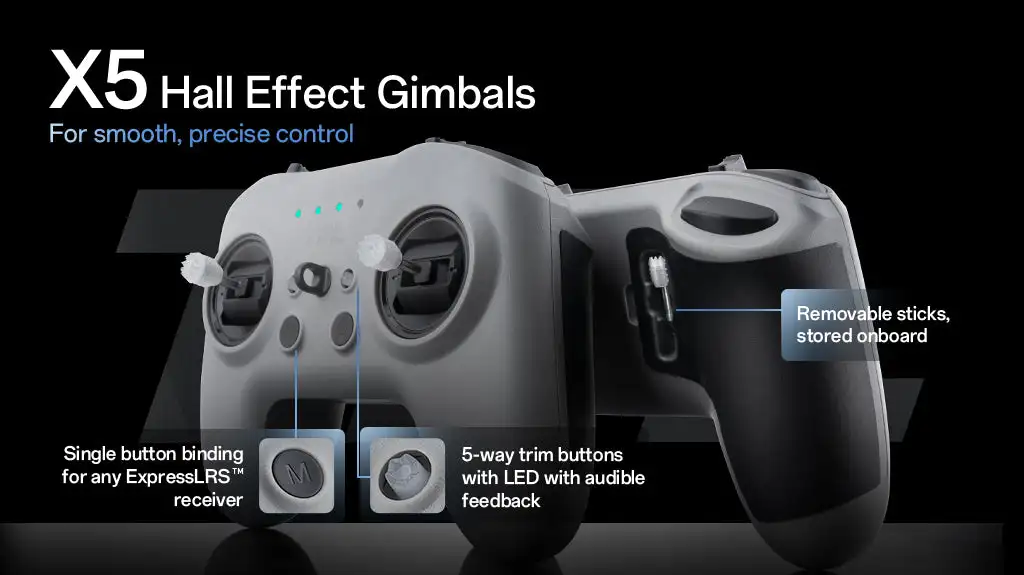

Quad bearing Hall-effect gimbals for smooth, precise stick control

5-way trim buttons with LED and audible feedback

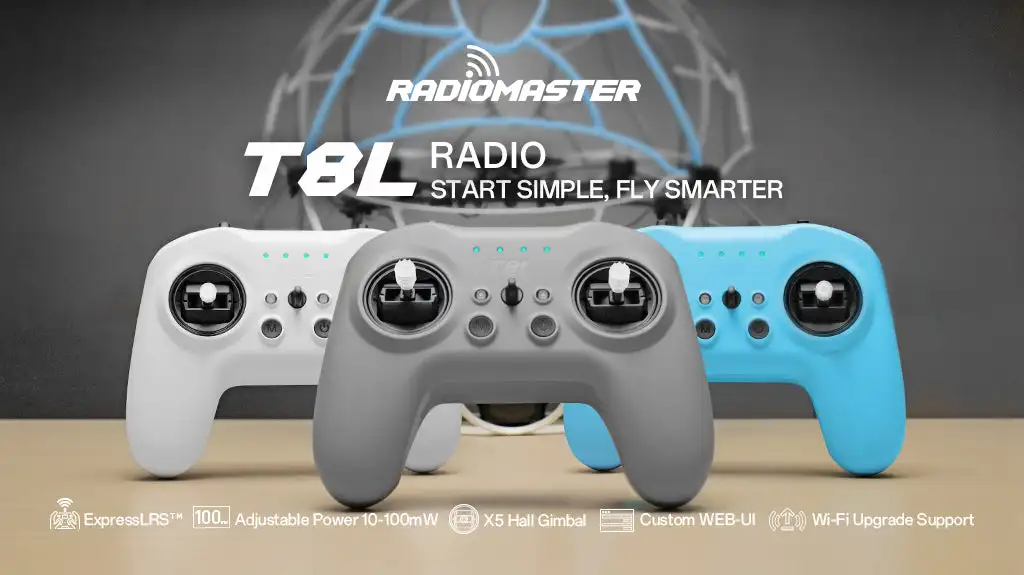

Available in three colors: Blue, White and Grey

USB-C port for charging, firmware updates, and simulator use

Web-UI support (no screen required) for full configuration

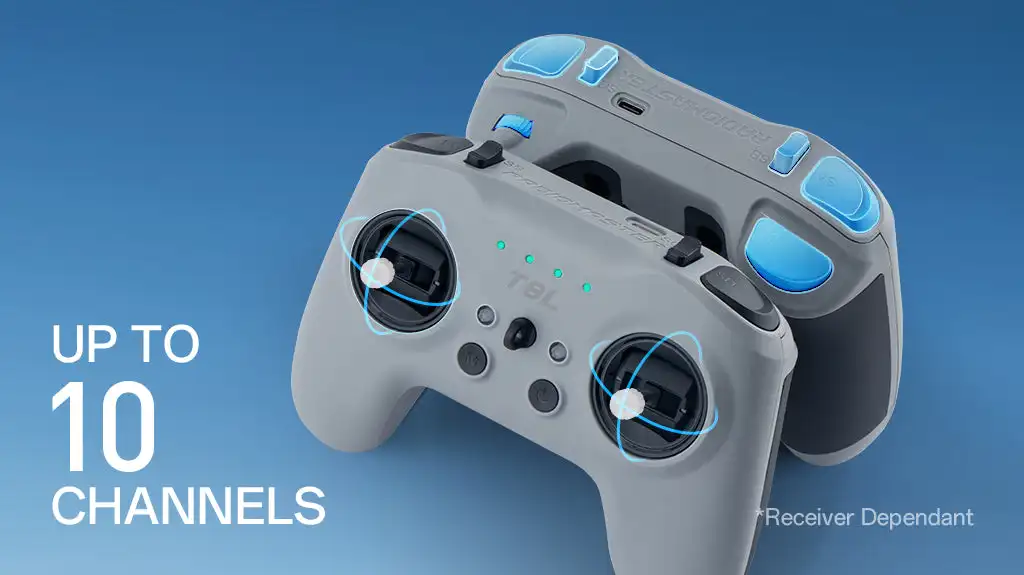

Up to 10 channels supported (receiver-dependent)

Rear potentiometer slider for extra input or tuning

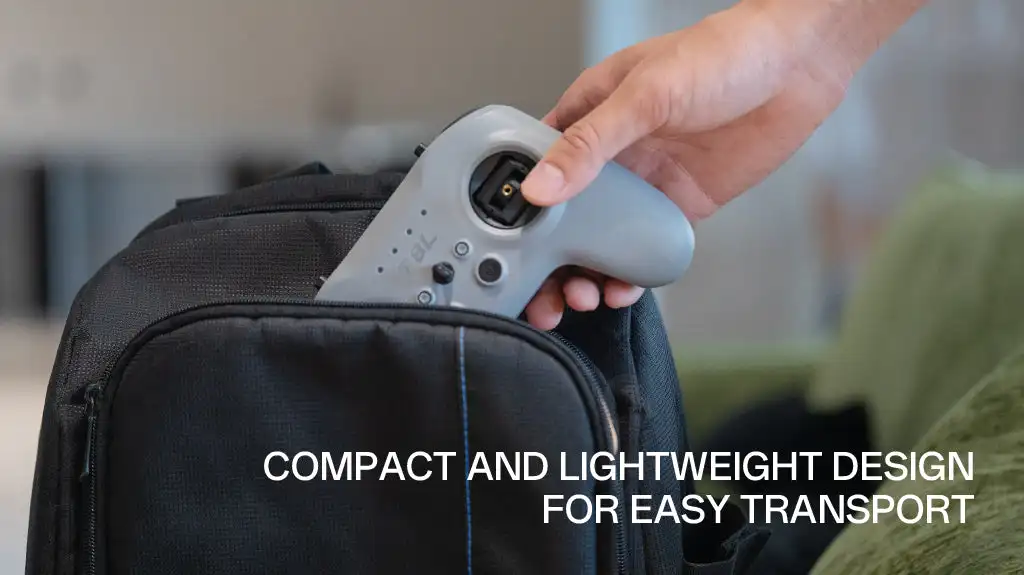

Compact, lightweight design (just 204g) for easy transport

LED-based interface for system status, battery level, and calibration

Simulator-compatible—connect via USB and start flying virtually

Custom button and switch behavior settings via Web UI

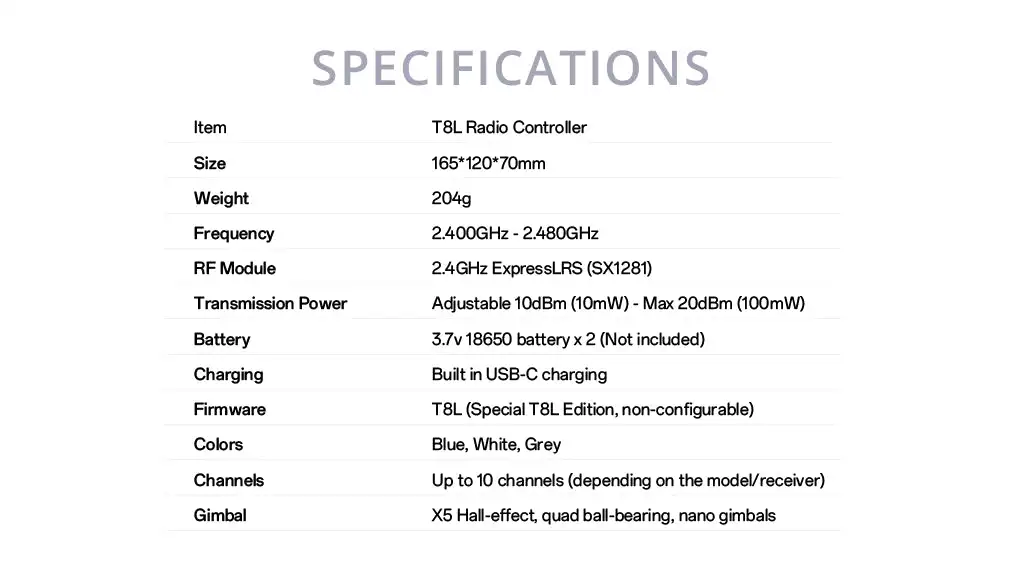

Specification

Item: T8L Radio Controller

Size: 165*120*70mm

Weight: 204g

Frequency: 2.400GHz-2.480GHz

RF Module: 2.4GHz ExpressLRS(SX1281)

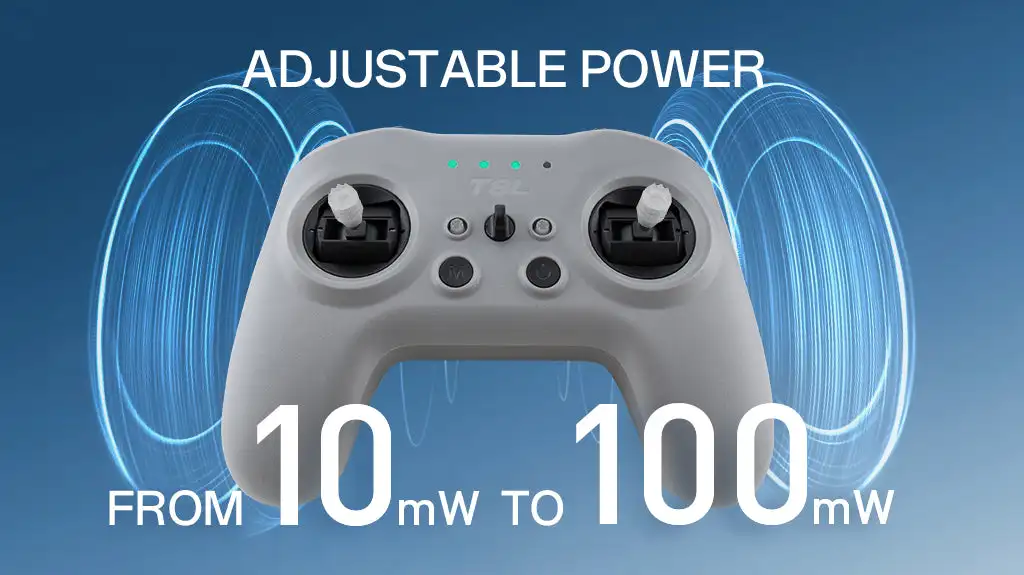

Transmission power: Adjustable 10dBm(10mW) - Max 20dBm(100mW)

Battery: 3.7v 18650 x 2 (Not Included)

Charging: Built-in USB-C charging

Firmware: T8L (Special T8L Edition, non-configurable)

Colors: Blue, White, Grey

Channels: Up to 10 channels (depending on the model/receiver)

Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals

Smart Web-Based Configuration

The T8L features a powerful HTML-based Web UI that lets you configure every major function directly from your browser. Plug into a PC or Mac via USB-C, open the web tool, and you can:

Calibrate sticks and trims.

Adjust the ExpressLRS settings and power output.

Customize endpoint ranges and reverse directions.

Remap channels and set operation modes (Mode 1 / Mode 2).

Customize switch behavior (click, single, double).

Adjust audio prompts and update firmware.

Update both the T8L and its built-in ELRS module.

No apps. Just plug in, connect, and configure.

🔗 Web UI Access: https://radiomaster-rc.github.io/RM-Web-Page/Connection.html
