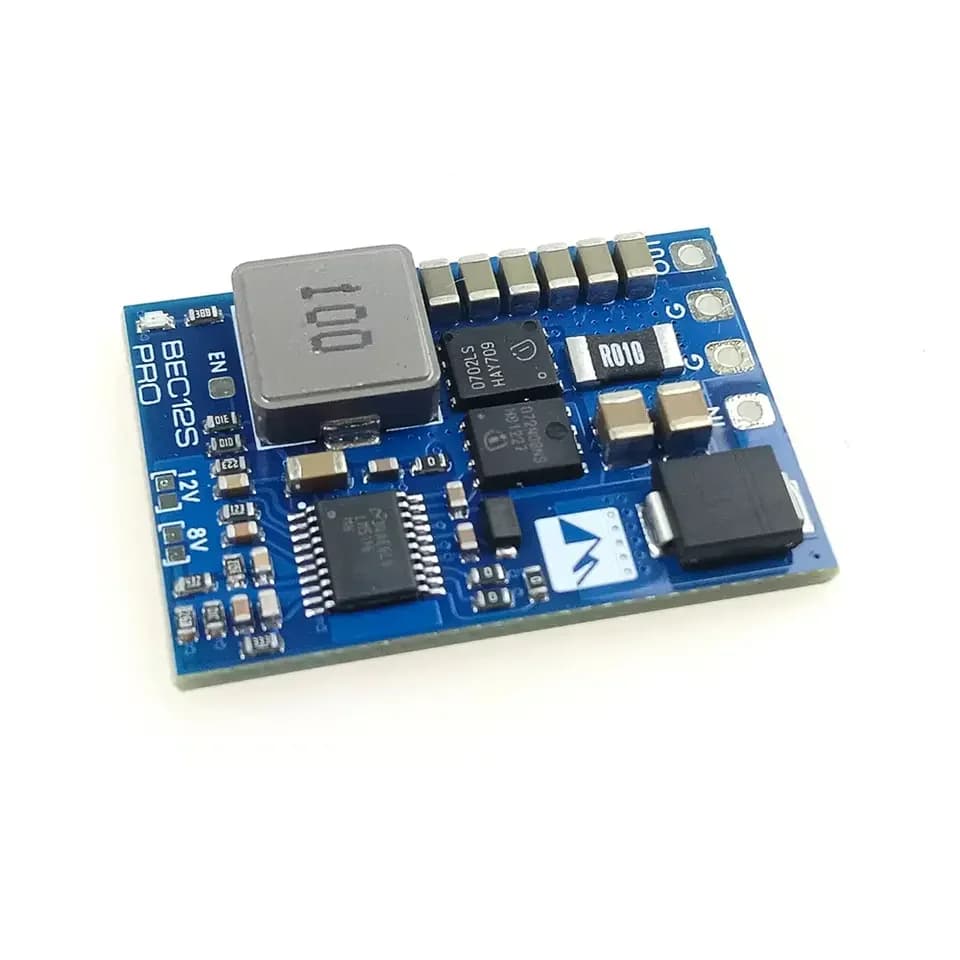

MATEK BEC12S-PRO 9-55V TO 5V/8V/12V-5A Voltage Regulator BEC Power Module Overcurrent Protection Self-recovery for RC FPV Drone

MATEK BEC12S-PRO 9-55V TO 5V/8V/12V-5A Voltage Regulator BEC Power Module Overcurrent Protection Self-recovery for RC FPV Drone

Wide 9V to 55V Operating Input Range with TVS protection

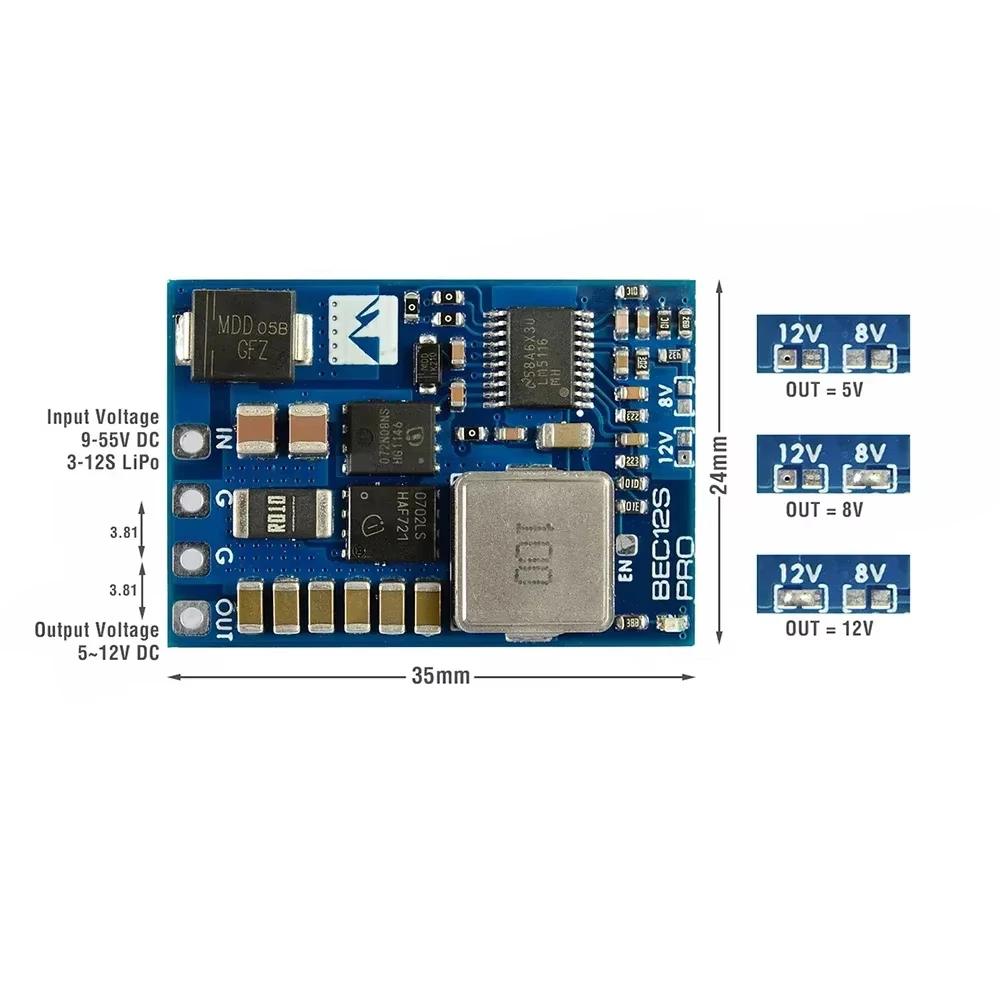

3x Output voltage options,  5.2V, 8V or 12V.  Default 5.2V.

Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%

Supports continuous output current of up to 5A,  peak current of 9A.

Output ripple  30mV (VIN=50V,  Output 5.2V @ 5A),  60mV (VIN=50V,  Output 12V @ 5A)

Standby current: 5~10mA

No reverse-input voltage protection

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Dropout voltage: 2V  (Input>=14V is required for stable 12V output)

Pins distance: 3.81mm

Size & Weight: 35 x 24 x 5.5mm,  5g
