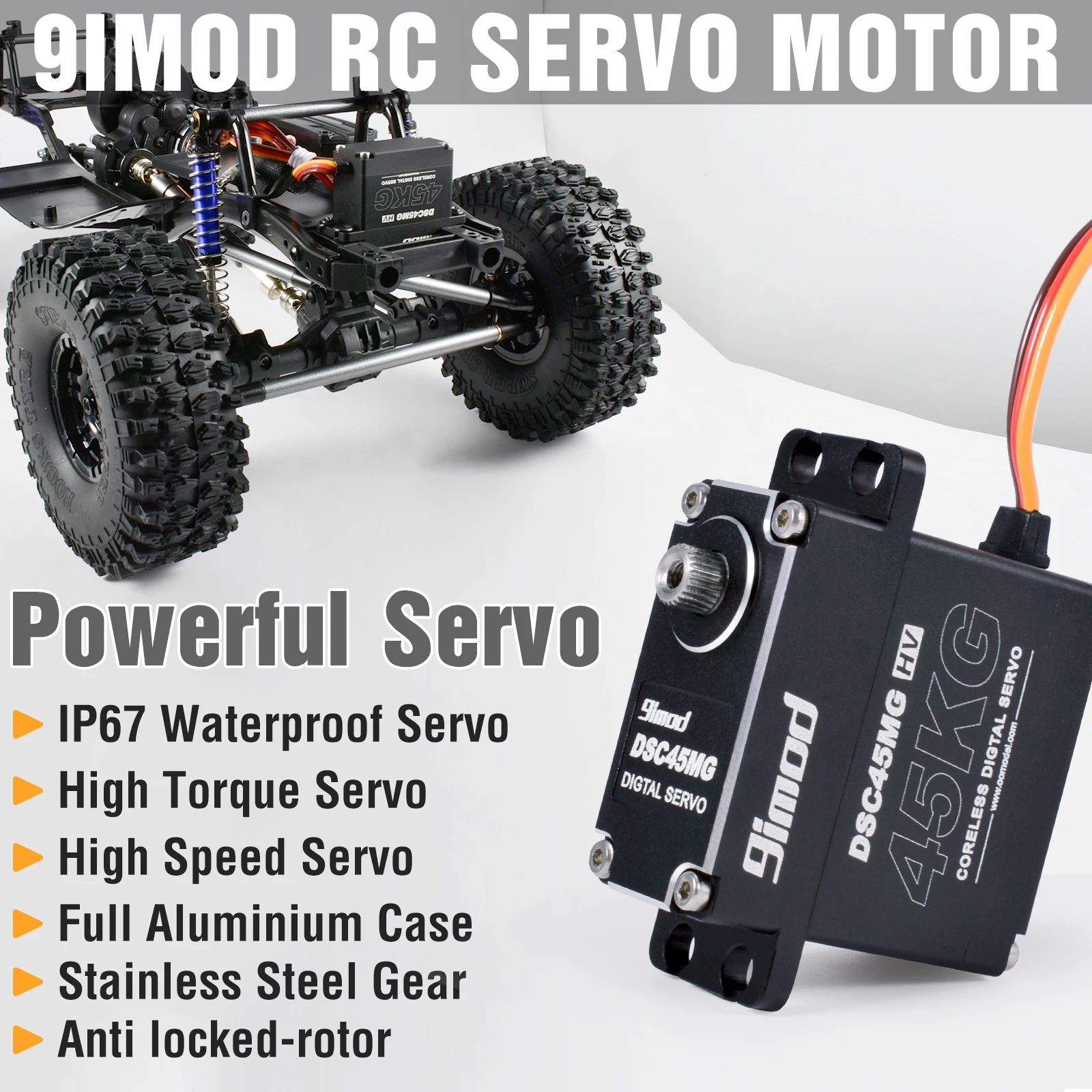

9imod RC Servo 35kg 45kg 25kg 51kg Metal Waterproof Brushless Servo Motor For Servo RC 1/10 1/8 Traxxas TRX4 Axial SCX10 RC Car

9imod Waterproof Brushless /Coreless Digital Servo 51KG 45KG 35KG 25KG 180/270/360 Degree Aluminum Case Digital Metal Gear HV servomoteur for RC Car servo in Toys & Games.

Description:

The 9imod Digital Waterproof servo,adopt Brushless/coreless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!(with 25T metal servo arm)

Tips:

Our 360 degrees servo built in adjustable potentiometer.So servo is the left and right of the middle locus are 180 degrees, not 360 degrees rotation.

Features:

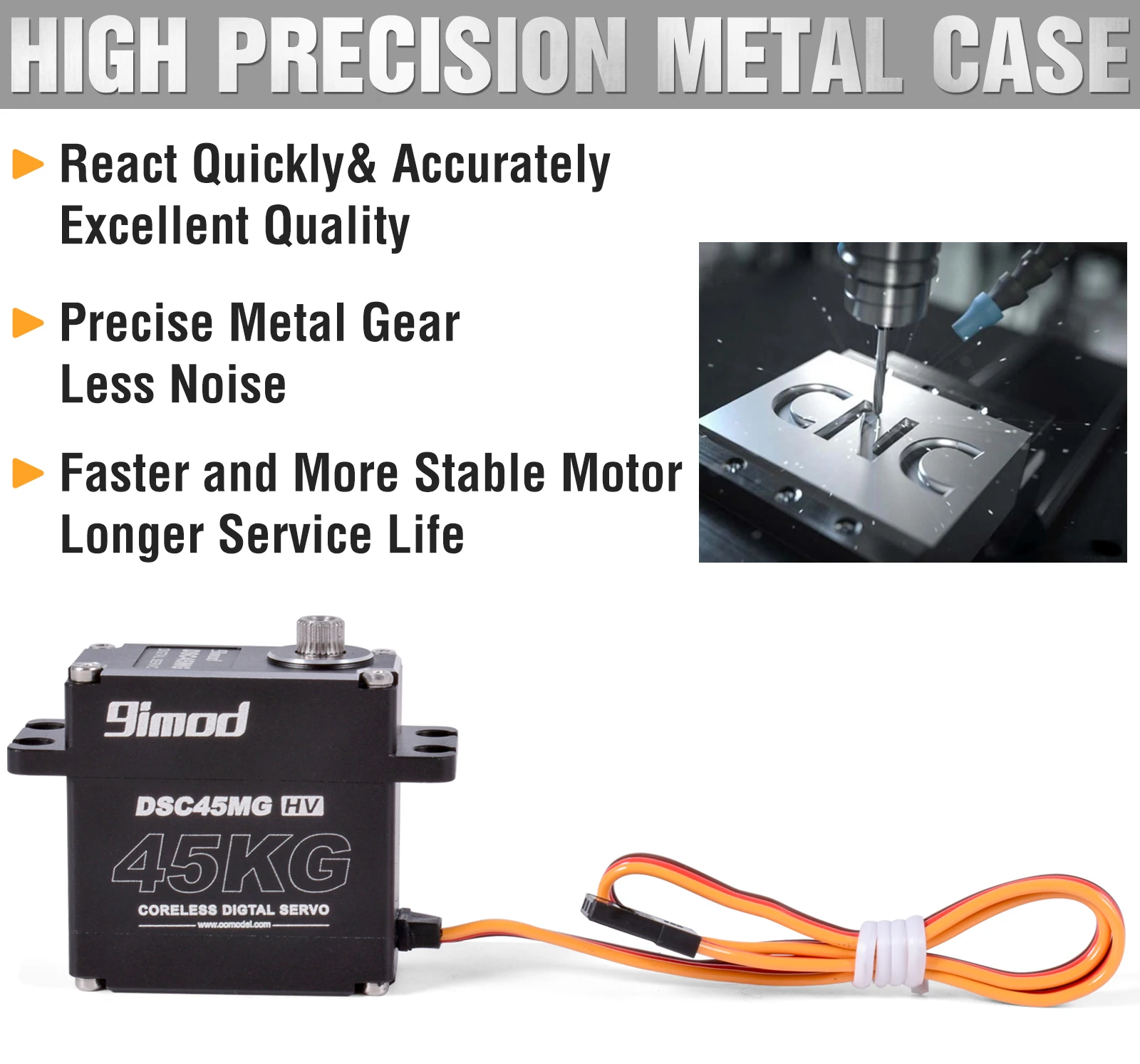

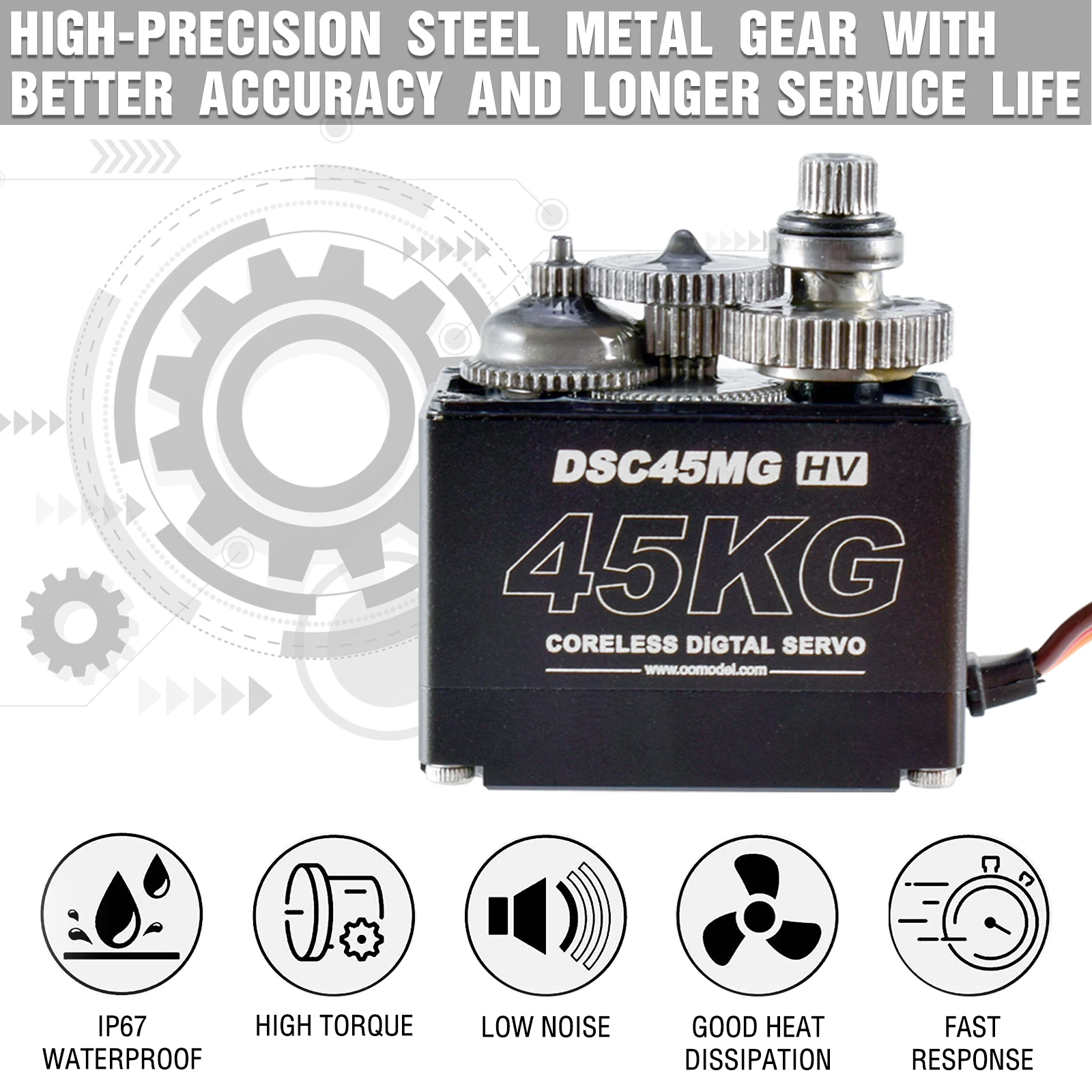

1.Metal Gear Servomotor:Equipped with Stainless Steel Gears, Full CNC aluminium Shell aluminium Shell, Less Noise, light weight.Dual ball bearings.

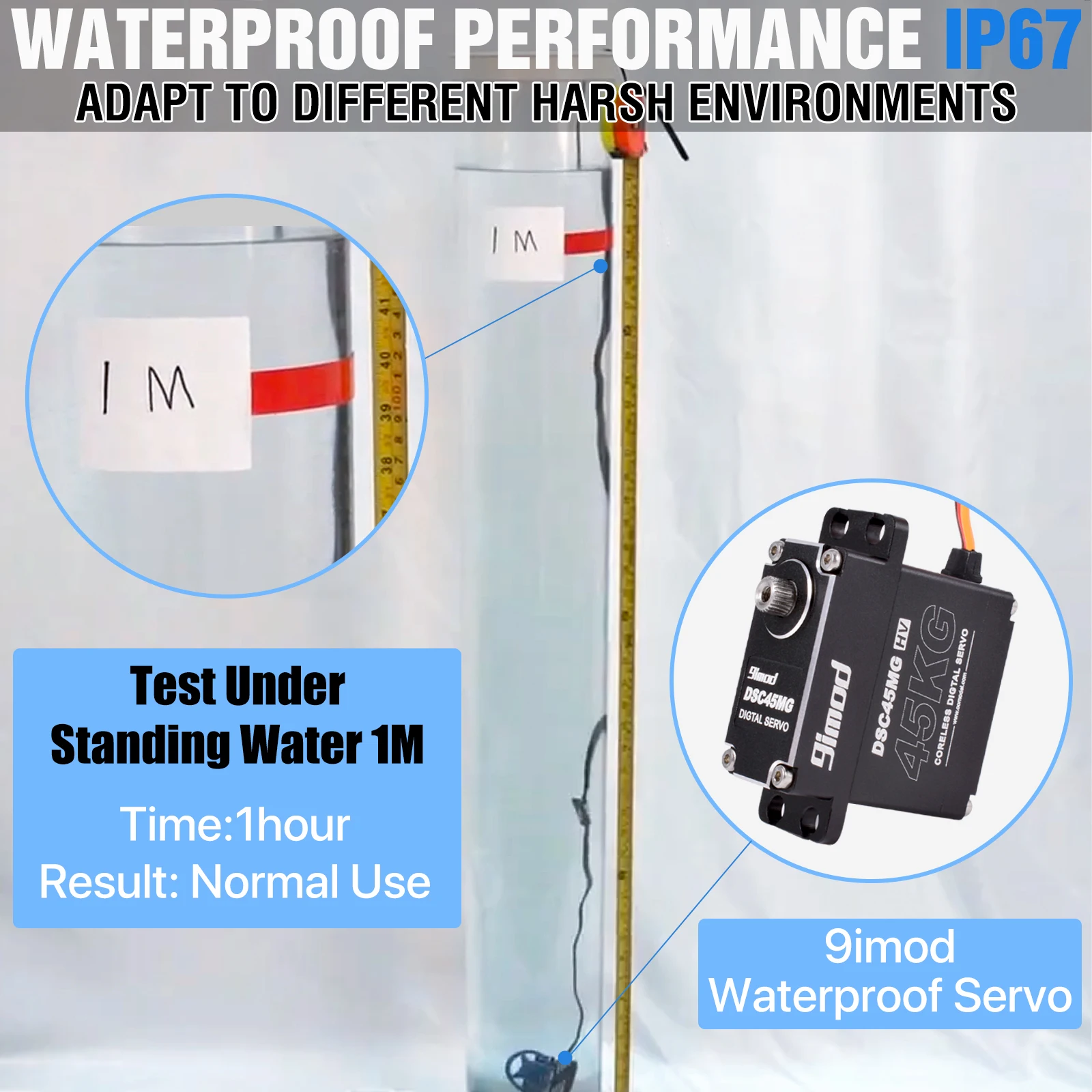

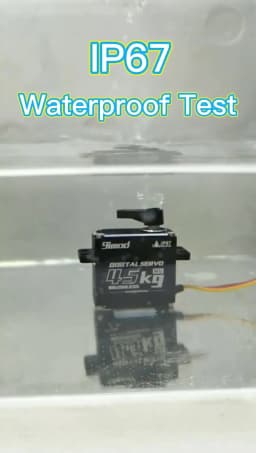

2.Waterproof performance:IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.

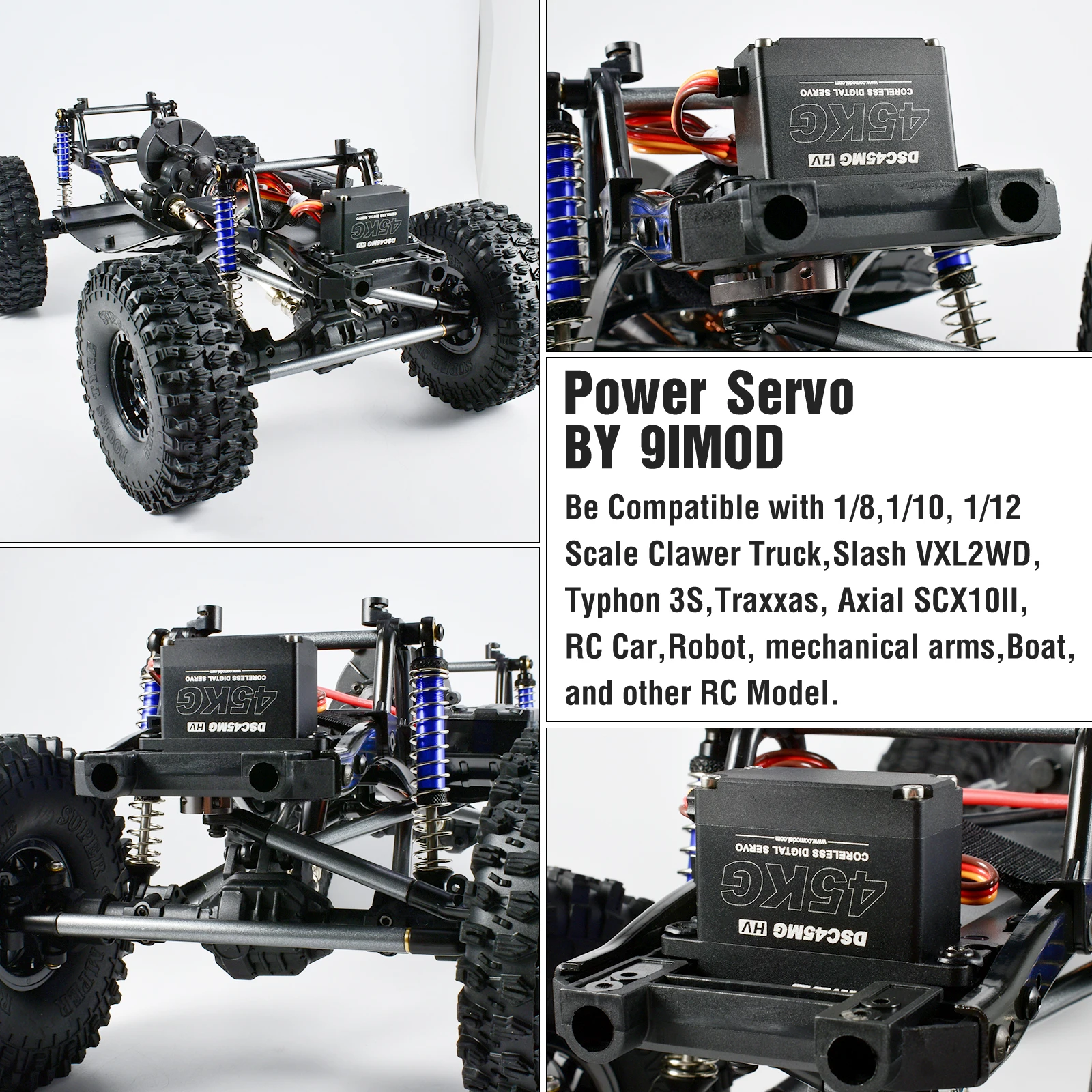

3.Widely Use Digital Servo:The steering servo 360°/270°/180° Control Angle optional,Compatible with Crawler 1/10 , 1/8, 1/12,Traxxas,Trx4,scx10,scx10 ii RC Car / Robot / Boat and other remote control models.

4.6.0V ~8.4V High voltage.High performance digital High Voltage Brushless.50kg RC Servo operate voltage is 10.0V ~15V .(The 14V High voltage servo needs to be supplied with extra power).

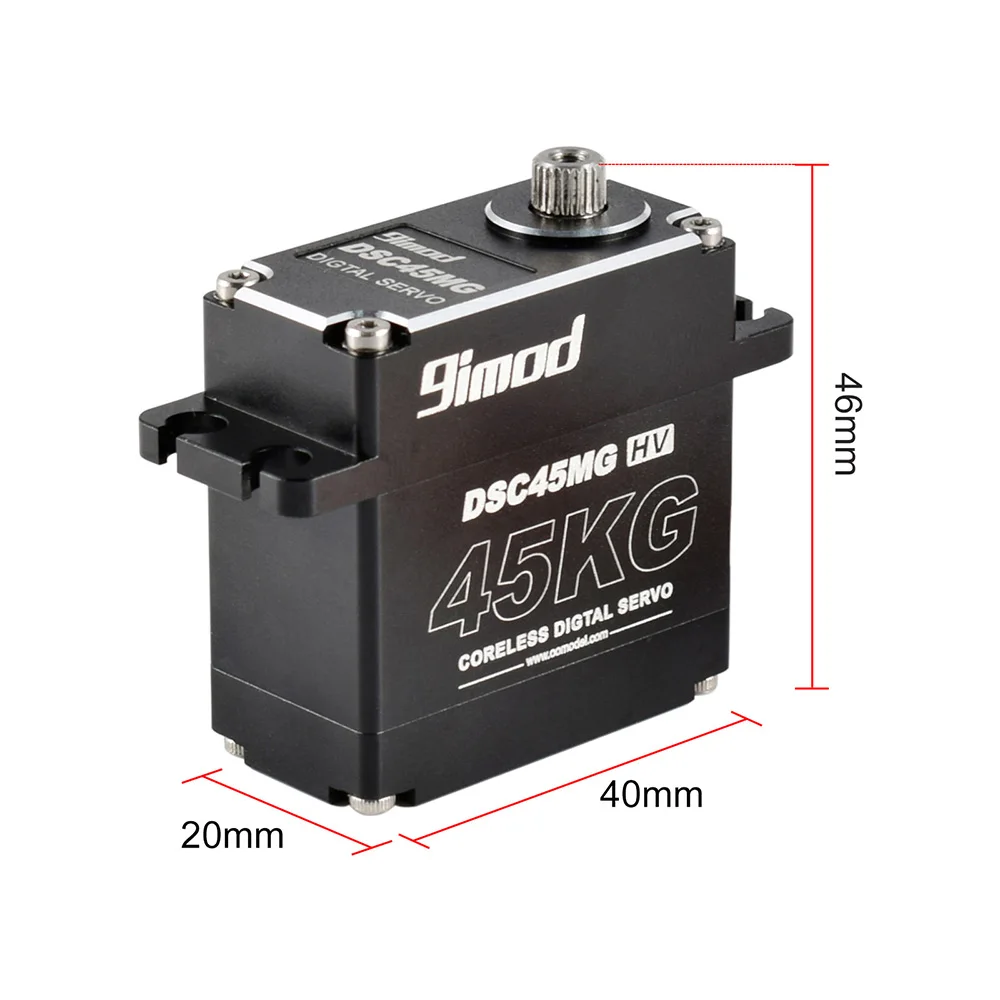

5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (79g)

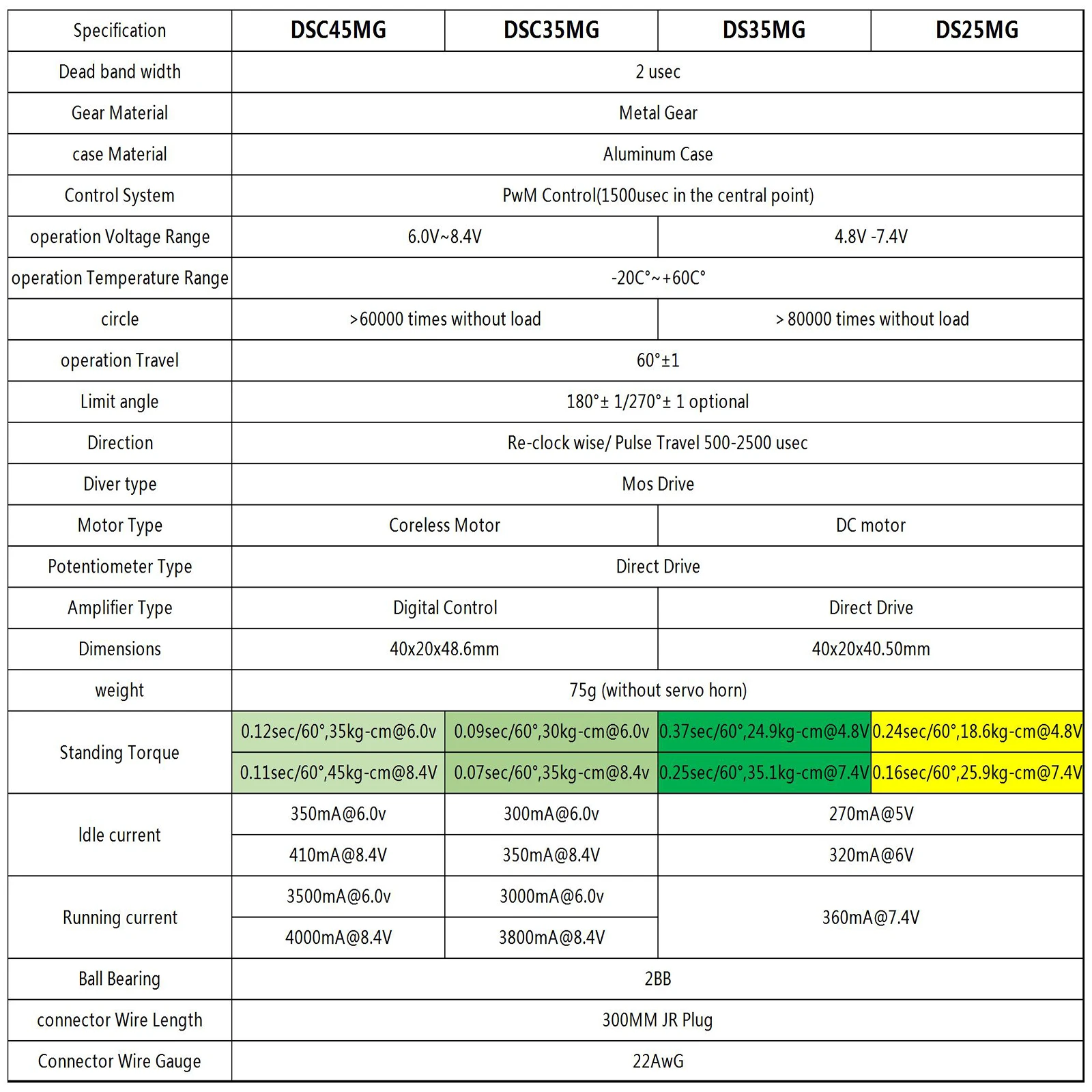

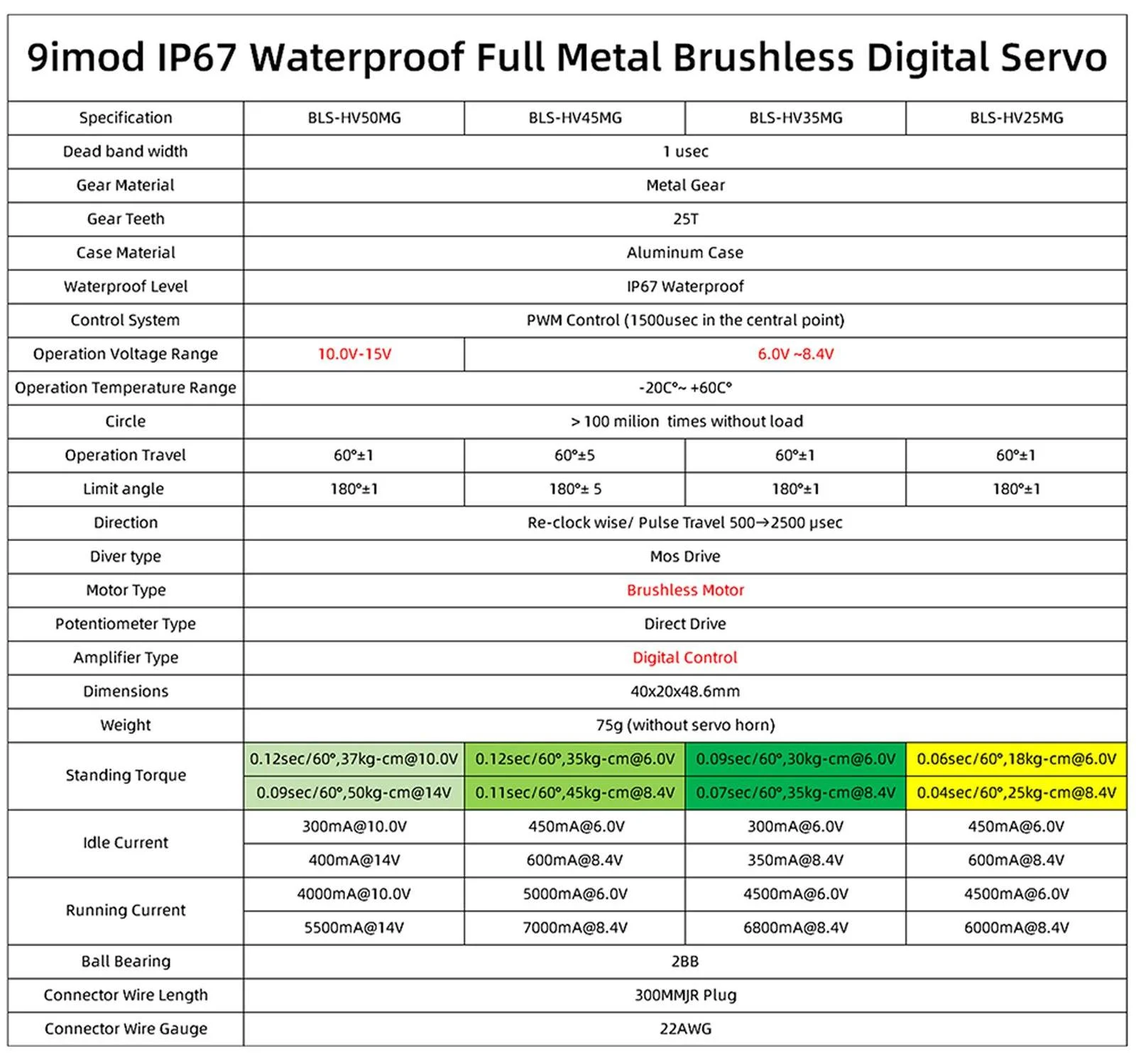

Specifications:

Brand:9imod

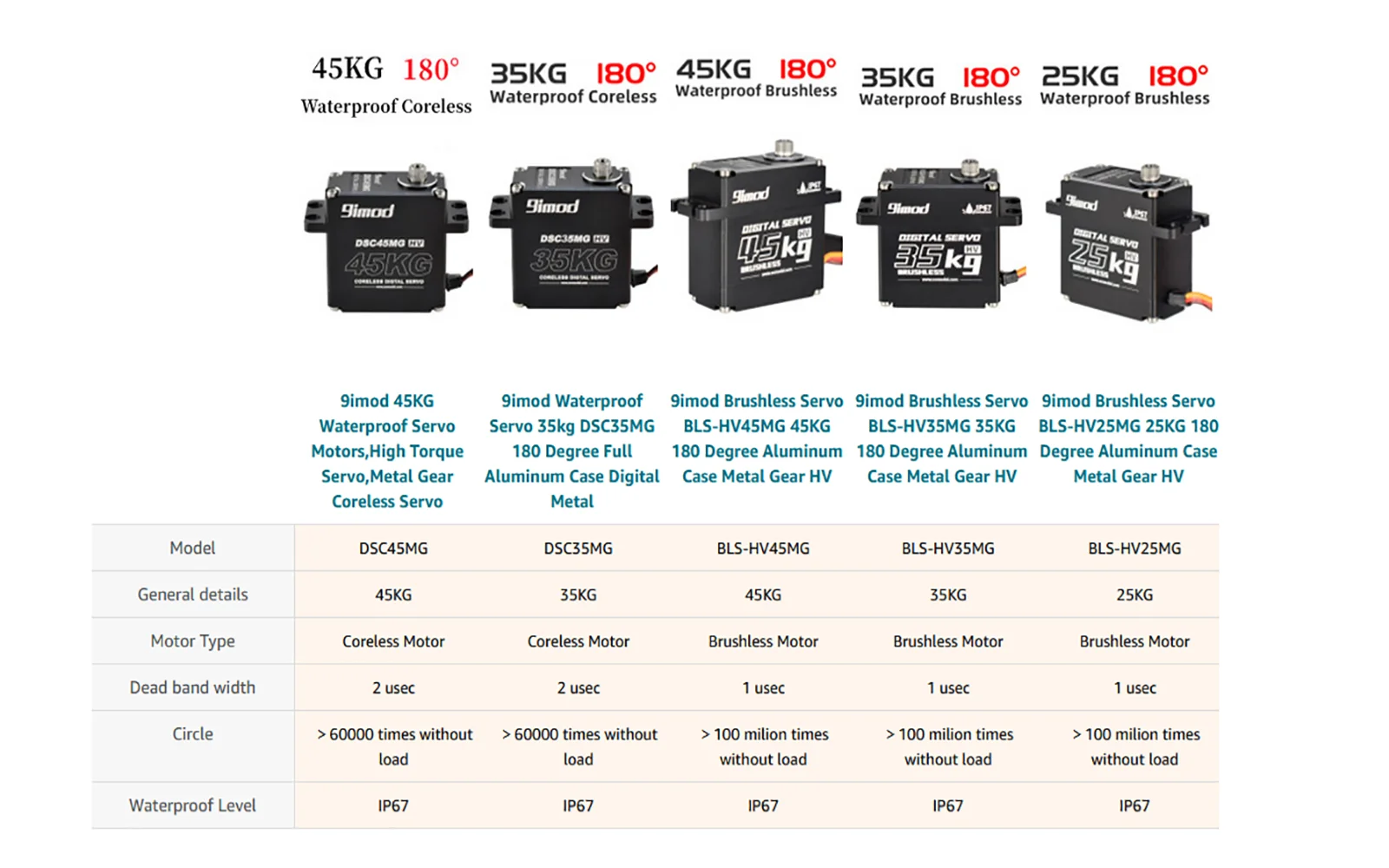

Model:BLS-HV45MG(45KG), BLS-HV35MG(35KG),BLS-HV25MG(25KG)，BLS-HV50MG(50KG)，BLS-HV51MG(51KG) optional

Color:Black

Dead band width:1 usec

Gear Material:Metal Gear

Case Material:Aluminum Case

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:6.0V ~8.4V

Operation Temperature Range:-20C°~ +60C°

Circle:＞100 milion times without load

Operation Travel:60°±5

Limit angle :180°± 5

Direction:Re-clock wise/ Pulse Travel 500→2500 μsec

Diver type:Mos Drive

Motor Type:Brushless motor

Potentiometer Type:Direct Drive

Amplifier Type:Digital Control

Dimensions:40x20x46mm
