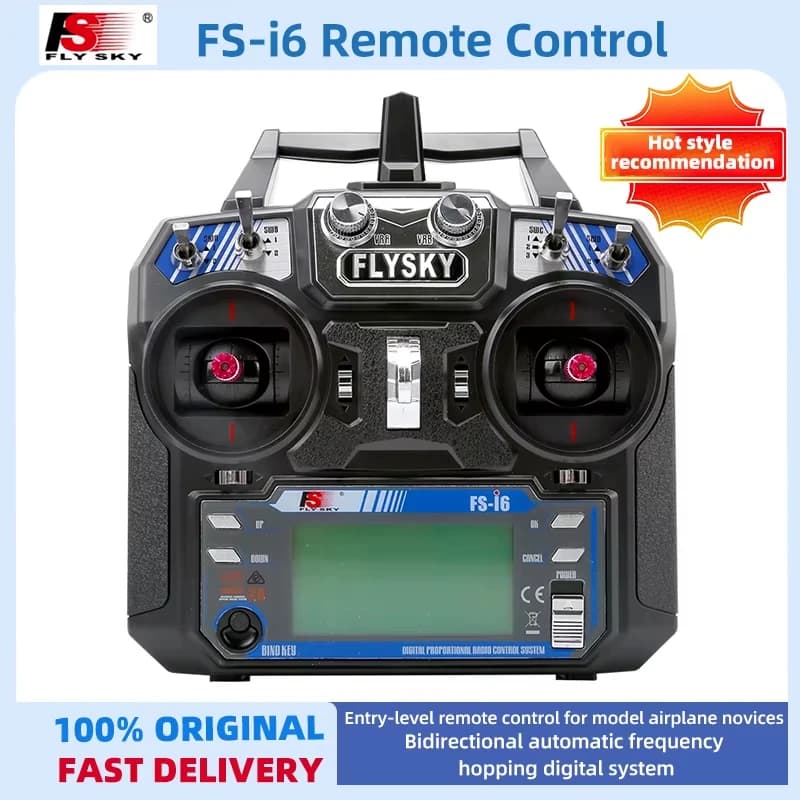

Flysky FS-i6 FS I6 2.4G 6ch RC Transmitter Controller FS-iA6 / FS-iA6B Receiver for Quadcopter DIY Drone

Transmitter Specfications:

Channels: 6

Model type: fixed-wing/glider/helicopter

RF range: 2.405-2.475GHz

Bandwidth: 500KHz

Band: 142

RF power: less than 20dBm

2.4G system: AFHDS 2A and AFHDS

Code type: GFSK

Sensitivity: 1024

Low voltage warning: less than 4.2V

DSC port: PS2; output: PPM

Charger port: no

ANT length: 26mm * 2(dual antenna)

Power: 6V 1.5AA * 4

Display mode: Transflective STN positive type,

128 * 64 dot matrix VA72 * 39mm, white backlight.

Size:174 * 89 * 190mm

Weight: 392g

Online update: yes

Color: black

FS-IA6B:

Description:

Brand Name: Flysky

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

band Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

FS-IA6 :

2.4GHz AFHDS 2A system

2.4G modes: Automatic frequency second generation digital systems

Encoding: GFSK

i-BUS Interface: No

Data Acquisition Interface: No

Certification: CE0678,FCC

Usage: Suitable for RC Airplane / glider / helicopter

Compatible Transmitter: for Flysky FS-iA6

The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .

Compatible with FS 2.4Ghz Surface Transmitter, very easy to bind.

channels: 3 channels

model type:airplane,glid

modulation:GFSK

code type:PPM

frequency:2.4G

Features:

Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
