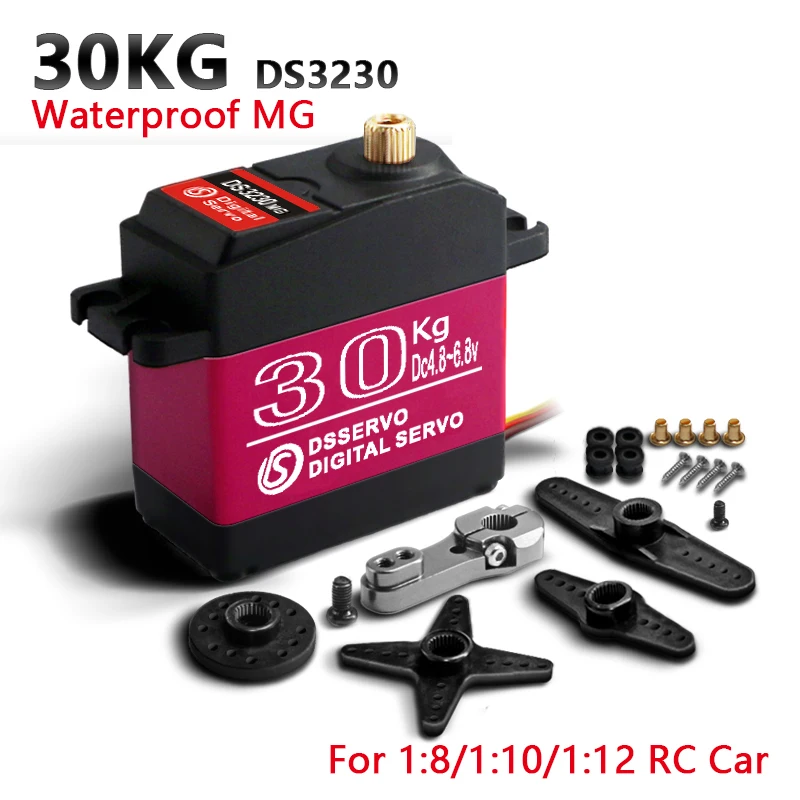

1X Waterproof Servo 20Kg 25Kg 30Kg 35Kg 40Kg High Speed servo Metal Gear Digital Servo RC Baja Servo For 1/8 1/10 Scale RC Cars

Brand:Dsservo

Packing List:

1x digital servo

1x 25T adjustable metal servo arm

1x accessory bag

Apply Environmental Conditon:

1.Storage Temperature Range:-30°C~80°C

2.Operating Temperature Range:-25°C~70°C

Mechanical Specification:

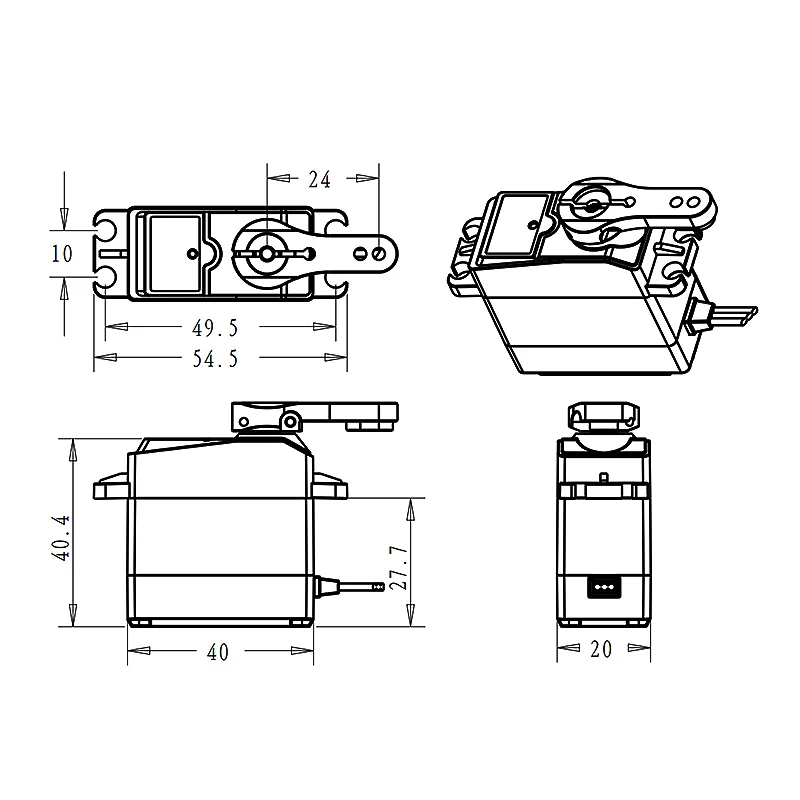

1. Size: 40.0*20.5*40.5mm

2. Weight: 58g±2g

3. Limit angle: 360°

4.Bearing: 2BB

5.Horn gear spline: 25T   Diameter:5.9mm

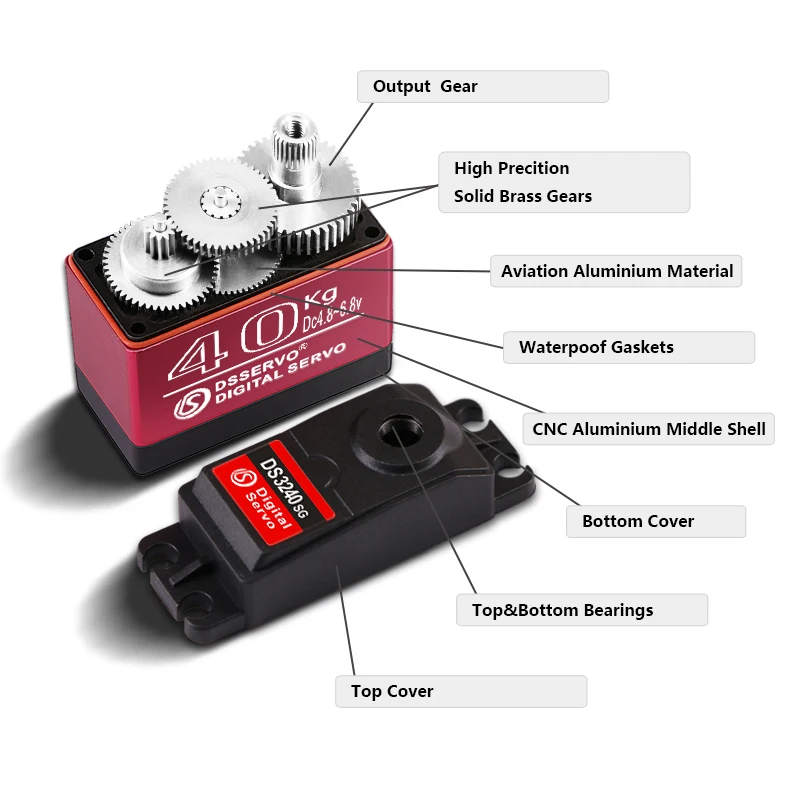

6.Case : Engineering plastics+Aluminum alloy

7.Connector wire: 320mm±5mm

8.Motor: Carbon brush motor

Electrical Specification:

1.Working voltage range: 4.8-6.8V

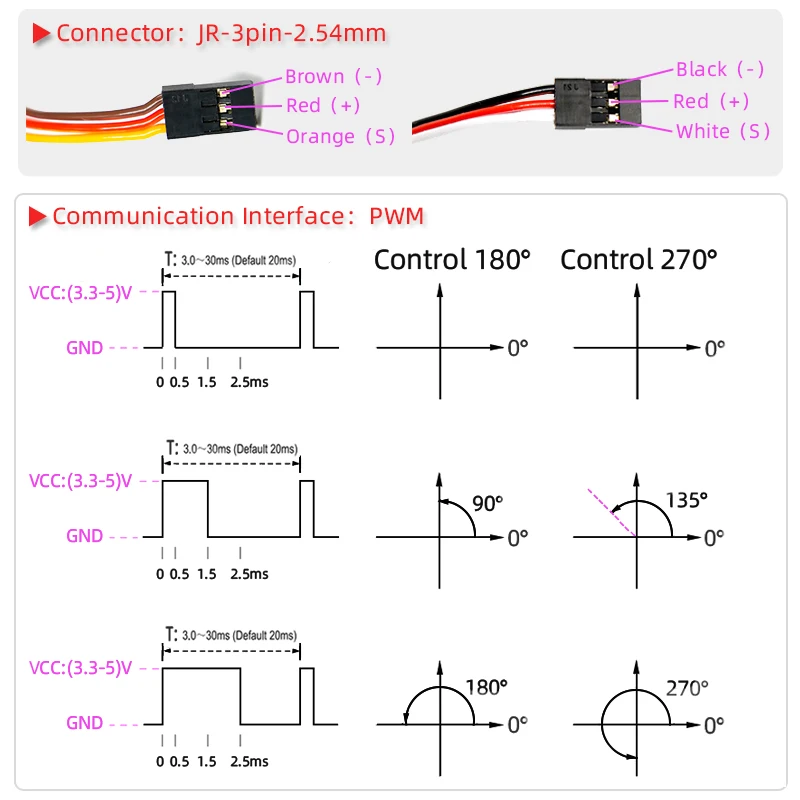

2.Command signal: Pulse width modification

3.Amplifier type: Digital controller

4.Pulse width range: 500～2500usec

5.Neutral position: 1500usec

6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)

7.Dead band width: 3 usec

8.Rotating direction Counterclockwise: (when 1000～2000usec)
