Xiaomi BE5000 Router Wi-Fi 7 Dual-Frequency Mesh Network 2.4/5GHz with 2.5G High-Speed Port IPTV OFDMA Signal Amplifier for Home

XIAOMI Router BE5000 WiFi 7 5011Mbps 2.4G/2.5GHz Network Port 512MB Memory Dual Broadband Access Network Security Protection CN

Hardware configuration

Product Name: Xiaomi Router BE5000

Processor: Dual core CPU

Memory: 512MB

2.4G Wi Fi: 2X2 (theoretical maximum speed can reach 688Mbps)

5G Wi Fi: 3X3 160MHz (theoretical maximum speed can reach 4323Mbps)

Product antenna: 5 high gain WiFi antennas

Product heat dissipation: natural heat dissipation

Machine interface: 1 × 100/1000/2500M adaptive WAN/LAN port,3 x 10/100/1000M adaptive WAN/LAN port

LED indicator light: 1

System reset button: 1

Mesh button: 1

Power input interface: 1

Executive standard: GB/T 9254.1-2021; GB 4943.1-2022

Wireless parameters

Dual frequency 2:. 4GHz and 5GHz

Wireless channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64149, 153, 157, 161, 165

Software parameters

Operating system: MiWiFi ROM

Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, anti phishing network

Management application: supports Web and Mi Home App (Android&iOS)

Product accessories

Instructions (including three guarantee cards): 1 piece

Network cable: 1 piece

Power adapter: 1

Work environment

Working environment temperature: 0-40 ℃

Working humidity: 10%~90% RH (non condensing)

Storage temperature: -40~70 ℃

Storage humidity: 5%~90% RH (non condensing)

Packaging List

Router x1

Instruction manual x1

Network cable x 1

Adapter × 1

Please note: This is a Chinese version of the router, which supports connecting to the Mi Home App with the Chinese mainland as the service area. Currently, it only supports Mesh with the Chinese version of Xiaomi routers.

Xiaomi Router BE5000Main Features

● Wi-Fi 7 Protocol: High-speed protocol with a 5011 Mbps wireless rate and high-speed dual-band concurrency for an efficient and fast internet experience.

● MLO Dual Frequency Aggregation: Connects to two frequency bands simultaneously, improving rate and stability through dual-band collaboration.

● Enhanced OFDMA: Utilizes Multi-RU high-end allocation technology for flexible bandwidth distribution, ideal for large families sharing a high-speed network.

● 4K QAM High-Order Modulation: Increases transfer rate by 20%, enhancing data throughput and internet speed by compressing data density.

● 6nm Wi-Fi Chip: Lower power consumption, stable operation, supports more devices, and provides strong signal coverage across larger home areas.

● Xrange2.0 Technology: Unique three-antenna design for 5GHz band, improving signal analysis capability, increasing coverage distance by 4.5 meters, and reducing game latency by 37%.

● 2.5G High-Speed Network Port: One 2.5G port and three Gigabit ports, supporting full 2000M home broadband, port aggregation, and function customization for high-speed NAS or other devices.

● 5-Way Signal Amplifier: Stronger signal penetration and wider coverage, overcoming wall obstructions for a freer internet experience.

● Xiaomi Self-Developed Mesh Networking: Supports wired/wireless mixed networking methods for up to 10 devices, covering large homes easily.

● Multi-Game Acceleration: Built-in game accelerator with global acceleration nodes to reduce delays and freezes on various devices, with dedicated channels for Xiaomi/Redmi phones.

● Family Security Center: Manage internet devices, filter bad URLs, limit app usage time, and prevent network attacks to ensure a secure and healthy internet environment.

Detailed parameters

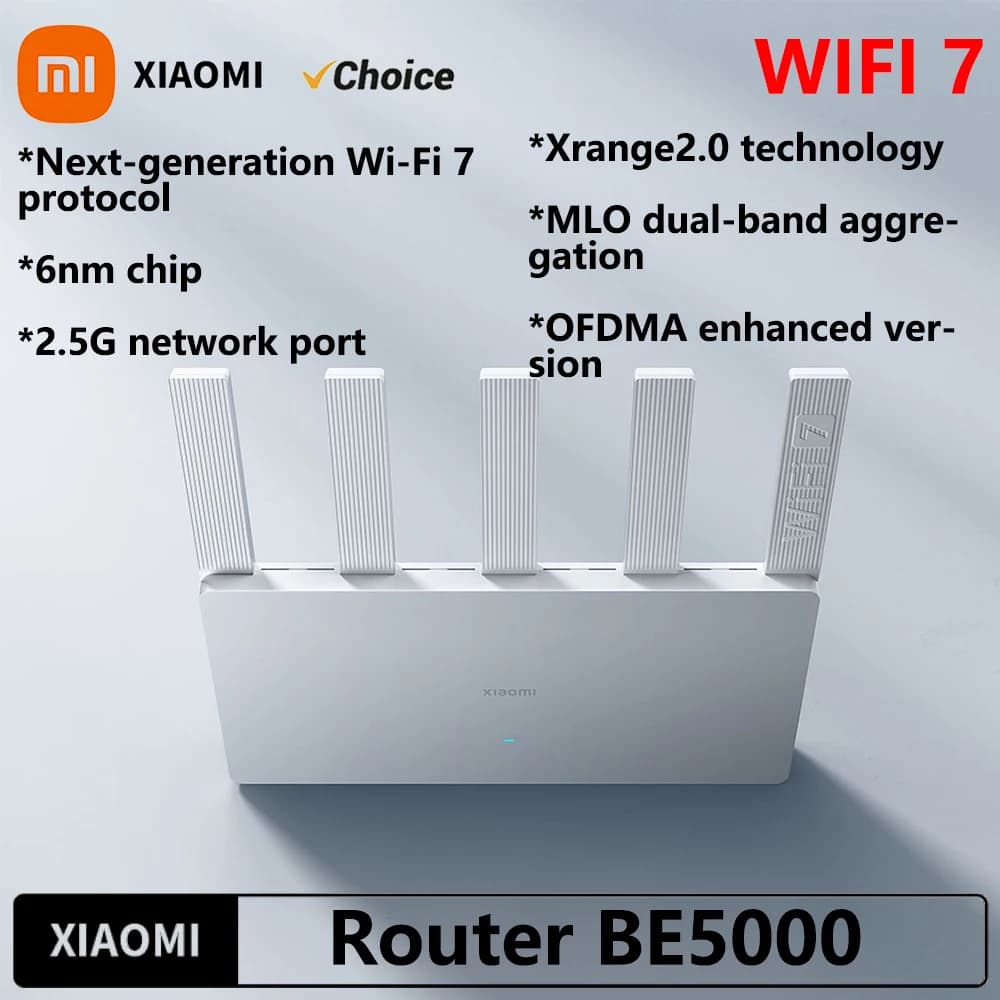

Xiaomi Router BE5000

NEW GENERATION WI-FI 7 POWERFUL 5000 MEGABIT COVERAGE

*NEW GENERATION WI-FI 7 PROTOCOL 5000 MEGABIT BLAZING SPEEDS

*XRANGE 2.0 TECHNOLOGY REDUCED LATENCY AND ENHANCED COVERAGE

*MLO DUAL-BAND AGGREGATION 139% FASTER SPEEDS OVER LONG DISTANCES

*6NM CHIP STRONG WiFi PERFORMANCE

*2.5G NETWORK PORT ULTRA-DRY GIGABIT BROADBAND ACCESS

*OFDMA ENHANCED EFFICIENT MULTI-DEVICE TRANSMISSION

Wi-Fi 7 high-speed protocol

Combined with the 5011 Mbps wireless rate, the 5G frequency band with greater throughput, and high-speed dual-band concurrency, it brings an efficient and fast Internet experience.

MLO dual frequency aggregation

The MLO dual-band aggregation technology of the Wi-Fi 7 protocol allows a single device to connect to two frequency bands at the same time. While the rate is further improved by aggregation, the dual-band collaboration also improves stability.

OFDMA enhanced version

With the blessing of the Wi-Fi 7 protocol, Multi-RU high-end allocation technology is based on OFDMA to allocate bandwidth resources more flexibly and fully, and large families can share high-speed networks together.

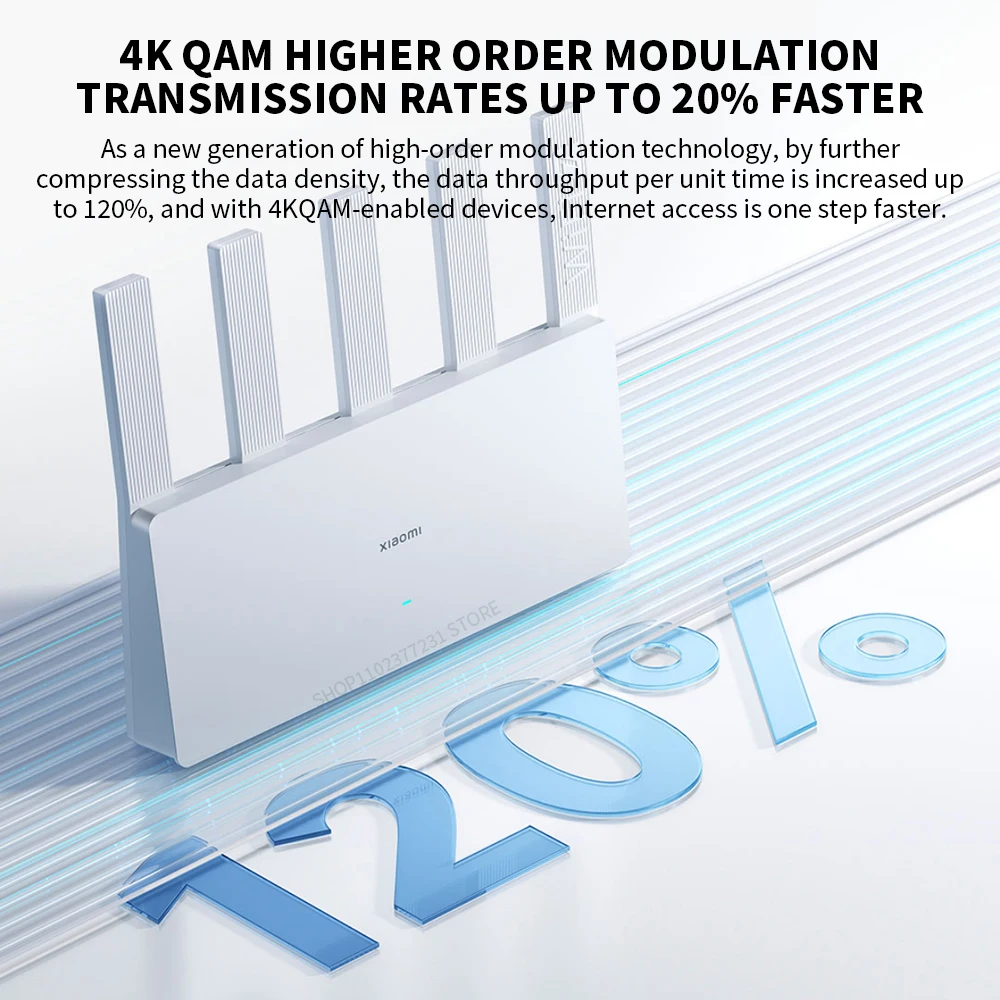

4K QAM high-order modulation

Transfer rate is 20% faster

By further compressing the data density, the data throughput per unit time is increased to 120%. With equipment that supports 4K QAM, the Internet speed is even faster.

6nm process Wi-Fi chip

It has lower power consumption, more stable operation, supports more connected devices, and strong signals covering a larger home range.

Xrange2.0 Technology

5GHz adopts a unique three-antenna design, combined with MediaTek’s exclusive smart encoding method, which increases the signal analysis capability of the 5GHz band by 4 times and increases the effective coverage distance by 4.5 meters. Game latency reduced by 37%

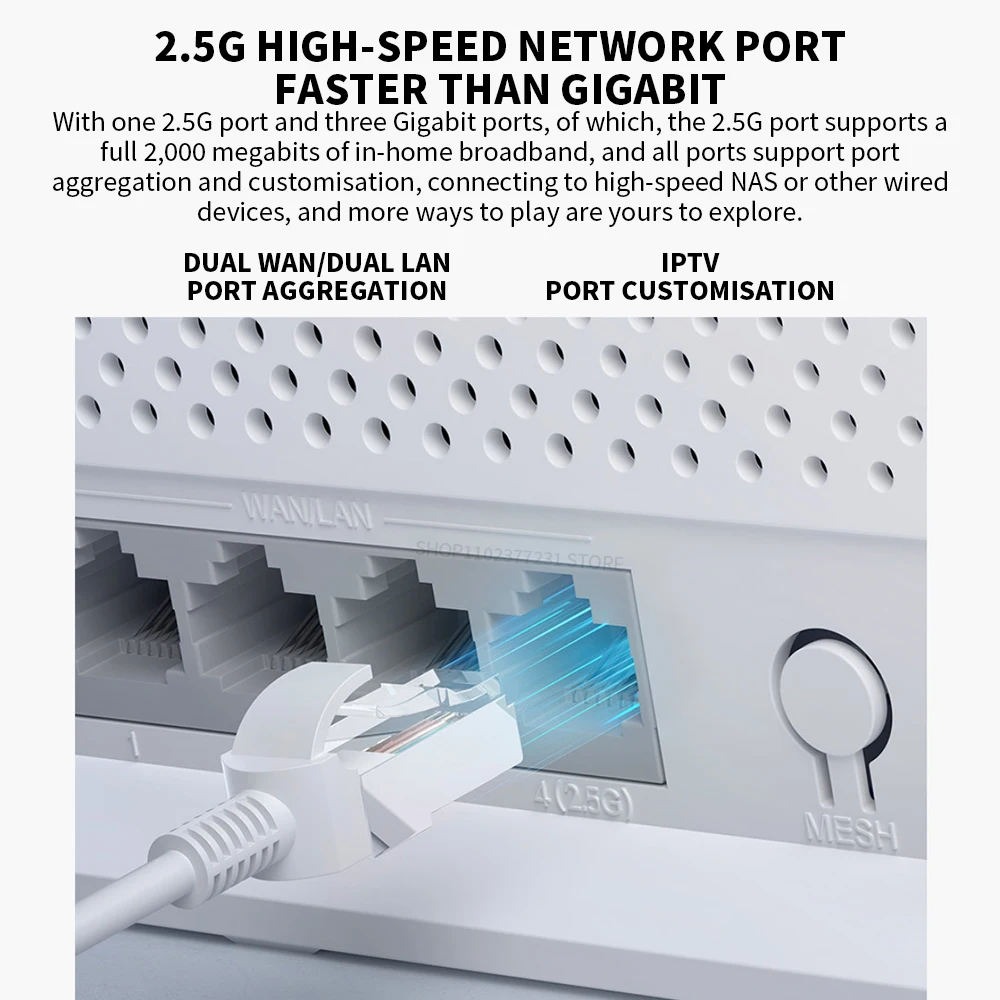

2.5G high-speed network port, customized IPTV network port

It has 1 2.5G network port and 3 Gigabit network ports. Among them, the 2.5G network port supports full 2000M home broadband. All network ports support port aggregation and function customization to connect to high-speed NAS or other wired devices.

5-way signal amplifier

Integrating more signal amplifiers brings stronger signal penetration and wider coverage, allowing you to enjoy a freer Internet experience without fear of wall obstructions.

WHOLE HOUSE INTELLIGENT LINKAGE QUICKLY START A SMART LIFE

Equipped with Xiaomi automation technology, the mobile phone into the network can trigger the smart home linkage conditions, easy to customise your exclusive smart scene. At the same time, it also supports the millet fast connection, the whole house new device one key password-free access to the network,change the password automatic synchronisation.

Xiaomi self-developed Mesh networking

Supports wired/wireless and other mixed networking methods, supports up to 10 devices, and can easily cover large homes.

Family Security Center

It supports the Mi Home APP to manage family members' Internet devices in a targeted manner, filter bad URLs, limit the usage time of popular APPs, and cultivate good habits for healthy Internet use.

Powerful protection mechanism can prevent network attacks and maintain network security.

*Mi Home App needs to select a mainland China server.

FAMILY INTERNET PROTECTION KEEP AWAY FROM INTERNET ADDICTION

NETWORK SECURITY ALL-ROUND PROTECTION OF NETWORK SECURITY

MORE TECHNICAL SUPPORT

*Beamforming

*IPv6

*BSS Coloring

*Dual frequency in one

*WPA3

Apparent dimension

Length width height: 271.9mm x 40.9mm x 220.8mm

Product color: White

Hardware configuration

Product name: Xiaomi Router BE5000

Processor: dual-core CPU

Memory: 512MB

2.4G Wi-Fi: 2×2(theoretical maximum speed up to 688Mbps)

5G Wi-Fi: 3X3 160MHz(theoretical maximum speed up to 4323Mbps)

Product antenna: 5 high gain WiFi antennas

Heat dissipation: natural heat dissipation

Machine interface: 1 x 100/1000/2500M adaptive WAN/LAND

3 x 10/100/1000M adaptive WAN/LAN port

LED indicator: 1

System reset button: 1

Mesh key: 1

Power input interface: 1

Wireless parameter

Dual frequency: 2.4GHz and 5GHz

Wireless Channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13

5GHz Channel:36, 40, 44, 48, 52, 56, 60, 64,149, 153, 157, 161, 165

Software parameter

Operating system: MiWiFi ROM

Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, anti-network

Management application: Support Web, Mijia App (Android & iOS)

Product accessories

Instruction manual (including three packs of cards)x1

Network cable x1

Power adapter x1

Working environment

Working temperature: 0~40℃

Working humidity: 10% ~ 90% RH (non-condensing)

Storage temperature: -40 ~ 70℃

Storage humidity: 5%-90%RH (non-condensing)

Product Features

5011Mbps WIFI7 router

139% distance speed increase

6nm high-performance wifi7 wireless chip, low power consumption, support to connect more devices.

2.5G high-speed network port, dual WAN/LAN, 2.5G network port *1, Gigabit network port *3.

5 channel signal amplifier, super penetrating power.

loT intelligent linkage, mesh networking, support 10 devices online.
