9imod 55kg Waterproof Servo IP67 180/270 Magnetic Sensor High Torque Coreless Digital Servo Full Metal Gear for 1/8 1/10 RC Cars

9imod 55kg Waterproof Servo IP67 180/270 Magnetic Sensor High Torque High Voltage Coreless Digital Servo Full Metal Gear for 1/8 1/10 RC Models Car Boat DIY Parts

Features:

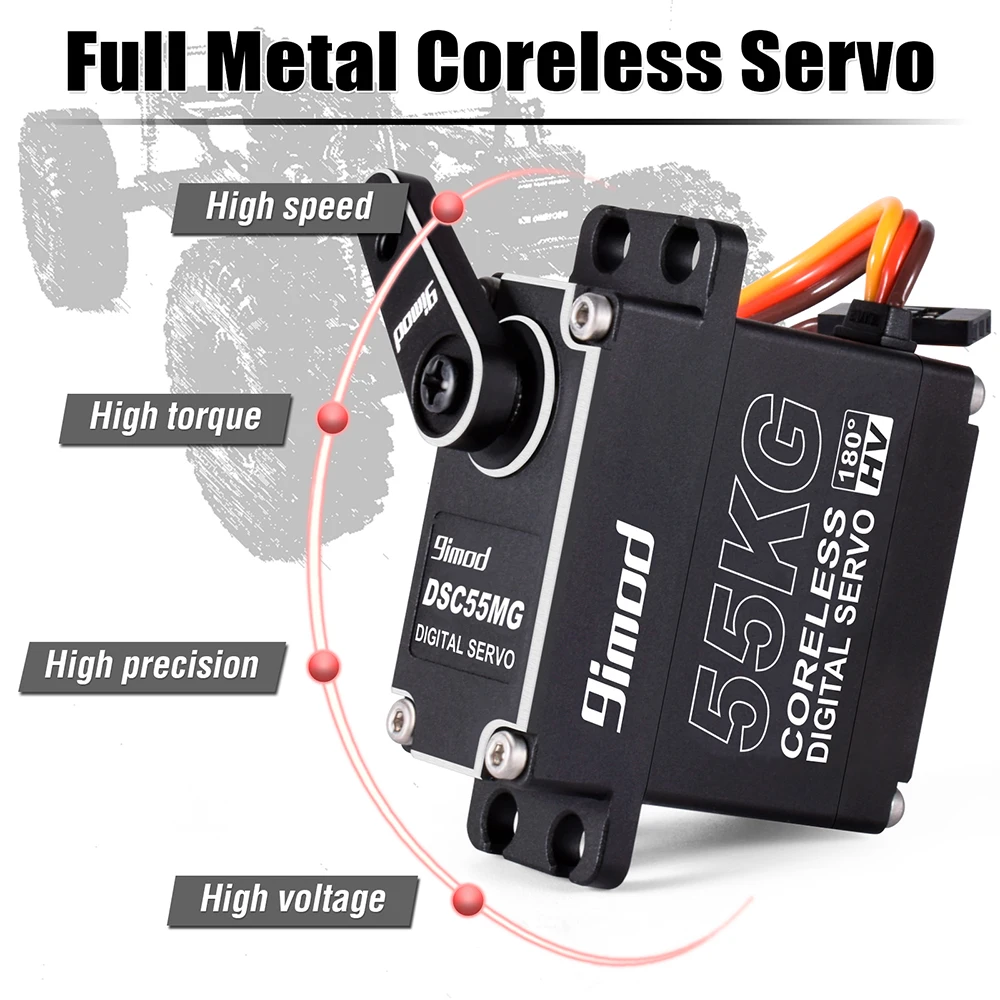

1. High Torque Servo: DSC55MG 55KG 180/270 degree HV coreless metal gear waterproof digital servo.

2. High Precision Magnetic Encoder Sensor: High-precision metal gears with hard anodizing. 14bit digital high precision magnetic encoding angle sensor, extremely accurate and stable.

3. Angle Range & Waterproof: High rotation, 180/270 degrees rotation, perfect for robot joint activities. Support High Voltage, stable and waterproof IP67.

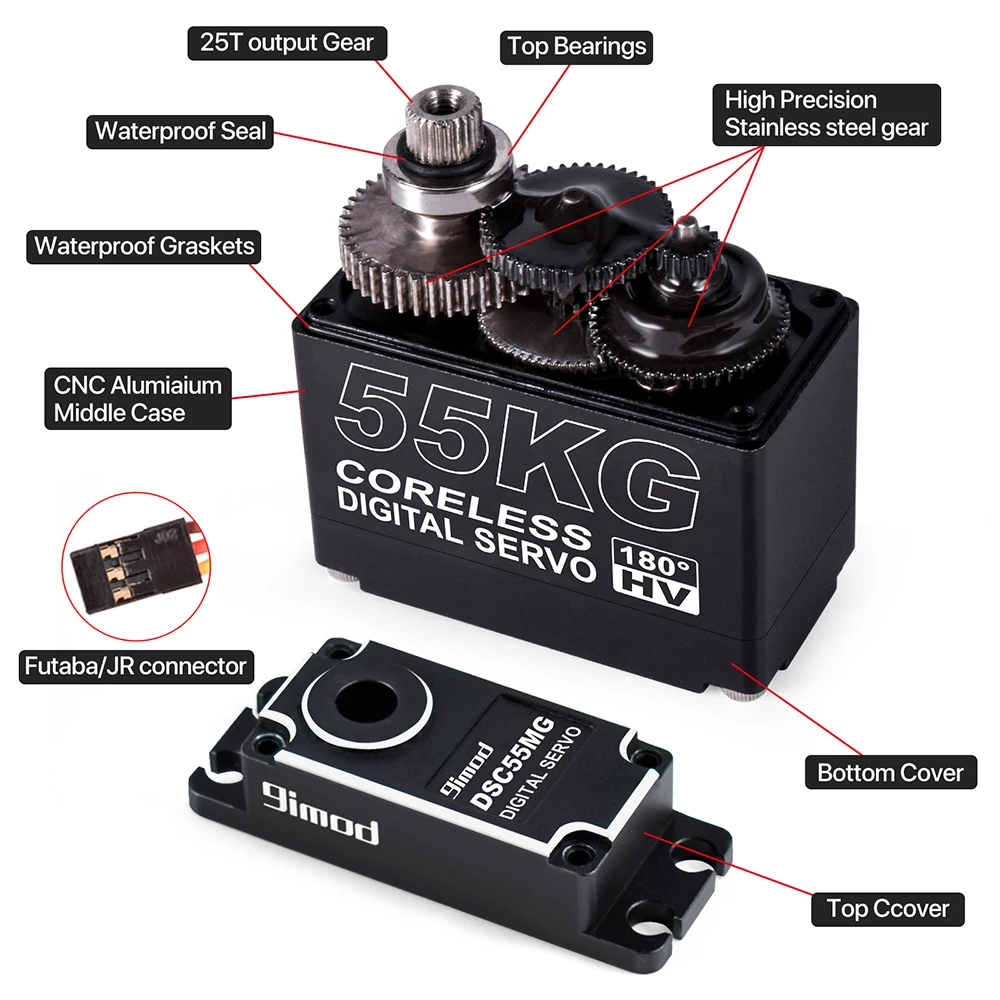

4. High Strength: CNC aluminium middle shell, dual ball bearings. To ensure longer service life.

5. Best for DIY Projects: Widely used in remote control crawler, boat, aircraft, helicopter, robot arm, etc.

Descriptions:

The 9imod 55kg waterproof digital servo with better heat dissipation, more power and strong adaptability. Light weight, high-speed big torque, sensitive, responsive, low noise. It is a good choice for novices and professionals who are interested in DIY parts, will help you control the model better.

Specifications:

Brand: 9imod

Model: DSC55MG

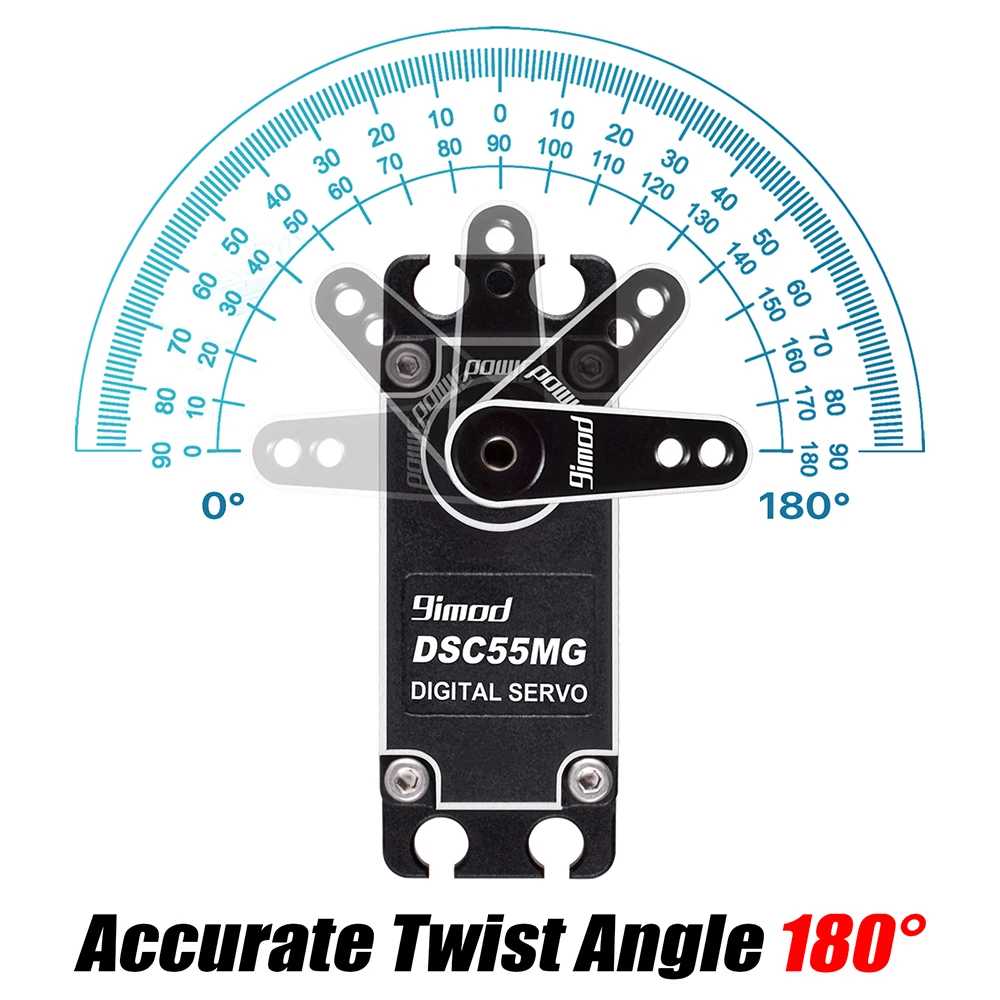

Running degree: 180°/270°(optional)

Control system: PWM

Neutral position: 1500μsec

Rotating direction: Counterclockwise (500～2500μsec)

Operation voltage range: 6.0V ~8.4V

Operation temperature range: -20C°~ +60C°

Circle: ＞600000 times at no load

Diver type: MOS drive

Motor type: Coreless motor

Potentiometer type: Magnetic coder

Amplifier type: Digital control

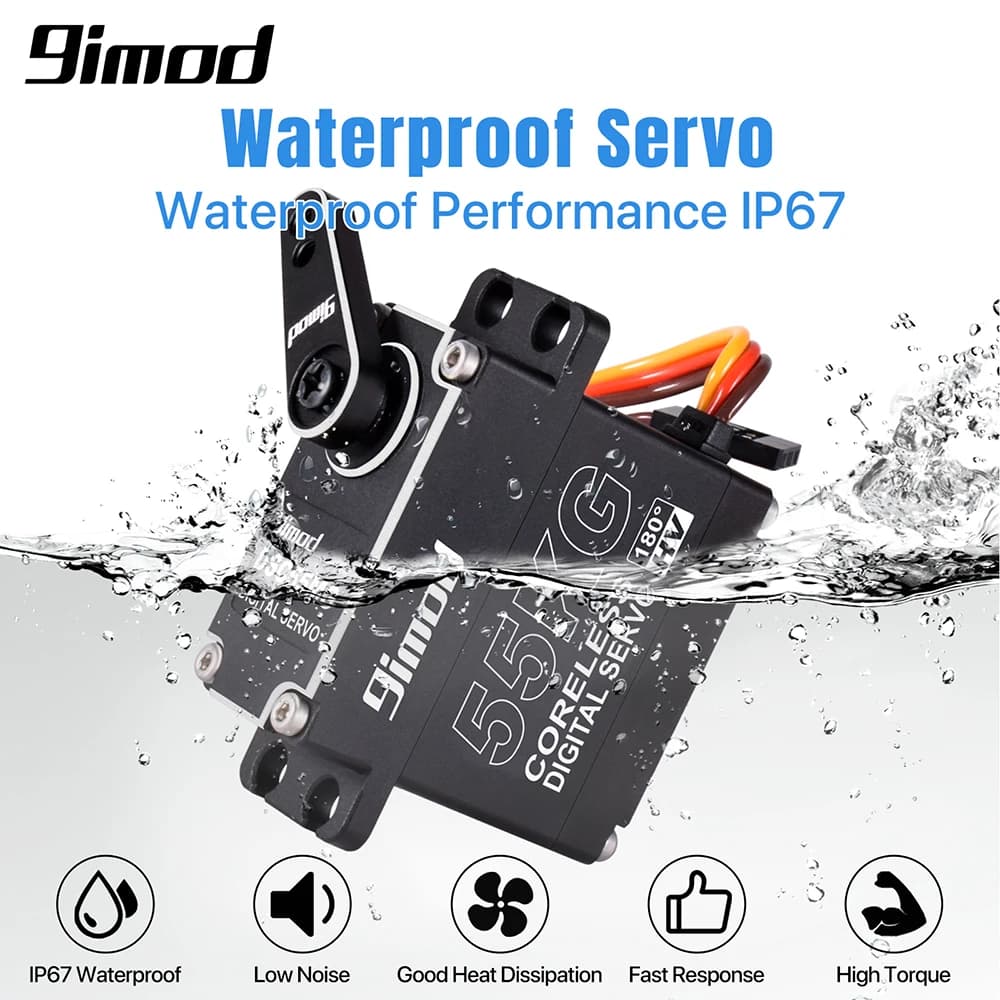

Waterproof performance: IP67

Dimensions: 40x20x40.50mm/1.57x0.79x1.59in

Weight: 78g (without servo horn)

Stall Torque: 43kg-cm-6V; 58kg-cm-8.4V

Operating speed: 0.13sec/60°-6V; 0.08sec/60°-8.4V

Idle current: 300mA-6V; 350mA-8.4V

Dead band width: 1μsec

Ball Bearing: 2BB

Gear material: Metal gear

Case material: Aluminum case

Connector wire: 300mm JR Plug

Connector wire gauge: 22AWG

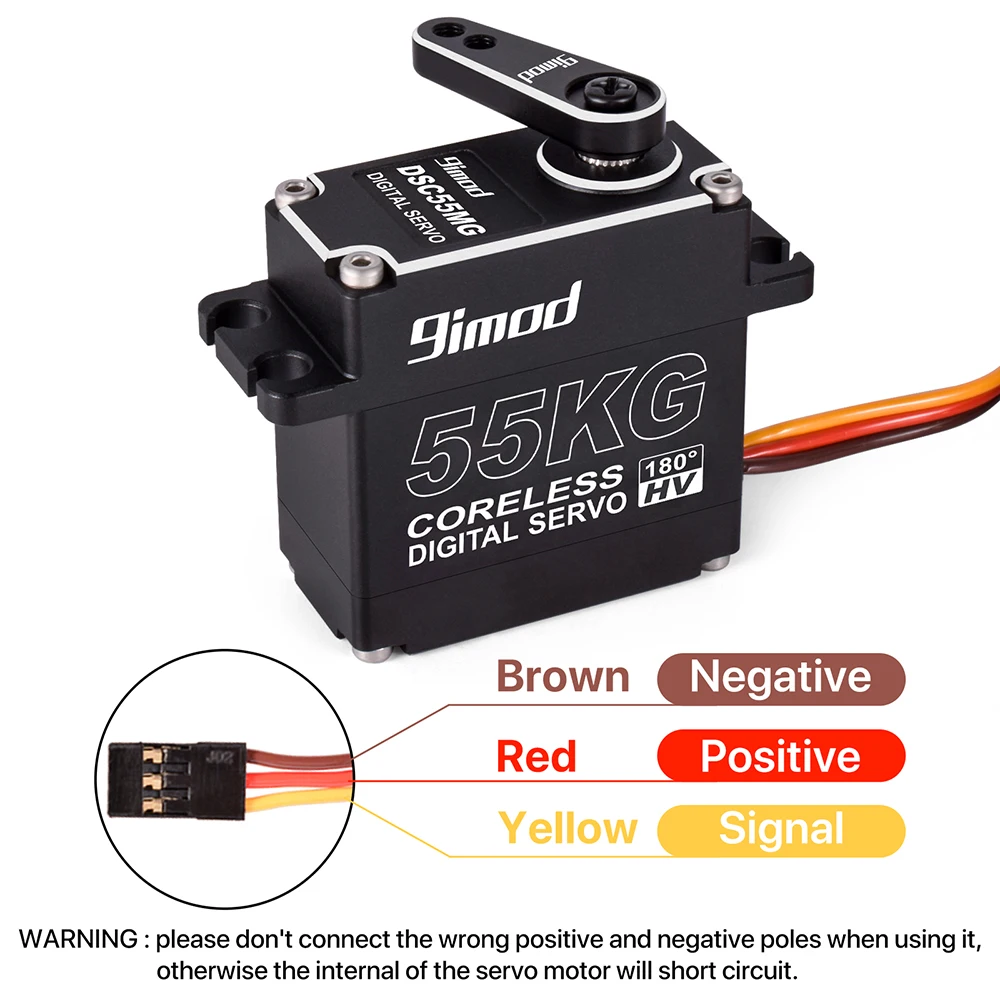

Wire Info (Brown): Negative

Wire Info (Red): Positive

Wire Info (Yellow): S Single

Pulse width signal: 500-2500 ms: 180 degrees

Remote control aerial template control: 900-2100 milliseconds: 120 degrees

Gun remote control: 1000-2000 ms: 90 degrees

Package Included:

1 x Servo

1 x Servo Accessories

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
