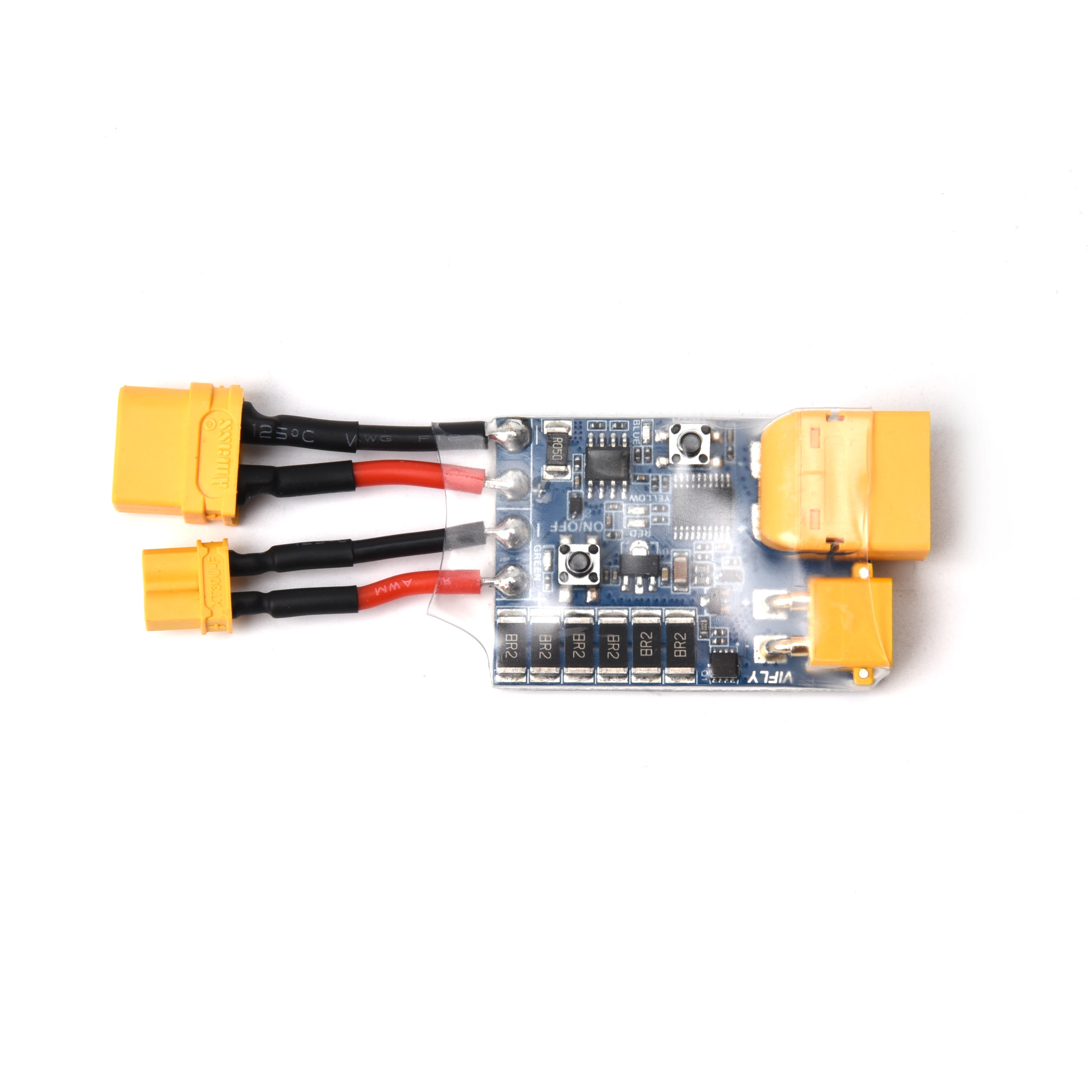

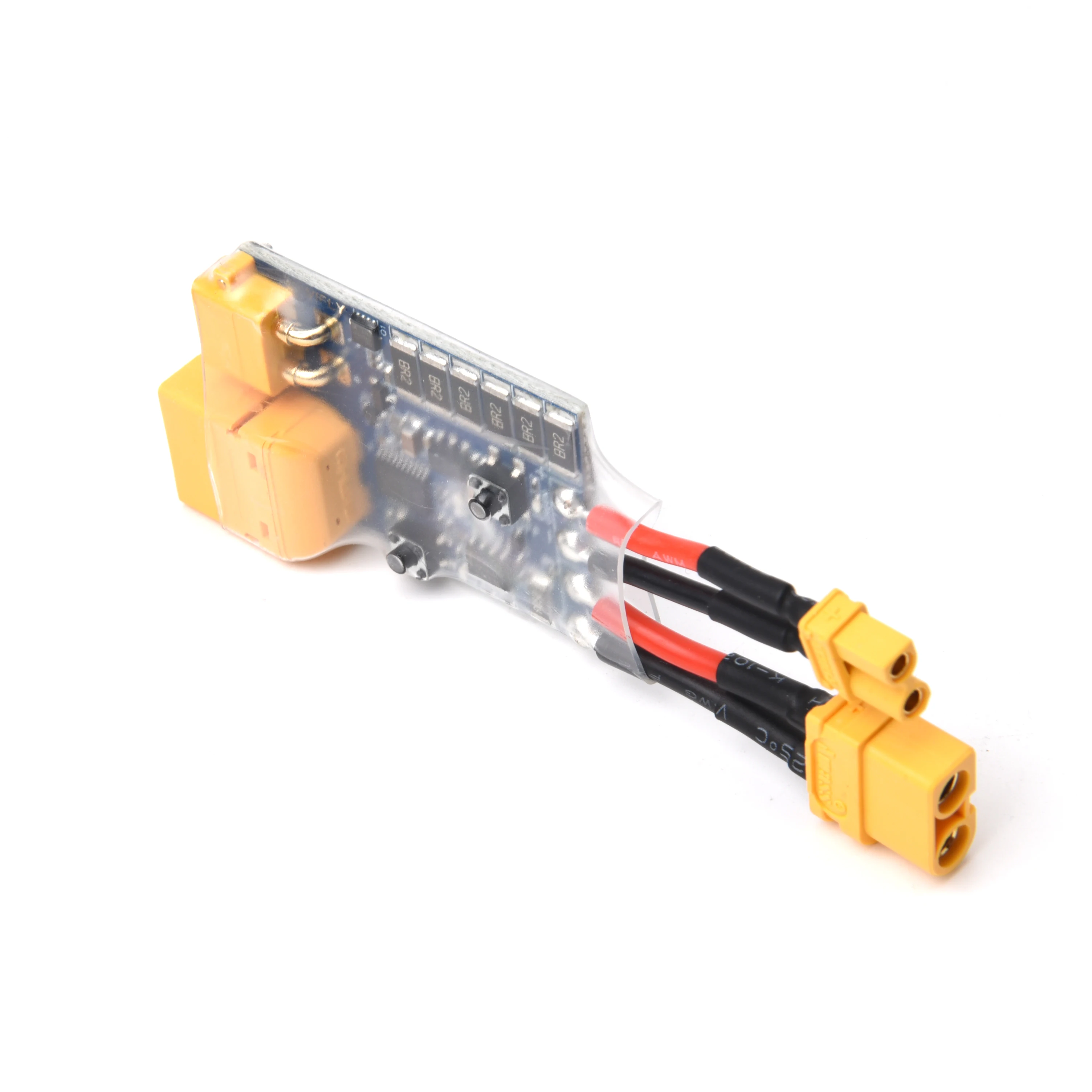

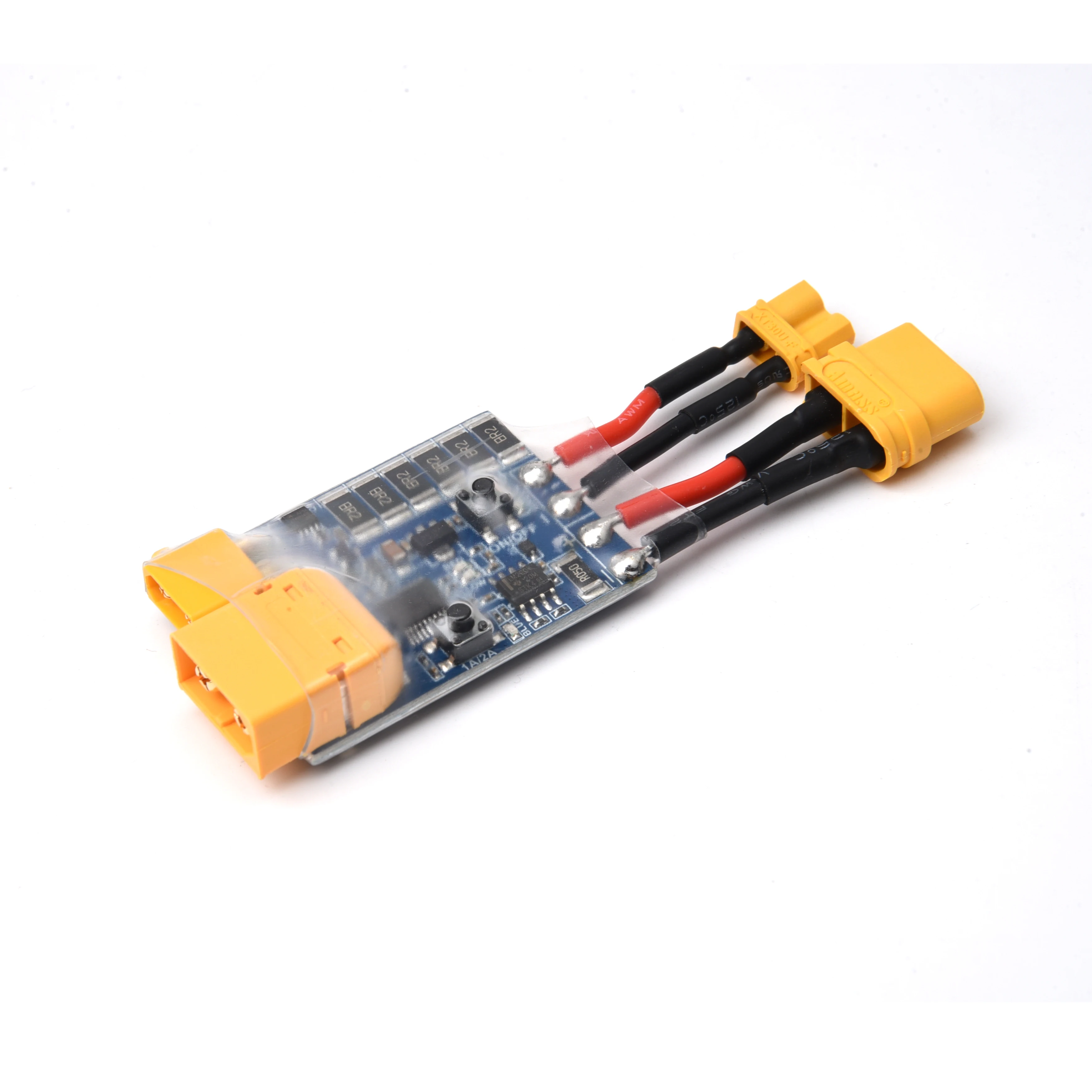

VIFLY ShortSaver 2 Smart Smoke Stopper Electronic Fuse to Prevent Short-Circuit & Over-Current for FPV Racing RC Drone

Description:

Size (L x W x H): 48 x 30 x 10mm

Connector: XT30 & XT60 (input and output)

Switchable current threshold: 1A / 2A

Trip time: 3ms(short-circuit) 15ms(over-current)

Input Voltage: 7-25V (2-6S)

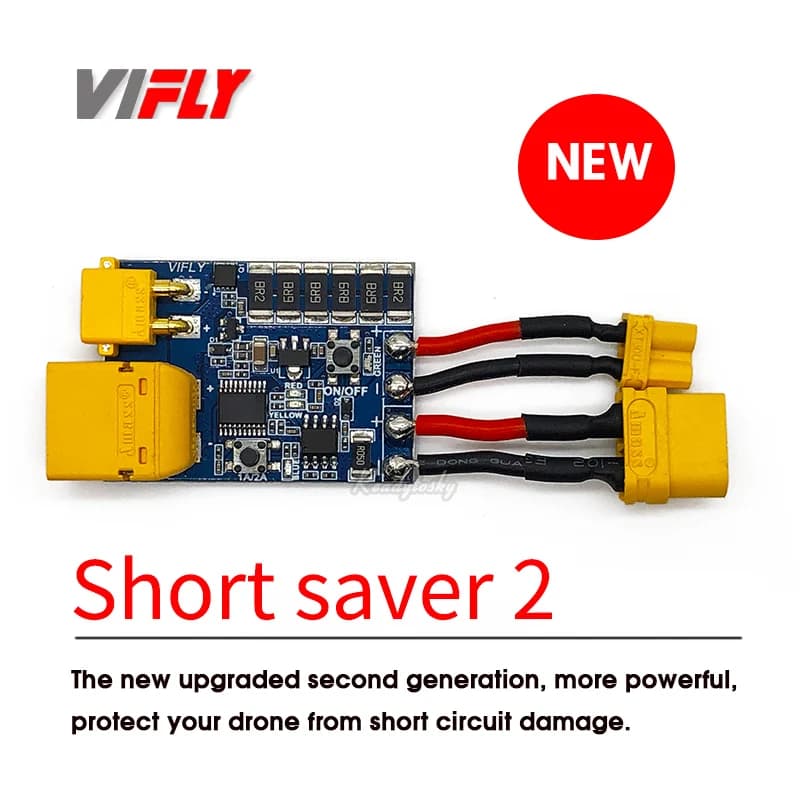

GET TO KNOW VIFLY ShortSaver 2

VIFLY ShortSaver 2 is an electronic fuse (eFuse) smoke stopper. It can provide complete protection against the short-circuit and over-current. Compared with automotive light-bulb or polyfuse products, VIFLY ShortSaver 2 is safer and more reliable. It would turn off the power to a device that drew in excess of the threshold within just 3ms(15ms). In addition, VIFLY ShortSaver 2 can cut the current completely while others still have leakage current.

Operation

- Plug the battery into the ShortSaver 2 firstly, the yellow led is on that means the ShortSaver 2 is ready to work.

Short press 1A/2A button to select the 1A or 2A current threshold. We recommend using 1A option for most of your RC builds .

- Connect ShortSaver 2 with your device, then short press the POWER ON/OFF button. If the green led is on, it means your build is normal. If the green led is off and red led is on, it means your device is short-circuit or over-current and ShortSaver 2 gets into the overload protection status.

- Short press the POWER ON/OFF button to turn on/off the power.

- Long press to get into the trip time setting mode, short press to change different trip time and long press again to save the setting.

Note :

Due to certain reasons, Amass company will no longer produce connector with logos. This means the connectors we procure from now on will no longer carry the Amass brand logo.Therefore, future versions of this product will not have a logo on the plug.
Our store still has some remaining stock with Amass logos, and there may be cases of random shipment.
If you are okay with this, please proceed with your order.

Package including :

1*  VIFLY ShortSaver Version 2
