LIVTRA NANOCORE/MOSAICI Mini Multi-Effect Processor Pocket Pedal AMP AI Drums Loopback NAM Master Tone for Acoustic Electric

🎸 LIVTRA NANOCORE Mini Multi-Effects Pedal – The True Pocket Beast, 126g Ultralight, 9-10h Battery, 2.4″ Color Screen, Full NAM & IR Support

The LIVTRA NANOCORE is a pocket‑sized multi‑effects processor that delivers studio‑grade tone in an ultralight form factor. Weighing only 126g, it fits in your pocket yet packs 8+1 effect modules with full NAM (Neural Amp Modeler) and third‑party IR support. The 2.4‑inch high‑brightness TFT screen ensures clear visibility even on dark stages. Built‑in 1300mAh battery provides 9‑10 hours of real‑world use, making it perfect for practice, recording, and live performance. Featuring 30 amp models (25 guitar + 5 bass), 30 cabinet IRs, and a complete effects arsenal – FX1 (noise gate/compressor), FX2 (overdrive/distortion/fuzz), AMP, CAB, DEL (8 modes), MOD (5 modes), REV (7 modes), and EQ (3/6/8‑band). The signal chain is fully customizable – rearrange modules freely. With 44.1kHz/24bit audio precision, 103dB dynamic range, USB audio interface, Bluetooth audio/MIDI, and a dedicated 3.5mm headphone output, NANOCORE is the ultimate mobile workstation from bedroom to stage.

✨ Product Features

🎸 Pocket‑Sized Power – 126g ultralight design with anti‑slip metal back clip, fits anywhere.

🔋 All‑Day Battery – 1300mAh battery, 9‑10 hours of continuous use.

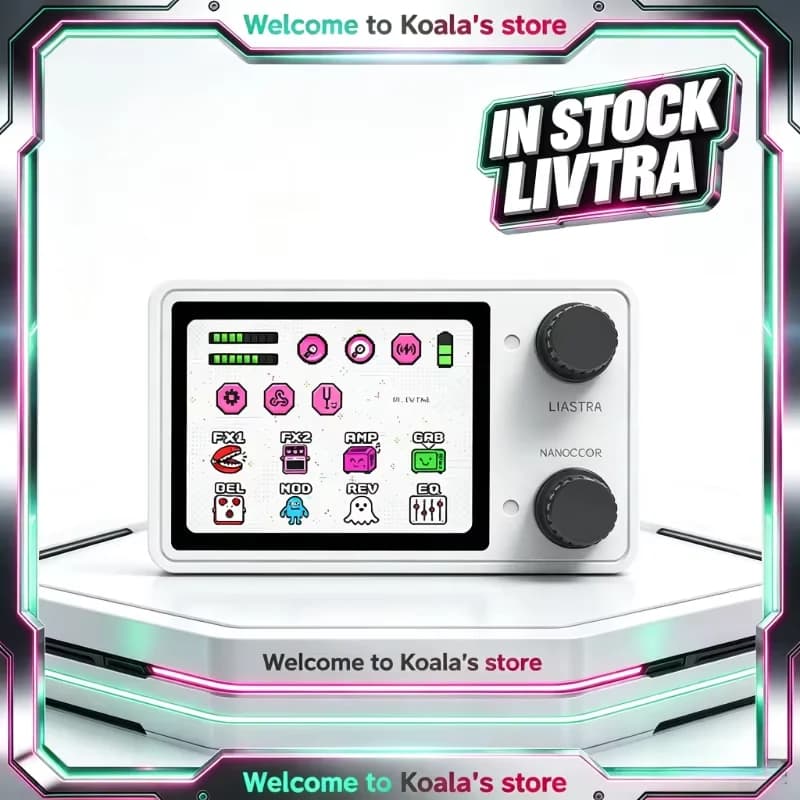

📺 2.4″ Color Screen – High‑brightness TFT display, clear in all lighting conditions.

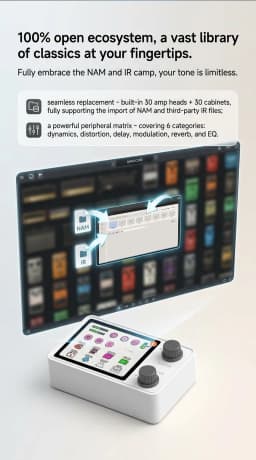

🧠 NAM & IR Support – 30 amp slots fully replaceable with NAM A1/A2 files; 30 cab slots support third‑party IRs.

🎛️ 8+1 Effect Modules – FX1, FX2, AMP, CAB, DEL, MOD, REV, EQ – fully rearrangeable signal chain.

🎵 Pro Audio Specs – 44.1kHz/24bit sampling, 103dB dynamic range, >103dB SNR.

📡 Bluetooth & MIDI – Bluetooth audio input for backing tracks; Bluetooth MIDI for wireless control.

🎧 Dedicated Headphone Out – 3.5mm TRS stereo (16Ω impedance) – practice silently.

🔌 USB Audio Interface – Driver‑free recording on computer/phone with Loopback support.

🎚️ 64 Presets – 40 factory presets + 24 user slots with REPLACE/SWAP save options.

🎨 Customizable UI – Switchable themes via PC software (Classic Pedal, Pink Fantasy, Pixel Tech, and more).

🔧 Technical Parameters

Dimensions – 90.5mm (L) × 55.5mm (W) × 36.7mm (H)

Weight – Approx. 126g (lightest in its class)

Display – 2.4‑inch TFT color screen

Audio Quality – 44.1kHz / 24‑bit

Dynamic Range – 103dB

Signal‑to‑Noise Ratio – >103dB

Effect Modules – 8+1 (FX1, FX2, AMP, CAB, DEL, MOD, REV, EQ)

Preset Slots – 64 total (40 factory + 24 user)

Amp Models – 30 (25 guitar + 5 bass) – all replaceable with NAM A1/A2 files

Cabinet IRs – 30 – all replaceable with third‑party IRs

Input – 6.35mm TS mono (1MΩ impedance)

Output – 6.35mm TS mono (100Ω impedance)

Headphone Output – 3.5mm TRS stereo (16Ω impedance)

USB – Type‑C (DC 5V 1A charging + USB audio + MIDI)

Battery – 1300mAh lithium (approx. 9‑10 hours)

Bluetooth – Audio input + MIDI control

Tuner – Built‑in, 435‑445Hz reference range

Included Accessories – USB‑C cable, user manual, metal back clip

📦 Package Contents

1 x LIVTRA NANOCORE Multi‑Effects Processor

1 x USB‑C Charging Cable

1 x Metal Back Clip (anti‑slip, with screw holes)

1 x User Manual

🎯 Suitable For

🎸 Electric Guitarists & Bassists – Portable practice, recording, and performance.

🎧 Traveling Musicians – Ultralight design for on‑the‑go creativity.

🎛️ Studio Producers – USB audio interface with loopback for recording.

🎤 Live Performers – Direct amp/PA connection with headphone monitoring.

🎶 Beginners & Students – Simple controls, huge tonal variety, affordable.

⚠️ Important Notes

Back Clip Installation – The metal back clip requires only 2 screws for secure mounting. The package includes 3 screws – you only need 2, the extra one is a spare.

Power Source – Use a standard 5V 1A USB‑C power adapter. The device supports pass‑through charging while in use.

Battery Care – Fully charge before first use. Charge every few months if storing for long periods.

Headphone Safety – Always turn MASTER volume down before connecting headphones, then gradually increase to a comfortable level.

Bluetooth Pairing – For MIDI control, connect to “Nanocore Midi” via the official mobile app (hidden in system BT list until paired). For backing tracks, connect to “Nanocore Audio” in your phone’s Bluetooth settings.

Firmware & Software – Download the free PC/Mac/mobile companion software for preset management, IR import, NAM loading, and system upgrades.

Save Operation – After editing a preset, long‑press the MASTER knob to save. Unsaved changes will be lost when switching presets.

Interface Identification – Guitar input: 6.35mm TS; Headphones: 3.5mm TRS. Do not mix up connections.

Measurement Tolerance – Allow ± 3 mm size deviation due to manual measurement.

Color Variation – Actual product color may differ slightly from images due to monitor settings and lighting.
