RetroScaler2x A/V to HDMI® Converter and Line-doubler For Retro Game Consoles PS2 N64 NES Dreamcast Saturn MD1 MD2

If you have become a fan of our store, twitter or facebook, please go to the AliExpress buyer APP and enter the RetroScaler Official Store homepage to get your exclusive coupons. Or contact us to get the coupons.

RetroScaler2x A/V to HDMI® Converter and Line-doubler for Retro Game Consoles

Attentions:

1. RetroScaler2X doesn't support all PAL-Mconsoles in Brazil and SFC pal version console.

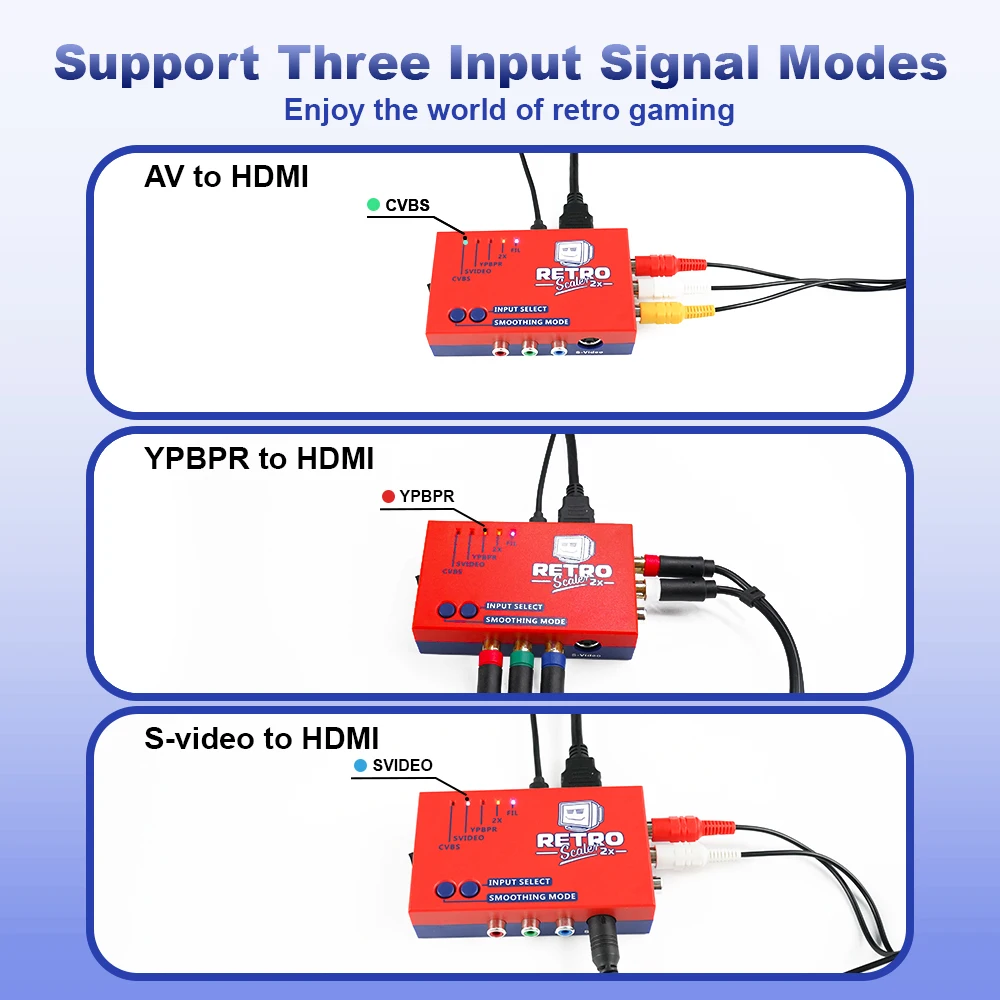

2. RetroScaler2X support component / AV/ SV signal input. Before purchasing, please confirm whether your game console can output these three video signals.

(​Retroscaler2x doesn't support RGBS signal, so don't use RGBS cable be used with it. )

3. When using Retroscaler2x, please use the signal cable to connect it to the game console and TV directly. Do not use other signal convertor with it.

4. For product technical support, please join the RetroScaler Discord .

https://discord.gg/A2yKHJ3szX

RetroScaler2x Supported Console (but not limited to):

for Vic20      for Atari2600        for Msx        for NES       for N64      for NGC        for SFC (NTSC-J)      for SNES      for SuperFamicom       for PIAYSATION2 for SEGA for Saturn        for MD2       for MD1        for Dreamcast          for Commodore64 (C64)

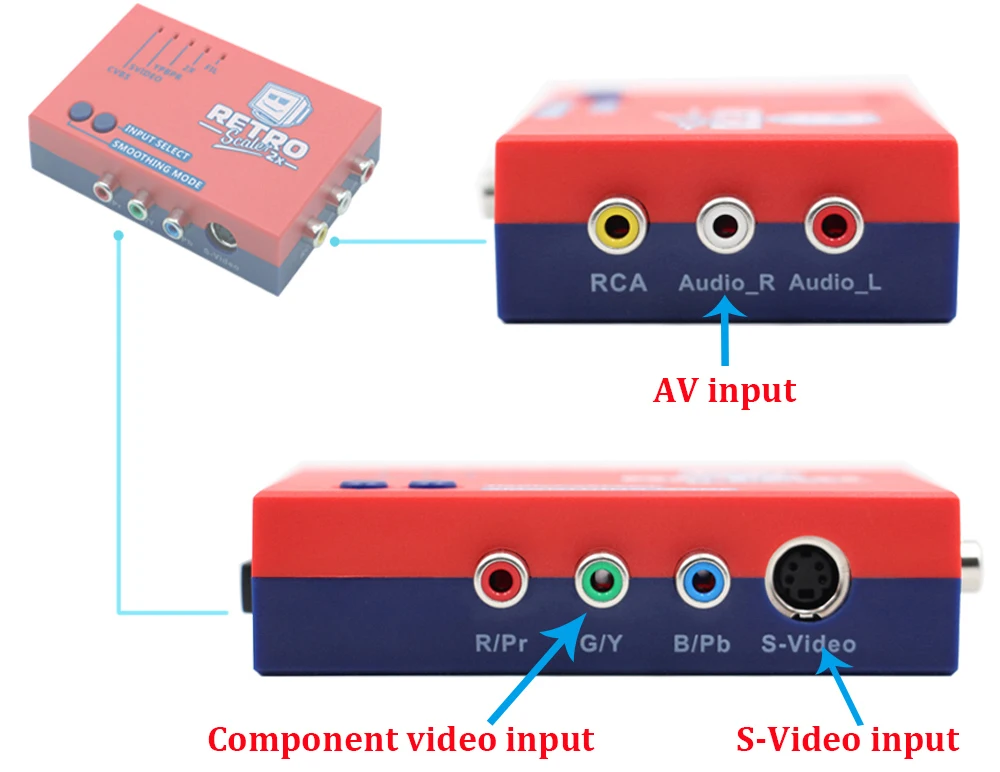

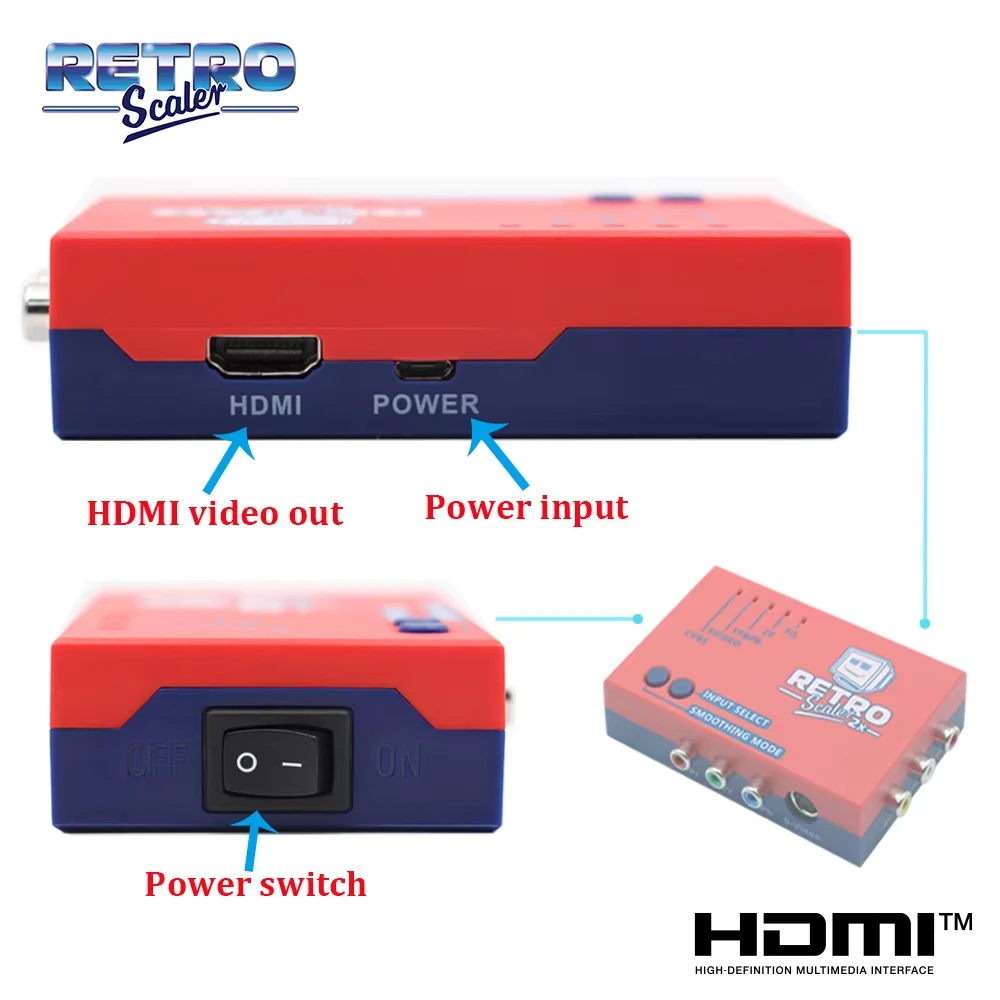

Buttons, connectors and external controls:

Component video input--Connect component video (YPBPR) sources to this input. As a note, the chip used in this device does not support RGB, so an RGB SCART input will never be an option.

S-video input-- Connect an S-video (4 pins connector) source to this input, other sources are not support.

AV input-- Standard composite (RCA) connector. You can connect sources such as the Nintendo Super Famicom, Nintendo GameCube, N64 etc.

HDMI® video out--All the received video and audio signals will be output on the modern LCD monitor/TVs with HDMI interface.

Power input-- Any decent quality Micro USB charger can be used to power the RetroScaler2x, as it’s a very efficient device. Your are even able to power mine via the USB ports of your TV!

Power Switch-- Toggles power off and on.

Input Select (INPUT SELECT)-- The input button selects between the composite, S-Video and Component Video inputs, or combination.

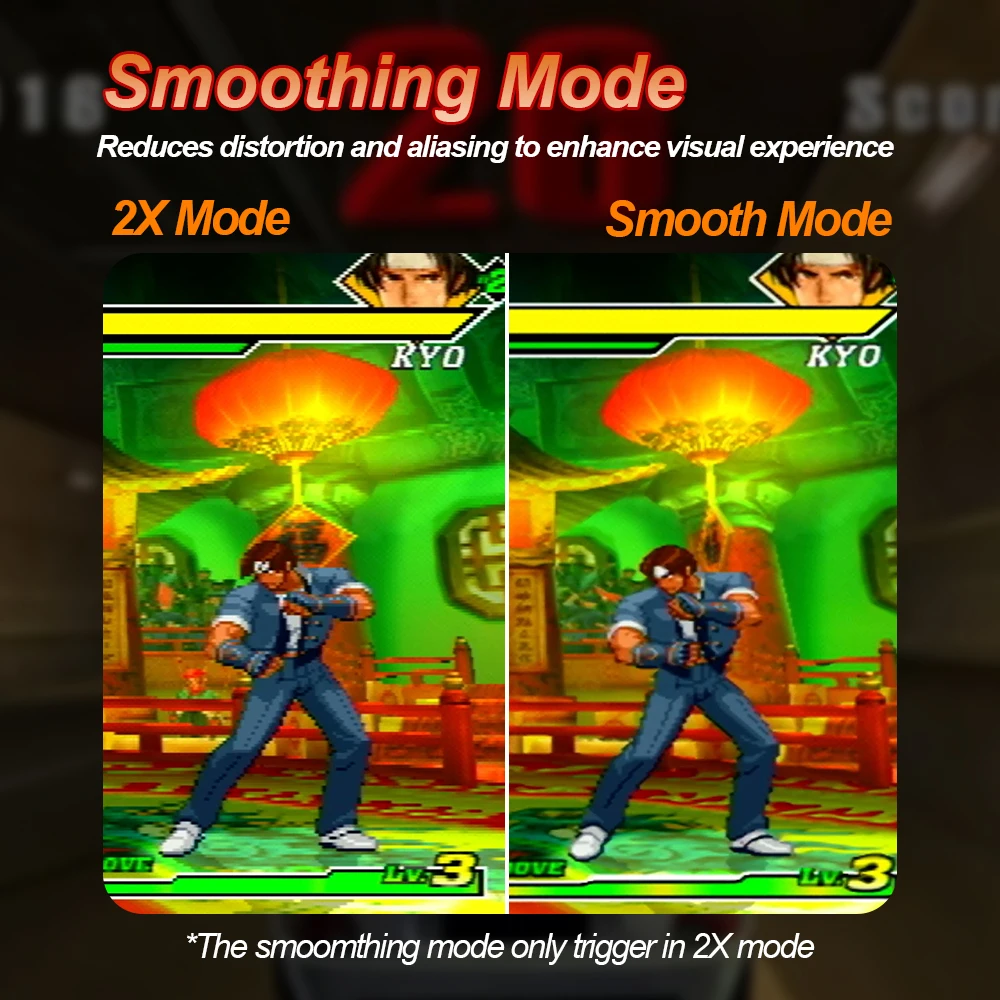

Output Select (SMOOTHING)-- The smoothing mode button allows you to chose which video mode it’s in

FIL (blue led lights on):This mode adds a filtering option to to minimize image aliasing for the 480p/576p output.

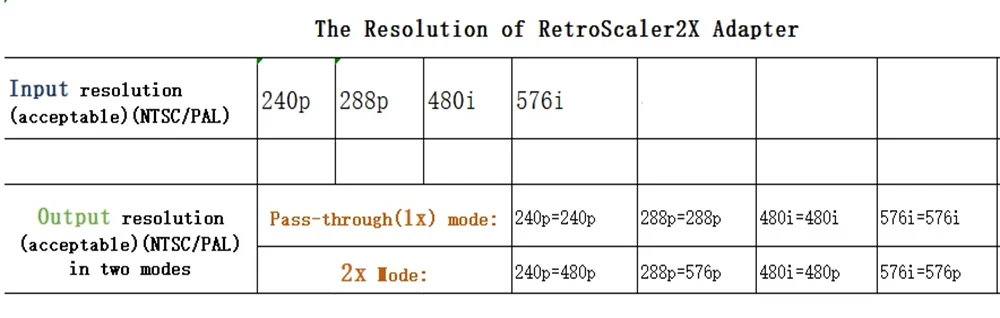

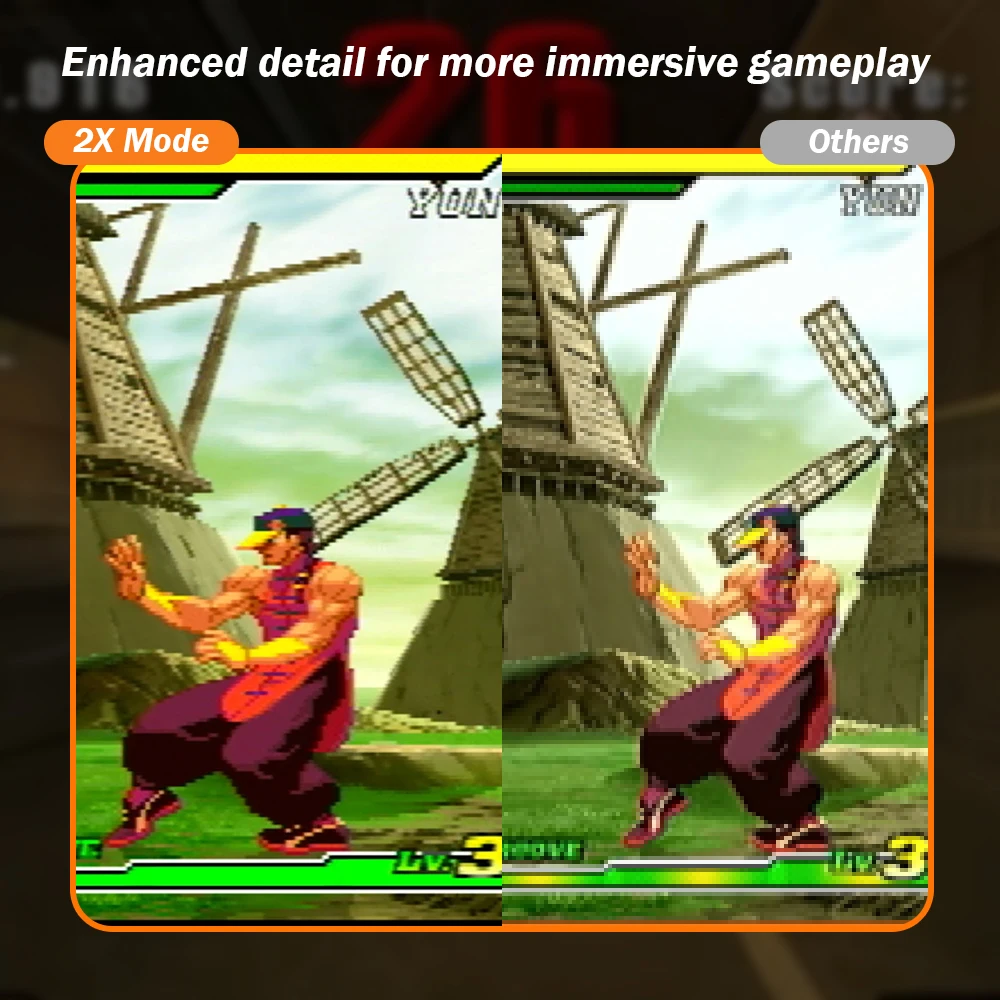

2x Mode (orange led light on ):This is the standard “LINEDOUBLE” mode that outputs 480p/576p. This is the mode that’s the system defaults to when powered on.

Pass-through (both orange and blue LEDs light off):This mode simply output whatever the input signal is, without changing the resolution.

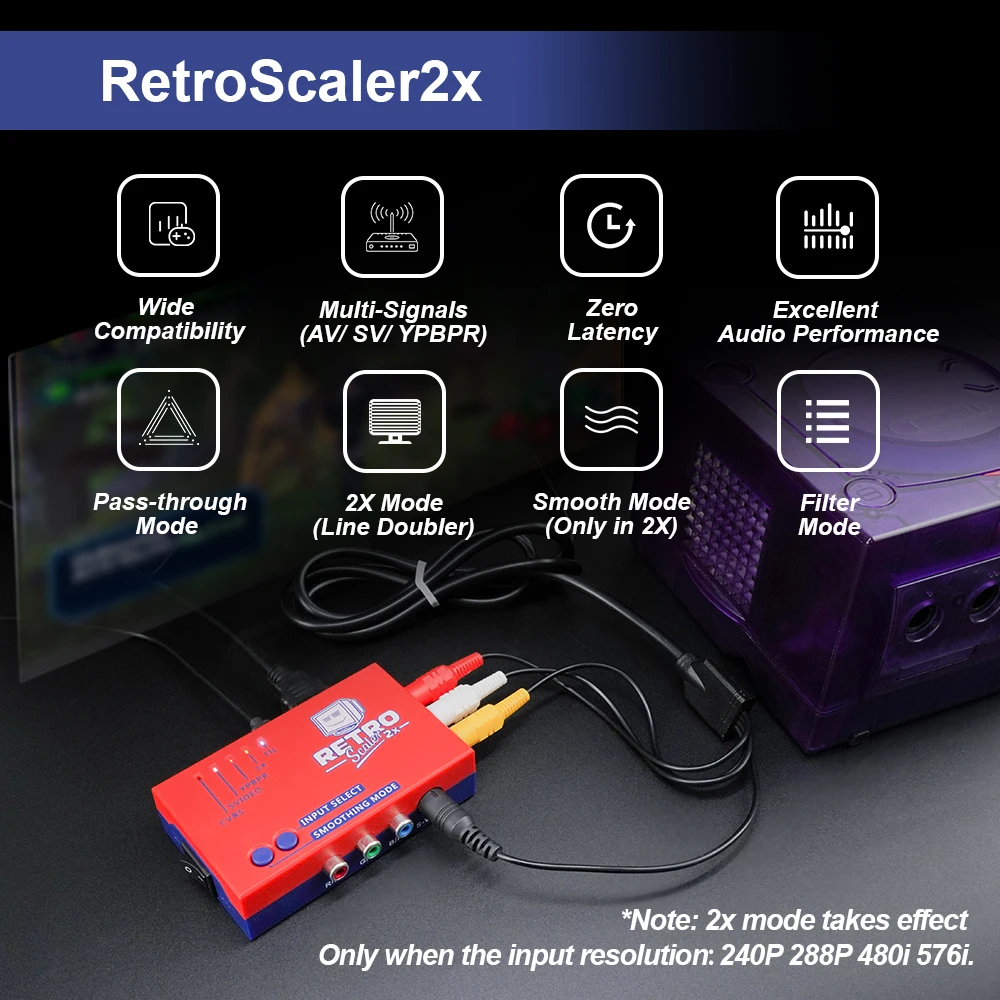

RetroScaler2x Features:

Connecting your RetroScaler2x:

usage video: https://youtu.be/C4ecNqamDa8

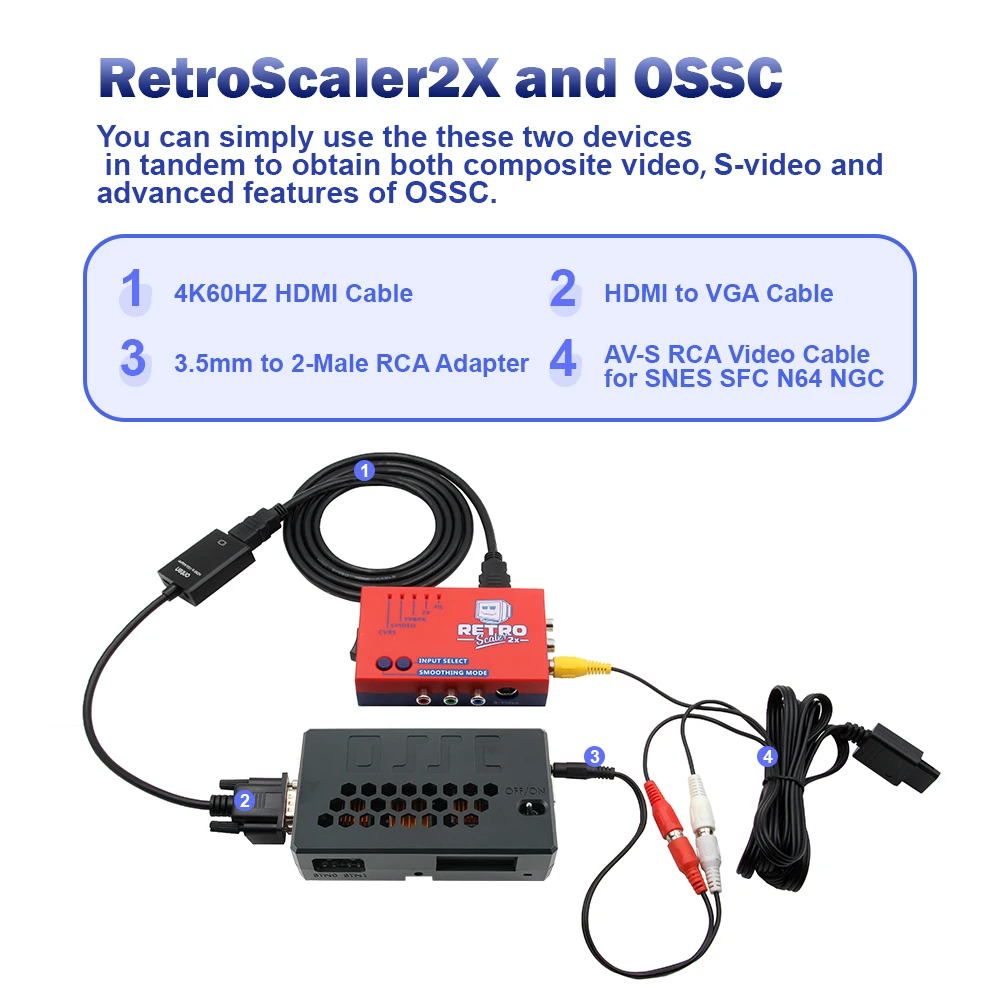

RetroTINK2X and OSSC
