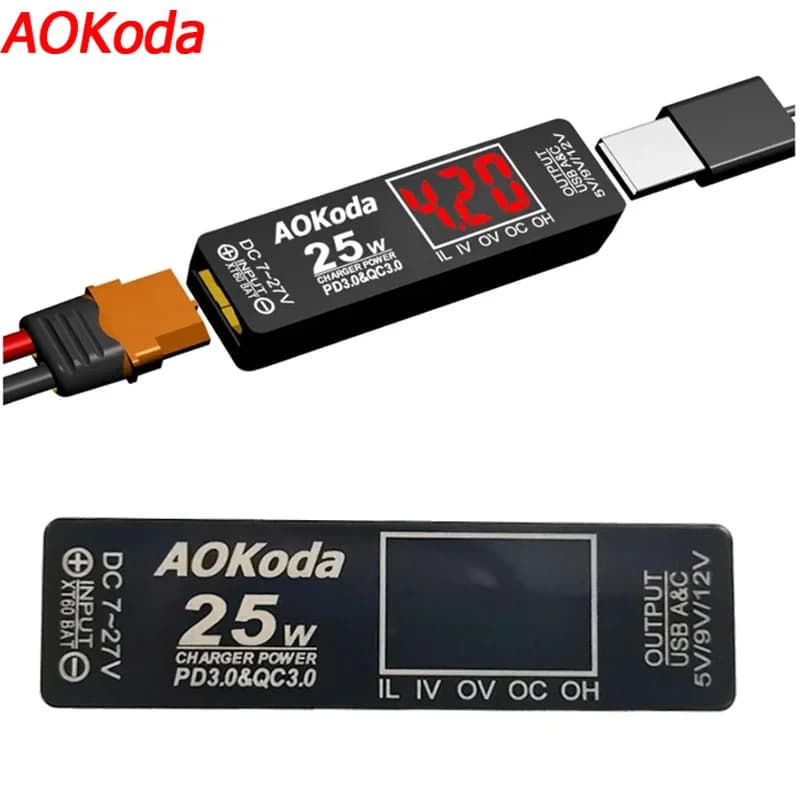

AOKoda XT60 to PD3.0 Lipo Battery Quick Charger Overload Protection Short Circuit Protection For Smartphone Tablet PC DIY Part

1. Input: 7~27V (XT60/2~6 series lithium battery pack).

2. Output:

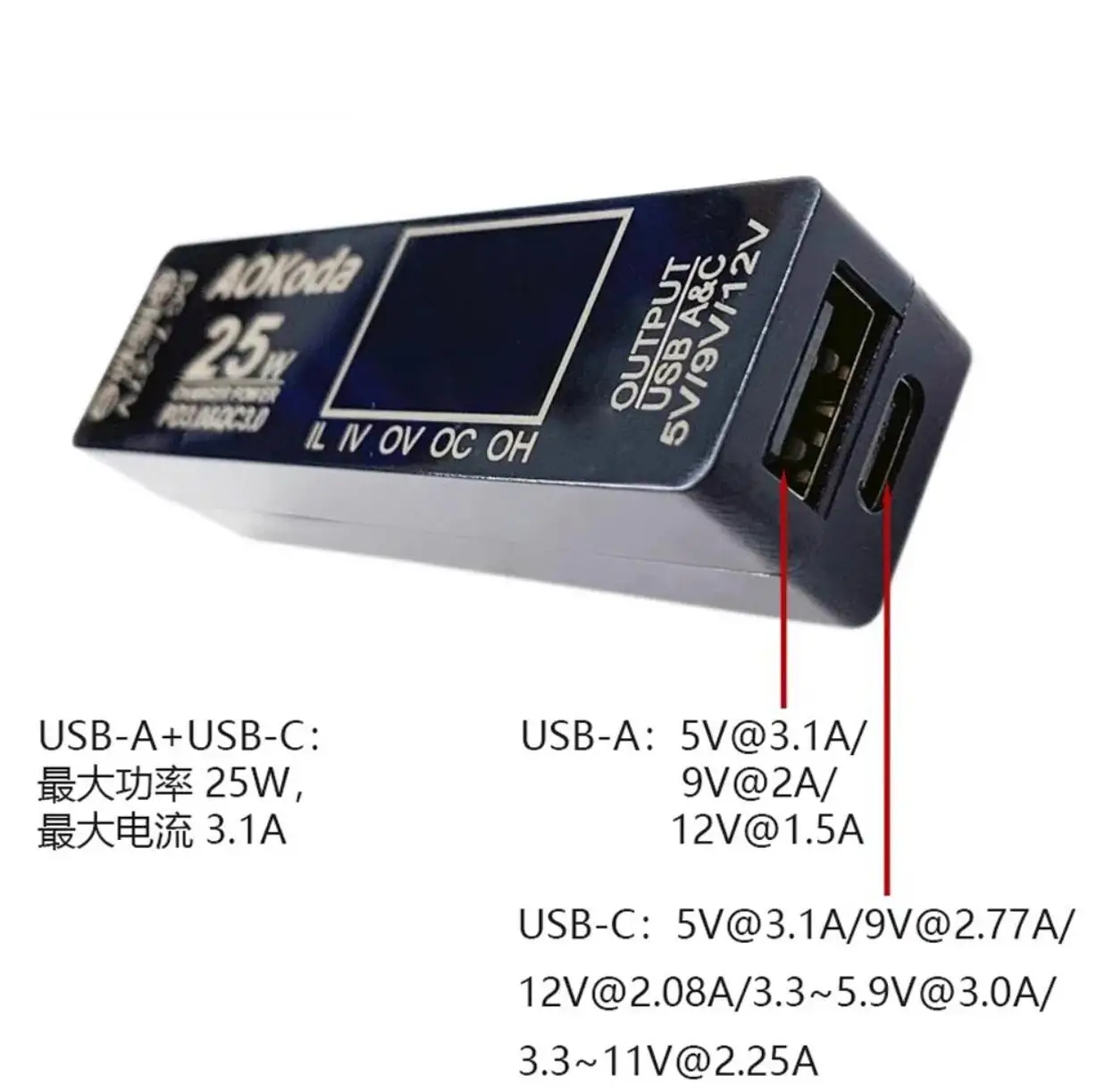

USB-C:[email protected]/[email protected]/[email protected]/[email protected]/

[email protected].

USB-A:[email protected]/9V@2A/[email protected].

USB-A+USB-C: the maximum power is 25W and the maximum current is 3.1A.

3. Compatible with multi-protocol fast charging devices such as PD 3.0/PD 2.0/QC 3.0/QC 2.0/FCP/AFC to adapt to Apple/Android devices.

4. Five LEDs respectively indicate five display states: IL (input low voltage protection value), IV (input voltage),

OV (output voltage), OC (output current), OH (output high voltage fast charging).

5. Intelligently judge the number of battery strings input to the lithium battery pack and intelligently set the over-discharge protection voltage value.

6. Support users to set the lithium battery power supply mode or other battery power supply modes (DC), and the lithium battery mode has low voltage protection.

Protection value automatically identifies the number of battery strings and low-voltage protection value (user can define), and other battery power supply modes can be

To manually set the low-voltage protection value.

7. The display screen shows the number of battery strings, input voltage, output voltage and output current in real time; Fast charging and high pressure transmission

An independent green LED light indicates the status; When the battery is input into low-voltage protection, a red indicator light flashes.

, the display screen flashes to show the triggered low voltage protection value.

8. Accurate current limiting output of USB charging port, overload protection, short circuit protection, over-voltage protection and over-temperature protection.

9. Apple fast charge: PD3.0, supporting the full range of iPhone8~15/SE/Plus/Pro/ProMax; IPad system

Column.

10. Support USB Type-A and Type-C dual-port working modes, with fast charging when working independently and self-charging when working at the same time.

Switch to 5V/3.1A output mode by turning off fast charge.

11. When the USB Type-A port is connected to the Apple charging cable but not connected to the Apple mobile phone, the Type-C port still has fast charging.

(PD3.0+QC3.0 double fast charging protocol).

12. USB Type-A port supports protocols QC2.0/3.0/QC3.0+ class A, AFC, FCP and.

LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.

13. USB Type-C port supports protocols PD3.0, QC2.0/3.0/QC3.0+ class A, AFC, FCP and.

LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.

14. Support the voltage compensation function of USB cable impedance and USB connector impedance, which can detect the charged electricity in real time.

The maximum dynamic compensation voltage is 0.6V.

15. Support USB DCP short circuit D+/D-, USB charging specification version: 1.2.

16. Overall dimensions of the product: 76x21x19mm.

17. Product weight: 26g.

work mode.

current flashing low voltage protection value, and quit Setup Mode to return to

the screen flashes 3 times low voltage protection value, automatically save the

again,adjustable low voltage protection value,after completion of adjustment,

current low voltage protection value, press the settings button at the bottom

Press the settings button at the bottom,the digital tube flashes to indicate the

2. Low voltage protection settings

function prevents the automobile battery from discharging).

manually.( When the car cigarette lighter is powered,the low voltage protection

Pb,NiCd,NiMH),this mode allows low voltage protection to be set

adapter or other type of battery(Non lithium battery types, such as

voltage protection mode manually, the XT60 interface is connected to an

DC:dc power supply or other types of battery power supply need to set low

mode.

the low voltage protection value can also be manually adjusted under this

low voltage protection value, prevent battery over discharge of XT60 interface,

the charger will intelligently identify the number of batteries, intelligent setting

BAT:battery mode,the XT60 interface connects the battery, In this power mode,

confirm saving the power mode.

between two modes of BAT and DC,press the settings button at the bottom to

display BAT or DC,press the settings button at the bottom, you can switch

Long press the settings button at the bottom, the digital tube will flash to

1. Power input mode setting

Setting
