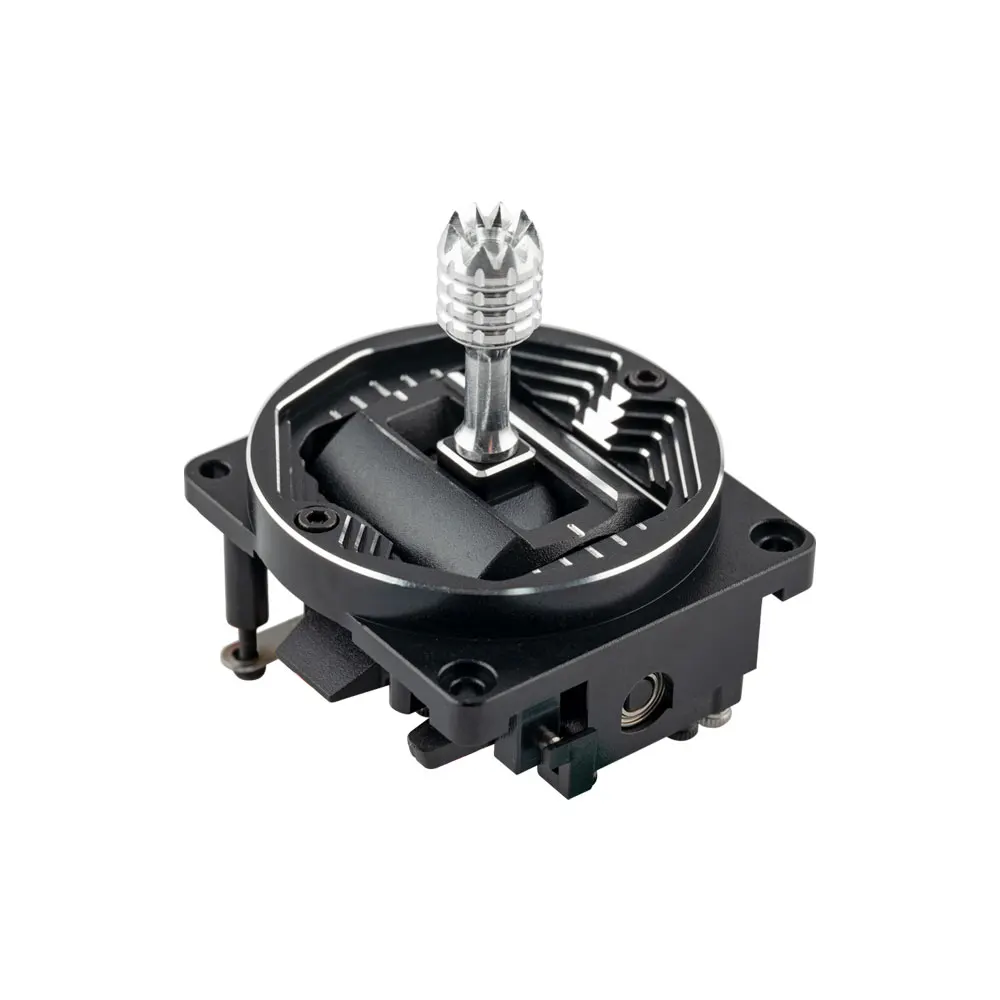

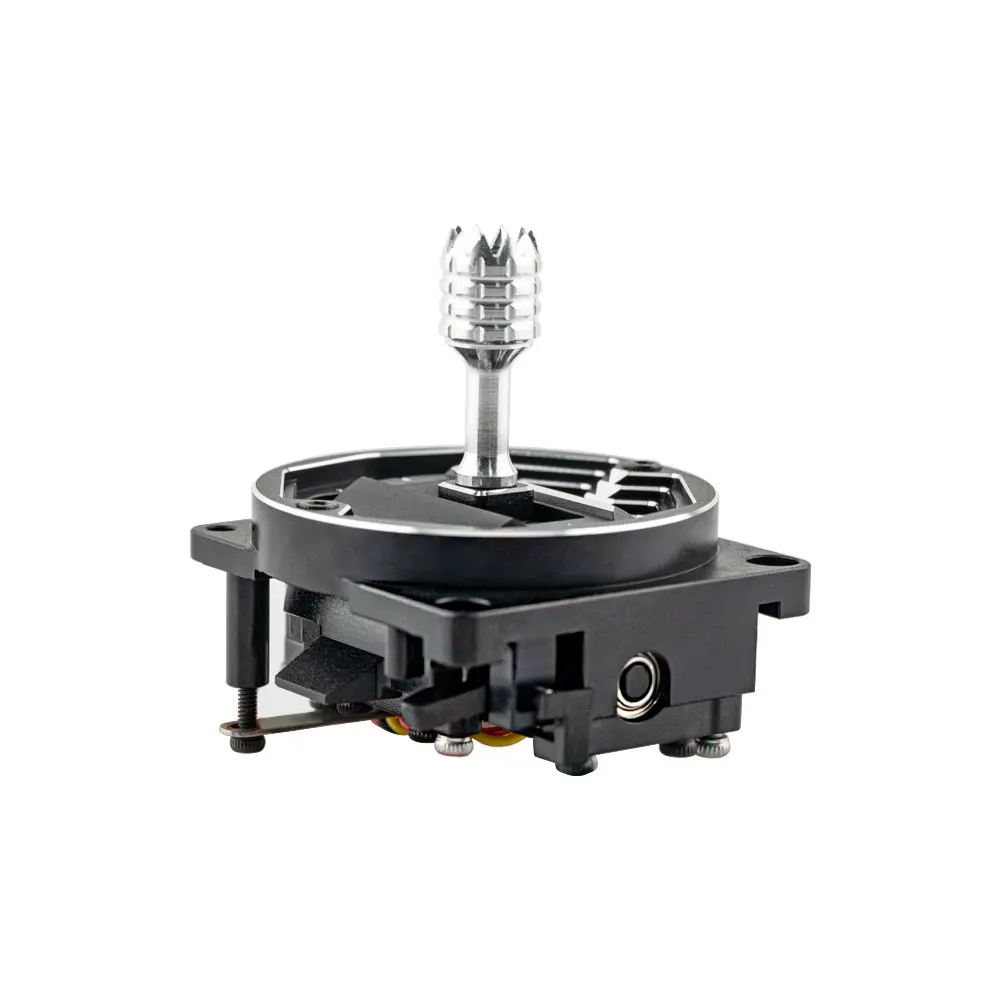

Radiomaster AG01 NANO CNC Hall Gimbals Set For Pocket

Unleash Unrivalled Precision and Control: Introducing the AG01-Nano Hall Effect Gimbals!

Your RadioMaster Pocket just got a game-changing upgrade option! RadioMaster, renowned for elevating your RC experience, has shattered expectations once again. By popular demand, the AG01 series of gimbals now has a Nano Option for the popular Pocket controller.

Precision Engineering Meets Unparalleled Control!

Crafted from billet CNC aviation-grade aluminum and equipped with quad precision ball bearings, the AG01 Nano gimbals deliver unparalleled performance and customization. Experience effortless manoeuvrability with customizable movement angles ranging from 38° to 54°. Sense the Pinpoint Accuracy with High-speed, high-precision, no-contact Hall effect sensors ensure razor-sharp accuracy and effortless centering. Feel the butter-smooth action from the quad precision ball bearings delivering silky-smooth operation for a truly intuitive flying experience.

Features

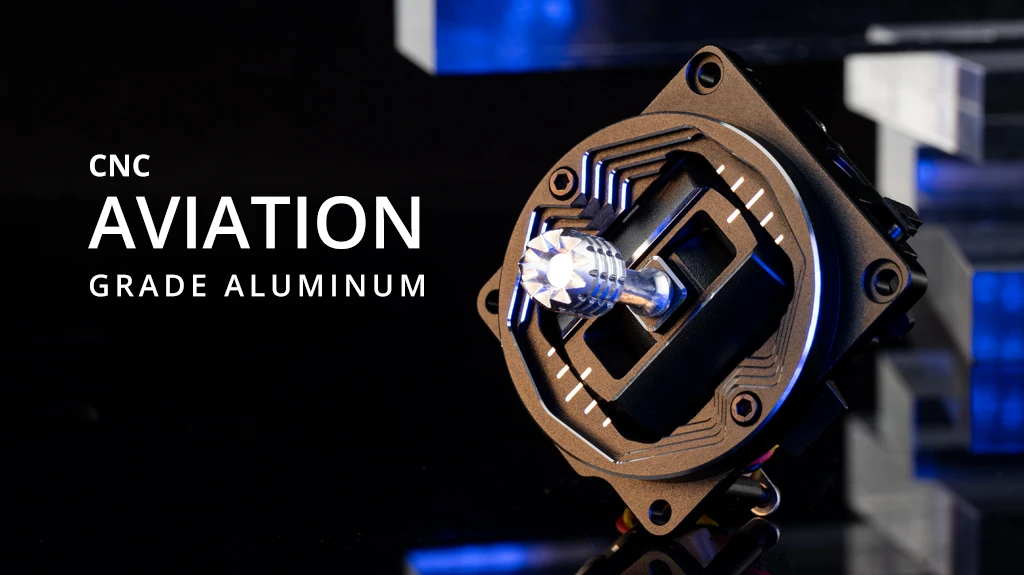

Made with billet CNC aviation grade aluminum for superior durability and outstanding looks

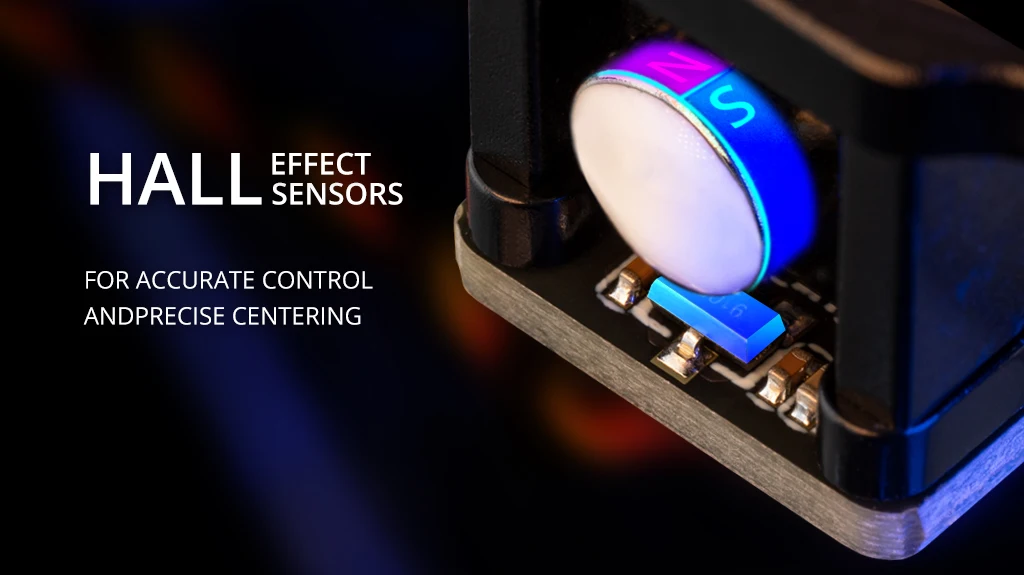

Non contact hall sensors with precise centering for accurate control

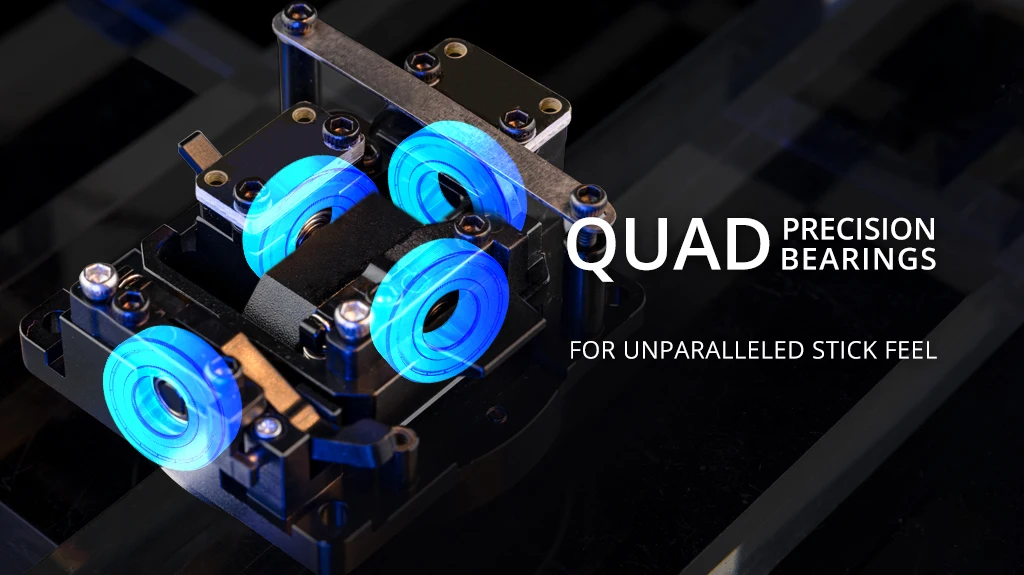

Quad precision bearings for unparalleled feel

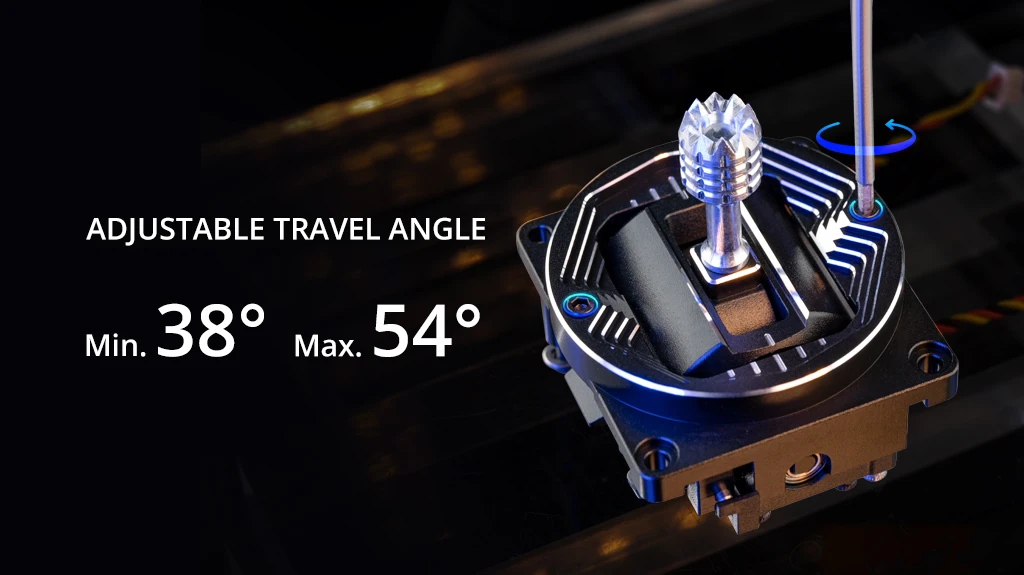

Adjustable vertical travel angle (Min. 38°, Max. 54°)

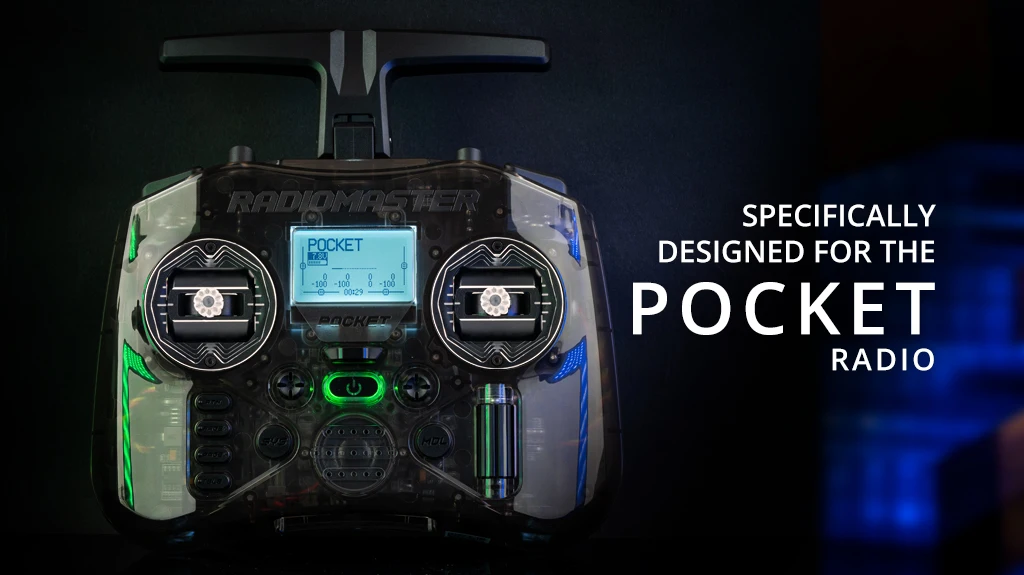

AG01 NANO Gimbal is specifically designed for the smaller POCKET radio

Specifications

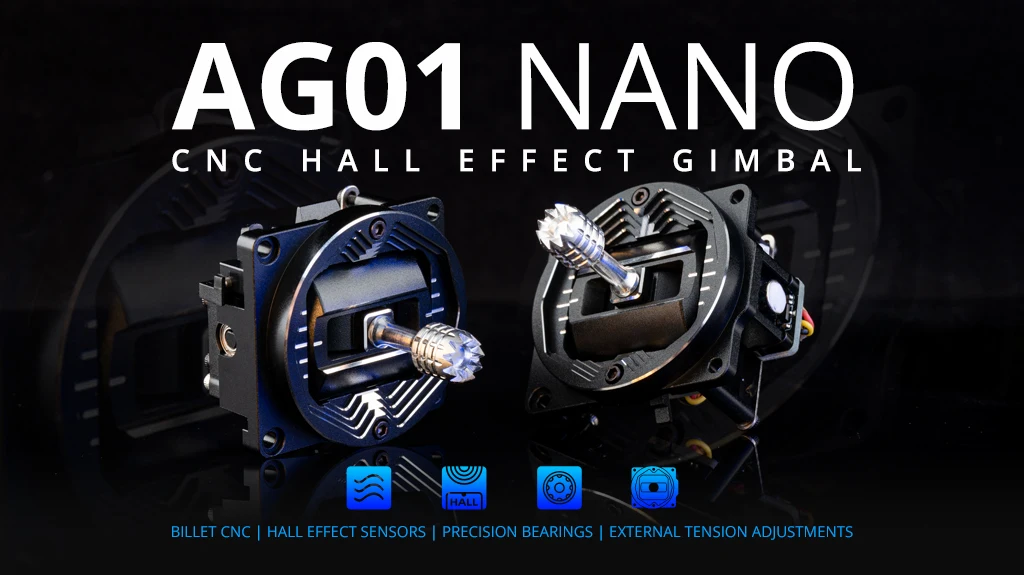

Item: AG01 NANO CNC Hall Effect Gimbal

Sensor type: Non-contact hall effect

Working voltage: DC 3.3V

Linearity: Real-time (No latency)

Adjustable vertical travel range: 38°- 54°

Self-centering adjustment : Yes

Mode adjustment: Yes

Adjustable tension : Yes

Bearing: Quad precision bearings

Temperature range: -20°C-85°C

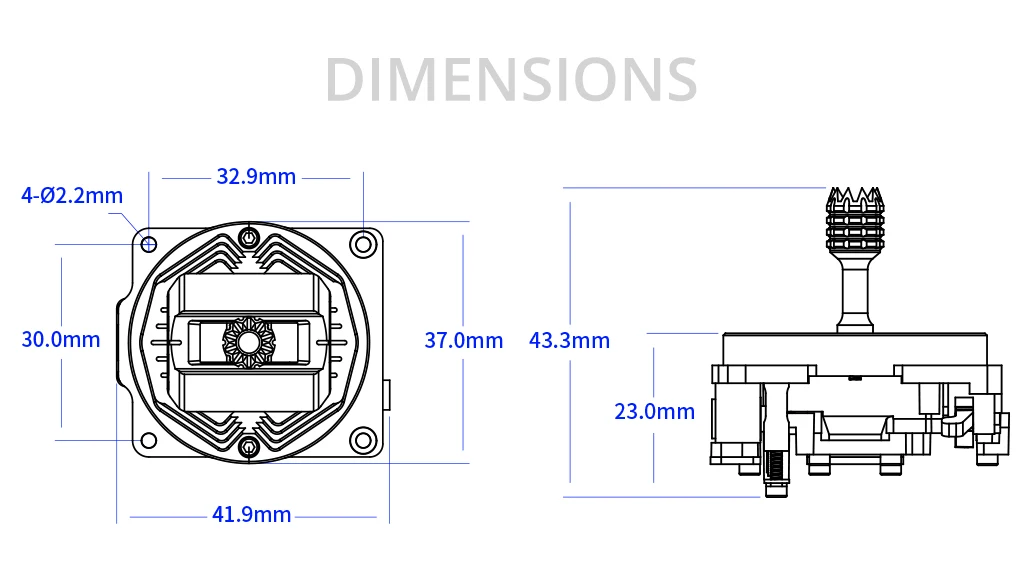

Size: 42*37*43mm

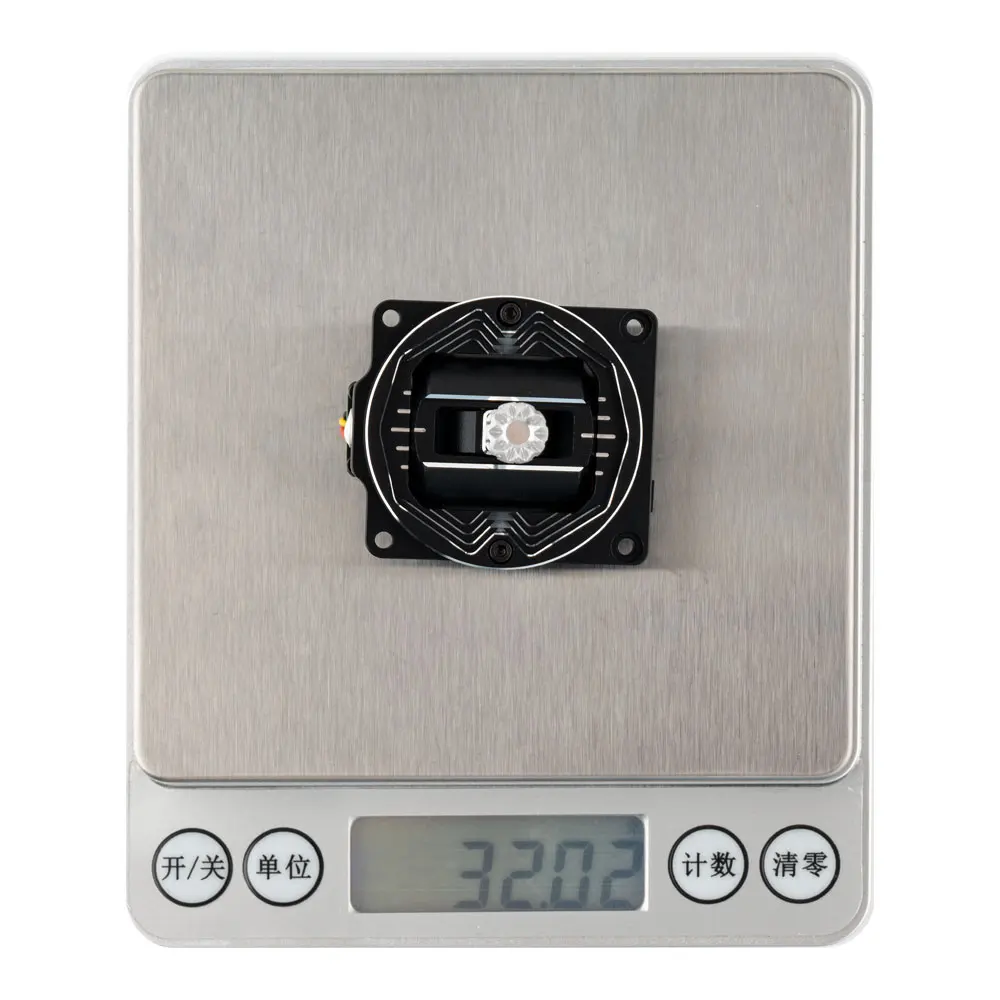

Weight: 32g(±0.3g)

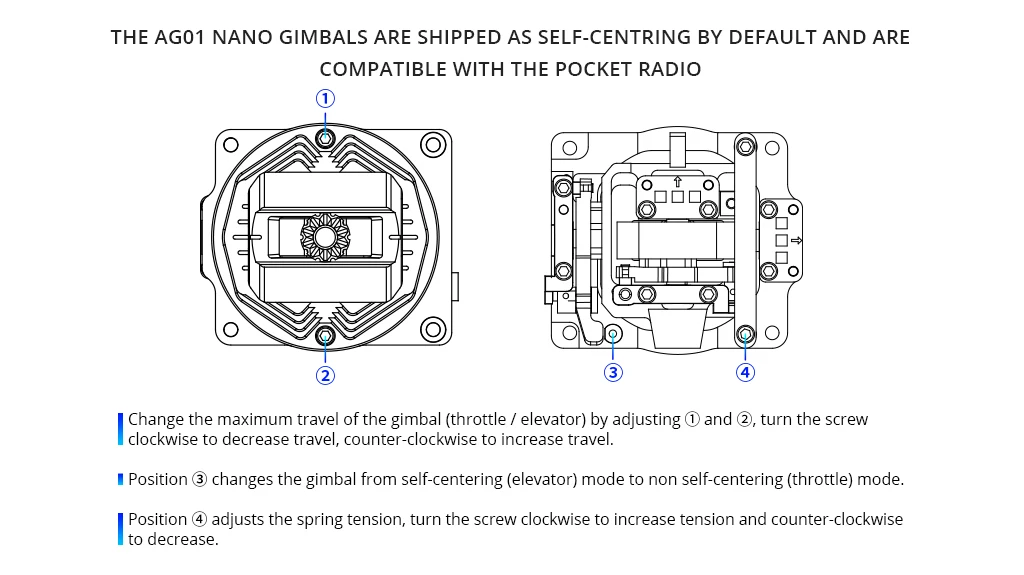

EXTERIOR ADJUSTABLE

Change the maximum travel of the gimbal (throttle / elevator) by adjusting ① and ②.

Turn the screw clockwise to decrease travel, counter-clockwise to increase travel.

Position ③ changes the gimbal from self centering (elevator) mode to non self-centering

(throttle) mode.

Position ④ adjusts the spring tension, turn the screw clockwise to increase tension and

counterclockwise to decrease.

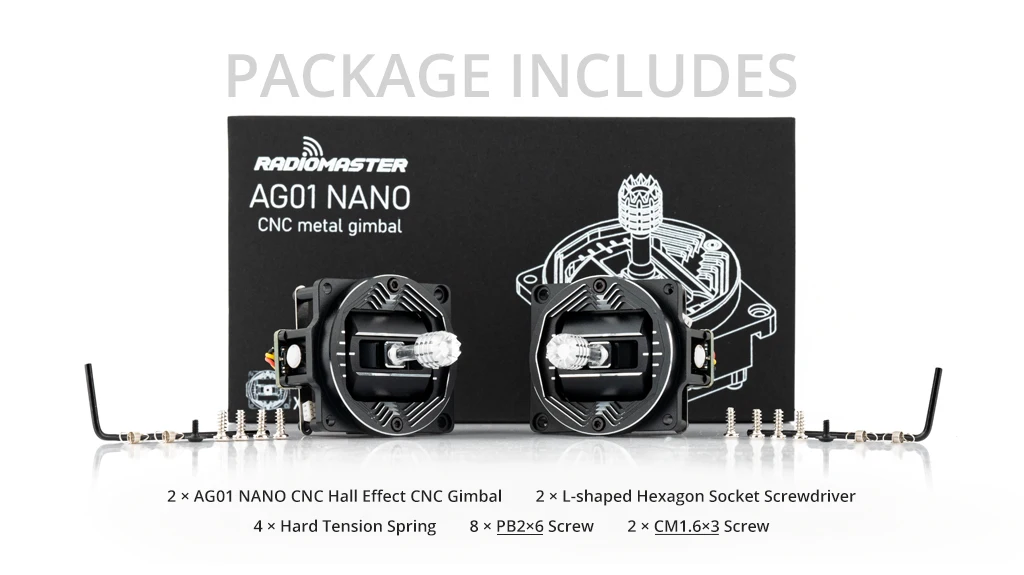

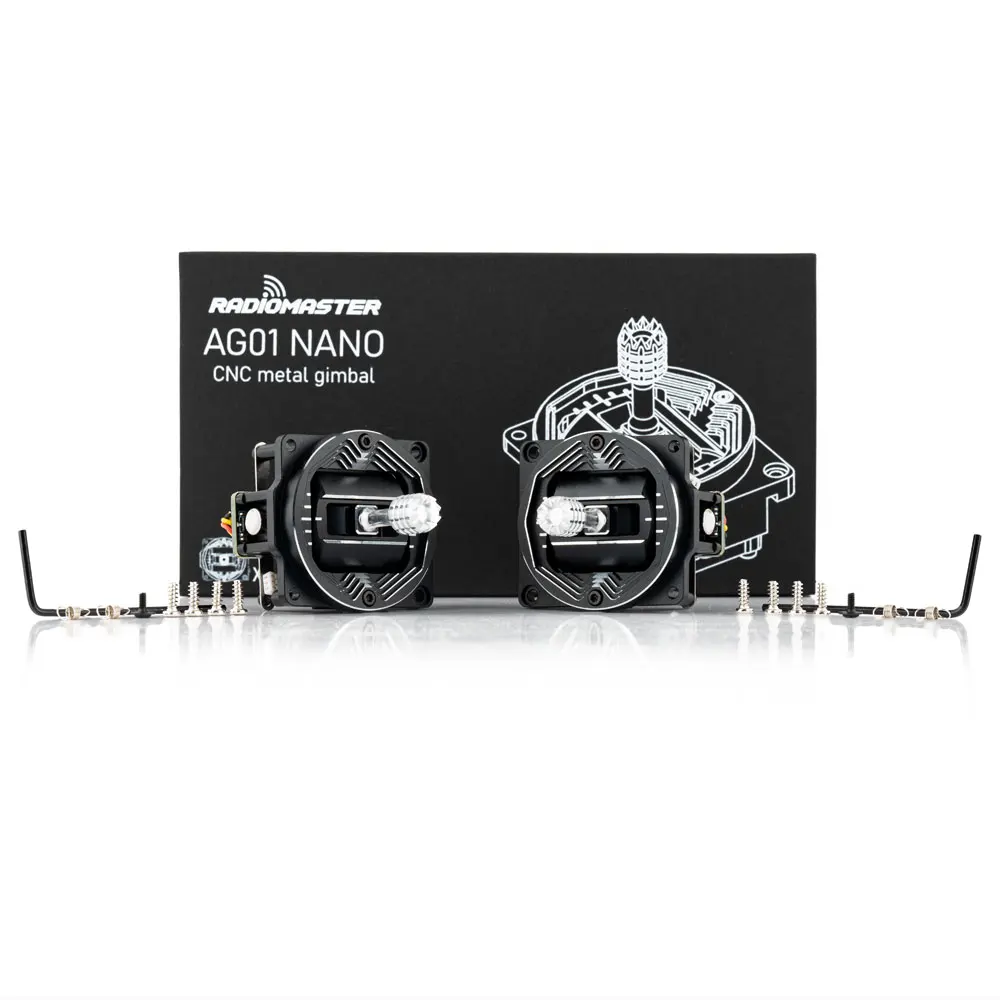

Package Includes

2 * AG01 NANO CNC Hall CNC Gimbal

2 * L-shaped Hexagon Socket Screwdriver

4 * Hard Tension Spring

8 * PB2*6 Screw

2 * CM1.6*3 screw

2 * Manual
