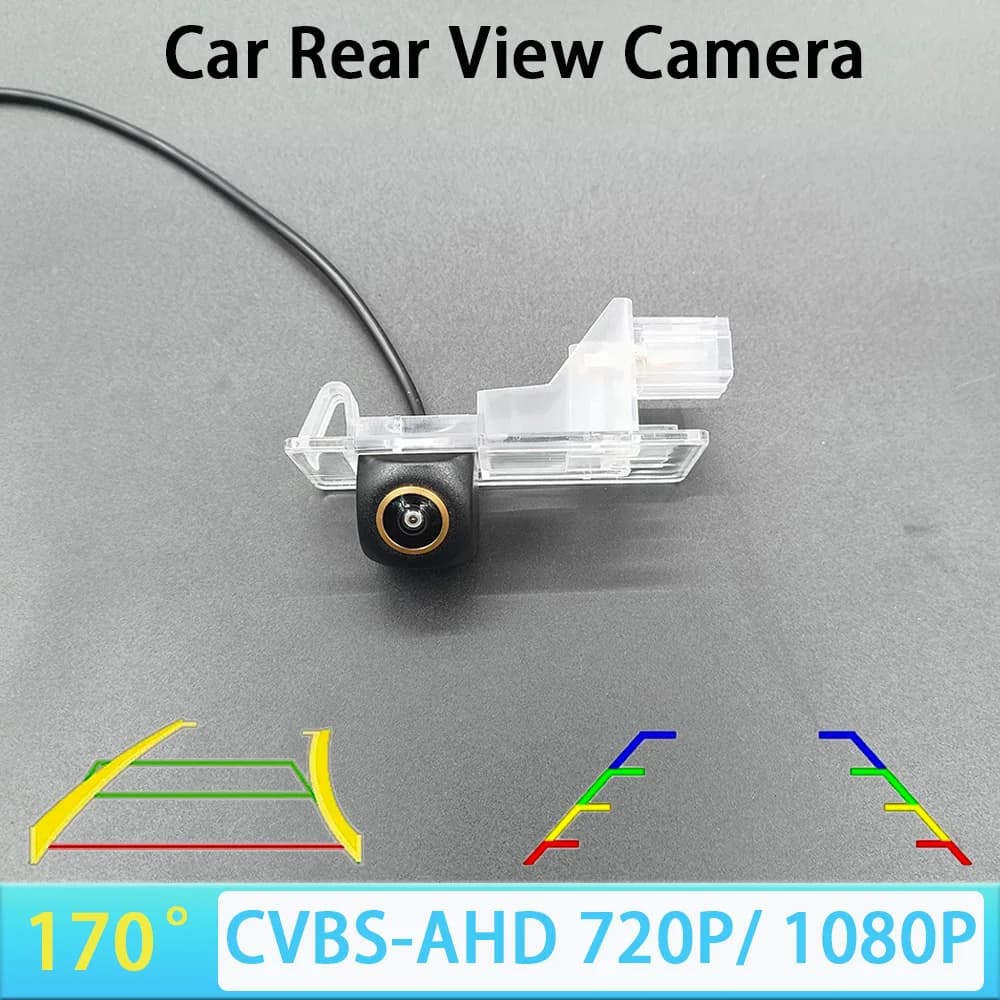

170 Degree AHD 1080P Car Rear View Reverse Backup Camera For Renault Fluence 2013 2014 2015 Clio 4 Megane 3 Captur Track/Ruler

HD AHD 1080P 170 Degree Fisheye Lens Vehicle Rear View Camera

   For Renault scenic 2 II Renault Grand scenic 2003~2009

   For Renault Scenic 3 III 2009~2016

   For Renault Megane 3 III 2008~2016

   For Renault Laguna 2/3 2001 ~ 2015 For Renault Espace 4

   For Renault Twingo II III 2007~2017

   For Renault Latitude for Samsung SM5 2010~2018

   For Renault Modus 2004~2012

   For Renault Grand Modus 2004~2012

   For Renault captur 2013 ~ 2019

   For Renault Kaptur (Russia) 2016~2019

   For Renault Samsung QM3 (South Korea) 2013~2019

   For Renault Symbol 2 II 2008~2013

   For Renault Thalia 2008~2013

   For Dacia Lodgy / For Renault Lodgy 2012~2019

   For Renault Clio 3 III 2005~2017

   For Renault Clio 4 IV 2012~Present

   For Renault Euro Clio 2005~2014

   For Renault Lutecia 2005~2016

   For Renault Vel Satis 2002~2009 5D

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.

* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.

* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chip: OV2053HD

* Viewing Angle: 155~175 Degrees Visible Range .

* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)

* Signal Format: NTSC or PAL

* Image Resolution: 92W/200W pixels

* Video Output: AHD Video Signal or CVBS Video Signal

* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.

* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

* Lens: 14/16MM Fisheye 6 glass Lens .

* Waterproof: IP68 /IP69

* Working Power Supply: DC 12V~24V, 2A

* Working Temperature: -30 °C ~ +70°C

* Maximum Power: 3W

Tips:

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
