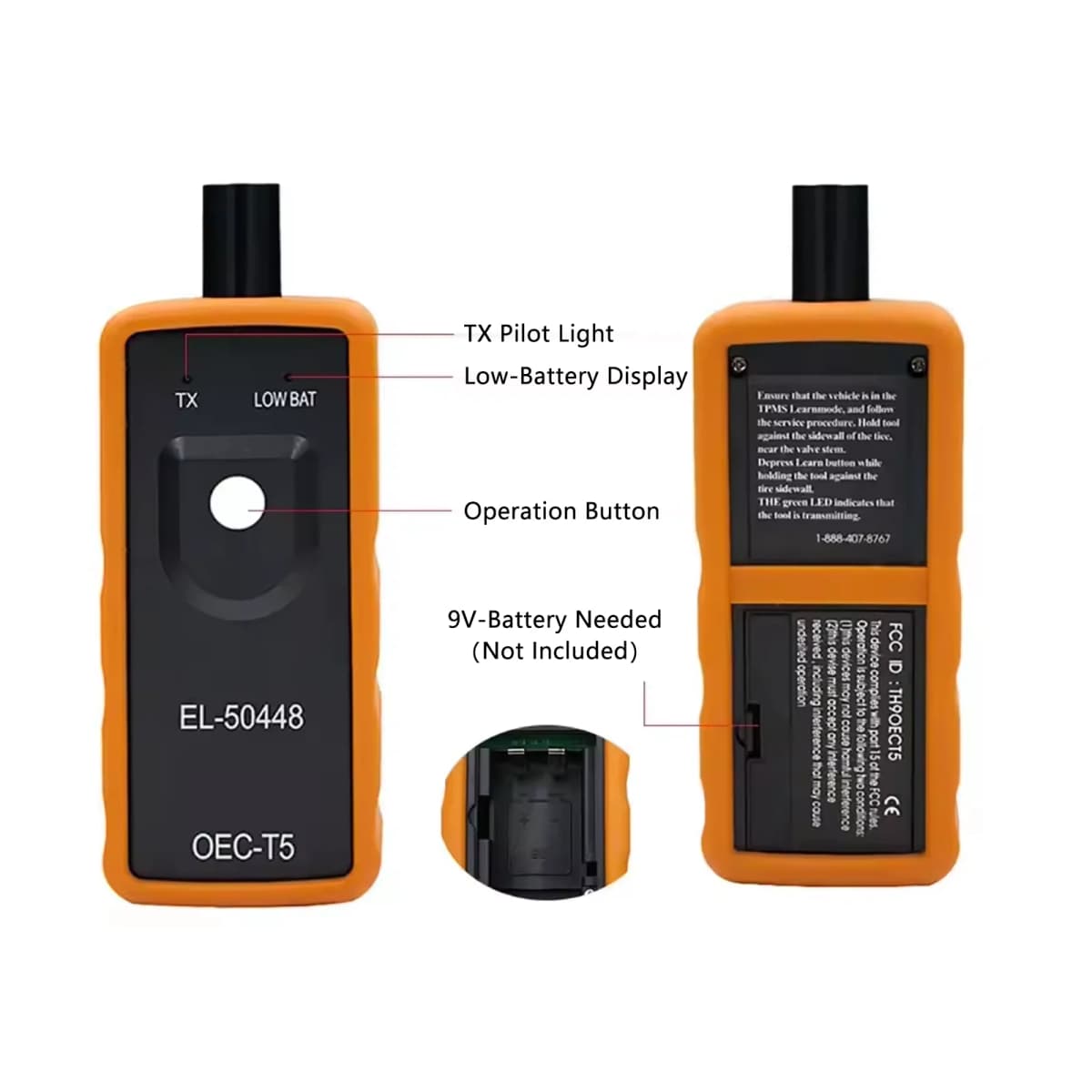

Automotive Tire Pressure Detection Sensor EL-50448 OEC-T5 Opel/GM Tire Pressure Monitoring System TPMS Reset Activation Tool

Description:

For GM vehicles equipped with a 315 or 433 MHz tire pressure monitoring system (TPMS), a “Sensor Re-Learn Procedure” must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be carried out using the special tire pressure tool. EL-50448 works on 2014 GM models as well.

Introduction:

1. The tire pressure sensor on 2012 models can be read, only with some specified diagnostic tools.

2. Before the tire pressure monitoring system operates normally, the body control module will record identification information for each position on the tire pressure sensor.

3. Please refer to the specific methods as follows:

Step 1-Enter tilt mode

Set the gearshift to “P”

Set the ignition switch to “ON”

Enter the tire pressure display interface via DIC

DIC shows “Press Set / Ctrl to relearn”

Press “Set / Ctrl”

The urn signal is lit for 3 seconds and the buzzer twice to enter learning mode

Step 2-Read the pressure sensor information

-Start from the left front wheel,

-Make the antenna J-46079 or Diagnostic Tool EL-50448 against the position of the valve core and near the edge of the tire sidewall

-EL-50448 tire pressure tool starts from the start switch

-Success to read tire pressure sensor information when horn bleeps once

Step 3-Same method to read other tire pressure information

Follow the instuction above to read the tire pusher of the front-right, rear-right, rear-left wheels.

The turn signals are lit for 3 seconds and the horn beeps twice when learning is complete.

Please note:

1. For certain vehicles equipped with a Tire Pressure Monitoring (TPM) system, a “Sensor Re-Learn Procedure” must be performed after tire rotation, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be carried out using special tool 50448.

2. The package does not include the charger and battery.

Car list:

2001 Para DeVille(VIN K) Manual Service

2001 For Seville (VIN K) Manual Service

2002 For Corvette (VIN Y) Manual Service

2002 To DeVille(VIN K) Manual Service

2002 For Seville, Seville RHD(VIN K) Service Manual

2003 For Corvette (VIN Y) Service Manual

2003 For DeVille (VIN K) Service Manual

2003 For Seville (VIN K) Service Manual

2004 For Avalanche/Escalade/Suburban/Tahoe/Yukon(VIN C/K) Service Manual

2004 For SRX (VIN E) Service Manual

2004 For XLR (VIN Y) Service Manual

2005 For Avalanche/Escalade/Suburban/Tahoe/Yukon(VIN C/K) Service Manual

2005 For Corvette (VIN Y) Service Manual

2005 For CTS (VIN D) Service Manual

2005 For DeVille (VIN K) Service Manual

2006 For 9-7x (VIN S/T) Service Manual

2006 For Avalanche/Escalade/Suburban/Tahoe/Yukon(VIN C/K) Service Manual

2006 For Corvette (VIN Y) Service Manual

2006 For CTS (VIN D) Service Manual

2006 For Impala/Monte Carlo (VIN W) Service Manual

2007 For 9-7x (VIN S/T) Service Manual

2007 For Envoy/Rainier/TrailBlazer/Ascender (VIN S/T) Service Manual

2007 Equinox/Torrent Service Manual (VIN L)

2007 For Grand Prix (VIN W) Service Manual

2007 For H3 (VIN N) Service Manual

2010 9-5

2010 Acadia, Enclave, PERSPEITA, Traverse (VIN R/V)

2010 Allure, LaCrosse (VIN G)

2010 Antara, Captiva, Terrain, Winstorm

2010 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2010 Aveo, G3, Barina (VIN S/T)

2010 Buick Excelle

Buick Regal 2010 (China)

2010 Camaro (VIN F)

2010 Canyon, Colorado (VIN S/T)

2010 Cobalt, G5 (VIN A)

2010 Corvette (VIN Y)

Cruze 2010 (China)

Cruze 2010

2010 CTS (VIN D)

Daewoo Lacetti 2010

ETC 2010 (VIN K)

2010 Equinox, Terrain (VIN L)

2010 Express, Savannah (VIN G/H)

2010 G6 (VIN Z)

2010 H3/H3T (VIN N N)

2010 HHR (VIN A)

2010 Impala (VIN W)

Insignia 2010

2010 LaCrosse (China)

2010 Lucerne (VIN H)

2010 Malibu (VIN Z)

Opel/Vauxhall Astra 2010

2010 Sierra, Silverado (VIN C/K)

2010 SKY, Solstice (VIN M)

SRX 2010 (VIN N N)

STS 2010 (VIN D)

2010 VE/WM - Sedan, Sportwagon, Ute, Lumina, Capricho, HSV

2010 VUE (VIN Z), Captiva Sport

2011 Acadia, Enclave, Traverse (VIN R/V)

Alpheon 2011

Antara 2011, Captiva

Astra 2011

2011 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2011 Aveo, Barina (VIN S/T)

2011 Buick Excelle

2011 Buick Regal (China)

2011 Camaro (VIN F)

Canyon, Colorado (VIN S/T)

2011 Capricho PPV

2011 Captiva Sport

Corvette 2011 (VIN Y)

2011 Cruze

CTS 2011 (VIN D)

ETED 2011 (VIN K)

2011 Equinox, Terrain (VIN L)

2011 Expresso, Savannah (VIN G/H)

2011 HHR (VIN A)

Impala 2011 (VIN W)

Insignia 2011

LaCrosse 2011 (China)

2011 Lucerne (VIN H)

2011 Malibu (VIN Z)

Orlando 2011

2011 Regal (VIN G)

2011 Sierra, Silverado (VIN C/K)

SRX 2011 (VIN N N)

2011 STS (VIN D)

2011 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8

Volt 2011

2012 Acadia, Enclave, Traverse (VIN R/V)

Alpheon 2012 (2706)

Ampera, Volt 2012 (VIN R) (Europe)

2012 Antara, Captiva

2012 Astra-J (2857)

2012 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2012 Aveo Classic, Barina Classic (VIN T)

2012 Aveo, Sonic (2777)

2012 Barina (2774)

Excelle Buick 2012 (2861)

2012 Camaro (VIN F)

2012 Canyon, Colorado (VIN S/T)

2012 Capricho PPV

2012 Captiva Sport

Chevrolet Cobalt 2012 (2809)

2012 Colorado (Other IO), S10 (South America)

2012 Corvette (VIN Y)

2012 Cruze (2863)

2012 CTS (VIN D)

2012 Equinox, Terrain (VIN L)

2012 Expresso, Savana (VIN G/H)

Impala 2012 (VIN W)

Insignia 2012 (2707)

LaCrosse 2012 (China) (2710)

2012 LaCrosse (VIN G) (2709)

2012 Malibu (VIN Z)

Opel Combo-D 2012

2012 Optra, Viva (VIN J)

2012 Orlando (2859)

2012 Regal (China) (2711)

2012 Regal (VIN G) (2708)

2012 Sierra-Silverado (VIN C/K)

2012 Sonic (USA/Canada) (2775)

2012 SRX (VIN N N)

2012 VE/WM - Sedan, Ute, Sportwagon, Capricho, Lumina, VXR8

2012 Verano (USA/Canada) (2816)

2012 Volt (VIN R)

2012 Zafira-C (2860)

2013 Acadia, Enclave, Traverse (VIN R/V) (3206)

2013 Alpheon (3094)

2013 Ampera, Volt (VIN R) (Europe) (3211)

2013 Antara, Captiva (5376555)

2013 Astra-J Convertible/Coupe (5376567)

2013 Astra-J (5376577)

2013 ATS (VIN A) (3086)

2013 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K) (3088)

2013 Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico) (5376711)

2013 Aveo, Sonic (Europe) (5376704)

2013 Barina (5376837)

2013 Camaro (VIN F) (3106)

2013 Capricho PPV (3105)

2013 Captiva Sport (3101)

2013 Cobalt (3107)

2013 Colorado, Colorado 7, S10, Pista (5392270)

2013 Combo-D

2013 Corvette (VIN Y) (3104)

2013 Cruze (Global) (5377099)

2013 CTS (VIN D) (3085)

2013 Encore (China) (5377162)

2013 Encore, Trax (North America) (5377181)

2013 Equinox, Terrain (VIN L) (3100)

Excelle 2013 (5377155)

2013 Expresso, Savana (VIN G/H) (3103)

Impala 2013 (VIN W) (3102)

Insignia 2013 (3098)

2013 LaCrosse (China) (3095)

2013 LaCrosse (VIN G) (North America) (3090)

2013 Malibu (China) (3096)

2013 Malibu (Europe, Other IO and South America) (2713)

2013 Malibu (North America) (3093)

2013 Mokka, Trax, Tracker (Europe) (5377179)

2013 Onix (3166)

2013 Orlando (Global) (5377530)

2014 Regal (China) (3099)

2013 Regal (VIN G) (North America) (3089)

2013 Sierra, Silverado (VIN C/K) (3087)

2013 Sonic (USA/Canada) (5377994)

2013 Spark (USA/Canada), Barina Spark (automatic transmission) (5421555)

Rotation 2013

2013 SRX (VIN N N) (3201)

2013 Trax, Tracker (Africa, Australia, Middle East, South America) (5377156)

2013 VE/WM Ute, Capricho, Lumina

2013 Verano (USA/Canada) (5377996)

2013 Volt (VIN R) (North America, Holden) (3210)

2013 XTS (China) (3092)

2013 XTS (North America) (3091)

2013 Zafira Tourer

And so on .......

Parking list:

1 x EL50448

Warning: The package does not include the charger and battery.
