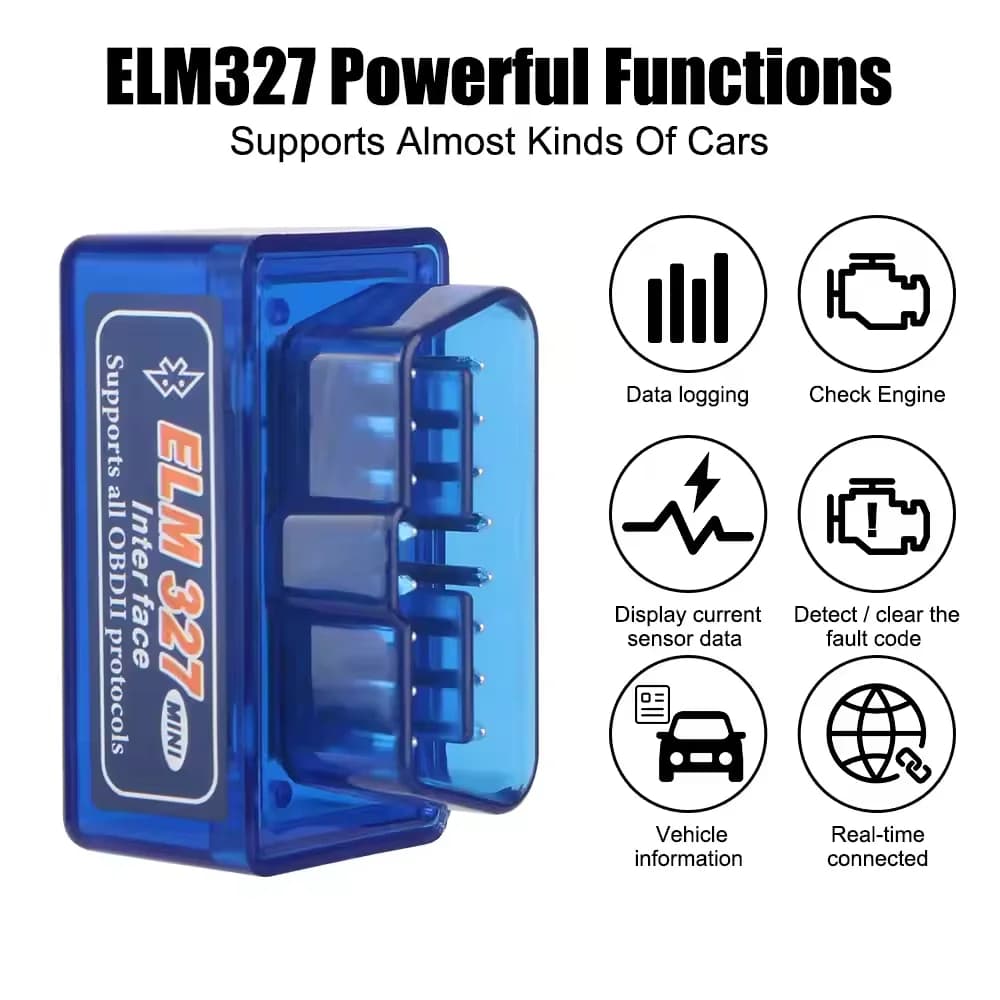

Mini Eml327 V2.1 OBD 2 Bluetooth Car Diagnostic-Tools For Android/Windows Scanner Code Support Smart Scan Tool ODB2 Scanner Tool

Notice This product supports OBD-II protocol models produced after 2002, including VPW,PWM,ISo,KWP2000,CAN protocol). The product can be connected to a laptop or desktop computer to read and understand the trouble code, clear the car's trouble code, display the sensor's data stream (such as speed, water temperature, etc.)

MINI ELM327 Bluetooth Version Features:

Works with all OBD-II compliant vehicles

Bluetooth

Software included for Palm, PDA

Software included for Windows PC

Software included for Windows Smartphone

Support for 7 protocol vehicles:

1、ISO 9141-2 (5 baud init, 10.4 kbaud)

2、ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

3、ISO 14230-4 KWP (fast init, 10.4 kbaud)

4、ISO 15765-4 CAN (11 bit ID, 500 kbaud)

5、ISO 15765-4 CAN (29 bit ID, 500 kbaud)

6、ISO 15765-4 CAN (11 bit ID, 250 kbaud)

7、ISO 15765-4 CAN (29 bit ID, 250 kbaud)

MINI ELM327 Bluetooth Version Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure
